超高压含硫天然气节流阀冲蚀磨损机制研究

doi:10.16265/j.cnki.issn1003-3033.2022.03.008

中国安全科学学报 ›› 2022, Vol. 32 ›› Issue (3): 58-64.doi: 10.16265/j.cnki.issn1003-3033.2022.03.008

超高压含硫天然气节流阀冲蚀磨损机制研究

贾文龙¹(), 李晓宇¹, 成婷婷², 罗召钱³, 徐嘉爽⁴, 韩西成⁵

¹西南石油大学石油与天然气工程学院,四川成都 610500
²中国石油天然气股份有限公司规划总院,北京 100083
³中国石油西南油气田公司川西北气矿,四川江油 621700
⁴中国石油工程建设有限公司西南分公司,四川成都610041
⁵汉正检测技术有限公司, 四川广汉 618300

收稿日期:2021-12-08 修回日期:2022-02-10 出版日期:2022-08-23 发布日期:2022-09-28
作者简介:
贾文龙 (1986—),男,湖北公安人,博士,教授,博士生导师,主要从事油气管道输送等方面的研究。E-mail: jiawenlong08@126.com。
贾文龙教授
基金资助:
国家自然科学基金面上项目资助(52074238); 国家自然科学基金面上项目资助(51974269); 四川省科技计划项目(2020YFSY0053); 四川省科技计划项目(2020YFH0141)

Study on erosion wear mechanism of choke valves at outlet of ultra-high pressure sour natural gas wells

JIA Wenlong¹(), LI Xiaoyu¹, CHENG Tingting², LUO Zhaoqian³, XU Jiashuang⁴, HAN Xicheng⁵

¹Petroleum Engineering School, Southwest Petroleum University, Chengdu Sichuan 610500, China
²PetroChina Planning & Engineering Institute, Beijing 100083, China
³Sichuan Northwest Gas Mine, PetroChina Southwest Oil & Gas Field Company, Jiangyou Sichuan 621700, China
⁴Southwest Branch Company, China Petroleum Engineering & Construction Corporation,Chengdu Sichuan 610041, China
⁵Hanzheng Testing Technology Co., Ltd,Guanghan Sichuan 618300, China

Received:2021-12-08 Revised:2022-02-10 Online:2022-08-23 Published:2022-09-28

摘要/Abstract

摘要：

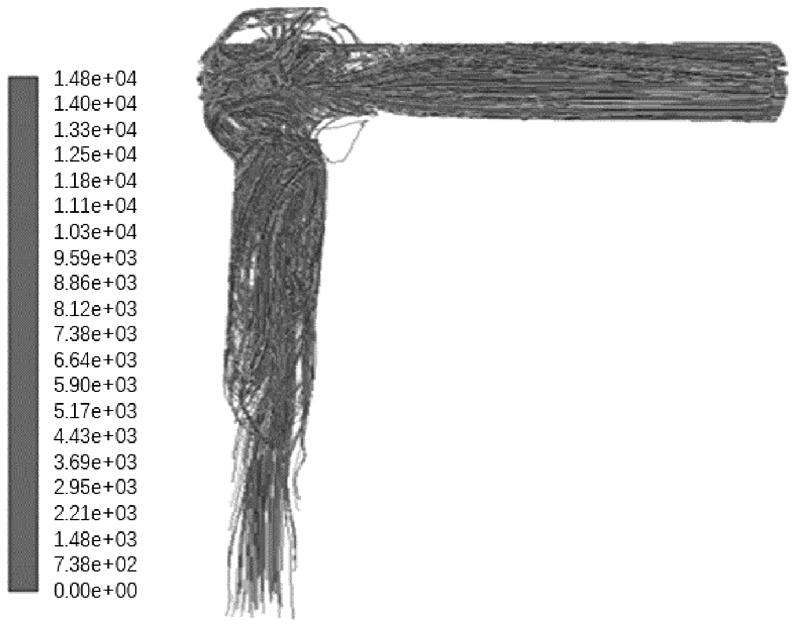

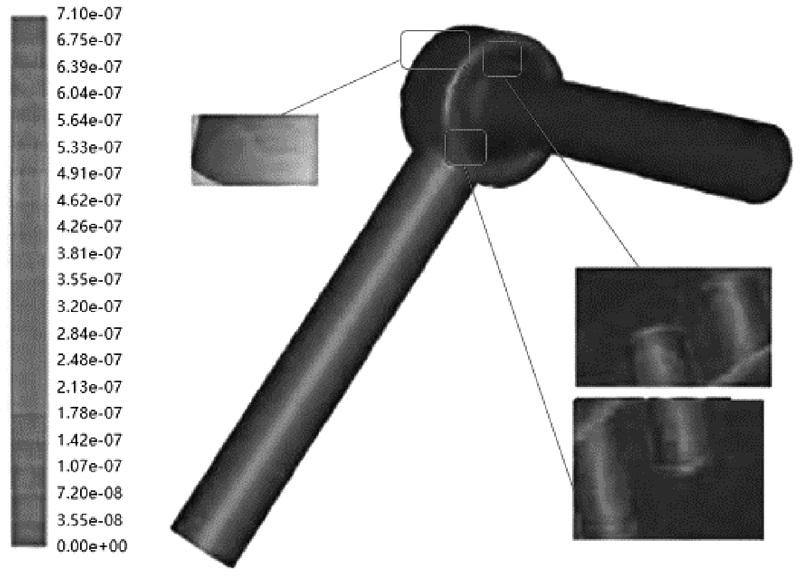

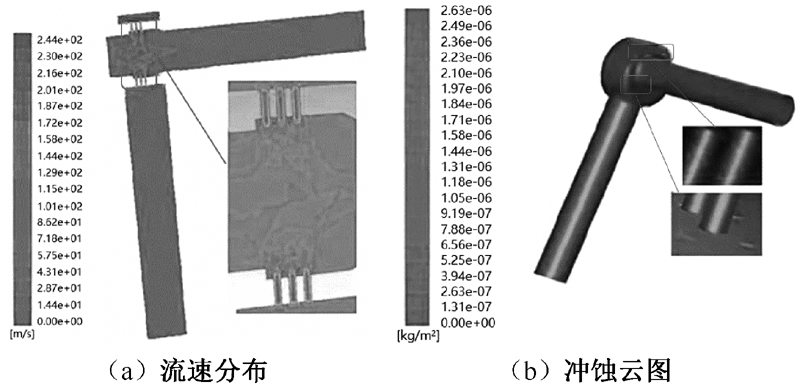

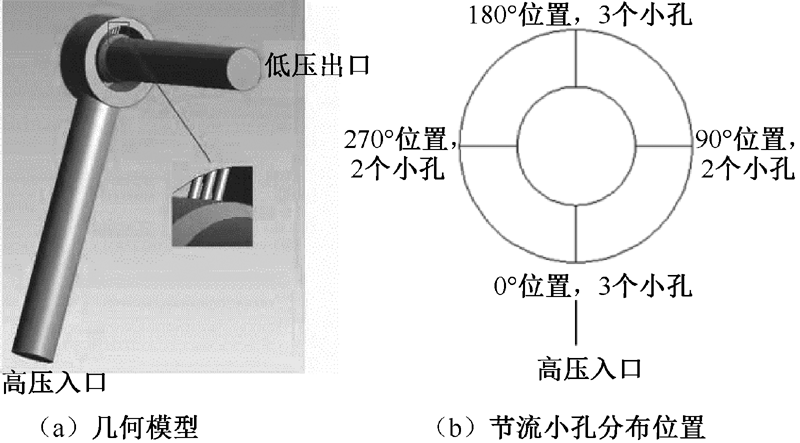

为保障超高压含硫天然气井安全运行,分析冲蚀磨损速率的影响因素;以压力高于70 MPa、 H₂S体积含量为0~2%的天然气井口笼套式节流阀为例,基于冲蚀磨损理论和Fluent软件,建立冲蚀模型。研究井口节流阀内固体颗粒的运动轨迹和磨损机制,并与实际情况进行对比。结果表明:固体颗粒在井口节流阀上游直管段部分时,冲蚀磨损可忽略不计;在节流阀180°小孔正对的阀腔壁面,冲蚀磨损最严重,但是下游磨损较小;阀腔下半圆弧部分磨损原理为二次冲蚀,直管段入口处和节流阀上半圆弧大多为微切削磨损;H₂S含量和流体的平均流速越大,冲蚀磨损越大,因此,可将天然气的流速控制在331 m/s以内。

关键词: 超高压, 含硫天然气, 节流阀, 冲蚀磨损, 运动轨迹

Abstract:

In order to ensure safe production and operation of ultra-high pressure sulfur-bearing natural gas wells, influencing factors of erosion wear rate were analyzed. Firstly, based on erosion wear theory and Fluent software, an erosion model was established by taking cage sleeve choke valves of natural gas wellheads with pressure above 70 MPa and H₂S volume content of 0-2% as an example. Then, motion track and wear mechanism of solid particles in the valves were studied and compared with actual situation. The results show that when these particles are in upstream straight pipe section of the valves, erosion wear can be ignored, but it will be the worst when they are at valve chamber wall directly opposite the 180° choke hole, and be mildly severe at downstream. The wear principle of lower half arc of valve cavity is secondary erosion, while semi-arc of straight section entrance and upper half arc of throttle valves are mostly micro cutting wear. It is also found that the higher the H₂S content and average flow rate are, the heavier erosion wear will be. Therefore, the flow rate of natural gas can be controlled within 331 m/s.

Key words: ultra-high pressure, sulfur-bearing natural gas, choke valve, erosion wear, motion track

贾文龙, 李晓宇, 成婷婷, 罗召钱, 徐嘉爽, 韩西成. 超高压含硫天然气节流阀冲蚀磨损机制研究[J]. 中国安全科学学报, 2022, 32(3): 58-64.

JIA Wenlong, LI Xiaoyu, CHENG Tingting, LUO Zhaoqian, XU Jiashuang, HAN Xicheng. Study on erosion wear mechanism of choke valves at outlet of ultra-high pressure sour natural gas wells[J]. China Safety Science Journal, 2022, 32(3): 58-64.

图/表 11

图1

图2

图3

图4

图5

图6

图7

图8

表1

图9

表2

参考文献 18

[1]	刘奇林, 唐瑜, 罗召钱, 等. 川西北地区超高压含硫气井安全地面集输工艺[J]. 天然气工业, 2017, 37(7):101-107.
	LIU Qilin, TANG Yu, LUO Zhaoqian, et al. The surface gathering and transportation technology suitable for ultrahigh pressuresulfur gas wells in the Northwestern Sichuan basin[J]. Natural Gas Industry, 2017, 37(7):101-107.
[2]	曹学文, 李星標, 樊茵, 等. 固体颗粒冲蚀理论与试验研究进展[J]. 油气储运, 2019, 38(3):251-257.
	CAO Xuewen, LI Xingbiao, FAN Yin, et al. Progress of theory and test studies on the erosionof solid particles[J]. Oil & Gas Storage and Transportation, 2019, 38(3):251-257.
[3]	AREFI B, SETTARI A, ANGMAN P. Analysis and simulation of erosion in drilling tools[J]. Wear, 2005, 259(1):263-270. doi: 10.1016/j.wear.2005.02.095
[4]	CHEN Xianghui, MCLAURY B S, SHIRAZI S A. Numerical and experimental investigation of the relative erosion severity between plugged tees and elbows in dilute gas/solid two-phase flow[J]. Wear, 2006, 261(7/8):715-729. doi: 10.1016/j.wear.2006.01.022
[5]	陈冠国, 褚秀萍, 张宏亮, 等. 关于冲蚀磨损问题[J]. 河北理工学院学报, 1997, 19(4):27-31.
	CHEN Guanguo, CHU Xiuping, ZHANG Hongliang, et al. Problem on erosion wear[J]. Journal of North China University of Science and Technology, 1997, 19(4):27-31.
[6]	孙军龙, 刘长霞, 马勇. B₄C/Ti B₂/Al₂O₃喷嘴冲蚀性能及其冲蚀机理[J]. 武汉理工大学学报, 2009, 31(20): 23-26.
	SUN Junlong, LIU Changxia, MA Yong. Erosion properties and mechanisms of B₄C/TiB₂/Al₂O₃ series nozzles[J]. Journal of Wuhan University of Technology, 2009, 31(20): 23-26.
[7]	董星, 段雄, 辛承梁. 矿井主通风机叶轮磨损失效的评价[J]. 中国安全科学学报, 2002, 12(2):35-39.
	DONG Xing, DUAN Xiong, XIN Chengliang. Deficiency evaluation on wear and tear of the impeller of the main ventilator in mine pit[J]. China Safety Science Journal, 2002, 12(2):35-39.
[8]	成芳, 易先中, 彭灼, 等. 页岩气压裂弯管中液固两相流冲蚀磨损的数值模拟[J]. 中国安全生产科学技术, 2019, 15(11):29-35.
	CHENG Fang, YI Xianzhong, PENG Zhuo, et al. Numerical simulation on erosion wear in shale gas fracturing bend pipe with liquid-solid two-phase flow[J]. Journal of Safety Science and Technology, 2019, 15(11):29-35.
[9]	孙世梅, 高小迪, 孙赫, 等. 天然气管道施工事故行为原因研究[J]. 中国安全科学学报, 2020, 30(6):8-13. doi: 10.16265/j.cnki.issn1003-3033.2020.06.002
	SUN Shimei, GAO Xiaodi, SUN He, et al. Study on causes of accidents in construction of natural gas pipelines[J]. China Safety Science Journal, 2020, 30(6):8-13. doi: 10.16265/j.cnki.issn1003-3033.2020.06.002
[10]	何乐平, 唐爽, 胡启军, 等. 综合管廊天然气泄漏扩散及监控方法优化研究[J]. 中国安全科学学报, 2019, 29(9):43-50. doi: 10.16265/j.cnki.issn1003-3033.2019.09.007
	HE Leping, TANG Shuang, HU Qijun, et al. Study on natural gas leakage and diffusion in utility tunnels and optimization of monitoring methods[J]. China Safety Science Journal, 2019, 29(9):43-50. doi: 10.16265/j.cnki.issn1003-3033.2019.09.007
[11]	黄小兵, 刘清友. 基于气体钻井工艺参数的钻具冲蚀模型[J]. 石油学报, 2012, 33(5):878-880. doi: 10.7623/syxb201205020
	HUANG Xiaobing, LIU Qingyou. An erosion model of drill string based on process parameters of gas drilling[J]. Acta Petrolei Sinica, 2012, 33(5):878-880.
[12]	ZOU Caineng, TAO Shizhen, HAN Wenxue, et al. Geological and geochemical characteristics and exploration prospect of coal-derived tight sandstone gas in china: case study of the ordos, sichuan, and tarim basins[J]. Acta Geologica Sinica:English Edition, 2018, 92(4):1609-1626. doi: 10.1111/1755-6724.13647
[13]	李向阳, 王浩亮, 冯鑫, 等. 多相反应器的非均相特性测量技术进展[J]. 化工进展, 2019, 38(1):45-71.
	LI Xiangyang, WANG Haoliang, FENG Xin, et al. Progresses in measurement technologies of heterogeneous characteristics in multiphase reactors[J]. Chemical Industry and Engineering Progress, 2019, 38(1):45-71.
[14]	LI Yuan, WANG Shaoping, TOMOVIC M M, et al. Erosion degradation characteristics of a linear electro-hydrostatic actuator under a high-frequency turbulent flow field[J]. Chinese Journal of Aeronautics, 2018, 31(5):914-926. doi: 10.1016/j.cja.2017.12.002
[15]	彭文山, 曹学文. 基于气-固双向耦合的输气管道最大冲蚀角度预测[J]. 天然气工业, 2016, 36(2):110-118.
	PENG Wenshan, CAO Xuewen. Prediction on the maximum erosion angle of gas pipelines based on the gas solid bidirectional coupling[J]. Natural Gas Industry, 2016, 36(2):110-118.
[16]	侯铎. 油井管环境敏感开裂适用性评价方法研究[D]. 成都: 西南石油大学,2013.
	HOU Duo. Study on applicability evaluation method of environment sensitive cracking of oil well pipe[D]. Chengdu: Southwest Petroleum University,2013.
[17]	刘佳亮, 司鹄, 张宏. 淹没状态下高压水射流破岩效率分析[J]. 中国安全科学学报, 2012, 22(11):23-29.
	LIU Jialiang, SI Hu, ZHANG Hong. Study on breaking rock efficiency of submerged water jet[J]. China Safety Science Journal, 2012, 22(11):23-29.
[18]	NOJOOMI E, HAJIZADEH S, MOGHADASI A S. Velocity limitation in pipelines while performing welltest operation, quality limitation regarding operational usage of relevant equipment[C]. The 1^st National Conference on Oil and Gad Fields Development,2015:33-36.

屈服强度/ MPa	腔内磨损情况	最大冲蚀磨损速率/ (10^-7kg·m^-2·s^-1)	平均冲蚀磨损速率/ (10^-7kg·m^-2·s^-1)
848	大多为均匀磨损	7.09	3.90
780	出现较多点蚀麻点	7.78	4.48
720	磨损面积、程度严重	8.24	5.04

节流小孔数量/个	腔内磨损情况	平均流速/ (m·s^-1)	平均磨损速率/ (kg·m^-2·s^-1)
10	轻微麻点磨损	215	1.8×10^-8
8	面积较小,基本为均匀磨损	260	2.62×10^-8
6	磨损较严重	354	3.41×10^-8
4	大面积磨损, 磨损严重	491	3.64×10^-8
