基于混合气体黏度的可燃气体浓度测量方法

doi:10.16265/j.cnki.issn1003-3033.2022.03.018

中国安全科学学报 ›› 2022, Vol. 32 ›› Issue (3): 131-136.doi: 10.16265/j.cnki.issn1003-3033.2022.03.018

基于混合气体黏度的可燃气体浓度测量方法

杨淞成¹(), 王纪哲¹, 王丽华¹, 张洪铭¹, 赵兰明¹^,²^,^**()

¹江苏海洋大学环境与化学工程学院,江苏连云港 222000
²中国科学技术大学火灾科学国家重点实验室,安徽合肥 230026

收稿日期:2021-12-09 修回日期:2022-02-12 出版日期:2022-08-23 发布日期:2022-09-28
通讯作者: 赵兰明
作者简介:
杨淞成 (1995—),男,浙江台州人,硕士研究生,研究方向为非选择性火灾气体探测技术。E-mail: schyang@163.com。
张洪铭讲师, 赵兰明讲师
基金资助:
火灾科学国家重点实验室开放课题项目(HZ2017-KF10); 江苏省自然科学基金资助(BK20201030); 江苏省高校自然科学研究面上项目(17KJB620001); 江苏省产学研合作项目(BY2021369)

Concentration measurement of combustible gas mixture based on gas viscosity

YANG Songcheng¹(), WANG Jizhe¹, WANG Lihua¹, ZHANG Hongming¹, ZHAO Lanming¹^,²^,^**()

¹School of Environmental and Chemical Engineering, Jiangsu Ocean University, Lianyungang Jiangsu 222000, China
²State Key Laboratory of Fire Science, University of Science and Technology of China, Hefei Anhui 230026, China

Received:2021-12-09 Revised:2022-02-12 Online:2022-08-23 Published:2022-09-28
Contact: ZHAO Lanming

摘要/Abstract

摘要：

为定量分析可燃气体组分,测量待测气体流经特制黏度传感部件后产生的压差响应信号,根据泊肃叶定律及混合气体黏度理论模型定量关系反演获得可燃气体体积分数,并利用不同体积分数H₂开展测量试验。结果表明:基于混合气体黏度理论关系,可利用测量压差拟合计算待测气体浓度值,且理论计算浓度与基准值之间绝对偏差不超过±1.0%;在气体样品体积分数大于15%时,整体测量相对误差不超过±3%;定量检验结果表明:该方法具有较高的准确性,能够准确分析可燃气体浓度。

关键词: 混合气体黏度, 可燃气体浓度, 测量方法, 泊肃叶定律, 气体压差

Abstract:

In order to make a quantitative analysis on gas composition, response signals of pressure drop generated by gas samples were measured after they flew through a specially designed viscosity sensor. Then, according to Poiseuille's Law and theoretical model of gas mixture viscosity, quantitative analysis was conducted to obtain concentration of combustible gas, and measurement experiments were carried out for different concentration of hydrogen. The results show that concentration of gas samples can be calculated by utilizing measured pressure drop based on theoretical relationship of mixed gas viscosity, and the absolute deviation between measurement results and benchmark concentration are no more than ±1.0 %. And the relative error is no more than ±3% when volume fraction is over 15%. It has been proved by the quantitative test results that the proposed method has a high accuracy and is capable of predicting volume fraction of combustible gas accurately.

Key words: gas mixture viscosity, combustible gas concentration, measurement method, Poiseuille's Law, gas pressure drop

杨淞成, 王纪哲, 王丽华, 张洪铭, 赵兰明. 基于混合气体黏度的可燃气体浓度测量方法[J]. 中国安全科学学报, 2022, 32(3): 131-136.

YANG Songcheng, WANG Jizhe, WANG Lihua, ZHANG Hongming, ZHAO Lanming. Concentration measurement of combustible gas mixture based on gas viscosity[J]. China Safety Science Journal, 2022, 32(3): 131-136.

图/表 8

图1

图2

图3

图4

图5

表1

图6

表2

参考文献 16

[1]	王志荣, 孙培培, 唐振华, 等. 密闭容器甲烷-空气混合物爆炸的尺寸效应[J]. 中国安全科学学报, 2021, 31(1):60-66. doi: 10.16265/j.cnki.issn 1003-3033.2021.01.009
	WANG Zhirong, SUN Peipei, TANG Zhenhua, et al. Size effect of methane-air mixture explosion in closed vessel[J]. China Safety Science Journal, 2021, 31(1):60-66. doi: 10.16265/j.cnki.issn 1003-3033.2021.01.009
[2]	任常兴, 张欣, 张琰, 等. 可燃气体及混合物爆炸极限影响特征研究[J]. 消防科学与技术, 2017, 36(11):1500-1503.
	REN Changxing, ZHANG Xin, ZHANG Yan, et al. Overview on the characteristics of explosion limits of gases and gas mixtures[J]. Fire Science and Technology, 2017, 36(11):1500-1503.
[3]	李祥春, 聂百胜, 杨春丽, 等. 瓦斯浓度对封闭空间内爆炸致灾性气体的影响[J]. 中国安全科学学报, 2016, 26(1):69-75.
	LI Xiangchun, NIE Baisheng, YANG Chunli, et al. Effect of gas concentration on disastrous gases produced by gas explosion in confined space[J]. China Safety Science Journal, 2016, 26(1):69-75.
[4]	何乐平, 唐爽, 胡启军, 等. 综合管廊天然气泄漏扩散及监控方法优化研究[J]. 中国安全科学学报, 2019, 29(9):43-50. doi: 10.16265/j.cnki.issn1003-3033.2019.09.007
	HE Leping, TANG Shuang, HU Qijun, et al. Study on natural gas leakage and diffusion in utility tunnels and optimization of monitoring methods[J]. China Safety Science Journal, 2019, 29(9):43-50. doi: 10.16265/j.cnki.issn1003-3033.2019.09.007
[5]	何永勃, 董玉珊, 雷建, 等. 飞机货舱火灾多传感器探测方法研究[J]. 中国安全科学学报, 2018, 28(5): 74-79. doi: 10.16265/j.cnki.issn1003-3033.2018.05.013
	HE Yongbo, DONG Yushan, LEI Jian, et al. Research on multi-sensor method for detecting aircraft cargo fire[J]. China Safety Science Journal, 2018, 28(5): 74-79. doi: 10.16265/j.cnki.issn1003-3033.2018.05.013
[6]	PANNEK C, TARANTIK K R, SCHMITT K, et al. Investigation of gasochromic rhodium complexes towards their reactivity to CO and integration into an optical gas sensor for fire gas detection[J]. Sensors (Basel), 2018, 18(7): DOI:10.3390/s18071994.
[7]	GUTMACHER D, HOEFER U, WÖLLENSTEIN J. Gas sensor technologies for fire detection[J]. Sensors and Actuators B: Chemical, 2012, 175:40-45. doi: 10.1016/j.snb.2011.11.053
[8]	蒋亚龙, 王进军, 祝玉泉. 光声光谱火灾气体探测系统[J]. 中国安全生产科学技术, 2012, 8(2):23-28.
	JIANG Yalong, WANG Jinjun, ZHU Yuquan. Fire gases detection system based on photoacoustic spectroscopy principle[J]. Journal of Safety Science and Technology, 2012, 8(2):23-28.
[9]	HOU Longfei, WANG Dan, DU Bingxuan, et al. Gas concentration detection via multi-channeled air sampling method[J]. Sensor Review, 2017, 37(2):187-195. doi: 10.1108/SR-12-2016-0266
[10]	杨淞成, 鲍玉朋, 赵兰明. 基于黏度特征气体探测识别方法实验研究[J]. 消防科学与技术, 2020, 39(2):243-246.
	YANG Songcheng, BAO Yupeng, ZHAO Lanming. Gas detection and identification method based on viscosity characteristic[J]. Fire Science and Technology, 2020, 39(2):243-246.
[11]	ZHAO Lanming, MA Xingming, FU Jiajia, et al. Improvable method of fire suppressant concentration measurement: an experimental validation[J]. Flow Measurement and Instrumentation, 2013, 30:75-80. doi: 10.1016/j.flowmeasinst.2013.01.002
[12]	GUAN Yu, LU Song, ZHANG Dan, et al. A fast and easily-realized concentration sensor for binary gas mixtures and its design analysis[J]. Sensors, 2018, 18(4): DOI :10.3390/s18041257.
[13]	SUTERA S P, SKALAK R. The history of Poiseuille's Law[J]. Annual Review of Fluid Mechanics, 1993, 25(1):1-19. doi: 10.1146/annurev.fl.25.010193.000245
[14]	魏凯丰, 宋少英, 张作群. 天然气混合气体粘度和雷诺数计算研究[J]. 计量学报, 2008, 29(3):248-250.
	WEI Kaifeng, SONG Shaoying, ZHANG Zuoqun. Research on calculation of natural mix gas viscosity and Reynolds number[J]. Acta Metrologica Sinica, 2008, 29(3):248-250.
[15]	马沛生. 化工数据[M]. 北京: 中国石化出版社, 2003:283-285.
[16]	万俊华. 流体分子理论及性质[M]. 哈尔滨: 哈尔滨工程大学出版社, 1994:370-372.

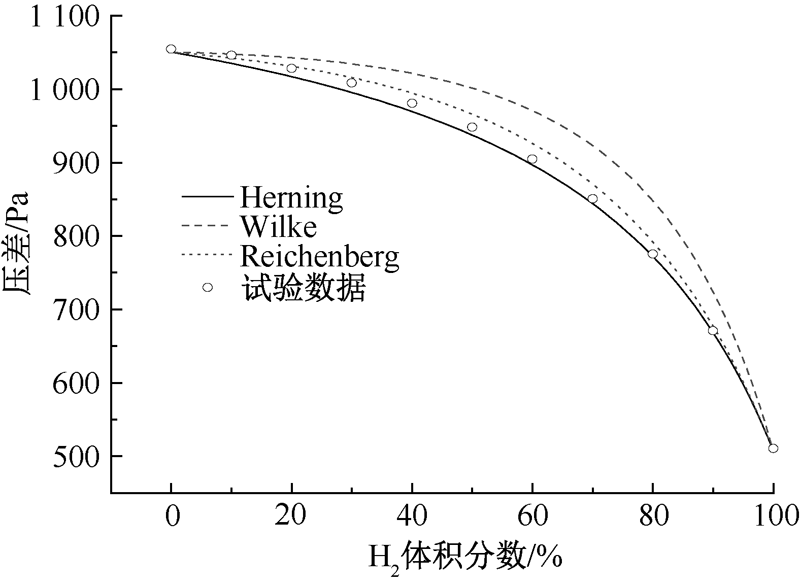

H₂体积分数/%	H₂-空气混合气体压差响应
H₂体积分数/%	25组测量数据平均值/Pa	相对标准偏差/%
0	1 054.2	0.31
10	1 045.8	0.29
20	1 028.1	0.22
30	1 008.4	0.29
40	980.7	0.23
50	948.0	0.28
60	904.8	0.28
70	850.7	0.30
80	775.3	0.28
90	670.8	0.36
100	510.7	0.34

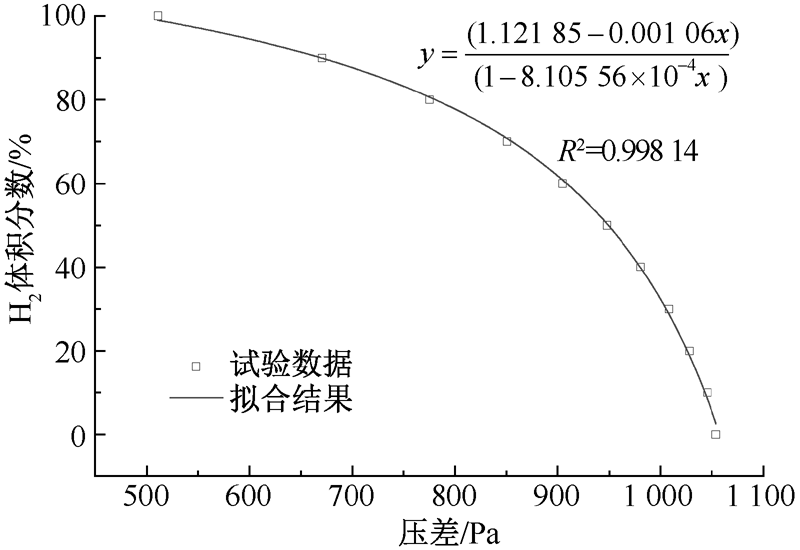

气样编号	基准体积分数/%	测量压差值/Pa	测量体积分数/%	绝对偏差/%	测量相对误差/%
1号	5	1 051.0	4.61	-0.39	-7.80
2号	15	1 034.1	15.38	0.38	2.53
3号	25	1 015.3	25.38	0.38	1.52
4号	35	994.5	34.60	-0.40	-1.14
5号	45	964.9	45.25	0.25	0.56
6号	55	931.1	54.84	-0.16	-0.29
7号	65	880.4	65.77	0.77	1.18
8号	75	816.1	75.79	0.79	1.05
9号	85	722.8	85.83	0.83	0.98
10号	95	594.1	94.86	-0.14	-0.15
