基于小孔节流原理的高楼逃生缓降器设计与仿真

doi:10.16265/j.cnki.issn1003-3033.2022.05.1184

中国安全科学学报 ›› 2022, Vol. 32 ›› Issue (5): 55-60.doi: 10.16265/j.cnki.issn1003-3033.2022.05.1184

基于小孔节流原理的高楼逃生缓降器设计与仿真

鲁义¹^,²(), 杨宇轩¹^,², 邵淑珍¹, 贺伟林², 王伟³, 颜晓雯¹

¹ 湖南科技大学资源环境与安全工程学院,湖南湘潭411201
² 湖南永霏特种防护用品有限公司,湖南湘潭411201
³ 应急管理部上海消防研究所,上海,200032

收稿日期:2021-12-10 修回日期:2022-03-26 出版日期:2022-05-28
作者简介:
鲁义 (1986—),男,江西新干人,博士,教授,博士生导师,主要从事火灾科学与技术方面的研究。E-mail: luyijx@163.com。
基金资助:
湖南省重点研发计划项目(2022GK2042); 湖湘青年英才项目(2020RC3047); 湖南省教育厅优秀青年项目(20B230); 上海市青年科技启明星计划(20QB1401000)

Design and simulation of high-rise escape descent device based on orifice throttling principle

LU Yi¹^,²(), YANG Yuxuan¹^,², SHAO Shuzhen¹, HE Weilin², WANG Wei³, YAN Xiaowen¹

¹ School of Resource Environment & Safety Engineering, Hunan University of Science and Technology, Xiangtan Hunan 411201, China
² Hunan Yourfield Special Protective Equipment Co., Ltd., Xiangtan Hunan 411201, China
³ Shanghai Fire Science and Technology Research Institute of MEM, Shanghai 200032, China

Received:2021-12-10 Revised:2022-03-26 Published:2022-05-28

摘要/Abstract

摘要：

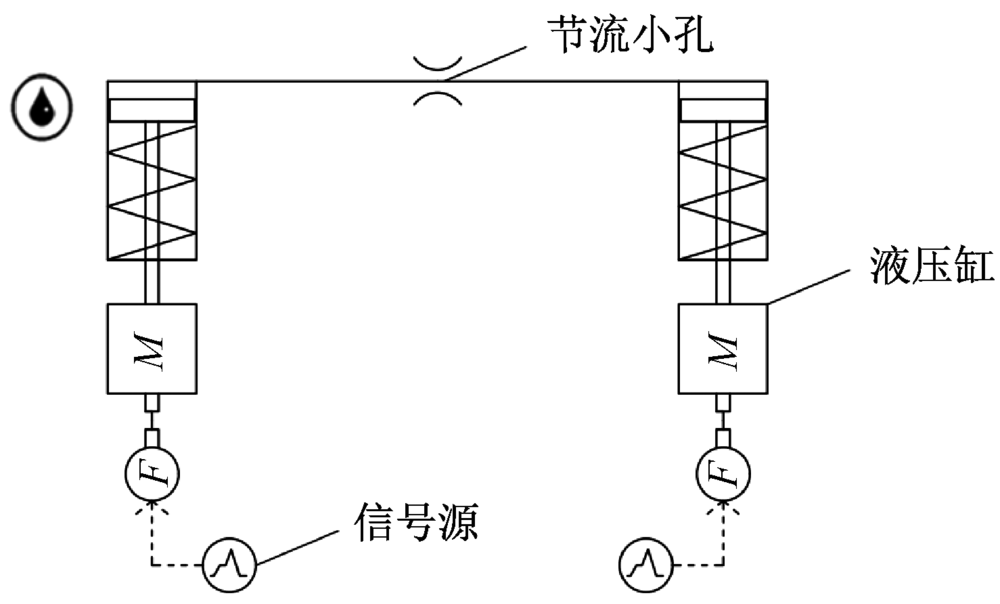

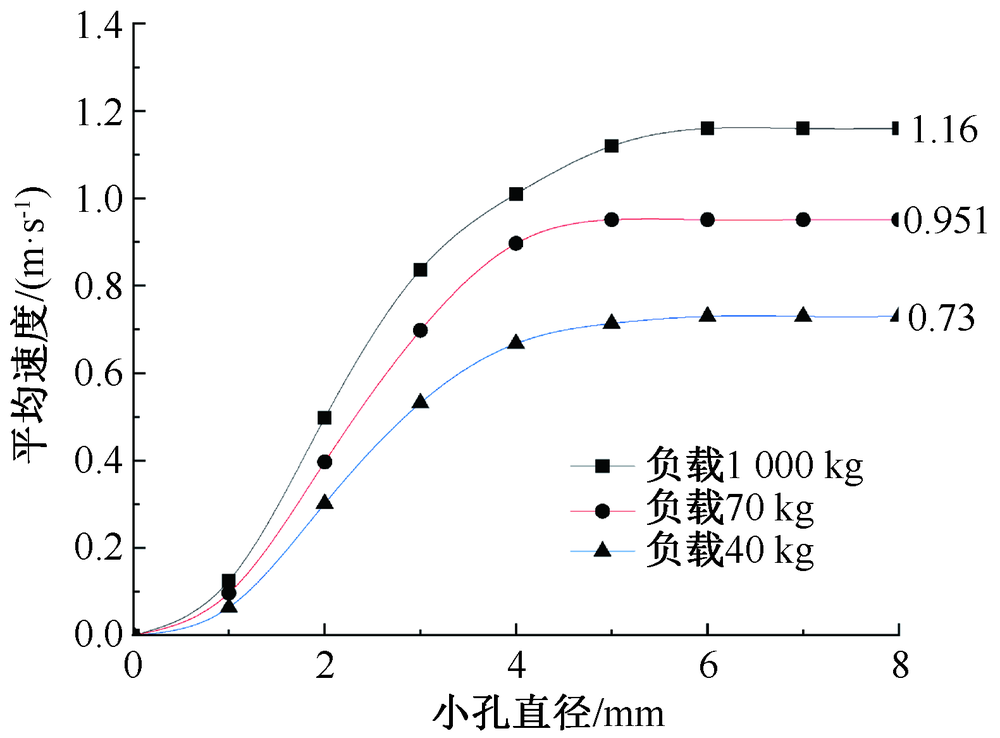

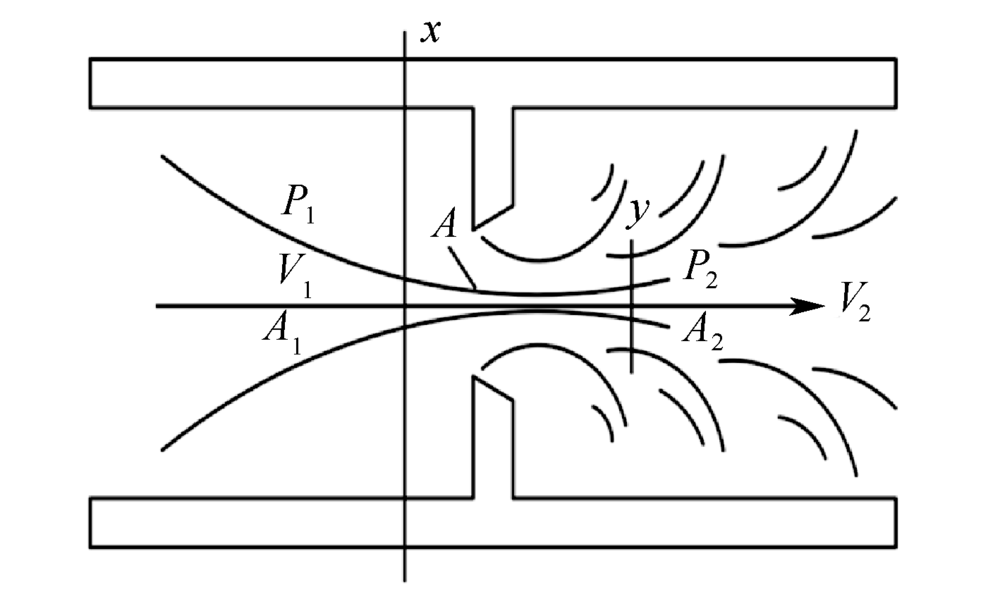

针对现有缓降器存在体积庞大、结构复杂、速度不可控等缺点,设计一款全新的可控速高楼逃生缓降器。首先,推导出缓降器的下降速度与节流小孔孔径之间的关系;然后,利用AMESim软件建立缓降器的动力学模型,仿真模拟不同负载、不同节流孔径下缓降器的下降速度;最后,仿真分析确定节流小孔通径安全调节范围,并通过调节串联在2液压缸之间的节流小孔孔径大小,达到变速缓降的目的。结果表明:该缓降器结构简单、体积小巧,使用者可根据逃生需求在节流孔径1~6 mm 内任意调节缓降器的下降速度,且速度不超过1.5 m/s。针对不同体重的使用对象,该缓降器的速度变化幅度始终趋于稳定,极大地提升了缓降器的适用性和安全性。

关键词: 小孔节流, 高楼逃生, 缓降器, 液压缸, 下降速度

Abstract:

In order to address shortcomings of existing descent devices, such as large volume, complex structure and uncontrollable speed, a new high-rise escape device with controllable speed was designed. Firstly, relationship between its descent speed and orifice diameter was deduced. Then, a dynamic model of the device was established by using AMESim software, and its descent speed was simulated under different loads and different throttling apertures. Finally, safe adjustment range of orifice diameter was determined through simulation analysis, and purpose of variable speed and slow descent was achieved by adjusting orifice diameter of throttle holes connected in series between two hydraulic cylinders. The results show that the new descent device features simple structure and small volume, allowing users to freely adjust its descent speed within throttling aperture of 1-6 mm according to escape demand, with a maximum speed of no more than 1.5 m/s. For objects with different weights, the speed change range always tends to be stable, which greatly improves applicability and safety of the descent device.

Key words: orifice throttling, high-rise escape, decent device, hydraulic cylinder, descending speed

鲁义, 杨宇轩, 邵淑珍, 贺伟林, 王伟, 颜晓雯. 基于小孔节流原理的高楼逃生缓降器设计与仿真[J]. 中国安全科学学报, 2022, 32(5): 55-60.

LU Yi, YANG Yuxuan, SHAO Shuzhen, HE Weilin, WANG Wei, YAN Xiaowen. Design and simulation of high-rise escape descent device based on orifice throttling principle[J]. China Safety Science Journal, 2022, 32(5): 55-60.

图/表 7

表1

图1

图2

图3

图4

表2

图5

参考文献 21

[1]	杨宇轩, 鲁义, 李敏, 等. 高空防坠落装置的使用现状及改进措施[J]. 安全, 2021, 42(3):51-54.
	YANG Yuxuan, LU Yi, LI Min, et al. Analysis on current application situation and improving measures of aerial fall protection equipment[J]. Safety & Security, 2021, 42(3):51-54.
[2]	杨立中, 叶开. 城市综合管廊消防标准及火灾研究综述[J]. 中国安全科学学报, 2021, 31(8):132-140. doi: 10.16265/j.cnki.issn1003-3033.2021.08.019
	YANG Lizhong, YE Kai. A review of research on fire safety codes and fire science in urban utility tunnels[J]. China Safety Science Journal, 2021, 31(8):132-140. doi: 10.16265/j.cnki.issn1003-3033.2021.08.019
[3]	李学美, 任伯帜, 刘新华. 城市高层建筑火灾消防及安全逃生策略研究[J]. 中国安全科学学报, 2009, 19(8):61-66.
	LI Xuemei, REN Bozhi, LIU Xinhua. Study on fire prevention and escape safety countermeasures of urban high-rise buildings[J]. China Safety Science Journal, 2009, 19(8):61-66.
[4]	王宇, 邢佳, 周盈彤. 不同温度下超高层建筑窗口火蔓延模拟分析[J]. 中国安全科学学报, 2021, 31(3):121-127. doi: 10.16265/j.cnki.issn1003-3033.2021.03.017
	WANG Yu, XING Jia, ZHOU Yingtong. Simulation analysis of window fire spread in super high-rise buildings under different temperatures[J]. China Safety Science Journal, 2021, 31(3):121-127. doi: 10.16265/j.cnki.issn1003-3033.2021.03.017
[5]	杨立兵, 张自忠, 郑海力, 等. 楼梯疏散中员工逃生能力分析[J]. 中国安全科学学报, 2012, 22(9):16-23.
	YANG Libing, ZHANG Zizhong, ZHENG Haili, et al. Analysis of personnel's abilities to escape with their life on staircase[J]. China Safety Science Journal, 2012, 22(9):16-23.
[6]	胡洪平, 祖文柱, 马德贵. 基于反馈原理的高楼逃生器[J]. 机械工程师, 2010(9):29-30.
	HU Hongping, ZU Wenzhu, MA Degui. The design of High-rise escape device based on velocity feedback[J]. Mechanical Engineer, 2010 (9): 29-30.
[7]	YANG Guanyou, LIU Xiaofei. Design of the control system for high-altitude descent control device[J]. Advances in Intelligent and Soft Computing, 2021, 149(2):1-7.
[8]	管国清, 王杰, 贾婧. 智能遥控新型高空救生缓降器设计[J]. 装备制造技术, 2013(1):29-31.
	GUAN Guoqing, WANG Jie, JIA Jing. Design of intelligent remote control new high altitude life-saving descent device[J]. Equipment Manufacturing Technology, 2013 (1): 29-31.
[9]	张文斌. 擒纵式缓降器的设计及仿真[D]. 银川: 宁夏大学, 2017.
	ZHANG Wenbin. The design and simulation of escapement device[D]. Yinchuan: Journal of Ningxia University, 2017.
[10]	姚燕生, 朱达荣, 吴振坤. 高层建筑火灾缓降逃生设备综述[J]. 安徽建筑工业学院学报:自然科学版, 2013, 21(4):41-45.
	YAO Yansheng, ZHU Darong, WU Zhenkun. A review of devices of fire descent escapes for high-rise building[J]. Journal of Anhui Institute of Architecture and Technology:Natural Science Edition, 2013, 21(4):41-45.
[11]	李同焕. 救生缓降器参数化分析及动力学研究[D]. 长春: 吉林大学, 2007.
	LI Tonghuan. Parametric analysis and kinetics research on lifesaving descending device[D]. Changchun: Journal of Jilin University, 2007.
[12]	王立杰, 宋飚, 黄平, 等. 液压阻尼式高楼救生装置设计[J]. 液压与气动, 2011, 35(2):44-46.
	WANG Lijie, SONG Biao, HANG Ping, et al. The design of hydraulic damp life-saving arrangement for high building[J]. Chinese Hydraulics & Pneumatics, 2011, 35(2):44-46.
[13]	韦建军. 离心摩擦式高楼逃生缓降器的研发[J]. 制造业自动化, 2012, 34(4):90-92.
	WEI Jianjun. Research and produce of tower escape apparatus with centrifugal friction[J]. Manufacturing Automation, 2012, 34(4):90-92.
[14]	许鹏. 高楼逃生器仿真优化设计[D]. 长沙: 湖南大学, 2013.
	XU Peng. Simulation and optimization design of high-rise escape device[D]. Changsha: Hunan University, 2013.
[15]	王开宝. 基于擒纵原理救生缓降器研制与关键技术研究[D]. 长春: 吉林大学, 2016.
	WANG Kaibao. Development and research on key technology of descent rescue device based on escapement principle[D]. Changchun: Jilin University, 2016.
[16]	叶强, 杨谊昌, 张国欣, 等. 液体流动阻尼式高楼逃生器的创新设计[J]. 消防科学与技术, 2005, 24(2):210-212.
	YE Qiang, YANG Yichang, ZHANG Guoxin, et al. Creative design of tower escape apparatus with the principle of hydraulic damp[J]. Fire Science and Technology, 2005, 24(2):210-212.
[17]	兰杰, 许颖. 一种液压阻尼式高楼逃生装置的设计[J]. 机械工程师, 2013(5):30-31.
	LAN Jie, XU Ying. Design of hydraulic damping high-building escape device[J]. Mechanical Engineer, 2013(5):30-31.
[18]	邱振宇, 曲相燕, 牟晓蕾. 一种基于液压节流原理控速的高层逃生缓降装置设计[J]. 机械工程师, 2017(5):47-49.
	QIU Zhenyu, QU Xiangyan, MOU Xiaolei. Design of a high-rise escape descending lifeline based on hydraulic throttle principle[J]. Mechanical Engineer, 2017(5):47-49.
[19]	刘伟, 赵锬鸿. 基于AMESim的液压回油节流调速回路建模与仿真[J]. 机械工程与自动化, 2016(2):69-70,73.
	LIU Wei, ZHAO Tanhong. Hydraulic meter-out circuit modeling and simulation based on AMESim[J]. Mechanical Engineering & Automation, 2016(2):69-70,73.
[20]	曹传剑, 曹爱霞, 张华涛, 等. 基于AMESim的液压阻尼缓降器仿真研究[J]. 机床与液压, 2016, 44(8):87-88,102.
	CAO Chuanjian, CAO Aixia, ZHANG Huatao, et al. Simulation of hydraulic damping descent control device based on AMESim[J]. Machine Tool & Hydraulic, 2016, 44(8):87-88,102.
[21]	兰自勉, 钟清. 一种逃生液压缓降器的设计[J]. 液压与气动, 2011(12):7-8.
	LAN Zimian, ZHONG Qing. Design of descent rercue device with hydraulic[J]. Chinese Hydraulics & Pneumatics, 2011(12):7-8.

缓降器类别	能量转化	优点	缺点
液压阻尼式	重力势能—内能	安全耐用、运行平稳、价格低廉	体积庞大、使用不方便
摩擦制动式	重力势能—内能	制动效率高、体积小、安装方便	速度不可控、制动零件易受损、噪音较大
电磁阻尼式	重力势能—电能	噪声小、速度可控	价格昂贵、结构复杂、维护不方便
擒纵式	重力势能—内能	结构简单、维护方便	噪音较大、不能重复使用、对受力要求高

基于小孔节流原理的高楼逃生缓降器设计与仿真

Design and simulation of high-rise escape descent device based on orifice throttling principle

RichHTML

PDF

可视化

摘要/Abstract

引用本文

使用本文

图/表 7

参考文献 21

相关文章 0

编辑推荐

Metrics

本文评价

负载/kg	孔径/mm	位移/mm	时间/s
100	1	20	2.51
100	2	20	0.63
100	3	20	0.35
100	4	20	0.31
100	5	20	0.28
100	6	20	0.27
100	7	20	0.27
100	8	20	027
