某高原螺旋施工隧道CO分布及扩散特征

doi:10.16265/j.cnki.issn1003-3033.2022.12.0110

摘要/Abstract

摘要：

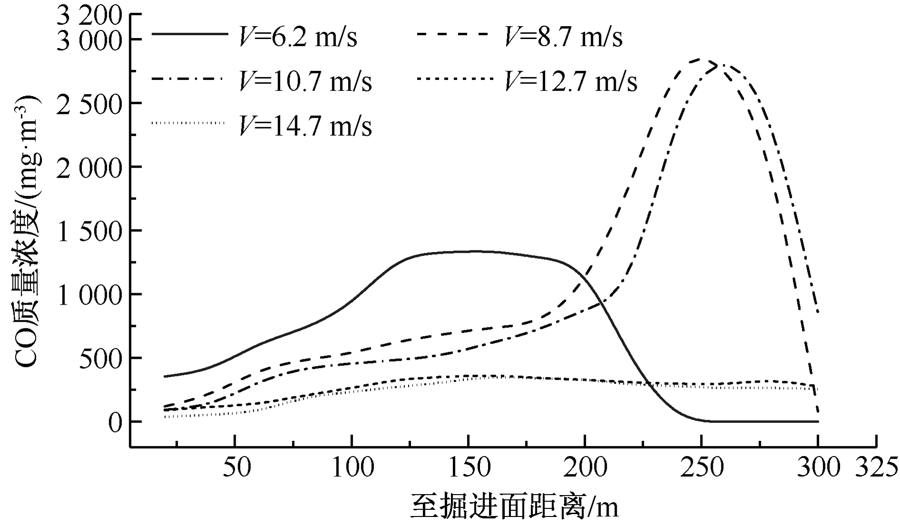

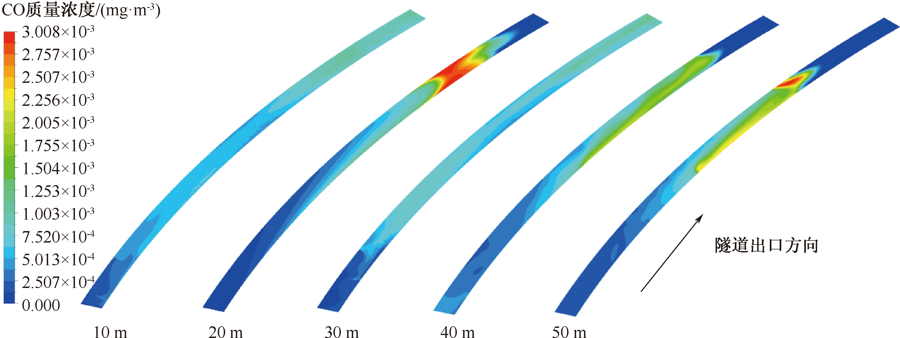

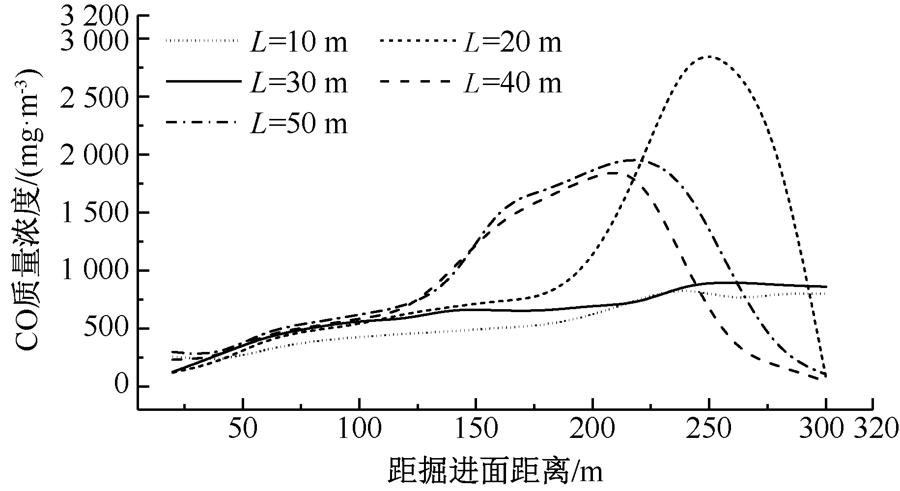

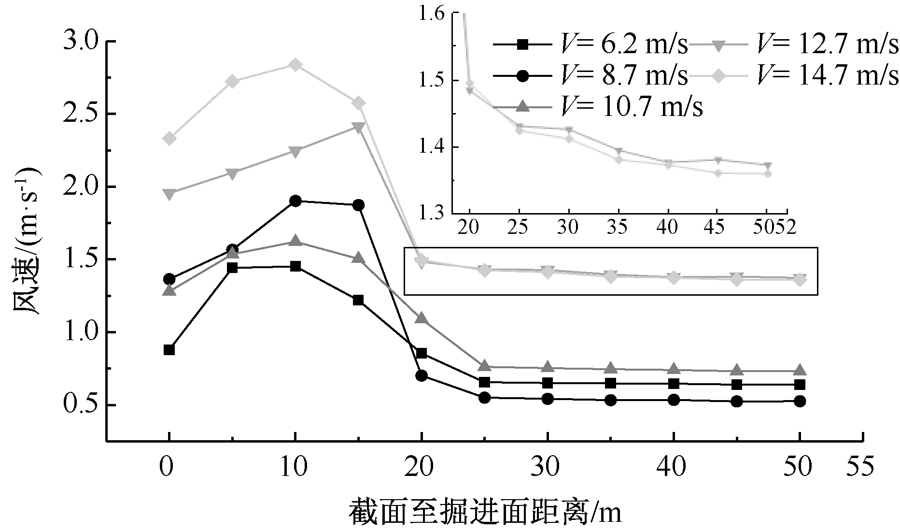

为探究某高原螺旋施工隧道内风流场分布情况及CO运移特征,提升隧道掘进面施工环境空气质量,以流体控制方程和组分运输模型为基础,运用Ansys Fluent流体仿真软件,以送风风速、掘进面与风筒口之间的距离为影响因素,模拟多个工况下的风流场和CO分布特征,并建立一种适用于测算高原螺旋施工隧道内CO质量浓度的多元线性回归模型。结果表明:沿隧道出口方向,隧道断面的平均风速在风筒口前方先增大后减小,在风筒口后方逐步趋于稳定;当掘进面与风筒口之间距离超过30 m时,射流末端和风筒口前端2个区域容易形成明显的涡流;CO质量浓度分布受风速和距离的影响呈现出“中间低,两边高”和“左低右高,上低下高”2种分布特征;隧道内不同时刻、不同截面上的CO质量浓度可按多元线性回归模型测算。

关键词: 高原地区, 螺旋施工隧道, CO质量浓度, 掘进面, 风流场

Abstract:

In order to explore the air flow field distribution and CO migration characteristics in a spiral construction tunnel on the plateau and improve the ambient air quality of the excavation face in the construction tunnel, Ansys Fluent was used for fluid simulation based on fluid governing equations and component transport models. The characteristics of the airflow field and CO distribution under multiple working conditions were simulated by taking the air speed of supply wind and the distance between the excavation face and air duct as the influencing factors, and a multiple linear regression model was established for the calculation of CO mass concentration in the spiral construction tunnel on the plateau. The results show that the average wind speed of the cross-section first increases and then decreases in front of the air duct, and gradually becomes stable behind the air duct along the tunnel exit direction. When the distance between the excavation face and the air duct exceeds 30 m, the two regions of the jet end and the front of the air duct mouth are easy to form an obvious vortex. The CO concentration presents two distribution characteristics: "low in the middle, high on both sides" and "low on the left and high on the right, low on the top and high on the bottom" with the influence of wind speed and distance. The CO mass concentration at different times and sections in the tunnel can be calculated by multiple linear regression model.

Key words: plateau section, spiral construction tunnel, CO mass concentration, excavation face, airflow field

刘杰, 周皓文, 王婉青, 张悦, 赵湖云. 某高原螺旋施工隧道CO分布及扩散特征[J]. 中国安全科学学报, 2022, 32(12): 79-87.

LIU Jie, ZHOU Haowen, WANG Wanqing, ZHANG Yue, ZHAO Huyun. Study on CO distribution and diffusion in spiral construction tunnel on plateau[J]. China Safety Science Journal, 2022, 32(12): 79-87.

图/表 12

表1

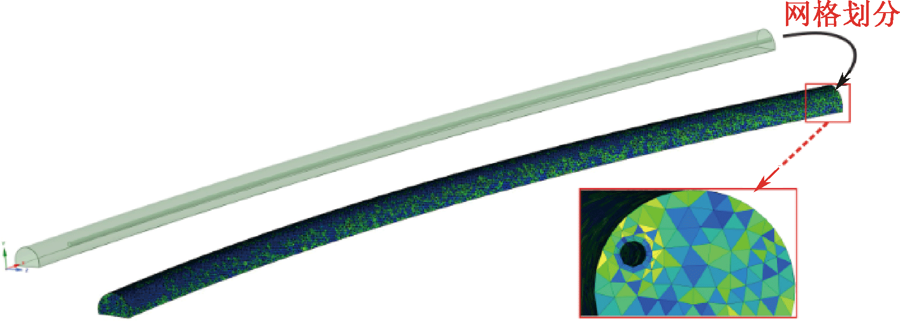

图1

表2

图2

图3

图4

图5

图6

图7

图8

图9

表3

参考文献 20

[1]	严涛, 包逸帆, 秦鹏程, 等. 高海拔隧道施工通风及供氧关键参数研究综述[J]. 现代隧道技术, 2019, 56(增2): 572-577.
	YAN Tao, BAO Yifan, QIN Pengcheng, et al. Review on key parameters of ventilation and oxygen supply in high-altitude tunnel construction[J]. Modern Tunnelling Technology, 2019, 56(S2): 572-577.
[2]	谌桂舟, 陈政, 琚国全, 等. 高海拔隧道施工劳动强度与供氧浓度关系研究[J]. 现代隧道技术, 2022, 59(1): 118-123.
	CHEN Guizhou, CHEN Zheng, JU Guoquan, et al. Study on relationship between labor intensity and oxygen concentration in high-altitude tunnel construction[J]. Modern Tunnelling Technology, 2022, 59(1): 118-123.
[3]	高峰, 唐宇辰, 张根思, 等. 高原区螺旋隧道CO运移规律研究[J]. 重庆交通大学学报:自然科学版, 2020, 39(6): 66-72,80.
	GAO Feng, TANG Yuchen, ZHANG Gensi, et al. CO migration law of spiral tunnel in plateau area[J]. Journal of Chongqing Jiaotong University:Natural Science, 2020, 39(6): 66-72,80.
[4]	SASMITO A P, BIRGERSSON E, LY H C, et al. Some approaches to improve ventilation system in underground coal mines environment:acomputational fluid dynamic study[J]. Tunnelling and Underground Space Technology Incorporating Trenchless Technology Research, 2013, 34:82-95.
[5]	宋莹, 刘剑, 李雪冰, 等. 矿井巷道风流平均风速分布规律的试验与模拟研究[J]. 中国安全科学学报, 2016, 26(6): 146-151.
	SONG Ying, LIU Jian, LI Xuebing, et al. Experiment and numerical simulation of average wind speed distribution law of airflow in mine tunnel[J]. China Safety Science Journal, 2016, 26(6): 146-151.
[6]	姜婉, 魏建平, 徐向宇. 基于相似理论的掘进巷道流场结构分析[J]. 中国安全科学学报, 2018, 28(8): 142-148. doi: 10.16265/j.cnki.issn1003-3033.2018.08.024
	JIANG Wan, WEI Jianping, XU Xiangyu. Analysis of structure of flow field in tunneling road based on similarity theory[J]. China Safety Science Journal, 2018, 28(8): 142-148. doi: 10.16265/j.cnki.issn1003-3033.2018.08.024
[7]	谭聪, 蒋仲安, 王明, 等. 综放工作面多尘源粉尘扩散规律的相似实验[J]. 煤炭学报, 2015, 40(1): 122-127.
	TAN Cong, JIANG Zhongan, WANG Ming, et al. Similarity experiment on multi-source dust diffusion law in fully mechanized caving face[J]. Journal of China Coal Society, 2015, 40(1): 122-127.
[8]	丁厚成, 权萌萌, 时训先, 等. 钻爆法施工隧道炮烟运移规律数值模拟研究[J]. 中国安全生产科学技术, 2020, 16(4): 82-87.
	DING Houcheng, QUAN Mengmeng, SHI Xunxian, et al. Study on numerical simulation of blasting fume migration laws in tunnel with drilling and blasting construction[J]. Journal of Safety Science and Technology, 2020, 16(4): 82-87.
[9]	张辛亥, 尚治州, 冯振, 等. 大采高综采工作面风流-呼吸带粉尘分布数值模拟[J]. 安全与环境学报, 2021, 21(2): 570-575.
	ZHANG Xinhai, SHANG Zhizhou, FENG Zhen, et al. Numerical simulation of the distribution of airflow and dust in respiratory zone at fully mechanized mining face with large mining height[J]. Journal of Safety and Environment, 2021, 21(2): 570-575.
[10]	叶勇军, 江俊廷, 丁德馨, 等. 独头巷道爆破后氡及炮烟的运移规律[J]. 中国安全科学学报, 2015, 25(5): 131-137.
	YE Yongjun, JIANG Junting, DING Dexin, et al. Transport of radon and blasting-fume in blind roadway with exhaust ventilation after blasting[J]. China Safety Science Journal, 2015, 25(5): 131-137.
[11]	叶勇军, 王立恒, 丁德馨, 等. 压抽混合式通风独头巷道内氡及氡子体浓度的计算模型及其分布规律研究[J]. 核科学与工程, 2014, 34(2): 219-227.
	YE Yongjun, WANG Liheng, DING Dexin, et al. Study on calculation models and distribution rules of the radon concentration and its progenies concentration in blind roadway with forced-exhaust ventilation[J]. Nuclear Science and Engineering, 2014, 34(2): 219-227.
[12]	曹正卯, 杨其新, 郭春. 高海拔地区铁路隧道施工期有害气体运移特性[J]. 中南大学学报:自然科学版, 2016, 47(11): 3948-3957.
	CAO Zhengmao, YANG Qixin, GUO Chun. Migration characteristics of poisonous gas during construction stage in railway tunnels at high altitude areas[J]. Journal of Central South University:Science and Technology, 2016, 47(11): 3948-3957.
[13]	海拔高度与温度变化的换算方法[J]. 四川果树资料汇编, 1979(1): 51.
[14]	杨立新, 洪开荣, 刘招伟, 等. 现代隧道施工通风技术[M]. 北京: 人民交通出版社, 2012: 161-162.
[15]	宋中强. 坡度与曲率对在建螺旋隧道内污染物扩散特性的影响研究[D]. 重庆: 重庆大学, 2019.
	SONG Zhongqiang. Study on the influence of slope and curvature on the diffusion characteristics of pollutants in a spiral tunnel under construction[D]. Chongqing: Chongqing University, 2019.
[16]	孙忠强. 公路隧道钻爆法施工粉尘运移规律及控制技术研究[D]. 北京: 北京科技大学, 2015.
	SUN Zhongqiang. Study on dust migration regularity and control technology in drilling and blasting method of highway tunnel construction[D]. Beijing: University of Science and Technology Beijing, 2015.
[17]	孙忠强, 方宝君. 大断面公路隧道施工风流分布规律研究[J]. 中国安全生产科学技术, 2016, 12(2): 154-158.
	SUN Zhongqiang, FANG Baojun. Study on airflow distribution regularities in construction of large section highway tunnel[J]. Journal of Safety Science and Technology, 2016, 12(2): 154-158.
[18]	吴波, 陈辉浩, 黄惟. 铁路隧道压入式通风流场分析及施工参数优化[J]. 科学技术与工程, 2021, 21(7): 2922-2928.
	WU Bo, CHEN Huihao, HUANG Wei. Analysis of forced ventilation flow field in railway tunnel and optimization of construction parameters[J]. Science Technology and Engineering, 2021, 21(7): 2922-2928.
[19]	张念, 谭忠盛. 高海拔特长铁路隧道火灾烟气分布特性数值模拟研究[J]. 中国安全科学学报, 2013, 23(6): 52-57.
	ZHANG Nian, TAN Zhongsheng. Numerical simulation study on smoke distribution of fire in high-altitude super-long railway tunnels[J]. China Safety Science Journal, 2013, 23(6): 52-57.
[20]	LIU Jie, ZHOU Haowen, WANG Wanqing, et al. Study of the diffusion Law of harmful Gases in tunnel construction on plateaus and optimization of ventilation parameters[J]. ACS Omega, 2022, 7(31): 27 135-27 148.

模型参数	设置
求解器	Pressure-Based
时间	Transient
空气密度/(kg·m^-3)	0.9
温度/℃	19.6
炮烟抛掷长度/m	62
CO初始质量浓度/(kg·m^-3)	0.003 1

编号	c_i	v_i	l_i	t_i
1	1 648	1.566	5	1
2	1 087	1.902	10	3
3	724.6	1.874	15	6
4	310	0.702	20	9
5	163.2	0.55	25	12
6	120	0.542	30	15
7	90	0.533	35	18
8	72	0.535	40	21
9	46	0.524	45	24
10	18	0.526	50	27
总和	4 278.8	9.254	275	136
