火灾探测器抗电磁干扰技术专利分析

doi:10.16265/j.cnki.issn1003-3033.2022.S1.0271

中国安全科学学报 ›› 2022, Vol. 32 ›› Issue (S1): 90-95.doi: 10.16265/j.cnki.issn1003-3033.2022.S1.0271

火灾探测器抗电磁干扰技术专利分析

张慧卿¹(), 杨凯², 朱冬香¹

¹ 北京化工大学图书馆, 北京 100029
² 中国电力科学研究院有限公司, 北京 100192

收稿日期:2022-01-13 修回日期:2022-05-04 出版日期:2022-06-30 发布日期:2022-12-30
作者简介:
张慧卿 (1977—),女,山东招远人,博士,副研究馆员,主要从事知识产权信息服务、科技查新等方面的研究。E-mail: zhqbit@126.com。
杨凯教授级高级工程师
朱冬香副研究员
基金资助:
中央高校基本科研业务费2022年科研管理创新项目(KY2203); 中央高校基本科研业务费2022年科研管理创新项目(KY2204)

Patent analysis of anti-electromagnetic interference technology of fire detector

ZHANG Huiqing¹(), YANG Kai², ZHU Dongxiang¹

¹ Library, Beijing University of Chemical Technology, Beijing 100029, China
² China Electric Power Research Institute, Beijing 100192, China

Received:2022-01-13 Revised:2022-05-04 Online:2022-06-30 Published:2022-12-30

摘要/Abstract

摘要：

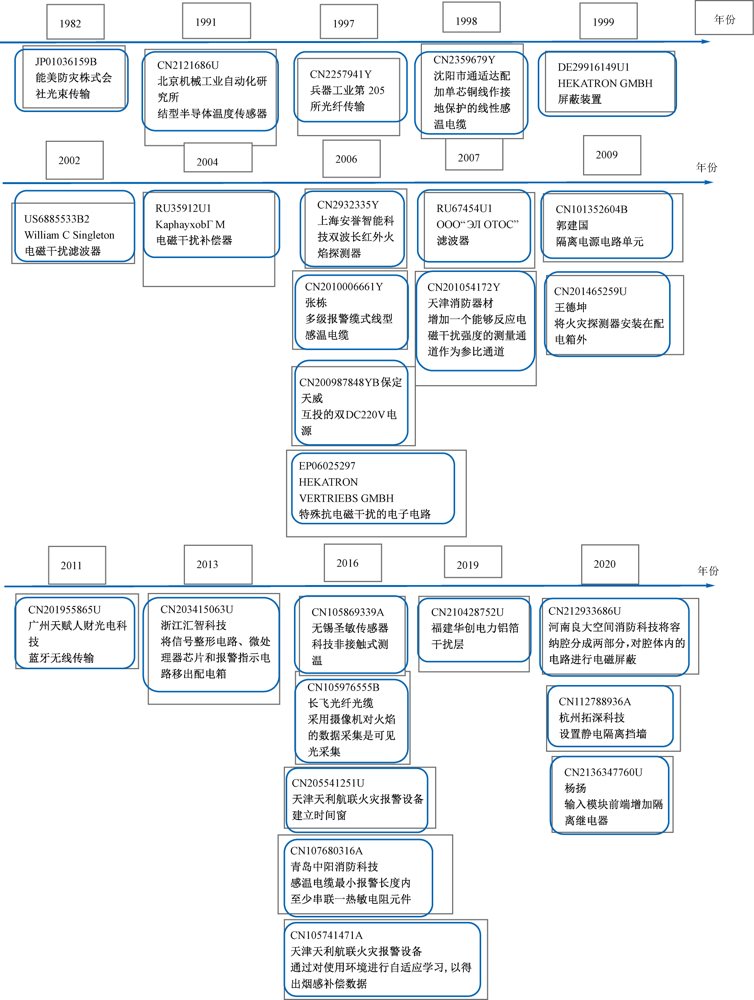

为启发研究者在火灾探测器抗电磁干扰技术领域研究的新思路,采用incoPat专利检索和专利分析系统,检索与分析火灾探测器抗电磁干扰技术相关专利,总结和梳理技术分类和发展脉络。研究结果表明:继1978年前苏联的Predpriyatie P/YA A 7449公司提出火灾探测器抗电磁干扰问题后,1982年日本能美防灾株式会社采用光束传输技术来解决电磁干扰问题,之后又相继出现了特殊功能传感器、特殊功能电缆、屏蔽装置等多种技术专利。该技术领域专利中,以我国申请人为主,但国内专利运营转化率并不高,国外专利虽然数量不多,但运营转化率较高。

关键词: 火灾探测器, 电磁干扰, 专利分析, 专利技术, 专利运营

Abstract:

In order to inspire researchers to study new ideas in the field of anti-electromagnetic interference technology of fire detectors, the patents of the anti-electromagnetic interference technology were retrieved and analyzed using incoPat, and the classification and development contexts of this technology were summarized. The results show that since the issue of anti-electromagnetic interference for fire detectors was first put forward by Predpriyatie P/YA A 7449 company of the former Soviet Union in 1978, beam transmission technology was first adopted to solve this issue by Nohmi Bosai Kogyo Co. Ltd. of Japan in 1982. Later, many technologies, such as special function sensors, special function cables and shielding devices, were developed. Among the patents in this technical field, Chinese applicants are the main ones, but the operation conversion rate of these patents in our country is very low. In contrast, the operation conversion rate of foreign patents is high, although low in the numbers of their patents.

Key words: fire detector, electromagnetic interference, patent analysis, patent technology, patent operation

张慧卿, 杨凯, 朱冬香. 火灾探测器抗电磁干扰技术专利分析[J]. 中国安全科学学报, 2022, 32(S1): 90-95.

ZHANG Huiqing, YANG Kai, ZHU Dongxiang. Patent analysis of anti-electromagnetic interference technology of fire detector[J]. China Safety Science Journal, 2022, 32(S1): 90-95.

图/表 3

参考文献 25

[1]	施志成, 周勇, 程旭东. 基于不对称比的火灾烟雾探测器散射角优化[J]. 中国安全科学学报, 2022, 32(4): 107-112. doi: 10.16265/j.cnki.issn1003-3033.2022.04.016
	SHI Zhicheng, ZHOU Yong, CHENG Xudong. Optimization of scattering angle for fire smoke detectors based on asymmetry ratio[J]. China Safety Science Journal, 2022, 32(4): 107-112. doi: 10.16265/j.cnki.issn1003-3033.2022.04.016
[2]	张森. 一种点型光纤感温火灾探测器的研究[J]. 消防科学与技术, 2021, 40(4): 551-553,565.
	ZHANG Sen. Research on a new point type optical fiber heat fire detector[J]. Fire Science and Technology. 2021, 40(4): 551-553,565.
[3]	刘建翔, 李明强, 李绍鹏. 三波段红外火焰探测器电磁抗干扰设计[J]. 消防科学与技术, 2013, 32(9): 992-994.
	LIU Jianxiang, LI Mingqiang, LI Shaopeng. Electromagnetic anti-interference design of triple IR flame detector[J]. Fire Science and Technology, 2013, 32(9): 992-994.
[4]	李聪, 周勇. 锂离子电池火灾烟雾不对称比研究[J]. 中国安全科学学报, 2022, 32(4): 93-98. doi: 10.16265/j.cnki.issn1003-3033.2022.04.014
	LI Cong, ZHOU Yong. Study on asymmetry ratio of Li-ion battery fire smoke[J]. China Safety Science Journal, 2022, 32(4): 93-98. doi: 10.16265/j.cnki.issn1003-3033.2022.04.014
[5]	谢启源, 袁宏永, 吴龙标, 等. 潮湿引起感烟火灾探测器误报研究[J]. 中国安全科学学报, 2004, 14(1): 84-87.
	XIE Qiyuan, YUAN Hongyong, WU Longbiao, et al. Study on the false alarms of smoke detector caused by moisture[J]. China Safety Science Journal, 2004, 14(1): 84-87.
[6]	MATOBA K. Japan: JP01036159B[P]. 1989-07-28.
[7]	WILLIAM C S, SCOTT C W. Electromagnetic protector application circuit: America, US6885533B2[P]. 2005-04-26.
[8]	FI LIPPOV A N, SHCHANITSYN A I, KANAVIN V V. Fire smoke detector: Russia, SU960879A1[P]. 1982-09-23.
[9]	张开逊. 偶对称组合半导体结型温度传感器:中国, CN2121686U[P]. 1992-11-11.
[10]	朱铭桂. 电枢环火报警器:中国, CN2257941Y[P].1997-07-16.
[11]	张陈, 王文江, 曾学义, 等. 线型感温电缆:中国, CN2359679Y[P]. 2000-01-19.
[12]	HEKATRON GMBH. Fire reporting device: Germany, DE29916149U1[P]. 2001-03-01.
[13]	КАРНАУХОВ Г M, КАРНАУХОВА Е A, КАРНАУХОВА Ю Г. Integral-D fire smoke alarm: Russia, RU35912U1[P]. 2004-02-10.
[14]	张杰. 双波长红外火焰探测器:中国, CN2932335Y[P]. 2007-08-08.
[15]	董政. 一种基于传感器网络的线型感温火灾探测器:中国, CN101030315A[P]. 2007-09-05.
[16]	JAECKLIN S. Electronic circuit and procedure for the reduction of EMV disturbances in this circuit: Germany, DE502006004402D1[P]. 2009-09-10.
[17]	БАЕВ С H, ШЕИН В H. Fire alarm system and fire fighting control in movable vehicles: Russia, RU67454U1[P]. 2007-10-27.
[18]	RIEDI U. Have optical receiver device of shielding device extending on the back of the base: Germany, CN102203834A[P].2011-09-28.
[19]	郭建国, 毛星原. 一种网络化消防灭火控制系统:中国, CN201054172Y[P]. 2008-04-30.
[20]	许治垣, 高春平, 王德坤. 一种电气火灾监控系统:中国, CN201465259U[P]. 2010-05-12.
[21]	RENNIE P A, SMITH P D. Pneumatic sensing apparatus: America, GB2511803A[P]. 2014-09-17.
[22]	TJARK W. Fire detector: Germany, DE102013208533A1[P].2014-11-13.
[23]	周建良, 罗军, 甘霖, 等. 一种外部气相沉积法喷射火焰检测装置及方法:中国, CN105976555B[P]. 2018-09-11.
[24]	陈华彬, 吴秀丽. 一种智能用电电气火灾探测器:中国, CN210428752U[P]. 2020-04-28.
[25]	王军辉, 李松辉. 一种火灾探测器壳体结构:中国, CN212933686U[P]. 2021-04-09.
