大型燃煤锅炉热偏差分析及防治方案

doi:10.16265/j.cnki.issn1003-3033.2022.S2.0190

中国安全科学学报 ›› 2022, Vol. 32 ›› Issue (S2): 76-80.doi: 10.16265/j.cnki.issn1003-3033.2022.S2.0190

大型燃煤锅炉热偏差分析及防治方案

陈兵¹(), 刘泽兵²

¹ 国电电力发展股份有限公司生产技术部, 北京 100101
² 华北电力大学控制与计算机工程学院, 北京 102206

收稿日期:2022-08-09 修回日期:2022-10-15 出版日期:2022-12-30 发布日期:2023-06-30
作者简介:
陈兵 (1972—),男,云南昭通人,硕士,高级工程师,主要从事发电行业安全技术、生产技术方面的工作。E-mail:12000092@ceic.com。

Analysis and prevention of thermal deviation of large coal-fired boiler

CHEN Bing¹(), LIU Zebing²

¹ Production Technology Department GD Power Development Co. Ltd., Beijing 100101, China
² School of Control and Computer Engineering, North China Electric Power University, Beijing 102206, China

Received:2022-08-09 Revised:2022-10-15 Online:2022-12-30 Published:2023-06-30

摘要/Abstract

摘要：

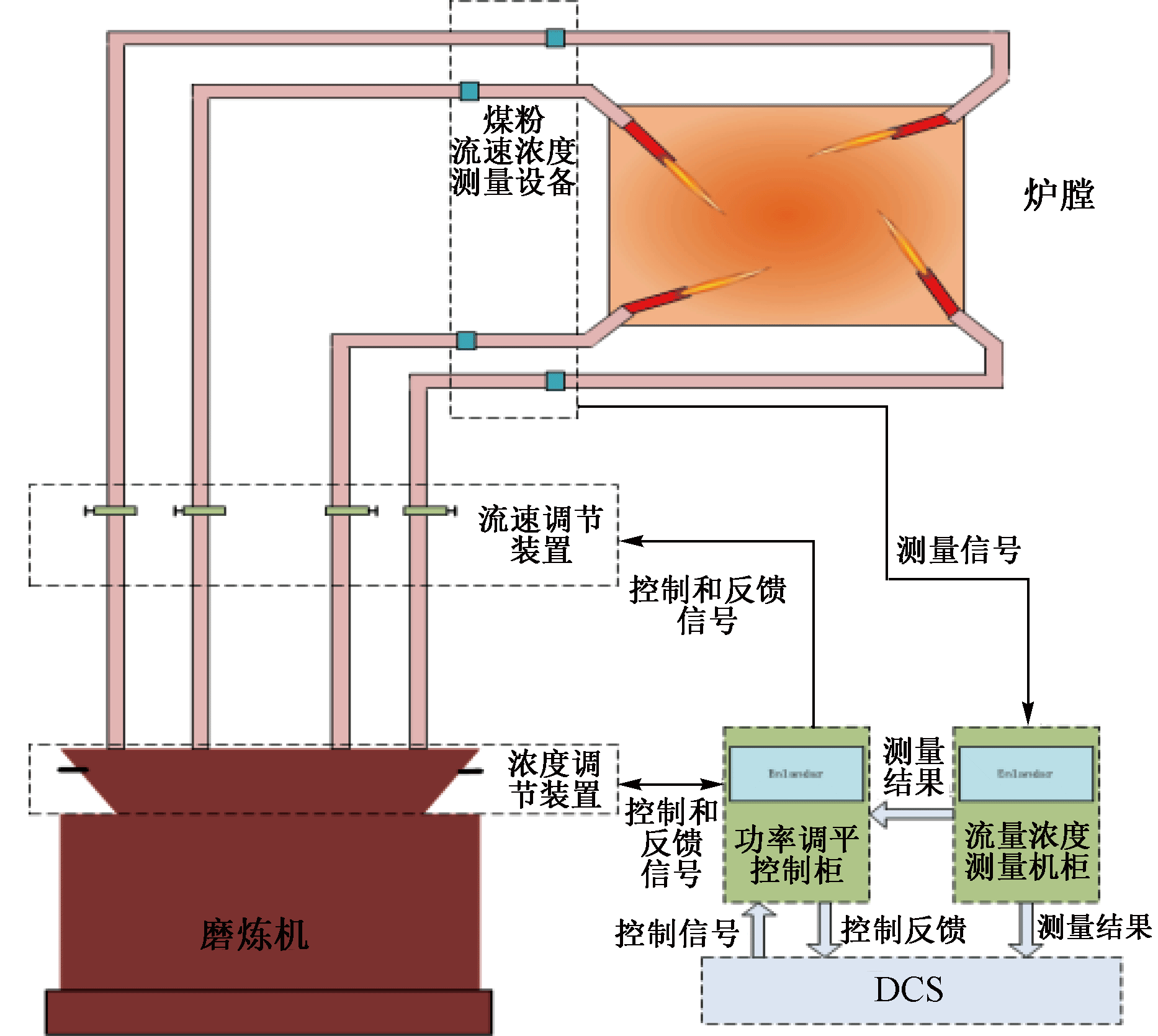

为解决大型燃煤锅炉运行中由于燃烧不均衡造成的受热面超温及水冷壁壁温、烟温、汽温偏差大等问题,首先,分析锅炉热偏差产生的原因及其给锅炉运行安全带来的危害;然后,基于一次风煤粉在线均衡控制系统,依据壁温、汽温偏差,调整二次风量分配的锅炉热偏差;最后,设计锅炉热偏差自动控制系统,并将该系统应用到国内某电厂1 000 MW对冲燃烧锅炉以及其他多种锅炉上,验证该该系统的实用性和有效性。结果表明:该系统可使得各燃烧器风煤比均衡一致,实现燃烧器状态的精准测控,防控燃烧器燃烧偏差及局部燃烧恶化现象,消除燃烧热偏差导致的锅炉运行隐患。

关键词: 燃煤锅炉, 热偏差, 防治方案, 一次风煤粉, 二次风量

Abstract:

This paper aimed to solve the problems of overheating of heating surface, large deviation of water wall temperature, smoke temperature and steam temperature caused by unbalanced combustion in the operation of large coal-fired boilers. First, the causes of boiler thermal deviation and its harm to boiler operation safety were analyzed, and then the general idea of boiler thermal deviation prevention was proposed based on primary air and pulverized coal online balance control system, wall temperature and steam temperature deviation, and adjusting secondary air volume distribution. Finally, the boiler thermal deviation automatic control system was designed and applied to a 1 000 MW opposed firing boiler in a domestic power plant and other boilers to verify the practicability and effectiveness of the system. The results show that the system can make the air coal ratio of each burner balanced and consistent, realize the accurate measurement and control of the burner state, eliminate the combustion deviation and local combustion deterioration of the burner, and improve the hidden danger of boiler safe operation caused by combustion thermal deviation.

Key words: coal-fired boiler, thermal deviation, prevention and control program, one wind pulverized coal, secondary air volume

陈兵, 刘泽兵. 大型燃煤锅炉热偏差分析及防治方案[J]. 中国安全科学学报, 2022, 32(S2): 76-80.

CHEN Bing, LIU Zebing. Analysis and prevention of thermal deviation of large coal-fired boiler[J]. China Safety Science Journal, 2022, 32(S2): 76-80.

图/表 5

参考文献 12

[1]	许良, 李荣春, 陈朝松.1 000 MW锅炉分隔屏超温爆管原因分析与改造[J]. 发电设备, 2021, 35(4):278-284. doi: 10.19806/j.cnki.fdsb.2021.04.011
	XU Liang, LI Rongchun, CHEN Zhaosong. Analysis and improvement of over temperature tube explosion of boiler platen in a 1 000 MW boiler[J]. Power Equipment, 2021, 35(4):278-284. doi: 10.19806/j.cnki.fdsb.2021.04.011
[2]	晏儒先. 600 MW锅炉过热器热偏差原因分析与控制[C]. 清洁高效燃煤发电技术协作网2011年会论文集, 2011:1-4.
[3]	王诚.2 008 t/h锅炉热偏差原因分析与改造[J]. 电力安全技术, 2011, 13(2):35-37.
[4]	刘丛涛, 黄业胜. HG2008/186-M锅炉热偏差问题探讨[J]. 中国电力, 1996(3):3-8.
	LIU Cong Tao, HUANG Yesheng. Study on heat deviation of HG2008/186-M type boiler[J]. Electric Power, 1996(3):3-8.
[5]	仝丽, 辛红卫. 锅炉热偏差问题分析及消除措施[J]. 科技信息, 2008(24):442.
[6]	胡海蓉, 暴春风. 锅炉热偏差的分析与控制[J]. 锅炉制造, 2007(4):22-24.
	HU Hairong, BAO Chunfeng. Analysis and control of thermal deviation of boiler[J]. Boiler Manufacturing, 2007(4):22-24.
[7]	祁永峰. 国产660 MW超超临界锅炉热偏差调整[J]. 电力科学与工程, 2013, 29(3):74-78.
	QI Yongfeng. Thermal deviation adjustment of the domestically produced 660 MW ultra-supercritical boiler[J]. Electric Power Science and Engineering, 2013, 29(3):74-78.
[8]	金宁江, 李文建. 1 000 MW锅炉热偏差治理实践:以国华宁海电厂5号机组为例[J]. 能源与节能, 2015(12):183-184.
	JIN Ningjiang, LI Wenjian. On the governance practices of thermal deviation in 1 000 MW boiler: taking No.5 unit in Guohua Ninghai power plant as example[J]. Energy and Energy Conservation, 2015(12):183-184.
[9]	周慧. 600 MW机组锅炉热偏差的分析与防治[J]. 华东科技:学术版, 2015(7):305.
[10]	周长鑫, 刘建全, 苏统, 等. 700 ℃锅炉热偏差优化数值模拟研究[J]. 上海节能, 2022(1):38-45.
	ZHOU Changxin, LIU Jianquan, SU Tong, et al. Study on numerical simulation of thermal deviation optimization of 700 ℃ boiler[J]. Shanghai Energy Conservation, 2022(1):38-45.
[11]	郭增辉. 浅析四角切圆燃烧锅炉热偏差产生的原因及治理措施[J]. 机电信息, 2013(36):48-49.
[12]	黄孝彬, 田宏伟, 王煜伟. 复杂煤质下锅炉燃烧精细化运行技术[J]. 中国电力, 2018(9): 39-45.
	HUANG Xiaobin, TIAN Hongwei, WANG Yiwei. Advanced fine combustion operation optimization of boiler subject to complex coal quality[J]. Electric Power, 2018(9): 39-45.
