高流态封孔注浆材料力学性能及水化机制

doi:10.16265/j.cnki.issn1003-3033.2024.02.0710

中国安全科学学报 ›› 2024, Vol. 34 ›› Issue (2): 168-175.doi: 10.16265/j.cnki.issn1003-3033.2024.02.0710

高流态封孔注浆材料力学性能及水化机制

郭鑫¹(), 鲁义¹^,²^,^**(), 施式亮¹, 李贺¹, 李大芳¹

¹ 湖南科技大学资源环境与安全工程学院,湖南湘潭 411201
² 湖南科技大学南方煤矿瓦斯与顶板灾害预防控制安全生产重点实验室,湖南湘潭 411201

收稿日期:2023-08-16 修回日期:2023-11-18 出版日期:2024-02-28
通讯作者:
** 鲁义(1986—),男,江西新干人,博士,教授,主要从事火灾科学与技术和煤自燃与瓦斯复合灾害防治等方面的研究。E-mail: luyijx@163.com。
作者简介:
郭鑫 (1994—),男,山东菏泽人,博士,讲师,主要从事矿井灾害防治等方面的研究。E-mail: guoxin190510@163.com。
施式亮教授
李贺副教授
基金资助:
国家重大人才工程青年项目(2022QB06801); 湖南省杰出青年基金资助(2022JJ10026); 湖南省青年基金资助(2023JJ40284)

Mechanical properties and hydration mechanism of high-flow sealing hole grouting material

GUO Xin¹(), LU Yi¹^,²^,^**(), SHI Shiliang¹, LI He¹, LI Dafang¹

¹ School of Resource, Environment and Safety Engineering, Hunan University of Science and Technology, Xiangtan Hunan 411201, China
² Work Safety Key Lab on Prevention and Control of Gas and Roof Disasters for Southern Coal Mines, Hunan University of Science and Technology, Xiangtan Hunan 411201, China

Received:2023-08-16 Revised:2023-11-18 Published:2024-02-28

摘要/Abstract

摘要：

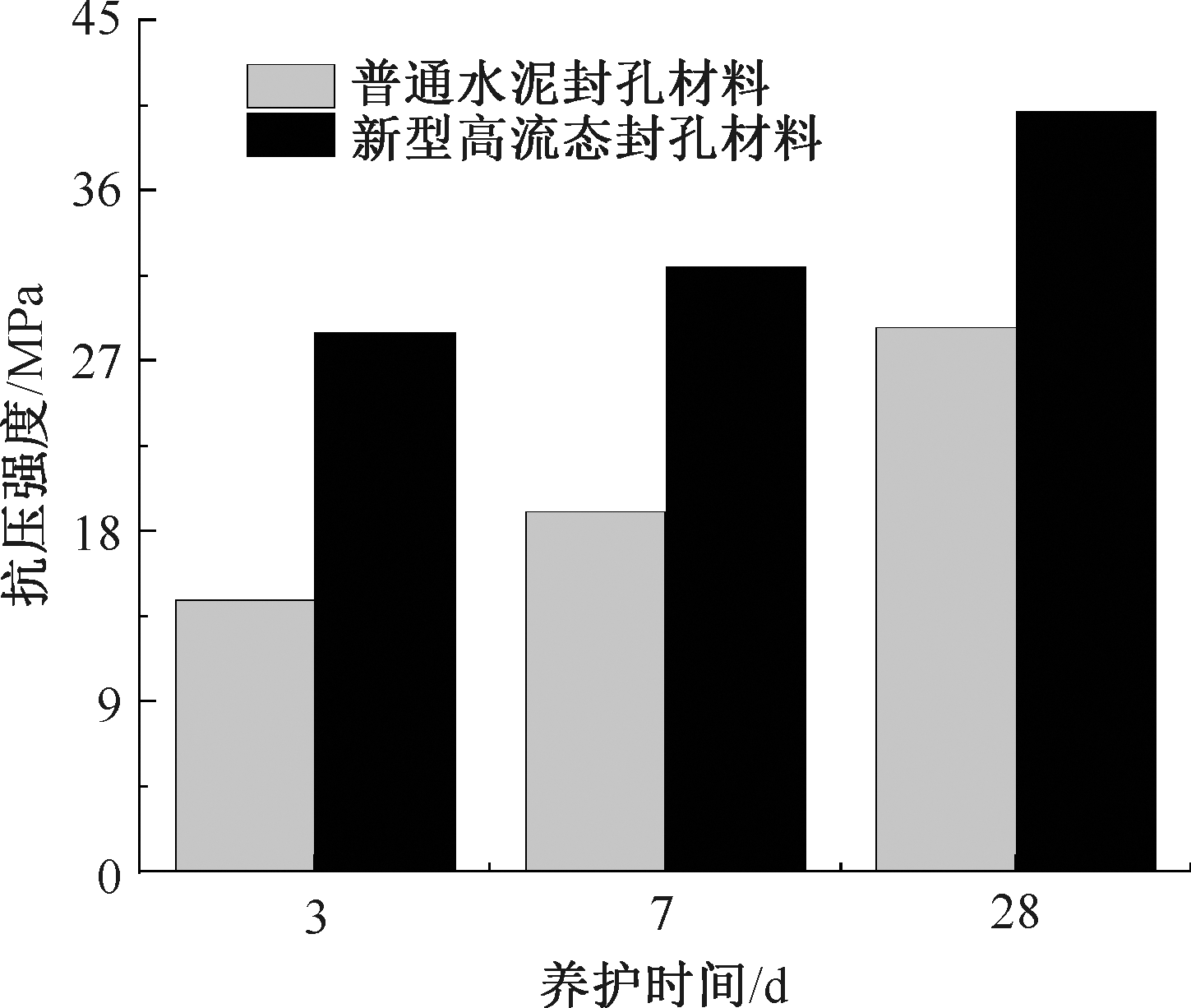

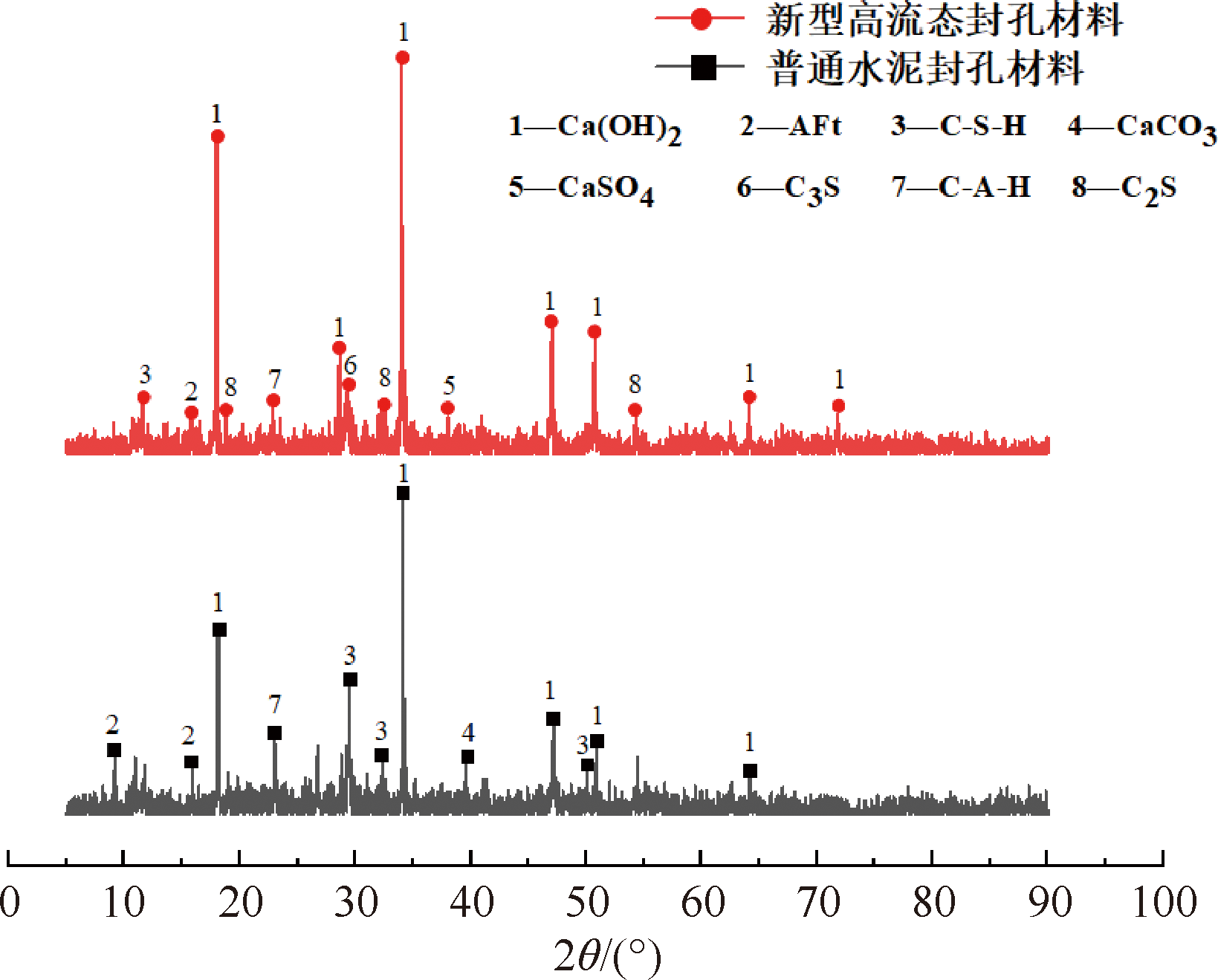

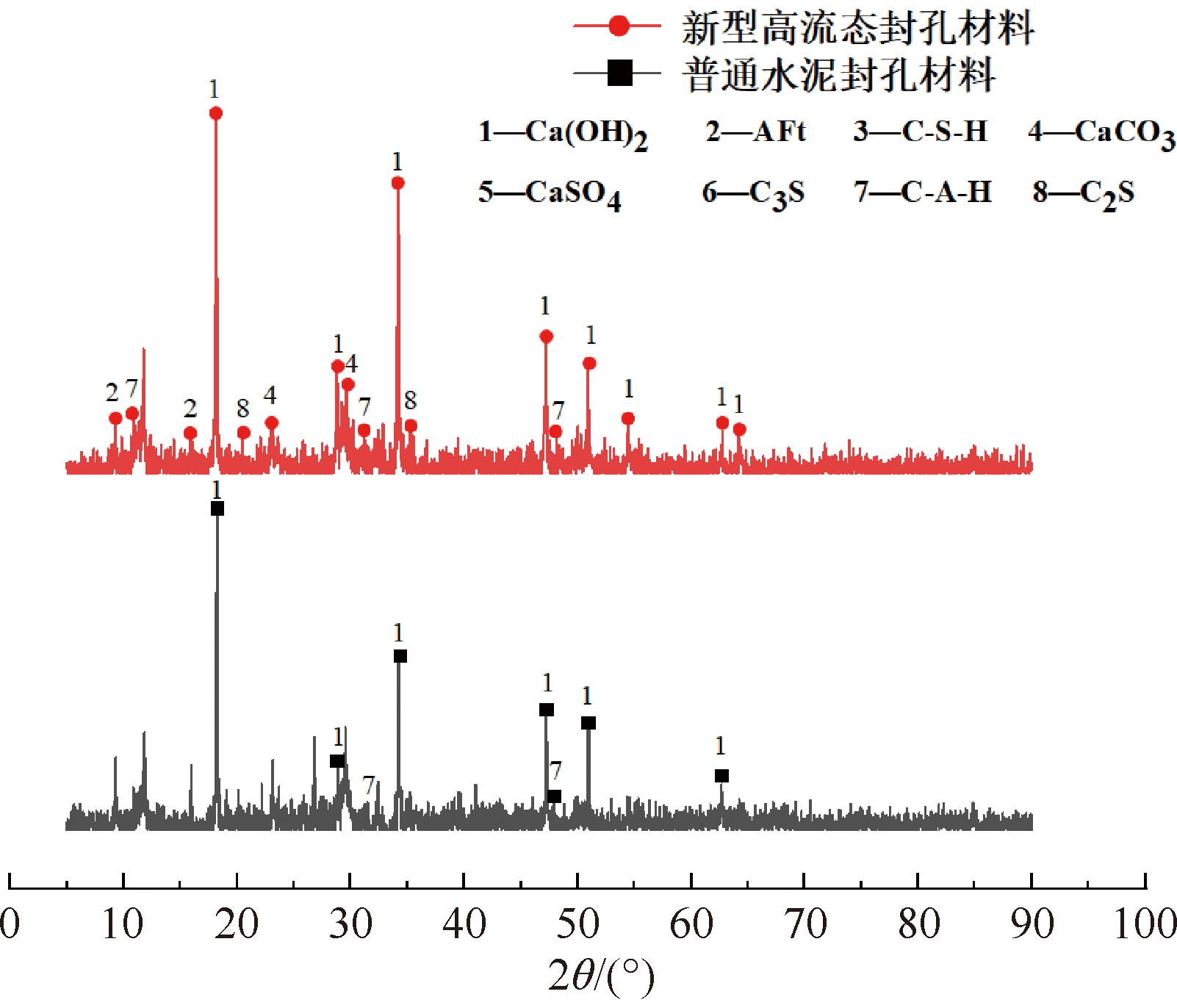

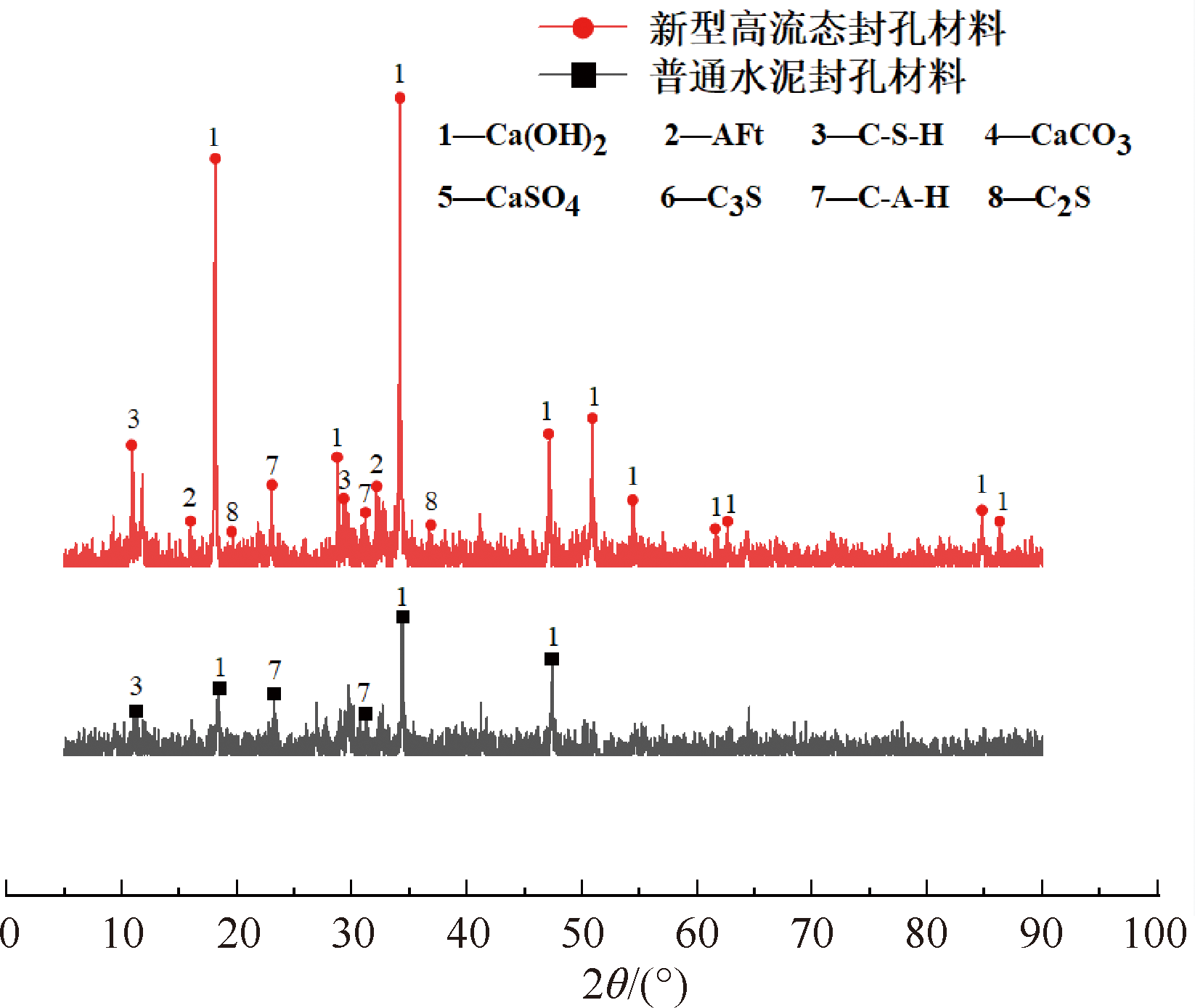

为提高深部矿井煤层气抽采效率,针对目前常见的封孔注浆材料存在的高分子封孔材料价格昂贵易燃、普通水泥材料渗透性差、粉煤灰等膏体材料强度不足等问题,采用超细水泥为基料研发一种高流态封孔注浆材料。通过对高流态封孔注浆材料开展力学性能试验研究、结合扫描电镜(SEM)、X射线衍射(XRD)等一系列试验的结果,揭示新型高流态封孔注浆材料水化机制。结果表明:高流态封孔注浆材料在水化初期就生成大量的水化硅酸钙(C-S-H)凝胶和钙矾石(AFt)晶体;随着水化反应的持续,水化产物的凝胶粒子充填材料中的孔隙。与普通水泥封孔注浆材料相比,材料的水化反应更迅速、更充分、整体结构致密,比普通水泥封孔注浆材料抗压强度提高3.68%,更有利于保持瓦斯抽采钻孔的稳定性,提高瓦斯抽采效率。

关键词: 高流态封孔, 注浆材料, 抽采钻孔, 水化反应, 水化产物

Abstract:

To improve coalbed methane extraction efficiency in deep mines, a high-flow sealing hole grouting material was developed using superfine cement as the base material to overcome issues of commonly used high polymer sealed materials such as high cost and flammable, low permeability of ordinary cement materials, and insufficient strength of paste materials such as fly ash. The hydration mechanism of the developed high-flow sealing grouting material was explored by an experimental study on the material's mechanical properties, combined with the measurements by scanning electron microscope(SEM)and X-ray diffraction(XRD). The results indicated that a large amount of calcium silicate hydrate (C-S-H) gel and ettringite (AFt) crystals were generated in the high-flow sealing grouting material during the initial phase of hydration. Furthermore, the gel particles of hydration products filled the pores of the material with the hydration reaction. Compared to commonly used cement sealing grouting material, the hydration reaction of the developed material was much faster and more complete, and the overall structure was more denser. Moreover, the compressive strength was increased by 3.68%. Therefore, the developed high-flow sealing hole grouting material can maintain the stability of gas extraction boreholes and improve gas extraction efficiency.

Key words: high-flow sealing, grouting material, drainage borehole, hydration reaction, hydration product

中图分类号:

X936

郭鑫, 鲁义, 施式亮, 李贺, 李大芳. 高流态封孔注浆材料力学性能及水化机制[J]. 中国安全科学学报, 2024, 34(2): 168-175.

GUO Xin, LU Yi, SHI Shiliang, LI He, LI Dafang. Mechanical properties and hydration mechanism of high-flow sealing hole grouting material[J]. China Safety Science Journal, 2024, 34(2): 168-175.

图/表 11

表1

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

参考文献 17

[1]	张超, 杨朴超, 李树刚, 等. 瓦斯抽采钻孔密封段防塌支护材料试验研究及现场应用[J]. 采矿与安全工程学报, 2021, 38(1):199-205.
	ZHANG Chao, YANG Puchao, LI Shugang, et al. Experimental research and field application of anti-sloughing support material in gas extraction borehole sealing section[J]. Journal of Mining & Safety Engineering, 2021, 38(1):199-205.
[2]	ZHENG Chunshan, LI He, KIZIL M, et al. Performance enhancement of horizontal underground-to-inseam gas drainage boreholes with double-phase-grouting sealing method for coal mining safety and clean gas resource[J]. Journal of Natural Gas Science and Engineering, 2020, 76: DOI:10.1016/j.jngse.2020.103179.
[3]	鲁义, 谷旺鑫, 丁仰卫, 等. 固结软煤层瓦斯抽采钻孔周围裂隙的弹性胶结材料研制[J]. 煤炭科学技术, 2022, 50(2):129-136.
	LU Yi, GU Wangxin, DING Yangwei, et al. Development of elastic cemented material for consolidating cracks around the drilling holes in gas drainage in soft coal seams[J]. Coal Science and Technology, 2022, 50(2):129-136.
[4]	李树刚, 张静非, 张超, 等. 新型 CF 封孔材料的膨胀作用机理及其关键影响因素实验研究[J]. 采矿与安全工程学报, 2018, 35(2):415-421.
	LI Shugang, ZHANG Jingfei, ZHANG Chao, et al. Experimental study on expansion mechanism of new CF sealing materialand the key influencing factors[J]. Journal of Mining & Safety Engineering, 2018, 35(2):415-421.
[5]	张天军, 包若羽, 李树刚, 等. 新型 CF 封孔材料膨胀及蠕变特性试验研究[J]. 采矿与安全工程学报, 2019, 36(1):175-183.
	ZHANG Tianjun, BAO Ruoyu, LI Shugang, et al. Experimental study on expansion and creep characteristics of new CF sealing material[J]. Journal of Mining & Safety Engineering, 2019, 36(1):175-183.
[6]	王志明, 孙玉宁, 宋维宾, 等. 瓦斯抽采二次膨胀封孔材料膨胀机理及应用研究[J]. 中国安全生产科学技术, 2018, 14(12):28-33.
	WANG Zhiming, SUN Yuning, SONG Weibin, et al. Study on expansion mechanism and application of double-expansivematerial for borehole sealing in gas drainage[J]. Journal of Safety Science and Technology, 2018, 14(12):28-33.
[7]	HOGANCAMP J, GRASLEY Z. The use of microfine cement to enhance the efficacy of carbon nanofibers with respect to drying shrinkage crack resistance of portland cement mortars[J]. Cement & Concrete Composites, 2017, 83:269-272.
[8]	孙文标, 郭兵兵, 卢前明. SDS对瓦斯预抽孔封孔材料性能的影响[J]. 中国安全科学学报, 2018, 28(7): 88-94. doi: 10.16265/j.cnki.issn1003-3033.2018.07.015
	SUN Wenbiao, GUO Bingbing, LU Qianming. Effects of SDS on properties of gas extraction hole sealing material[J]. ChinaSafety Science Journal, 2018, 28(7): 88-94.
[9]	曹明莉, 许玲, 李志文. 聚乙烯醇纤维及钢纤维增强水泥砂浆流变性和流动性能[J]. 建筑材料学报, 2017, 20(1):112-117.
	CAO Mingli, XU Ling, LI Zhiwen. Rheology and flowability of polyvinyl alcohol fiber and steel fiber reinforced cementmortar[J]. Journal of Building Materials, 2017, 20(1):112-117.
[10]	王慧涛, 王晓晨, 翟明华, 等. 矸石基含水层注浆改造新型材料实验与应用[J]. 煤炭学报, 2017, 42(11):2981-2988.
	WANG Huitao, WANG Xiaochen, ZHAI Minghua, et al. Experiment and application of new material for grouting of ganguebased aquifer[J]. Journal of China Coal Society, 2017, 42(11): 2981-2988.
[11]	佘诗刚, 林鹏. 中国岩石工程若干进展与挑战[J]. 岩石力学与工程学报, 2014, 33(3): 433-457.
	SHE Shigang, LIN Peng. Some developments and challenging issues in rock engineering field in China[J]. Chinese Journal of Rock Mechanics and Engineering, 2014, 33(3): 433-457.
[12]	谢和平. “深部岩体力学与开采理论”研究构想与预期成果展望[J]. 工程科学与技术, 2017, 49(2): 1-16.
	XIE Heping. Research framework and anticipated results of deep rock mechanics and mining theory[J]. Advanced Engineering Sciences, 2017, 49(2): 1-16.
[13]	褚怀保, 吴礼报, 杨小林, 等. 新浇混凝土爆破振动损伤累积机制试验研究[J]. 中国安全科学学报, 2017, 27(9): 69-73. doi: 10.16265/j.cnki.issn1003-3033.2017.09.012
	CHU Huaibao, WU Libao, YANG Xiaolin, et al. Experimental research on blasting vibration damage accumulation mechanism of fresh concrete[J]. China Safety Science Journal, 2017, 27(9): 69-73. doi: 10.16265/j.cnki.issn1003-3033.2017.09.012
[14]	李犇. 水化硅酸钙(C-S-H)凝胶的细观力学机理研究[D]. 哈尔滨: 哈尔滨工程大学, 2018.
	LI Ben. Investigation of the mesco-mechanical properties of calcium-silicate-hydrate[D]. Harbin:Harbin Engineering University, 2018.
[15]	EMMANUEL A C, KRISHNAN S, BISHNOI S, et al. Influence of curing temperature on hydration and microstructural development of ordinary Portland cement[J]. Construction and Building Materials, 2022, 329: DOI:10.1016/J.CONBUILDMAT.2022.127070.
[16]	CHUNDAWAT D S, SHARMA D K, TOMAR S K, et al. To study the use and effect of phyllite as clinker replacement in cement manufacturing[J]. Materials Today: Proceedings, 2020, 44: 4184-4189. doi: 10.1016/j.matpr.2020.10.530
[17]	LIN Xiuju, LIAO Bing, LI Jialin, et al. Effect of crosslinked polycarboxylate superplasticizers with varied structures on cement dispersion performance[J]. Journal of Applied Polymer Science, 2020, 138(11):DOI: 10.1002/app.50012.

化学成分	SiO₂	Al₂O₃	Fe₂O₃	CaO	MgO	SO₃	损失量	共计
HCSA膨胀剂	4.96	8.52	0.99	64.18	2.67	16.97	1.19	99.48
超细硅酸盐水泥	20.57	9.89	3.08	57.65	2	2.7	2.6	98.49
