煤体吸附-解吸CO2、CH4、N2变形特征及差异

doi:10.16265/j.cnki.issn1003-3033.2025.07.1648

摘要/Abstract

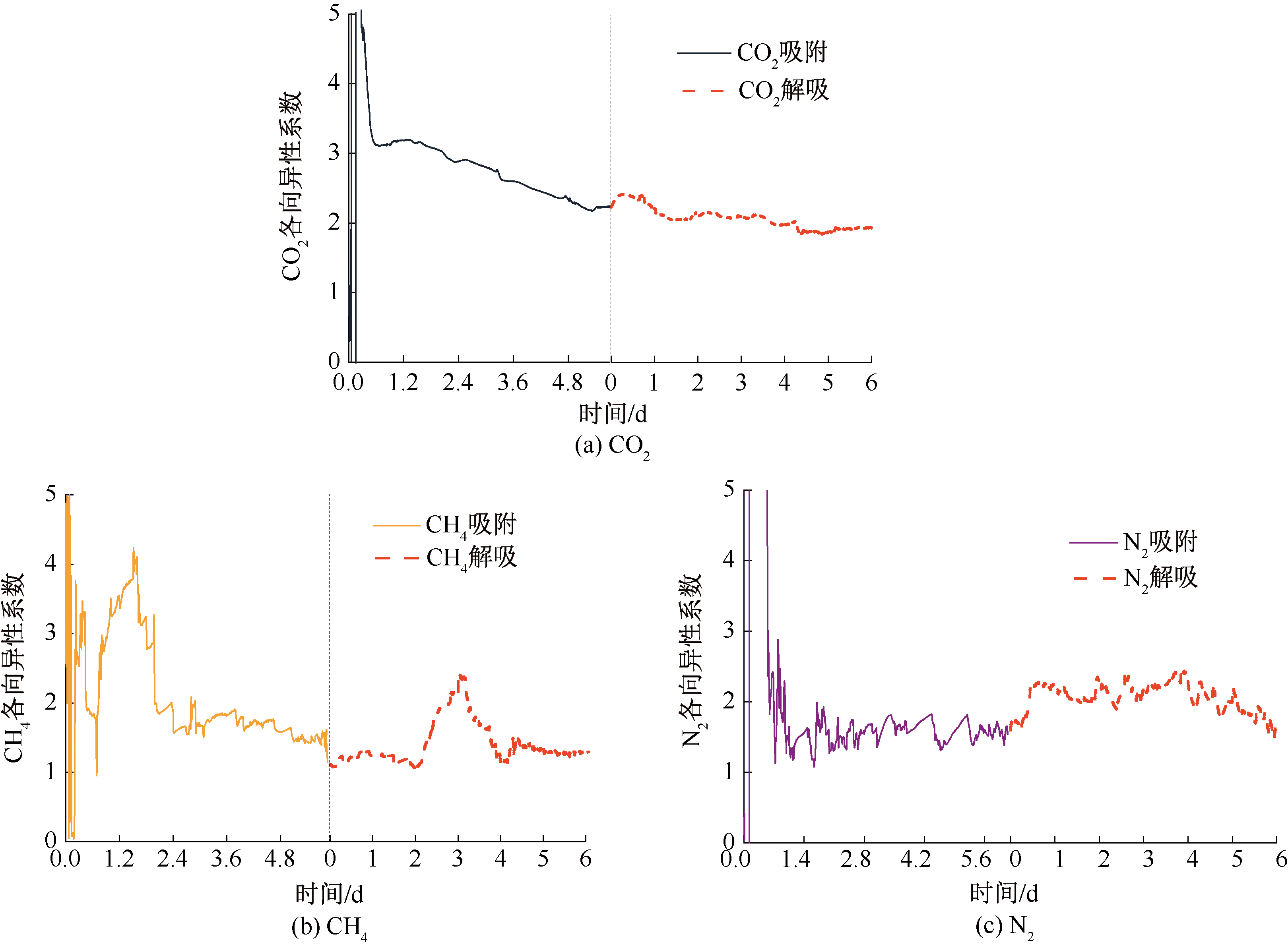

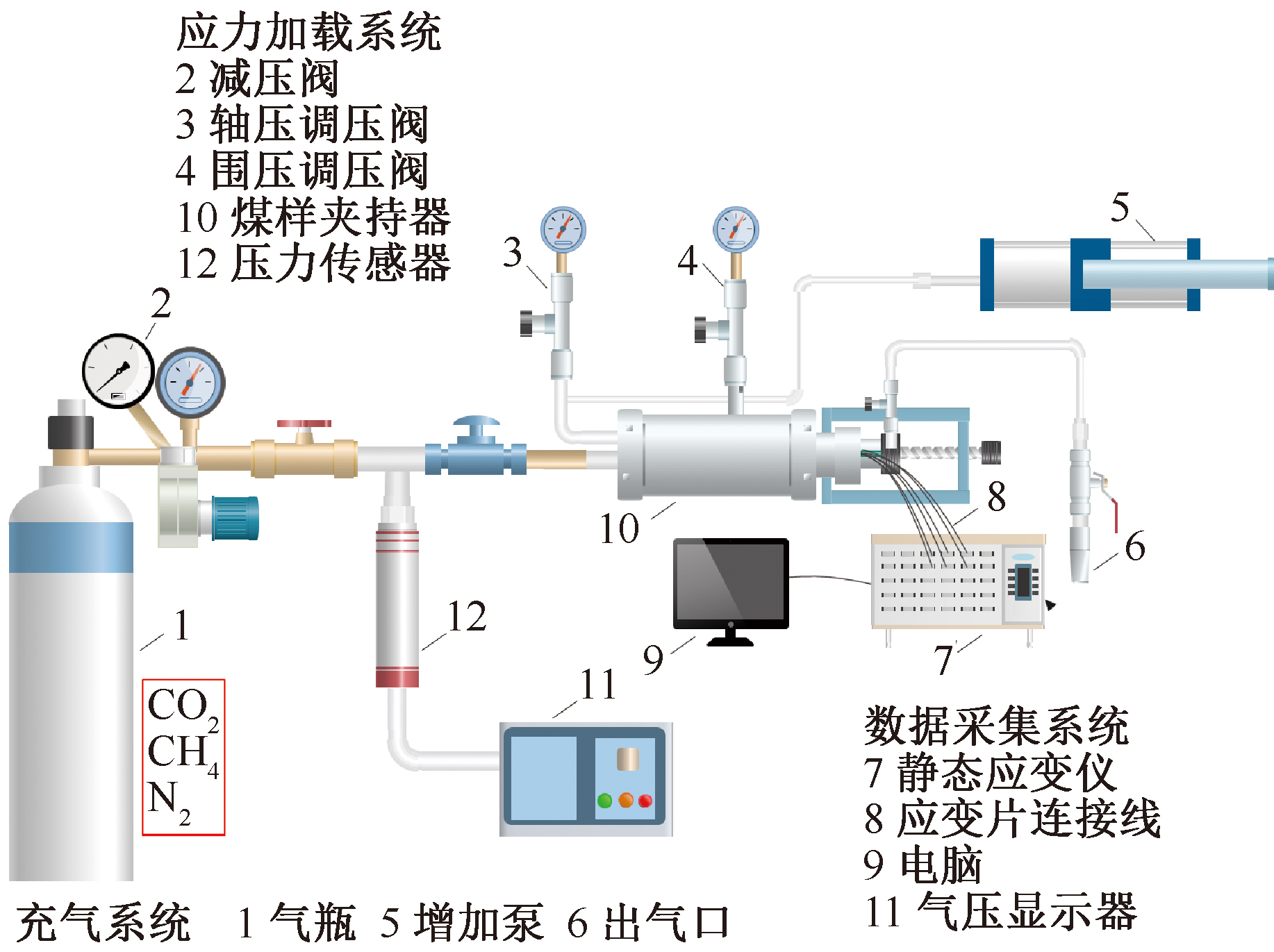

摘要： 为研究煤对不同气体吸附-解吸全过程中变形动态特征及差异响应,利用煤体吸附-解吸变形动态测试试验平台,开展原生煤吸附-解吸CO₂、CH₄、N₂条件下变形测试。结果表明:各气体吸附应变与时间关系呈Langmuir形式变化,强吸附性气体煤体变形量大、响应快;解吸过程中不同吸附气体的体应变均随着解吸量的增加而近似线性减小,强吸附性气体解吸收缩更显著,但是残余变形也更大,CO₂残余体应变是CH₄的2倍,而CH₄几乎是N₂的2倍;相同解吸量条件下CH₄引起的收缩变形最明显,CO₂和N₂引起收缩变形为其1/3左右;在吸附-解吸全过程中吸附应变表现出各向异性且不断变化,垂直层理方向吸附应变始终大于平行层理方向,CO₂各向异性系数变化最大,N₂次之,CH₄变化最小。

关键词: 吸附-解吸, 变形特征, 各向异性, 解吸量, 残余变形

Abstract:

In order to study the dynamic law and differential response of coal deformation for different gases in the whole process of adsorption-desorption, the deformation test was carried out under the conditions of adsorption-desorption of CO₂, CH₄ and N₂ in primary coal by utilizing the dynamic test platform for adsorption / desorption deformation of coal bodies. The results show that the adsorption strain of each gas changes with time in Langmuir form, and the coal bodies with the strong adsorption gases exhibit larger deformation and faster response. The body strain of different adsorbed gases in the process of desorption decreases with the increase of desorption amount in a nearly linear manner, and the desorption shrinkage of the strong adsorption gas is more significant, but the residual deformation is also larger, and the residual body strain of CO₂ is twice that of CH₄, and that of CH₄ is almost twice that of N₂. With the same desorption gas amount, the shrinkage deformation caused by CH₄ is the most obvious, and the shrinkage deformation caused by CO₂ and N₂ is about 1/3 of it. In the whole process of adsorption and desorption, the adsorption strain is anisotropic and changing constantly, and the adsorption strain in the direction perpendicular to the bedding is always larger than that parallel to the bedding. The change of anisotropy coefficient of CO₂ is the largest, that of N₂ is the next, and that of CH₄ is the smallest.

Key words: adsorption-desorption, deformation characteristics, anisotropy, desorption amount, residual deformation

中图分类号:

安丰华, 丁远东, 丁彦宁, 王立国, 刘军. 煤体吸附-解吸CO₂、CH₄、N₂变形特征及差异[J]. 中国安全科学学报, 2025, 35(7): 98-105.

AN Fenghua, DING Yuandong, DING Yanning, WANG Liguo, LIU Jun. Differential dynamic patterns of CO₂, CH₄ and N₂ deformation by adsorption-desorption in coal bodies[J]. China Safety Science Journal, 2025, 35(7): 98-105.

图/表 9

图1

图2

图3

图4

表1

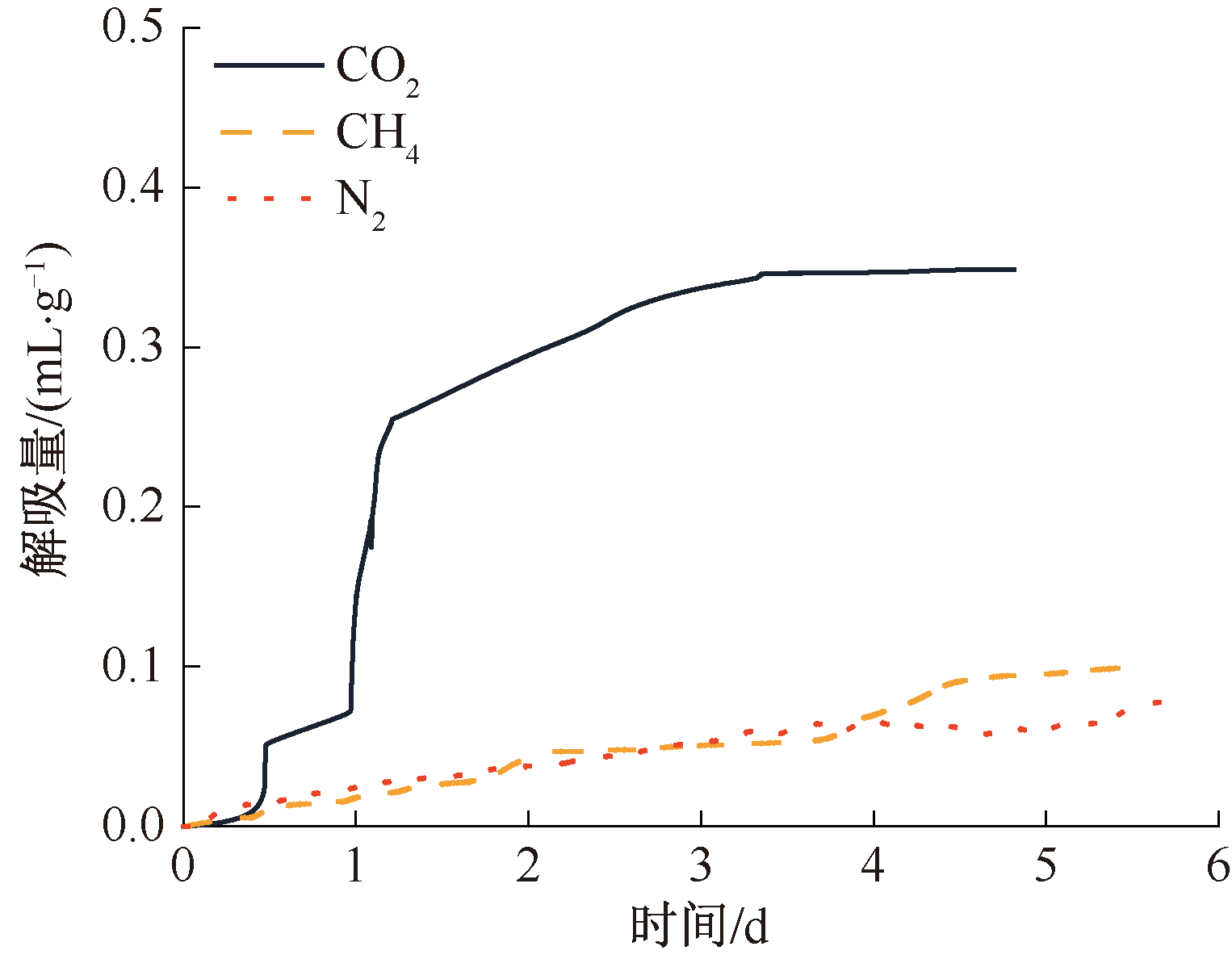

图5

图6

表2

图7

参考文献 27

[1]	宋鑫, 舒龙勇, 王斌, 等. 低瓦斯赋存高强度开采煤层驱替促抽技术研究[J]. 采矿与安全工程学报, 2023, 40(4): 847-856.
	SONG Xin, SHU Longyong, WANG Bin, et al. Replacement and pumping technology for coal seams with low gas content and high intensity mining[J]. Journal of Mining and Safety Engineering, 2023, 40 (4): 847-856.
[2]	季鹏飞, 林海飞, 孔祥国, 等. 注氮促排煤体瓦斯数值模拟研究[J]. 中国安全科学学报, 2021, 31(11): 127-134.
	JI Pengfei, LIN Haifei, KONG Xiangguo, et al. Numerical simulation research on coal gas drainage by nitrogen injection[J]. Journal of Safety Science and Technology, 2021, 31(11): 127-134.
[3]	苏现波, 黄津, 王乾, 等. CO₂强化煤层气产出与其同步封存实验研究[J]. 煤田地质与勘探, 2023, 51(1):176-184.
	SU Xianbo, HUANG Jin, WANG Qian, et al. Experimental study on CO₂-enhanced coalbed methane production and its simultaneous storage[J]. Coal Geology and Exploration, 2023, 51(1):176-184.
[4]	谢和平, 任世华, 谢亚辰, 等. 碳中和目标下煤炭行业发展机遇[J]. 煤炭学报, 2021, 46 (7): 2197-2211.
	XIE Heping, REN Shihua, XIE Yachen, et al. Development opportunities of the coal industry towards the goal of carbon neutrality[J]. Journal of China Coal Society, 2021, 46(7): 2197-2211.
[5]	梁冰, 贾立锋, 孙维吉, 等. 横观各向同性煤等温吸附变形试验研究[J]. 中国矿业大学学报, 2018, 47(1):60-66.
	LIANG Bing, JIA Lifeng, SUN Weiji, et al. Experimental study of isothermal adsorption deformation of transversely isotropic coal[J]. Journal of China University of Mining and Technology, 2018, 47(1): 60-66.
[6]	张宝鑫, 邓泽, 傅雪海, 等. 温度对中高阶烟煤甲烷吸附-常压/带压解吸过程中煤体变形影响实验[J]. 天然气地球科学, 2020, 31(12):1826-1836.
	ZHANG Baoxin, DENG Ze, FU Xuehai, et al. Characteristics of medium-high rank bituminous coal deformation during methane adsorption-desorption with atmospheric pressure/with successively decreasing outlet pressure at different temperatures[J]. Natural Gas Geoscience, 2020, 31(12): 1826-1836.
[7]	郭平. 瓦斯压力对煤体吸附-解吸变形特征影响试验研究[J]. 煤矿安全, 2019, 50(9):13-16.
	GUO Ping. Experimental study on influence of gas pressure on coal adsorption/desorption deformation characteristics[J]. Safety in Coal Mines, 2019, 50(9): 13-16.
[8]	吴学海, 李波波, 高政, 等. 气体压力降低对煤岩变形和渗流的影响机制[J]. 中国安全科学学报, 2022, 32(4):129-134.
	WU Xuehai, LI Bobo, GAO Zheng, et al. Influence mechanism of gas pressure reduction on coal deformation and seepage[J]. China Safety Science Journal, 2022, 32(4): 129-134.
[9]	祝捷, 张敏, 姜耀东, 等. 煤吸附解吸CO₂变形特征的试验研究[J]. 煤炭学报, 2015, 40 (5): 1081-1086.
	ZHU Jie, ZHANG Min, JIANG Yaodong, et al. Experimental study of coal strain induced by carbon dioxide sorption/desorption[J]. Journal of China Coal Society, 2015, 40(5): 1081-1086.
[10]	邢俊旺, 杨栋, 康志勤, 等. 应力约束下煤体吸附解吸瓦斯变形特性的试验研究[J]. 煤矿安全, 2018, 49(10):9-12.
	XING Junwang, YANG Dong, KANG Zhiqin, et al. Experiment study on deformation characteristics of gas adsorption and desorption of confined coal[J]. Safety in Coal Mines, 2018, 49(10):9-12.
[11]	周动, 冯增朝, 王辰, 等. 煤吸附甲烷结构变形的多尺度特征[J]. 煤炭学报, 2019, 44(7):2159-2166.
	ZHOU Dong, FENG Zengchao, WANG Chen, et al. Multi-scale characteristics of coal structure deformation during methane adsorption[J]. Journal of China Coal Society, 2019, 44(7): 2159-2166.
[12]	NIE Baisheng, FAN Penghong, LI Xiangchun. Quantitative investigation of anisotropic characteristics of methane-inducedstrain in coal based on coal particle tracking method with X-ray[J]. Fuel, 2018, 214: 272-284.
[13]	吴世跃, 赵文, 郭勇义. 煤岩体吸附膨胀变形与吸附热力学的参数关系[J]. 东北大学学报:自然科学版, 2005, 26(7): 683-686.
	WU Shiyue, ZHAO Wen, GUO Yongyi. Parametric correlation between expansion deformation of coal mass and adsorption thermodynamics[J]. Journal of Northeastern University: Natural Science, 2005, 26(7): 683-686.
[14]	周军平, 鲜学福, 姜永东, 等. 基于热力学方法的煤岩吸附变形模型[J]. 煤炭学报, 2011, 36(3): 468-472.
	ZHOU Junping, XIAN Xuefu, JIANG Yongdong, et al. A model of adsorption induced coal deformation based on thermodynamics approach[J]. Journal of China Coal Society, 2011, 36(3): 468-472.
[15]	郭平, 曹树刚, 张遵国, 等. 煤体吸附膨胀变形模型理论研究[J]. 岩土力学, 2014, 35(12):3467-3472.
	GUO Ping, CAO Shugang, ZHANG Zunguo, et al. Theoretical study of deformation model of coal swelling induced by gas adsorption[J]. Rock and Soil Mechanics, 2014, 35(12): 3467-3472.
[16]	张遵国, 齐庆杰, 曹树刚, 等. 煤层吸附He,CH₄和CO₂过程中的变形特性[J]. 煤炭学报, 2018, 43 (9): 2484-2490.
	ZHANG Zunguo, QI Qingjie, CAO Shugang, et al. Characteristics of coal deformation during its adsorption of He, CH₄and CO₂[J]. Journal of China Coal Society, 2018, 43(9): 2484-2490.
[17]	ZOU Jie, FAN Chunyan, ZHANG Junfang, et al. Effect of adsorbent properties on adsorption-induced deformation[J]. Langmuir, 2021, 37(51): 14 813-14 822.
[18]	侯东升, 梁卫国, 张倍宁, 等. CO₂驱替煤层CH₄中混合气体渗流规律的研究[J]. 煤炭学报, 2019, 44(11): 3463-3471.
	HOU Dongsheng, LIANG Weiguo, ZHANG Beining, et al. Seepage law of mixed gases in CO₂ displacement of coal seam CH₄[J]. Journal of China Coal Society, 2019, 44(11): 3463-3471.
[19]	FAN Jingjing, FENG Ruimin, WANG Jin, et al. Laboratory investigation of coal deformation behavior and its influence on permeability evolution during methane displacement by CO₂[J]. Rock Mechanics and Rock Engineering, 2017, 50: 1725-1737.
[20]	STAIB G, SAKUROVS R, GRAY M G. Kinetics of coal swelling in gases: influence of gas pressure, gas type and coal type[J]. International Journal of Coal Geology, 2014, 132: 117-122.
[21]	SHI Farui, DENG Bozhi, NIE Baisheng, et al. Deformation kinetics of coal-gas system during isothermal and dynamic non-isothermal processes[J]. Gas Science and Engineering, 2023, 117: DOI:10.1016/j.jgsce.2023.205027.
[22]	XIN Lyu, LIU Qinjie, YANG Ke, et al. Experimental study of adsorption characteristics and deformation of coal for different gases[J]. ACS Omega 2022, 7(13): 11 415-11 421.
[23]	ZHANG Baoxin, FU Xuehai, LI Guofu, et al. An experimental study on the effect of nitrogen injection on the deformation of coal during methane desorption[J]. Journal of Natural Gas Science and Engineering, 2020, 83:DOI:10.1016/j.jngse.2020.103529.
[24]	季鹏飞, 林海飞, 孔祥国, 等. 三轴应力下煤体对CH₄/N₂的吸附-解吸-扩散-渗流规律及变形特征研究[J]. 岩石力学与工程学报, 2023, 42 (10): 2496-2514.
	JI Pengfei, LIN Haifei, KONG Xiangguo, et al. Study on the law of CH₄/N₂ adsorption-desorption-diffusion-seepage and the coal deformation characteristics under triaxial stress[J]. Chinese Journal of Rock Mechanics and Engineering, 2023, 42 (10): 2496-2514.
[25]	陈结, 潘孝康, 姜德义, 等. 三轴应力下软煤和硬煤对不同气体的吸附变形特性[J]. 煤炭学报, 2018, 43(增1): 149-157.
	CHEN Jie, PAN Xiaokang, JIANG Deyi, et al. Adsorption deformation characteristics of soft coal and hard coal to different gases under triaxial stress condition[J]. Journal of China Coal Society, 2018, 43(S1):149-157.
[26]	崔永君, 张群, 张泓, 等. 不同煤级煤对CH₄、N₂和CO₂单组分气体的吸附[J]. 天然气工业, 2005, 25(1):61-65,211.
	CUI Yongjun, ZHANG Qun, ZHANG Hong, et al. Adsorption of different rank coals to single component gases[J]. Natural Gas Industry, 2005, 25(1):61-65, 211.
[27]	张遵国, 陈毅, 赵丹, 等. 原煤与型煤CO₂吸附/解吸及变形特征对比研究[J]. 中国矿业大学学报, 2021, 50(4): 793-803.
	ZHANG Zunguo, CHEN Yi, ZHAO Dan, et al. Comparative study of adsorption/desorption and deformation characteristics of raw and briquette coals under CO₂[J]. Journal of China University of Mining and Technology, 2021, 50(4): 793-803.

气体	吸附过程			解吸过程
	Langmuir			线性函数
	A/10^-3	B/d^-1	R²	C/ d^-1	D/10^-3	R²
CO₂	5.88	1.42	0.99	-0.45	7.11	0.97
CH₄	1.88	0.98	0.94	-0.3	2.8	0.82
N₂	1.85	0.85	0.93	-0.12	1.77	0.86

气体	拟合函数
气体	ε_r/10^-3	η	R²
CO₂	5.51	-6.3	0.92
CH₄	2.63	-17.63	0.90
N₂	1.47	-5.41	0.92
