预裂爆破在某地下矿高大硐室掘进的应用研究

doi:10.16265/j.cnki.issn1003-3033.2025.S2.0036

摘要/Abstract

摘要：

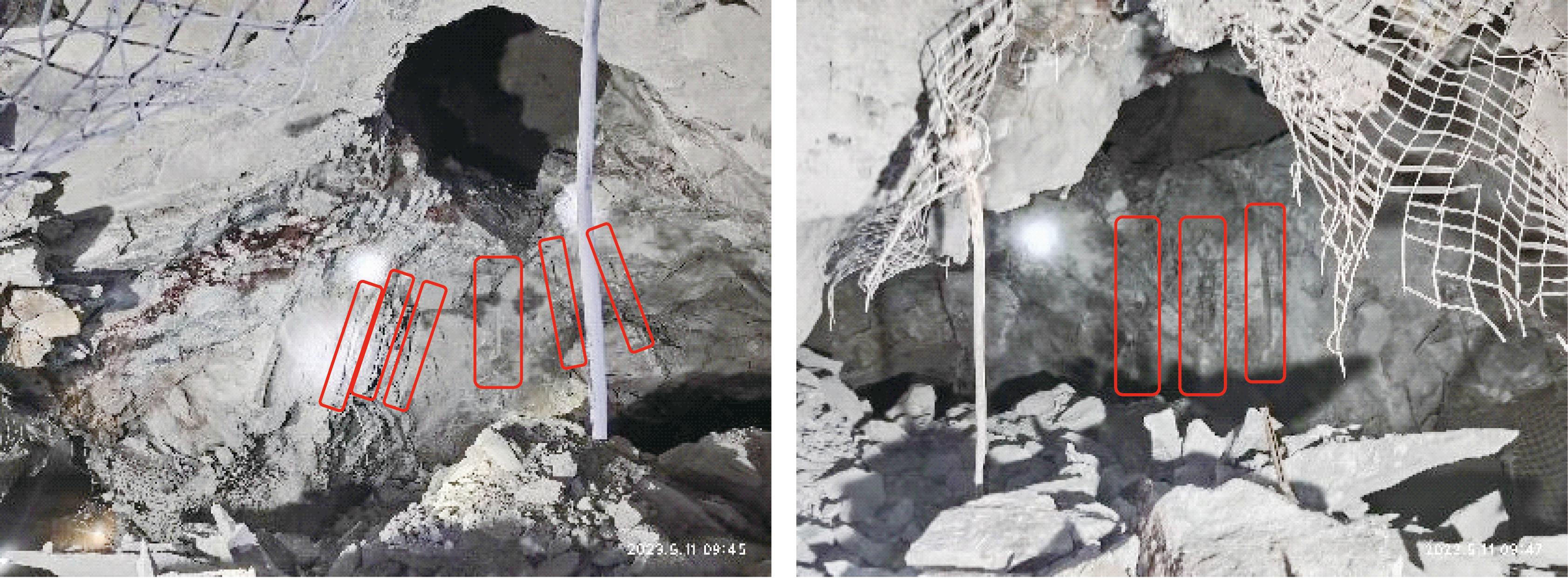

针对某地下铜矿采用大直径深孔阶段空场嗣后充填法时,二步骤矿房回采过程中相邻充填体受爆破扰动破坏、导致矿石贫化率升高的问题,开展预裂爆破技术在高大硐室掘进中的试验研究,设定预裂孔爆破参数孔径为100 mm,线装药密度为1 kg/m,孔底及中部加强装药至2 kg/m。结果表明:预裂爆破法可以有效减轻对充填体和岩体的破坏,有助于降低废石混入率,提高矿石回采效率;预裂爆破可有效控制轮廓面成型,半孔率达70%以上,显著降低对围岩及邻近充填体的损伤;在现有炮孔布置基础上,仅需增加一个外围炮孔即可实现预裂效果,这为二步骤回采中降低废石混入率、提高出矿效率提供了可行途径。

关键词: 预裂爆破, 探矿硐室, 预裂孔, 装药量, 装药密度

Abstract:

In response to increased ore dilution rate caused by blasting disturbance to adjacent fill bodies during the two-step room mining process in a certain underground copper mine that adopts the open stoping with subsequent filling method in the large-diameter deep-hole stage, experimental research on presplitting blasting technology in the excavation of large chambers was conducted. The presplitting blasting parameters were determined as follows: hole diameter of 100 mm, linear charge density of 1 kg/m, and enhanced charge density at the hole bottom and middle section up to 2 kg/m. The results indicate that presplitting blasting effectively reduces the damage to the fill bodies and rock mass, decreases the waste rock mixing rate, and improves ore recovery efficiency. On the basis of the existing blasthole layout, only one additional peripheral blasthole is needed to achieve the presplitting effect, providing a feasible approach to reduce the waste rock mixing rate and improve ore extraction efficiency in the two-step mining.

Key words: presplitting blasting, prospecting chamber, presplitting hole, charge weight, charge density

中图分类号:

X936

雷涛. 预裂爆破在某地下矿高大硐室掘进的应用研究[J]. 中国安全科学学报, 2025, 35(S2): 182-188.

LEI Tao. Application of presplitting blasting in high chamber excavation of an underground mine[J]. China Safety Science Journal, 2025, 35(S2): 182-188.

图/表 13

图1

图2

图3

图4

图5

图6

图7

图8

表1

表2

表3

图9

图10

参考文献 15

[1]	朱强, 陈明, 郑炳旭, 等. 空气间隔装药预裂爆破岩体损伤分布特征及控制技术[J]. 岩石力学与工程学报, 2016, 35(增1): 2 758-2 765.
	ZHU Qiang, CHEN Ming, ZHENG Bingxu, et al. Distribution and control technology of rock damage induced by air-deck charge presplitting blasting[J]. Chinese Journal of Rock Mechanics and Engineering, 2016, 35(S1): 2 758-2 765.
[2]	唐海, 李海波, 周青春, 等. 预裂爆破震动效应试验研究[J]. 岩石力学与工程学报, 2010, 29(11): 2 277-2 284.
	TANG Hai, LI Haibo, ZHOU Qingchun, et al. Experimental study of vibration effect of presplit blasting[J]. Chinese Journal of Rock Mechanics and Engineering, 2010, 29(11): 2 277-2 284.
[3]	徐荣兴, 秦志辉. 数码电子雷管在露天矿中深孔预裂爆破中的应用[J]. 露天采矿技术, 2020, 35(5):51-53, 57.
	XU Rongxing, QIN Zhihui. Application of digital electronic detonator in open-pit mine medium deep hole presplitting blasting[J]. Opencast Mining Technology, 2020, 35(5):51-53,57.
[4]	陈俊桦, 张家生, 李新平. 基于岩石爆破损伤理论的预裂爆破参数研究及应用[J]. 岩土力学, 2016, 37(5): 1 441-1 450.
	CHEN Junhua, ZHANG Jiasheng, LI Xinping. Study of presplitting blasting parameters and its application based on rock blasting-induced damage theory[J]. Rock and Soil Mechanics, 2016, 37(5): 1 441-1 450.
[5]	刘继良, 党国建. 预裂爆破技术在露天钼矿山的应用[J]. 有色金属:矿山部分, 2009, 61(3):59-60.
	LIU Jiliang, DANG Guojian. Application of pre-split blasting technology in molybdenum open-pit[J]. Nonferrous Metals: Mining Section, 2009, 61(3):59-60.
[6]	郝琪, 曹安业, 王常彬, 等. 硬厚致灾岩层预裂爆破防冲参数优化及工程实践[J]. 采矿与安全工程学报, 2024, 41(3): 481-492.
	HAO Qi, CAO Anye, WANG Changbin, et al. Optimization of anti-impact parameters and engineering practice of pre-split blasting for hard-thick disastrous rock strata[J]. Journal of Mining & Safety Engineering, 2024, 41(3):481-492.
[7]	朱必勇, 焦文宇, 寇向宇, 等. 基于数值模拟的预裂爆破参数优化研究[J]. 有色金属:矿山部分, 2019, 71(4):32-36.
	ZHU Biyong, JIAO Wenyu, KOU Xiangyu, et al. Parameters optimization of pre-split blasting based on numerical simulation[J]. Nonferrous Metals: Mining Section, 2019, 71(4):32-36.
[8]	陈庆凯, 朱万成. 预裂爆破成缝机理及预裂孔间距的设计方法[J]. 东北大学学报:自然科学版, 2011, 32(7): 1 024-1 027.
	CHEN Qingkai, ZHU Wancheng. Mechanism of the crack formation induced by pre-split blasting and design method for the pre-split blasting hole space[J]. Journal of Northeastern University:Natural Science, 2011, 32(7): 1 024-1 027.
[9]	楼晓明, 赖红源, 唐小军. 紫金山金铜矿靠帮高陡边坡爆破减震研究[J]. 爆破, 2011, 28(2):56-59.
	LOU Xiaoming, LAI Hongyuan, TANG Xiaojun. Study on blasting vibration absorbing of high rock end-slope in Zijinshan gold-copper mine[J]. Blasting, 2011, 28(2):56-59.
[10]	张迎春, 赵良玉, 张遵辉, 等. 预裂爆破技术在露天矿山治理工程中的应用[J]. 采矿技术, 2023, 23(2):135-138.
[11]	汪旭光. 爆破设计与施工[M]. 北京: 冶金工业出版社, 2011:186-195.
[12]	唐小军, 赖红源, 夏鹤平, 等. 预裂爆破在紫金山金铜矿高陡边坡的应用[J]. 爆破, 2010, 27(3):48-50.
	TANG Xiaojun, LAI Hongyuan, XIA Heping, et al. Application of presplitting blasting to high rock slope in Zijinshan gold-copper mine[J]. Blasting, 2010, 27(3):48-50.
[13]	马泗洲, 刘科伟, 杨家彩, 等. 不耦合装药下岩石爆破块体尺寸的分布特征[J]. 爆炸与冲击, 2024, 44(4):122-140.
	MA Sizhou, LIU Kewei, YANG Jiacai, et al. Size distribution characteristics of blast-induced rock fragmentation under decoupled charge structures[J]. Explosion and Shock Waves, 2024, 44(4):122-140.
[14]	段继超, 宗琦, 汪海波, 等. 起爆顺序对台阶岩石破碎块度及爆破振动影响研究[J]. 中国安全科学学报, 2024, 34(2): 192-199. doi: 10.16265/j.cnki.issn1003-3033.2024.02.0319
	DUAN Jichao, ZONG Qi, WANG Haibo, et al. Study on the influence of initiation sequence on fragmentation of step rock and blasting vibration[J]. China Safety Science Journal, 2024, 34(2):192-199. doi: 10.16265/j.cnki.issn1003-3033.2024.02.0319
[15]	叶洲元, 周志华. 爆破震动安全距离的优化计算[J]. 中国安全科学学报, 2005, 15(3):57-60.
	YE Zhouyuan, ZHOU Zhihua. Optimized calculation for safe distance of blasting vibration[J]. China Safety Science Journal, 2005, 15(3):57-60.

技术参数	拉槽孔+辅助孔	预裂孔
线装药密度/(kg·m^-1)	—	1.00
装药量/kg	456	81
崩矿量/t	127.69	287.30
总装药量/kg	537
总崩矿量/t	415
平均炸药单耗/(kg·t^-1)	1.29

器材名称	规格	数量
2^#岩石乳化炸药	Φ32 mm	270根
2^#岩石乳化炸药	Φ100 mm	152根
数码电子雷管	7 m	17发

序号	排号	孔号	孔深/m	装药长度/ m	药卷数量		装药量/kg	雷管/发	导爆索/m
序号	排号	孔号	孔深/m	装药长度/ m	Φ100 mm	Φ32 mm	装药量/kg	雷管/发	导爆索/m
1	1P	1	5.268	3.5	0	15	4.5	0	10
2		2	5.01	3.5	0	15	4.5	0	10
3		3	4.923	3.5	0	15	4.5	0	10
4		4	5.01	3.5	0	15	4.5	0	10
5		5	5.268	3.5	0	15	4.5	0	10
6	2P	1	5.189	3.5	0	15	4.5	0	10
7		2	4.891	3.6	8	0	24	1	10
8		3	4.82	3.6	8	0	24	1	10
9		4	4.891	3.6	8	0	24	1	10
10		5	5.189	3.5	0	15	4.5	0	10
11	3P	1	5.178	3.5	0	15	4.5	0	10
12		2	4.839	3.6	8	0	24	1	10
13		3	4.839	3.6	8	0	24	1	10
14		4	5.178	3.5	0	15	4.5	0	10
15	4P	1	5.236	3.5	0	15	4.5	0	10
16		2	4.891	3.6	8	0	24	1	10
17		3	4.82	4.2	14	0	42	1	0
18		4	4.82	4.2	14	0	42	1	0
19		5	4.891	3.6	8	0	24	1	10
20		6	5.236	3.5	0	15	4.5	0	10
21	5P	1	4.855	3.6	8	0	24	1	10
22		2	4.82	4.2	14	0	42	1	0
23		3	4.82	0	0	0	0	0	0
24		4	4.82	4.2	14	0	42	1	0
25		5	4.855	3.6	8	0	24	1	10
26	6P	1	5.362	3.5	0	15	4.5	0	10
27		2	4.994	3.6	8	0	24	1	10
28		3	4.924	3.6	8	0	24	1	10
29		4	4.994	3.6	8	0	24	1	10
30		5	5.362	3.5	0	15	4.5	0	10
31	7P	1	5.55	3.5	0	15	4.5	0	10
32		2	5.306	3.5	0	15	4.5	0	10
33		3	5.22	3.5	0	15	4.5	0	10
34		4	5.306	3.5	0	15	4.5	0	10
35		5	5.55	3.5	0	15	4.5	0	10
起爆预裂孔使用1发雷管								1	20
合计			177.125	123	152	270	537	17	320
