基于玻璃毛细管坩埚DSC的高能化学品含能量分析

doi:10.16265/j.cnki.issn1003-3033.2026.07.0230

中国安全科学学报 ›› 2026, Vol. 36 ›› Issue (7): 164-170.doi: 10.16265/j.cnki.issn1003-3033.2026.07.0230

基于玻璃毛细管坩埚DSC的高能化学品含能量分析

李玮晔¹(), 吕小宝², 沈雯怡³, 赵晓雷², 田均均⁴, 盛敏⁵^,^**()

¹ 华东理工大学反应安全中心, 上海 200237
² 上海市公安局物证鉴定中心, 上海 200083
³ 上海市公安局涉火案件现场物证重点实验室, 上海 200083
⁴ 中国工程物理研究院化工材料研究所, 四川绵阳 621900
⁵ 上海市应急管理局化工反应安全重点实验室, 上海 200237

收稿日期:2026-02-26 修回日期:2026-05-14 出版日期:2026-07-28
通信作者:
^**盛敏(1980—),男,江西九江人,博士,教授,博士生导师,主要从事反应安全风险评估、反应动力学和锂电池热安全研究。E-mail:minsheng@ecust.edu.cn。
作者简介:
李玮晔 (2001—),男,江苏盐城人,博士研究生,主要研究方向为反应安全风险评估。E-mail: weiyeli@mail.ecust.edu.cn。

Anslysis of energy content of high-energy chemicals using DSC with glass capillary crucible

Li Weiye¹(), Lyu Xiaobao², Shen Wenyi³, Zhao Xiaolei², Tian Junjun⁴, Sheng Min⁵^,^**()

¹ Reactive Chemical Safety Center, East China University of Science and Technology, Shanghai 200237, China
² Physical Evidence Identification Center, Shanghai Municipal Public Security Bureau, Shanghai 200083, China
³ Key Laboratory for Fire-related Case Scene Material Evidence, Shanghai Municipal Public Security Bureau, Shanghai 200083, China
⁴ Institute of Chemical Materials, China Academy of Engineering Physics, Mianyang Sichuan 621900, China
⁵ Key Laboratory of Chemical Reaction Safety, Shanghai Emergency Management Bureau, Shanghai 200237, China

Received:2026-02-26 Revised:2026-05-14 Published:2026-07-28

摘要/Abstract

摘要：

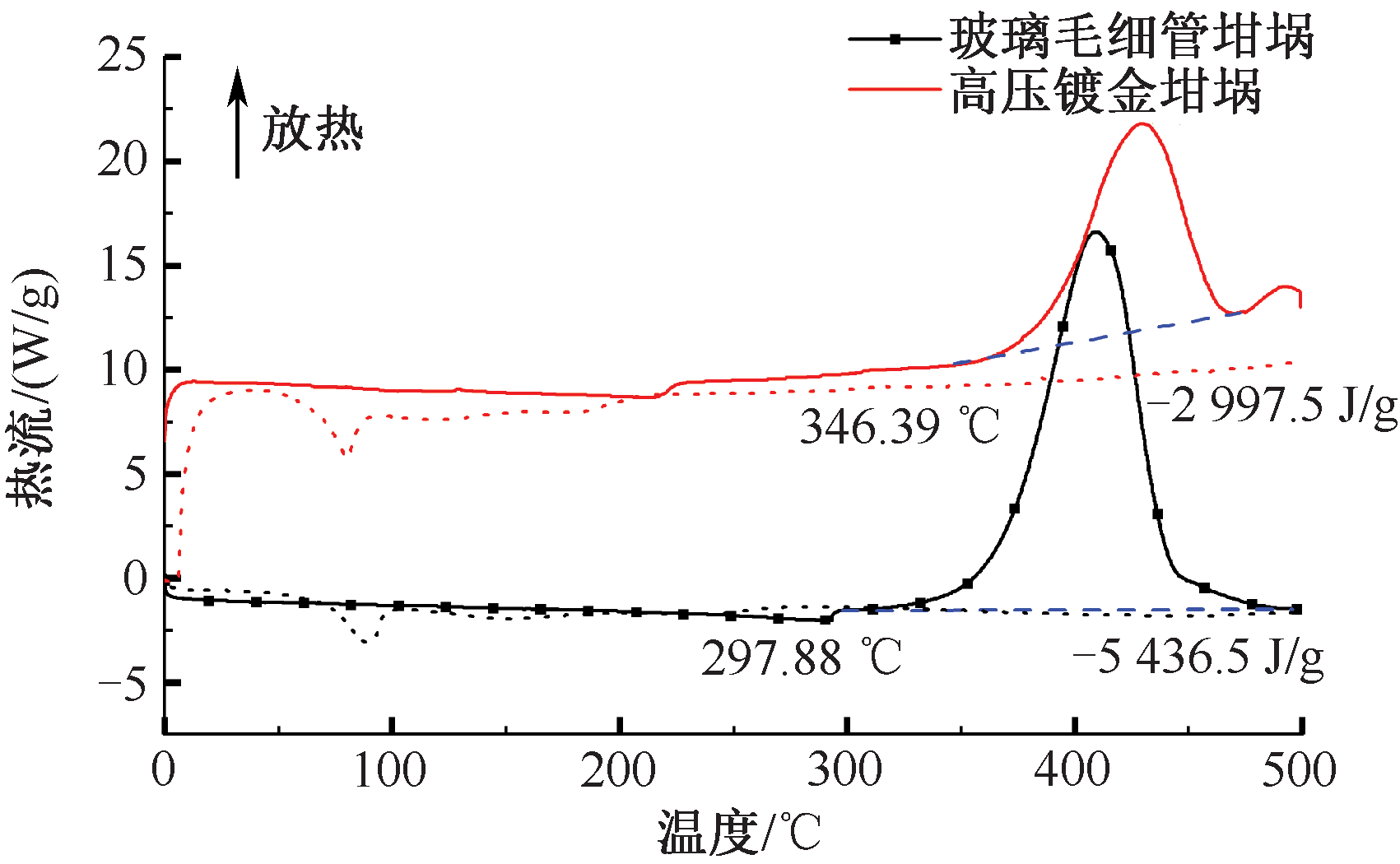

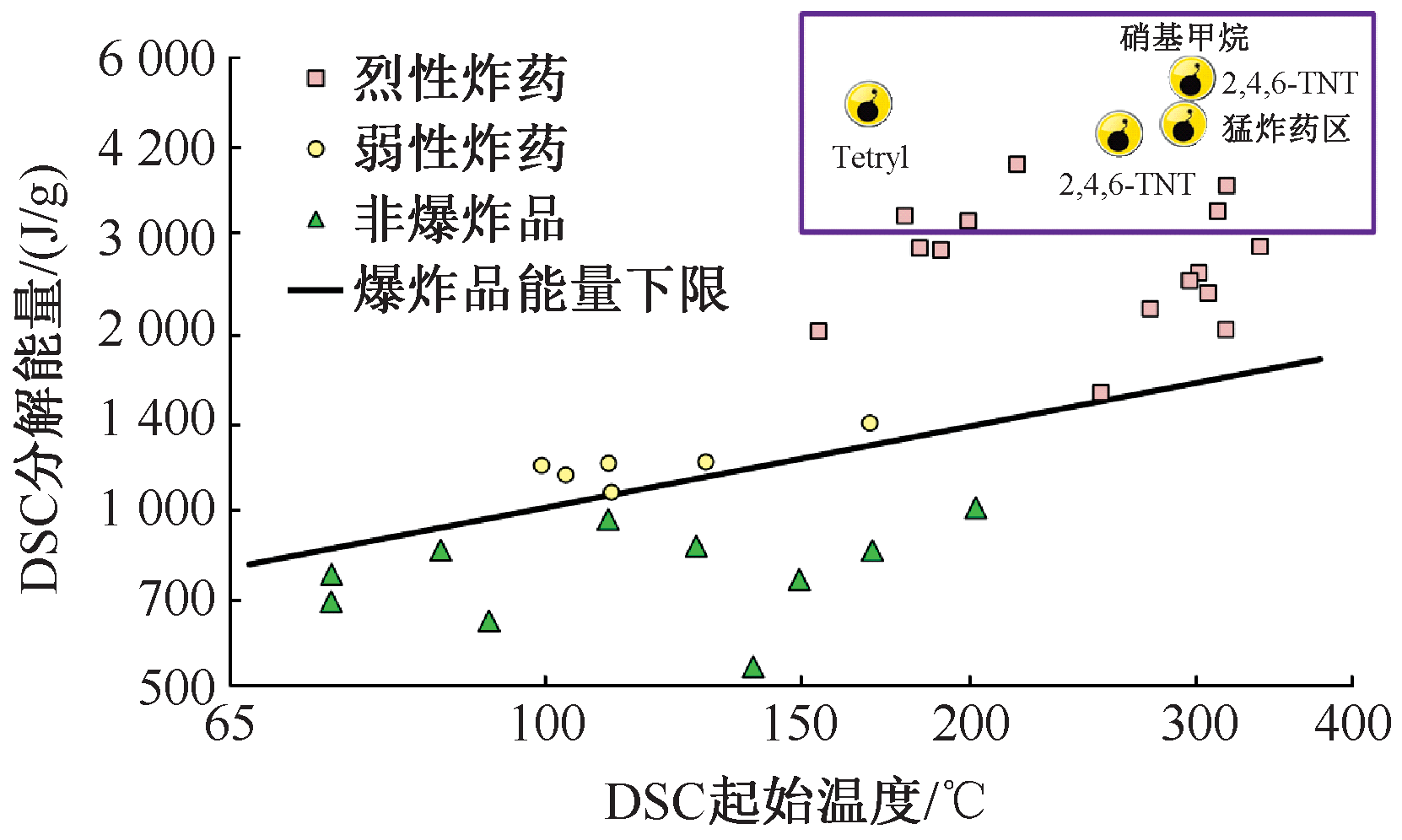

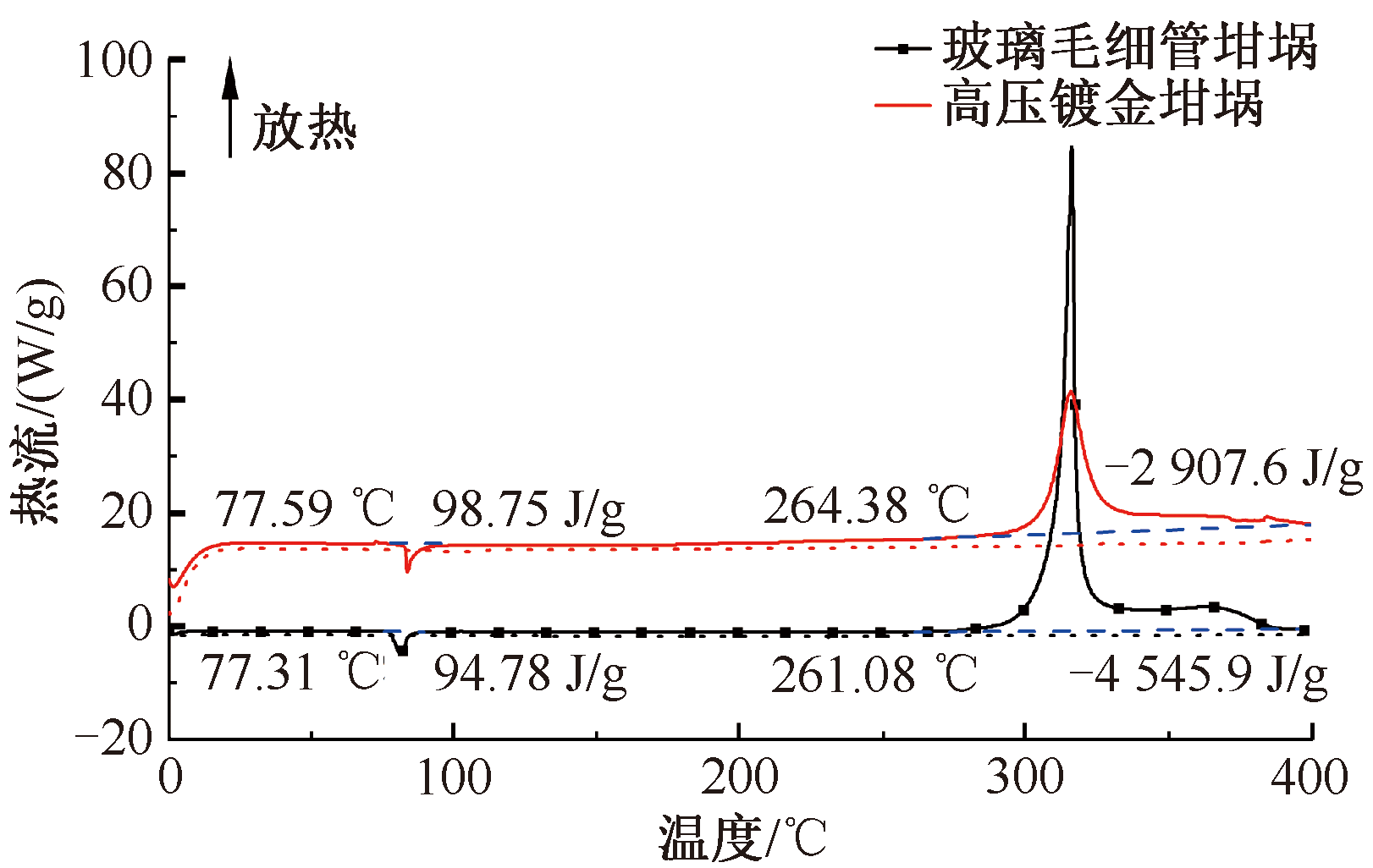

为解决常规量热测试高能化学品含能量误差较大的问题,在玻璃毛细管坩埚内微量填充样品,并使用差示扫描量热仪(DSC)测试样品的热分解特性,分析三硝基甲苯(2,4,6-TNT、2,3,6-TNT)、硝基甲烷及特屈儿(Tetryl)4种高能化学品的含能量,获取其热分解特征图谱与吸放热数据,深入解析复杂多硝基化合物的分解反应机制,并结合Yoshida关系式评估其爆炸属性区间。研究结果表明:相较于目前常用的高压镀金坩埚,采用在玻璃毛细管坩埚内填充样品在可靠性与经济性上更具优势;2,4,6-TNT与硝基甲烷在玻璃毛细管坩埚中测得的含能量分别为-4 545.9、-5 436.5 J/g,在高压镀金坩埚中测得的含能量分别为-2 907.6、-2 997.5 J/g,相比之下,玻璃毛细管坩埚中测得的含能量更贴合理论值(-4 184、-5 246 J/g)。同时,采用玻璃毛细管坩埚方法的测量误差均控制在10%以内,展现出良好的重现性与测试精度。

关键词: 玻璃毛细管坩埚, 差示扫描量热仪(DSC), 高能化学品, 含能量, 高压镀金坩埚

Abstract:

To address the issue of significant errors in measuring the energy content of high-energy chemicals using conventional calorimetry, trace amounts of samples were loaded into glass capillary crucibles, and their thermal decomposition characteristics were tested using differential scanning calorimetry (DSC). The energy contents of four high-energy chemicals—trinitrotoluene (2,4,6-TNT and 2,3,6-TNT), nitromethane, and tetryl—were analyzed to obtain their thermal decomposition profiles and endothermic/exothermic data. Furthermore, the decomposition reaction mechanisms of these complex polynitro compounds were thoroughly investigated, and their explosive property ranges were evaluated using the Yoshida correlation. The results indicate that, compared to the commonly used high-pressure gold-plated crucibles, filling samples in glass capillary crucibles offers greater advantages in reliability and cost-effectiveness. The energy contents of 2,4,6-TNT and nitromethane measured in glass capillary crucibles were -4 545.9 and -5 436.5 J/g, respectively, while those measured in high-pressure gold-plated crucibles were -2 907.6 and -2 997.5 J/g; in comparison, the energy contents measured in the glass capillary crucibles are much closer to the theoretical values (-4 184 and -5 246 J/g). Meanwhile, the measurement errors of the glass capillary crucible method are maintained within 10%, demonstrating good reproducibility and high measurement accuracy.

Key words: glass capillary crucible, differential scanning calorimetry(DSC), high-energy chemicals, energy content, high-pressure gold-plated crucible

中图分类号:

X937

李玮晔, 吕小宝, 沈雯怡, 赵晓雷, 田均均, 盛敏. 基于玻璃毛细管坩埚DSC的高能化学品含能量分析[J]. 中国安全科学学报, 2026, 36(7): 164-170.

Li Weiye, Lyu Xiaobao, Shen Wenyi, Zhao Xiaolei, Tian Junjun, Sheng Min. Anslysis of energy content of high-energy chemicals using DSC with glass capillary crucible[J]. China Safety Science Journal, 2026, 36(7): 164-170.

图/表 10

表1

图1

图2

表2

图3

图4

表3

图5

图6

图7

参考文献 28

[1]	缪玉松, 李晓杰, 王小红, 等. 爆轰波碰撞的聚能效应[J]. 爆炸与冲击, 2017, 37(3): 544-548.
	Miao Yusong, Li Xiaojie, Wang Xiaohong, et al. Munroe effect of detonation wave collision[J]. Explosion and Shock Waves, 2017, 37(3): 544-548.
[2]	GJB 772A—1997 炸药试验方法[S].
	GJB 772A-1997 Explosive test method[S].
[3]	Chandler J, Ferguson R E, Forbes J, et al. Confined combustion of TNT explosion products in air[C]. Lawrence Livermore National Laboratory, 1998: 3-5.
[4]	De Lucia F C, Giri L, Pesce-rodriguez R A, et al. Commercial aluminum powders, part I: particle size characterization and slow heating rate thermal analysis[J]. Powder Technology, 2022,399:DOI:10.1016/j.powtec.2022.117162.
[5]	Ornellas D L. Heat and products of detonation of cyclotetramethylenetetranitramine, 2,4,6-trinitrotoluene, nitromethane, and bis[2,2-dinitro-2-fluoroethyl]formal[J]. The Journal of Physical Chemistry, 1968, 72(7): 2390-2394. doi: 10.1021/j100853a019
[6]	殷刚, 傅惠民. 炸药及火工品可靠性与安全性评定方法[J]. 中国安全科学学报, 1999, 9(4): 47-50.
	Yin Gang, Fu Huimin. A new assessment method for reliability and safety of explosive and initial explosive devices[J]. China Safety Science Journal, 1999, 9(4): 47-50.
[7]	Yao Ergang, Xu Siyu, Zhao Fengqi, et al. Study on thermal decomposition behavior, gaseous products, and kinetic analysis of bis-(dimethylglyoximato) nickel (II) complex using TG-DSC-FTIR-MS technique[J]. Catalysts, 2020, 10(3): DOI:10.3390/catal10030331.
[8]	Zhang Chunyuan, Jin Shaohua, Ji Jiawen, et al. Thermal hazard assessment of TNT and DNAN under adiabatic condition by using accelerating rate calorimeter (ARC)[J]. Journal of Thermal Analysis and Calorimetry, 2017, 131(1): 89-93. doi: 10.1007/s10973-017-6665-x
[9]	Qiu Yang, Guo Fei, Hurt R, et al. Explosive thermal reduction of graphene oxide-based materials: mechanism and safety implications[J]. Carbon, 2014, 72: 215-223. pmid: 25018560
[10]	Trzciński W, Cudziło S, Dyjak S, et al. A Comparison of the sensitivity and performance characteristics of melt-pour explosives with TNT and DNAN binder[J]. Central European Journal of Energetic Materials, 2014, 11(3): 443-455.
[11]	Green S P, Wheelhouse K M, Payne A D, et al. Thermal stability and explosive hazard assessment of diazo compounds and diazo transfer reagents[J]. Organic Process Research & Development, 2019, 24(1): 67-84.
[12]	Charsley E, Laye P, Markham H, et al. Calibration of differential scanning calorimeters: a comparison between indium and diphenylacetic acid[J]. Thermochimica Acta, 2010, 497(1/2): 72-76. doi: 10.1016/j.tca.2009.08.010
[13]	盛敏, 李玮晔, 王芳芳, 等. 一种高能化学品爆炸热量的测量方法及应用: CN119165005A[P]. 2024-09-25.
[14]	Lenchitz C, Velicky R W, Silvestro G, et al. Thermodynamic properties of several nitrotoluenes[J]. Journal of Chemical Thermodynamics, 1971, 3(5): 689-692. doi: 10.1016/S0021-9614(71)80090-3
[15]	Green S P, Wheelhouse K M, Payne A D, et al. On the use of differential scanning calorimetry for thermal hazard assessment of new chemistry: avoiding explosive mistakes[J]. Angewandte Chemie International Edition, 2020, 59(37): 15 798-15 802. doi: 10.1002/anie.v59.2
[16]	Benson S W, Buss J H. Additivity rules for the estimation of molecular properties[J]. The Journal of Chemical Physics, 1958, 29(3): 546-572. doi: 10.1063/1.1744539
[17]	Edri I E, Grisaro H Y, Yankelevsky D Z. TNT equivalency in an internal explosion event[J]. Journal of Hazardous Materials, 2019, 374: 248-257. doi: S0304-3894(19)30471-6 pmid: 31005707
[18]	Rudolf M, Josef K, Axel H. Explosives[M]. Weinheim: Wiley-VCH, 1997: 336-339.
[19]	Constantinou C, Chaudhri M. Measurement of the sensitization of nitrocompounds by amines using differential scanning calorimetry[J]. Journal of Thermal Analysis and Calorimetry, 1995, 44(6): 1301-1311. doi: 10.1007/BF02549219
[20]	Kelzenberg S, Eisenreich N, Eckl W, et al. Modelling nitromethane combustion[J]. Propellants, Explosives, Pyrotechnics, 1999, 24(3): 189-194. doi: 10.1002/(ISSN)1521-4087
[21]	Saraf S R. Molecular characterization of energetic materials[D]. College Station: Texas A&M University, 2003.
[22]	Yoshida T, Yoshizawa F, Ito M, et al. Prediction of fire and explosion hazards of reactive chemicals (I). estimation of explosive properties of self-reactive chemicals from SC-DSC data[J]. Kogyo Kayaku, 1987, 48(5): 311-316.
[23]	Maule I, Razzetti G, Restelli A, et al. Thermal stability evaluation of nitroalkanes with differential scanning calorimetry[J]. Organic Process Research & Development, 2021, 25(4): 781-788.
[24]	Sperry J B, Minteer C J, Tao Jingya, et al. Thermal stability assessment of peptide coupling reagents commonly used in pharmaceutical manufacturing[J]. Organic Process Research & Development, 2018, 22(9): 1262-1275.
[25]	Bodman G T, Chervin S. Use of ARC in screening for explosive properties[J]. Journal of Hazardous Materials, 2004, 115(1/2/3): 101-105. doi: 10.1016/j.jhazmat.2004.06.022
[26]	Oxley J, Smith J, Marimaganti K. Developing small-scale tests to predict explosivity[J]. Journal of Thermal Analysis and Calorimetry, 2010, 102(2): 597-603. doi: 10.1007/s10973-010-0983-6
[27]	Kotomin A A, Dushenok S A, Kozlov A S. Detonability of suspensions of explosives in nitromethane[J]. Combustion, Explosion, and Shock Waves, 2024, 60(3): 326-332. doi: 10.1134/S0010508224030067
[28]	郭海军, 吴昱辰, 唐寒露, 等. HMX基钝感传爆药制备技术[J]. 中国安全科学学报, 2022, 32(2): 139-144. doi: 10.16265/j.cnki.issn1003-3033.2022.02.019
	Guo Haijun, Wu Yuchen, Tang Hanlu, et al. Preparation technology of HMX-based insensitive booster explosives[J]. China Safety Science Journal, 2022, 32(2): 139-144. doi: 10.16265/j.cnki.issn1003-3033.2022.02.019

样品容器	最大温度/℃	最大压力/kPa	容器质量/mg	支架质量/mg	容器体积/μL	样品质量/mg

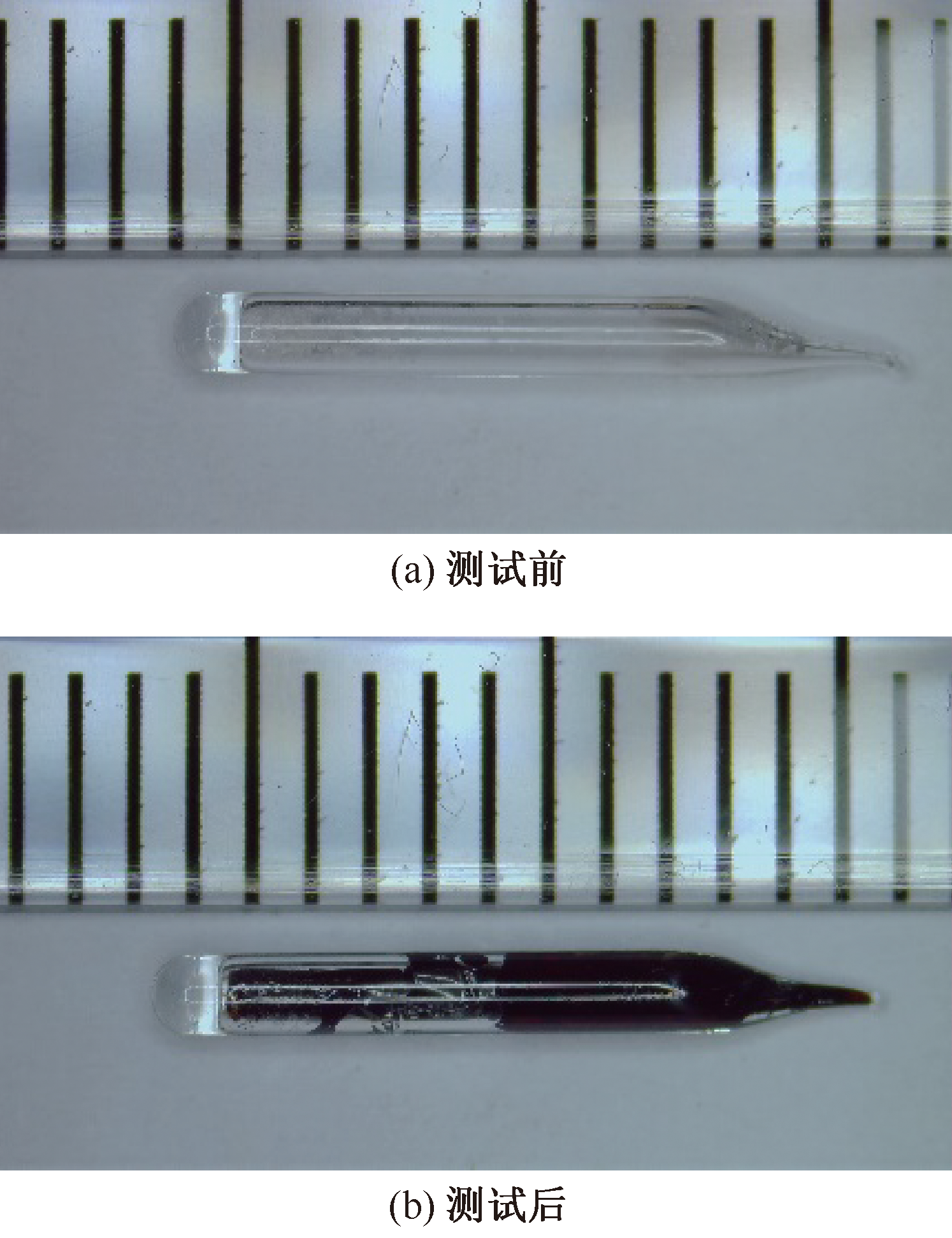

玻璃毛细管坩埚	500	40 000	25	~200	5	0.2 ~ 1.5
高压镀金坩埚	400	20 000	850	—	25	1

样品名	峰	试验1总能量/(J/g)	试验2总能量/(J/g)	试验3总能量/(J/g)	试验4总能量/(J/g)	均值/ (J/g)	标准差/ (J/g)	方差/ %

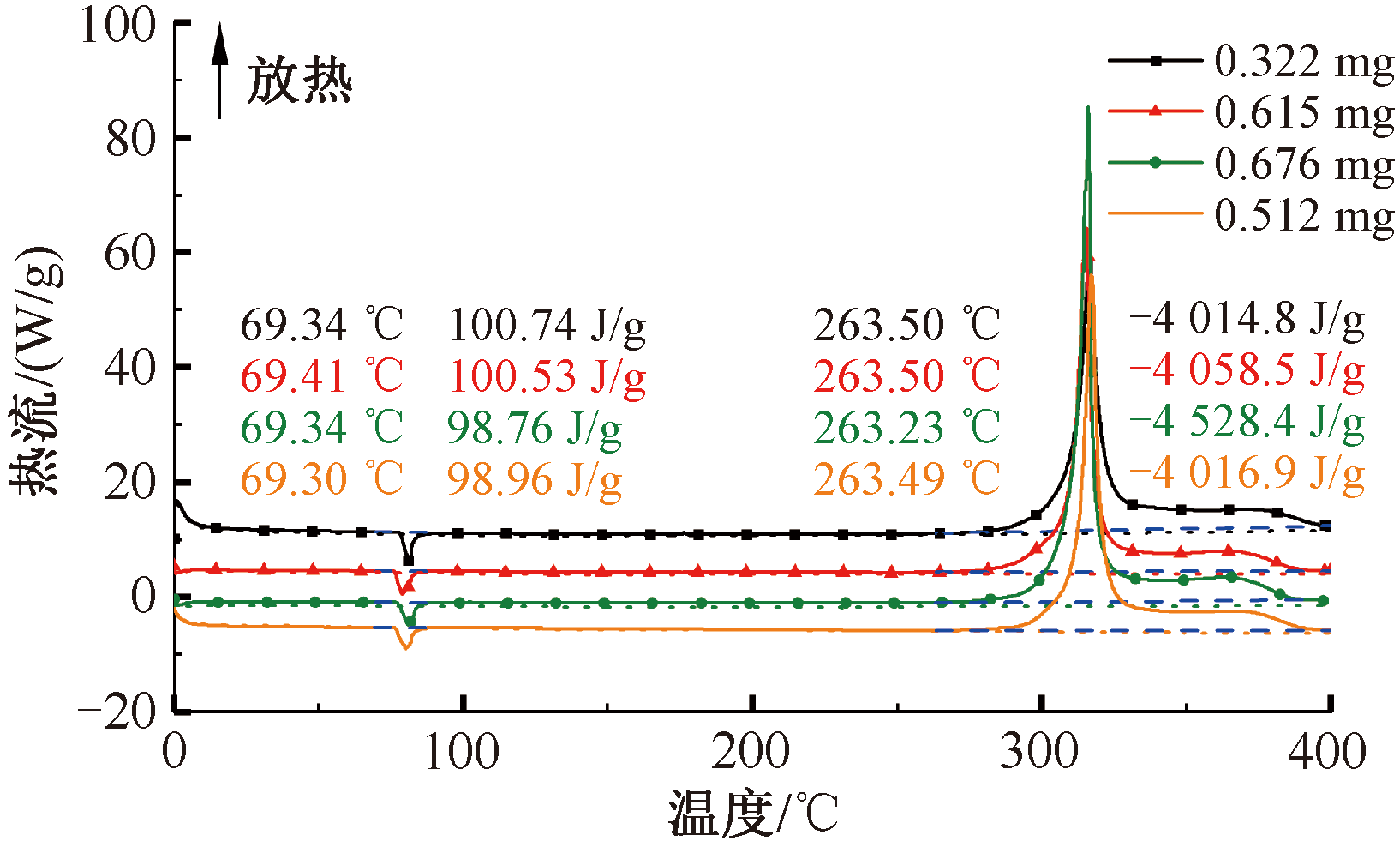

2,4,6-TNT	吸热	100.7	100.5	98.8	99.0	99.7	1.0	1.0
2,4,6-TNT	放热	-4 104.8	-4 058.5	-4 528.4	-4 016.9	-4 177.2	236.9	5.7

样品名	峰	试验1总能量/(J/g)	试验2总能量/(J/g)	试验3总能量/(J/g)	均值/ (J/g)	标准差/ (J/g)	误差/ %

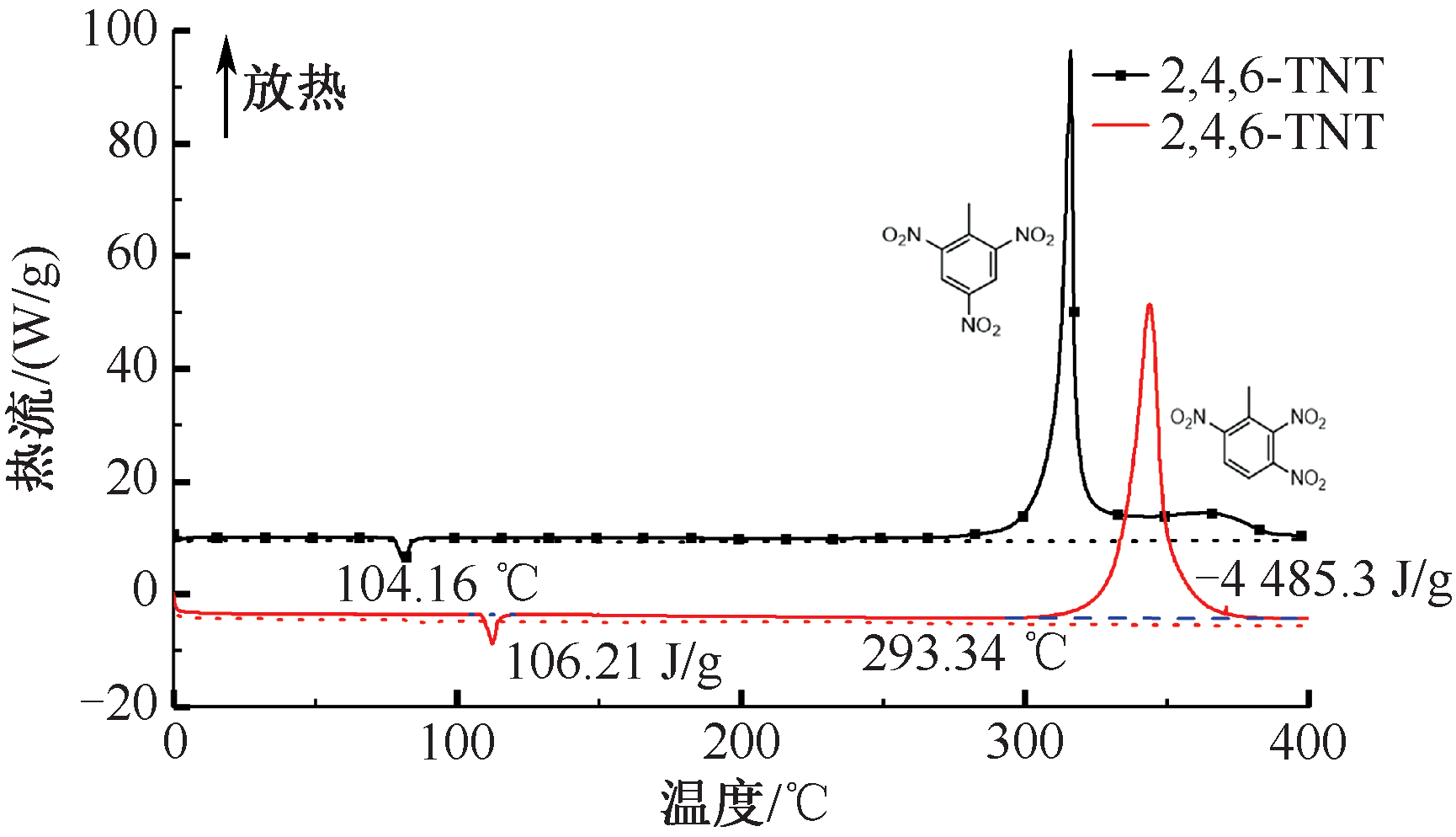

2,3,6-TNT	吸热	106.2	108.1	105.1	106.5	1.5	1.4
2,3,6-TNT	放热	-4 458.2	-4 595.5	-4 522.0	-4 525.2	68.7	1.5
硝基甲烷	放热	-5 436.5	-5 497.2	-5 360.6	-5 431.4	68.4	1.3

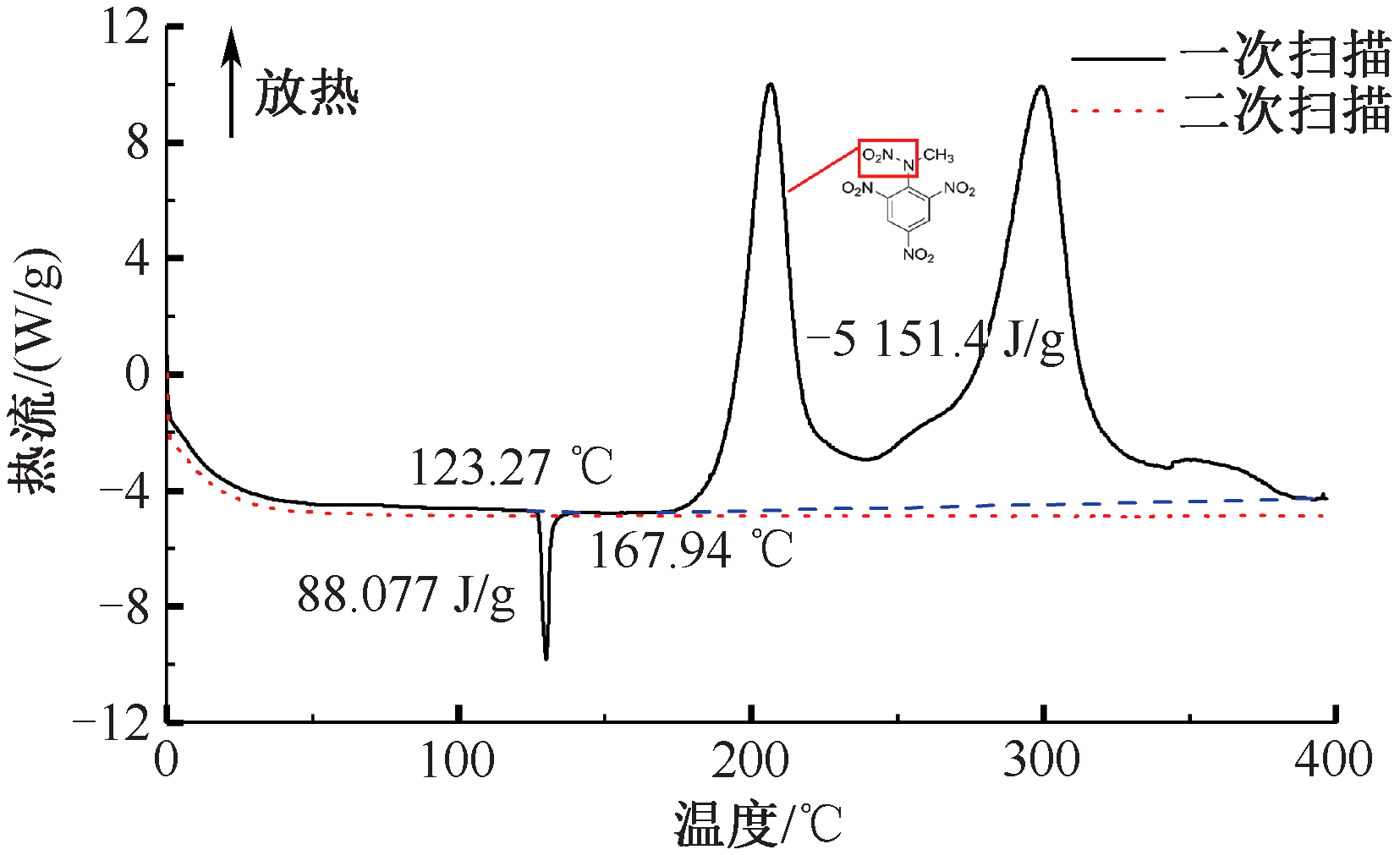

Tetryl	吸热	88.1	81.5	83.5	84.4	3.4	4.0
Tetryl	放热	-5 151.4	-4 903.5	-4 635.1	-4 896.6	258.2	5.3
