Na2CO3-5A分子筛改性复合粉体抑制H2/NH3/空气爆炸试验

doi:10.16265/j.cnki.issn1003-3033.2026.09.0314

摘要/Abstract

摘要：

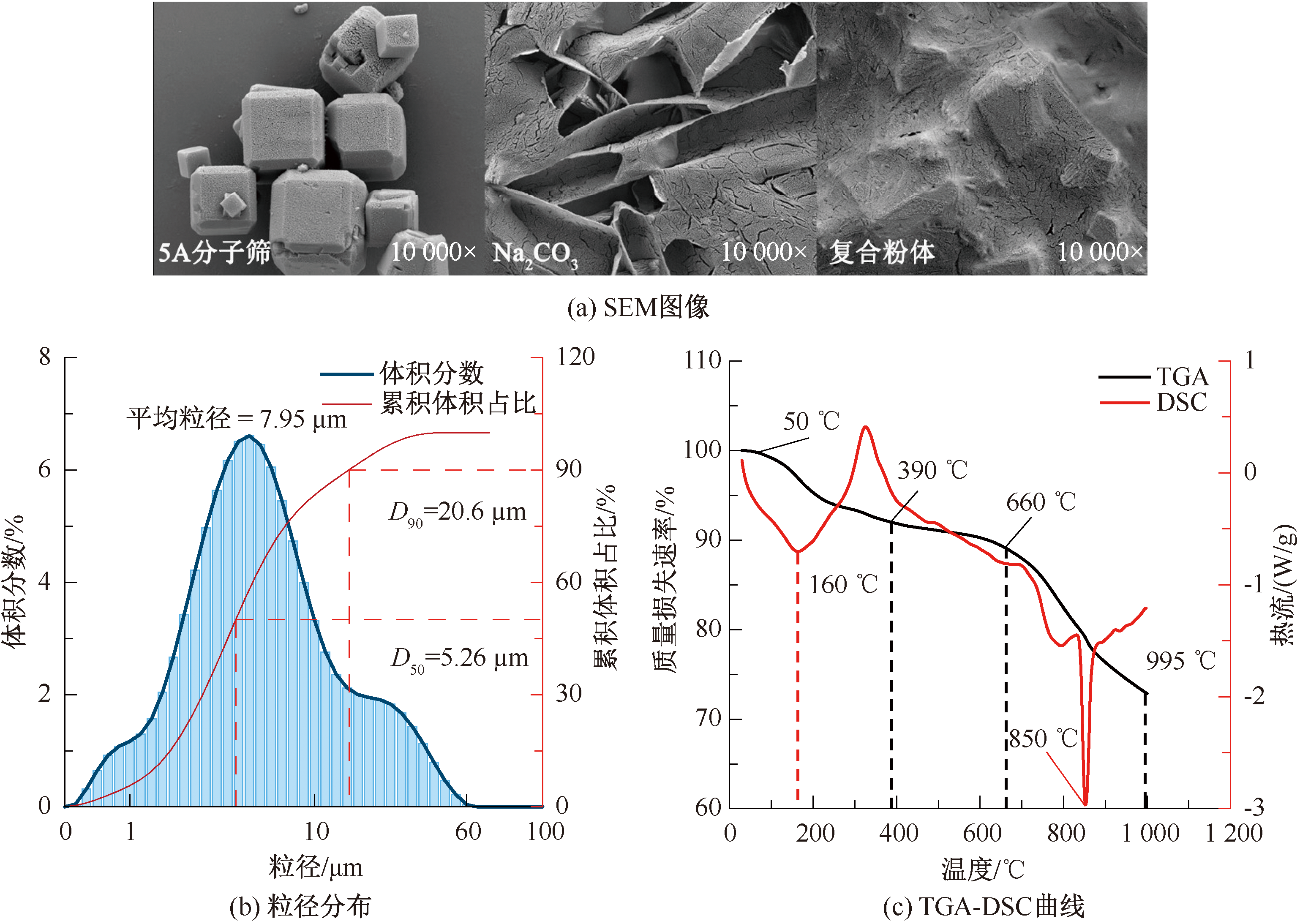

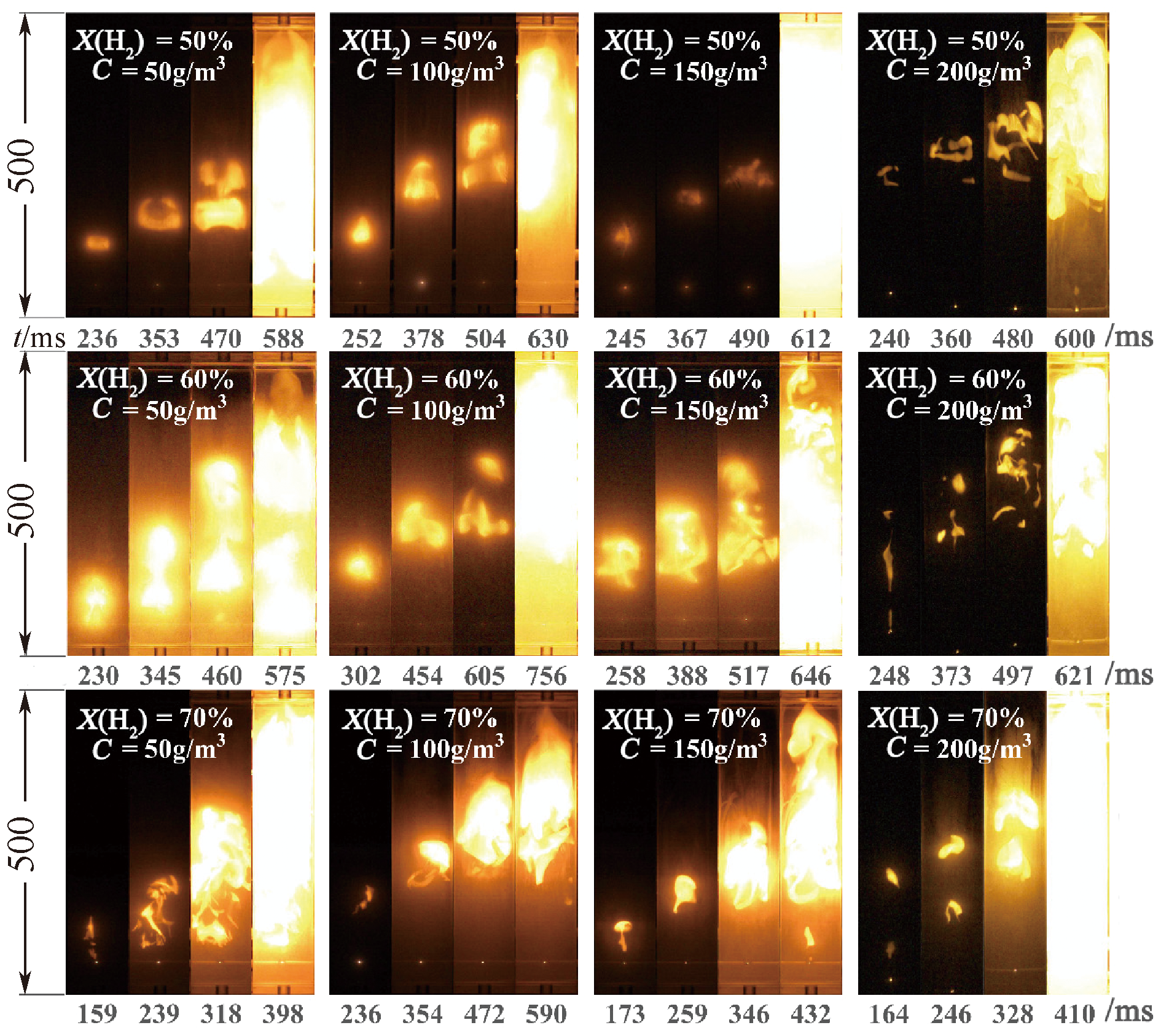

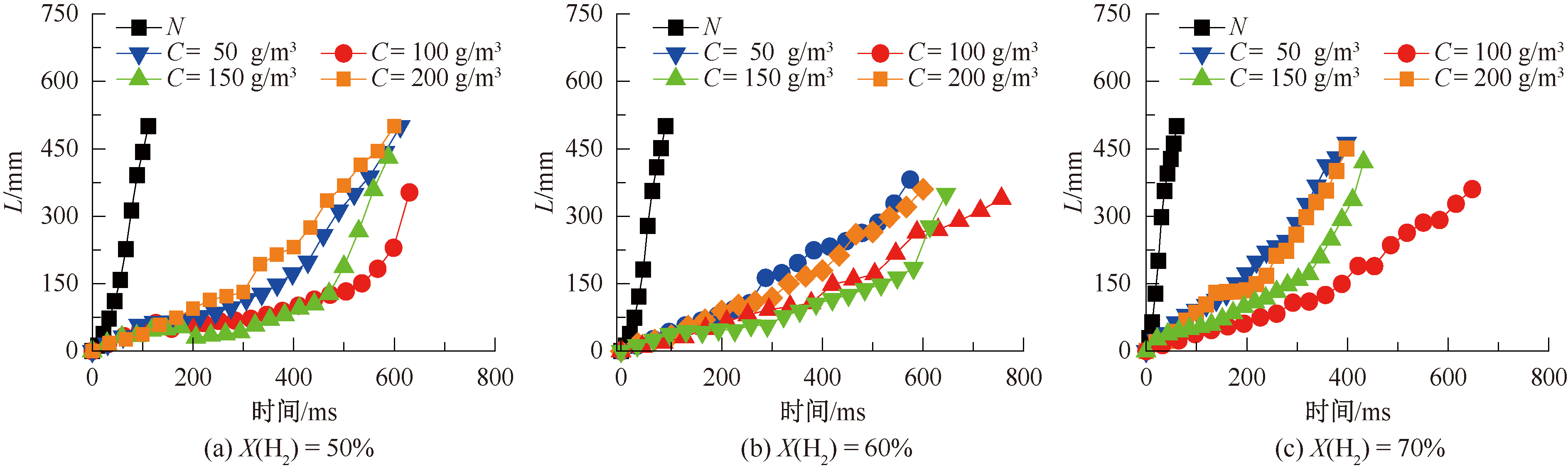

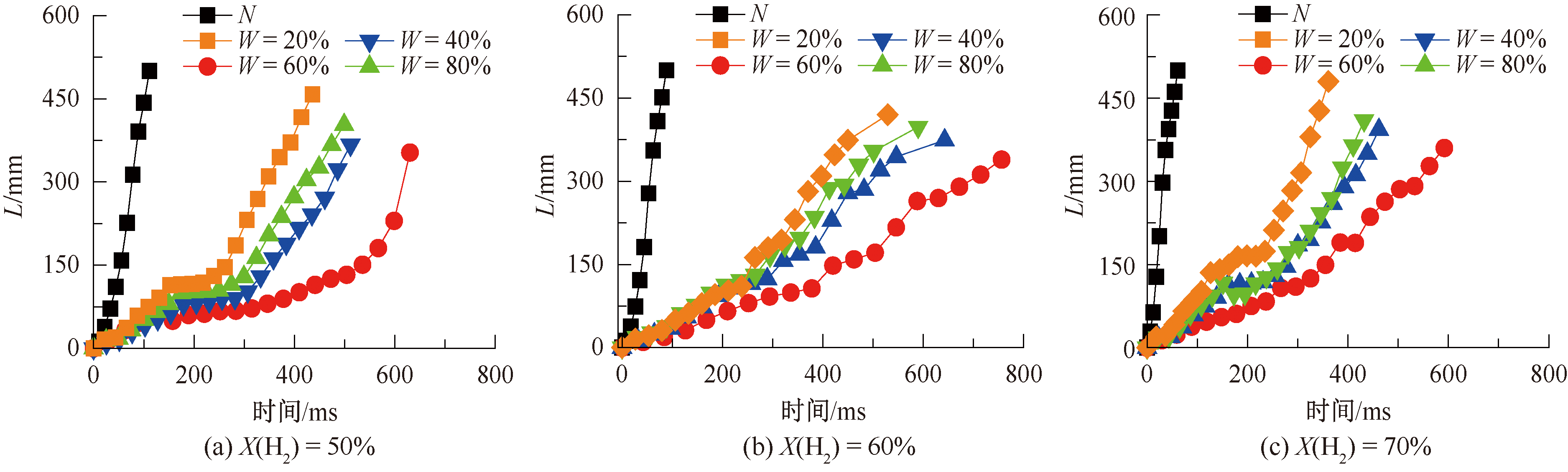

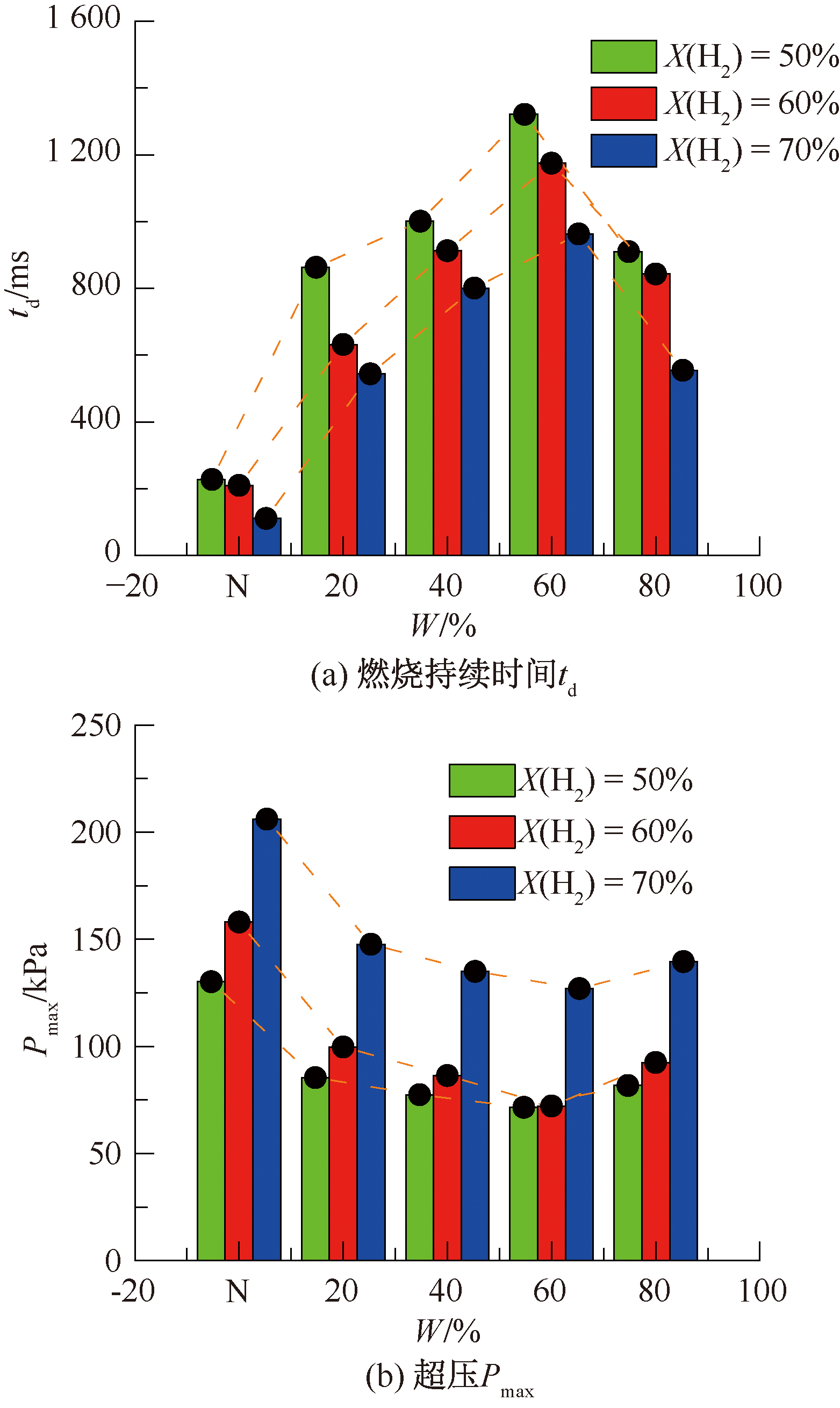

为保障氢氨燃料的安全应用,制备Na₂CO₃-5A分子筛复合粉体,并研究其抑爆性能。利用扫描电子显微镜(SEM)、激光粒度分析、热重分析(TGA)和差示扫描量热(DSC)表征复合粉体特征;通过爆炸抑制试验中火焰形态、火焰长度和超压评估粉体抑爆性能,分析燃料中氢气体积分数、复合粉体组分(用复合粉体中Na₂CO₃的质量比表征)与质量浓度对H₂/NH₃/空气爆炸的影响。结果表明:所制备的复合粉体表现出优异的结构和热性能;复合粉体对H₂/NH₃/空气混合物表现出优越的爆炸抑制能力,表现为火焰传播速度和超压降低,爆炸火焰持续时间和达到最大超压的时间延长;对于所有H₂/NH₃/空气混合物,随着Na₂CO₃质量比和复合粉体质量浓度的增加,粉体抑爆性能先增强后减弱,性能最佳时Na₂CO₃质量比和复合粉体质量浓度分别为60%和100 g/m³。

关键词: Na₂CO₃, 5A分子筛, 复合粉体, H₂/NH₃/空气, 爆炸抑制

Abstract:

To suppress H₂/NH₃/air explosions, Na₂CO₃-5A zeolite composite powder was prepared and its explosion suppression performance was investigated. The composite powder is characterized using scanning electron microscopy (SEM), laser particle size analysis, thermogravimetric analysis (TGA), and differential scanning calorimetry (DSC). Its performance is evaluated through explosion suppression tests, focusing on flame evolution shape, flame length, and overpressure in stoichiometric hydrogen-rich H₂/NH₃/air explosions. The effects of varying hydrogen fractions in fuel (50%, 60%, and 70%), the mass ratio of Na₂CO₃ in the composite powder, and the concentration of the composite powder are examined. The results demonstrate that the prepared composite powder exhibits excellent structural and thermal properties. The composite powders exhibit superior explosion suppression capabilities for H₂/NH₃/air mixtures, as evidenced by a reduction in flame propagation speed and overpressure, as well as an extension of explosion flame duration and the time to reach maximum overpressure. For all H₂/NH₃/air mixtures, as the mass ratio of Na₂CO₃ and the concentrations of composite powder change, the explosion suppression performance of the powder first increases and then decreases, with the optimal values corresponding to 60% and 100 g/m³. The research findings can provide theoretical support and technical assistance for the explosion prevention and control of hydrogen-ammonia mixed fuels.

Key words: Na₂CO₃, 5A zeolite, composite powder, H₂/NH₃/air, explosion suppression

中图分类号:

X932爆炸安全与防火、防爆

郑凯, 周辰, 孙煜炜, 吴镐南, 赵宇阳, 申帅杭. Na₂CO₃-5A分子筛改性复合粉体抑制H₂/NH₃/空气爆炸试验[J]. 中国安全科学学报, 2026, 36(9): 52-60.

Zheng Kai, Zhou Chen, Sun Yuwei, Wu Haonan, Zhao Yuyang, Shen Shuaihang. Experimental investigation of explosion suppression in H₂/NH₃/air mixtures using Na₂CO₃-5A zeolite composite powder[J]. China Safety Science Journal, 2026, 36(9): 52-60.

图/表 12

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

参考文献 27

[1]	Ma Xinyu, Nie Baisheng, Wang Weili, et al. Effect of hydrogen concentration, initial pressure and temperature on mechanisms of hydrogen explosion in confined spaces[J]. Combustion and Flame, 2024, 269:DOI:10.1016/j.combustflame.2024.113696.
[2]	Ji Changwei, Xin Gu, Wang Shuofeng, et al. Effect of ammonia addition on combustion and emissions performance of a hydrogen engine at part load and stoichiometric conditions[J]. International Journal of Hydrogen Energy, 2021, 46(80): 40 143-40 153.
[3]	Zhang Fangyu, Zhang Gengxin, Wang Zhongcheng, et al. Experimental investigation on combustion and emission characteristics of non-premixed ammonia/hydrogen flame[J]. International Journal of Hydrogen Energy, 2024, 61:25-38. doi: 10.1016/j.ijhydene.2024.02.281
[4]	Li Yanchao, Bi Mingshu, Zhou Yonghao, et al. Characteristics of hydrogen-ammonia-air cloud explosion[J]. Process Safety and Environmental Protection, 2021, 148:1207-1 216.
[5]	Liang He, Yan Xingqing, Shi Enhua, et al. Flame evolution and pressure dynamics of premixed stoichiometric ammonia/hydrogen/air in a closed duct[J]. Fuel, 2024, 363:DOI:10.1016/j.fuel.2024.130983.
[6]	Zheng Kai, Song Zengyi, Song Chen, et al. Investigation on the explosion of ammonia/hydrogen/air in a closed duct by experiments and numerical simulations[J]. International Journal of Hydrogen Energy, 2024, 79:1267-1 277. doi: 10.1016/j.ijhydene.2024.06.282
[7]	Wu Yue, Yu Xing, Wang Zongcheng, et al. The flame mitigation effect of N₂ and CO₂ on the hydrogen jet fire[J]. Process Safety and Environmental Protection, 2022, 165:658-670. doi: 10.1016/j.psep.2022.07.027
[8]	Zhang Siyu, Wen Xiaoping, Guo Zhidong, et al. Experimental study on the multi-level suppression of N₂ and CO₂ on hydrogen-air explosion[J]. Process Safety and Environmental Protection, 2023, 169:970-981. doi: 10.1016/j.psep.2022.11.069
[9]	王晓玲, 刘震起. 甲烷-空气预混区外含钾细水雾抑爆特性研究[J]. 中国安全科学学报, 2024, 34(1):150-157. doi: 10.16265/j.cnki.issn1003-3033.2024.01.0695
	Wang Xiaoling, Liu Zhenqi. Study on explosion suppression characteristics of water mist containing potassium compounds outside methane-air premixed area[J]. China Safety Science Journal, 2024, 34(1):150-157. doi: 10.16265/j.cnki.issn1003-3033.2024.01.0695
[10]	Wei Shuangming, Yu Minggao, Pei Bei, et al. Experimental and numerical study on the explosion suppression of hydrogen/dimethyl ether/methane/air mixtures by water mist containing NaHCO₃[J]. Fuel, 2022, 328:DOI:10.1016/j.fuel.2022.125235.
[11]	Luo Zhenmin, Su Yang, Chen Xiaokun, et al. Effect of BC powder on hydrogen/methane/air premixed gas deflagration[J]. Fuel, 2019, 257:DOI:10.1016/j.fuel.2019.116095.
[12]	贾进章, 田秀媛. 钾盐粉体抑制瓦斯爆炸超压特性研究[J]. 中国安全科学学报, 2025, 35(7): 48-56. doi: 10.16265/j.cnki.issn1003-3033.2025.07.1624
	Jia Jinzhang, Tian Xiuyuan. Study on characteristics of potassium salt powder in inhibiting gas explosion overpressure[J]. China Safety Science Journal, 2025, 35(7):48-56. doi: 10.16265/j.cnki.issn1003-3033.2025.07.1624
[13]	Zhou Jianhua, Jiang Haipeng, Zhou Yonghao, et al. Flame suppression of 100 nm PMMA dust explosion by KHCO₃ with different particle size[J]. Process Safety and Environmental Protection, 2019, 132:303-312. doi: 10.1016/j.psep.2019.10.027
[14]	Xu Mengtao, Zheng Ligang, Wang Jian, et al. Effect of hydrogen fraction and initial pressure on the inhibition of methane/hydrogen/air explosions by NaHCO₃[J]. Fuel, 2024, 365:DOI:10.1016/j.fuel.2024.131273.
[15]	Lu Kunlun, Jiang Bingyou, Xiao Yang, et al. Experimental investigation on the suppression of aluminum dust explosion by sodium carbonate powder[J]. Process Safety and Environmental Protection, 2024, 183:568-579. doi: 10.1016/j.psep.2024.01.034
[16]	Tian Changshun, Su Gang, Rao Yunzhang. The suppression characteristic and chemical reaction mechanism of calcium carbonate and sodium bicarbonate powder on sulfurous iron ore dust explosions[J]. Powder Technology, 2025, 466:DOI:10.1016/j.powtec.2025.121438.
[17]	Yang Zhe, Luo Zhenmin, Zhou Shangyong, et al. The deflagration suppression of methane-air by sodium salt-modified dry water: experimental and kinetic investigation[J]. Journal of Loss Prevention in the Process Industries, 2025, 98:DOI:10.1016/j.jlp.2025.105743.
[18]	Dai Huaming, Liang Guangqian, Yin Hepeng, et al. Experimental investigation on the inhibition of coal dust explosion by the composite inhibitor of carbamide and zeolite[J]. Fuel, 2022, 308:DOI:10.1016/j.fuel.2021.121981.
[19]	Yu Minggao, Wang Xueyan, Zheng Kai, et al. Investigation of methane/air explosion suppression by modified montmorillonite inhibitor[J]. Process Safety and Environmental Protection, 2020, 144:337-348. doi: 10.1016/j.psep.2020.07.050
[20]	Du Yu, Huang Chuyuan, Qiu Dongyang, et al. Experimental and numerical study on the suppression of ammonia-hydrogen mixture explosions by ammonium polyphosphate-modified gel dry water[J]. Fuel, 2026, 410:DOI:10.1016/j.fuel.2025.137938.
[21]	Zheng Kai, Chen Yinchen, Zhang Shuo, et al. Explosion behavior of premixed hydrogen/ammonia/air mixtures with the addition of N₂ and CO₂[J]. International Journal of Hydrogen Energy, 2025, 117:50-61. doi: 10.1016/j.ijhydene.2025.03.148
[22]	Cheng Fangming, Li Beibei, Luo Zhenmin, et al. Effect of CO₂ on the explosion limit parameters and kinetic characteristics of ammonia-hydrogen-air mixtures[J]. Journal of Loss Prevention in the Process Industries, 2024, 92:DOI:10.1016/j.jlp.2024.105480.
[23]	Wang Tao, Tian Xiaoyue, Feng Hui, et al. Experimental and kinetic investigation on the explosion suppression of hydrogen-enriched methane mixtures by sodium carbonate decahydrate[J]. International Journal of Hydrogen Energy, 2026, 198:DOI:10.1016/j.ijhydene.2025.152789.
[24]	Clanet C, Searby G. On the "tulip flame" phenomenon[J]. Combustion and Flame, 1996, 105:225-238. doi: 10.1016/0010-2180(95)00195-6
[25]	Xiao Huahua, Houim R W, Oran E S. Formation and evolution of distorted tulip flames[J]. Combustion and Flame, 2015, 162:4084-4 101.
[26]	Ponizy B, Claverie A, Veyssière B. Tulip flame-the mechanism of flame front inversion[J]. Combustion and Flame, 2014, 161:3051-3 062.
[27]	Wang Qiuhong, Zhu Leilei, Deng Jun, et al. Explosion suppressing effects of Mg(OH)₂/NH₄H₂PO₄ compound powders on the methane explosion and its microscopic mechanism about capturing intermediate products[J]. Fuel, 2025, 385:DOI:10.1016/j.fuel.2024.134023.
