降雪天气对机场基础设施系统韧性恢复的影响

doi:10.16265/j.cnki.issn1003-3033.2024.04.1526

摘要/Abstract

摘要：

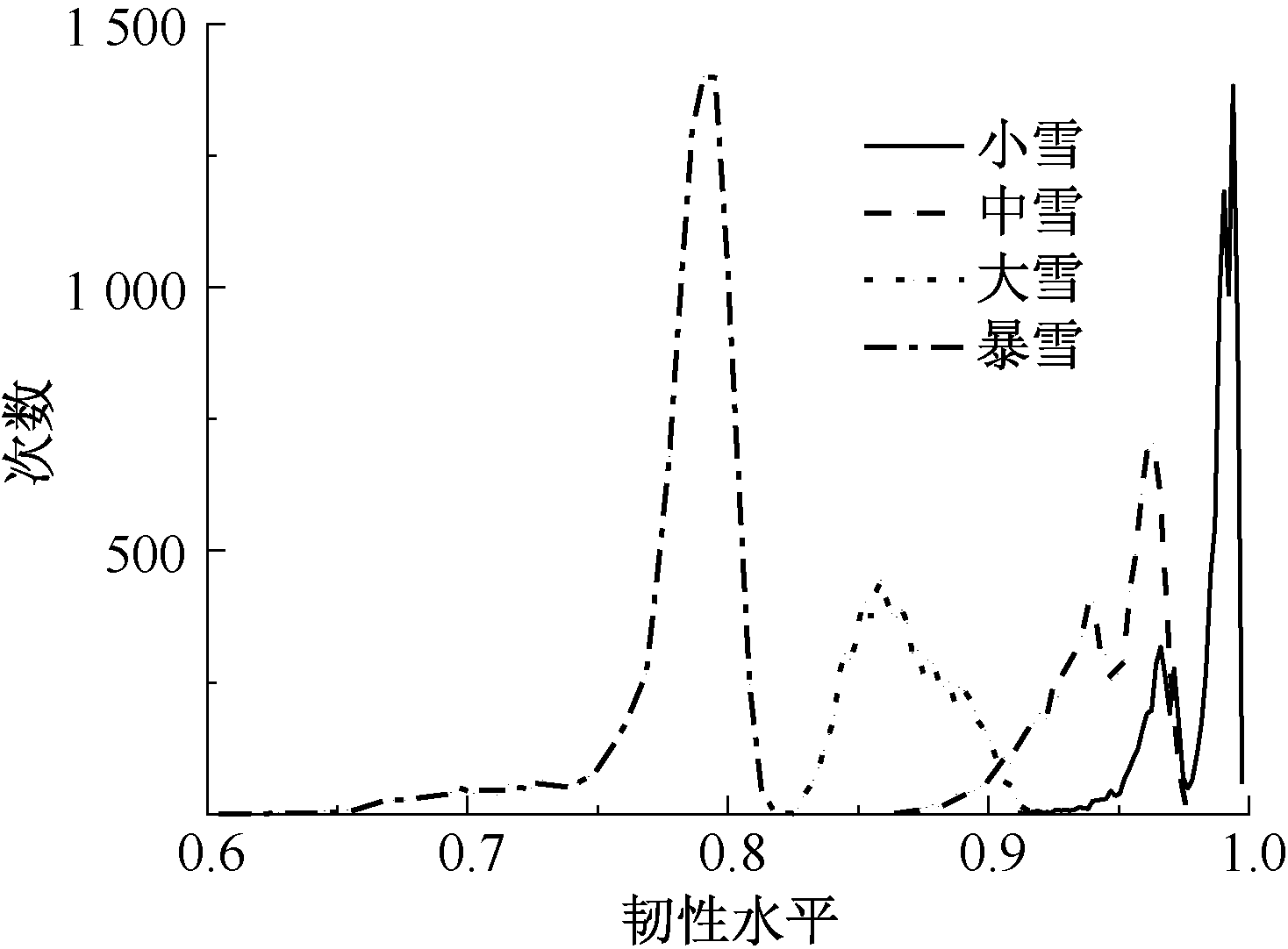

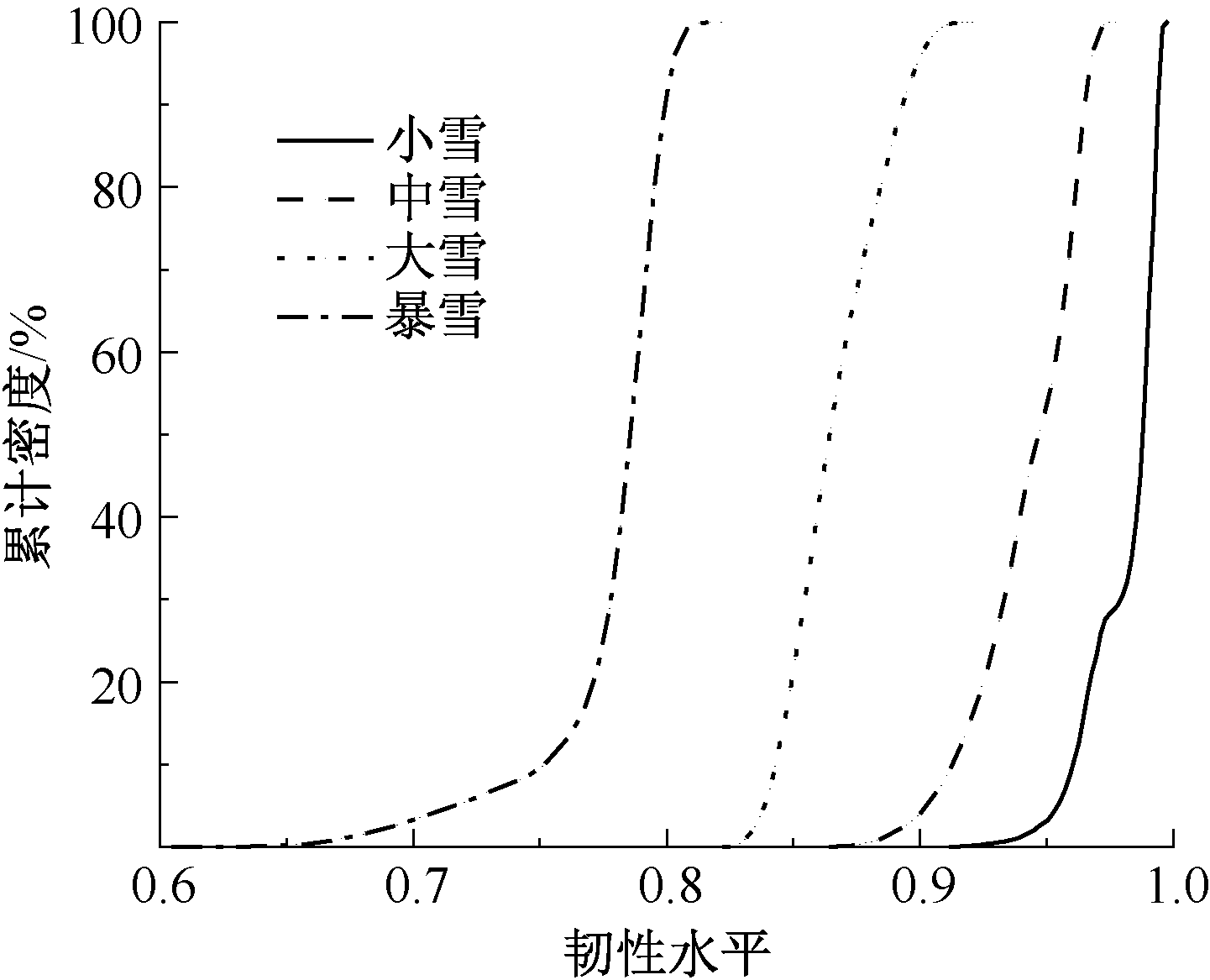

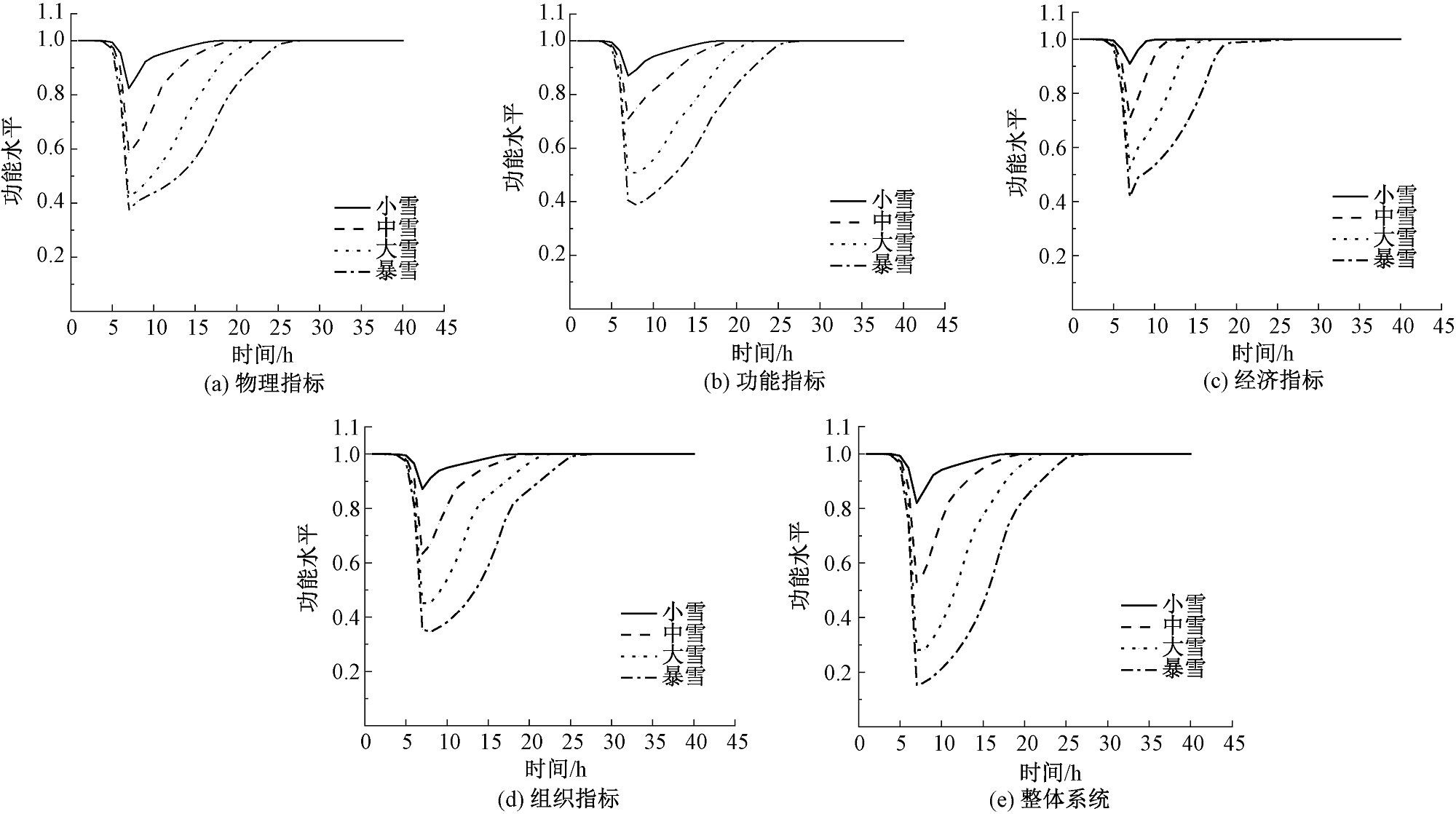

为量化评估降雪天气对机场基础设施系统韧性影响,将机场基础设施系统分为物理、功能、经济和组织4个一级指标,提出降雪天气对各二级指标的破坏强度系数,建立机场基础设施系统韧性量化分析模型;采用蒙特卡罗方法分析4种不同等级降雪天气下机场基础设施系统韧性水平变化特征。结果表明:机场基础设施系统功能受损程度和恢复时间与降雪强度呈正相关;小雪、中雪、大雪和暴雪天气下,系统恢复时间分别为13、14、16和23 h;暴雪天气下机场基础设施系统韧性相对于大、中、小雪下分别降低9.65%、17.01%和20.27%;当破坏强度系数降低20%时,机场基础设施系统的恢复速度从0.053%/h提升至0.061%/h,恢复时间由12 h降低至9 h。

关键词: 降雪天气, 机场基础设施, 系统韧性, 一级指标, 恢复时间

Abstract:

To quantitatively evaluate the influence of snowfall on the resilience of airport infrastructure system, the airport infrastructure system was divided into four first-level indicators, including physical system, functional system, economic system and organizational system. The damage intensity coefficient of snowfall weather to the second-level indicators was put forward, and a quantitative analysis model of airport infrastructure system resilience was established. The variation of resilience level of airport infrastructure system was simulated by the Monte Carlo Method under four different levels of snowfall. The simulation result show that the functional damage degree and recovery time of the airport infrastructure system are positively correlated with snowfall intensity. The system recovery time is 13, 14, 16 and 23 respectively under the conditions of light snow, moderate snow, heavy snow and blizzard. The resilience of the airport infrastructure system under the condition of blizzard is 9.65%, 17.01% and 20.27% lower than that under the conditions of heavy, medium and light snow, respectively. The recovery speed of the airport infrastructure system increases from 0.053%/h to 0.061%/h, and the recovery time reduces from 12 h to 9 h when the failure strength coefficient reduces by 20%.

Key words: snowfall, airport infrastructure, system resilience, first-level indicators, recovery time

中图分类号:

X915.5

黄信, 徐平, 吴堃. 降雪天气对机场基础设施系统韧性恢复的影响[J]. 中国安全科学学报, 2024, 34(4): 175-182.

HUANG Xin, XU Ping, WU Kun. Influence of snowfall weather on resilience recovery of airport infrastructure system[J]. China Safety Science Journal, 2024, 34(4): 175-182.

图/表 9

图1

表1

表2

图2

表3

图3

图4

图5

表4

参考文献 21

[1]	陈斌, 焦琳青, 杨亚磊, 等. 复杂多约束条件下航班除冰延误机理及资源优化配置[J]. 控制理论与应用, 2020, 37(5):1069-1079.
	CHEN Bin, JАO Linqing, YANG Yalei, et al. Flight deicing delay mechanism and resource optimization configuration under complex and multiple constraints[J]. Control Theory & Applications, 2020, 37(5): 1069-1079.
[2]	伍静, 张笛, 万程鹏. 基于复杂网络的海上丝绸之路沿线港口地位评价[J]. 交通信息与安全, 2019, 37(3):101-108.
	WU Jing, ZHANG Di, WAN Chengpeng. Status evaluation of ports along the "Maritime Silk Road" based on complex network[J]. Journal of Transport Information and Safety, 2019, 37(3): 101-108.
[3]	唐少虎, 朱伟, 程光, 等. 暴雨内涝下城市道路交通系统安全韧性评估[J]. 中国安全科学学报, 2022, 32(7):143-150. doi: 10.16265/j.cnki.issn1003-3033.2022.07.1391
	TANG Shaohu, ZHU Wei, CHENG Guang, et al. Safety resilience assessment of urban road traffic system under rainstorm waterlogging[J]. China Safety Science Journal, 2022, 32(7): 143-150. doi: 10.16265/j.cnki.issn1003-3033.2022.07.1391
[4]	张雯婕, 胡军红, 闻成维, 等. 考虑网络韧性的城市轨道交通故障恢复研究[J]. 中国安全科学学报, 2023, 33(4):179-186. doi: 10.16265/j.cnki.issn1003-3033.2023.04.1770
	ZHANG Wenjie, HU Junhong, WEN Chengwei, et al. Research on urban rail failure recovery considering network resilience[J]. China Safety Science Journal, 2023, 33(4): 179-186. doi: 10.16265/j.cnki.issn1003-3033.2023.04.1770
[5]	BRUNEAU M, CHANG S E, EGUCHI R T, et al. A framework to quantitatively assess and enhance the seismic resilience of communities[J]. Earthquake Spectra, 2003, 19(4): 733-752.
[6]	BRUNEAU M, REINHORN A. Exploring the concept of seismic resilience for acute care facilities[J]. Earthquake Spectra, 2007, 23(1): 41-62.
[7]	毕玮, 汤育春, 冒婷婷, 等. 城市基础设施系统韧性管理综述[J]. 中国安全科学学报, 2021, 31(6):14-28. doi: 10.16265/j.cnki.issn 1003-3033.2021.06.003
	BI Wei, TANG Yuchun, MAO Tingting, et al. Review on resilience management of urban infrastructure system[J]. China Safety Science Journal, 2021, 31(6): 14-28. doi: 10.16265/j.cnki.issn 1003-3033.2021.06.003
[8]	李瑞奇, 黄弘, 周睿. 基于韧性曲线的城市安全韧性建模[J]. 清华大学学报:自然科学版, 2020, 60(1):1-8.
	LI Ruiqi, HUANG Hong, ZHOU Rui. Resilience curve modelling of urban safety resilience[J]. Journal of Tsinghua University: Science and Technology, 2020, 60(1): 1-8.
[9]	LABAKA L, HERNANTES J, SARRIEGI J M. Resilience framework for critical infrastructures: an empirical study in a nuclear plant[J]. Reliability Engineering and System Safety, 2015, 141: 92-105.
[10]	FRANCHIN P, CAVALIERI F. Probabilistic assessment of civil infrastructure resilience to earthquakes[J]. Computer-Aided Civil and Infrastructure Engineering, 2015, 30(7): 583-600.
[11]	ZHOU Lei, CHEN Zhenhua. Measuring the performance of airport resilience to severe weather events[J]. Transportation Research Part D: Transport and Environment, 2020, 83(6): 1-19.
[12]	BAO Danwen, ZHANG Xiaoling. Measurement methods and influencing mechanisms for the resilience of large airports under emergency events[J]. Transportmetrica A: Transport Science, 2018, 14(10): 855-880.
[13]	王兴隆, 赵俊妮, 王进. 恶劣天气下机场离场航班运行韧性评估及恢复[J]. 北京航空航天大学学报, 2024, 50(1):110-121.
	WANG Xinglong, ZHAO Junni, WANG Jin. Resilience assessment and recovery of airport departure flights under severe weather[J]. Journal of Beijing University of Aeronautics, 2024, 50(1): 110-121.
[14]	GUO Jiuxia, LI Hongyi, YANG Changqi. A semi-quantitative method of safety resilience assessment for airport operation system based on FRAM model[C]. 2022 8^th International Symposium on System Security, Safety, and Reliability (ISSSR), 2022: 6-13.
[15]	李龙海, 杨力源, 常鑫, 等. 基于贝叶斯BWM-VIKOR法的机场运行韧性评估方法[J]. 科学技术与工程, 2023, 23(25):11014-11 020.
	LI Longhai, YANG Liyuan, CHANG Xin, et al. Airport operation resilience assessment method based on Bayesian BWM-VIKOR Method[J]. Science Technology and Engineering. 2023, 23(25): 11 014-11 020.
[16]	许慧, 李杨, 邓宁辉, 等. 城市复杂公共空间系统韧性建模研究[J]. 系统工程理论与实践, 2022, 42(7):1964-1978. doi: 10.12011/SETP2020-2967
	XU Hui, LI Yang, DENG Ninghui, et al. Resilience modeling of complex urban public space system[J]. Systems Engineering-Theory & Practice, 2022, 42(7): 1964-1978.
[17]	李杨. 城市复杂公共空间韧性评估模型研究[D]. 重庆: 重庆邮电大学, 2021.
	LI Yang. Resilience assessment model of complex urban public spaces[D]. Chongqing: Chongqing University of Posts and Telecommunications, 2021.
[18]	石龙宇, 郑巧雅, 杨萌, 等. 城市韧性概念、影响因素及其评估研究进展[J]. 生态学报, 2022, 42(14):6016-6029.
	SHI Longyu, ZHENG Qiaoya, YANG Meng, et al. A review of definitions, influence factors and assessment of urban resilience[J]. Acta Ecologica Sinica, 2022, 42(14): 6016-6029.
[19]	谭成松. 自然灾害下民航基础设施韧性功能恢复模型研究[D]. 天津: 中国民航大学, 2023.
	TAN Chengsong. Research on resilience recovery model of civil aviation infrastructure under natural disasters[D]. Tianjin: Civil Aviation University of China, 2023.
[20]	CIMELLARO G P, REINHORN A M, BRUNEAU M. Framework for analytical quantification of disaster resilience[J]. Engineering Structures, 2010, 32(11): 3639-3649.
[21]	陈长坤, 何凡, 赵冬月, 等. 基于系统机能曲线的城市道路公共交通系统韧性评估方法[J]. 清华大学学报:自然科学版, 2022, 62(6):1016-1022.
	CHENG Changkun, HE Fan, ZAHO Dongyue, et al. Urban public transport system resilience evaluation based on a system function curve[J]. Journal of Tsinghua University: Science and Technology, 2022, 62(6): 1016-1022.

降雪等级	降雪量/mm
小雪	[0.1,2.5)
中雪	[2.5,5.0)
大雪	[5.0,10)
暴雪	[10,+∞)

一级指标	二级指标	小雪	中雪	大雪	暴雪
物理	核心飞行区道面	U(0,0.25)	U(0.25,0.5)	U(0.75,1)	U(0.75,1)
	空管设施	U(0,0.25)	U(0.25,0.5)	U(0.5,0.75)	U(0.75,1)
	目视助航及灯光设施	U(0,0.25)	U(0.25,0.5)	U(0.5,0.75)	U(0.75,1)
	机场排水系统	B(1,0.26)	B(1,0.42)	B(1,0.48)	B(1,0.72)
	机场供电设施	B(1,0.28)	B(1,0.38)	B(1,0.52)	B(1,0.7)
功能	保障设施	U(0,0.25)	U(0.25,0.5)	U(0.5,0.75)	U(0.75,1)
	航站区陆侧通行区	U(0,0.25)	U(0.25,0.5)	U(0.5,0.75)	U(0.75,1)
	航站区空侧通行区	U(0,0.25)	U(0.25,0.5)	U(0.5,0.75)	U(0.75,1)
经济	机场盈利	U(0,0.25)	U(0.25,0.5)	U(0.5,0.75)	U(0.75,1)
经济	除雪设备及物资	B(1,0.28)	B(1,0.46)	B(1,0.7)	B(1,0.88)
组织	机场人员工作效率	U(0,0.25)	U(0.25,0.5)	U(0.5,0.75)	U(0.75,1)
组织	场监系统	B(1,0.28)	B(1,0.4)	B(1,0.6)	B(1,0.78)

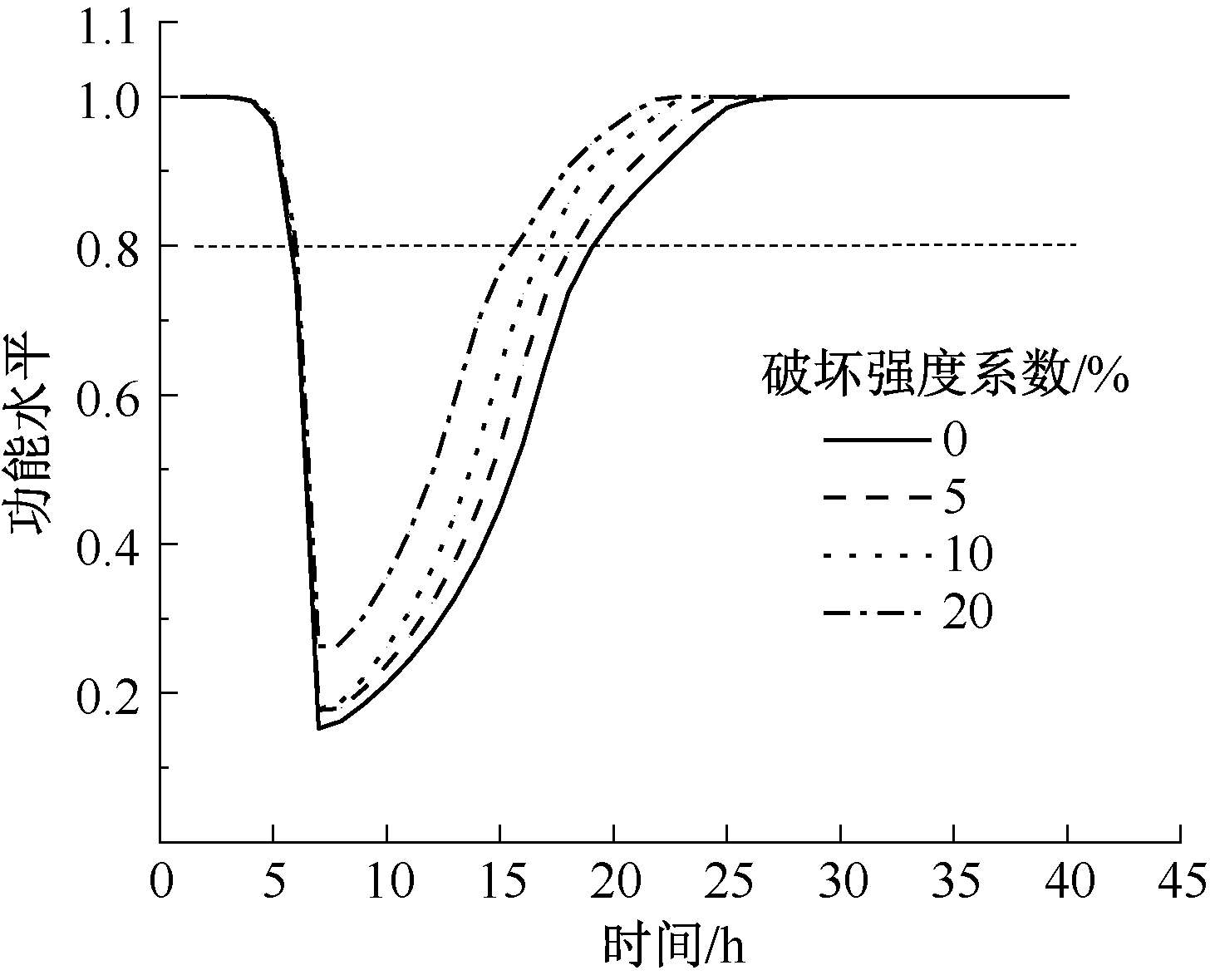

破坏强度系数降低工况/%	0	5	10	20
V/(%·h^-1)	0.053	0.056	0.062	0.061
r_b	0.352	0.368	0.374	0.432
