Characteristics of mining overburden and surface movement under influence of faults

doi:10.16265/j.cnki.issn1003-3033.2023.12.0126

Abstract

Abstract:

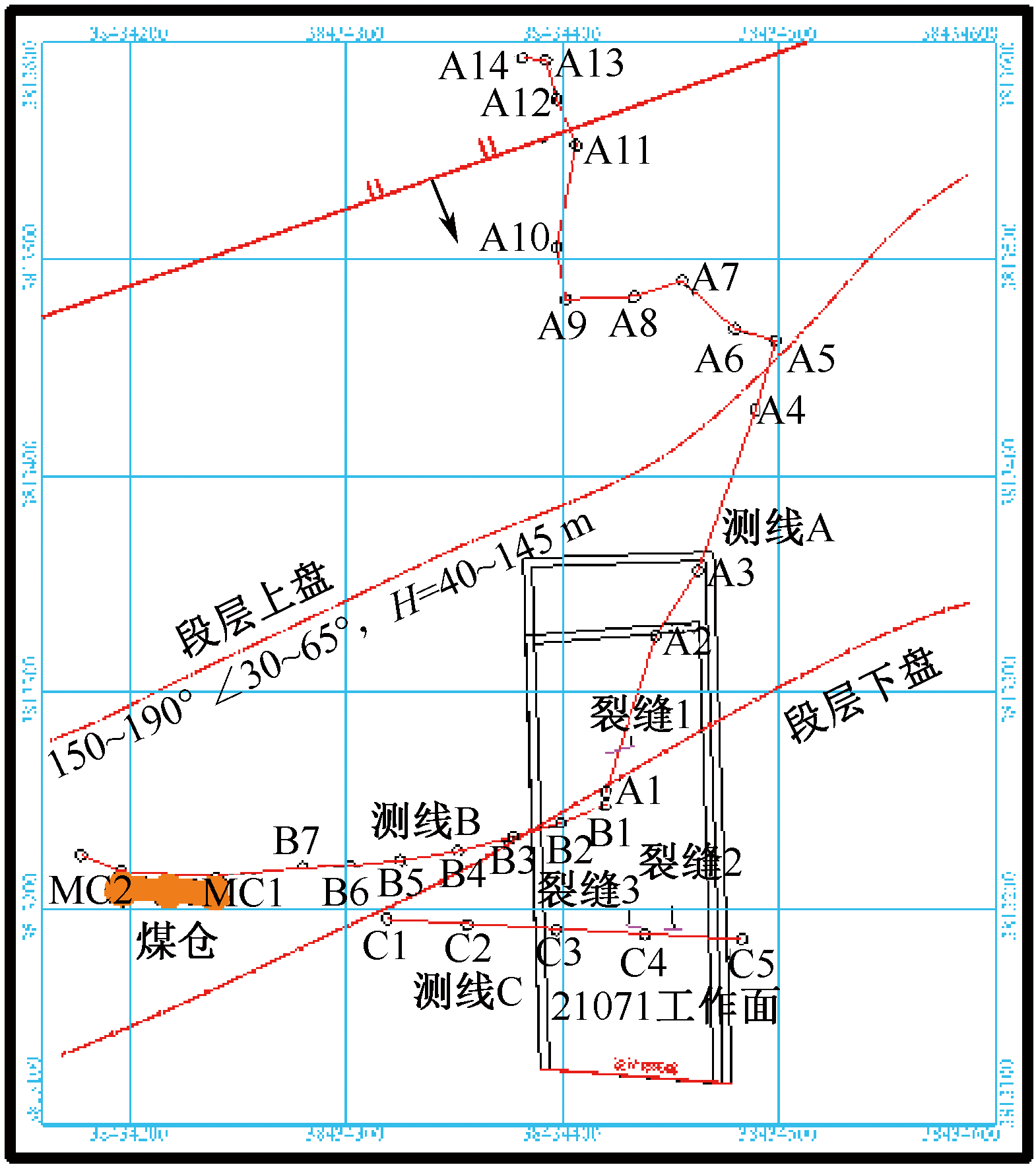

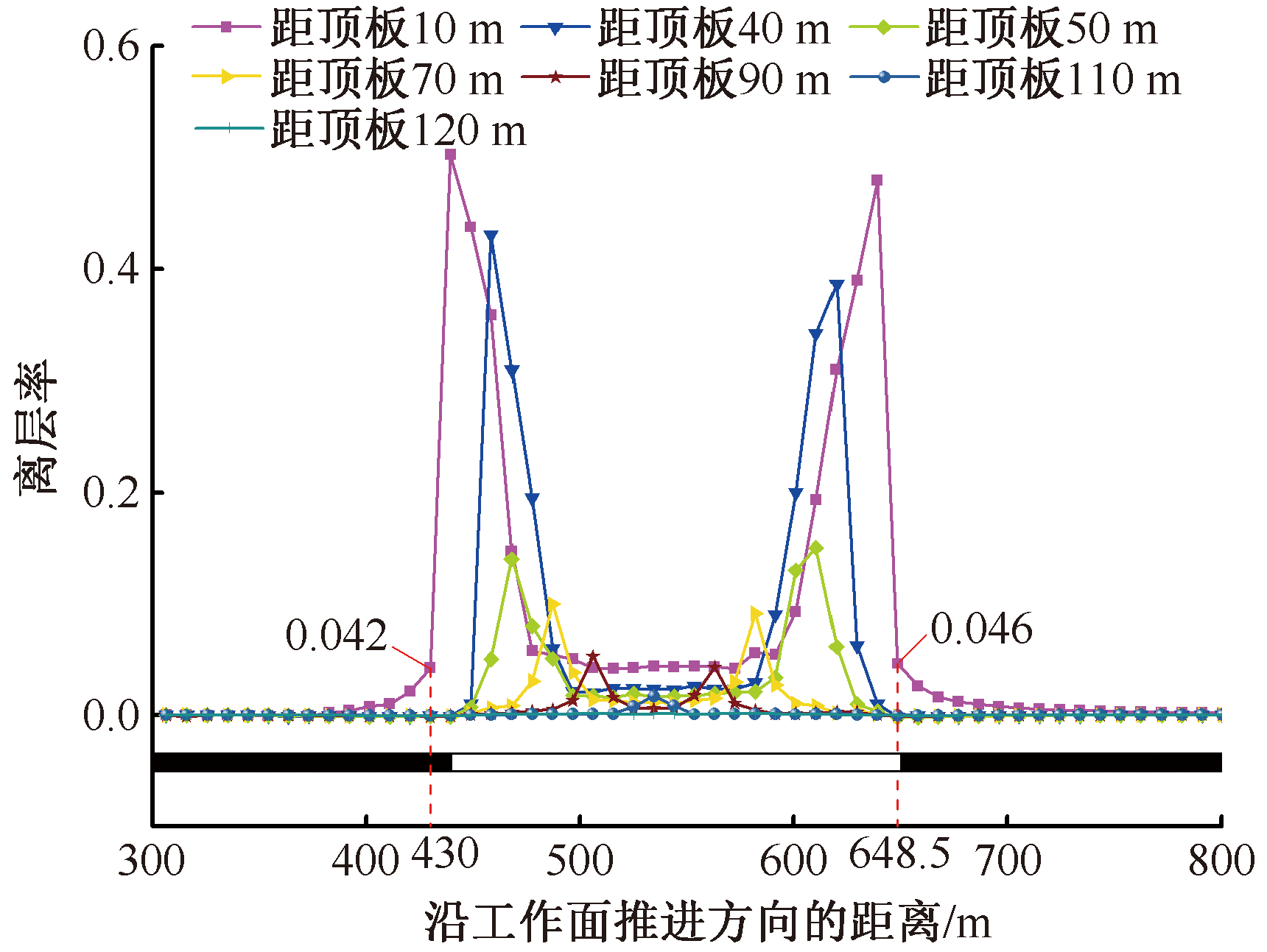

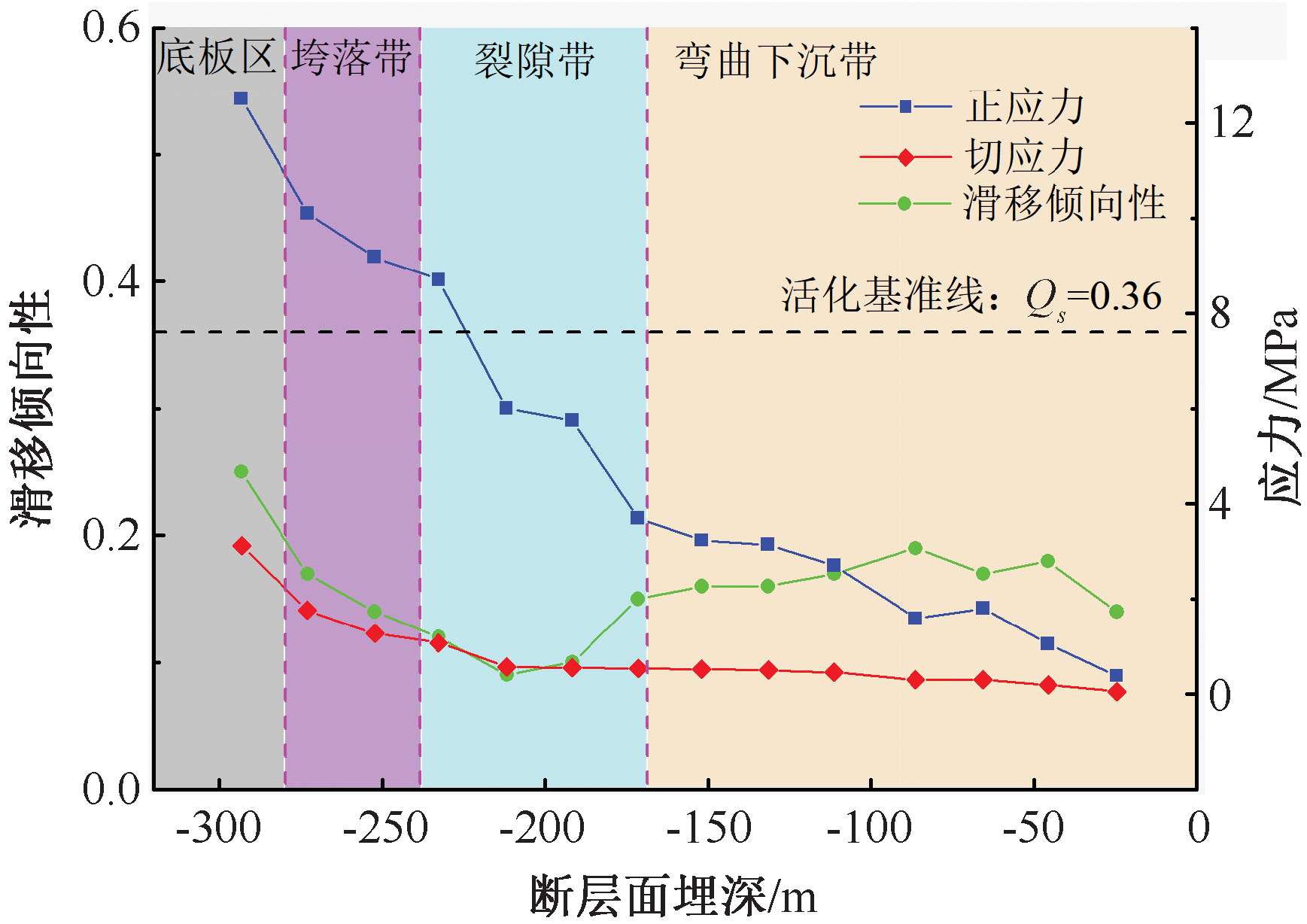

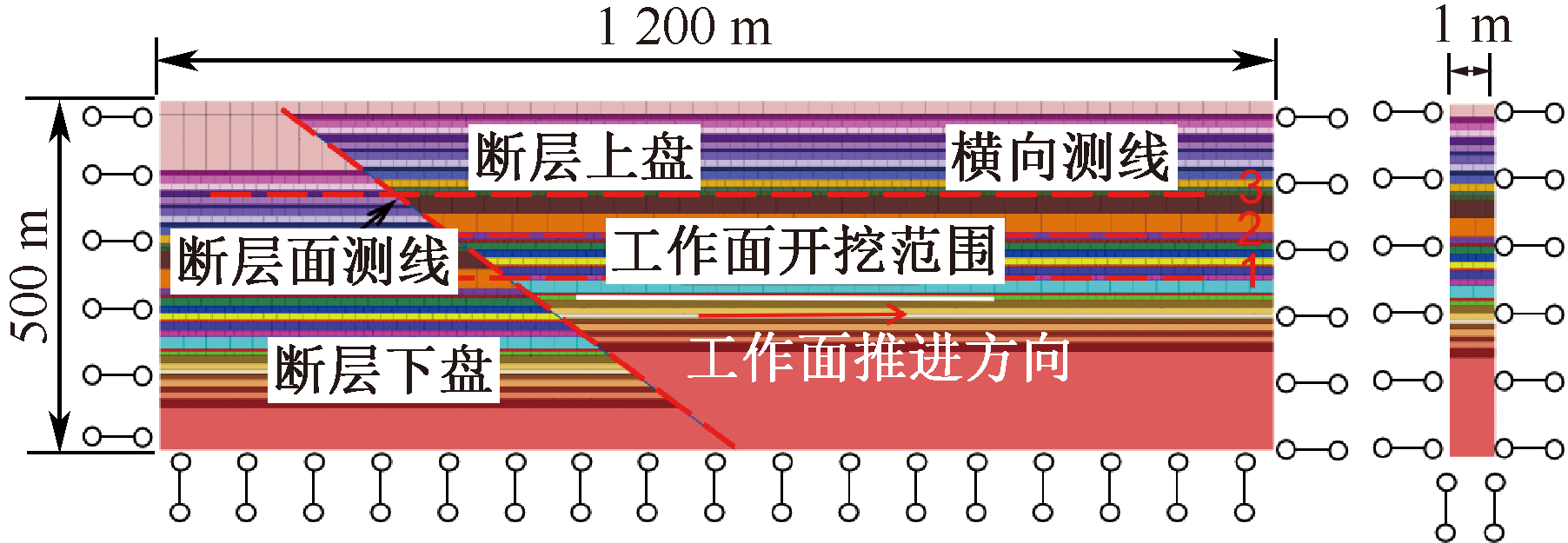

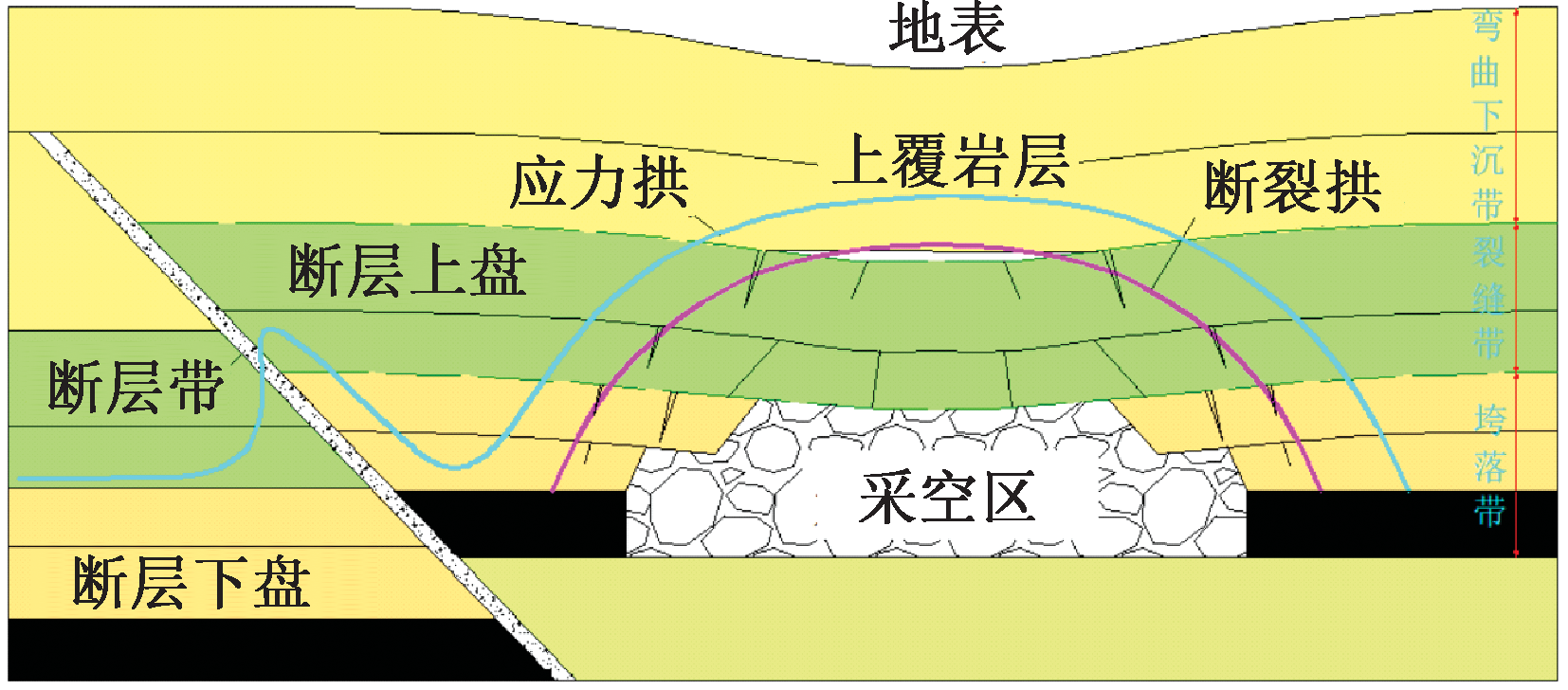

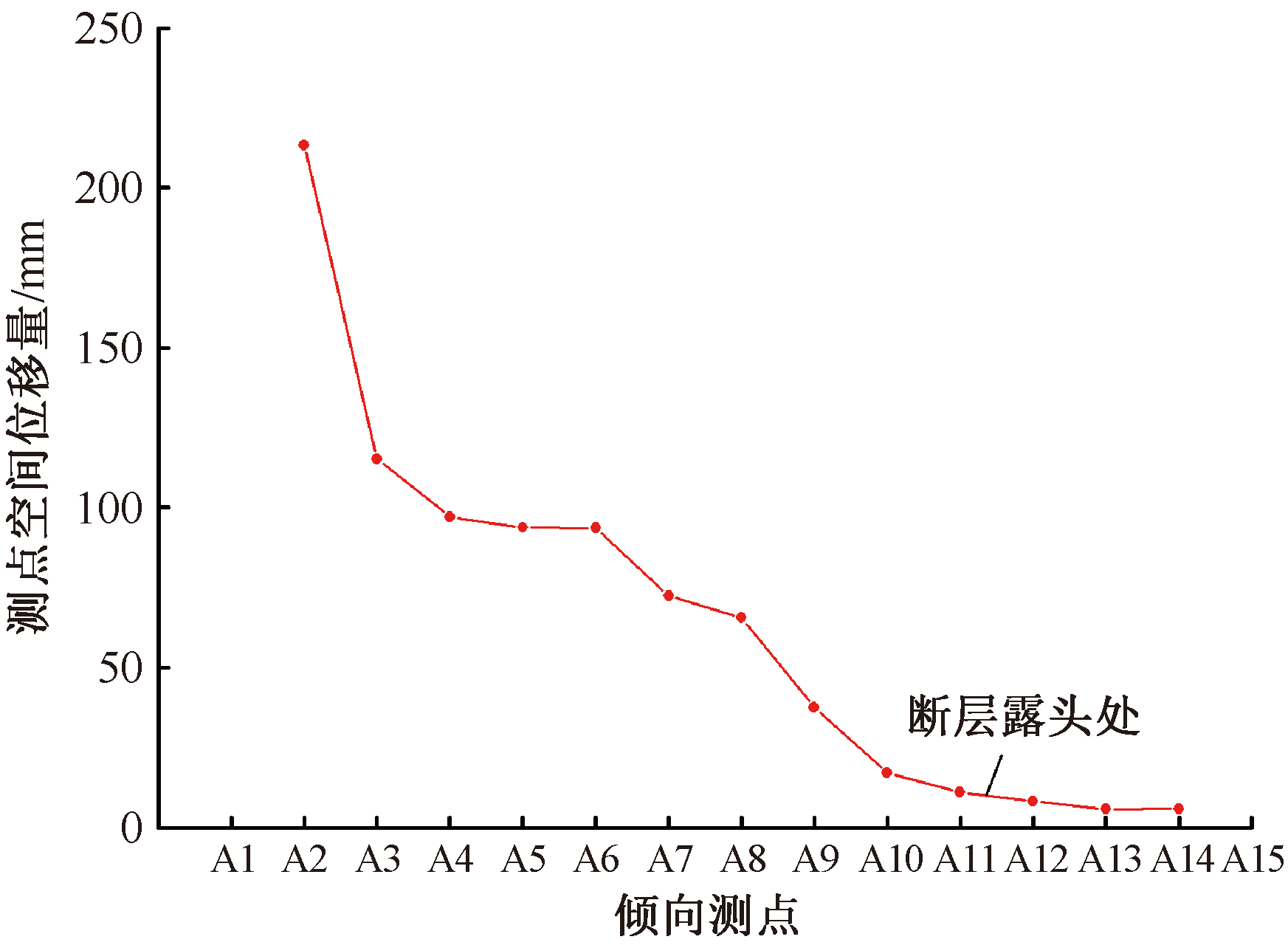

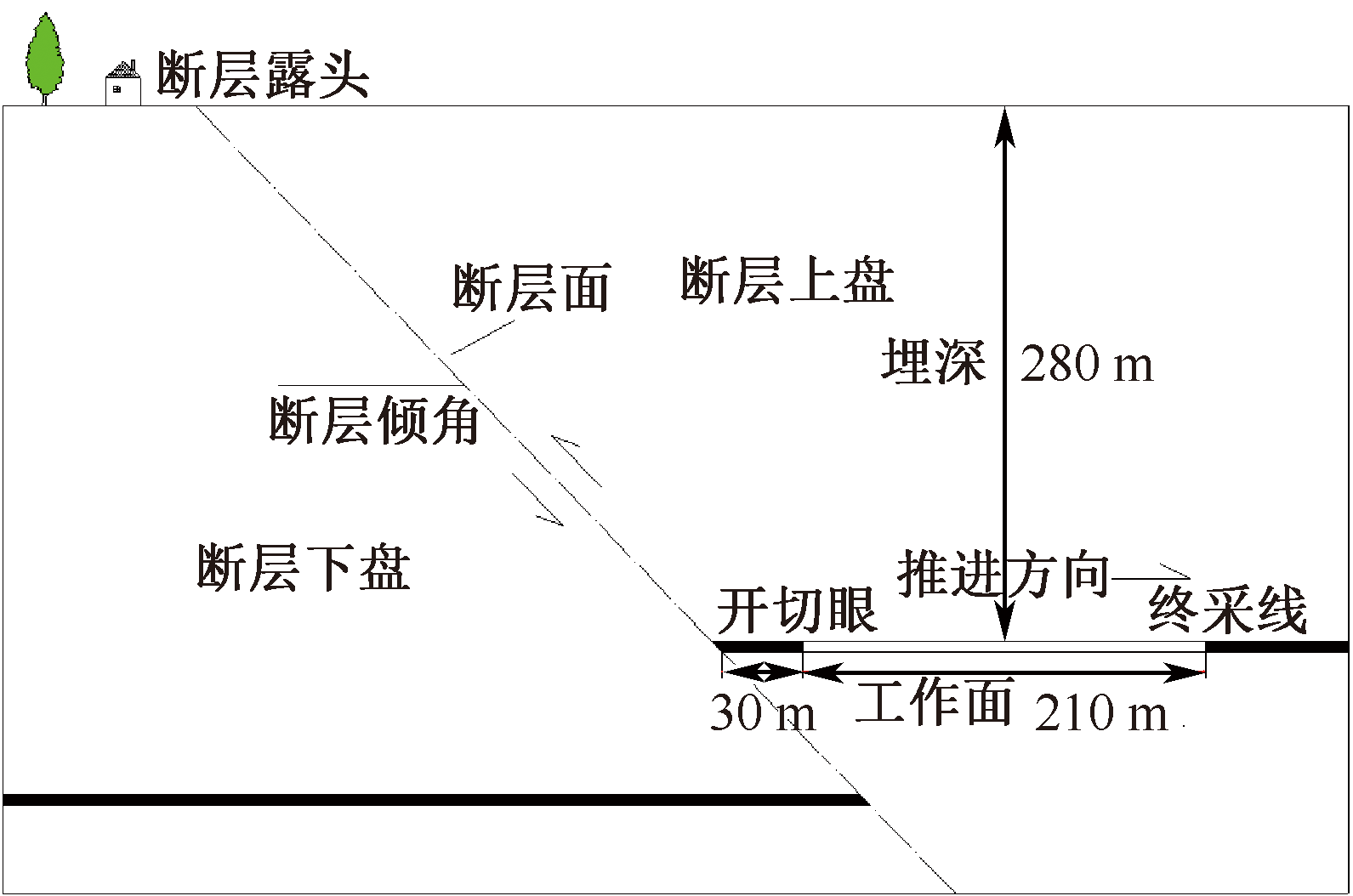

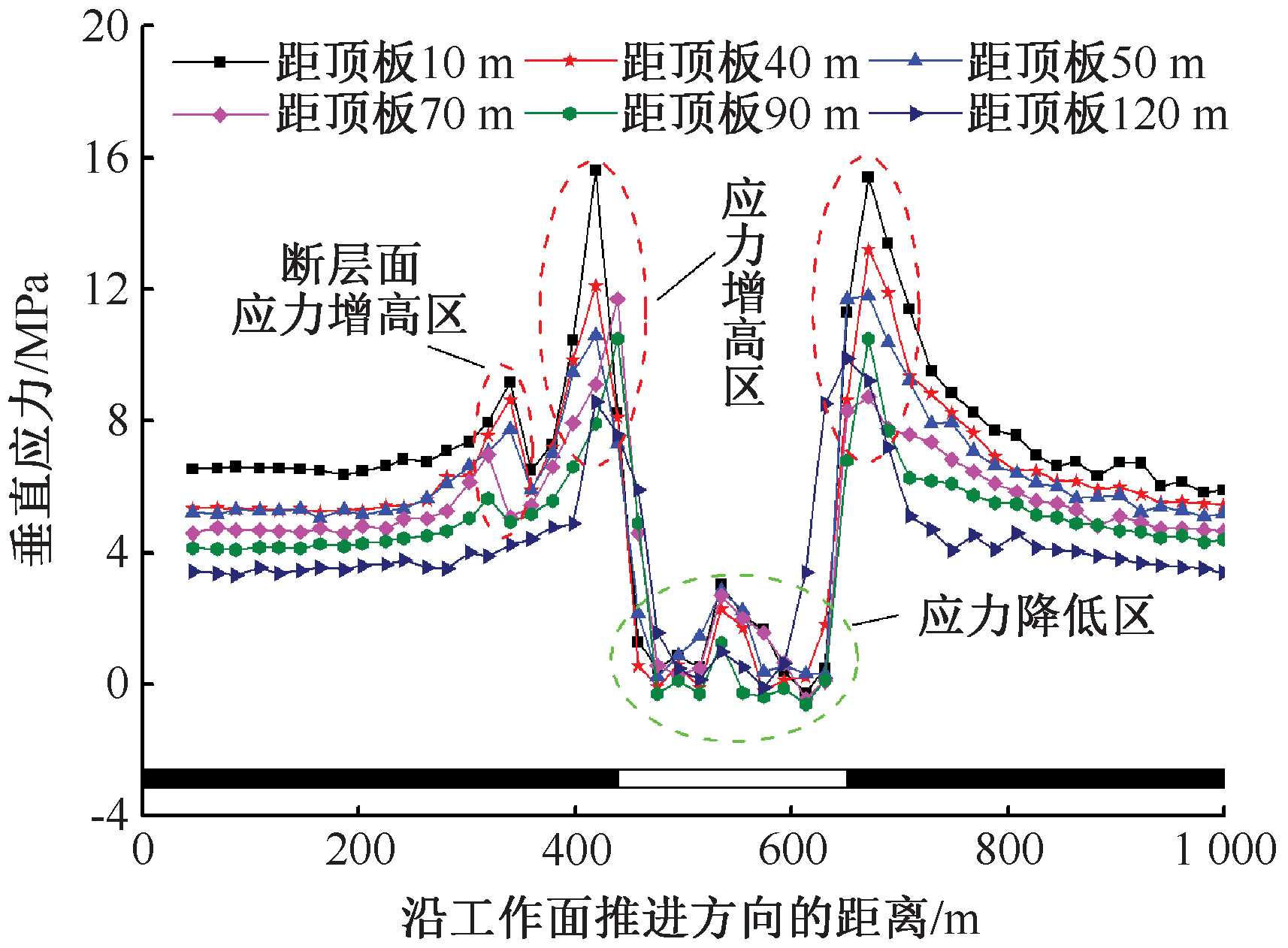

In order to study the overlying rock and surface response of working faces with faults under mining disturbance, numerical simulation, theoretical analysis, and on-site measurement methods were first used to study the characteristics of overlying rock and surface migration and stress response under the influence of mining near fault working faces. Secondly, a numerical simulation model was established and the characteristics of overlying rock failure and stress response in the mining area near the fault working face were analyzed by combining "fracture arch" and "stress arch". Then, a mechanical model of fault plane slip was established, and the activation tendency of the fault plane in the mining of the hanging wall of the fault was quantitatively analyzed by combining the fault slip tendency index Q_s. Finally, the on-site measurement method was used to analyze the surface movement and deformation characteristics of the fault hanging wall under the influence of mining in Daping coal mine in the Zhengzhou mining area. The research findings indicate that under mining disturbances, the maximum width of "fracture arch" development reaches 221.5 m, and the maximum height reaches 110 m, resulting in a width-to-height ratio of approximately 1∶2. The faulted working face exhibits characteristics of "stress arch" with an asymmetric structure. With the increase of fault depth, the slip tendency of the fault surface shows a trend of increasing, then decreasing, and increasing again. In the curved subsidence zone at the same depth, the slip tendency gradually increases. In the fissure zone at the same depth, it initially decreases before increasing again. In the collapsed zone at the same depth, it increases rapidly. The protective coal pillar on the hanging wall of the fault is left with a 30 m fault that is not activated. The bedrock movement angle and boundary angle of Daping coal mine are 8.8 and 4.6 degrees smaller than those on the working face under general geological conditions in the Zhengzhou mining area, respectively, and 6.7 degrees smaller than those on the working face without faults in the same coal mine.

Key words: fault influence, overburden migration, surface movement, stope stress, slip tendency

GUO Wenbing, LIU Xuan, YANG Weiqiang, WU Pengfei, ZHANG Yihui. Characteristics of mining overburden and surface movement under influence of faults[J]. China Safety Science Journal, 2023, 33(12): 38-46.

Figures/Tables 15

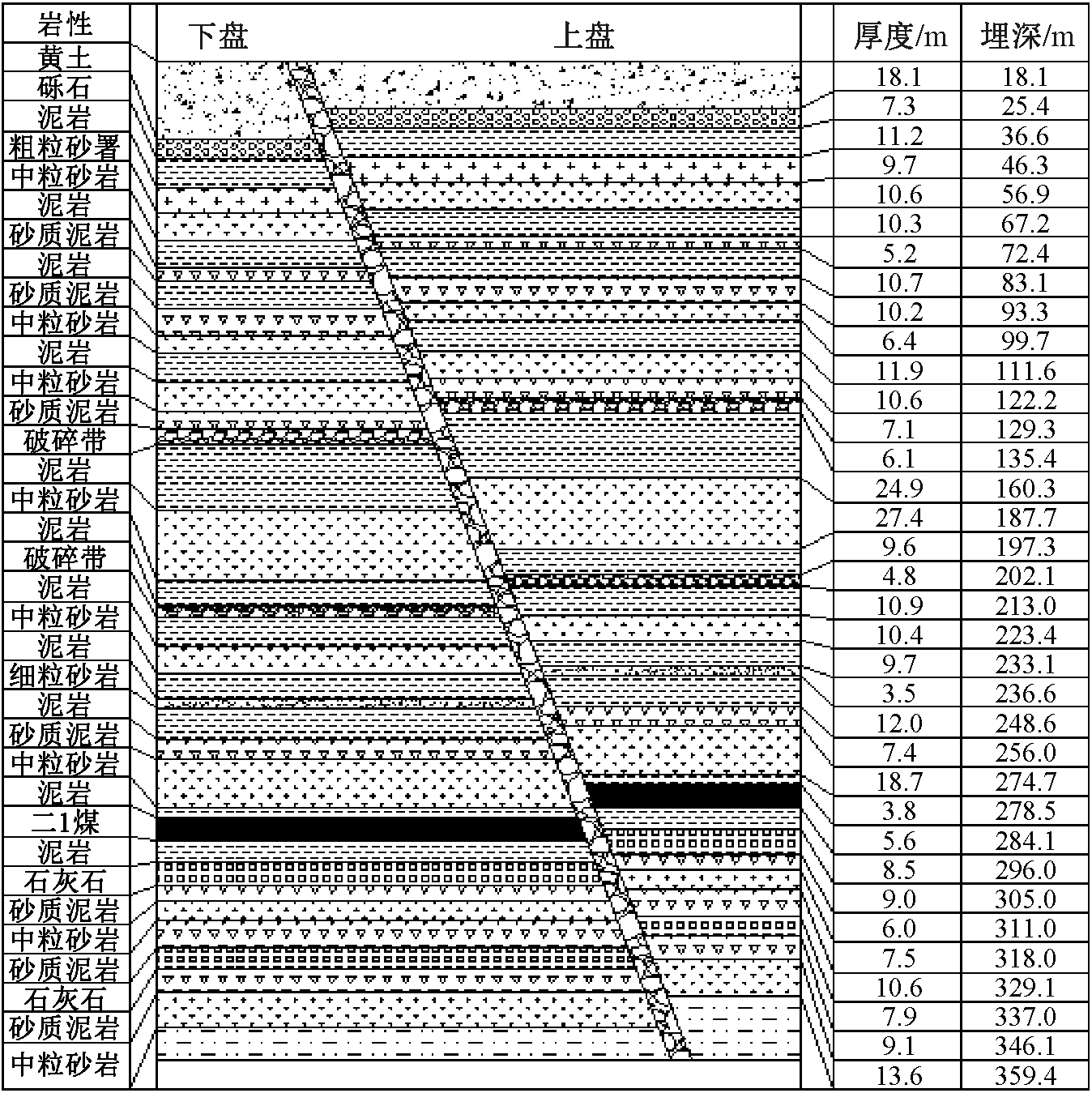

Fig.1

Fig.2

Tab.1

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

Fig.11

Fig.12

Tab.2

Fig.13

References 21

[1]	郭文兵. 煤矿开采损害与保护[M]. 北京: 应急管理出版社, 2019: 36-39.
[2]	陈学华, 吕鹏飞, 宋卫华, 等. 综放开采过断层冲击地压危险分析及防治技术[J]. 中国安全科学学报, 2016, 26(5): 81-87.
	CHEN Xuehua, LYU Pengfei, SONG Weihua. Analysis and control technology of danger of rock burst when fully mechanized caving passing through fault[J]. China Safety Science Journal, 2016, 26(5): 81-87.
[3]	CHEN Xuehua, LI Weiqing, YAN Xianyang. Analysis on rock burst danger when fully-mechanized caving coal face passed fault with deep mining[J]. Safety Science, 2012, 50(4): 645-648. doi: 10.1016/j.ssci.2011.08.063
[4]	WANG Hongwei, SHI Ruiming, LU Chunsheng, et al. Investigation of sudden faults instability induced by coal mining[J]. Safety Science, 2019, 115: 256-264. doi: 10.1016/j.ssci.2019.01.019
[5]	DONNELLY L J. Reactivation of geological faults during mining subsidence from 1859 to 2000 and beyond[J]. Mining Technology, 2000:DOI:10.1179/mnt.2000.109.3.179.
[6]	郭文兵, 邓喀中, 白云峰. 受断层影响地表移动规律的研究[J]. 辽宁工程技术大学学报:自然科学版, 2002, 21(6): 713-715.
	GUO Wenbing, DENG Kazhong, BAI Yunfeng. Study on laws of ground surface movements influenced by faults[J]. Journal of Liaoning Technical University:Natural Science, 2002, 21(6): 713-715.
[7]	郭迅, 戴君武. 采煤沉陷与断层相互作用引起地表建筑破坏特点分析[J]. 辽宁工程技术大学学报, 2006, 25(6): 851-854.
	GUO Xun, DAI Junwu. Analysis of building damage caused by interaction between faults and coal mining subsidence[J]. Journal of Liaoning Technical University, 2006, 25(6): 851-854.
[8]	罗国煜, 蒋建平, 章杨松, 等. 地下工程中岩移的断层效应探讨[J]. 岩石力学与工程学报, 2002, 20(8): 1257-1262.
	LUO Guoyu, JIANG Jianping, ZHANG Yangsong, et al. Discussion on fault effect of rock movement in underground engineering[J]. Journal of rock mechanics and Engineering, 2002, 20(8): 1257-1262.
[9]	谈洪波, 申重阳, 李辉, 等. 断层位错引起的地表形变特征[J]. 大地测量与地球动力学, 2009, 29(3): 42-49.
	TAN Hongbo, SHEN Chongyang, LI Hui, et al. Characteristics of surface deformation caused by fault dislocation[J]. Journal of Geodesy and Geodynamics, 2009, 29(3): 42-49.
[10]	张永志, 张永, 武艳军, 等. 断层转动与地表变形关系研究[J]. 大地测量与地球动力学, 2013, 33(2): 8-12.
	ZHANG Yongzhi, ZHANG Yong, WU Yanjun, et al. Relationship between faults rotation and surface deformation[J]. Journal of Geodesy and Geodynamics, 2013, 33(2): 8-12.
[11]	李彬, 王则才. 断层影响条件下岩移规律研究[C]. 全国“三下”采煤学术会议, 2008:44-47.
[12]	于秋鸽. 上下盘开采断层滑移失稳诱发地表异常沉陷机理研究[J]. 采矿与安全工程学报, 2021, 38(1): 41-50.
	YU Qiuge. Mechanism of abnormal subsidence induced by fault slipping instability during mining on hanging-wall and foot-wall[J]. Journal of Mining & Safety Engineering, 2021, 38(1): 41-50.
[13]	于秋鸽, 张华兴, 白志辉, 等. 采动影响下断层面应力与滑移特征研究[J]. 煤炭科学技术, 2019, 47(4): 63-68.
	YU Qiuge, ZHANG Huaxing, BAI Zhihui, et al. Study on stress and slip characteristics of fault plane under mining influence[J]. Coal Science and Technology, 2019, 47(4): 63-68.
[14]	任政, 张科学, 姜耀东. 采动下逆断层活化过程中工作面应力场响应研究[J]. 煤炭科学技术, 2021, 49(9): 61-68.
	REN Zheng, ZHANG Kexue, JIANG Yaodong. Research on response of stress field in working face during thrust fault activation process under mining disturbance[J]. Coal Science and Technology, 2021, 49(9): 61-68.
[15]	朱志洁, 汤国水, 张宏伟, 等. 特厚煤层重复采动条件下断层滑移对冲击地压的影响[J]. 中国安全科学学报, 2016, 26(12): 104-109.
	ZHU Zhijie, TANG Guoshui, ZHANG Hongwei, et al. The influence of fault slip on rock burst under repeated mining conditions in ultra-thick coal seams[J]. China Safety Science Journal, 2016, 26(12): 104-109.
[16]	宋振骐, 蒋宇静, 刘建康. “实用矿山压力控制”的理论和模型[J]. 煤炭科技, 2017(2): 1-10.
	SONG Zhenqi, JIANG Yujing, LIU Jiankang. Theory and model of "practical method of mine pressure control"[J]. Coal Science & Technology Magazine, 2017(2): 1-10.
[17]	文志杰, 景所林, 宋振骐, 等. 采场空间结构模型及相关动力灾害控制研究[J]. 煤炭科学技术, 2019, 47(1): 52-61.
	WEN Zhijie, JING Suolin, SONG Zhenqi, et al. Study on coal face spatial structure model and control related dynamic disasters[J]. Coal Science and Technology, 2019, 47(1): 52-61.
[18]	郭明杰. 采动覆岩裂隙内定向长钻孔瓦斯抽采参数及应用研究[D]. 焦作: 河南理工大学, 2022.
	GUO Mingjie. Research on gas extraction parameters and application of directional long boreholes in mining-induced overburden fractures[D]. Jiaozuo: Henan Polytechnic University, 2022.
[19]	徐芝纶. 弹性力学简明教程(第4版)[M]. 北京: 高等教育出版社, 2013: 13-16.
[20]	焦振华, 赵毅鑫, 姜耀东, 等. 采动诱发断层损伤滑移及其影响因素敏感性分析[J]. 煤炭学报, 2017, 42(增1): 36-42.
	JIAO Zhenhua, ZHAO Yixin, JIANG Yaodong, et al. Fault damage induced by mining and its sensitivity analysis of influencing factors[J]. Journal of China Coal Society, 2017, 42(S1): 36-42.
[21]	郭文兵, 杨治国, 詹鸣. "三软"煤层开采沉陷规律及其应用[M]. 北京: 科学出版社, 2013:302-306.

岩层	密度/ (kg·m^-3)	体积模量/ GPa	剪切模量/ GPa	黏聚力/ MPa	内摩察角/ (°)	抗拉强度/ MPa	节理法向刚度/ (GN·m^-1)	节理切向刚度/ (GN·m^-1)
表土层	1 960	0.28	0.093	1.70	25	0.35	0.20	0.20
泥岩	2 250	4.39	2.27	2.16	26	3.80	0.18	0.18
砂质泥岩	2 580	2.56	2.36	0.90	36	2.06	2.36	2.36
中粒砂岩	2 700	3.31	2.50	4.92	37	2.86	5.00	5.00
粉砂岩	2 580	3.98	3.26	4.28	35	2.55	7.60	7.60
细粒砂岩	2 540	2.70	1.88	2.36	23	1.32	0.49	0.49
煤	1 400	1.10	0.73	1.54	22	0.90	1.00	1.00
石灰岩	2 800	4.53	1.69	9.80	36	3.80	4.60	4.60
断层带	2 150	4.31	2.30	2.20	20	1.80	0.22	0.22

名称		基岩移动角/(°)	基岩边界角/(°)
名称		上山	上山
郑州矿区	范围	65~75.5	56~59.8
郑州矿区	平均值	71.3	57.9
大平煤矿13091		73.4	—
大平煤矿21071		66.7	49.1
