Effects of excavation support of deep and large foundation pit on gravel stratum on adjacent existing road

doi:10.16265/j.cnki.issn1003-3033.2025.01.0025

Abstract

Abstract:

To prevent accidents and disasters, such as the collapse of existing roads nearby, caused by deep and large foundation pit excavation and support, it is necessary to ensure the safe operation of adjacent roads during the construction of deep and large foundation pits. Taking a deep and large foundation pit project near a city trunk road in Kunming as an example, on the basis of in-depth research at the site, the three-dimensional finite element numerical simulation software-new eXperience of GeoTechnical analysis system(MIDAS GTS NX) is used for simulation and calculation, and combined with on-site monitoring, to analyse the force and deformation characteristics of the foundation pit support structure and the deformation characteristics of the adjacent existing road under the existing excavation and support scheme. The study results indicated that the forces and deformations of the supporting piles and anchor cables were within design limits after the foundation pit excavation and support were complete. The displacement near the existing road increased with the increase of pit excavation depth, and become stable after the excavation was completed. The maximum deformation of the existing road occurred at a position 2.5 times the excavation depth from the foundation pit boundary. Furthermore, the deformation did not reach the alarm threshold for road displacement caused by foundation pit excavation. Thus, the existing support scheme can ensure the safety of both the foundation pit and the adjacent road.

Key words: rounded gravel stratum, deep and large foundation pit, excavation support, existing road, deformation impact, site monitoring

CLC Number:

X948

GUO Yanhui, MA Rui, MAO Shilin, QIAN Yong, DING Mingzhong, SONG Qin. Effects of excavation support of deep and large foundation pit on gravel stratum on adjacent existing road[J]. China Safety Science Journal, 2025, 35(1): 94-102.

Figures/Tables 17

Fig.1

Fig.2

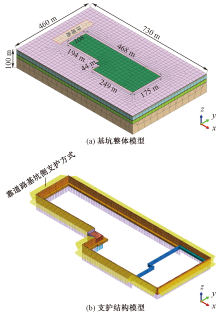

Fig.3

Table 1

Table 2

Fig.4

Fig.5

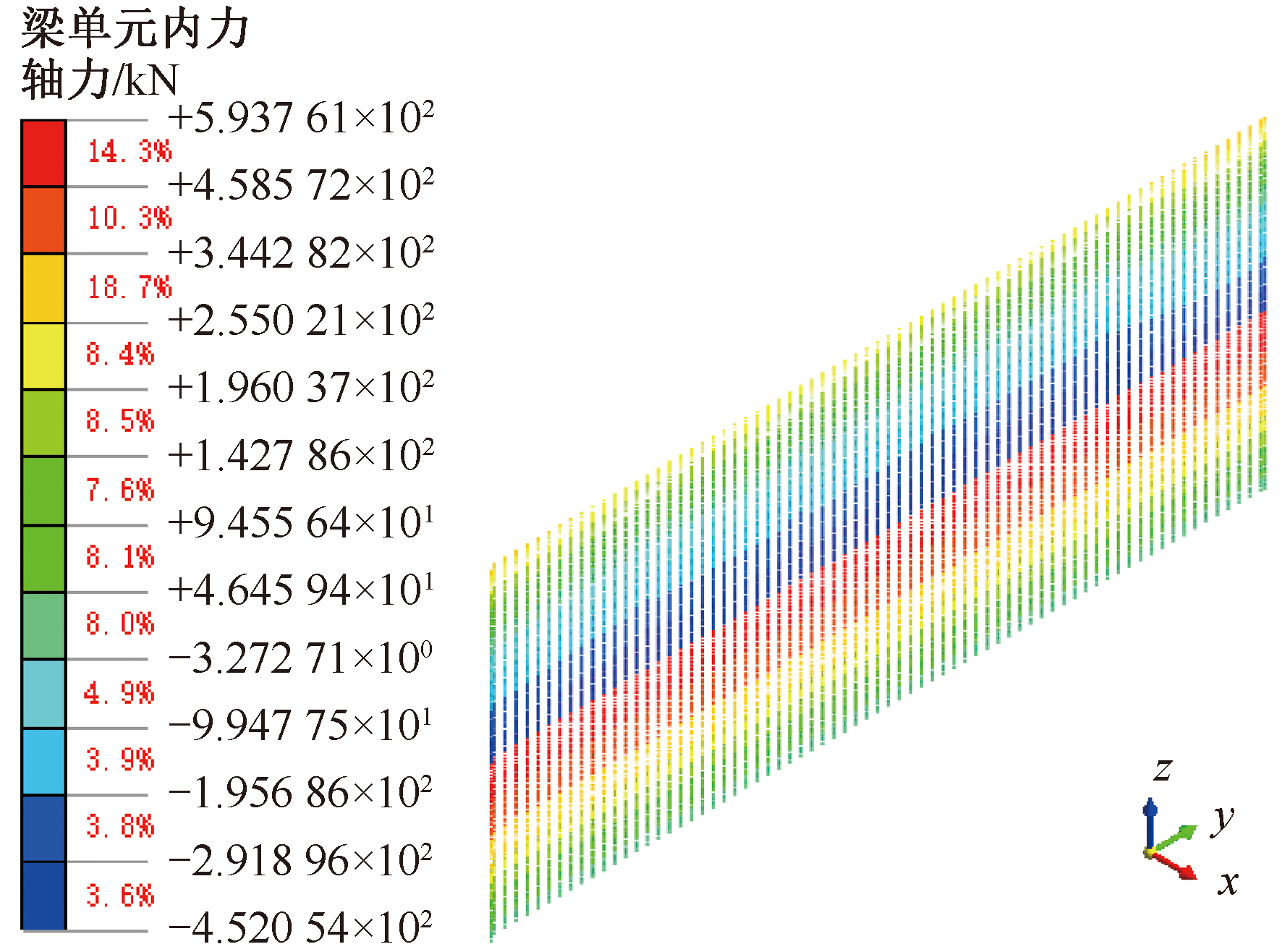

Fig.6

Fig.7

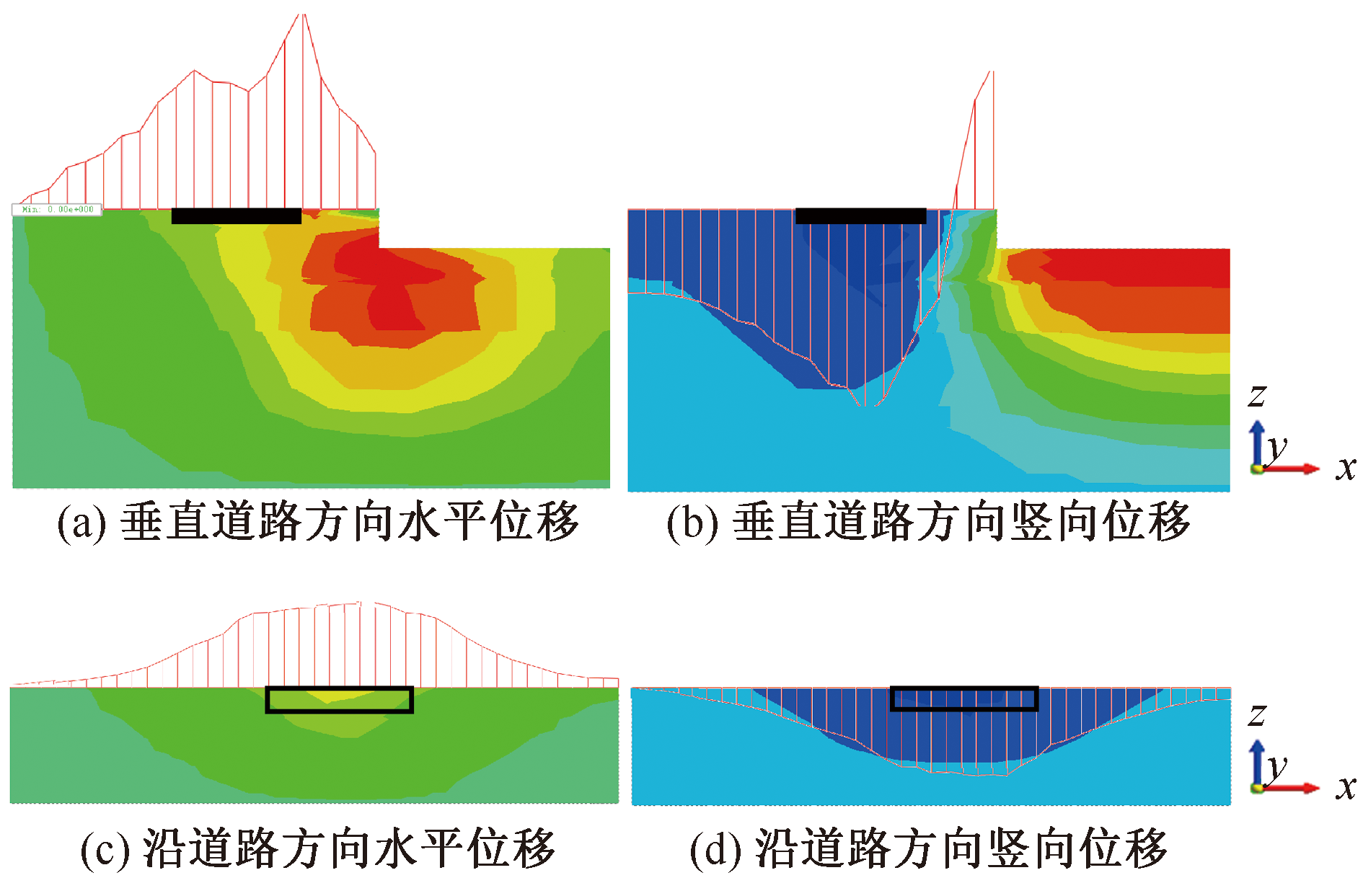

Fig.8

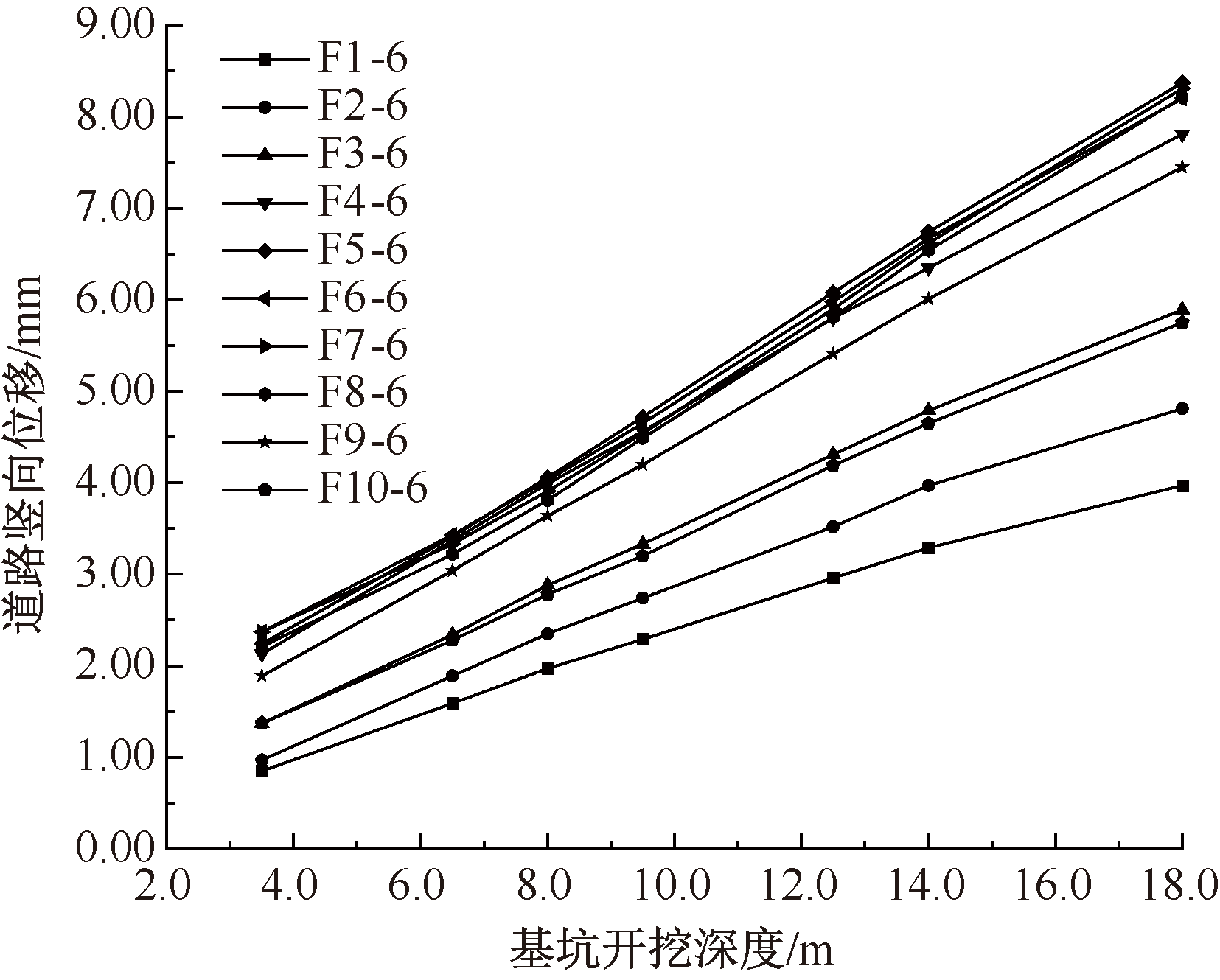

Fig.9

Table 3

Fig.10

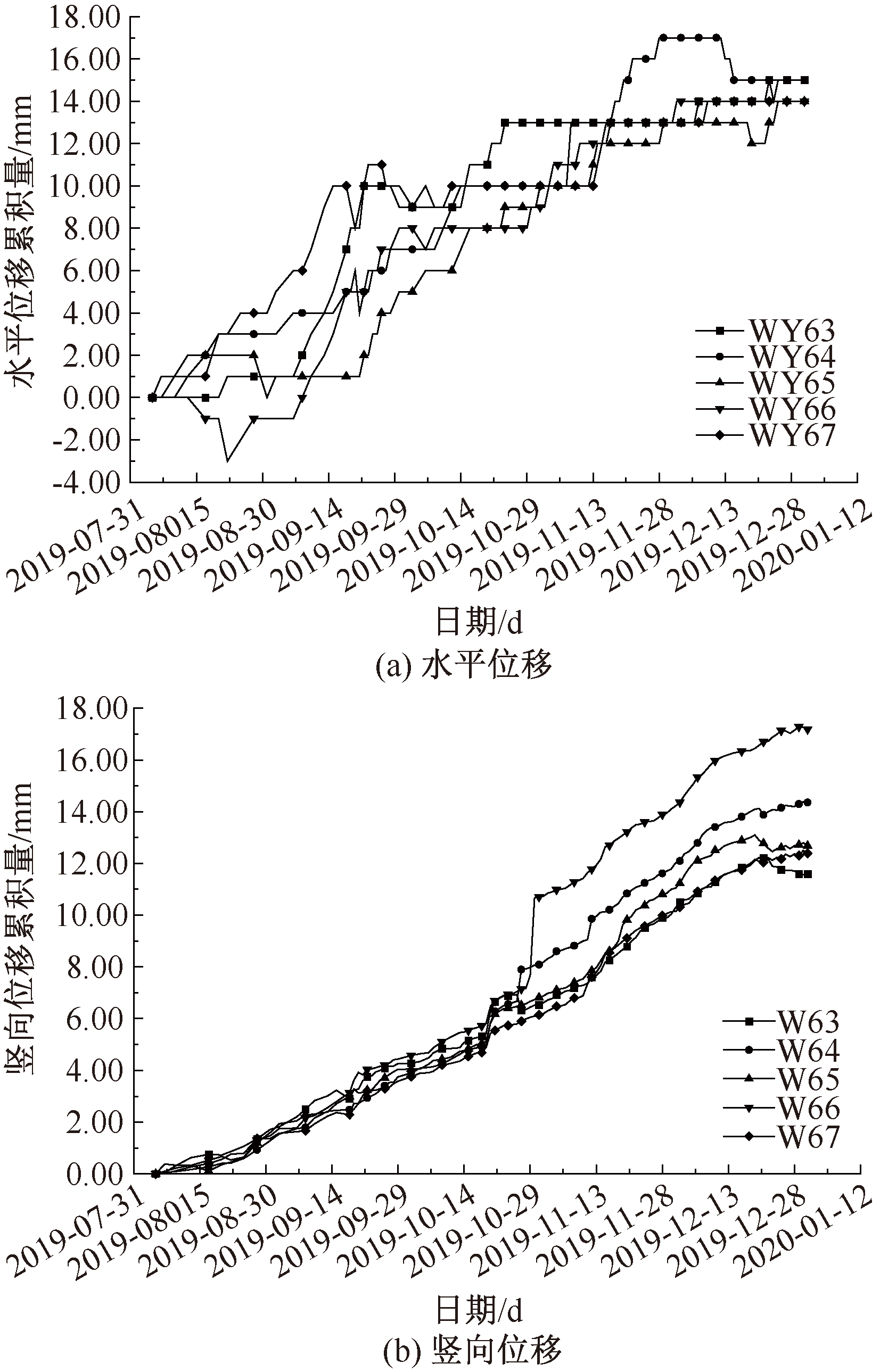

Fig.11

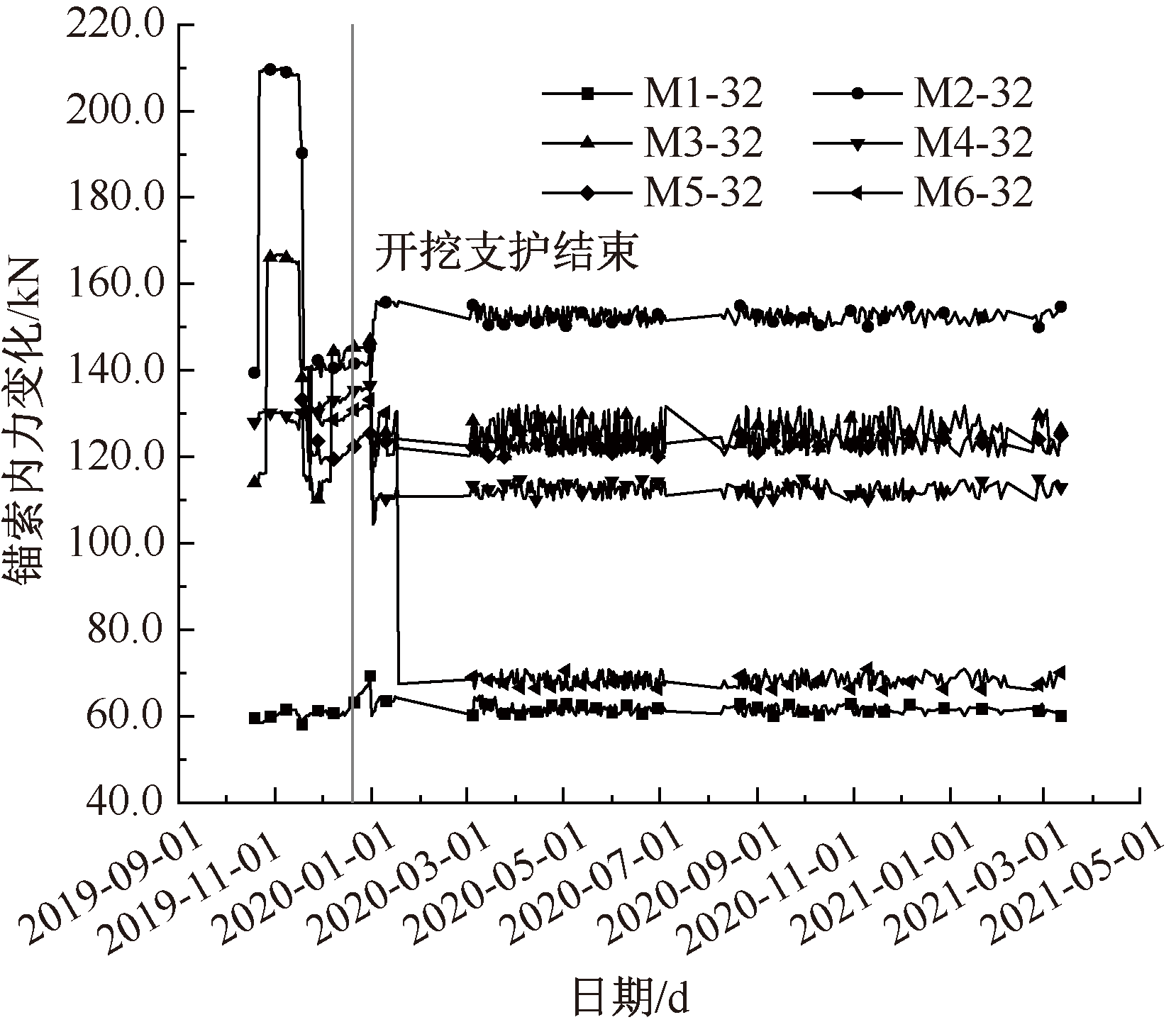

Fig.12

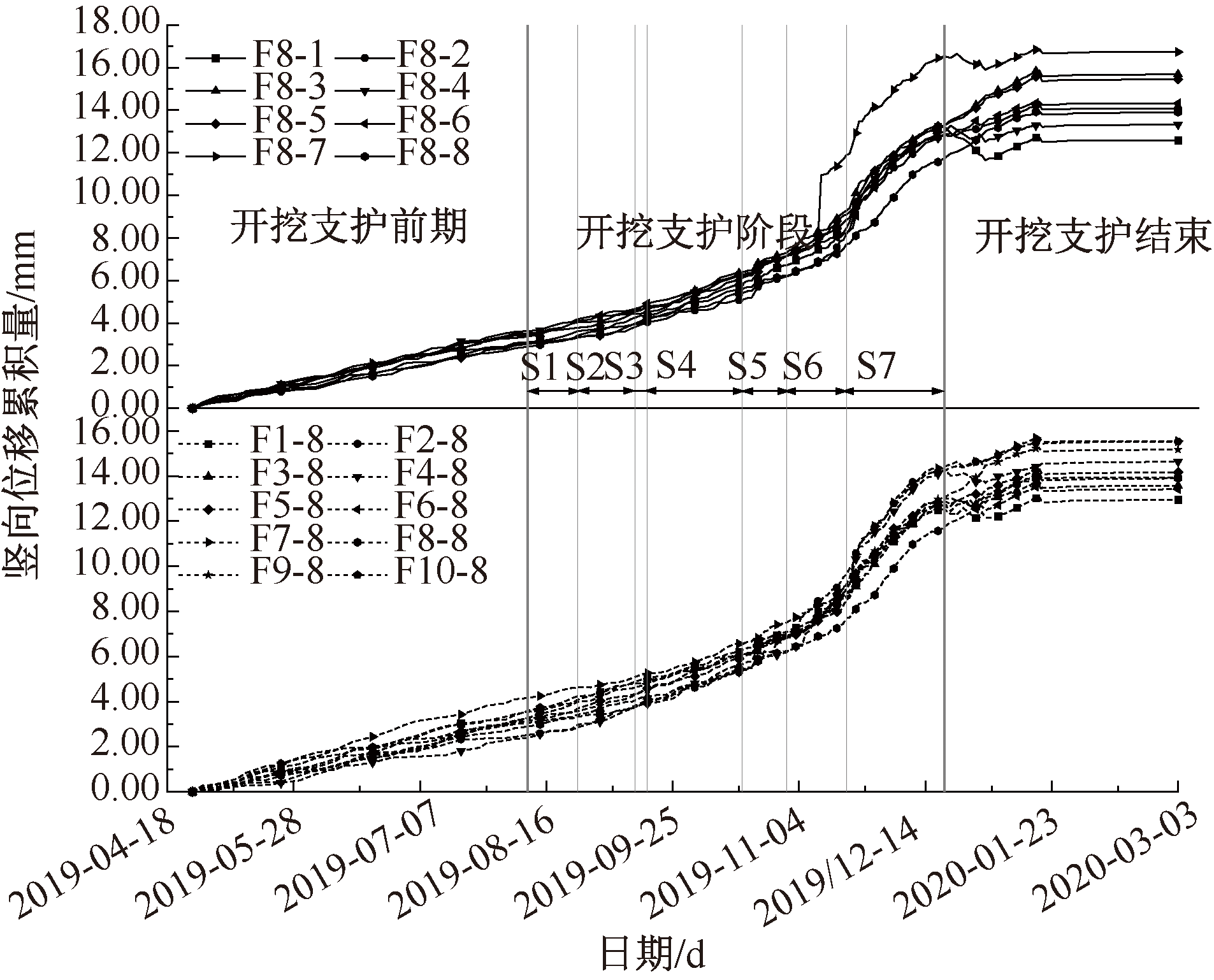

Fig.13

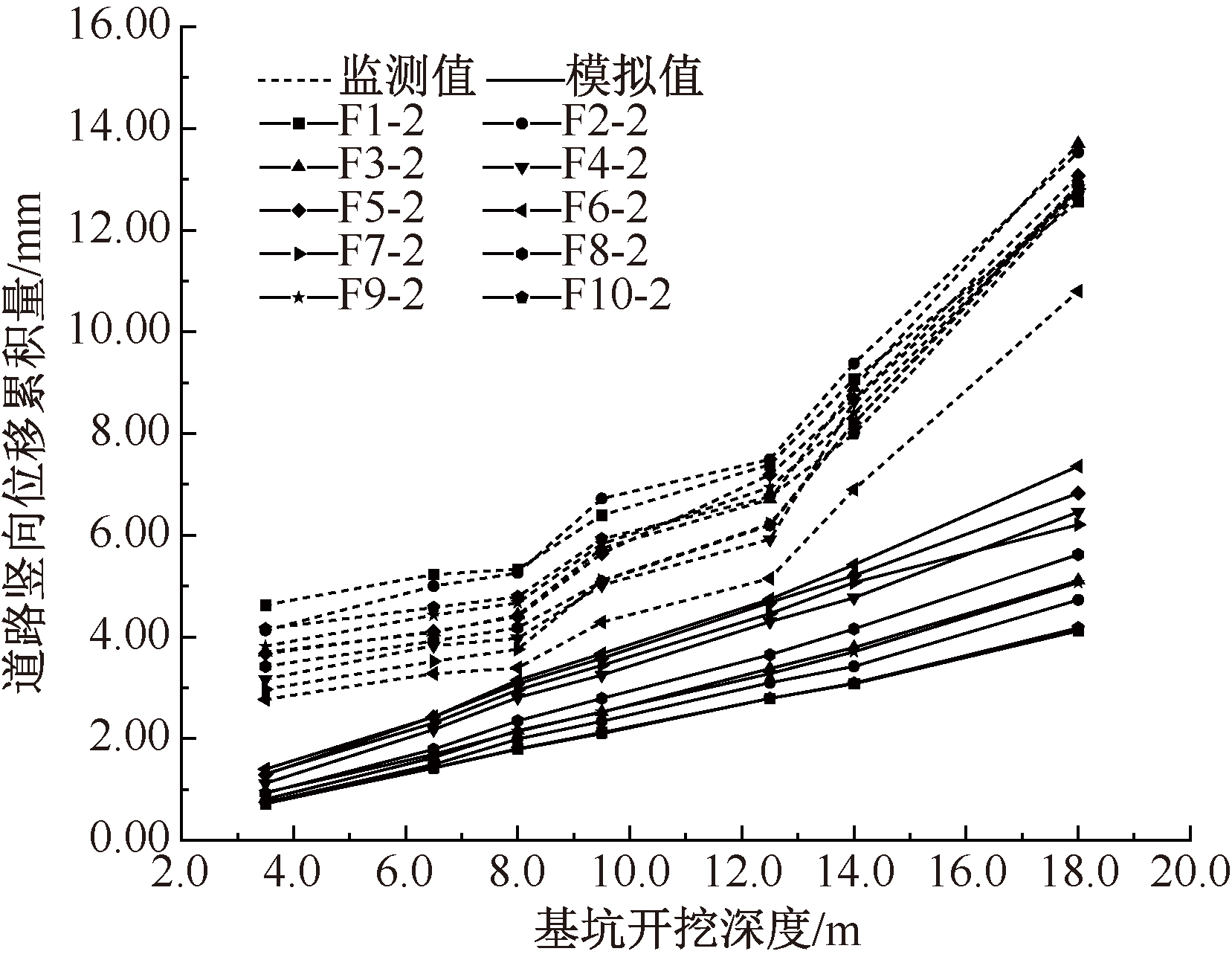

Fig.14

References 15

[1]	陈江, 阳军生, 张学民, 等. 共用连续墙结构的现场测试与安全性评价[J]. 中国安全科学学报, 2016, 26(7): 108-112.
	CHEN Jiang, YANG Junsheng, ZHANG Xuemin, et al. Field measurement and safety evaluation of shared diaphragm wall structure[J]. China Safety Science Journal, 2016, 26(7): 108-112.
[2]	韩健勇, 赵文, 李天亮, 等. 深基坑与邻近建筑物相互影响的实测及数值分析[J]. 工程科学与技术, 2020, 52(4): 149-156.
	HAN Jianyong, ZHAO Wen, LI Tianliang, et al. Field measurement and numerical analysis of the influence between the deep excavation and adjacent buildings[J]. Advanced Engineering Sciences, 2020, 52(4):149-156.
[3]	张仲宇, 李兆平, 杨航, 等. 并行基坑施工对邻近桥梁影响及保护措施[J]. 中国安全科学学报, 2023, 33(3): 68-74. doi: 10.16265/j.cnki.issn1003-3033.2023.03.0685
	ZHANG Zhongyu, LI Zhaoping, YANG Hang, et al. Study on influence of parallel foundation pit construction on adjacent bridge and protection measures[J]. China Safety Science Journal, 2023, 33(3): 68-74. doi: 10.16265/j.cnki.issn1003-3033.2023.03.0685
[4]	汪东林, 汪磊. 紧邻既有高速公路偏压地铁深基坑围护结构变形监测与数值模拟研究[J]. 建筑结构, 2015, 45(11): 91-95.
	WANG Donglin, WANG Lei. Study on field monitoring and numerical simulation of deformation of deep foundation pit retaining structure under unsymmetrical load condition adjacent to existing highway[J]. Building Structure, 2015, 45(11): 91-95.
[5]	焦宁, 丁建文, 吉锋, 等. 土岩复合地层中深基坑开挖对邻近管线变形影响分析[J]. 东南大学学报: 自然科学版, 2022, 52(2): 229-236.
	JIAO Ning, DING Jianwen, JI Feng, et al. Analysis on influence of deep foundation pit excavation in soil-rock composite stratum on deformation of adjacent pipelines[J]. Journal of Southeast University: Natural Science Edition, 2022, 52(2): 229-236.
[6]	郭延辉, 严明, 宋琴, 等. 深基坑开挖对临近既有高压天然气管道的影响[J]. 地下空间与工程学报, 2021, 17(增2): 840-847.
	GUO Yanhui, YAN Ming, SONG Qin, et al. The influence of deep foundation pit excavation on the adjacent existing high pressure natural gas pipeline[J]. Chinese Journal of Underground Space and Engineering, 2021, 17(S2): 840-847.
[7]	叶帅华, 李德鹏. 复杂环境下深大基坑开挖监测与数值模拟分析[J]. 土木工程学报, 2019, 52(增2): 117-126.
	YE Shuaihua, LI Depeng. Monitoring and simulation analysis of deep and large foundation pit excavation in complex environment[J]. China Civil Engineering Journal, 2019, 52(S2): 117-126.
[8]	雷华阳, 冯双喜, 万勇峰, 等. 基坑开挖对既有临近滩涂铁路路基影响规律及安全措施研究[J]. 天津大学学报: 自然科学与工程技术版, 2019, 52(9): 969-978.
	LEI Huayang, FENG Shuangxi, WAN Yongfeng, et al. Influence law and safety measures of foundation pit excavation on existing railway subgrade in tidal flat areas[J]. Journal of Tianjin University: Science and Technology, 2019, 52(9): 969-978.
[9]	王培鑫, 周顺华, 狄宏规, 等. 基坑开挖对邻近铁路路基变形影响与控制[J]. 岩土力学, 2016, 37(增1): 469-476.
	WANG Peixin, ZHOU Shunhua, DI Honggui, et al. Impacts of foundation pit excavation on adjacent railway subgrade and control[J]. Rock and Soil Mechanics, 2016, 37(S1): 469-476.
[10]	ZHAO Jinpeng, TAN Zhongsheng, YU Rongsen, et al. Deformation responses of the foundation pit construction of the urban metro station: a case study in Xiamen[J]. Tunnelling and Underground Space Technology, 2022, 128: DOI: 10.1016/j.tust.2022.104662.
[11]	FENG Zheyuan, XU Qi, XU Xiangyang, et al. Deformation characteristics of soil layers and diaphragm walls during deep foundation pit excavation: simulation verification and parameter analysis[J]. Symmetry, 2022, 14(2): DOI: 10.3390/sym14020254.
[12]	谭鑫, 金永乐, 黄明华, 等. 桩锚支护基坑对近邻建筑影响实测及三维数值分析[J]. 土木工程学报, 2023, 56(7): 126-136.
	TAN Xin, JIN Yongle, HUANG Minghua, et al. Numerical analysis and filed monitoring on deformation characteristics of deep excavation adjacent to building with shallow foundation[J]. China Civil Engineering Journal, 2023, 56(7): 126-136.
[13]	韩健勇, 赵文, 关永平, 等. 近接浅基础建筑物深基坑变形特性及关键参数[J]. 东北大学学报: 自然科学版, 2018, 39(10): 1463-1468.
	HAN Jianyong, ZHAO Wen, GUAN Yongping, et al. Deformation characteristics and key parameters of deep excavation adjacent to buildings with shallow foundations[J]. Journal of Northeastern University: Natural Science, 2018, 39(10): 1463-1468.
[14]	王思懿. 陆海域复杂基坑施工对邻近桩基影响的数值模拟研究[D]. 大连: 大连理工大学, 2021.
	WANG Siyi. Study on the influence of complex excavation on piles in land and seabed using numerical simulation[D]. Dalian: Dalian University of Technology, 2021.
[15]	GB 50497—2019, 建筑基坑工程监测技术标准[S].
	GB 50497-2019, Technical standard for monitoring of building excavation engineering[S].

地层	弹性模量/ MPa	泊松比	容重/ (kN·m^-3)	黏聚力/ kPa	内摩擦角/ (°)	三轴割线刚度/ (kN·m^-2)
杂填土	7.0	0.28	18.7	19.5	8.5	3 850
泥炭土	12.1	0.40	13.2	20.0	6.0	6 655
圆砾土	196.7	0.46	19.4	9.4	41.0	108 185
粉质黏土	16.0	0.30	19.0	40.0	12.0	8 800

结构形式	弹性模量/MPa	泊松比	容重/(kN·m^-3)
锚索	195 000	0.30	78.5
支护桩	31 500	0.20	25.0
压密注浆	25 000	0.30	23.0
高压旋喷加固、挡土墙	31 500	0.20	25.0

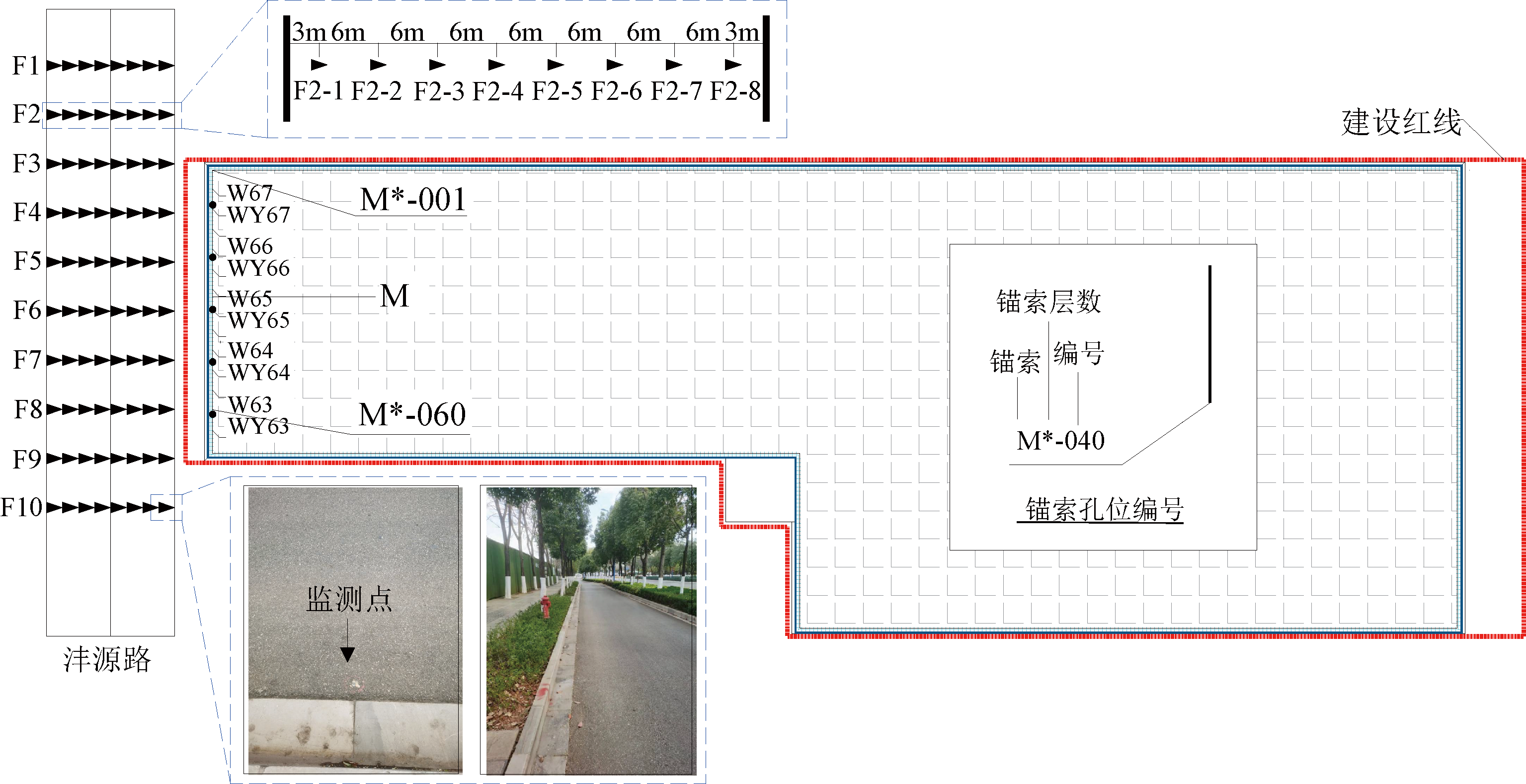

现场监测项目	布设方法	数量	监测点编号
