IAFSA-GRNN在油田集输管道CO2腐蚀速率预测中的应用

doi:10.16265/j.cnki.issn1003-3033.2022.01.015

摘要/Abstract

摘要：

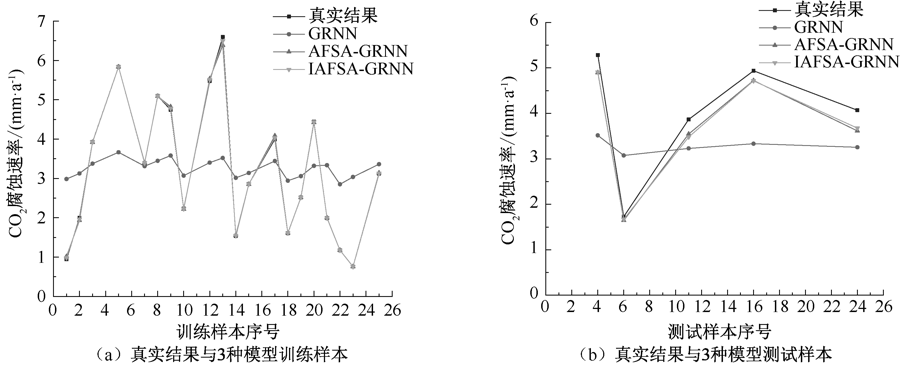

为提高油田集输管道CO₂腐蚀速率预测的准确性,针对原始广义回归神经网络(GRNN)预测精度低的问题,提出改进的群智能算法优化原始GRNN的预测模型;分别使用GRNN模型、人工鱼群算法(AFSA)优化的GRNN(AFSA-GRNN)模型和自适应改进的AFSA-GRNN(IAFSA-GRNN)模型预测X65管线钢的CO₂腐蚀速率。结果表明:采用AFSA和IAFSA优化光滑因子S后,能大大提高GRNN模型的预测精度,预测结果的平均相对误差由36.09%分别减小至7.20%和6.90%;与AFSA相比,IAFSA优化的GRNN不仅具有更高的预测精度,还具有更快的收敛速度。AFSA-GRNN在第164次迭代计算时收敛,而IAFSA-GRNN在第109次迭代计算时收敛,说明AFSA经自适应优化能提高优化过程的收敛速度和GRNN的预测精度。

关键词: 人工鱼群算法(AFSA), 广义回归神经网络(GRNN), 集输管道, CO₂腐蚀速率, 预测精度, 相对误差

Abstract:

In order to achieve more accurate prediction of CO₂ corrosion rate of oil gathering and transportation pipelines, considering the low prediction accuracy of original GRNN, an improved swarm intelligence algorithm was proposed to optimize it. Then, GRNN model, AFSA optimized GRNN (AFSA-GRNN) model and adaptive improved AFSA-GRNN (IAFSA-GRNN) model were used to predict CO₂ corrosion rate of X65 pipeline steel. The results show that the prediction accuracy of GRNN model is greatly improved by using AFSA and IAFSA to optimize smoothing factor S, with its mean relative error of prediction results being reduced from 36.09% to 7.20% and 6.90%, respectively. Compared with AFSA, IAFSA optimized GRNN has not only higher prediction accuracy, but also faster convergence rate. The AFSA-GRNN converges at the 164th iteration, while the IAFSA-GRNN does that at the 109th one, indicating that AFSA could improve convergence rate of optimization process and further improve prediction accuracy of GRNN through adaptive optimization.

Key words: artificial fish swarms algorithm (AFSA), general regression neural network (GRNN), gathering and transportation pipelines, CO₂ corrosion rate, prediction accuracy, relative error

郑度奎, 程远鹏, 李昊燃, 何天隆. IAFSA-GRNN在油田集输管道CO₂腐蚀速率预测中的应用[J]. 中国安全科学学报, 2022, 32(1): 110-117.

ZHENG Dukui, CHENG Yuanpeng, LI Haoran, HE Tianlong. Application of IAFSA-GRNN in CO₂ corrosion rate prediction of oil gathering and transportation pipelines[J]. China Safety Science Journal, 2022, 32(1): 110-117.

图/表 7

图1

图2

图3

图4

图5

图6

表1

参考文献 26

[1]	郑度奎, 李昊燃, 程远鹏, 等. 油气管道的CO₂腐蚀预测模型和预测方法[J]. 腐蚀与防护, 2020, 41(3): 48-53,58.
	ZHENG Dukui, LI Haoran, CHENG Yuanpeng, et al. CO₂ corrosion prediction model and prediction method for oil and gas pipeline[J]. Corrosion & Protection, 2020, 41(3): 48-53,58.
[2]	齐先志, 王晓霖, 许学瑞, 等. 成品油管道周边区域社会风险分析[J]. 中国安全科学学报, 2019, 29(11): 177-182. doi: 10.16265/j.cnki.issn1003-3033.2019.11.028
	QI Xianzhi, WANG Xiaolin, XU Xuerui, et al. Societal risk analysis for vicinity of product oil pipelines[J]. China Safety Science Journal, 2020, 29(11): 177-182.
[3]	张国安, 陈长风, 路民旭, 等. 油气田中CO₂腐蚀的预测模型[J]. 中国腐蚀与防护学报, 2005, 25(2): 119-123.
	ZHANG Guoan, CHEN Changfeng, LU Minxu, et al. Prediction models for CO₂ corrosion of oil and gas fields[J]. Journal of Chinese Society for Corrosion and Protection, 2005, 25(2): 119-123.
[4]	张国华, 张国庆, 李妍. 油气田CO₂腐蚀典型预测模型的比较及探究[J]. 全面腐蚀控制, 2008, 22(4): 47-51.
	ZHANG Guohua, ZHANG Guoqing, LI Yan. A contrast and research on several typical predictive models for CO₂ corrosion of oil and gas fields[J]. Total Corrosion Control, 2008, 22(4): 47-51.
[5]	程远鹏, 李自力, 毕海胜, 等. 含油集输管道CO₂腐蚀速率预测的研究进展[J]. 腐蚀与防护, 2015, 36(3): 207-212.
	CHENG Yuanpeng, LI Zili, BI Haisheng, et al. Progress in prediction of CO₂ corrosion rate affected by oil in gathering pipelines[J]. Corrosion & Protection, 2015, 36(3): 207-212.
[6]	赵景茂, 魏辉荣, 张娇娇, 等. L360钢在H₂S/CO₂环境中腐蚀的预测[J]. 腐蚀科学与防护技术, 2012, 24(2): 163-166.
	ZHAO Jingmao, WEI Huirong, ZHANG Jiaojiao, et al. Prediction of corrosion rate of L360 steel in H₂S/CO₂ environment[J]. Corrosion Science and Protection Technology, 2012, 24(2): 163-166.
[7]	商杰, 朱战立. 基于遗传算法的神经网络在预测油管钢腐蚀速率中的应用[J]. 腐蚀科学与防护技术, 2007, 19(3): 225-228.
	SHANG Jie, ZHU Zhanli. Application of genetic algorithms neural networks in prediction corrosion rate of carbon steel[J]. Corrosion Science and Protection Technology, 2007, 19(3): 225-228.
[8]	郭来德. 支持向量机在管道中的应用研究[J]. 计算机与数字工程, 2012, 40(9): 41-42,145.
	GUO Laide. Application research of the support vector machine in the pipeline[J]. Computer & Digital Engineering, 2012, 40(9): 41-42,145.
[9]	马钢, 李俊飞, 白瑞, 等. 基于PSO-SVM模型的油气管道内腐蚀速率预测[J]. 表面技术, 2019, 48(5): 43-48.
	MA Gang, LI Junfei, BAI Rui, et al. Prediction of corrosion rate in oil and gas pipelines based on PSO-SVM model[J]. Surface Technology, 2019, 48(5): 43-48.
[10]	PARK J, KIM Y K. Meta-modeling using generalized regression neural network and particle swarm optimization[J]. Applied Soft Computing, 2017, 51: 354-369. doi: 10.1016/j.asoc.2016.11.029
[11]	窦贤明. 机器学习方法在陆地生态系统碳水通量模拟中的应用研究[D]. 北京: 中国矿业大学(北京), 2018.
	DOU Xianming. Applications of machine learning methods in modeling carbon and water fluxes of terrestrial ecosystems[D]. Beijing: China University of Mining and Technology(Beijing), 2018.
[12]	ZHAO Huiru, GUO Sen. Annual energy consumption forecasting based on PSOCA-GRNN model[J]. Abstract and Applied Analysis, 2014, 2014(1): 1-11.
[13]	SAMMEN S S, MOHAMED T A, GHAZALI A H, et al. Generalized regression neural network for prediction of peak outflow from dam breach[J]. Water Resources Management, 2017, 31: 549-562. doi: 10.1007/s11269-016-1547-8
[14]	NIU Dongxiao, LIANG Yi, HONG Weichiang. Wind speed forecasting based on EMD and GRNN optimized by FOA[J]. Energies, 2017, 10(12): DOI: 103390/en10122001. doi: 103390/en10122001
[15]	骆正山, 姚梦月, 骆济豪, 等. 基于KPCA-BAS-GRNN的埋地管道外腐蚀速率预测[J]. 表面技术, 2018, 47(11): 173-180.
	LUO Zhengshan, YAO Mengyue, LUO Jihao, et al. Prediction of external corrosion rate of buried pipeline based on KPCA-BAS-GRNN[J]. Surface Technology, 2018, 47(11): 173-180.
[16]	骆正山, 王文辉, 王小完, 等. 基于RS-PSO-GRNN的埋地管道土壤腐蚀预测[J]. 材料保护, 2018, 51(8): 47-52,79.
	LUO Zhengshan, WANG Wenhui, WANG Xiaowan, et al. Soil corrosion prediction of buried pipeline based on the model of RS-PSO-GRNN[J]. Materials Protection, 2018, 51(8): 47-52,79.
[17]	骆正山, 王文辉, 张新生. 基于RS-GWO-GRNN的充填管道失效风险研究[J]. 有色金属工程, 2019, 9(6): 76-83.
	LUO Zhengshan, WANG Wenhui, ZHANG Xinsheng. Study on failure risk of backfill pipeline based on RS-GWO-GRNN[J]. Nonferrous Metals Engineering, 2019, 9(6): 76-83.
[18]	王文辉. 埋地油气管道腐蚀速率预测及剩余寿命研究[D]. 西安: 西安建筑科技大学, 2019.
	WANG Wenhui. Corrosion rate prediction and residual life of buried oil and gas pipelines[D]. Xi'an: Xi'an University of Architecture and Technology, 2019.
[19]	HU Zhenlong, ZHAO Qiang, WANG Jun. The prediction model of worsted yarn quality based on CNN-GRNN neural network[J]. Neural Computing and Applications, 2019, 31: 4551-4562. doi: 10.1007/s00521-018-3723-7
[20]	ZHANG Yongli, NIU Jianguang, NA Sanggyun. A novel nonlinear function fitting model based on FOA and GRNN[J]. Mathematical Problems in Engineering, 2019, 2019(3): 1-10.
[21]	SPECHT D F. A general regression neural network[J]. IEEE Transactions on Neural Networks, 1991, 2(6): 568-576. doi: 10.1109/72.97934
[22]	NOSE-FILHO K, LOTUFO A D P, MINUSSI C R. Short-term multinodal load forecasting using a modified general regression neural network[J]. IEEE Transactions on Power Delivery, 2011, 26(4): 2862-2869. doi: 10.1109/TPWRD.2011.2166566
[23]	LIN Jun, SHENG Gehao, YAN Yingjie, et al. Prediction of dissolved gas concentrations in transformer oil based on the KPCA-FFOA-GRNN model[J]. Energies, 2018, 11(1): 1-13. doi: 10.3390/en11010001
[24]	毕傲睿, 骆正山, 宋莹莹, 等. 内腐蚀海底管道剩余强度的FOA-GRNN模型[J]. 中国安全科学学报, 2020, 30(6): 78-83. doi: 10.16265/j.cnki.issn1003-3033.2020.06.012
	BI Aorui, LUO Zhengshan, SONG Yingying, et al. Residual strength analysis of internally corroded submarine pipeline based on FOA-GRNN model[J]. China Safety Science Journal, 2020, 30(6): 78-83. doi: 10.16265/j.cnki.issn1003-3033.2020.06.012
[25]	李晓磊, 邵之江, 钱积新. 一种基于动物自治体的寻优模式:鱼群算法[J]. 系统工程理论与实践, 2002, 22(11): 32-38. doi: 10.12011/1000-6788(2002)11-32
	LI Xiaolei, SHAO Zhijiang, QIAN Jixin. An optimizing method based on autonomous animats: fish-swarm algorithm[J]. Systems Engineering-Theory & Practice, 2002, 22(11): 32-38.
[26]	程远鹏. 含原油介质中集输管线钢CO₂腐蚀特性研究[D]. 青岛: 中国石油大学(华东), 2016.
	CHENG Yuanpeng. Research on CO₂ corrosion characteristics of gathering pipeline steel in the medium containing crude oil[D]. Qingdao: China University of Petroleum (East China), 2016.

IAFSA-GRNN在油田集输管道CO₂腐蚀速率预测中的应用

Application of IAFSA-GRNN in CO₂ corrosion rate prediction of oil gathering and transportation pipelines

RichHTML

PDF

可视化

摘要/Abstract

引用本文

使用本文

图/表 7

参考文献 26

相关文章 7

编辑推荐

Metrics

本文评价

[1]	张凯, 张科, 李昆. 主元分析-神经网络岩爆等级预测模型[J]. 中国安全科学学报, 2021, 31(3): 96-104.
[2]	毕傲睿, 骆正山, 宋莹莹, 张新生. 内腐蚀海底管道剩余强度的FOA-GRNN模型[J]. 中国安全科学学报, 2020, 30(6): 78-83.
[3]	施式亮，罗文柯，李润求，念其锋. 基于灰色Compertz模型的煤矿地表沉陷灾害特征值预测[J]. 中国安全科学学报, 2013, 23(9): 9-.
[4]	骆正山，郜阳. 基于灰色支持向量机的湿天然气集输管道腐蚀研究[J]. 中国安全科学学报, 2013, 23(5): 62-.
[5]	付小平，薛新华，李洪涛. GRNN模型在煤与瓦斯突出及瓦斯含量预测中的应用[J]. 中国安全科学学报, 2012, 22(1): 24-.
[6]	罗文柯，施式亮，谢东海. 金竹山土朱煤矿开采地表沉降规律与灰色预测模型研究[J]. 中国安全科学学报, 2009, 19(10): 52-.
[7]	朱伟兴，李丽，庞敏. 基于神经网络的数据融合在废气测量中的应用[J]. 中国安全科学学报, 2007, 17(6): 162-.

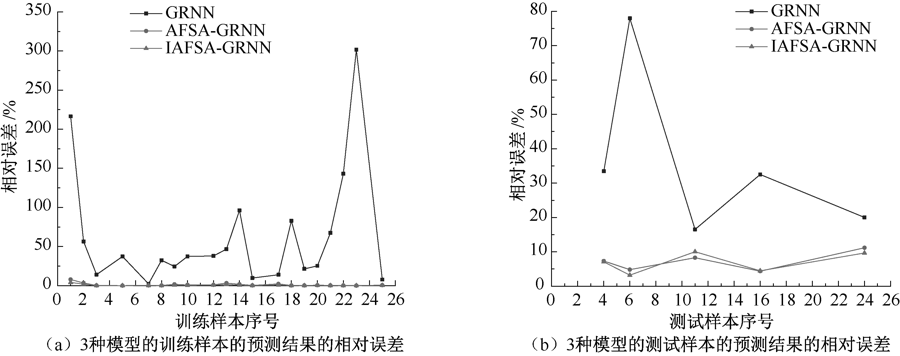

模型	训练样本的平均相对误差	测试样本的平均相对误差
GRNN	63.72	36.09
AFSA-GRNN	1.24	7.20
IAFSA-GRNN	0.58	6.90
