含水雾横向风作用下双喷口射流扩散火焰特性

doi:10.16265/j.cnki.issn1003-3033.2022.01.021

中国安全科学学报 ›› 2022, Vol. 32 ›› Issue (1): 157-163.doi: 10.16265/j.cnki.issn1003-3033.2022.01.021

含水雾横向风作用下双喷口射流扩散火焰特性

姜桦¹^,²(), 刘长春¹^,²^,^**(), 黄林远¹^,², 吴鹏志¹^,², 邓天刁¹^,²

¹西安科技大学安全科学与工程学院,陕西西安 710054
²陕西省工业过程安全与应急救援工程技术研究中心,陕西西安 710054

收稿日期:2021-10-17 修回日期:2021-12-13 出版日期:2022-01-28 发布日期:2022-07-28
通讯作者: 刘长春
作者简介:
姜桦(1996—),女,四川绵阳人,硕士研究生,研究方向为火灾动力学。E-mail: 1033055794@qq.com。
刘长春副教授
基金资助:
国家自然科学基金资助(51604215); 陕西省创新团队能力支持计划项目(2020TD-021); 榆林市2020年科技计划项目(CXY-2020-032)

Investigation on characteristics of dual nozzle jet diffusion flame under cross-wind with water mist

JIANG Hua¹^,²(), LIU Changchun¹^,²^,^**(), HUANG Linyuan¹^,², WU Pengzhi¹^,², DENG Tiandiao¹^,²

¹School of Safety Science and Engineering, Xi'an University of Science and Technology, Xi'an Shaanxi 710054, China
²Shaanxi Engineering Research Center for Industrial Process Safety and Emergency Rescue, Xi'an Shaanxi 710054, China

Received:2021-10-17 Revised:2021-12-13 Online:2022-01-28 Published:2022-07-28
Contact: LIU Changchun

摘要/Abstract

摘要：

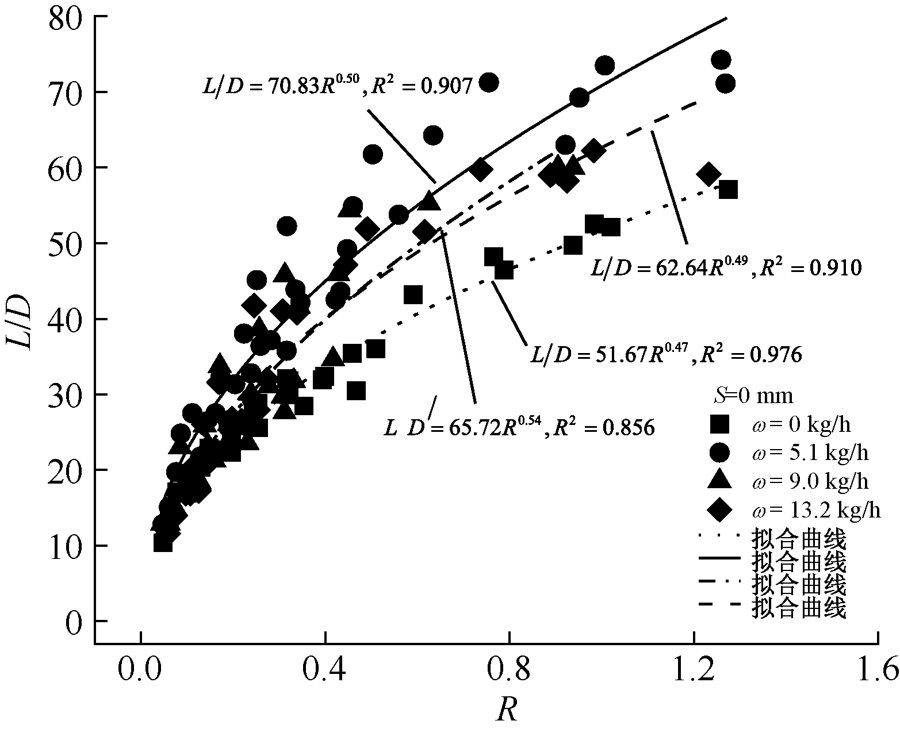

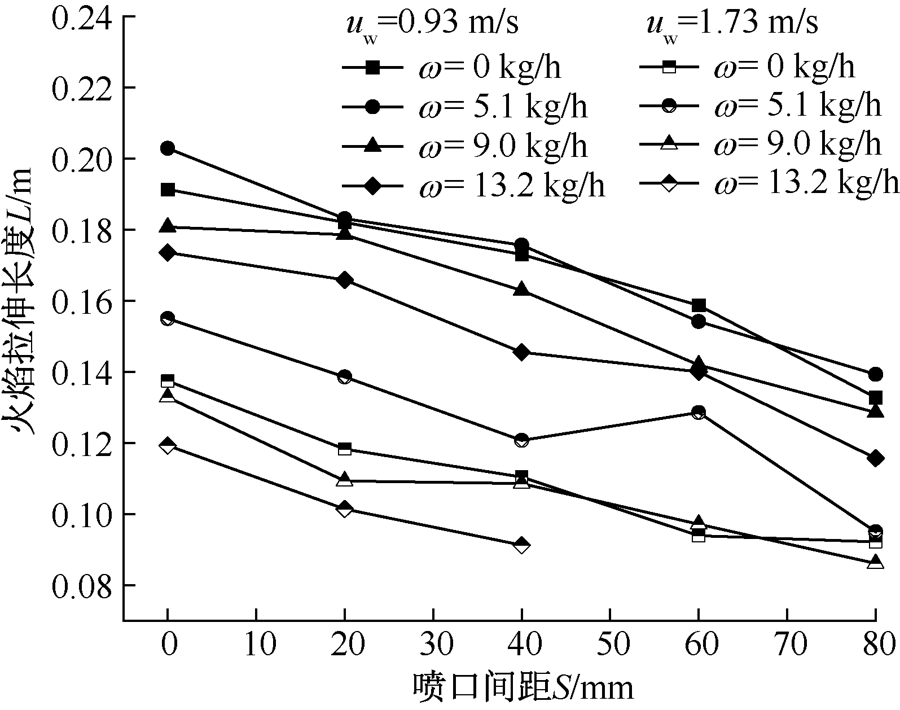

为探究在横向风作用下不同超细水雾含量对双喷口射流扩散火焰燃烧特性的影响,利用高速摄像机拍摄火焰几何形态,分析不同喷口间距和横向风中的超细水雾含量对火焰形态演化、火焰长度和火焰吹熄极限的影响,并基于前人数学模型,推导与增长区域试验数据具有较好相关性的火焰拉伸长度变化的经验公式。结果表明:随着横向风中雾通量的增加,双喷口火焰颜色由蓝黄色转变为橙黄色,同时导致火焰的亮度大幅度降低;由于水雾降温抑制使得火焰拉伸长度随雾通量增加而先增加后降低,且随动量比的增加,火焰拉伸长度先增加后逐渐稳定;雾通量的增加会降低燃料流速较大的火焰吹熄极限。

关键词: 超细水雾, 横向风, 双喷口, 射流扩散火焰, 火焰长度, 吹熄极限

Abstract:

In order to explore impacts of different superfine water mist content on combustion characteristics of dual nozzle jet diffusion flame under cross-wind, flame geometry was recorded by using a high-speed camera, and impacts of superfine water mist content on geometry evolution, length, and blow-out limit of flame were analyzed for different nozzle spacing and cross-wind. Then, based on the current mathematical model, an empirical formula of flame stretching length variation which featured good correlation with experimental data of growth region was deduced. The results show that as mist flux under cross-wind increases, the color of dual nozzle flame changes from blue-yellow to orange-yellow, and flame brightness is greatly reduced. Due to suppression of water mist cooling, flame stretching length first increases and then decreases along with increase of mist flux, and the length first increases and then gradually stabilizes when momentum ratio increases. Moreover, increase of mist flux will reduce flame blow-out limit with a larger fuel flow rate.

Key words: superfine water mist, cross-wind, dual nozzle, jet diffusion flame, flame length, blow-out limit

姜桦, 刘长春, 黄林远, 吴鹏志, 邓天刁. 含水雾横向风作用下双喷口射流扩散火焰特性[J]. 中国安全科学学报, 2022, 32(1): 157-163.

JIANG Hua, LIU Changchun, HUANG Linyuan, WU Pengzhi, DENG Tiandiao. Investigation on characteristics of dual nozzle jet diffusion flame under cross-wind with water mist[J]. China Safety Science Journal, 2022, 32(1): 157-163.

图/表 11

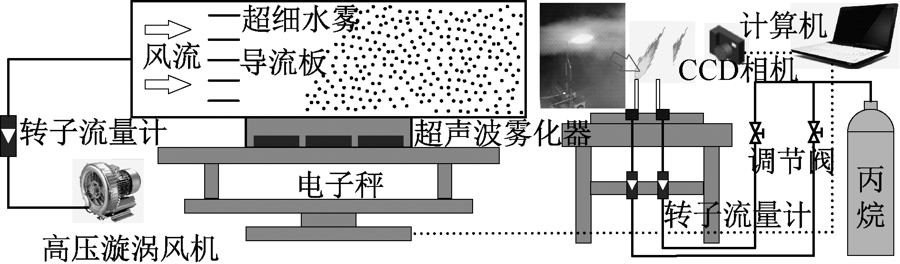

图1

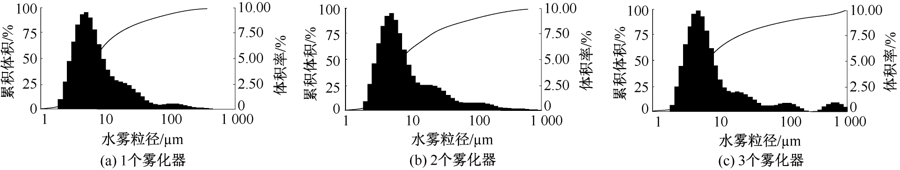

图2

图3

图4

图5

图6

图7

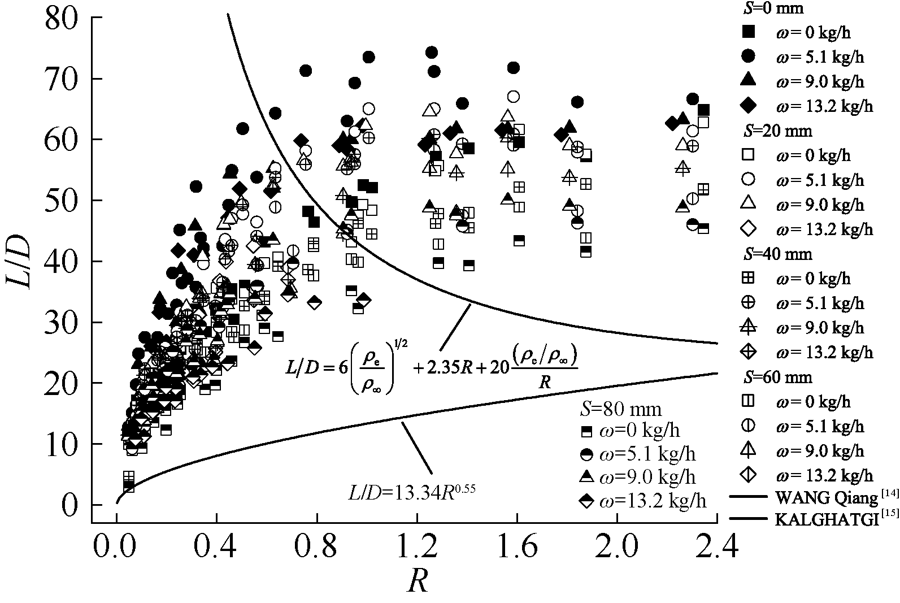

图8

图9

图10

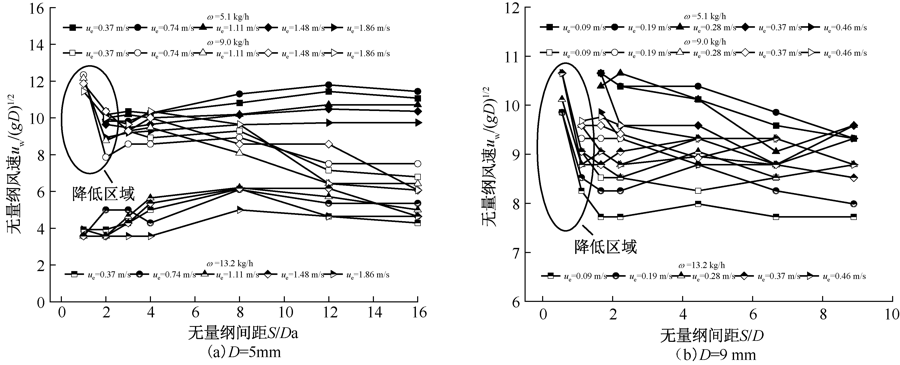

图11

参考文献 22

[1]	LIU Changchun, HUANG Linyuan, DENG Tiandiao, et al. On the influence of nozzle geometry on jet diffusion flames under cross-wind[J]. Fuel, 2020,263: DOI: 10.1016/j. fuel.2019.116549.
[2]	HU Longhua, WANG Qiang, DELICHATSIOS M, et al. Flame height and lift-off of turbulent buoyant jet diffusion flames in a reduced pressure atmosphere[J]. Fuel, 2013, 109(7):234-240. doi: 10.1016/j.fuel.2012.12.050
[3]	FENG Minghui, LI Quanwei, QIN Jun. Extinguishment of hydrogen diffusion flames by ultrafine water mist in a cup burner apparatus:a numerical study[J]. International Journal of Hydrogen Energy, 2015, 40(39):13 643-13 652.
[4]	LIU Changchun, LIU Xinlei, GE Hong, et al. On the influence of distance between two jets on flickering diffusion flames[J]. Combustion and Flame, 2019, 201:23-30. doi: 10.1016/j.combustflame.2018.12.003
[5]	KUWANA K, KATO S, KOSUGI A, et al. Experimental and theoretical study on the interaction between two identical micro-slot diffusion flames: burner pitch effects[J]. Combustion and Flame, 2016, 165:346-353. doi: 10.1016/j.combustflame.2015.12.017
[6]	JI Jie, WAN Huaxian, GAO Zihe, et al. Experimental study on flame merging behaviors from two pool fires along the longitudinal centerline of model tunnel with natural ventilation[J]. Combustion and Flame, 2016, 173:307-318. doi: 10.1016/j.combustflame.2016.08.020
[7]	SUGAWA O, TAKAHASH W. Flame height behavior from multi-fire sources[J]. Fire and Materials, 1993, 17(3):111-117. doi: 10.1002/fam.810170303
[8]	WANG Kai, TAO Changfa, LIU Qin, et al. An experimental investigation of flame height and air entrainment rate of double jet fires[J]. Experimental Heat Transfer, 2018, 31(1):22-31. doi: 10.1080/08916152.2017.1339140
[9]	HU Longhua, HUANG Lili, WANG Qiang, et al. Experimental study and analysis on the interaction between two slot-burner buoyant turbulent diffusion flames at various burner pitches[J]. Combustion and Flame, 2017, 186:105-113. doi: 10.1016/j.combustflame.2017.07.033
[10]	WAN Huaxian, JI Jie, LI Kaiyuan, et al. Effect of air entrainment on the height of buoyant turbulent diffusion flames for two fires in open space[J]. Proceedings of the Combustion Institute, 2017, 36(2):3003-3010. doi: 10.1016/j.proci.2016.07.078
[11]	GOLLAHALLI S R, BRZUSTOWSKI T A, SULLIVAN H F. Characteristics of a turbulent propane diffusion flame in a cross-wind[J]. Transactions of the Canadian Society for Mechanical Engineering, 1975, 3(4):205-214. doi: 10.1139/tcsme-1975-0028
[12]	MORVAN D, PORTERIE B, LORAUD J C, et al. A numerical investigation of cross wind effects on a turbulent buoyant diffusion flame[J]. Combustion Science and Technology, 2001, 164(1):1-35. doi: 10.1080/00102200108952160
[13]	WANG Qiang, HU Longhua, ZHANG Xiaozheng, et al. Turbulent jet diffusion flame length evolution with cross flows in a sub-pressure atmosphere[J]. Energy Conversion and Management, 2015, 106:703-708. doi: 10.1016/j.enconman.2015.09.052
[14]	WANG Qiang, HU Longhua, YOON S H, et al. Blow-out limits of nonpremixed turbulent jet flames in a cross flow at atmospheric and sub-atmospheric pressures[J]. Combustion and Flame, 2015, 162(10):3 562-3 568.
[15]	KALGHATGI G T. Blow-out stability of gaseous jet diffusion flames part II: effect of cross wind[J]. Combustion Science and Technology, 1981, 26(5/6):241-244. doi: 10.1080/00102208108946965
[16]	LI Bo, WAN Huaxian, GAO Zihe, et al. Experimental study on the characteristics of flame merging and tilt angle from twin propane burners under cross wind[J]. Energy, 2019, 174:1200-1209. doi: 10.1016/j.energy.2019.03.061
[17]	NAITO H, UENDO T, SASO Y, et al. Effect of fine water droplets on extinguishment of diffusion flame stabilized in the forward stagnation region of a porous cylinder[J]. Proceedings of the Combustion Institute, 2010, 33(2):2563-2571. doi: 10.1016/j.proci.2010.06.005
[18]	FISHER B T, AWTRY A R, SHEINSON R S, et al. Flow behavior impact on the suppression effectiveness of sub-10-μm water drops in propane/air co-flow non-premixed flames[J]. Proceedings of the Combustion Institute, 2007, 31(2):2731-2739. doi: 10.1016/j.proci.2006.07.023
[19]	何明礼, 章光, 胡少华, 等. 火焰羽流区细水雾利用效率及控制研究[J]. 中国安全科学学报, 2019, 29(11):39-44. doi: 10.16265/j.cnki.issn1003-3033.2019.11.007
	HE Mingli, ZHANG Guang, HU Shaohua, et al. Study on utilization efficiency and control of water mist in flame plume areas[J]. China Safety Science Journal, 2019, 29(11):39-44. doi: 10.16265/j.cnki.issn1003-3033.2019.11.007
[20]	何明礼, 章光, 胡少华, 等. 高温逆气流中细水雾的行为与控制研究[J]. 中国安全科学学报, 2020, 30(11):82-87. doi: 10.16265/j.cnki.issn 1003-3033.2020.11.012
	HE Mingli, ZHANG Guang, HU Shaohua, et al. Study on behavior and control of droplets in high temperature counter gas[J]. China Safety Science Journal, 2020, 30(11):82-87. doi: 10.16265/j.cnki.issn 1003-3033.2020.11.012
[21]	ZEGERS E J P, WILLIAMS B A, SHEINSON R S, et al. Dynamics and suppression effectiveness of monodisperse water droplets in non-premixed counterflow flames[J]. Proceedings of the Combustion Institute, 2000, 28(2):2931-2937. doi: 10.1016/S0082-0784(00)80718-3
[22]	陈建, 许开立. 改进型细水雾喷头雾化特性及灭火试验研究[J]. 中国安全科学学报, 2017, 27(7):59-64.
	CHEN Jian, XU Kaili. Experimental study on spraying characteristic and extinguishing performance of improved water mist nozzle[J]. China Safety Science Journal, 2017, 27(7):59-64. doi: 10.16265/j.cnki.issn1003-3033.2017.07.011
