铁路隧道施工期冰块降温技术研究

doi:10.16265/j.cnki.issn1003-3033.2022.06.2326

摘要/Abstract

摘要：

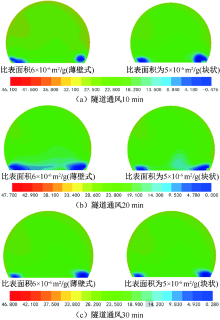

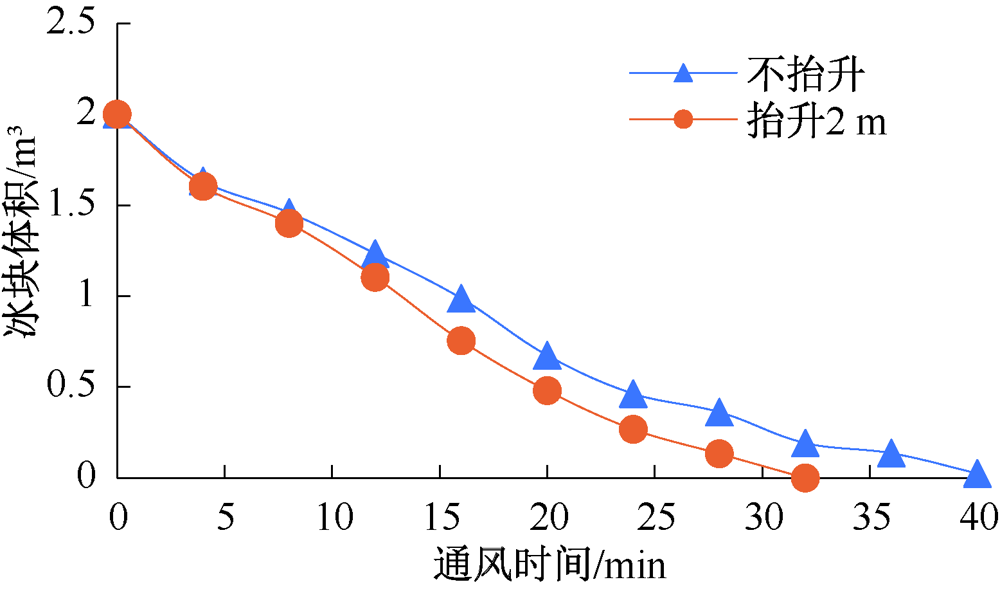

为优化高地温隧道施工使用冰块降温时冰块用量和布置参数,基于凝固融化理论,建立隧道通风+冰块降温数值模型,以体积分数为研究指标,探究隧道中冰块用量、比表面积和放置高度对冰块本身融化速率的影响;对比分析不同工况下隧道温度场演变特征,得出降温效果最佳的冰块降温方案。结果表明:冰块用量从1 m³/侧增加到2.5 m³/侧,隧道内平均温度降低8 ℃;比表面积为6×10^-6 m²/g 的薄壁式冰块融化速率是比表面积为5 ×10^-6 m²/g的块状冰块的1.6倍;冰块位置抬升2 m后,相同时间隧道内温度相较于未抬升工况多降低2 ℃左右;选用1.5~2.5 m³/侧薄壁式冰块抬升2m放置的冰块降温方案,可在隧道施工中获得显著的降温效果。

关键词: 隧道施工, 冰块降温, 高地温, 体积分数, 温度场

Abstract:

In order to optimize usage amount and layout parameters of ice blocks used for cooling effect in high geothermal tunnel construction, a numerical model of tunnel ventilation and ice block cooling was established based on solidification and melting theory. With volume fraction as a research index, influence of usage amount, specific surface area and placement height on melting rate of ice blocks was studied. Then, evolution characteristics of tunnel temperature fields under different working conditions were compared and analyzed, and optimal ice block cooling scheme was obtained. The results show that average temperature in the tunnel decreases by 8 ℃ when ice volume increases from 1 m³/side to 2.5 m³/side. The melting rate of thin-walled ice block with specific surface area of 6×10^-6 m²/g is 1.6 times higher than that of the block with 5×10^-6 m²/g. Moreover, after the block is lifted by 2 m, temperature at the same time is reduced by about 2 ℃ compared with non-lifting condition. Remarkable cooling effect in tunnel can be achieved for the scheme with 1.5-2.5 m³/side thin-wall ice being lifted by 2 m.

Key words: tunnel construction, ice cooling, high ground temperature, volume fraction, temperature field

周佳媚, 沈文杰, 朱宇, 樊霁, 殷建纲, 吴奇. 铁路隧道施工期冰块降温技术研究[J]. 中国安全科学学报, 2022, 32(6): 44-52.

ZHOU Jiamei, SHEN Wenjie, ZHU Yu, FAN Ji, YIN Jian'gang, WU Qi. Research on ice block cooling technology during railway tunnel construction[J]. China Safety Science Journal, 2022, 32(6): 44-52.

图/表 19

表1

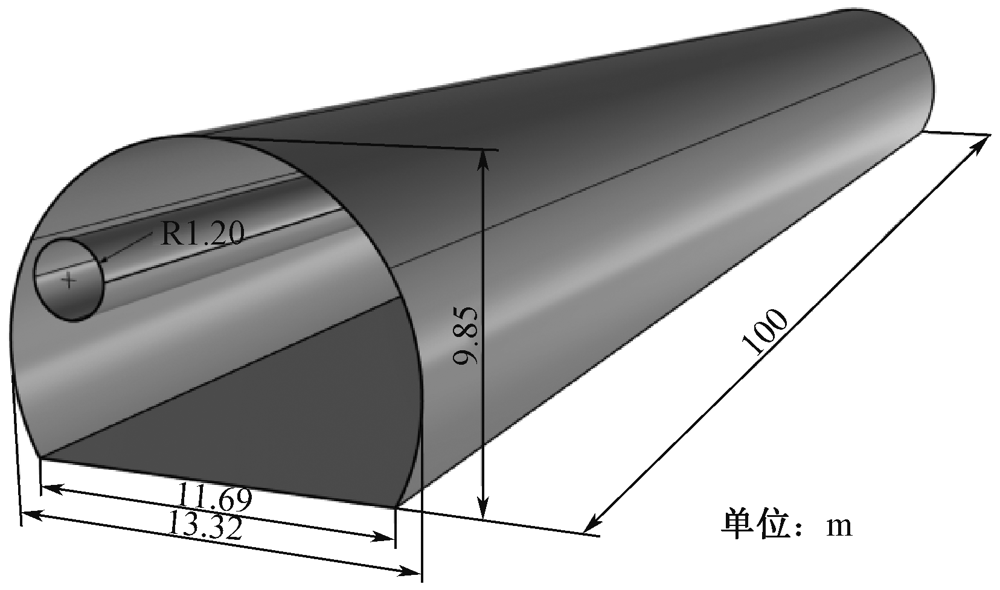

图1

表2

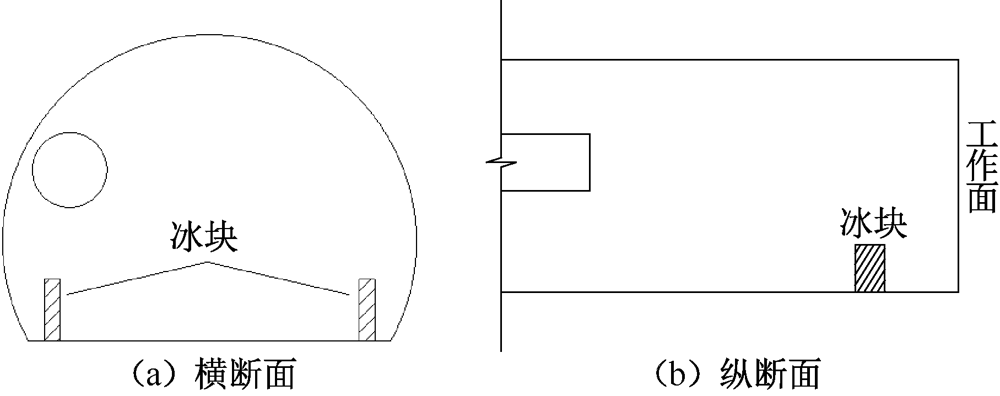

图2

图3

图4

图5

图6

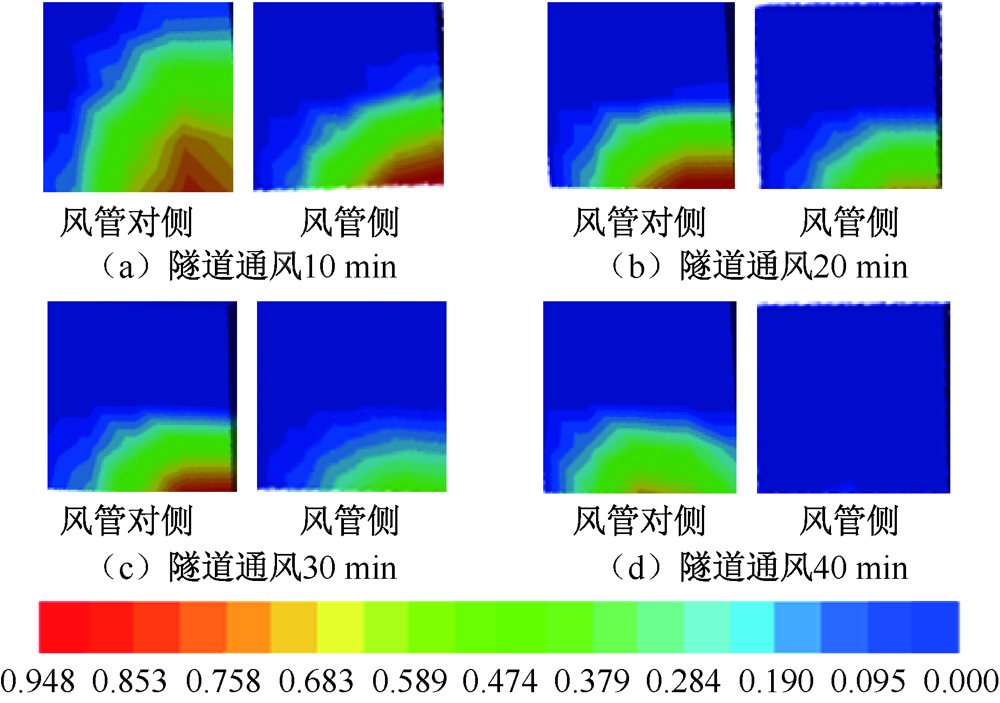

图7

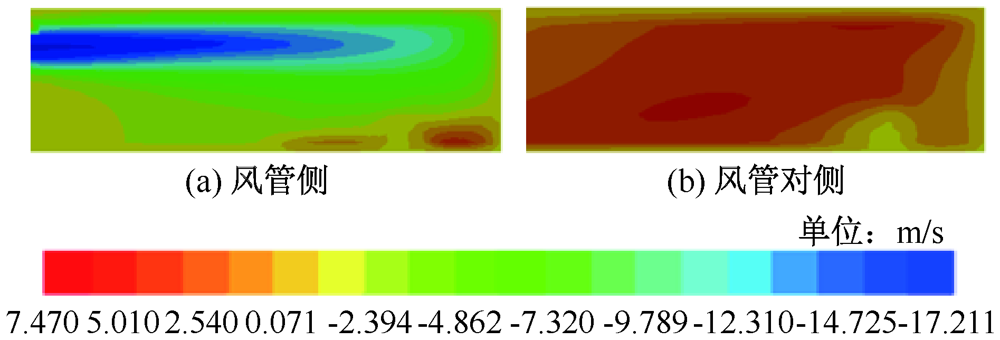

图8

图9

图10

图11

图12

图13

图14

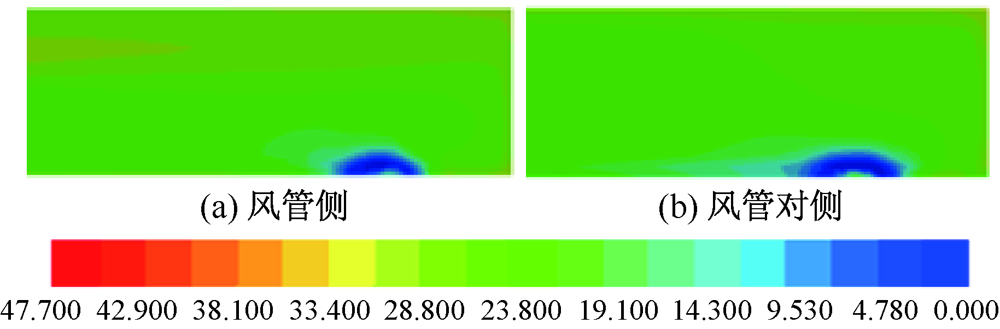

图15

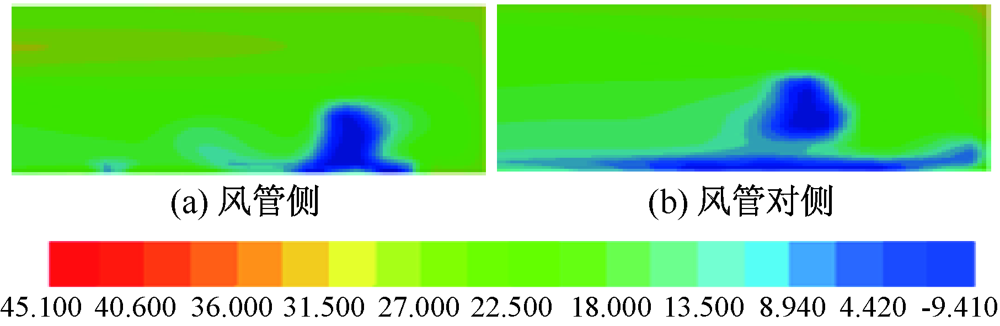

图16

图17

参考文献 16

[1]	TB 10003—2016,铁路隧道设计规范[S].
	TB 10003-2016, Code for desigm of railway tunnel[S].
[2]	HU Yunpeng, WANG Mingnian, WANG Qiling, et al. Field test of thermal environment and thermal adaptation of workers in high geothermal tunnel[J]. Building & Environment, 2019:doi: 10.1016/j.buildenv.2019.106174. doi: 10.1016/j.buildenv.2019.106174
[3]	刘保国, 杨英杰, 张清. 秦岭隧道在深埋高地热条件下围岩变形的粘弹性分析[J]. 岩石力学与工程学报, 1999, 18(3):275-278.
	LIU Baoguo, YANG Yingjie, ZHANG Qing. Visco-elastical analysis of surrounding rock reformation of Qinling tunnel at great depth and high ground temperature[J]. Chinese Journal of Rock Mechanics and Engineering, 1999, 18(3):275-278.
[4]	崔圣爱, 李江渭, 叶跃忠, 等. 高地温隧道干热环境中喷射混凝土与岩石黏结强度[J]. 建筑材料学报, 2013, 16(4): 663-666, 682.
	CUI Sheng'ai, LI Jiangwei, YE Yuezhong, et al. Bond strength of shotcrete with rock in dry and hot environment of high ground temperature tunnel[J]. Journal of Building Materials, 2013, 16 (4):663-666, 682.
[5]	李可妮. 高地温水工隧洞围岩衬砌受力特性时空演变规律研究[D]. 石河子: 石河子大学, 2020.
	LI Keni. Research on spatio-temporal evolution law of stress characteristics of surrounding rock and lining of high ground temperature diversion tunnel[D]. Shihezi: Shihezi University, 2020.
[6]	严健, 何川, 汪波, 等. 高地温对隧道岩爆发生的影响性研究[J]. 岩土力学, 2019, 40 (4):1543-1550.
	YAN Jian, HE Chuan, WANG Bo, et al. Influence of high geotemperature on rockburst occurrence in tunnel[J]. Rock and Soil Mechanics, 2019, 40 (4):1543-1550.
[7]	谷柏森. 隧道高地温应对措施及通风设计:高黎贡山铁路特长隧道可行性研究[J]. 现代隧道技术, 2007, 44(2):66-71.
	GU Bosen. Countermeasures against high temperatures in a tunnel and the corresponding ventilation design-feasibility study for the super-ong Gaoligonshan tunnel[J]. Modern Tunnelling Technology, 2007, 44(2):66-71.
[8]	朱宇, 周佳媚, 赵大权, 等. 高地温隧道施工期降温隔热技术研究[J]. 现代隧道技术, 2019, 56 (增2):563-571.
	ZHU Yu, ZHOU Jiamei, ZHAO Daquan, et al. Research progress of cooling and heat insulation technology during construction of high geotemperature tunnel[J]. Modern Tunnelling Technology, 2019, 56 (S2):563-571.
[9]	张萌萌. 基于FLUENT的北极海冰三维温度场数值仿真和融化模拟[D]. 武汉: 武汉理工大学, 2013.
	ZHANG Mengmeng. Numerical simulation based on FLUENT for melting and three-dimensional temperature filed of arctic sea ice[D]. Wuhan: Wuhan University of Technology, 2013.
[10]	张永亮, 翟雪峰, 卢守青, 等. 金属矿长距离掘进巷道分段降温数值模拟研究[J]. 中国安全科学学报, 2020, 30(9):73-79.
	ZHANG Yongliang, ZHAI Xuefeng, LU Shouqing, et al. Numerical simulation study on sectional cooling of long-distance excavation roadway in metal mine[J]. China Safety Science Journal, 2020, 30(9):73-79.
[11]	石磊. 基于FLUENT的冰塞数值模拟[D]. 合肥: 合肥工业大学, 2009.
	SHI Lei. Numerical simulation of ice Jam based on FLUENT[D]. Hefei: Hefei University of Technology, 2009.
[12]	耿晓晖. 湿度、温度对冰水固转化影响的实验研究与数值模拟[D]. 青岛: 青岛科技大学, 2014.
	GENG Xiaohui. The Experimental study andnumerical simulation on the effect of humidity and temperature between solid and liqud of ice water[D]. Qingdao: Qingdao University of Science and Technology, 2014.
[13]	龚怀明. 拉林铁路桑珠岭隧道高地温段热害防治施工安全技术研究[C]. 青藏铁路运营十周年学术研讨会, 2016:232-236.
[14]	张恒, 孙建春, 向芬, 等. 隧道施工通风壁面粗糙度评定方法及其工程应用[J]. 安全与环境学报, 2019, 19(1):217-225.
	ZHANG Heng, SUN Jianchun, XIANG Fen, et al. Assessment method to deal with the wall face roughness in the tunnel construction and its application[J]. Journal of Safety and Environment, 2019, 19(1):217-225.
[15]	陈凤, 余汉成, 孙在蓉, 等. 管道内壁粗糙度的确定[J]. 天然气与石油, 2007, 10(6):8-10, 73.
	CHEN Feng, YU Hancheng, SUN Zairong, et al. Determination of inner wall roughness of pipeline[J]. Natural Gas and Oil, 2007, 10(6):8-10, 73.
[16]	梁昌. 氯化钠对水冰点及冰融化速率的影响和实验研究[D]. 青岛: 青岛科技大学, 2014.
	LIANG Chang. NaCl influence on the freezing point of water and the experimental study of ice melting rate[D]. Qingdao: Qingdao University of Science and Technology, 2014.

原始地层温度t/℃	地温带分级	长度/ m	占比/ %	热害等级
(28, 37)	低高温带(Ⅱ)	3 840	12.1	轻微
[37, 50)	中高温带(Ⅲ)	8 300	26.2	中等
[50, 60)	高高温带(Ⅳ)	4 390	14	较严重
≥60	超高温带(Ⅴ)	260	0.8	严重

材料	空气	围岩
热导率λ/(W·m^-1·K^-1)	0.024	3.25
热容c_ρ/(J·kg^-1·K^-1)	1 005	885
