巷道围岩调热圈分布特性研究:以羊场湾煤矿为例

doi:10.16265/j.cnki.issn1003-3033.2023.08.1857

中国安全科学学报 ›› 2023, Vol. 33 ›› Issue (8): 125-133.doi: 10.16265/j.cnki.issn1003-3033.2023.08.1857

巷道围岩调热圈分布特性研究:以羊场湾煤矿为例

张健¹^,²^,³(), 张鹏妍¹, 魏建平¹^,²^,³, SI Guangyao⁴, 许博¹, 许振国¹

¹ 河南理工大学安全科学与工程学院,河南焦作 454003
² 河南理工大学河南省瓦斯地质与瓦斯治理重点实验室,河南焦作 454003
³ 煤炭安全生产与清洁创新高效利用省部共建协同创新中心,河南焦作 454003
⁴ 新南威尔士大学矿业与能源资源学院,澳大利亚悉尼 NSW 2052

收稿日期:2023-02-14 修回日期:2023-05-17 出版日期:2023-10-08
作者简介:
张健 (1988—),男,河南商丘人,博士,副教授,主要从事矿井火灾及粉尘防治等方面的教学和研究工作。E-mail:zhangjian@hpu.edu.cn。
魏建平教授
SI Guangyao 讲师
基金资助:
国家自然科学基金资助(52174171); 河南理工大学安全与能源工程学部“双一流”学科创建工程项目(AQ20230741); 河南省高校大学生创新创业训练计划项目(202210460077)

Study on distribution character of heat regulating ring in roadway surrounding rock: taking Yangchangwan coal mine as an example

ZHANG Jian¹^,²^,³(), ZHANG Pengyan¹, WEI Jianping¹^,²^,³, SI Guangyao⁴, XU Bo¹, XU Zhenguo¹

¹ School of Safety Science and Engineering, Henan Polytechnic University, Jiaozuo Henan 454003,China
² School of State Key Laboratory Cultivation Base for Gas Control, Henan Polytechnic University, Jiaozuo Henan 454003,China
³ State Collaborative Innovation Center of Coal Work Safety and Clean-efficiency Utilization, Jiaozuo Henan 454003,China
⁴ School of Minerals and Energy Resources Engineering, University of New South Wales, Sydney NSW 2052, Australia

Received:2023-02-14 Revised:2023-05-17 Published:2023-10-08

摘要/Abstract

摘要：

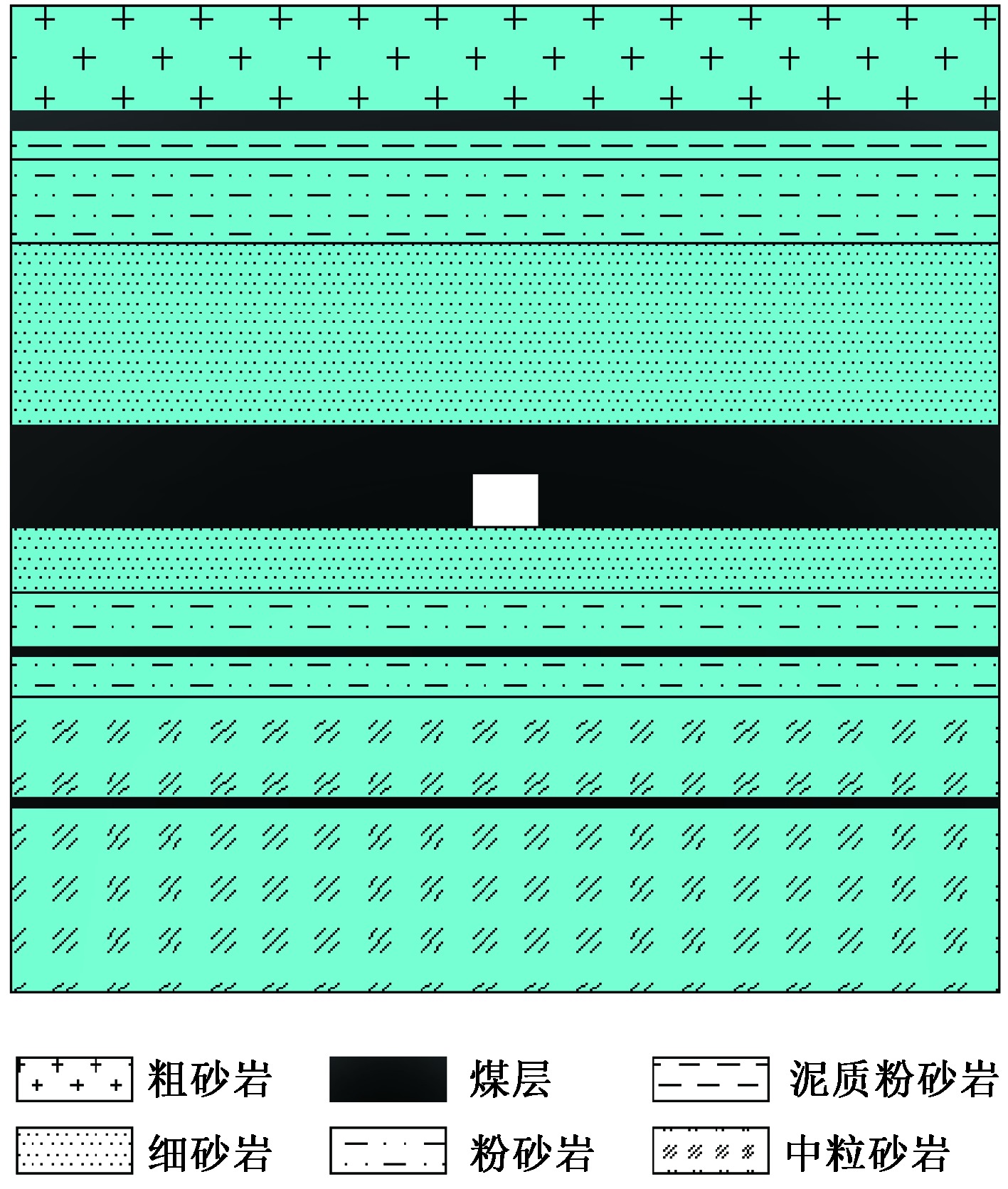

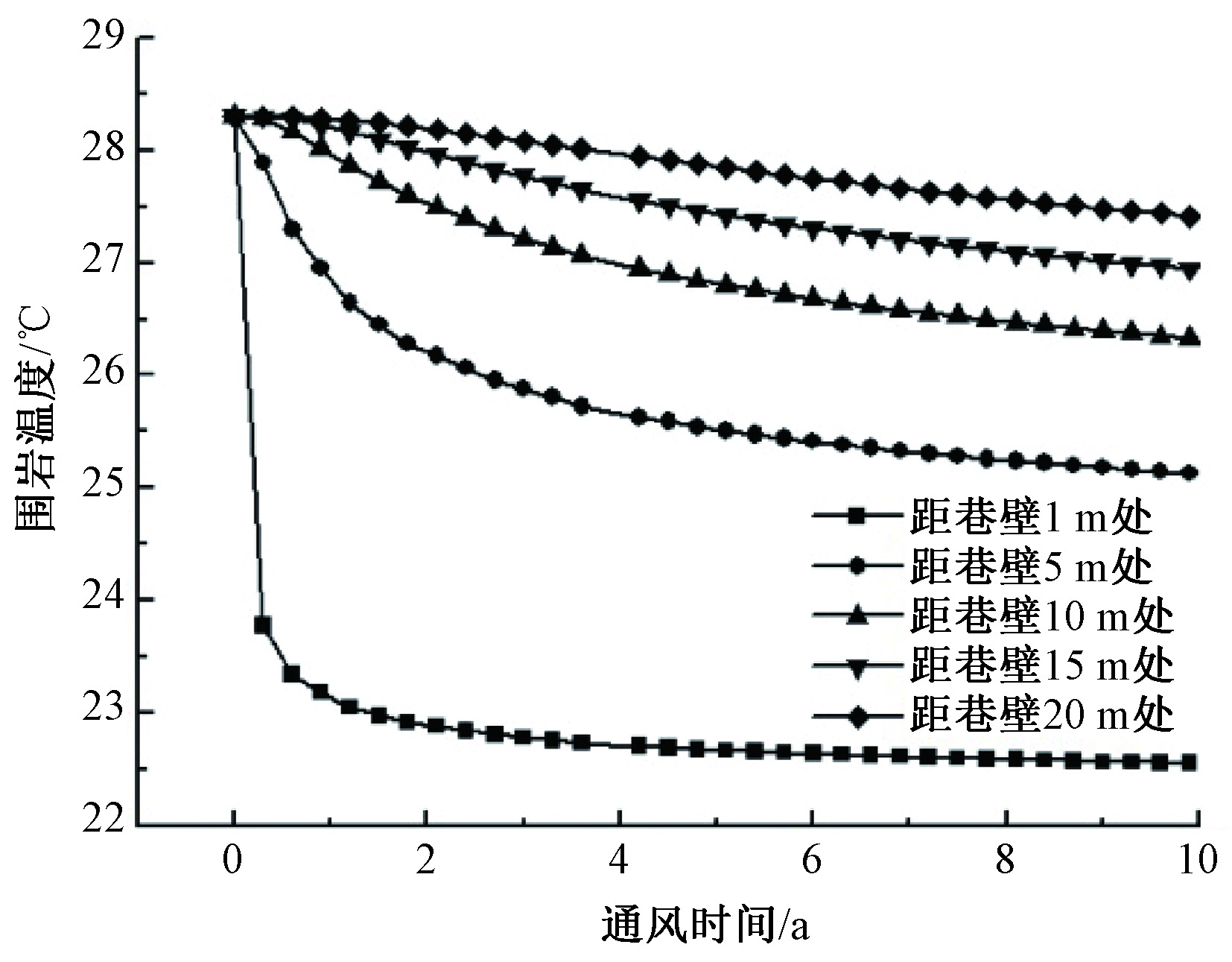

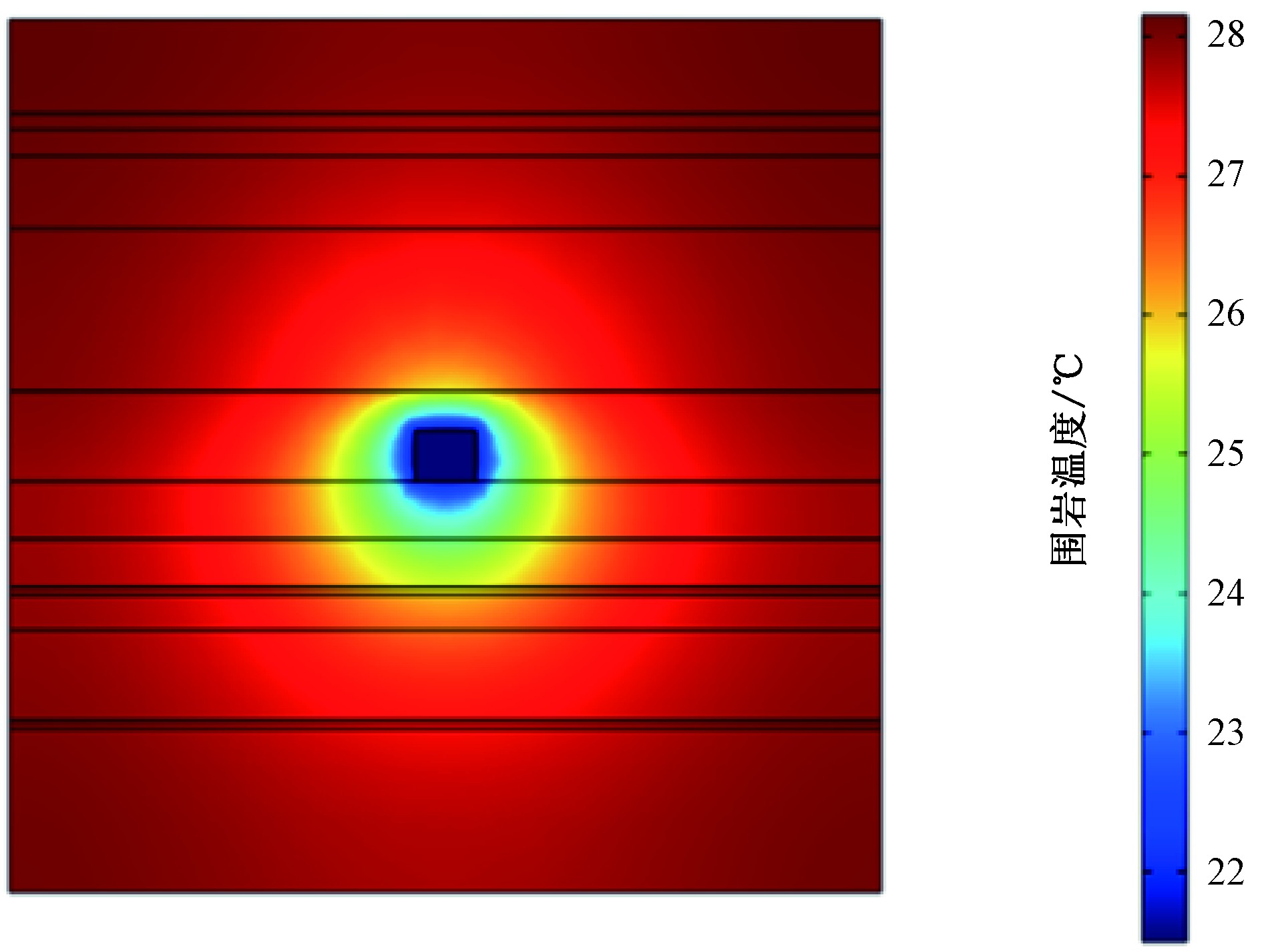

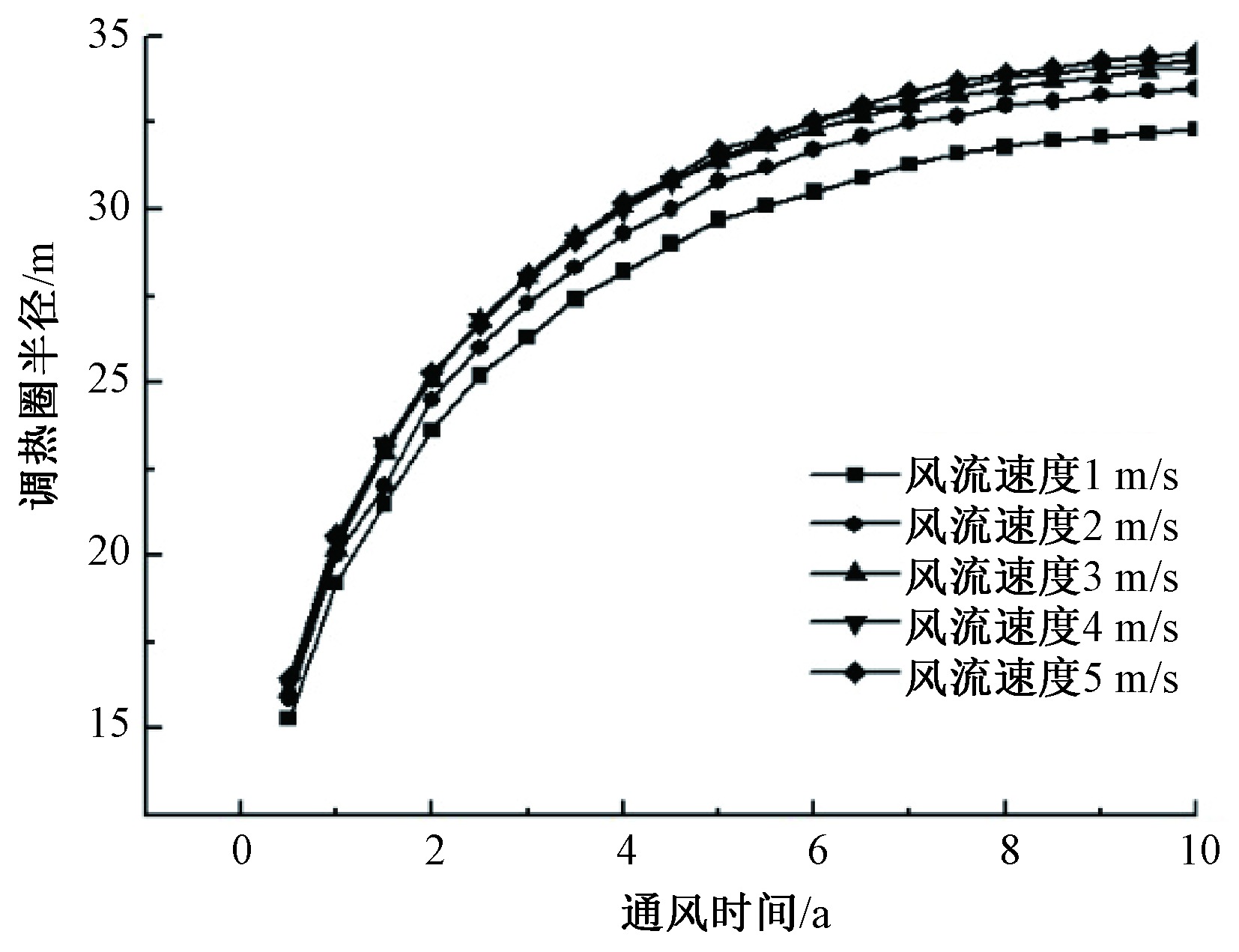

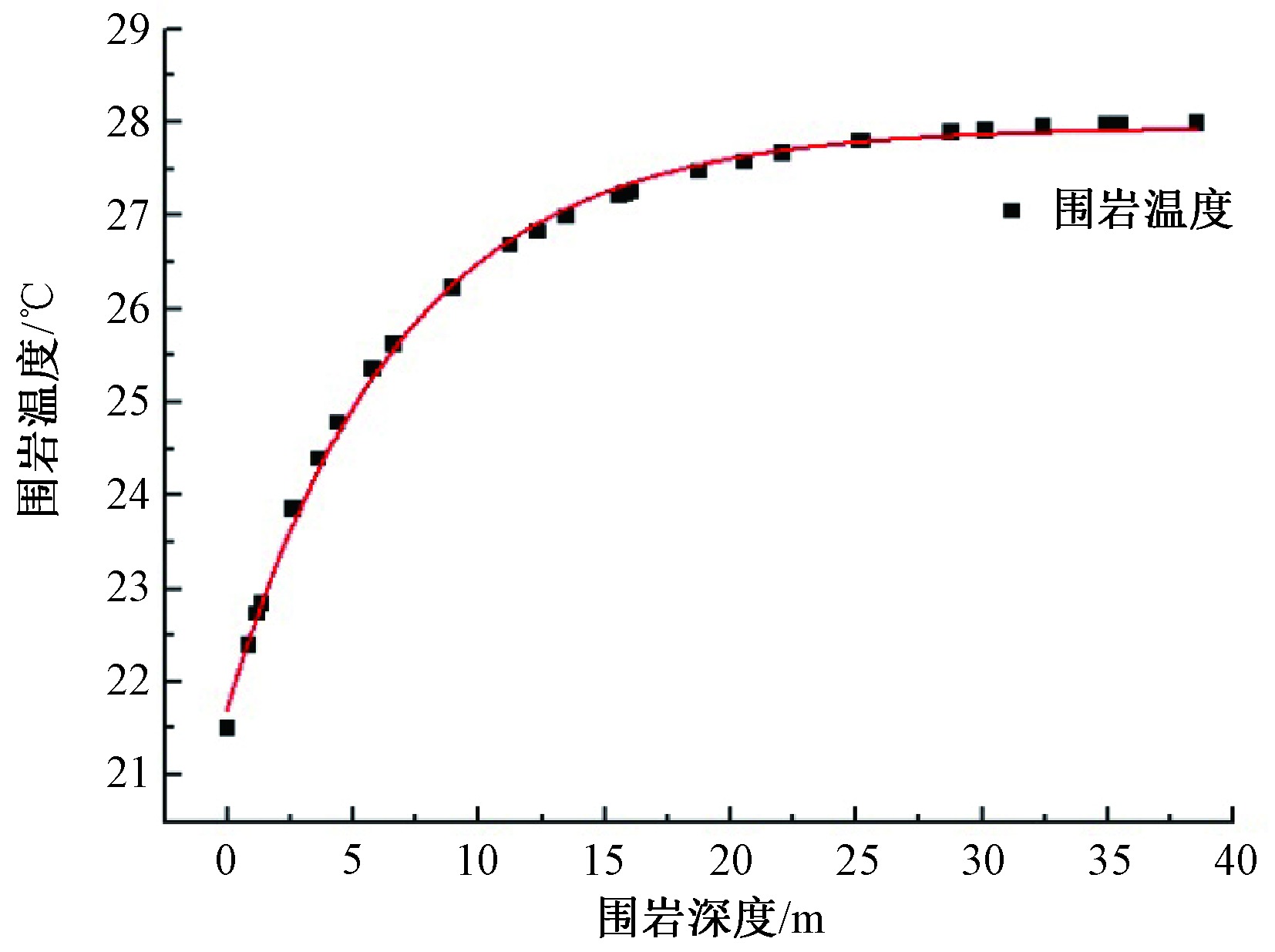

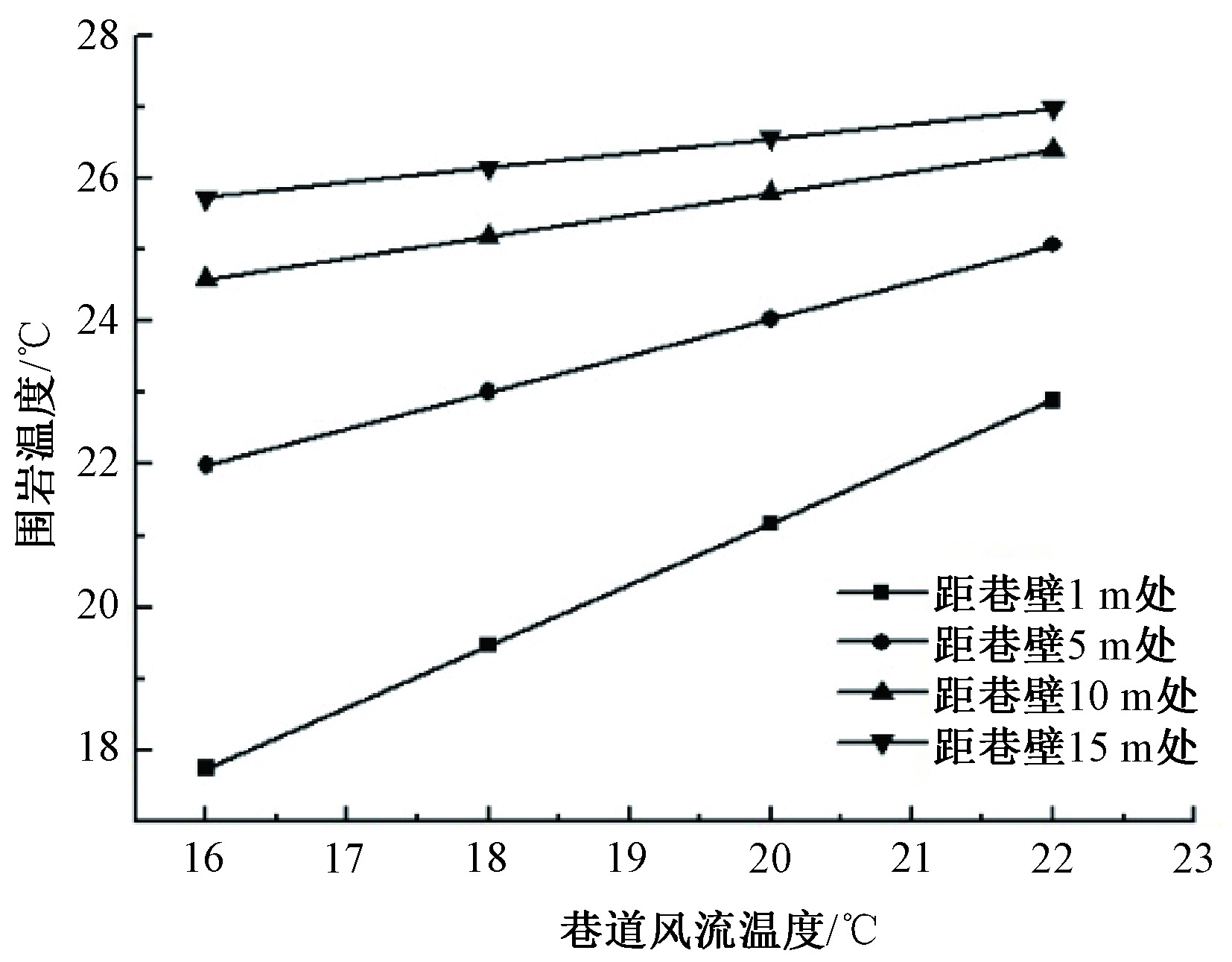

为了研究矿井巷道围岩温度场的分布情况,首先在羊场湾煤矿13采区回风下山937高程附近,利用深孔测温技术测定围岩温度,同时测定具有代表性的岩石热物性参数;然后利用COMSOL软件建立数值模型,模拟巷道围岩的温度场;最后通过改变通风时间和风流特性,分析其对该巷道调热圈温度场的影响。结果表明:通过深孔测温可知该巷道原始岩温为28.3 ℃,调热圈半径为32 m;通过数值模拟可知:其调热圈半径为30.9 m,与实测结果误差为3.4%。随着巷道通风时间的延长,围岩的扰动范围不断增加,围岩温度不断降低,且温度降低速率逐渐变缓;随着风流温度的降低,围岩温度也逐渐下降,且越靠近巷壁的围岩受风流温度的影响越明显;随着风流速度的增大,围岩温度会逐渐下降,当风速大于4 m/s时,围岩温度趋于稳定。

关键词: 巷道围岩, 调热圈, 温度场, 深孔测温, 热物性参数, 数值模拟

Abstract:

In order to study the distribution of the surrounding rock temperature field in the roadway, the surrounding rock temperature was measured by using the deep hole temperature measurement technology near the 937 elevation of return air downhill in 13 mining areas of Yangchangwan coal mine, and borehole sampling was conducted near 430 elevation in 13 mining areas to measure the thermophysical parameters of representative rocks Using COMSOL software to establish a numerical model, the temperature field of the surrounding rock of the tunnel is simulated and compared with the measured results. By changing the ventilation time and airflow characteristics, the influence on the tunnel temperature field was analyzed. The results show that the original rock temperature of the tunnel is 28.3 ℃ and the radius of the heat regulating ring is 32 m through deep hole temperature measurement. According to the numerical simulation, the radius of the heat regulating ring is 30.9 m, and the error with the measured result is 3.4%. With the prolongation of tunnel ventilation time, the disturbance range of surrounding rock increases continuously, and the surrounding rock temperature decreases continuously, and the temperature reduction rate gradually slows down. With the decrease of airflow temperature, the surrounding rock temperature also gradually decreases, and the surrounding rock closer to the roadway wall is affected more obviously by airflow temperature. With the increase of airflow velocity, the surrounding rock temperature will gradually decrease. When the wind speed is greater than 4 m/s, the surrounding rock temperature tends to be stable. The research results can provide a reference for ventilation design and heat damage control of the mine.

Key words: roadway surrounding rock, heat regulating ring, temperature field, deep hole temperature measurement, thermal physical parameters, numerical simulation

张健, 张鹏妍, 魏建平, SI Guangyao, 许博, 许振国. 巷道围岩调热圈分布特性研究:以羊场湾煤矿为例[J]. 中国安全科学学报, 2023, 33(8): 125-133.

ZHANG Jian, ZHANG Pengyan, WEI Jianping, SI Guangyao, XU Bo, XU Zhenguo. Study on distribution character of heat regulating ring in roadway surrounding rock: taking Yangchangwan coal mine as an example[J]. China Safety Science Journal, 2023, 33(8): 125-133.

图/表 16

图1

图2

图3

表1

图4

图5

表2

图6

图7

图8

图9

图10

图11

图12

图13

图14

参考文献 18

[1]	陈安国. 矿井热害产生的原因、危害及防治措施[J]. 中国安全科学学报, 2004, 14(8): 3-6.
	CHEN Anguo. Formation and harmfulness of heat hazard in mine and its control measure[J]. China Safety Science Journal, 2004, 14(8): 3-6.
[2]	马恒, 尹彬, 刘剑. 矿井风流温度预测分析研究[J]. 中国安全科学学报, 2010, 20(11): 91-95.
	MA Heng, YIN Bin, LIU Jian. Research on prediction of airflow temperature in mine[J]. China Safety Science Journal, 2010, 20(11):91-95.
[3]	柴会来, 王建学, 王景刚, 等. 矿井热源分析及降温技术研究和发展[J]. 金属矿山, 2014, 43(5):151-154.
	CHAI Huilai, WANG Jianxue, WANG Jinggang, et al. The heat source analysis and the research and development on air-cooling in deep mines[J]. Metal Mine, 2014, 43(5):151-154.
[4]	马砺, 秦晓阳, 任立峰, 等. 基于光纤测温技术的矿井围岩调热圈研究[J]. 煤炭技术, 2017, 36(6):4-6.
	MA Li, QIN Xiaoyang, REN Lifeng, et al. Study on heat transfer ring of surrounding rock based on optical fiber temperature measurement technology[J]. Coal Technology, 2017, 36(6):4-6.
[5]	褚召祥, 辛嵩, 王保齐. 赵楼煤矿原始岩温测定[J]. 煤炭工程, 2010, 57(9):91-93.
	CHU Zhaoxiang, XIN Song, WANG Baoqi. Orignal rock temperature measurement in Zhaolou mine[J]. Coal Engineering, 2010, 57(9):91-93.
[6]	吴章云, 曲方, 樊海兵, 等. 利用浅钻孔测定原始地温的方法[J]. 煤矿安全, 2008, 39(8):52-54.
	WU Zhangyun, QU Fang, FAN Haibing, et al. Method of measuring original ground temperature by shallow drilling[J]. Safety in Coal Mines, 2008, 39(8):52-54.
[7]	周西华, 宋东平, 白刚, 等. 煤岩导热特性实验及其对围岩温度场影响[J]. 辽宁工程技术大学学报:自然科学版, 2018, 37(2):251-257.
	ZHOU Xihua, SONG Dongping, BAI Gang, et al. Experiment on thermal conductivity of coal and its influence on temperature distribution of surrounding rock[J]. Journal of Liaoning Technical University:Natural Science, 2018, 37(2):251-257.
[8]	秦跃平, 王浩, 郭开元, 等. 巷道围岩温度场有限体积法模拟计算及实验分析[J]. 煤炭学报, 2017, 42(12):3166-3175.
	QIN Yueping, WANG Hao, GUO Kaiyuan, et al. Simulation of volume method and experimental analysis for temperature field of roadway surrounding rock[J]. Journal of China Coal Society, 2017, 42(12):3166-3175.
[9]	张树光, 常剑, 王宏伟. 高温巷道调热圈特性及对隔热支护结构的影响[J]. 煤田地质与勘探, 2019, 47(5):179-185.
	ZHANG Shuguang, CHANG Jian, WANG Hongwei. Characteristics of heat-adjusting ring and the influence of thermal insulation support structure in high-temperature roadway[J]. Coal Gelogy & Exploration, 2019, 47(5):179-185.
[10]	朱帅, 吴世跃, 朱世昕. 基于Abaqus的巷道围岩调热圈温度分布数值模拟及经济性评价[J]. 煤矿安全, 2017, 48(4):188-190.
	ZHU Shuai, WU Shiyue, ZHU Shixin. Numerical simulation and economic evaluation of temperature distribution of heat adjusting circle of wall rockin tunnel surrounding on Abaqus[J]. Safety in Coal Mines, 2017, 48(4):188-190.
[11]	王义江, 周国庆, 魏亚志, 等. 深部巷道非稳态温度场演变规律试验研究[J]. 中国矿业大学学报, 2011, 40(3):345-350.
	WANG Yijiang, ZHOU Guoqing, WEI Yazhi, et al. Experimental research on changes in the unsteady temperature field of an airway in deep mining engineering[J]. Journal of China university of mining and technology, 2011, 40(3):345-350.
[12]	杜翠凤, 边梦龙, 何少博, 等. 基于稳态导热的矿井调热圈半径与温度的计算方法[J]. 矿业安全与环保, 2018, 45(1):28-33.
	DU Cuifeng, BIAN Menglong, HE Shaobo, et al. Formulas of radius and temperature of heat regulating circle based on steady heat conduction[J]. Mining Safety & Environmental Protection, 2018, 45(1):28-33.
[13]	刘彦青, 宇星. 矩形巷道围岩散热规律数值模拟研究[J]. 采矿技术, 2015, 15(1):63-65.
	LIU Yanqing, YU Xing. Numerical simulation study on heat dissipation law of surrounding rock in rectangular roadway[J]. Mining Technology, 2015, 15(1):63-65.
[14]	于建游, 王志杰, 蒋新政, 等. 传热系数及围岩条件对寒区隧道温度场影响[J]. 铁道工程学报, 2021, 38(7):40-47.
	YU Jianyou, WANG Zhijie, JIANG Xinzheng, et al. Research on the influence of heat transfer coefficient and surrounding rock conditions on temperature field in cold region tunnel[J]. Journal of Railway Engineering Society, 2021, 38(7):40-47.
[15]	TAN Xianjun, CHEN Weizhong, YANG Diansen, et al. Study on the influence of airflow on the temperature of the surrounding rock in a cold region tunnel and its application to insulation layer design[J]. Applied Thermal Engineering, 2014, 67: 320-334. doi: 10.1016/j.applthermaleng.2014.03.016
[16]	WANG Yansong, QUAN Qunshan, ZHAO Yuguo, et al. Numerical simulation of tunnel surrounding rock temperature field[J]. IOP Conference Series: Earth and Environmental Science, 2020, 587(1):DOI:10.1088/1755-1315/587/1/012043.
[17]	陈青林, 陈庆发, 钟琼英, 等. 深部围岩调热圈深孔测量方法及参数处理[J]. 地下空间与工程学报, 2017, 13(增2):677-683.
	CHEN Qinglin, CHEN Qingfa, ZHONG Qiongying, et al. Deep hole measuring method and parameter processing of deep surrounding rock mass heat-adjusting zone[J]. Chinese Journal of Underground Space and Engineering, 2017, 13(S2): 677-683.
[18]	沈显杰, 杨淑贞, 张文仁. 岩石热物理性质及其测试[M]. 北京: 科学出版社, 1988: 1-3.

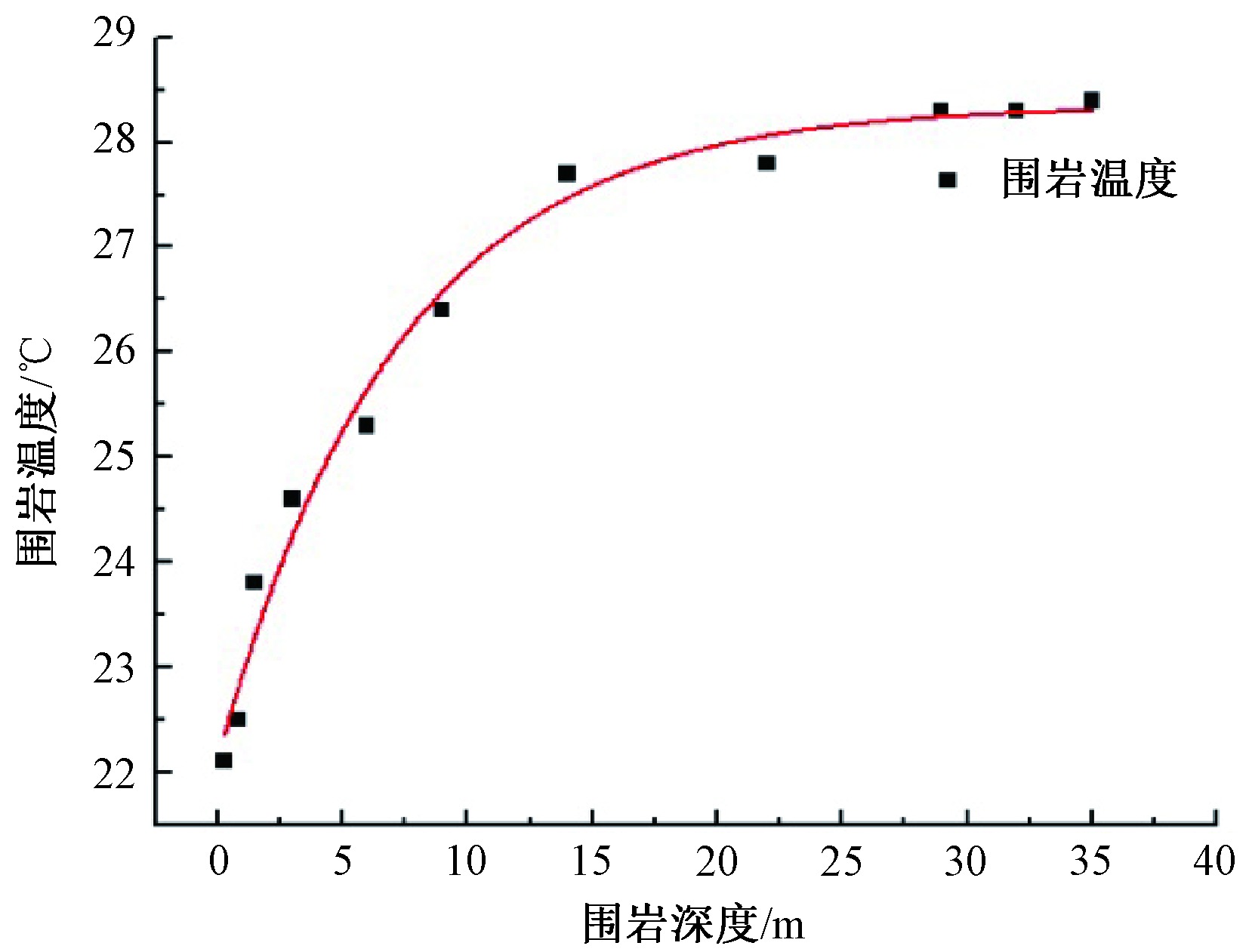

孔深/m	温度/℃
0.3	22.1
0.8	22.5
1.5	23.8
3	24.6
6	25.3
9	26.4
14	27.7
22	27.8
29	28.3
32	28.3
35	28.4

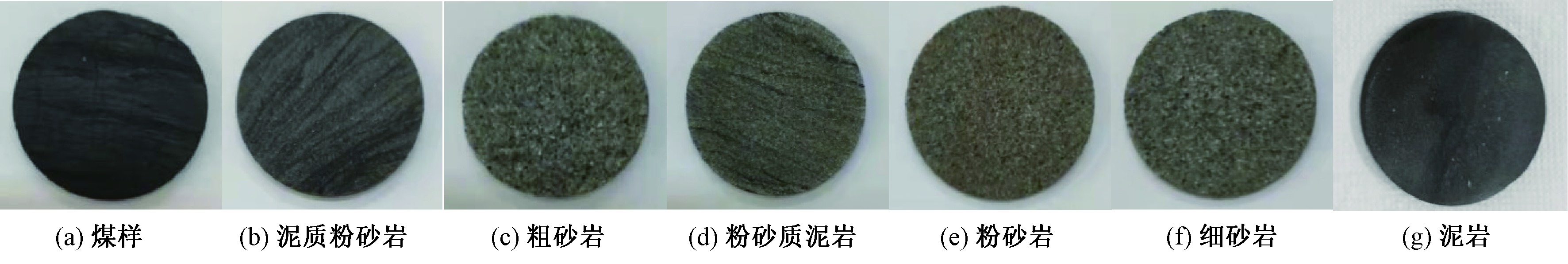

名称	导热系数λ/ (W·m^-1·K^-1)	比热容c/ (J·kg^-1·℃^-1)	密度ρ/ (g·cm^-3)	导温系数a/ (10^-6m²·s^-1)
泥质粉砂岩	3.03	928.67	2.34	1.39
泥岩	2.83	908.33	2.44	1.28
煤	0.67	1 026.67	1.34	0.49
粉砂质泥岩	2.50	988.67	2.36	1.07
粗砂岩	1.96	860	2.33	0.98
粉砂岩	2.81	1024	2.29	1.20
细砂岩	2.64	985.33	2.36	1.14
中粒砂岩	2.72	884	2.64	1.17
