超声空化效应对细粒尾矿的增渗作用

doi:10.16265/j.cnki.issn1003-3033.2024.05.0014

摘要/Abstract

摘要：

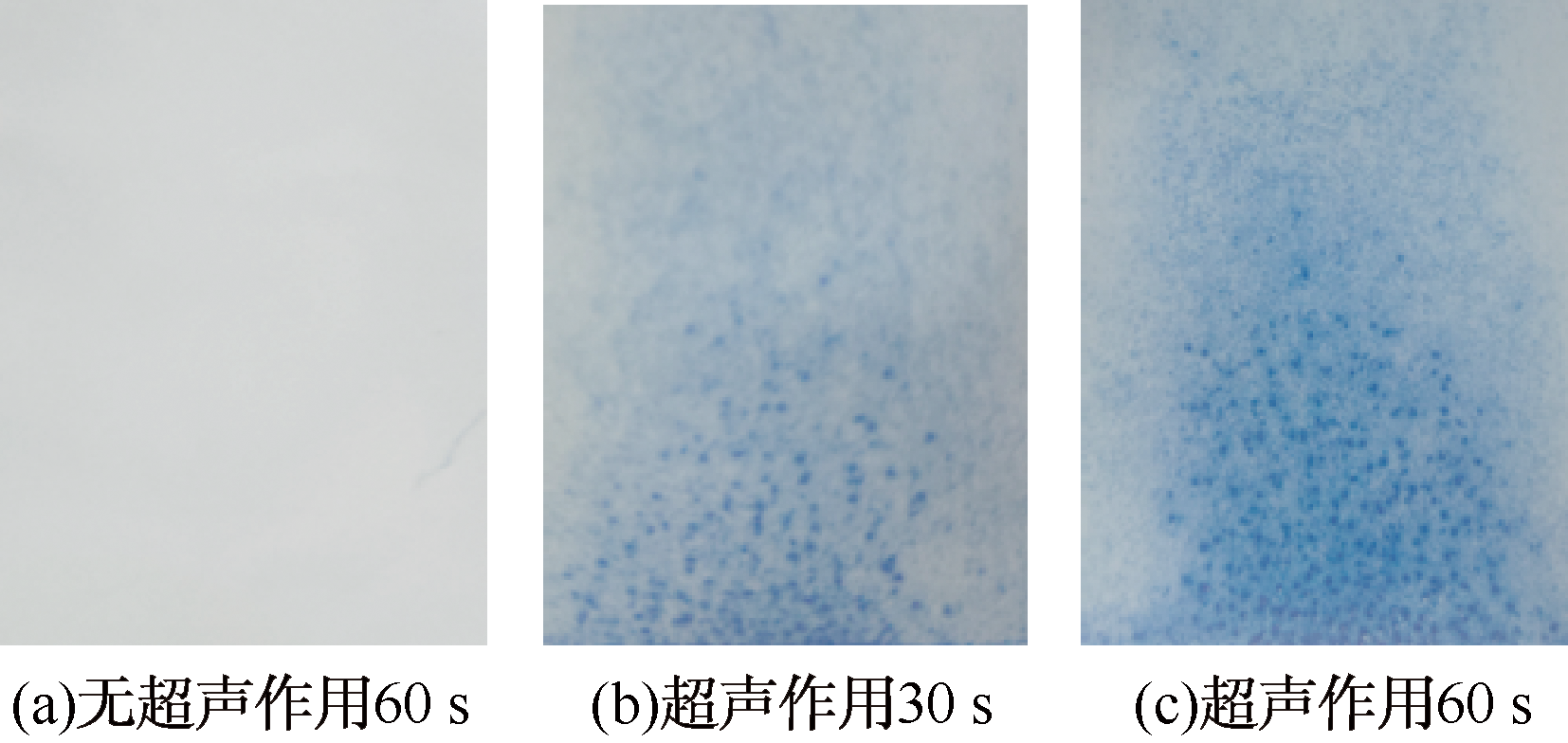

针对细粒尾矿的渗透性较弱,容易导致尾矿坝浸润线抬升和降低尾矿坝安全系数的问题,提出采用超声空化的方法改善尾矿的渗透性。首先,采用计算流体动力学(CFD)软件模拟空化泡溃灭的过程;然后,根据空化阈值和换能器的声压计算结果选定试验使用的换能器,频率范围为20~40 kHz,功率为60 W,并通过染色试验证实尾矿试样中存在超声空化效应;最后,使用自制变水头渗透仪与选定的换能器,针对不同细粒含量的尾矿试样,开展超声增渗试验,并利用核磁共振仪检测增渗前后试样的孔隙结构变化。研究结果表明:得到的空化泡半径变化曲线与R-P方程拟合曲线吻合度较高,证明模拟结果的有效性;当气泡直径大于50 μm时,低频超声的空化效果更好,当气泡直径小于25 μm时,高频超声的空化效果更佳;细粒含量相同时,尾矿试样的渗透系数增长率随超声的频率增大而增加;超声频率相同时,细粒含量多的尾矿试样渗透系数增长率更高;超声作用后,尾矿试样中0~10 μm的孔隙占比降低,降幅随频率的增加而增加;10~20 μm的孔隙占比变化趋势不明显;20~40 μm的孔隙占比增加,增幅随频率的增加而增加;>40 μm的孔隙占比增长较少。对于不同孔隙占比的尾矿,施加相应频率的超声信号可获得更显著的增渗效果。

关键词: 超声空化, 细粒尾矿, 增渗, 渗透系数, 数值模拟, 孔隙, 核磁共振

Abstract:

The weak permeability of fine-grained tailings can cause the leaching line of the tailings dam to rise and reduce the safety factor of the tailings dam, an ultrasonic cavitation approach was proposed to enhance the permeability of the tailings. Firstly, computational fluid dynamics (CFD) software was used to simulate the cavitation bubble collapse process. Then, the transducer used for the experiments was selected based on the cavitation threshold and the simulated sound pressure, with a frequency range of 20-40 kHz and a power of 60 W. Moreover, the presence of ultrasonic cavitation effects in the tailings samples was confirmed by staining tests. Finally, ultrasound-enhanced permeability tests were performed on tailings samples with different fine particle contents using a self-made variable head permeameter and the selected transducer. A nuclear magnetic resonance instrument was used to determine the pore structure changes before and after penetration enhancement. The results showed that the obtained cavitation bubble radius change curve was consistent well with the Rayleigh-Plesset(R-P) equation fitting curve, proving the validations of the simulations. Low-frequency ultrasound had a better cavitation effect when the bubble diameter was larger than 50 μm, whereas high-frequency ultrasound was more effective when the bubble diameter was less than 25 μm. When the fine particle content was kept constant, the permeability coefficient growth rate of the tailings samples increased as the ultrasound frequency increased. When the ultrasonic frequency was kept constant, the tailings samples' permeability coefficient growth rate with higher fine particles was higher. After the ultrasound treatment, the proportion of 0-10 μm pores in the tailings sample decreased, and the decrease became larger with the increase in frequency. There was no clear trend for the proportion of pores between 10-20 μm, while the proportion between 20-40 μm increased, and the increase became larger with the increase of frequency. The proportion of pores larger than 40 μm increased relatively small. For tailings with different pore proportions, appropriate ultrasound signals of corresponding frequencies can significantly enhance the permeability enhancement effect.

Key words: ultrasonic cavitation, fine tailings, permeability enhancement, permeability coefficient, numerical simulation, pore space, nuclear magnetic resonance

中图分类号:

X936
TD926.4

何文, 卢博凯, 石文芳, 祝思雨, 刘金朋. 超声空化效应对细粒尾矿的增渗作用[J]. 中国安全科学学报, 2024, 34(5): 91-100.

HE Wen, LU Bokai, SHI Wenfang, ZHU Siyu, LIU Jinpeng. Enhanced permeation effect of fine-grained tailings by ultrasound cavitation[J]. China Safety Science Journal, 2024, 34(5): 91-100.

图/表 11

图1

图2

图3

图4

图5

图6

图7

表1

图8

图9

图10

参考文献 29

[1]	尹光志, 王文松, 魏作安, 等. 尾矿库加高扩容坝体动力反应与抗震性能分析[J]. 岩石力学与工程学报, 2018, 37(增1):3132-3142.
	YIN Guangzhi, WANG Wensong, WEI Zuoan, et al. Analysis of dynamic response and seismic behavior of tailings dam for heightening and expansion[J]. Chinese Journal of Rock Mechanics and Engineering, 2018, 37(S1):3132-3142.
[2]	何文, 陈豪, 郑场松, 等. 洪水工况下某尾矿坝溃坝试验研究[J]. 安全与环境学报, 2022, 22(6):3126-3134.
	HE Wen, CHEN Hao, ZHENG Changsong, et al. Experimental study on dam break of a tailings dam under flood conditions[J]. Journal of Safety and Environment, 2022, 22(6):3126-3134.
[3]	戴健非, 杨鹏, 诸利一, 等. 集成PCA和LSTM神经网络的浸润线预测方法[J]. 中国安全科学学报, 2020, 30(3):94-101. doi: 10.16265/j.cnki.issn1003-3033.2020.03.015
	DAI Jianfei, YANG Peng, ZHU Liyi, et al. A PCA-LSTM neural network integrated method for phreatic line prediction[J]. China Safety Science Journal, 2020, 30(3):94-101. doi: 10.16265/j.cnki.issn1003-3033.2020.03.015
[4]	吴高杰, 任伟中, 占美杰, 等. 武阳高速某尾矿库坝体渗流稳定性及溃坝演进过程分析[J]. 安全与环境工程, 2022, 29(4):74-84.
	WU Gaojie, REN Weizhong, ZHAN Meijie, et al. Analysis of seepage stability and dam break evolution treatment of tailings pond dam on wuyang expressway[J]. Safety and Environmental Engineering, 2022, 29(4):74-84.
[5]	胡航, 王光进, 莘英铭, 等. 不同溃坝条件下尾矿库溃坝试验与灾害影响研究[J]. 中国安全生产科学技术, 2022, 18(7):114-121.
	HU Hang, WANG Guangjin, XIN Yingming, et al. Study on dam-break tests and hazard influence of tailings pond under different dam-break conditions[J]. Journal of Safety Science and Technology, 2022, 18(7):114-121.
[6]	吴帅峰, 严俊, 蔡红, 等. 尾矿管涌溃坝模式及下泄冲击特性试验研究[J]. 岩土工程学报, 2021, 43(11):2134-2141.
	WU Shuaifeng, YAN Jun, CAI Hong, et al. Experimental study on dam break mode of tailing piping and discharge impact characteristics[J]. Chinese Journal of Geotechnical Engineering, 2021, 43(11):2134-2141.
[7]	杨春和, 张超, 李全明, 等. 大型高尾矿坝灾变机制与防控方法[J]. 岩土力学, 2021, 42(1):1-17.
	YANG Chunhe, ZHANG Chao, LI Quanming, et al. Disaster mechanism and prevention methods of large-scale high tailings dam[J]. Rock and Soil Mechanics, 2021, 42(1):1-17.
[8]	汤紫凯, 何文, 林凤翻, 等. 基于导波技术的尾矿坝溃坝预警研究[J]. 有色金属科学与工程, 2021, 12(2):90-96,126.
	TANG Zikai, HE Wen, LIN Fengfan, et al. Early warning on tailings dam failure based on guided wave technology[J]. Nonferrous Metals Science and Engineering, 2021, 12(2): 90-96,126.
[9]	阮顺领, 韩思淼, 张宁宁, 等. 基于CNN-a GRU融合模型的尾矿坝浸润线预测方法[J]. 中国安全科学学报, 2023, 33(增1):119-127.
	RUAN Shunling, HAN Simiao, ZHANG Ningning, et al. Prediction method of saturation line of tailings dam based on CNN-a GRU fusion model[J]. China Safety Science Journal, 2023, 33(S1) : 119-127. doi: 10.16265/j.cnki.issn1003-3033.2023.S1.2481
[10]	张明明, 苑振宇, 刘晓龙. 三维GIS技术支持下的尾矿库溃坝地质灾害演进过程模拟:以相思谷尾矿库为例[J]. 矿床地质, 2010, 29(增1):815-816.
	ZHANG Mingming, YUAN Zhenyu, LIU Xiaolong. Simulation of the geological disaster evolution process of tailings dam failure with GIS technical support :a case study of Xiangsigu tailings dam[J]. Mineral Deposits, 2010, 29(S1):815-816.
[11]	魏作安, 赵筠康, 秦虎, 等. 高分子材料改良尾矿力学性能的试验研究[J]. 岩石力学与工程学报, 2020, 39(增1):3095-3102.
	WEI Zuoan, ZHAO Junkang, QIN Hu, et al. Effects of polymer materials on the mechanical properties of tailings[J]. Chinese Journal of Rock Mechanics and Engineering, 2020, 39(S1):3095-3102.
[12]	LUIZ H S R, ENNER A, EDWARD P, et al. The 2019 Brumadinho tailings dam collapse: possible cause and impacts of the worst human and environmental disaster in Brazil[J]. International Journal of Applied Earth Observation and Geoinformation, 2020,90:DOI: 10.1016/j.jag.2020.102119.
[13]	CUI Pu, ZHANG Aman, WANG Shiping, et al. Ice breaking by a collapsing bubble[J]. Journal of Fluid Mechanics, 2018,841:287-309.
[14]	GOGATE P R. Cavitation:an auxiliary technique in wastewater treatment scheme[J]. Advances in Environmental Research, 2002, 6(3):335-358.
[15]	谢小柱, 苑学瑞, 陈蔚芳, 等. 激光诱导空泡技术研究和应用新进展[J]. 激光与光电子学进展, 2013, 50(8):162-168.
	XIE Xiaozhu, YUAN Xuerui, CHEN Weifang, et al. New development and applications of laser-induced cavitation bubbles[J]. Laser & Optoelectronics Progress, 2013, 50(8):162-168.
[16]	叶林征, 祝锡晶, 郭策. 超声空化微射流建模与仿真[J]. 中国机械工程, 2015, 26(21):2890-2894.
	YE Linzheng, ZHU Xijing, GUO Ce. Ultrasonic cavitation micro-jet modeling and simulation[J]. China Mechanical Engineering, 2015, 26(21):2890-2894.
[17]	姜永东, 鲜学福, 易俊, 等. 声震法促进煤中甲烷气解吸规律的实验及机理[J]. 煤炭学报, 2008, 33(6):675-680.
	JIANG Yongdong, XIAN Xuefu, YI Jun, et al. Experimental and mechanical on the features of ultrasonic vibration stimulating the desorption of methane in coal[J]. Journal of China Coal Society, 2008, 33(6):675-680.
[18]	李琛, 袁牧, 许庆铎, 等. 超声空化对细微流道中固体颗粒的运动特性研究[J]. 机械工程学报, 2022, 58(23):218-226. doi: 10.3901/JME.2022.23.218
	LI Chen, YUAN Mu, XU Qingduo, et al. Study on the motion characteristics of solid particles in fine flow channel by ultrasonic cavitation[J]. Journal of Mechanical Engineering, 2022, 58(23):218-226. doi: 10.3901/JME.2022.23.218
[19]	亚斌, 蔡勇, 孟令刚, 等. 超声处理对球墨铸铁熔体凝固组织与性能的影响[J]. 铸造, 2019, 68(2):111-117.
	YA Bin, CAI Yong, MENG Linggang, et al. Effect of ultrasonic treatment on solidification structure and mechanical properties of nodular cast iron crankshaft[J]. Foundry, 2019, 68(2):111-117.
[20]	计时鸣, 陈凯, 谭大鹏, 等. 超声空化对软性磨粒流切削效率和质量的影响[J]. 农业工程学报, 2017, 33(12):82-90.
	JI Shiming, CHEN Kai, TAN Dapeng, et al. Effect of ultrasonic cavitation on maching efficiency and quality of soft abrasive flow[J]. Transactions of the Chinese Society of Agricultural Engineering, 2017, 33(12):82-90.
[21]	卜祥宁, 任玺冰, 童正, 等. 功率超声对废旧锂离子电池资源化回收利用过程的影响研究进展[J]. 化工进展, 2024, 43(1):514-528. doi: 10.16085/j.issn.1000-6613.2023-0265
	BU Xiangning, REN Xibing, TONG Zheng, et al. Effect of power ultrasound on resource recycling and utilization of spent lithium-ion batteries: a review[J]. Chemical Industry and Engineering Progress, 2024, 43(1):514-528. doi: 10.16085/j.issn.1000-6613.2023-0265
[22]	LJAZ O, MATEVZ D, BRANE S. Numerical simulation of a near-wall bubble collapse in an ultrasonic field[J]. Journal of Fluid Science and Technology, 2009, 4(1):210-221.
[23]	PRIYANKA A, HANIF A, VIJAYANAND S. Mechanistic and kinetic investigations in ultrasound assisted acid catalyzed biodiesel synthesis[J]. Chemical Engineering Journal, 2012, 187(1):1-3.
[24]	SERGEY K, KAZUHIRO O, YASUO I, et al. Characterization of acoustic cavitation in water and molten aluminum alloy[J]. Ultrasonics Sonochemistry, 2013, 20(2):754-761. doi: 10.1016/j.ultsonch.2012.10.006 pmid: 23141190
[25]	郭策, 祝锡晶, 王建青, 等. 超声场下刚性界面附近溃灭空化气泡的速度分析[J]. 物理学报, 2016, 65(4):184-191.
	GUO Ce, ZHU Xijing, WANG Jianqing, et al. Velocity analysis for collapsing cavitation bubble near a rigid wall under an ultrasound field[J]. Acta Physica Sinica, 2016, 65(4):184-191.
[26]	李疆, 陈皓生. Fluent环境中近壁面微空泡溃灭的仿真计算[J]. 摩擦学学报, 2008, 28(4):311-315.
	LI Jiang, CHEN Haosheng. Numerical simulation of micro bubble collapse near solid wall in fluent environment[J]. Tribology, 2008, 28(4):311-315.
[27]	KYUICHI Y. Acoustic cavitation and bubble dynamics[M]. Cham:Springer,2018:37-41.
[28]	WU Pengfei, BAI Lixin, LIN Weijun. On the definition of cavitation intensity[J]. Ultrasonics Sonochemistry, 2020,67:DOI:10.1016/j.ultsonch.2020.105141.
[29]	商映举, 郑建新, 郭永磊, 等. 超声滚压中的空化现象[J]. 应用声学, 2023, 42(5): 993-998.
	SHANG Yingju, ZHENG Jianxin, GUO Yonglei, et al. Cavitation in ultrasonic rolling[J]. Journal of Applied Acoustics, 2023, 42(5):993-998.

试验序号	C_u	颗粒含量/%				D50/μm
试验序号	C_u	-0.5~+0.1 mm	-0.1~+0.075 mm	-0.075~+0.005 mm	-0.005 mm	D50/μm
1—4	5.62	12.19	13.92	68.22	5.67	59.8
5—8	5.46	16.28	23.32	57.26	3.14	80.6
9—12	5.31	23.42	36.62	37.63	2.33	98.8
13—16	5.42	31.03	45.97	21.26	1.74	128.5
