高海拔长大水工隧洞群挡烟垂壁控烟机制

doi:10.16265/j.cnki.issn1003-3033.2024.04.1283

中国安全科学学报 ›› 2024, Vol. 34 ›› Issue (4): 58-66.doi: 10.16265/j.cnki.issn1003-3033.2024.04.1283

高海拔长大水工隧洞群挡烟垂壁控烟机制

夏勇¹(), 安瑞楠²^,³, 张伟锋¹, 张超¹, 何坤¹, 林鹏²^,⁴^,^**()

¹ 中国电建集团成都勘测设计研究院有限公司, 四川成都 610072
² 清华大学水利水电工程系,北京 100084
³ 火箭军研究院,北京 100011
⁴ 清华四川能源互联网研究院,四川成都 610213

收稿日期:2023-10-29 修回日期:2024-01-27 出版日期:2024-04-28
通讯作者:
**林鹏(1972—),男,湖北黄冈人,博士,教授,主要从事水工结构、水电智能建造、火灾安全等方面的研究与教学工作。E-mail: celinpe@tsinghua.edu.cn。
作者简介:
夏勇 (1968—),男,四川泸州人,博士,正高级工程师,总工程师,主要从事水力学及河流动力学、水电智能建设及安全等方面工作。E-mail: Xyong@chidi.com.cn。
张伟锋工程师
张超工程师
何坤工程师
基金资助:
中国电建集团成都勘测设计研究院有限公司项目(CD2C20221923); 西藏自治区清洁能源科技重大专项项目(XZ202201ZD0003G)

Fire control mechanism of smoke barrier for long and large hydraulic tunnel group in high altitude areas

XIA Yong¹(), AN Ruinan²^,³, ZHANG Weifeng¹, ZHANG Chao¹, HE Kun¹, LIN Peng²^,⁴^,^**()

¹ Hydro China Chengdu Engineering Corporation, Chengdu Sichuan 610072, China
² Department of Hydraulic Engineering, Tsinghua University, Beijing 100084, China
³ Rocket Force Academy, Beijing 100011, China
⁴ Sichuan Engineering Internet Research Institute Tsinghua University, Chengdu Sichuan 610213, China

Received:2023-10-29 Revised:2024-01-27 Published:2024-04-28

摘要/Abstract

摘要：

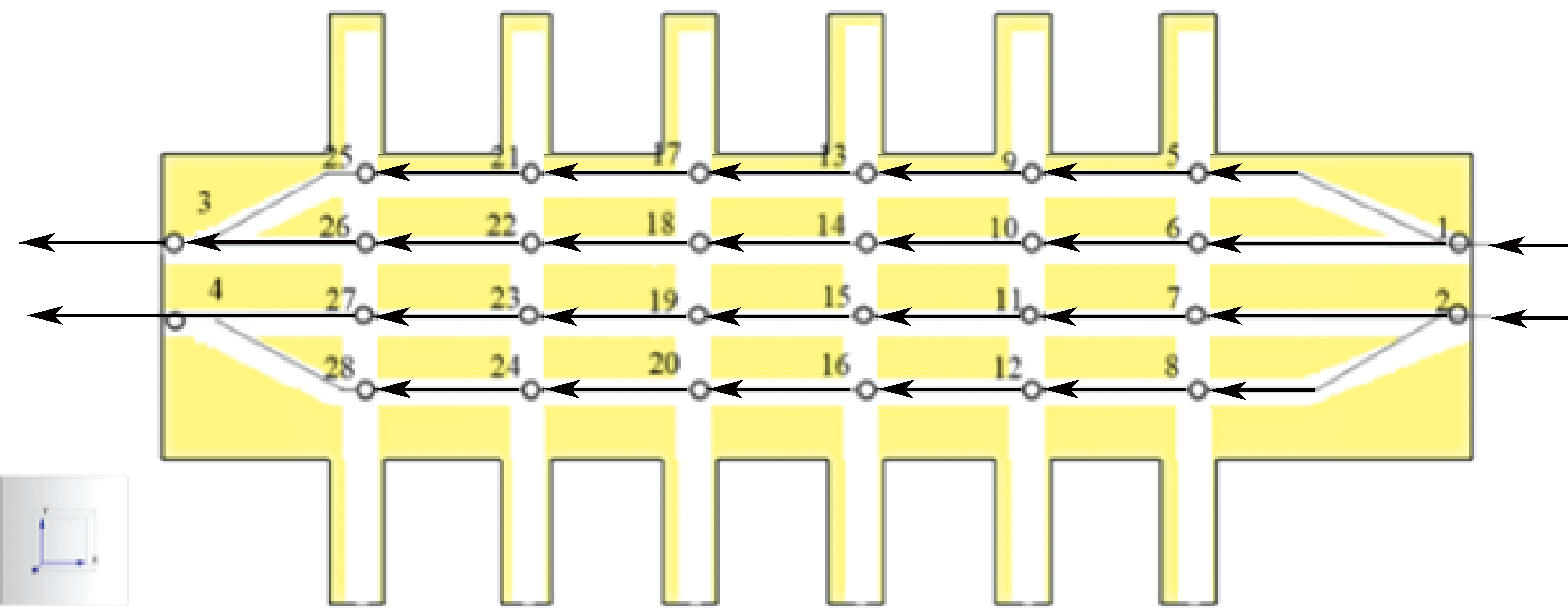

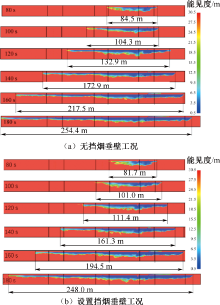

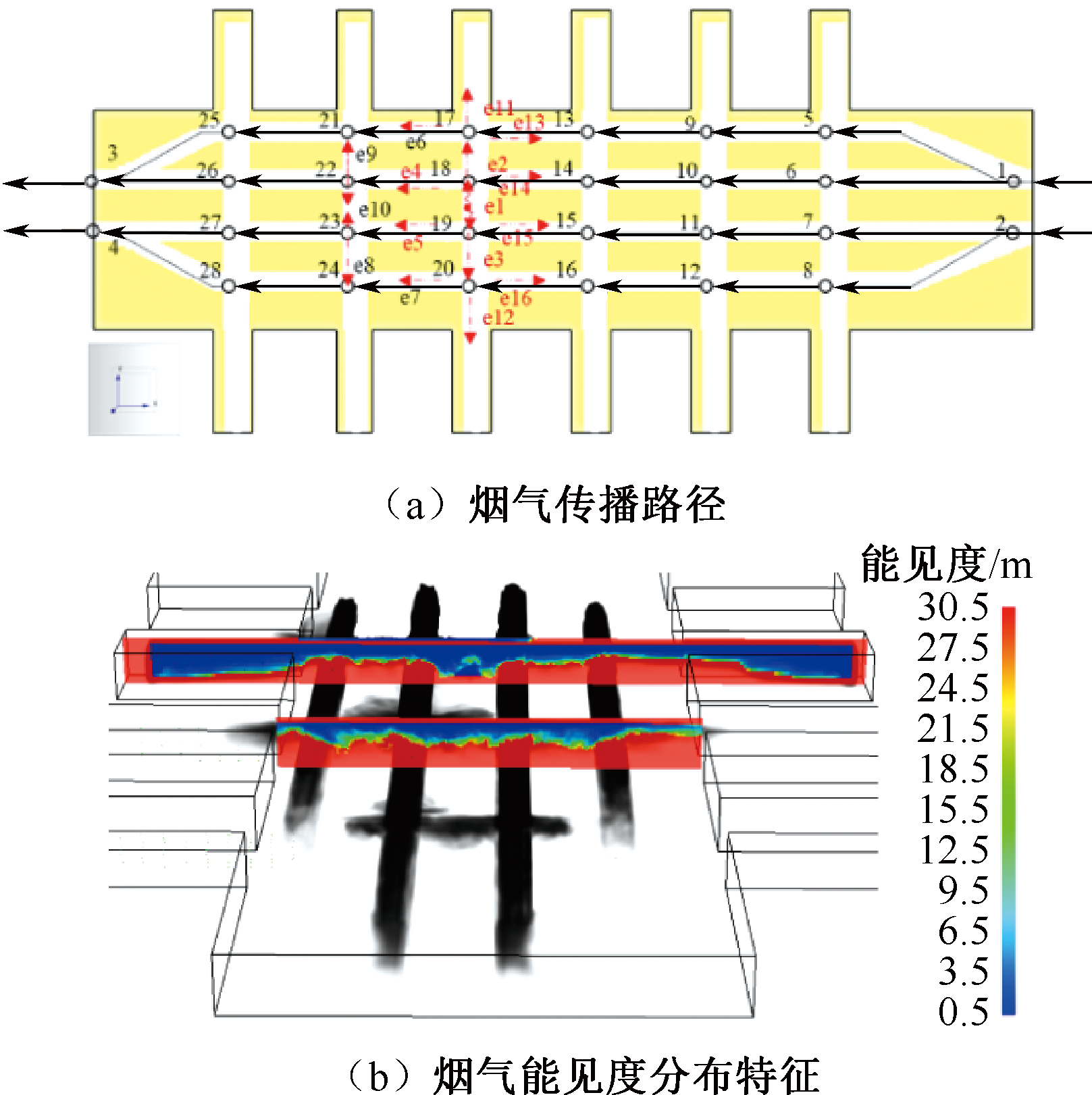

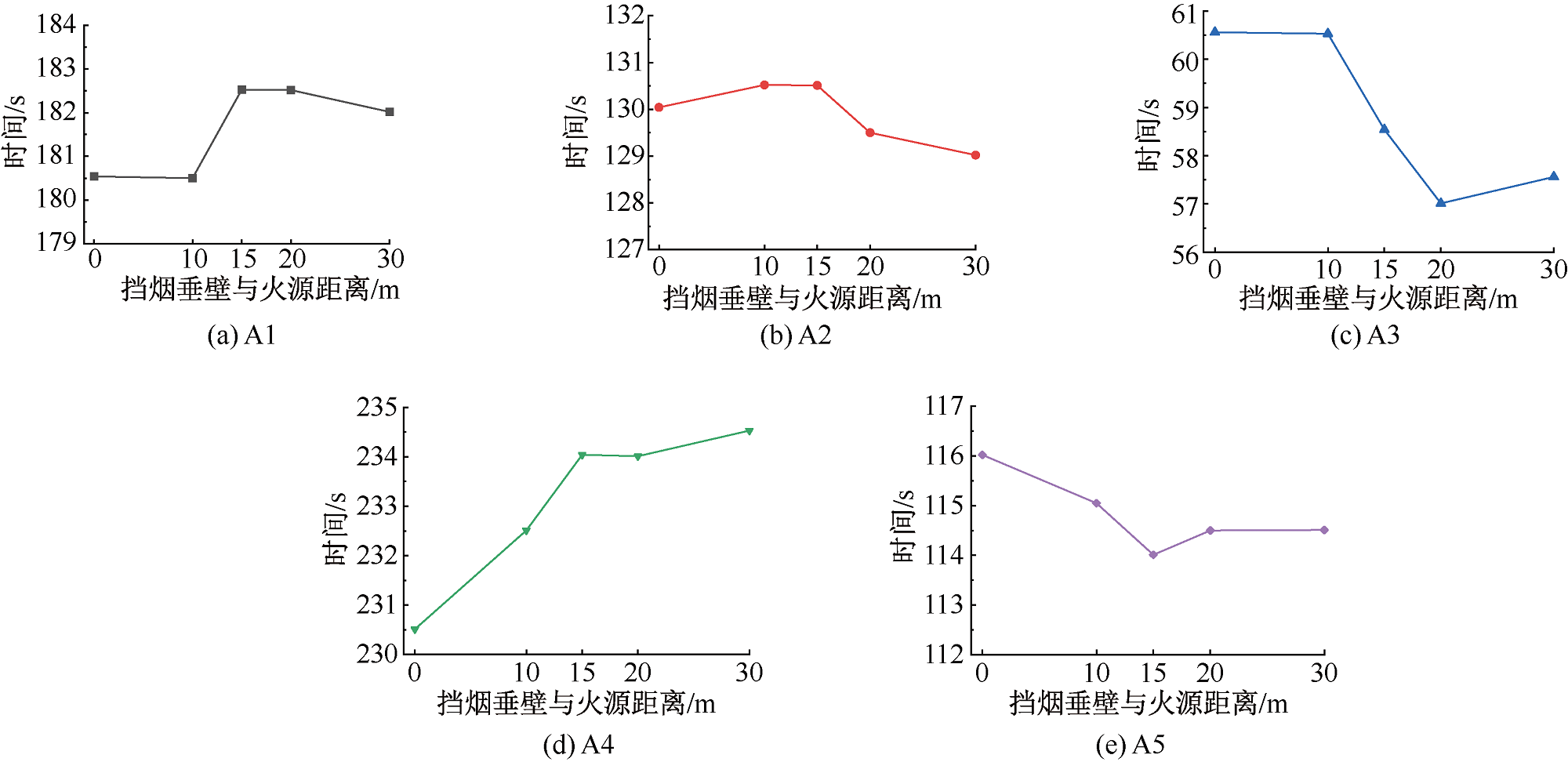

针对长大水工隧洞群施工期火灾疏散救援难和挡烟垂壁作用机制不清晰的挑战,采用数值模拟方法对大型棋盘状隧洞群通风网络火灾烟气蔓延特征及控烟机制开展系统研究,包括烟气扩散路径及能见度分布,设置挡烟垂壁对烟气扩散速度、能见度及温度的影响及控烟效果。结果表明:火灾后烟气首先沿单一隧洞轴线双向传播,扩散至施工支洞时部分支路产生烟气逆转、逆退现象,500 s计算时长内烟气几乎充满整个通风网络,烟气层与下层空气的分层界面不稳定,网络交汇处烟气层高度明显降低。设置挡烟垂壁对烟气沿隧洞轴向传播具有促进作用,效果随传播距离增长而减弱;对烟气沿施工支洞轴线传播具有累积阻滞作用;挡烟垂壁对烟气温度的影响随扩散距离增加不断减弱;挡烟垂壁前方形成储烟池,增强烟气逆流程度,后方为烟气减速增压区,烟气层升高。

关键词: 高海拔, 隧洞群, 挡烟垂壁, 控烟, 通风网络, 数值模拟

Abstract:

To face the challenges of evacuation and rescue of fires in large hydraulic tunnel group and the unclear control mechanism of smoke barrier, numerical simulation was employed to analyze smoke spreading law and fire control mechanism of smoke barrier. The smoke spreading path and the visibility distribution were analyzed. The impact of installing smoke barrier walls on smoke spreading speed, visibility and temperature was studied, and the effectiveness of smoke control measures was evaluated. The results show that the smoke initially spreads along a single two-way direction, and is affected by ventilation airflow when reaching branch tunnel with smoke reversal, retrogression and increased intrusion range. Smoke fills the whole ventilation network within 500 s, the stratification interface between the smoke layer and the lower air layer is unstable, and the height of the smoke layer at the intersection decreases more significantly. The smoke barrier can promote smoke propagation along the diversion tunnel, and the effect decreases with the increase of propagation distance. It has cumulative blocking characteristics along the tunnel direction of the construction branch. The influence of the smoke barrier leads to the temperature decreasing as the diffusion length increases. A smoke storage pool is formed in front of the smoke barrier to enhance the degree of backflow of smoke. Behind it is the smoke deceleration and pressurization area, and the smoke layer rises.

Key words: high altitude, tunnel group, smoke barrier, smoke control, ventilation network, numerical simulation

中图分类号:

X928.7火灾与爆炸事故

夏勇, 安瑞楠, 张伟锋, 张超, 何坤, 林鹏. 高海拔长大水工隧洞群挡烟垂壁控烟机制[J]. 中国安全科学学报, 2024, 34(4): 58-66.

XIA Yong, AN Ruinan, ZHANG Weifeng, ZHANG Chao, HE Kun, LIN Peng. Fire control mechanism of smoke barrier for long and large hydraulic tunnel group in high altitude areas[J]. China Safety Science Journal, 2024, 34(4): 58-66.

图/表 12

图1

表1

表2

图2

图3

图4

图5

图6

图7

图8

图9

表3

监测点烟气温降平均值

监测点		温度/℃
监测点		h=7 m	h=8 m	h=9 m	h=10 m
A1	$t 0$	14.96	15.39	17.44	22.71
A1	Δt	0.12	-0.02	0.43	0.48
A2	$t 0$	17.52	18.65	25.09	32.10
A2	Δt	0.00	0.03	3.13	1.82
A3	$t 0$	29.68	41.27	63.41	78.41
A3	Δt	1.80	-0.81	-5.39	-13.65
A5	$t 0$	46.27	52.70	54.43	57.86
A5	Δt	-0.67	-4.26	-4.57	-4.08

表3

参考文献 23

[1]	樊启祥, 林鹏, 魏鹏程, 等. 高海拔地区水电工程智能建造挑战与对策[J]. 水利学报, 2021, 52(12):1404-1417.
	FAN Qixiang, LIN Peng, WEI Pengcheng, et al. Intelligent construction of hydraulic engineering in high altitude areas: challenges and strategies[J]. Journal of Hydraulic Engineering, 2021, 52(12):1404-1417.
[2]	樊启祥, 林鹏, 魏鹏程, 等. 水电工程安全事故发生机制与管理对策[J]. 中国安全科学学报, 2019, 29(1):144-149. doi: 10.16265/j.cnki.issn1003-3033.2019.01.024
	FAN Qixiang, LIN Peng, WEI Pengcheng, et al. Hydropower engineering safety accident occurrence mechanism and management strategies[J]. China Safety Science Journal, 2019, 29(1):144-149. doi: 10.16265/j.cnki.issn1003-3033.2019.01.024
[3]	林鹏, 魏鹏程, 樊启祥, 等. 基于CNN模型的施工现场典型安全隐患数据学习[J]. 清华大学学报:自然科学版, 2019, 59(8):628-634.
	LIN Peng, WEI Pengcheng, FAN Qixiang, et al. CNN model for mining safety hazard data from a construction site[J]. Journal of Tsinghua University: Science and Technology, 2019, 59(8):628-634.
[4]	XIANG Yunfei, LIN Peng, AN Ruinan, et al. Full participation flat closed-loop safety management method for offshore wind power construction sites[J]. Journal of Intelligent Construction, 2023:DOI:10.26599/JIC.2023.9180006.
[5]	QIAN Qihu, LIN Peng. Safety risk management of underground engineering in China: progress, challenges and strategies[J]. Journal of Rock Mechanics and Geotechnical Engineering, 2016, 8:423-442.
[6]	GUO Yuhao, YUAN Zhongyuan, YUAN Yangping, et al. Numerical simulation of smoke stratification in tunnel fires under longitudinal velocities[J]. Underground Space, 2021, 6(2):163-172.
[7]	戎贤, 许家杰, 张新宇, 等. 特长公路隧道火灾烟气沉降特性对人员疏散影响的研究[J]. 中国安全生产科学技术, 2023, 19(2):128-135.
	RONG Xian, XU Jiajie, ZHANG Xinyu, et al. Research on influence of fire smoke descent characteristics on personnel evacuation in extra-long highway tunnel[J]. Journal of Safety Science and Technology, 2023, 19(2):128-135.
[8]	张孝春, 陈林杰, 周舸尧, 等. 耦合烟气与蒙特卡罗的隧道火灾疏散及其优化[J]. 中国安全科学学报, 2023, 33(12):167-175. doi: 10.16265/j.cnki.issn1003-3033.2023.12.2206
	ZHANG Xiaochun, CHEN Linjie, ZHOU Geyao, et al. Coupling smoke in formation and MonteCarlo simulation for evacuation of tunnel fires and its optimization[J]. China Safety Science Journal, 2023, 33(12):167-175. doi: 10.16265/j.cnki.issn1003-3033.2023.12.2206
[9]	HE Lu, XU Zhisheng, MARKERT F, et al. Study on the effect of tunnel dimensions on the smoke layer thickness in naturally ventilated short tunnel fires[J]. Tunnelling and Underground Space Technology, 2021, 112:DOI:10.1016/j.tust.2021.103941.
[10]	刘轩, 王新祥, 马烨红, 等. 水平交叉隧道间夹角对火灾烟气特征参数分布的影响研究[J]. 广东土木与建筑, 2022, 29(3):33-36.
	LIU Xuan, WANG Xinxiang, MA Yehong, et al. Study on the impact of the angle between horizontal crossing tunnels on the fire smoke characteristics[J]. Guangdong Architecture Civil Engineering, 2022, 29(3):33-36.
[11]	陈长坤, 焦伟冰, 雷鹏, 等. 分岔隧道火灾火源位置对临界风速影响的数值模拟分析[J]. 中国安全生产科学技术, 2022, 18(3):93-99.
	CHEN Changkun, JIAO Weibing, LEI Peng, et al. Numerical simulation analysis on influence of fire source position on critical wind velocity of bifurcated tunnel fire[J]. Journal of Safety Science and Technology, 2022, 18(3):93-99.
[12]	王方超, 张铎, 陈长坤, 等. 横通道通风对隧道火灾烟气蔓延影响的数值模拟研究[J]. 中国安全生产科学技术. 2023, 19(3):108-114.
	WANG Fangchao, ZHANG Duo, CHEN Changkun, et al. Numerical simulation study on influence of cross-passage ventilation on spread of tunnel fire smoke[J]. Journal of Safety Science and Technology, 2023, 19(3):108-114.
[13]	李贺, 田丽, 曾钢, 等. 基于FDS的风速对矿井火灾蔓延规律的影响研究[J]. 中国安全生产科学技术, 2022, 18(5):143-149.
	LI He, TIAN Li, ZENG Gang, et al. Study on influence of wind speed on spread law of mine fire based on FDS[J]. Journal of Safety Science and Technology, 2022, 18(5):143-149.
[14]	何路, 张晓锦, 王东伟, 等. 隧道火灾集中排烟系统排热效率预测方法[J]. 中国安全科学学报, 2023, 33(7):113-120. doi: 10.16265/j.cnki.issn1003-3033.2023.07.2276
	HE Lu, ZHANG Xiaojin, WANG Dongwei, et al. Prediction method of heat exhaust efficiency of centralized smoke exhaust system during tunnel fire[J]. China Safely Science Journal, 2023, 33(7):113-120.
[15]	HUANG Jinlie, ZHU Guoqing. YU Mengwei, et al. Effect of smoke barrier in narrow space on smoke flow utilizing CFD[J]. Procedia Engineering, 2016, 135:142-150.
[16]	CHAABAT F, CREYSSELS M, MOS A, et al. The effects of solid barriers and blocks on the propagation of smoke within longitudinally ventilated tunnels[J]. Building and Environment, 2019, 160:DOI:10.1016/j.buildenv.2019.106207.
[17]	ZHANG Shaogang, SHI Yanli, SHI Long, et al. Numerical study on lateral centralized smoke extraction in immersed tunnel with a new-style inclined smoke barrier[J]. Case Studies in Thermal Engineering, 2023, 42:DOI:10.1016/j.csite.2023.102770.
[18]	王峰, 梁世成, 戴开来, 等. 超高海拔公路隧道火灾烟气毒性及人行横通道间距设计方法研究[J]. 土木工程学报, 2023, 56(8):184-196.
	WANG Feng, LIANG Shicheng, DAI Kailai, et al. Study on fire smoke toxicity and design method of pedestrian evacuation cross passage in ultra-high altitude highway tunnel[J]. China Civil Engineering Journal, 2023, 56(8):184-196.
[19]	崔鹏. 高海拔临界高度长大纵坡铁路隧道火灾安全距离数值模拟研究[J]. 交通节能与环保, 2021, 17(6):124-146.
	CUI Peng. Numerical Simulation of fire safety distance of railway tunnel with long longitudinal slope at critical height of high altitude[J]. Transport Energy Conservation & Environmental Protection, 2021, 17(6):124-146.
[20]	樊启祥, 林鹏, 蒋树, 等. 金沙江下游大型水电站岩石力学与工程综述[J]. 清华大学学报:自然科学版, 2020, 60(7):537-556.
	FAN Qixiang, LIN Peng, JIANG Shu, et al. Review on the rock mechanics and engineering practice for large hydropower stations along the downstream section of Jinsha River[J]. Journal of Tsinghua University: Science and Technology, 2020, 60(7):537-556.
[21]	MCGRATTAN K B, FORNEY G P, PRASAD K, et al. Fire dynamics simulator (Version 3) user's guide[R]. Gaithersburg: National Institute of Standards and Technology, 2002.
[22]	戴玉如. 硬质聚氨酯泡沫塑料燃烧气体中一氧化碳的测定[J]. 聚氨酯工业, 1993, 8(2):42-43.
[23]	MORGAN J H, DANIEL G, JOHN R H, et al. SFPE handbook of fire protection engineering (5^th Edition)[M]. New York: Springer, 2016:3468-3470.

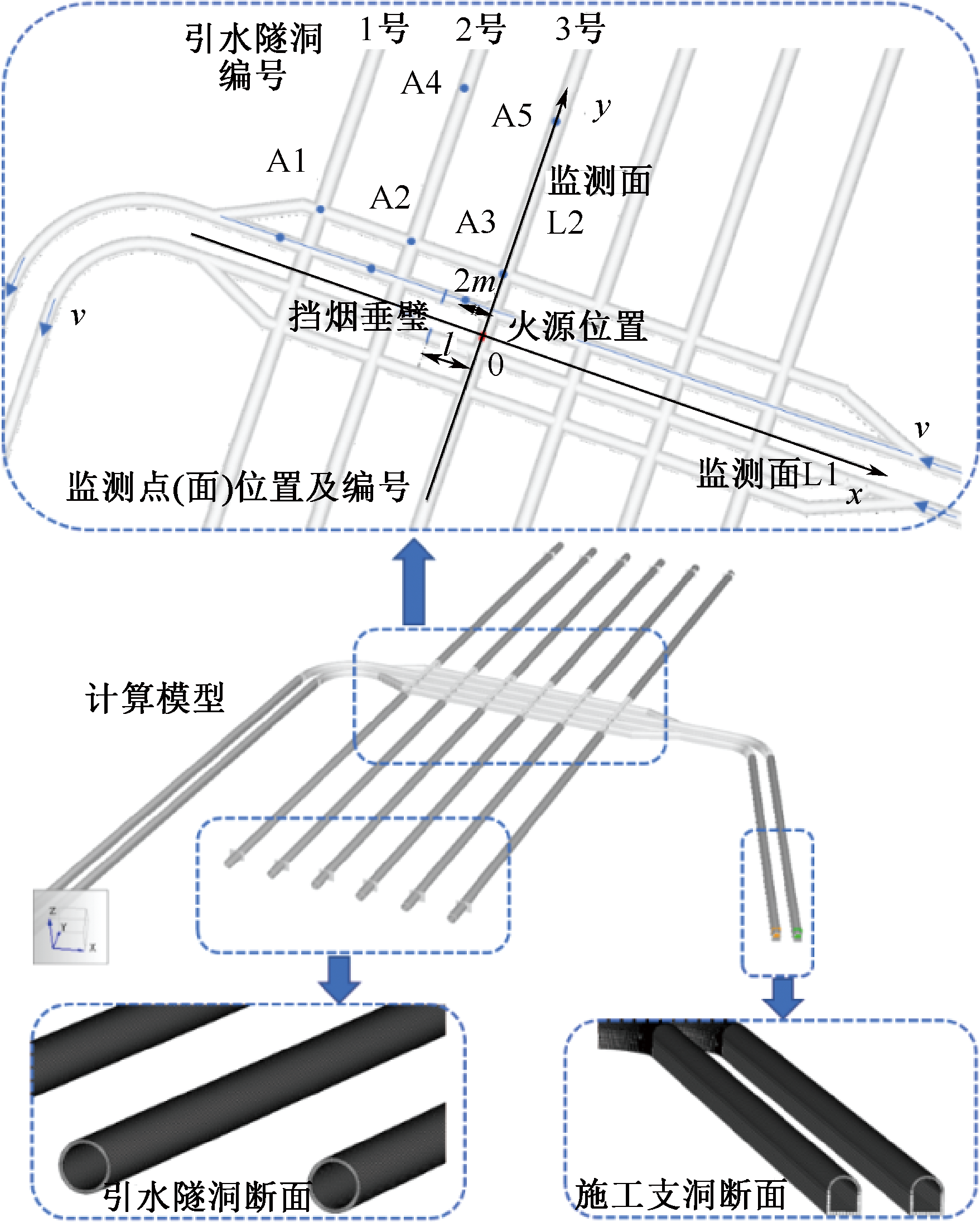

类别	编号	位置坐标/m
监测点	A1	x	y	h
	A2	-180	37.5	7
	A3	-120	37.5	7
	A4	-60	37.5	7
	A5	-120	80	7
	A5	-60	80	7
监测面	L1	y=0, -200≤x≤300, 0≤h≤11.5
监测面	L2	x=0, -65≤y≤90, 0≤h≤10

项目	参数
计算时长/s	500
混凝土壁面热参数	密度/ (kg·m^-3)	比热容/ (kJ·(kg^-1·K^-1)	导热系数/ (W·m^-1·K^-1)
混凝土壁面热参数	2280	1.04	1.8
火源	类型	火源功率/MW	位置
火源	超快速增长	10	3号隧洞轴线
环境参数	气压/Pa		温度/℃
环境参数	71 921		10.7
发烟量/%		19.8^[22]
CO产生量/%		10^[23]
通风速度/(m·s^-1)		2
挡烟垂壁	高度/m	与火源距离/m
挡烟垂壁	1.5	10, 15, 20, 30
