地铁停车线区域通风排烟模式研究

doi:10.16265/j.cnki.issn1003-3033.2023.07.1083

摘要/Abstract

摘要：

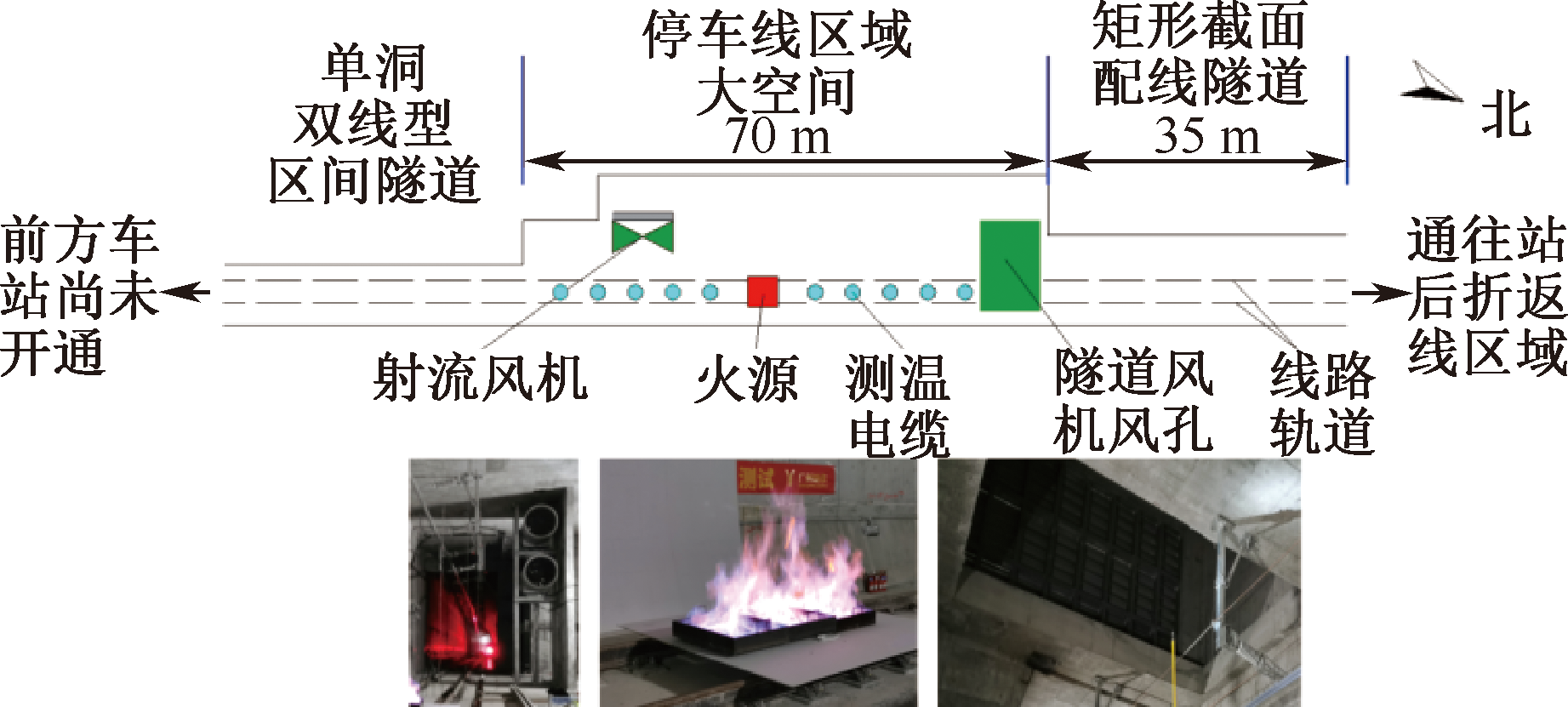

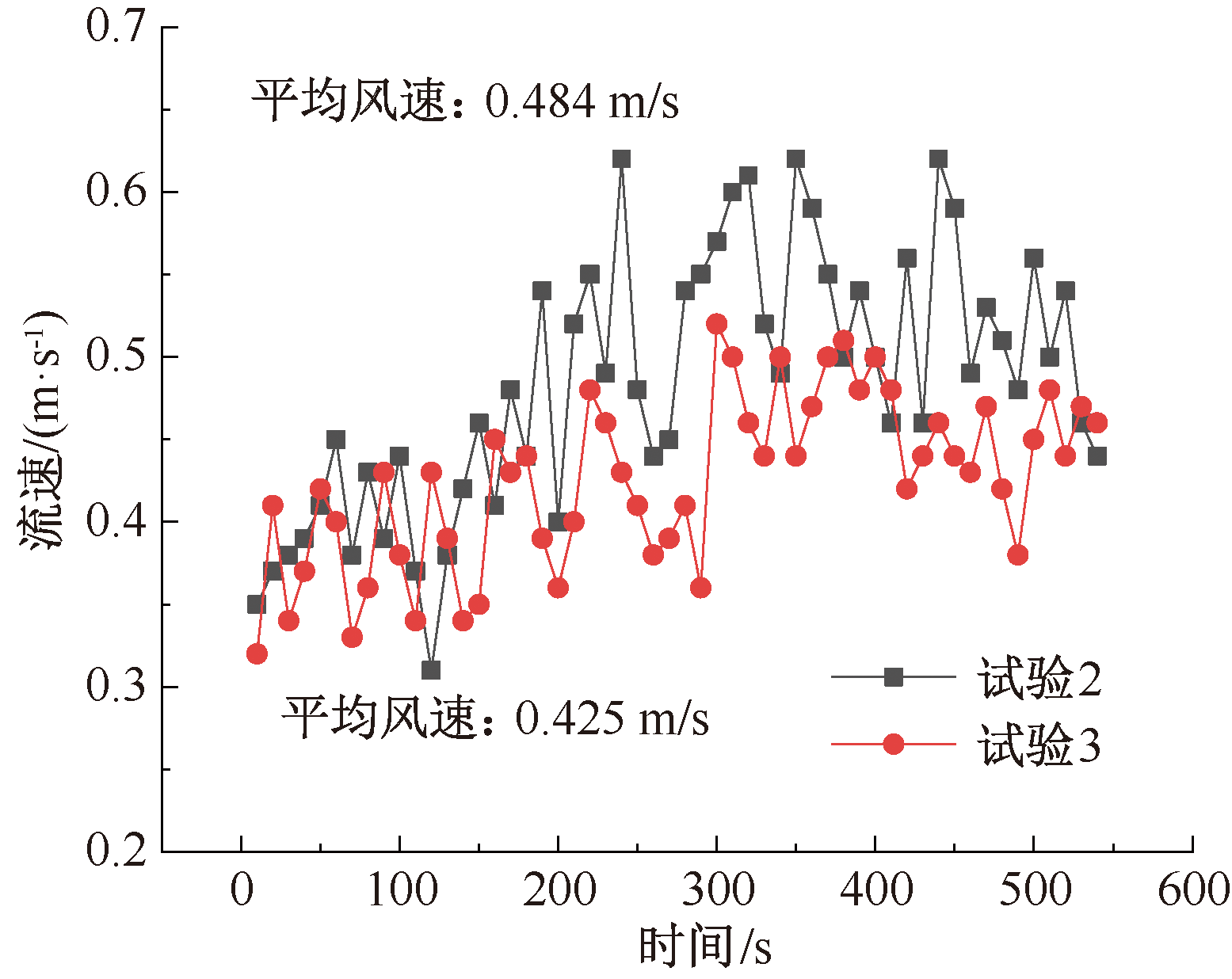

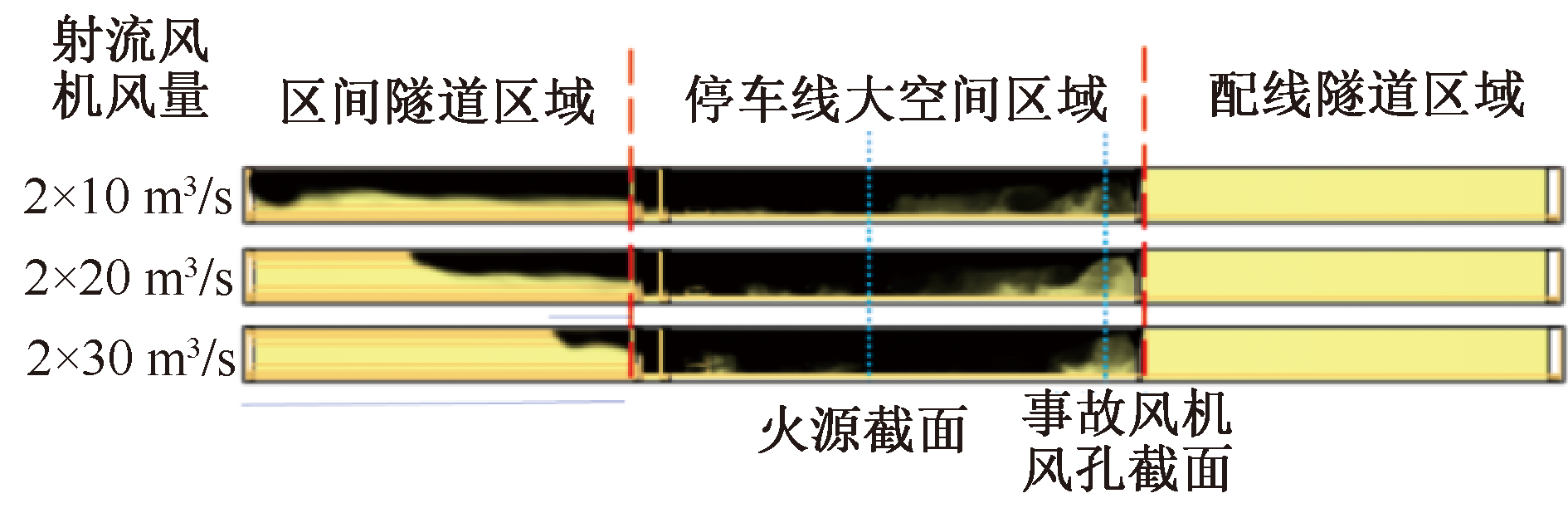

为明确复杂结构、多排烟系统联动作用下,地铁停车线区域火灾烟气扩散特性,优化停车线通风排烟策略,针对广州某停车线区域开展了火灾现场实验和数值模拟研究。首先,基于全尺寸火灾试验结果,获取停车线区域典型火灾场景下的烟气扩散和沉降特性,并测量停车线区域不同通风模式下的气流流速;随后,运用数值模拟方法对比多种排烟模式下的烟气控制效果,并分析隧道风机和射流风机排烟风量对烟气扩散特征的影响形式。研究结果表明:自然通风场景下,火灾烟气起火后180 s内即可进入区间隧道及配线隧道,而启动隧道风机排烟可以减缓烟气扩散速率和沉降速率,但隧道风速未达到临界风速时,无法控制烟气向外扩散;隧道风机排烟组合区间射流风机向停车线送风的工作模式是停车线区域最佳排烟模式,建议隧道风机采用2台60 m³/s风量风机,射流风机采用2台30 m³/s风量风机,可同时降低停车线区域、区间隧道及配线隧道区域的烟气扩散和沉降速率,延长各区域可用疏散时间。研究结果可用于指导停车线风机选型及排烟模式设计,提升停车线区域火灾烟气控制能力。

关键词: 地铁, 停车线, 通风排烟, 全尺寸试验, 数值模拟, 火灾

Abstract:

In order to analyze the fire smoke diffusion characteristics and optimal ventilation strategy in parking line areas under the interaction of complex structures and multiple ventilation systems, full-scale experiments and computer modeling were carried out on a parking line area in Guangzhou. Firstly, the smoke diffusion characteristics were acquired with a full-scale experiment. The airflow velocity was also measured during the experiment with various ventilation modes. Then, the smoke control performance of different ventilation modes was analyzed with numerical simulation. The impact of ventilation volume on smoke diffusion was discussed. The main conclusions are as follows: In the natural ventilation scenario, fire smoke would spread to the interval tunnel and siding area within 180 s after a fire. The use of tunnel ventilation fans could slow down the diffusion and settlement of smoke. But the longitudinal velocity is smaller than the critical velocity, which could not stop the smoke from spreading outside. The best smoke control performance is achieved by using a tunnel ventilation fan to exhaust smoke and an interval jet fan to supply air to the parking line. It is recommended to adopt the design of tunnel ventilation fans with 2 units of 60 m³/s air volume and jet fans with 2 units of 30 m³/s air volume to control the smoke diffusion and improve evacuation safety in the parking line, interval tunnel and siding area at the same time. The results can be used to guide the selection of fan parameters and the design of ventilation strategy in other parking line areas, which support improving the safety level of parking lines.

Key words: metro, parking line, mechanical ventilation, full-scale experiment, numerical simulation, fire

仇培云, 陈俊沣, 程辉航, 龙增, 钟茂华. 地铁停车线区域通风排烟模式研究[J]. 中国安全科学学报, 2023, 33(7): 156-163.

QIU Peiyun, CHEN Junfeng, CHENG Huihang, LONG Zeng, ZHONG Maohua. Study on regional ventilation and smoke exhaust mode of subway parking line[J]. China Safety Science Journal, 2023, 33(7): 156-163.

图/表 11

图1

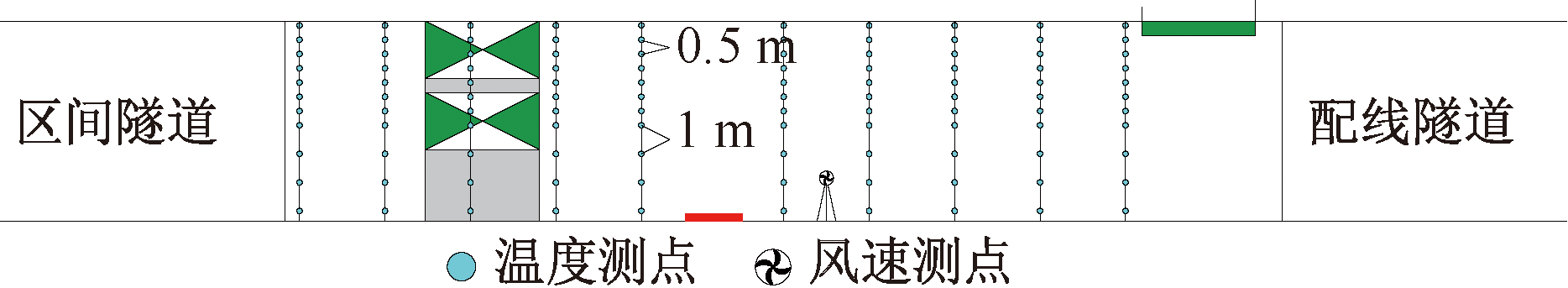

图2

表1

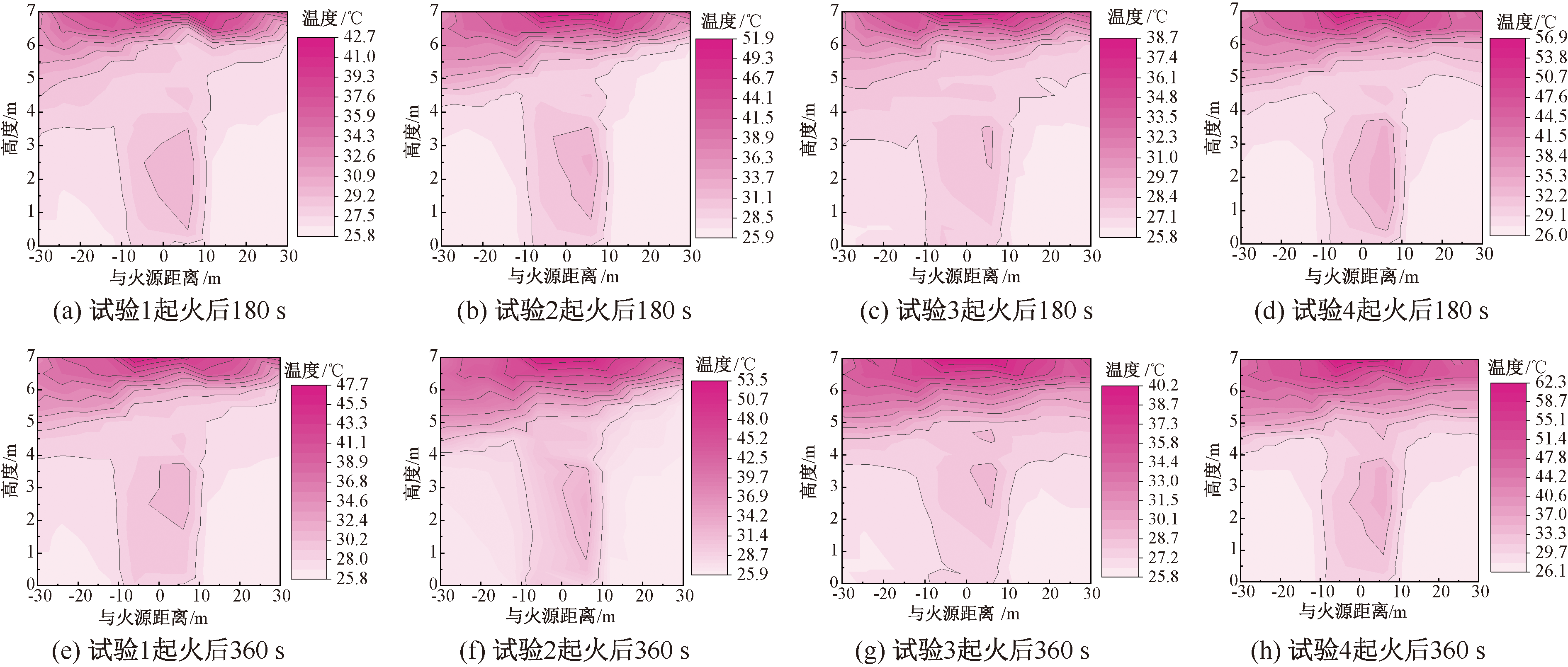

图3

表2

图4

图5

图6

图7

图8

图9

参考文献 18

[1]	湛耀斌. 造成地铁车辆故障救援事件的原因分析及应对措施[J]. 现代城市轨道交通, 2013(1):35-37.
	ZHAN Yaobin. Cause analysis and response measures for metro vehicle fault rescue events[J]. Modern Urban Transit, 2013(1):35-37.
[2]	李毅雄, 陈波. 城轨列车故障救援与停车线设计[J]. 都市快轨交通, 2006(6):8-10.
	LI Yixiong, CHEN Bo. Metro train break down rescue and the design of vehicle parking Lines[J]. Urban Rapid Rail Transit, 2006(6):8-10.
[3]	刘楠. 地铁射流风机通风效果模拟研究[D]. 沈阳: 沈阳建筑大学, 2019.
	LIU Nan. The simulation study on ventilation effect of jet fan in subway tunnel[D]. Shenyang: Shenyang Jianzhu University, 2019.
[4]	王静伟, 罗辉, 罗燕萍. 地铁特殊配线车站的隧道通风系统配置[J]. 城市轨道交通研究, 2016, 19(1):56-58,97.
	WANG Jingwei, LUO Hui, LUO Yanping. Configuration of tunnel ventilation system at subway special assistant line station[J]. Urban Mass Transit, 2016, 19(1):56-58,97.
[5]	荣建忠, 邓保顺, 乔小博, 等. 地铁双存车线配线区间的烟气控制研究[J]. 消防科学与技术, 2021, 40(6):818-821.
	RONG Jianzhong, DENG Baoshun, QIAO Xiaobo, et al. Research on smoke control system of double storage line of an underground railway station[J]. Fire Science and Technology, 2021, 40(6):818-821.
[6]	蔡崇庆. 地铁车站双存车线处的烟控系统研究[J]. 暖通空调, 2015, 45(7):18-22,17.
	CAI Chongqing. Research on smoke control system of double storage siding of an underground railway station[J]. Heating Ventilating & Air Conditioning, 2015, 45(7):18-22,17.
[7]	LIU Chang, ZHONG Maohua, TIAN Xiangliang, et al. Study on emergency ventilation for train fire environment in metro interchange tunnel[J]. Building and Environment, 2019, 147:267-283. doi: 10.1016/j.buildenv.2018.10.022
[8]	DONG Sihui, WANG Kang, JIA Chenxu. A study on the influence of rail top smoke exhaust and tunnel smoke exhaust on subway fire smoke control[J]. Sustainability, 2022, 14(7): DOI:10.3390/su14074049. doi: 10.3390/su14074049
[9]	GUO Xinxin, PAN Xuhai, ZHANG Lijing, et al. Comparative study on ventilation and smoke extraction systems of different super-long river-crossing subway tunnels under fire scenarios[J]. Tunnelling and Underground Space Technology, 2021, 113: DOI:10.1016/j.tust.2021.103849. doi: 10.1016/j.tust.2021.103849
[10]	HUANG Yuandong, GONG Xiaolu, PENG Yuejiao, et al. Effects of the ventilation duct arrangement and duct geometry on ventilation performance in a subway tunnel[J]. Tunnelling and Underground Space Technology, 2011, 26(6):725-733. doi: 10.1016/j.tust.2011.05.005
[11]	钟茂华, 刘畅, 史聪灵. 地铁火灾全尺寸试验研究进展综述[J]. 中国安全科学学报, 2019, 29(10):51-63. doi: 10.16265/j.cnki.issn1003-3033.2019.10.009
	ZHONG Maohua, LIU Chang, SHI Congling. Progress of full-scale experimental study on metro fire[J]. China Safety Science Journal, 2019, 29(10):51-63. doi: 10.16265/j.cnki.issn1003-3033.2019.10.009
[12]	钟茂华, 肖衍, 胡家鹏, 等. 地铁同站台高架换乘车站火灾全尺寸试验研究:(3) 站台火灾[J]. 中国安全生产科学技术, 2018, 14(6):14-20.
	ZHONG Maohua, XIAO Yan, HU Jiapeng, et al. Full-scale experimental study on fire in one-platform-interchange elevated metro station:(3) platform fire[J]. Journal of Safety Science and Technology, 2018, 14(6):14-20.
[13]	MCGRATTAN K, MCDERMOTT R, HPSTIKKA S. Fire dynamics simulator user's guide[M]. Gaithersburg: National Institute of Standards and Technology, 2013: 31-38.
[14]	BYSTROM A, CHENG Xudong, WICKSTROM U, et al. Full-scale experimental and numerical studies on compartment fire under low ambient temperature[J]. Building and Environment, 2012, 51:255-262. doi: 10.1016/j.buildenv.2011.11.010
[15]	ZHANG Shaogang, YAO Yongzheng, ZHU Kai, et al. Prediction of smoke back-layering length under different longitudinal ventilations in the subway tunnel with metro train[J]. Tunnelling and Underground Space Technology, 2016, 53:13-21. doi: 10.1016/j.tust.2015.12.013
[16]	LONG Zeng, YANG Yuxuan, LIU Chang, et al. Study on the optimal operation mode of ventilation system during metro double-island platform fire[J]. Building Simulation, 2021, 14(3):779-792. doi: 10.1007/s12273-020-0692-4
[17]	张念, 谭忠盛. 高海拔特长铁路隧道火灾烟气分布特性数值模拟研究[J]. 中国安全科学学报, 2013, 23(6):52-57.
	ZHANG Nian, TAN Zhongsheng. Numerical simulation study on smoke distribution of fire in high-altitude super-long railway tunnels[J]. China Safety Science Journal, 2013, 23(6):52-57.
[18]	DUNY M, DHIMA D, WANG Huiying, et al. Impact of facade type on an ejected flame propagation from a compartment opening-experimental and numerical studies[J]. Journal of Building Engineering, 2022,46:DOI:10.1016/j.jobe.2021.103660. doi: 10.1016/j.jobe.2021.103660

工况编号	油盆数量	火源热释放速率/MW	通风模式	初始温度/℃	环境湿度/%
试验1	2	0.5	隧道风机排烟	27	93
试验2	3	0.75	隧道风机排烟	28.6	92
试验3	1	0.25	隧道风机排烟	27.4	86
试验4	3	0.75	自然通风	27.7	88

编号	场景属性	火源规模/MW	通风模式	隧道风机风量/(m³·s^-1)	射流风机风量/(m³·s^-1)
1	可靠性验证	0.75	隧道风机排烟	60	—
2	可靠性验证	0.75	自然通风	—	—
3	最佳排烟模式分析	7.5	隧道风机排烟+射流风机送风	60	10×2
4		7.5	隧道风机排烟 +射流风机排烟	60	10×2
5		7.5	隧道风机排烟	60	—
6		7.5	自然通风	—	—
7~13	临界排烟风量分析	7.5	最佳通风模式	60, 90, 120, 150, 180	10×2
14~19	临界排烟风量分析	7.5	最佳通风模式	烟气控制最佳风量	10×2, 20×2, 30×2
