麦垛山煤矿地应力测量及井田应力场特征分析

doi:10.16265/j.cnki.issn1003-3033.2023.S2.0016

中国安全科学学报 ›› 2023, Vol. 33 ›› Issue (S2): 91-95.doi: 10.16265/j.cnki.issn1003-3033.2023.S2.0016

麦垛山煤矿地应力测量及井田应力场特征分析

刘向阳¹(), 刘永豪³, 张顺峰¹, 兰天伟²^,³, 赵文菊⁴

¹ 神华地质勘查有限责任公司, 北京 100085
² 辽宁工程技术大学鄂尔多斯研究院, 内蒙古鄂尔多斯 017010
³ 辽宁工程技术大学矿业学院, 辽宁阜新 123000
⁴ 辽宁省地质矿产调查院有限责任公司, 辽宁沈阳 110031

收稿日期:2023-07-20 修回日期:2023-10-12 出版日期:2023-12-30
作者简介:
刘向阳 (1978—),男,山东桓台人,工程硕士,高级工程师,主要从事煤炭资源绿色勘查管理及研究工作。E-mail:11685078@chnenergy.com.cn。
张顺峰高级工程师
兰天伟教授
赵文菊高级工程师
基金资助:
辽宁省“兴辽英才计划”青年人才拔尖计划项目(XLYC2007042); 辽宁省教育厅基本科研项目(重点项目)(LJKZ0325)

In-situ stress measurement and characteristics analysis of mine field stress field in Maiduoshan coal mine

LIU Xiangyang¹(), LIU Yonghao³, ZHANG Shunfeng¹, LAN Tianwei²^,³, ZHAO Wenju⁴

¹ Shenhua Geological Exploration Company Limited, Beijing 100085, China
² Ordos Research Institute, Liaoning University of Engineering and Technology, Ordos Inner Mongolia 017010, China
³ School of Mining, Liaoning University of Engineering and Technology, Fuxin Liaoning 123000, China
⁴ Liaoning Geological and Mineral Survey Institute Limited Liability Company, Shenyang Liaoning 110031, China

Received:2023-07-20 Revised:2023-10-12 Published:2023-12-30

摘要/Abstract

摘要：

为确定麦垛山煤矿不同构造应力区对采掘工程和矿井动力灾害的影响,采用水压致裂法对麦垛山煤矿6号煤层地应力测量,构建麦垛山煤矿6号煤层顶板岩性数据库和煤岩地质构造模型,并运用“岩体应力状态分析系统”明确麦垛山井田应力分布和分区特征。结果表明:麦垛山煤矿属于典型走滑型应力场,即水平应力为主导的构造应力场,最大主应力为15.02 MPa,方向为N15.6°E,井田范围共划高应力区、应力梯度区、应力正常区及低应力区4个应力区域,并且分别占井田面积7.5%、8%、57.5%和27%。在高应力区和应力梯度区,受采掘扰动叠加影响容易导致巷道发生顶板垮落和底鼓等现象;在应力正常区和低应力区,巷道受原岩应力的影响较小,不易产生能量积聚,巷道破坏的危险性降低。对于正在掘进和未投入使用的巷道,应根据应力分区特征加强对巷道围岩的监测和支护,实现煤矿开采工程与灾害防治工作的分级、分区管理,保障煤矿生产安全。

关键词: 地应力测量, 最大主应力, 应力区域, 构造应力场, 巷道围岩

Abstract:

In order to study the impact of different tectonic stress zones of Maiduoshan coal mine on the mining engineering and mine dynamic disasters, the ground stress of the No. 6 coal seam of Maiduoshan coal mine was measured by the hydraulic fracturing method. A database of the lithology of the roof of the No. 6 coal seam of Maiduoshan coal mine and a model of the geological structure of the coal rock were constructed, and the stress distribution and zoning characteristics of the mine field of Maiduoshan coal mine were determined by the rock stress state analysis system. The results show that Maiduoshan coal mine belongs to a typical slip-type stress field, namely a tectonic stress field dominated by horizontal stress, with a maximum principal stress of 15.02 MPa and a direction of N15.6°E. The mine field is divided into four stress zones, namely, high stress zone, stress gradient zone, stress normal zone, and low stress zone, accounting for 7.5%, 8%, 57.5%, and 27% of the area of the mine field, respectively. In the high stress zone and stress gradient zone, the superimposed influence of mining disturbance can easily lead to the occurrence of roof falls and heaving floor in the roadway, in the stress normal zone and low stress zone, the roadway is less influenced by the stress of the original rock, which is not easy to produce the energy accumulation, and the danger of roadway damage is reduced. For the roadway that is being dug and not put into use, the monitoring and support of the roadway surrounding rock should be strengthened according to the characteristics of the stress zones, so as to realize the hierarchical and zonal management of coal mining engineering and disaster prevention and control and guarantee the safety of coal mine production.

Key words: in-situ stress measurement, maximum principal stress, stress zone, tectonic stress field, roadway surrounding rock

中图分类号:

X936

刘向阳, 刘永豪, 张顺峰, 兰天伟, 赵文菊. 麦垛山煤矿地应力测量及井田应力场特征分析[J]. 中国安全科学学报, 2023, 33(S2): 91-95.

LIU Xiangyang, LIU Yonghao, ZHANG Shunfeng, LAN Tianwei, ZHAO Wenju. In-situ stress measurement and characteristics analysis of mine field stress field in Maiduoshan coal mine[J]. China Safety Science Journal, 2023, 33(S2): 91-95.

图/表 6

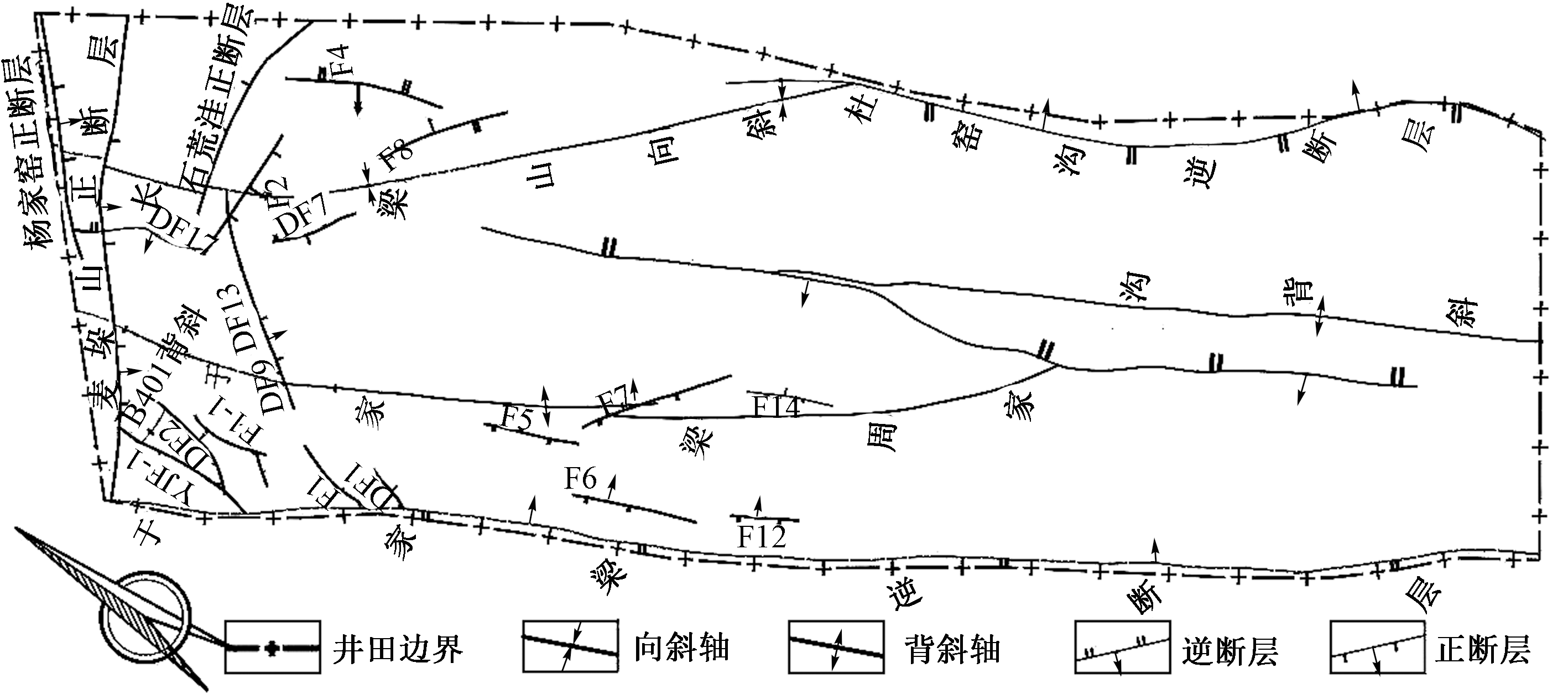

图1

图2

表1

图3

表2

图4

参考文献 18

[1]	李鹏, 苗胜军. 中国煤矿矿区地应力场特征与断层活动性分析[J]. 煤炭学报, 2016, 41(增2):319-329.
	LI Peng, MIAO Shengjun. Analysis of the characteristics of in-situ stress field and fault activity in the coal mining area of China[J]. Journal of China Coal Society, 2016, 41(S2):319-329.
[2]	景锋. 中国大陆浅层地壳地应力场分布规律及工程扰动特征研究[D]. 武汉: 中国科学院武汉岩土力学研究所, 2009.
	JING Feng. Research on the distribution rule of the shallow crustal geostress field in the China mainland and engineering disturbance characteristics[D]. Wuhan: Insititute of Rock and Soil Mechanics Chinese Academy of Sciences, 2009.
[3]	张健, 张鹏妍, 魏建平, 等. 巷道围岩调热圈分布特性研究: 以羊场湾煤矿为例[J]. 中国安全科学学报, 2023, 33(8): 125-133. doi: 10.16265/j.cnki.issn1003-3033.2023.08.1857
	ZHANG Jian, ZHANG Pengyan, WEI Jianping, et al. Study on distribution character of heat regulating ring in roadway surrounding rock: taking Yangchangwan coal mine as an example[J]. China Safety Science Journal, 2023, 33(8):125-133. doi: 10.16265/j.cnki.issn1003-3033.2023.08.1857
[4]	范东林, 王巍. 大采高工作面回风巷道支护参数优化研究[J]. 中国安全科学学报, 2022, 32(增2):166-171.
	FAN Donglin, WANG Wei. Study on support parameter optimization of mining roadway in working face with large mining height[J]. China Safety Science Journal, 2022, 32(S2):166-171. doi: 10.16265/j.cnki.issn1003-3033.2022.S2.0098
[5]	车禹恒, 张宏伟, 韩军, 等. 山西大同同忻井田岩体应力状态分析及其应用[J]. 中国地质灾害与防治学报, 2013, 24(1):60-64.
	CHE Yuheng, ZHANG Hongwei, HAN Jun, et al. Tongxin mine rock mass stress state analysis and application[J]. Chinese Journal of Geological Hazards and Prevention, 2013, 24(1):60-64.
[6]	潘一山, 唐治, 阎海鹏, 等. 大安山煤矿地应力测量及数值模拟分析[J]. 煤炭学报, 2010, 35(增1):49-53.
	PAN Yishan, TANG Zhi, YAN Haipeng, et al. Measurement and numerical simulation analysis of in-situ stresses in Daanshan Coal Mine[J]. Journal of China Coal Society, 2010, 35(S1):49-53.
[7]	韩军, 张宏伟. 淮南矿区地应力场特征[J]. 煤田地质与勘探, 2009, 37(1):17-21.
	HAN Jun, ZHANG Hongwei. Characteristic of in-situ stress field in Huainan mining area[J]. Coalfield Geology and Exploration, 2009, 37(1):17-21.
[8]	朱明德, 王照亚, 张月征, 等. 基于水压致裂法的三山岛深竖井工程区地应力测量与反演分析[J]. 地质力学学报, 2023, 29(3):430-441.
	ZHU Mingde, WANG Zhaoya, ZHANG Yuezheng, et al. In-situ stress measurement and inversion analysis of the deep shaft project area in Sanshan Island based on hydraulic fracturing method[J]. Journal of Geomechanics, 2023, 29(3):430-441.
[9]	李勇, 汤达祯许浩, 等. 鄂尔多斯盆地柳林地区煤储层地应力场特征及其对裂隙的控制作用[J]. 煤炭学报, 2014, 39(增1):164-168.
	LI Yong, TANG Dazhen, XU Hao, et al. Characteristic of in-situ stress field in Liulin area, Ordos basin and its control on coal fractures[J]. Journal of China Coal Society, 2014, 39(S1):164-168.
[10]	李方全, 王连捷. 华北地区地应力测量[J]. 地球物理学报, 1979, 22(1):1-8.
	LI Fangquan, WANG Lianjie. Stress measurements in north China[J]. Geophysical Journal, 1979, 22(1):1-8. doi: 10.1111/j.1365-246X.1971.tb03579.x
[11]	李方全. 地应力测量[J]. 岩石力学与工程学报, 1985, 4(1):95-111.
	LI Fangquan. Geostress measurements[J]. Chinese Journal of Rock Mechanics and Engineering, 1985, 4(1):95-111.
[12]	闫振雄, 郭奇峰, 王培涛. 空心包体应变计地应力分量计算方法及应用[J]. 岩土力学, 2018, 39(2):715-721.
	YAN Zhenxiong, GUO Qifeng, WANG Peitao. Calculation and application of in-situ stress components in hollow inclusion measurement[J]. Geotechnics, 2018, 39(2):715-721.
[13]	荣海, 韩永亮, 张宏伟, 等. 红庆梁煤矿地应力场特征及巷道稳定性分析[J]. 煤田地质与勘探, 2020, 48(5):144-151.
	RONG Hai, HAN Yongliang, ZHANG Hongwei, et al.. haracteristics of in-situ stress field and stability analysis ofroadway in Hongqingliang coal mine[J]. Coalfield Geology and Exploration, 2020, 48(5):144-151.
[14]	蔡美峰, 乔兰, 李华斌. 地应力测量原理和技术[M]. 北京: 科学出版社, 1995:44-50.
[15]	曾昭友. 水压致裂法测试矿井软岩巷道地应力研究[J]. 煤炭科学技术, 2012, 40(12):31-34.
	ZENG Zhaoyou. Study on geostress measurement by hydraulic fracturing method in mine soft rock roadway[J]. Coal Science and Technology, 2012, 40(12):31-34.
[16]	李晋平, 林健. 水压致裂法测量原岩应力在潞安矿区的应用[J]. 煤炭科学技术, 2005, 33(3):39-41.
	LI Jinping, LIN Jian. Hydraulic fracturing method applied to measure in-situ rock stress in Luan mining area[J]. Coal Science and Technology, 2005, 33(3):39-41.
[17]	刘文剑, 吴湘滨, 王东. 水压致裂法测量裂隙岩体的地应力研究[J]. 煤田地质与勘探, 2007, 35(3):42-46.
	LIU Wenjian, WU Xiangbin, WANG Dong. Study on the geo-stresses measurement of fracture rock-mass with hydro-fracturing of borehole[J]. Coalfield Geology and Exploration, 2007, 35(3):42-46.
[18]	张宏伟, 韩军, 宋卫华, 等. 地质动力区划[M]. 北京: 煤炭工业出版社, 2009:151-189.

压裂参数			主应力值
P_b	P_r	P_s	σ_H	σ_h	σ_v
15.15	9.61	8.34	15.02	8.15	13.89

岩性分类	弹性模量/GPa	泊松比
泥岩、砂质泥岩	10.57	0.27
粉砂岩、细粒砂岩	14.05	0.21
粗粒砂岩等其它岩性	20.30	0.25
断层落差大于100 m	6.00	0.32
断层落差小于100 m	13.00	0.38
