爆破荷载下岩质边坡裂隙区范围测试方法*

doi:10.16265/j.cnki.issn1003-3033.2022.08.1682

中国安全科学学报 ›› 2022, Vol. 32 ›› Issue (8): 104-110.doi: 10.16265/j.cnki.issn1003-3033.2022.08.1682

爆破荷载下岩质边坡裂隙区范围测试方法*

王智德¹(), 李杰¹, 武海港¹, 马祖遥¹^,²

¹ 武汉理工大学土木工程与建筑学院,湖北武汉 430070
² 珠海市规划设计研究院,广东珠海 519000

收稿日期:2022-02-16 修回日期:2022-05-12 出版日期:2022-09-05 发布日期:2023-02-28
作者简介:
王智德 (1983—),男,湖南湘乡人,博士,副教授,主要从事顺层岩质边坡爆破稳定性评价方面的研究。E-mail: wangzhide-wuhan@whut.edu.cn。
基金资助:
国家自然科学基金资助(51374163); 武汉市城乡建设委员会科技计划项目(武城建[2017]12号-201740,武城建[2019]68号-201941); 磷资源开发利用教育部工程研究中心开放基金资助(LKF202004)

Test method of fractured area of rock slopes under blasting load

WANG Zhide¹(), LI Jie¹, WU Haigang¹, MA Zuyao¹^,²

¹ School of Civil Engineering and Architecture, Wuhan University of Technology, Wuhan Hubei 430070, China
² Zhuhai Institute of Urban Planning & Design, Zhuhai Guangdong 519000, China

Received:2022-02-16 Revised:2022-05-12 Online:2022-09-05 Published:2023-02-28

摘要/Abstract

摘要：

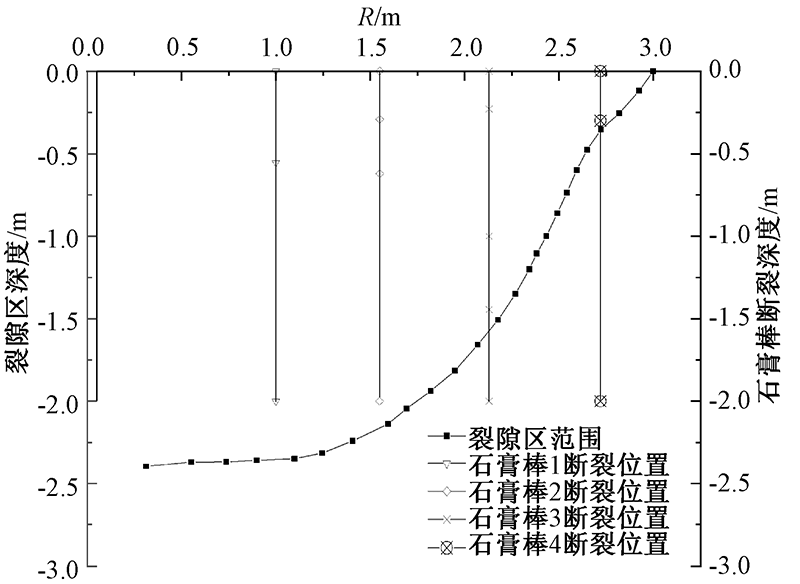

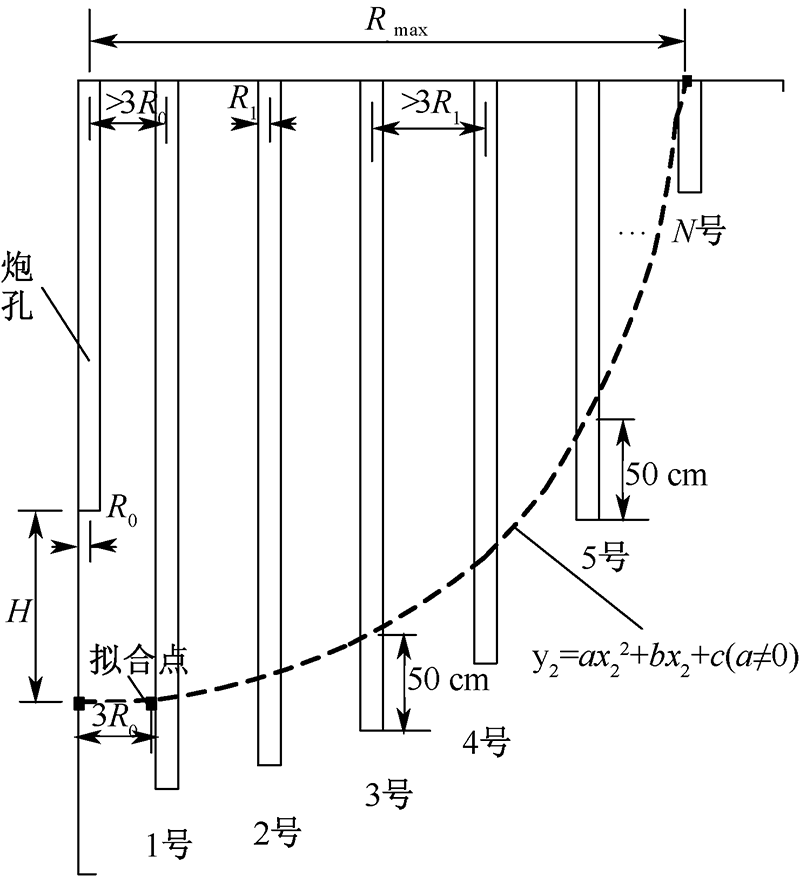

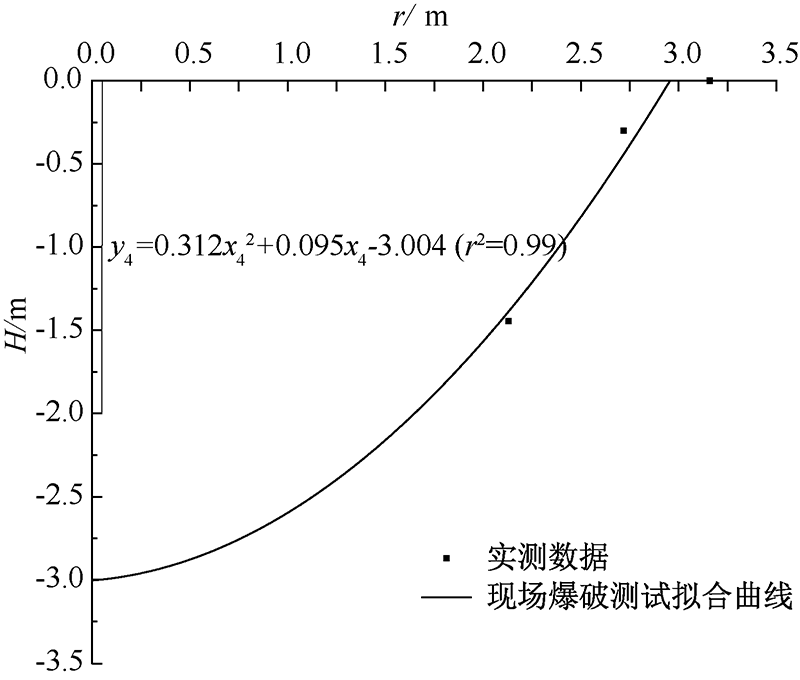

为提高露天矿山爆破过程中的安全性,提出一种基于预埋测试棒确定岩石爆破裂隙区范围的方法;基于爆炸应力波通过结构面传播理论及现有爆破裂隙区范围研究成果,确定测试棒材料的选取方法,并给出制作步骤和测试流程;开展现场爆破测试,根据爆破后测试棒的断裂范围获取爆破裂隙区的范围,并分别采用理论解析方法、数值分析和现场振动速度监测等方法验证爆破试验测试结果。结果表明:采用预埋测试棒的方法获取岩石爆破裂隙区范围,理论上可行;10 kg药量爆破荷载作用下,岩质边坡裂隙区最大水平半径为2.95 m;3种方法与现场试验测试所得结果相对误差分别小于24.8%、18%和4%。

关键词: 爆破荷载, 测试方法, 岩质边坡, 爆破裂隙区范围, Mises屈服准则, 测试棒

Abstract:

In order to improve safety of open pit mines during blasting, a determination method of rock blast fracture area was proposed based on embedded test rod. Selection method of test rod material was determined based on propagation theory of explosion stress wave through structural plane and research results of existing explosion rupture gap area, and manufacturing steps and test procedures were provided. Then, blasting test was carried out on site, and range of blasting gap was obtained according to fracture range of test rods, and test results were verified by theoretical analysis method, numerical analysis, and on-site vibration velocity monitoring method. The results show that it is theoretically feasible to obtain fracture area of blasted rock by using embedded test rod, and the maximum horizontal radius of rock slope fracture zone under 10 kg blasting load is 2.95 m. At the same time, the relative errors of three methods and results obtained by field test are less than 24.8%, 18% and 4% respectively.

Key words: blasting load, test method, rock slope, range of blasting fracture zone, Mises yield criterion, test rod

王智德, 李杰, 武海港, 马祖遥. 爆破荷载下岩质边坡裂隙区范围测试方法*[J]. 中国安全科学学报, 2022, 32(8): 104-110.

WANG Zhide, LI Jie, WU Haigang, MA Zuyao. Test method of fractured area of rock slopes under blasting load[J]. China Safety Science Journal, 2022, 32(8): 104-110.

图/表 14

图1

图2

图3

图4

表1

表2

图5

表3

表4

图6

图7

图8

图9

图10

参考文献 19

[1]	谢全敏, 晏理想, 周圣国, 等. 圭嘎拉隧道石门揭煤岩柱安全厚度及动力特性[J]. 中国安全科学学报, 2021, 31(7):56-62. doi: 10.16265/j.cnki.issn 1003-3033.2021.07.008
	XIE Quanmin, YAN Lixiang, ZHOU Shengguo, et al. Safety thickness and dynamic characteristics of rock pillar of uncovering coal at rock cross-cut in Guigala tunnel[J]. China Safety Science Journal, 2021, 31(7):56-62. doi: 10.16265/j.cnki.issn 1003-3033.2021.07.008
[2]	张文煊, 卢文波. 龙滩水电站地下厂房开挖爆破损伤范围评价[J]. 工程爆破, 2008, 14(2):1-7.
	ZHANG Wenxuan, LU Wenbo. Evaluation of blast-induced damage zone in excavation blasting of Longtan underground workshop[J]. Engineering Blasting, 2008, 14(2):1-7.
[3]	祝文化, 明锋, 宋成梓. 爆破荷载作用下岩体损伤破坏的分形研究[J]. 岩土力学, 2011, 32(10):3131-3135.
	ZHU Wenhua, MING Feng, SONG Chengzi. Fractal study of rock damage under blasting loading[J]. Rock and Soil Mechanics, 2011, 32(10):3131-3135.
[4]	杨小林, 员小有, 吴忠, 等. 爆破损伤岩石力学特性的试验研究[J]. 岩石力学与工程学报, 2001, 20(4):436-439.
	YANG Xiaolin, YUN Xiaoyou, WU Zhong, et al. The experimental study on mechanical properties of blast damaged rock[J]. Chinese Journal of Rock Mechanics and Engineering, 2001, 20(4):436-439.
[5]	闫长斌, 王贵军, 张辉, 等. 岩体爆破累积损伤效应的声波形态变化特征[J]. 合肥工业大学学报, 2009, 32(10):1481-1484.
	YAN Changbin, WANG Guijun, ZHANG Hui, et al. Variation characters of acoustic waveforms caused by rock mass blasting cumulative damage effects[J]. Journal of Hefei University of Technology, 2009, 32(10):1481-1484.
[6]	WANG Zhide, MA Zuyao, XIA Yuanyou, et al. Testing method for the range of fracture zone of rock slope under blasting load[J]. Shock and Vibration, 2021, 2021: DOI:10.1155/2021/5574696.
[7]	ATA A, NABIL M, HASSAN S, et al. Numerical analysis of underground tunnels subjected to surface blast loads[J]. Frattura e Integrita Strutturale, 2021, 15(55):159-173.
[8]	王智德, 马祖遥. 顺层岩质边坡爆破荷载作用下的损伤特性研究[J]. 中国安全科学学报, 2018, 28(11) : 72-79. doi: 10.16265/j.cnki.issn1003-3033.2018.11.012
	WANG Zhide, MA Zuyao. Research on damage characteristics of rock bedding under blasting load[J]. China Safety Science Journal, 2018, 28(11) : 72-79. doi: 10.16265/j.cnki.issn1003-3033.2018.11.012
[9]	YANG Liyun, YANG Aiyun, CHEN Siyu, et al. Model experimental study on the effects of in situ stresses on pre-splitting blasting damage and strain development[J]. International Journal of Rock Mechanics and Mining Sciences, 2021, 138:DOI: 10.1016/j.ijrmms.2020.104587. doi: 10.1016/j.ijrmms.2020.104587
[10]	HE Chenglong, CHEN Dayong, XIAO Jianguang, et al. Experimental study of crack propagation and failure around a horseshoe tunnel during nearby blasting[J]. International Journal of Rock Mechanics and Mining Sciences, 2021, 139:DOI: 10.1016/j.ijrmms.2021.104628. doi: 10.1016/j.ijrmms.2021.104628
[11]	JEONG H, JEON B, CHOI S, et al. Fracturing behavior around a blast hole in a brittle material under blasting loading[J]. International Journal of Impact Engineering, 2020, 140:DOI: 10.1016/j.ijimpeng.2020.103562. doi: 10.1016/j.ijimpeng.2020.103562
[12]	戴俊. 岩石动力学特性与爆破理论[M]. 北京: 冶金工业出版社, 2013: 149-150.
[13]	李鹏, 周佳, 李振. 爆炸应力波在层状节理岩体中传播规律及数值模拟[J]. 长江科学院院报, 2018, 35(5):97-102.
	LI Peng, ZHOU Jia, LI Zhen. Blasting stress wave in layered jointed rock mass:Propagation law and numerical simulation[J]. Journal of Yangtze River Scientific Research Institute, 2018, 35(5):97-102.
[14]	王聪聪, 黄小彬, 黄慎, 等. 深部爆破引起的裂隙扩展范围的研究[J]. 有色金属, 2018, 70(1):71-74,80.
	WANG Congcong, HUANG Xiaobin, HUANG Shen, et al. Fracture extension range caused by deep blasting[J]. Nonferrous Metals, 2018, 70(1):71-74,80.
[15]	夏祥. 爆炸荷载作用下岩体损伤特征及安全阈值研究[D]. 武汉: 中国科学院武汉岩土力学研究所, 2006.
	XIA Xiang. Study on damage charicteristics and safty threshold of rock vibration by blast[D]. Wuhan: Institute of Rock and Soil Mechanics,Chinese Academy of Sciences, 2006.
[16]	李新平, 陈俊桦, 李友华, 等. 溪洛渡电站地下厂房爆破损伤范围及判据研究[J]. 岩石力学与工程学报, 2010, 29(10):2042-2049.
	LI Xinping, CHEN Junhua, LI Youhua, et al. Study of criterion and damage zone induced by excavation blasting of underground power-house of Xiluodu hydropower station[J]. Chinese Journal of Rock Mechanics and Engineering, 2010, 29(10):2042-2049.

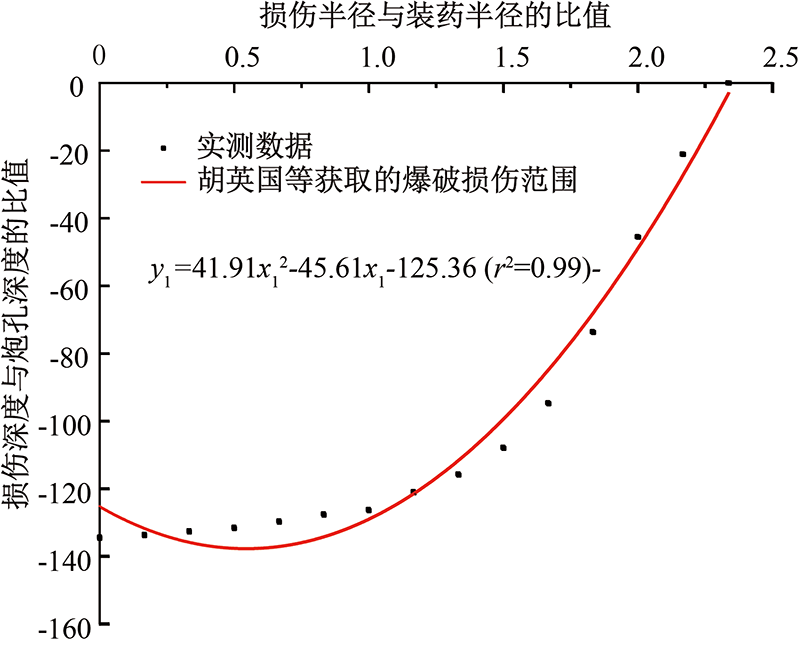

[17]	胡英国, 卢文波, 陈明, 等. 岩石爆破损伤模型的比选与改进[J]. 岩土力学, 2012, 33(11):83-89.
	HU Yingguo, LU Wenbo, CHEN Ming, et al. Comparison and improvement of blasting damage models for rock[J]. Rock and Soil Mechanics, 2012, 33(11):83-89.
[18]	王小亮. 利用脱硫石膏制备新型石膏砌块的研究[D]. 西安: 西安科技大学, 2016.
	WANG Xiaoliang. Study on preparation of new type gypsum block with desulphurization gypsum[D]. Xi'an: Xi 'an University of Technology, 2016.
[19]	潘淼昌, 武永猛, 史秀志, 等. 凡口铅锌矿扇形中深孔爆破参数数值模拟研究[J]. 采矿技术, 2013, 13(5):87-89,142.
	PAN Miaochang, WU Yongmeng, SHI Xiuzhi, et al. Numerical simulation of fan-shaped medium-deep hole blasting parameters in Fankou lead-zinc mine[J]. Mining Technology, 2013, 13(5):87-89,142.

ω	弹性模量 E₂/GPa	泊松比 μ₂	ρ₂/ (kg·m^-3)	σ_c/MPa
0.7	2.31	0.250	1 408.8	4.08
1.0	1.49	0.198	1 127.1	1.65
1.3	1.23	0.169	1 015.4	1.25

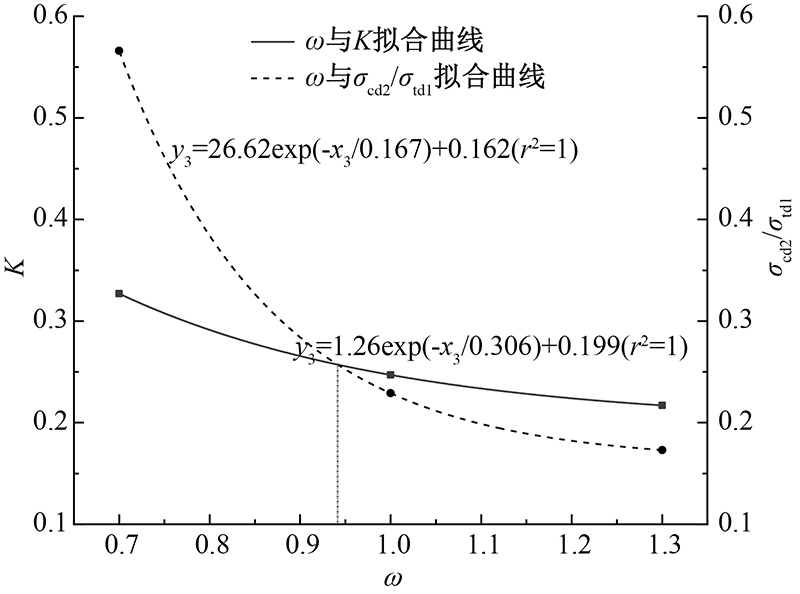

ω	n	K	σ_cd2/MPa	σ_cd2/σ_td1
0.7	5.10	0.327	18.930	0.566
1.0	7.09	0.247	7.656	0.229
1.3	8.20	0.217	5.800	0.173
