危化品爆炸大规模高精度仿真软件研发与应用

doi:10.16265/j.cnki.issn1003-3033.2022.09.2692

中国安全科学学报 ›› 2022, Vol. 32 ›› Issue (9): 20-28.doi: 10.16265/j.cnki.issn1003-3033.2022.09.2692

危化品爆炸大规模高精度仿真软件研发与应用

王成¹(), 钱琛庚¹, 张文耀², 谷恭天¹, 崔洋洋¹

1 北京理工大学爆炸科学与技术国家重点实验室,北京 100081
2 北京理工大学计算机学院智能信息技术北京市重点实验室,北京 100081

收稿日期:2022-03-16 修回日期:2022-06-10 出版日期:2022-10-19 发布日期:2023-03-28

作者简介:

王成 (1972—),男,内蒙古商都人,博士,教授,爆炸科学与技术国家重点实验室主任,教育部长江学者特聘教授,国家杰出青年科学基金获得者,主要从事爆炸理论、安全防护等方面的研究及高精度仿真软件研发。E-mail: wangcheng@bit.edu.cn。

张文耀副教授,

基金资助:
国家自然科学基金重点项目资助(11732003)

Development and applications of large-scale and high order accurate simulation software for hazardous chemical explosion

WANG Cheng¹(), QIAN Chengeng¹, ZHANG Wenyao², GU Gongtian¹, CUI Yangyang¹

1 State Key Laboratory of Explosion Science and Technology, Beijing Institute of Technology, Beijing 100081, China
2 Beijing Laboratory of Intelligent Information Technology, School of Computer Science and Technology, Beijing Institute of Technology, Beijing 100081, China

Received:2022-03-16 Revised:2022-06-10 Online:2022-10-19 Published:2023-03-28

摘要/Abstract

摘要：

为精准模拟大尺度化工园区、城市建(构)筑物群、加油/气站等场景内多元、多相危险化学品爆炸传播时空演化,基于多组分反应流Navier-Stokes控制方程,研发高精度保正加权本质无振荡限差分格式、Compact-WENO杂交有限差分格式等先进的数值计算方法;结合网格自适应、计算区域自适应扩大等高效加速算法与信息传递接口并行方法,采用Fortran语言自主开发危化品爆炸高精度有限差分求解器;采用C++语言基于面向对象程序设计方法自主开发适用于有限差分格式的前后处理模块;集成高精度求解器与前后处理模块,自主研发危化品爆炸大规模高精度仿真软件。结果表明:该软件可计算包含任意种组分的化学反应模型,具有多种湍流及湍流燃烧模型,能够实现危化品泄漏-扩散-爆炸全过程数值仿真。

关键词: 危化品爆炸, 高精度仿真软件, 高精度有限差分格式(HFD), 大规模并行计算, 湍流燃烧

Abstract:

In order to accurately simulate the temporal and spatial evolution of explosion propagation of multi-component and multiphase hazardous chemicals in large-scale chemical parks, urban buildings (structures), refueling/gas stations and other scenarios, based on the multi-component reactive Navier-Stokes governing equation, high order accurate positive-preserving weighted essential non-oscillatory finite difference scheme and, Compact-WENO hybrid finite difference scheme and other advanced numerical schemes were developed. Combining with efficient acceleration algorithms such as adaptive mesh refinement method, adaptive mesh enlargement method and MPI parallel computing method, a high order accurate finite difference solver for hazardous chemical explosion was independently developed by Fortran language. Using C++ language based on object-oriented programming method, the pre-processing and post-processing modules for finite difference scheme were developed. Integrating high order accurate solver, pre-processing and post-processing modules, large-scale high order accurate simulation software for hazardous chemical explosion was carried out. The results show that the software can simulate the chemical reaction model containing any kind of components, and has a variety of turbulence and turbulent combustion models. It can realize the numerical simulation of the whole process of hazardous chemical leakage-diffusion-explosion.

Key words: hazardous chemicals explosion, high precision simulation software, high order finite difference scheme (HFD), large-scale parallel computing, turbulent combustion

王成, 钱琛庚, 张文耀, 谷恭天, 崔洋洋. 危化品爆炸大规模高精度仿真软件研发与应用[J]. 中国安全科学学报, 2022, 32(9): 20-28.

WANG Cheng, QIAN Chengeng, ZHANG Wenyao, GU Gongtian, CUI Yangyang. Development and applications of large-scale and high order accurate simulation software for hazardous chemical explosion[J]. China Safety Science Journal, 2022, 32(9): 20-28.

图/表 15

图1

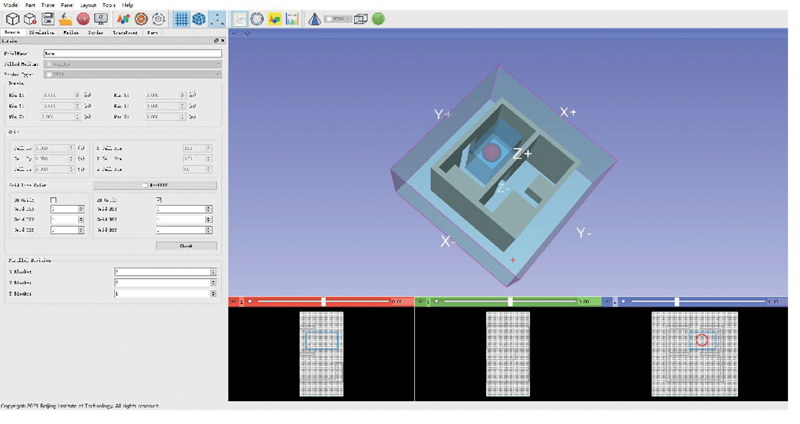

图2

图3

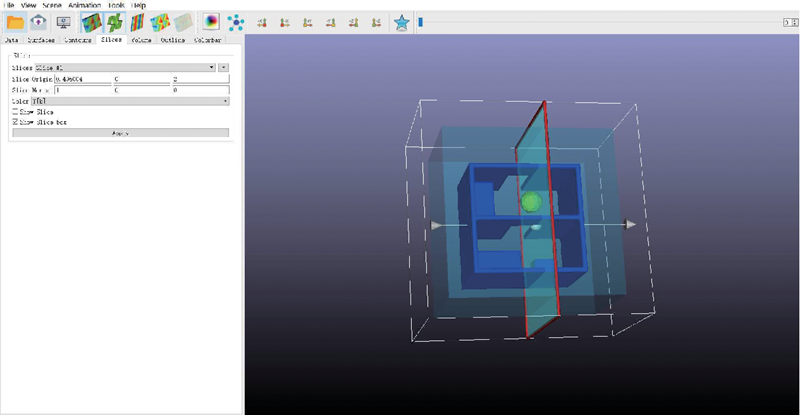

图4

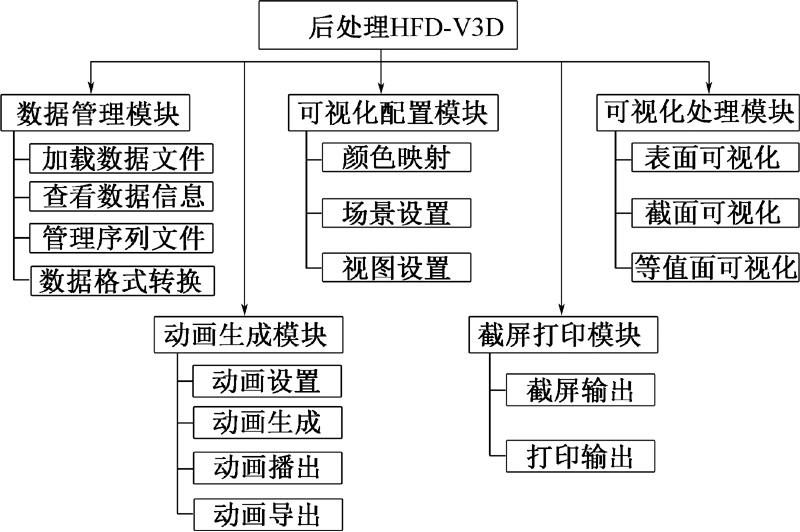

图5

图6

图7

图8

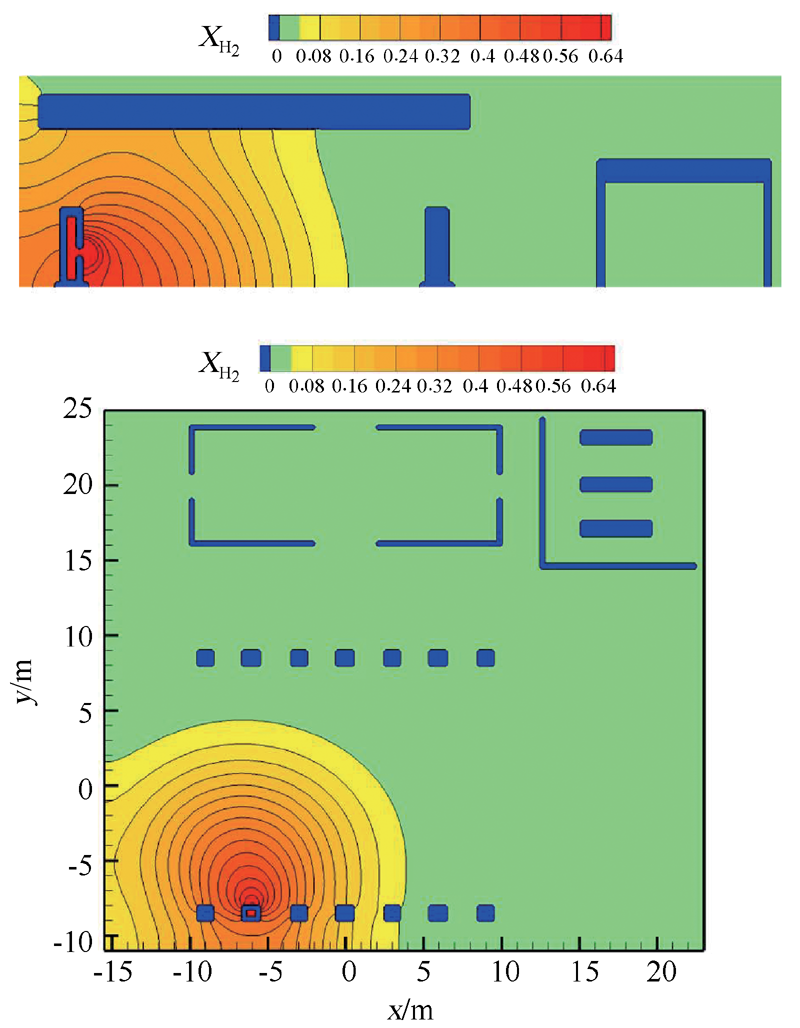

图9

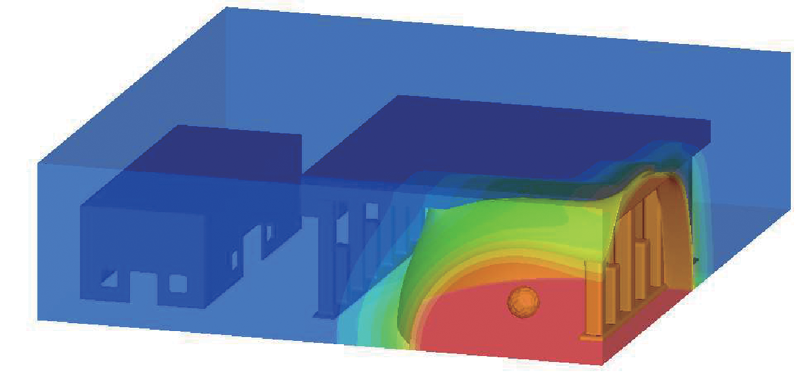

图10

表1

图11

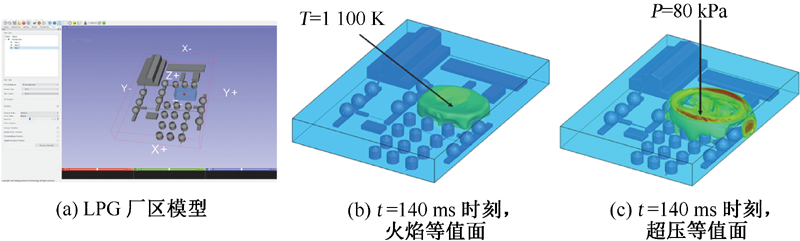

图12

图13

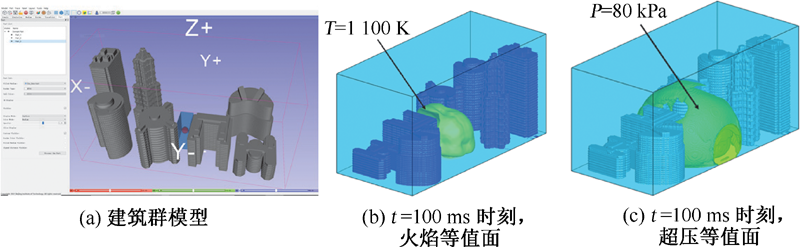

图14

参考文献 32

[1]	ZHENG Xue, WANG Bing, ZHAO Yunmeng, et al. A knowledge graph method for hazardous chemical management: ontology design and entity identification[J]. Neurocomputing, 2021, 430(21): 104-111. doi: 10.1016/j.neucom.2020.10.095
[2]	王志荣, 孙培培, 唐振华, 等. 密闭容器甲烷-空气混合物爆炸的尺寸效应[J]. 中国安全科学学报, 2021, 31(1): 60-66. doi: 10.16265/j.cnki.issn 1003-3033.2021.01.009
	WANG Zhirong, SUN Peipei, TANG Zhenhua, et al. Size effect of methane-air mixture explosion in closed vessel[J]. China Safety Science Journal, 2021, 31(1): 60-66. doi: 10.16265/j.cnki.issn 1003-3033.2021.01.009
[3]	SINGH J. Gas explosions in single and compartmented vessels[D]. London: University of London, 1978.
[4]	刘如成, 朱云飞. 煤矿长壁工作面瓦斯爆炸全尺寸模拟[J]. 中国安全科学学报, 2018, 28(12): 58-64. doi: 10.16265/j.cnki.issn1003-3033.2018.12.010
	LIU Rucheng, ZHU Yunfei. Full-scale simulation of gas explosion at longwall coalface in coalmine[J]. China Safety Science Journal, 2018, 28(12): 58-64. doi: 10.16265/j.cnki.issn1003-3033.2018.12.010
[5]	JONES W P, LAUNDER B E. The prediction of laminarization with a two-equation model of turbulence[J]. International Journal of Heat and Mass Transfer, 1972, 15(2): 301-314. doi: 10.1016/0017-9310(72)90076-2
[6]	BRAY K N C. Studies of turbulent burning velocity[J]. Proceedings of the Royal Society of London. Series A: Mathematical, Physical and Engineering Sciences, 1990, 431:315-335.
[7]	BORIS J P, BOOK D L. Solution of continuity equations by the method of flux-corrected transport[J]. Methods in Computational Physics Advances in Research & Applications, 1976, 16:85-129.
[8]	LAUNDER B E, SPALDING D P. The numerical computation of turbulent flows[J]. Computer Methods in Applied Mechanics and Engineering, 1974, 3: 269-289. doi: 10.1016/0045-7825(74)90029-2
[9]	PATANKAR S V. Numerical heat transfer and fluid flow[M]. Florida: CRC Press, 1980: 79-109.
[10]	CHAPMAN T C, ROSE T A, SMITH P D. Blast wave simulation using AUTODYN2D: a parametric study[J]. International Journal of Impact Engineering, 1995, 16(5):777-787. doi: 10.1016/0734-743X(95)00012-Y
[11]	WHIRLEY R G, ENGELMANN B E. Recent developments in DYNA3D for impact problems[J]. Nuclear Engineering and Design, 1992, 138(1): 11-22. doi: 10.1016/0029-5493(92)90274-Y
[12]	NOR M, HO C S, MAAT N, et al. Modelling shock waves in composite materials using generalised orthotropic pressure[J]. Continuum Mechanics and Thermodynamics, 2020, 32(4): 1217-1229. doi: 10.1007/s00161-019-00835-6
[13]	HALLQUIST J O, WAINSCOTT B, SCHWEIZERHOF K. Improved simulation of thin-sheet metalforming using LS-DYNA3D on parallel computers[J]. Journal of Materials Processing Technology, 1995, 50: 144-157. doi: 10.1016/0924-0136(94)01376-C
[14]	GOODWIN D G. An open-source, extensible software suite for CVD process simulation[J]. Chemical Vapor Deposition XVI and EUROCVD, 2003, 14(40): 2003-2008.
[15]	SMAGORINSKY J. General circulation experiments with the primitive equations[J]. Monthly Weather Review, 1963, 91: 99-164. doi: 10.1175/1520-0493(1963)091【-逻辑与-】lt;0099:GCEWTP【-逻辑与-】gt;2.3.CO;2
[16]	NICOUD F, DUCROS F. Subgrid-scale stress modelling based on the square of the velocity gradient tensor[J]. Flow Turbulence and Combustion, 1999, 62 (3): 183-200. doi: 10.1023/A:1009995426001
[17]	CHARLETTE F, CHARLES M, DENIS V. A power-law flame wrinkling model for LES of premixed turbulent combustion Part II: dynamic formulation[J]. Combustion and Flame, 2002, 131: 181-197. doi: 10.1016/S0010-2180(02)00401-7
[18]	WANG Cheng, BI Yong, HAN Wenhu, et al. Large-scale parallel computing for 3D gaseous detonation[J]. Procedia Engineering, 2013, 61: 276-283. doi: 10.1016/j.proeng.2013.08.016
[19]	LI Peng, DON Waisun, WANG Cheng, et al. High order positivity-and bound-preserving hybrid compact-weno finite difference scheme for the compressible Euler equations[J]. Journal of Scientific Computing, 2018, 74(2): 640-666. doi: 10.1007/s10915-017-0452-5
[20]	TORO E F. Riemann solvers and numerical methods for fluid dynamics[M]. Berlin Heidelberg: Springer, 2009: 426-439.
[21]	RANGO S D, ZINGG D W. Aerodynamic computations using a higher-order algorithm[J]. AIAA, 1999, 99 (167): 1296-1304.
[22]	GOTTLIEB S, SHU Chiwang, TADMOR E. Strong stability-preserving high-order time discretization methods[J]. SIAM Review, 2001, 43: 89-112. doi: 10.1137/S003614450036757X
[23]	CHRISTOPHER A K, CARPENTER H M. Additive Runge-Kutta schemes for convection-diffusion-reaction equations[J]. Applied Numerical Mathematics, 2003, 44 (1): 139-181. doi: 10.1016/S0168-9274(02)00138-1
[24]	BAUM M, POINSOT T, THEVENIN D. Accurate boundary conditions for multicomponent reactive flows[J]. Journal of Computational Physics, 1994, 116: 247-261. doi: 10.1006/jcph.1995.1024
[25]	MA Tianbao, WANG Cheng. Parallel simulation of explosion in an unlimited atmosphere[J]. Modern Physics Letters B, 2010, 24(13):1349-1352. doi: 10.1142/S0217984910023591
[26]	WANG Cheng, NING Jianguo, MA Tianbao. Numerical simulation of detonation and multi-material interface tracking[J]. Cmc-Computers Materials & Continua, 2011, 22 (1):73-95.
[27]	王成, 孔泽宇, 李涛, 等. 二维任意凸四边形网格的MoF界面重构解析算法[J]. 北京理工大学学报, 2021, 41(4): 380-387.
	WANG Cheng, KONG Zeyu, LI Tao, et al. Analytic calculation of MoF interface reconstruction on 2D arbitrary convex quadrangle grids[J]. Transactions of Beijing Institute of Technology, 2021, 41(4): 380-387.
[28]	WANG Cheng, DING Jianxu, SHU Chiwang, et al. Three-dimensional ghost-fluid large-scale numerical investigation on air explosion[J]. Computers & Fluids, 2016, 137: 70-79. doi: 10.1016/j.compfluid.2016.07.015
[29]	WANG Wanli, WANG Cheng, YANG Tonghui, et al. A friction interface model for multi-material interactions in a Eulerian framework[J]. Journal of Computational Physics, 2020, 433:DOI: 10.1016/j.jcp.2020.110057. doi: 10.1016/j.jcp.2020.110057
[30]	WANG Cheng, DONG Xinzhuang, SHU Chiwang. Parallel adaptive mesh refinement method based on WENO finite difference scheme for the simulation of multi-dimensional detonation[J]. Journal of Computational Physics, 2005, 298: 161-175. doi: 10.1016/j.jcp.2015.06.001
[31]	LI Tao, WANG Cheng, YANG Tonghui, et al. A novel construction method of computational domains on large-scale near-ground explosion problems[J]. Journal of Computational Physics, 2020, 407:DOI: 10.1016/j.jcp.2019.109226. doi: 10.1016/j.jcp.2019.109226
[32]	傅智敏, 黄金印, 臧娜. 爆炸冲击波上海破坏作用定量分析[J]. 消防科学与技术, 2009, 28(6):390-395.
	FU Zhimin, HUANG Jinyin, ZANG Na. Quantitative analysis for consequence of explosion shock wave[J]. Fire Science and Technology, 2009, 28(6): 390-395.

压力阈值/kPa	损伤情况
[5, 15]	门框玻璃部分损坏
(15, 20]	窗框损坏
(20, 50]	墙体产生裂纹
(50, 70]	木制厂房折断
(70, 100]	砖墙倒塌
(100, 200]	钢筋混凝土结构破坏
(200, 300]	大型钢架结构破坏
