内嵌式框架摇摆墙结构抗震性能研究

doi:10.16265/j.cnki.issn1003-3033.2022.S2.0044

摘要/Abstract

摘要：

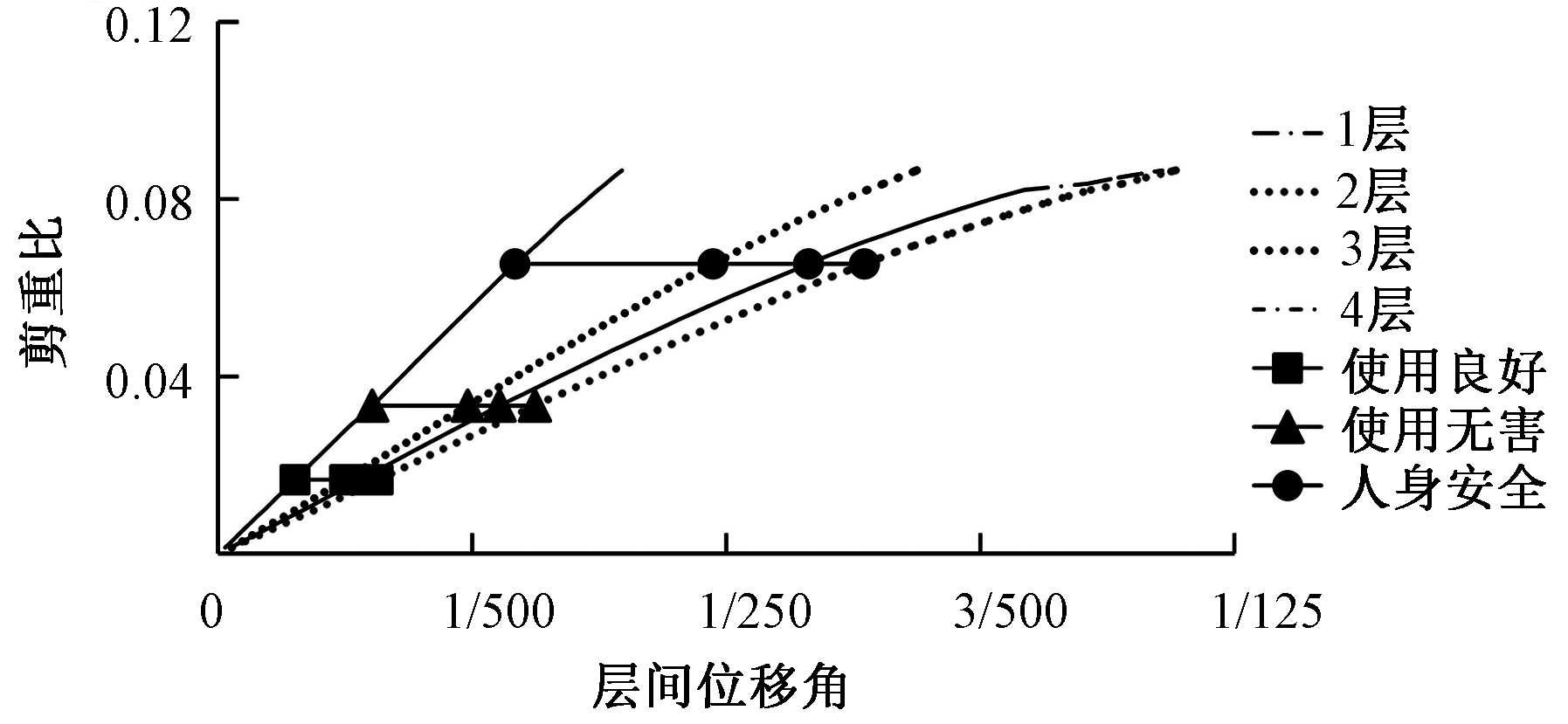

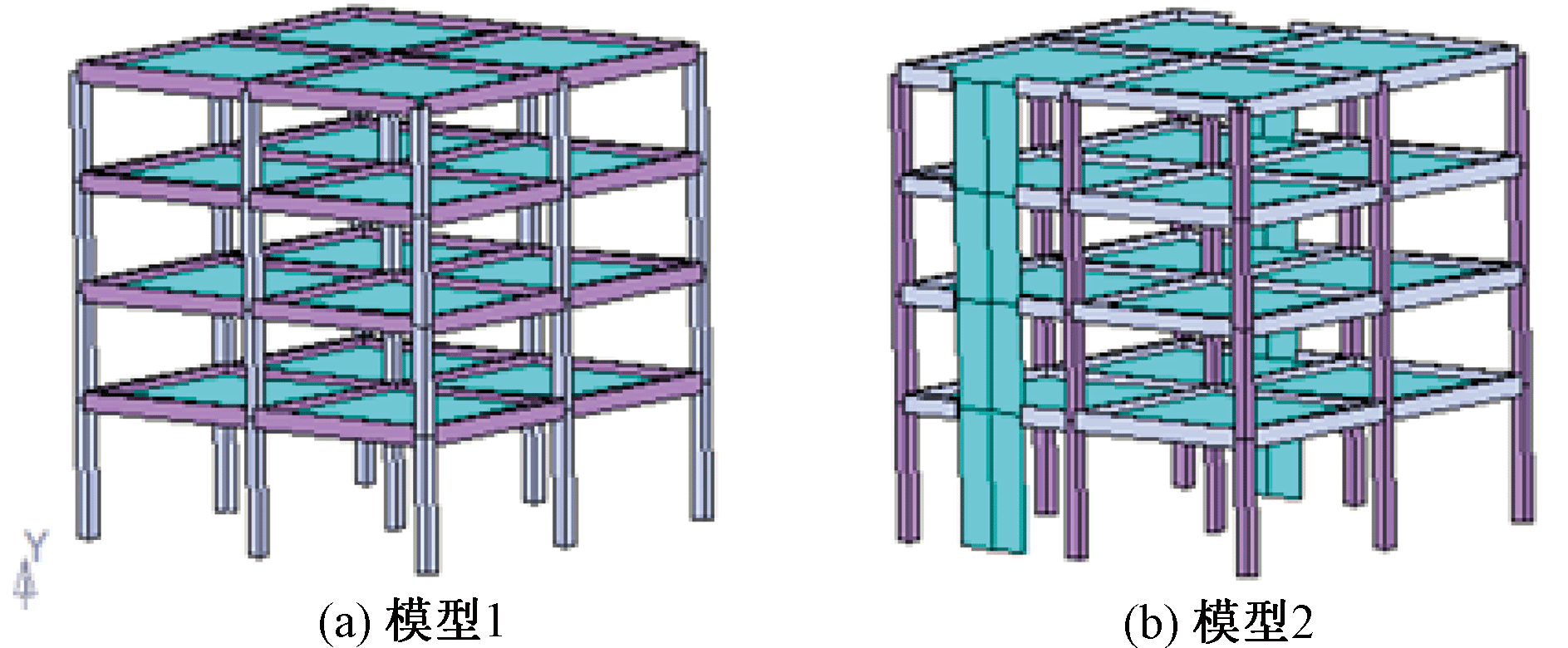

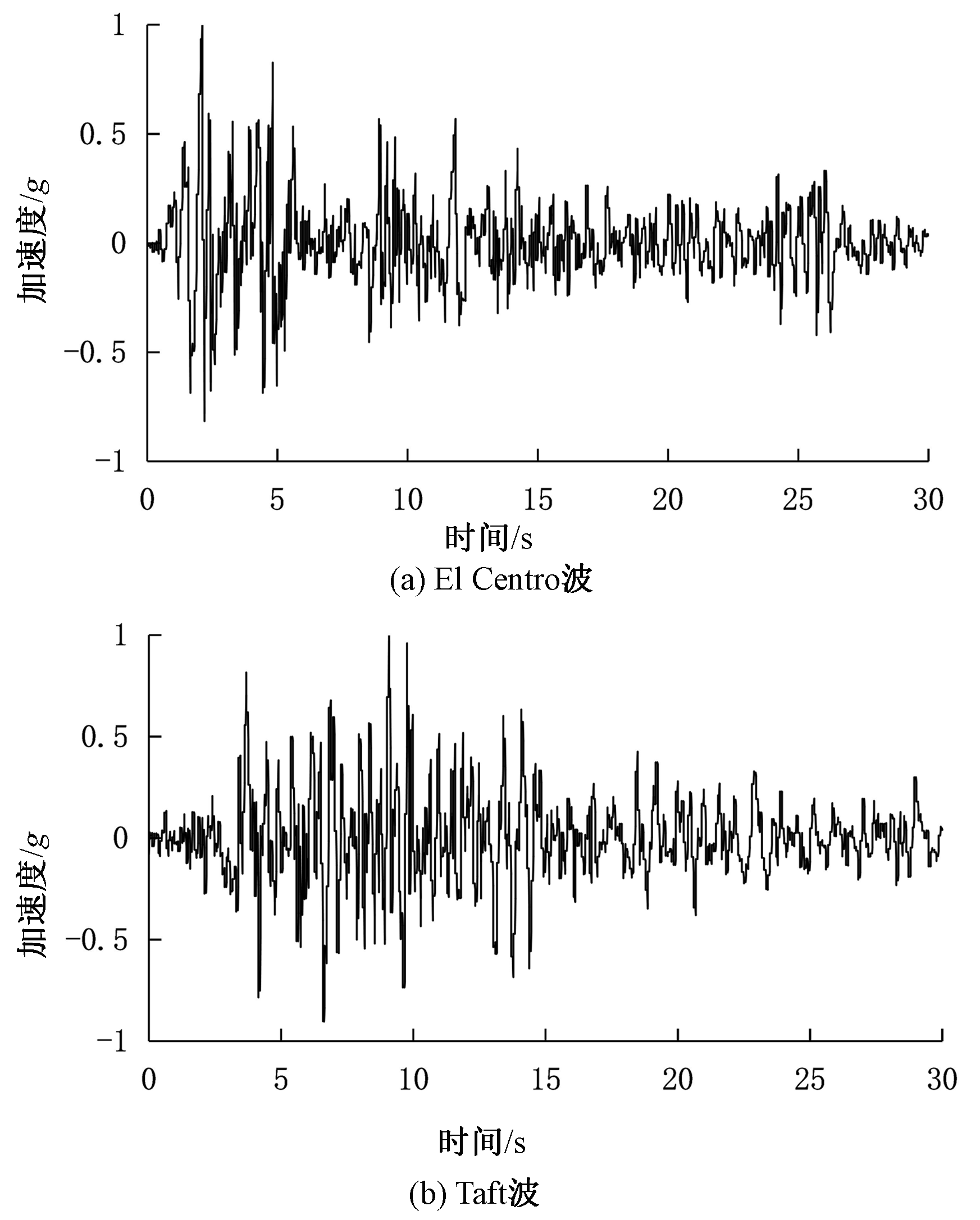

为研究内嵌式摇摆墙对钢筋混凝土(RC)框架结构抗震性能的影响,以1个4层RC框架结构为例,基于通用有限元分析平台分别建立RC框架结构和内嵌式RC框架摇摆墙结构模型,并采用时程分析和Pushover分析研究结构地震响应和性能水平。通过结构整体响应反应谱分析研究摇摆对结构整体刚度的影响;分析结构楼层响应反应谱,研究摇摆对结构楼层响应影响;Pushover研究摇摆强对结构变形的作用机制,以及对结构耗能机制和损伤分布的影响,从拟静力的角度揭示框架摇摆墙结构的地震损伤演化过程。研究表明:内嵌式摇摆墙可减小结构的振动响应,使结构破坏模式由层间破坏机制向整体破坏机制转变,可提高原RC框架结构的刚度和承载力,但并不能分担框架部分的基底剪力。

关键词: 钢筋混凝土(RC), 框架结构, 内嵌式框架摇摆墙结构, 破坏模式, 抗震性能, Pushover

Abstract:

In order to study the seismic behavior of the RC frame with an in-filled rocking wall, a 4-story RC frame was taken as an example. The RC frame and the model of the embedded frame structure with an in-filled rocking wall were established by the finite element analysis software. Seismic response and performance of structures were analyzed using time-procedure analysis and Pushover analysis. Response spectrum analysis was used to study the influence of an in-filled rocking wall on the overall stiffness, and the influence on floor response was also analyzed by the same way. The action mechanism of in-filled rocking wall strength on structural deformation and influence on energy dissipation and damage distribution of structures were analyzed by Pushover. The seismic damage evolution process of the RC frame with an in-filled rocking wall was revealed from the pseudo-static. The analysis results show that the in-filled rocking wall can decrease seismic response. The inter-story drift becomes more uniformly distributed, and the in-filled rocking wall prevents the story failure behavior. The in-filled rocking wall significantly improves the strength and ductility of the entire structure but cannot share the base shear force of the frame.

Key words: reinforced concrete (RC) frame structure, embedded frame structure with in-filled rocking wall, failure mode, seismic behavior, Pushover

孙魁, 郭昌锋, 刘洪宇. 内嵌式框架摇摆墙结构抗震性能研究[J]. 中国安全科学学报, 2022, 32(S2): 153-159.

SUN Kui, GUO Changfeng, LIU Hongyu. Research on seismic performance of embedded frame structure with in-filled rocking wall[J]. China Safety Science Journal, 2022, 32(S2): 153-159.

图/表 12

图1

图2

图3

图4

图 5

表1

图6

图7

图8

表2

图9

图10

参考文献 16

[1]	叶列平, 金鑫磊, 田源, 等. 建筑结构抗震“体系能力设计法”综述[J]. 工程力学, 2022, 39(5): 1-12.
	YE Lieping, JIN Xinlei, TIAN Yuan, et al. System capacity design method″ for the seismic design of building structures: a review[J]. Engineering Mechanics, 2022, 39(5):1-12.
[2]	叶列平, 林旭川, 曲哲, 等. 基于广义结构刚度的构件重要性评价方法[J]. 建筑科学与工程学报, 2010, 27(1):1-6, 20.
	YE Lieping, LIN Xuchuan, QU Zhe, et al. Evaluating method of element importance of structural system based on generalized structural stiffness[J]. Journal of Architecture and Civil Engineering, 2010, 27(1):1-6, 20.
[3]	林旭川, 叶列平. 基于构件重要性指标的RC框架结构抗震优化设计研究[J]. 建筑结构学报, 2012, 33(6): 16-21.
	LIN Xuchuan, YE Lieping. Study on optimization of seismic design for RC frames based on member importance index[J]. Journal of Building Structures, 2012, 33(6): 16-21.
[4]	王啸霆, 曲哲, 王涛. 损伤可控的塑性铰支墙抗震性能试验研究[J]. 土木工程学报, 2016, 49(增1): 131-136.
	WANG Xiaoting, QU Zhe, WANG Tao. Seismic behavior of damage-controlled plastic hinge-supported walls[J]. China Civil Engineering Journal, 2016, 49(S1): 131-136.
[5]	徐龙河, 张焱, 肖水晶. 底部铰支自复位钢筋混凝土剪力墙设计与性能研究[J]. 工程力学, 2020, 37(6): 122-130.
	XU Longhe, ZHANG Yan, XIAO Shuijing. Design and behavior study on bottom hinged self-centering reinforced concrete shear wall[J]. Engineering Mechanics, 2020, 37(6): 122-130.
[6]	WANG Xiaoting, WANG Tao, QU Zhe. An experimental study of a damage-controllable plastic-hinge-supported wall structure[J]. Earthquake Engineering & Structural Dynamics, 2018, 47(3): 594-612.
[7]	曲哲, 和田章, 叶列平. 摇摆墙在框架结构抗震加固中的应用[J]. 建筑结构学报, 2011, 32(9): 11-19.
	QU Zhe, WADA A, YE Lieping. Seismic retrofit of frame structures using rocking wall system[J]. Journal of Building Structures, 2011, 32(9): 11-19.
[8]	QU Zhe, WADA A, MOTOYUI S, et al. Pin-supported walls for enhancing the seismic performance of building structures[J]. Earthquake Engineering & Structural Dynamics, 2012, 41(14): 2 075-2 091.
[9]	曹海韵, 潘鹏, 叶列平, 等. 混凝土框架摇摆墙结构体系的抗震性能分析[J]. 建筑科学与工程学报, 2011, 28(1):64-69.
	CAO Haiyun, PAN Peng, YE Lieping, et al. Seismic performance analysis of RC frame rocking-wall structure system[J]. Journal of Architecture and Civil Engineering, 2011, 28(1):64-69.
[10]	杨树标, 魏志涛, 谢波涛. 摇摆墙连接方式对结构抗震性能的影响[J]. 工业建筑, 2014, 44(11):99-103.
	YANG Shubiao WEI Zhitao, XIE Botao. Influence of different connections of swaying wall on seismic performance for frame structure[J]. Industrial Construction, 2014, 44(11): 99-103.
[11]	杨树标, 谢波涛, 余丁浩, 等. 内嵌式框架-摇摆墙结构振动台试验研究分析[J]. 建筑科学, 2014, 30(9):31-35.
	YANG Shubiao, XIE Botao, YU Dinghao, et al. Shaking table test analysis of frame structure with bulit-in rocking wall[J]. Building Science, 2014, 30(9):31-35.
[12]	白春, 王来贵, 刘书贤, 等. 煤矿采动对RC 框架结构抗震性能影响试验研究[J]. 中国安全科学学报, 2021, 31(9): 174-183. doi: 10.16265/j.cnki.issn1003-3033.2021.09.024
	BAI Chun, WANG Laigui, LIU Shuxian, et al. Experimental study on influence of coal mining on seismic performance of RC frame structure[J]. China Safety Science Journal, 2021, 31(9): 174-183. doi: 10.16265/j.cnki.issn1003-3033.2021.09.024
[13]	魏晓刚, 麻凤海, 刘书贤. 爆破开采对采空区地面建筑抗震性能的影响分析[J]. 中国安全科学学报, 2015, 25(9): 102-108.
	WEI Xiaogang, MA Fenghai, LIU Shuxian. Analysis of impact of blasting mining on seismic performance of ground buildings in coal mining area[J]. China Safety Science Journal, 2015, 25(9): 102-108.
[14]	FEMA 356, Prestandard and commentary for the seismic rehabilitation of buildings[R], 2000.
[15]	毕云龙. 可控摇摆装置设计及试验研究[D]. 邯郸: 河北工程大学, 2014.
	BI Yunlong. Study on design and test of controllable rocking device[D]. Handan: Hebei University of Engineering, 2014.
[16]	李葱葱, 马东辉, 王志涛. 基于IDA的群体典型框架结构的震害预测研究[J]. 中国安全科学学报, 2013, 23(4):127-132.
	LI Congcong, MA Donghui, WANG Zhitao. Earthquake damage prediction of group typical frame structures based on IDA method[J]. China Safety Science Journal, 2013, 23(4):127-132.

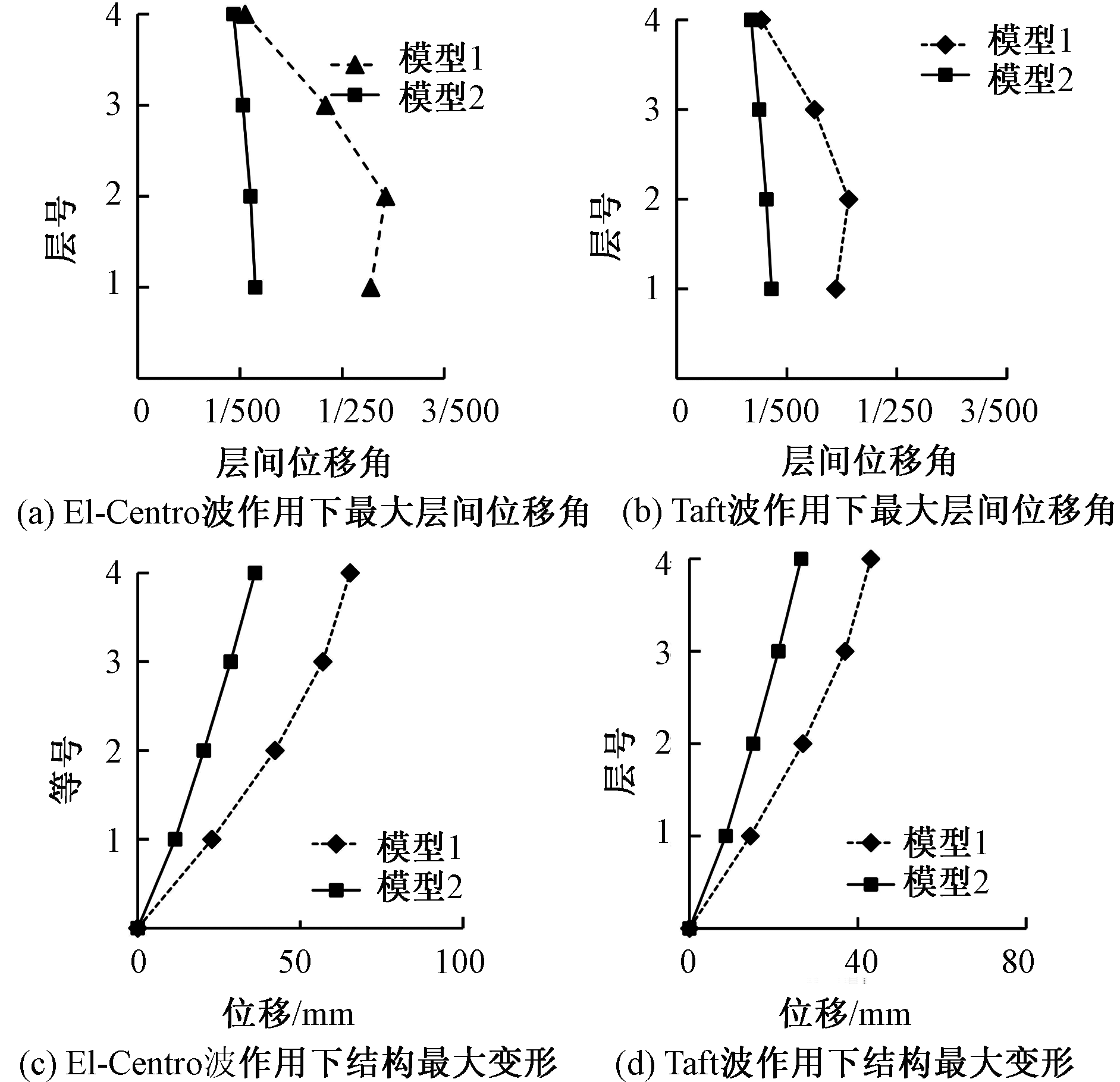

楼层	地震动名称
	El-Centro		Taft
	模型1	模型2	模型1	模型2
1	1/220	1/435	1/346	1/581
2	1/206	2/907	1/320	1/614
3	1/272	1/486	1/400	1/668
4	1/476	1/534	1/651	1/739

性能水平	内嵌式摇摆墙承担结构总基底剪力占比/%
使用良好	32.8
使用无害	32.3
人身安全	33.0
