智慧城市背景下的火灾实时疏散系统

doi:10.16265/j.cnki.issn1003-3033.2023.02.2798

摘要/Abstract

摘要：

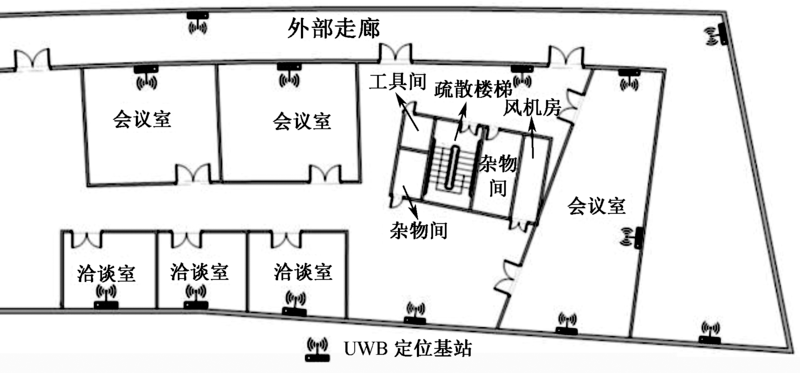

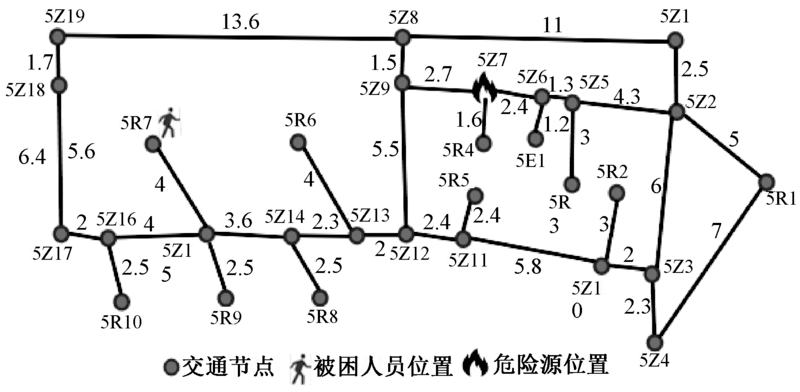

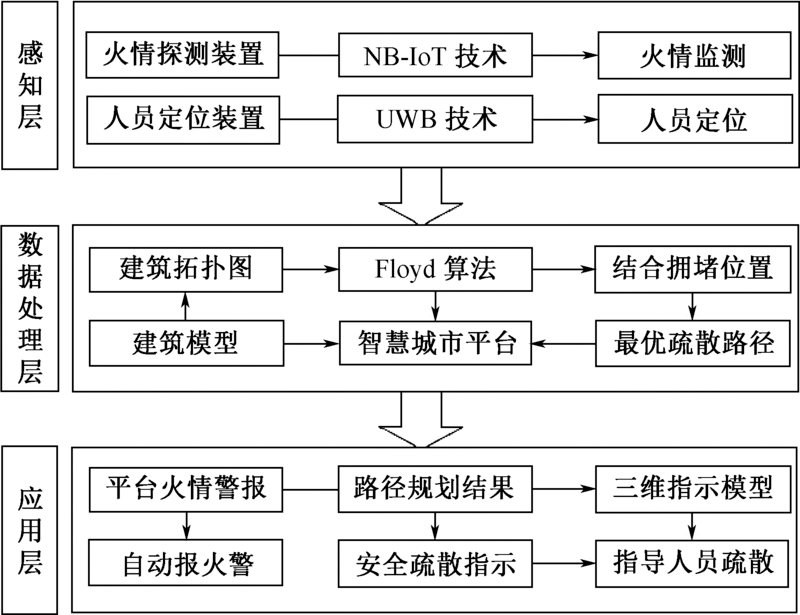

为尽可能减少火灾给城市居民带来的生命威胁与财产损失,首先提出基于物联网(IoT)技术的智慧城市火灾实时疏散系统构建思路;该系统由感知层、数据处理层和应用层组成,其中,感知层主要通过窄带物联网(NB-IoT)技术、超宽带(UWB)技术,实时采集并传输建筑内的火情信息和人员位置信息;数据处理层主要基于Floyd算法和建筑拓扑图规划人员最优疏散路径;应用层则根据疏散路径规划结果指导人员疏散。然后以天津市智慧城市建设示范区域中的学术交流中心为例,选取人员密集区域分析UWB基站布置原则,将建筑平面结构拓扑化;并结合建筑内火灾危险源位置,利用Floyd算法规划疏散路径,同时利用三维模型展示疏散路线;再借助Pathfinder软件模拟优化前后的人员疏散情况,对比所用疏散时间和疏散距离,结果表明:人员自由疏散选择的路径距离较长,算法优化后的疏散距离为34.9 m,缩短了11 m,疏散用时为30.9 s,减少了9.7 s,提高了疏散效率。

关键词: 智慧城市, 火灾实时疏散系统, 疏散路径, 窄带物联网(NB-IoT)技术, 超宽带(UWB), Floyd算法

Abstract:

In order to reduce the life threat and property loss caused by fire to urban residents as much as possible, the construction idea of smart city fire real-time evacuation system based on Internet of Things (IoT) technology is proposed. The system consists of a perception layer, a data processing layer and an application layer. The perception layer mainly collects and transmits fire information and personnel location information in the building in real time through NB-IoT technology and UWB technology. The data processing layer is mainly based on Floyd algorithm and building topology diagram to plan the optimal evacuation path for personnel. The application layer guides personnel to evacuate according to the evacuation path planning results. Taking the academic exchange center in the demonstration area of smart city construction in Tianjin as an example, the layout principle of UWB base station was analyzed in the densely populated area, the evacuation path was planned by Floyd algorithm based on topology of the building plane structure and the location of fire hazard sources in the building, and the evacuation route was displayed by three-dimensional model. The Pathfinder software was used to simulate the evacuation situation before and after optimization, and the evacuation time and evacuation distance were compared. The results showed that the distance of the path chosen by the free evacuation was relatively long. The evacuation distance after optimization of the algorithm was 34.9 m, which was shortened by 11 m, and the evacuation time was 30.9 m, which was reduced by 9.7 s, which improved the evacuation efficiency.

Key words: smart city, real-time fire evacuation system, evacuation path, narrow band-internet of things(NB-IoT) technology, ultra-wideband(UWB), Floyd algorithm

钟炜, 于佳怡. 智慧城市背景下的火灾实时疏散系统[J]. 中国安全科学学报, 2023, 33(2): 179-184.

ZHONG Wei, YU Jiayi. Real-time fire evacuation system under smart city background[J]. China Safety Science Journal, 2023, 33(2): 179-184.

图/表 7

图1

图2

图3

图4

图5

表1

图6

参考文献 18

[1]	应急管理部消防救援局. 数据统计[EB/OL].(2022-01-20). https://www.119.gov.cn/qmxfgk/sjtj/
[2]	闫家伟, 张苗. 大数据驱动的社区火灾风险智能感知预警研究[J]. 消防科学与技术, 2020, 39(12):1731-1734.
	YAN Jiawei, ZHANG Miao. Research on community fire risk intelligent perception and early warning system driven by big data[J]. Fire Science and Technology, 2020, 39(12):1731-1734.
[3]	石来, 陈超, 李晓军, 等. 基于FDS的地下空间增强体验式火灾逃生VR系统[J]. 中国安全科学学报, 2019, 29(4):70-75. doi: 10.16265/j.cnki.issn1003-3033.2019.04.012
	SHI Lai, CHEN Chao, LI Xiaojun, et al. An enhanced VR system for fire drill in underground space based on FDS[J]. China Safety Science Journal, 2019, 29(4):70-75. doi: 10.16265/j.cnki.issn1003-3033.2019.04.012
[4]	郑霞忠, 蔡莉莉, 张明, 等. 多出口条件下应急疏散路径优化模型[J]. 中国安全科学学报, 2019, 29(3):180-186. doi: 10.16265/j.cnki.issn1003-3033.2019.03.030
	ZHENG Xiazhong, CAI Lili, ZHANG Ming, et al. Emergency evacuation path optimization model under multi-export conditions[J]. China Safety Science Journal, 2019, 29(3):180-186. doi: 10.16265/j.cnki.issn1003-3033.2019.03.030
[5]	钟炜, 李志勇, 马晋超. 基于BIM技术的高层火灾应急疏散研究[J]. 消防科学与技术, 2020, 39(6):790-793.
	ZHONG Wei, LI Zhiyong, MA Jinchao. Research on emergency evacuation of high-rise fires based on BIM technology[J]. Fire Science and Technology, 2020, 39(6):790-793.
[6]	叶成豪, 刘月婵, 孙超, 等. 考虑火灾产物影响条件下的人员疏散仿真研究[J]. 中国安全科学学报, 2020, 30(6):142-151. doi: 10.16265/j.cnki.issn1003-3033.2020.06.021
	YE Chenghao, LIU Yuechan, SUN Chao, et al. Simulation study on personnel evacuation considering impacts of fire products[J]. China Safety Science Journal, 2020, 30(6):142-151. doi: 10.16265/j.cnki.issn1003-3033.2020.06.021
[7]	曹祥红, 黄梦溪, 李栋, 等. 基于改进的A^*和人工势场算法的火灾路径规划[J]. 消防科学与技术, 2021, 40(2):204-208.
	CAO Xianghong, HUANG Mengxi, LI Dong, et al. Fire path planning based on improved A^* and artificial potential field algorithm[J]. Fire Science and Technology, 2021, 40(2):204-208.
[8]	梁江涛, 王慧琴. 基于改进蚁群算法的建筑火灾疏散路径规划研究[J]. 系统仿真学报, 2022, 34(5):1044-1053. doi: 10.16182/j.issn1004731x.joss.20-0978
	LIANG Jiangtao, WANG Huiqin. Study on building fire evacuation path planning based on improved Ant colony algorithm[J]. Journal of System Simulation, 2022, 34(5):1044-1053. doi: 10.16182/j.issn1004731x.joss.20-0978
[9]	杨阿勇, 赵金城, 华莹, 等. 考虑走廊人流影响的建筑火灾人员疏散研究[J]. 计算机仿真, 2021, 38(1):421-425, 490.
	YANG Ayong, ZHAO Jincheng, HUA Ying, et al. Study on the overall evacuation in fire considering the flow of people in corridor[J]. Computer Simulation, 2021, 38(1):421-425, 490.
[10]	陈远, 任荣. 基于BIM的建筑消防安全管理应用框架研究[J]. 图学学报, 2016, 37(6):816-821.
	CHEN Yuan, REN Rong. The research of the BIM-based building fire safety management framework[J]. Journal of Graphics, 2016, 37(6):816-821.
[11]	王佳, 张晨曦, 陆一昕, 等. 基于BIM的消防设备设计平台构建研究[J]. 消防科学与技术, 2020, 39(11):1522-1525.
	WANG Jia, ZHANG Chenxi, LU Yixin, et al. Research on the construction of fire equipment design platform based on BIM[J]. Fire Science and Technology, 2020, 39(11):1522-1525.
[12]	周长瑜. 国内外智慧城市发展现状研究[J]. 美与时代:城市版, 2021(2):106-107.
[13]	龙瀛, 张雨洋, 张恩嘉, 等. 中国智慧城市发展现状及未来发展趋势研究[J]. 当代建筑, 2020(12):18-22.
	LONG Ying, ZHANG Yuyang, ZHANG Enjia, et al. The research on the present situation and future development of China's smart city[J]. Contemporary Architecture, 2020(12):18-22.
[14]	刘占省, 张安山, 王文思, 等. 数字孪生驱动的冬奥场馆消防安全动态疏散方法[J]. 同济大学学报:自然科学版, 2020, 48(7):962-971.
	LIU Zhansheng, ZHANG Anshan, WANG Wensi, et al. Dynamic fire evacuation guidance method for winter Olympic venues based on digital twin-driven model[J]. Journal of Tongji University:Natural Science, 2020, 48(7):962-971.
[15]	武志凯. 基于UWB的室内定位技术及系统研究[D]. 太原: 中北大学, 2021.
	WU Zhikai. Research on indoor positioning technology and system based on UWB[D]. Taiyuan: North University of China, 2021.
[16]	吴小军. 基于NB-IoT的无线传感器网络技术研究[D]. 上海: 东华大学, 2019.
	WU Xiaojun. Research of WSNs technology based on NB-IoT[D]. Shanghai: Donghua University, 2019.
[17]	唐爽权, 张博峰, 穆森, 等. 基于Floyd算法的最优路径规划问题[J]. 科学技术创新, 2021(24):16-17.
[18]	BABRAUSKAS V, WILLIAMSON R B. The historical basis of fire resistance testing:part I[J]. Fire Technology, 1978, 14(3): 184-194. doi: 10.1007/BF01983053

路径规划方式	人员所在位置	危险所在位置	安全出口位置	疏散路径	疏散距离/m	疏散时间/s
未使用算法	5R7	5Z7	5E1	5R7→5Z15→5Z14→5Z13→5Z12→5Z9→5Z12 →5Z11→5Z10→5Z3→5Z2→5Z5→5Z6→5E1	45.9	40.6
使用算法	5R7	5Z7	5E1	5R7→5Z15→5Z14→5Z13→5Z12→5Z11 →5Z10→5Z3→5Z2→5Z5→5Z6→5E1	34.9	30.9
