冷环境下基于暖体假人的帐篷内部热舒适性研究

doi:10.16265/j.cnki.issn1003-3033.2023.03.1129

中国安全科学学报 ›› 2023, Vol. 33 ›› Issue (3): 220-227.doi: 10.16265/j.cnki.issn1003-3033.2023.03.1129

冷环境下基于暖体假人的帐篷内部热舒适性研究

兰明强¹^,²(), 李亚运², 王祥¹^,², 郭贤², 刘小勇²^,^**()

¹ 安徽建筑大学土木工程学院,安徽合肥 230601
² 清华大学合肥公共安全研究院灾害环境人员安全安徽省重点实验室,安徽合肥 230601

收稿日期:2022-10-20 修回日期:2023-01-12 出版日期:2023-03-28 发布日期:2023-11-28
通讯作者: **刘小勇(1980—),男,江西吉安人,博士,正高级工程师,主要从事应急资源装备环境适应性研究。E-mail: liuxiaoyong@gsafety.com。
作者简介:
兰明强 (1996—),男,安徽合肥人,硕士研究生,主要研究方向为应急装备环境适应性、人员安全个体防护。E-mail:lanmingqiang2021@163.com,
李亚运工程师
基金资助:
国家自然科学基金资助(52074163); 国家重点研发计划课题(2022YFC3006103); 安徽省重点研发计划标准化专项(202104h04020012)

Thermal comfort study on tent interior based on thermal manikin in cold environment

LAN Mingqiang¹^,²(), LI Yayun², WANG Xiang¹^,², GUO Xian², LIU Xiaoyong²^,^**()

¹ School of Civil Engineering, Anhui University of Architecture, Hefei Anhui 230601, China
² Hefei Institute of Public Safety Research, Tsinghua University,Anhui Key Laboratory of Disaster Environmental Personnel Safety, Hefei Anhui 230601,China

Received:2022-10-20 Revised:2023-01-12 Online:2023-03-28 Published:2023-11-28

摘要/Abstract

摘要：

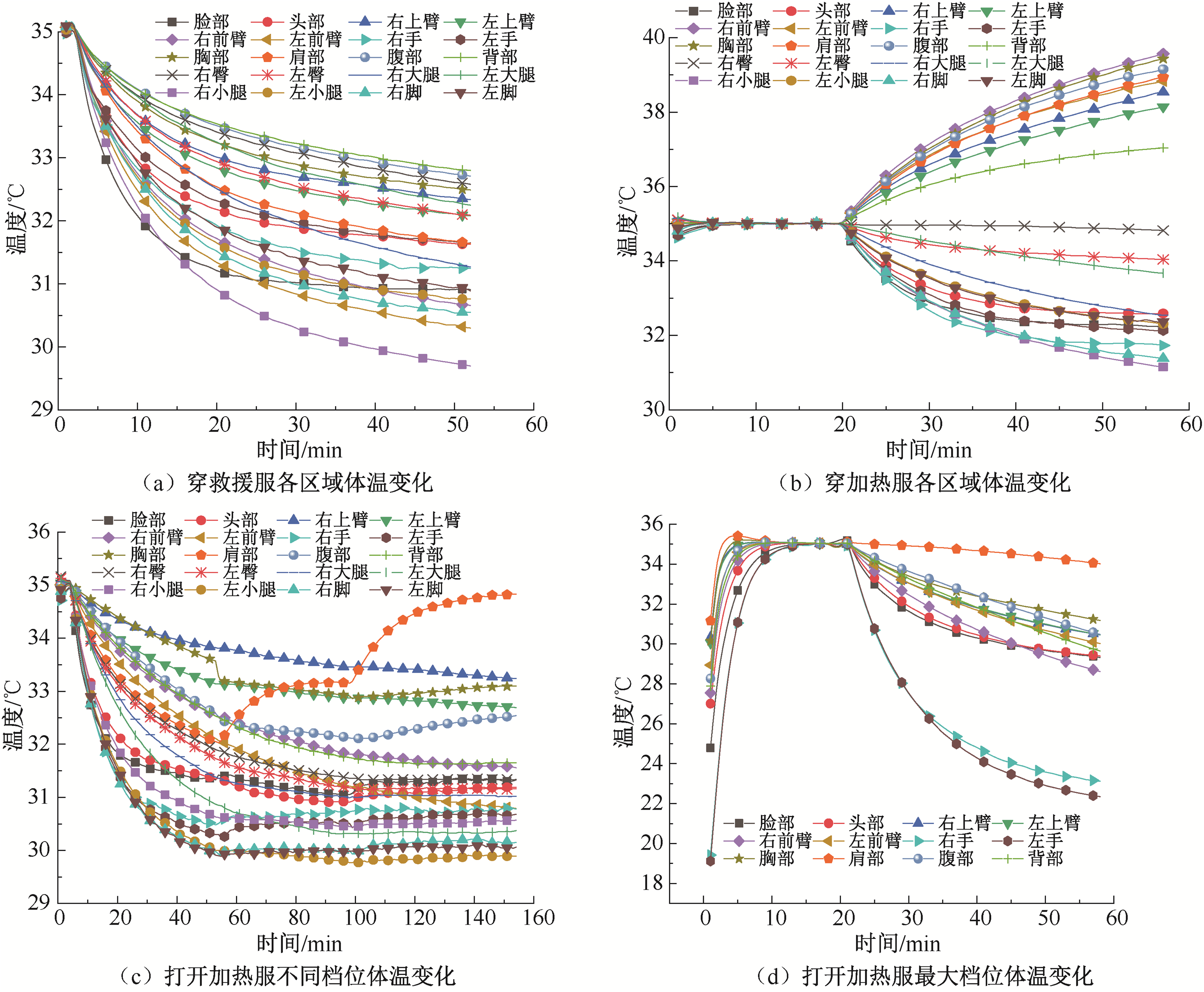

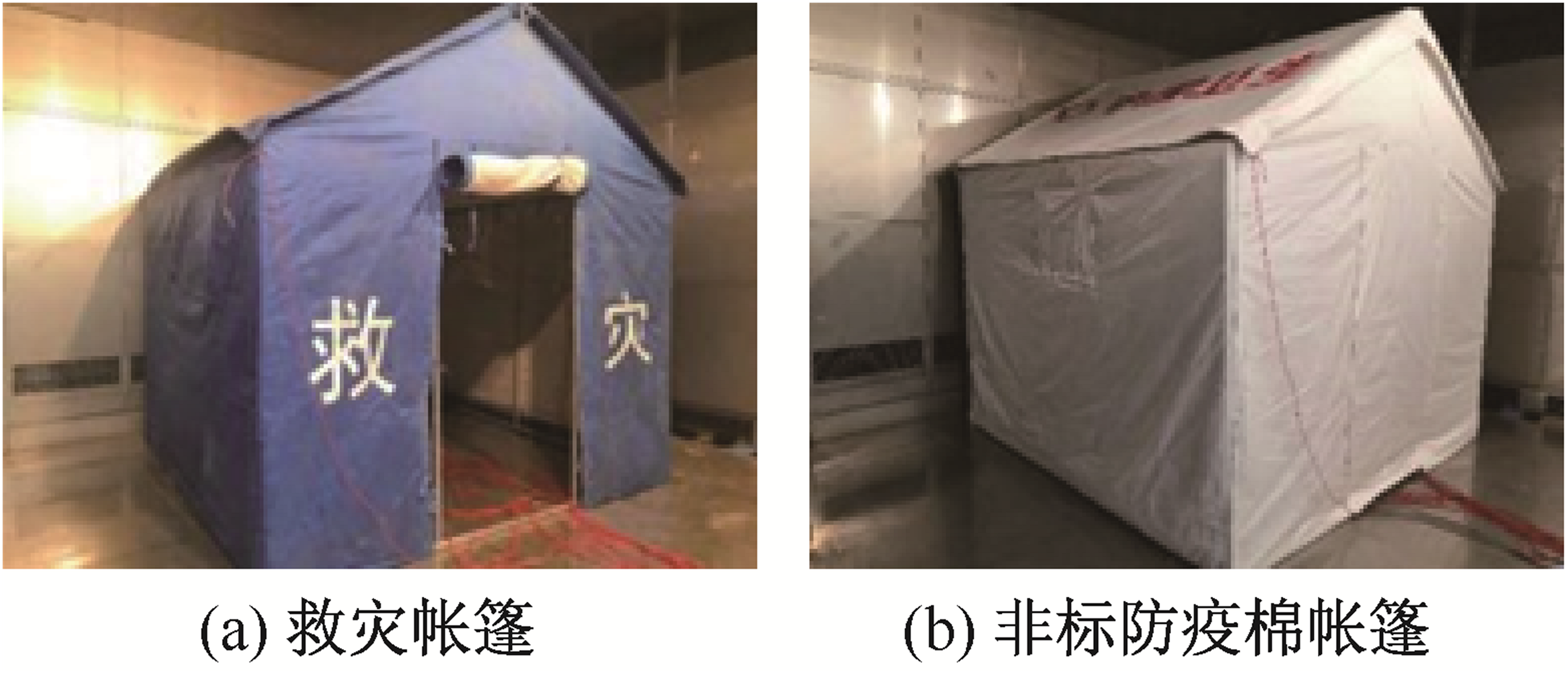

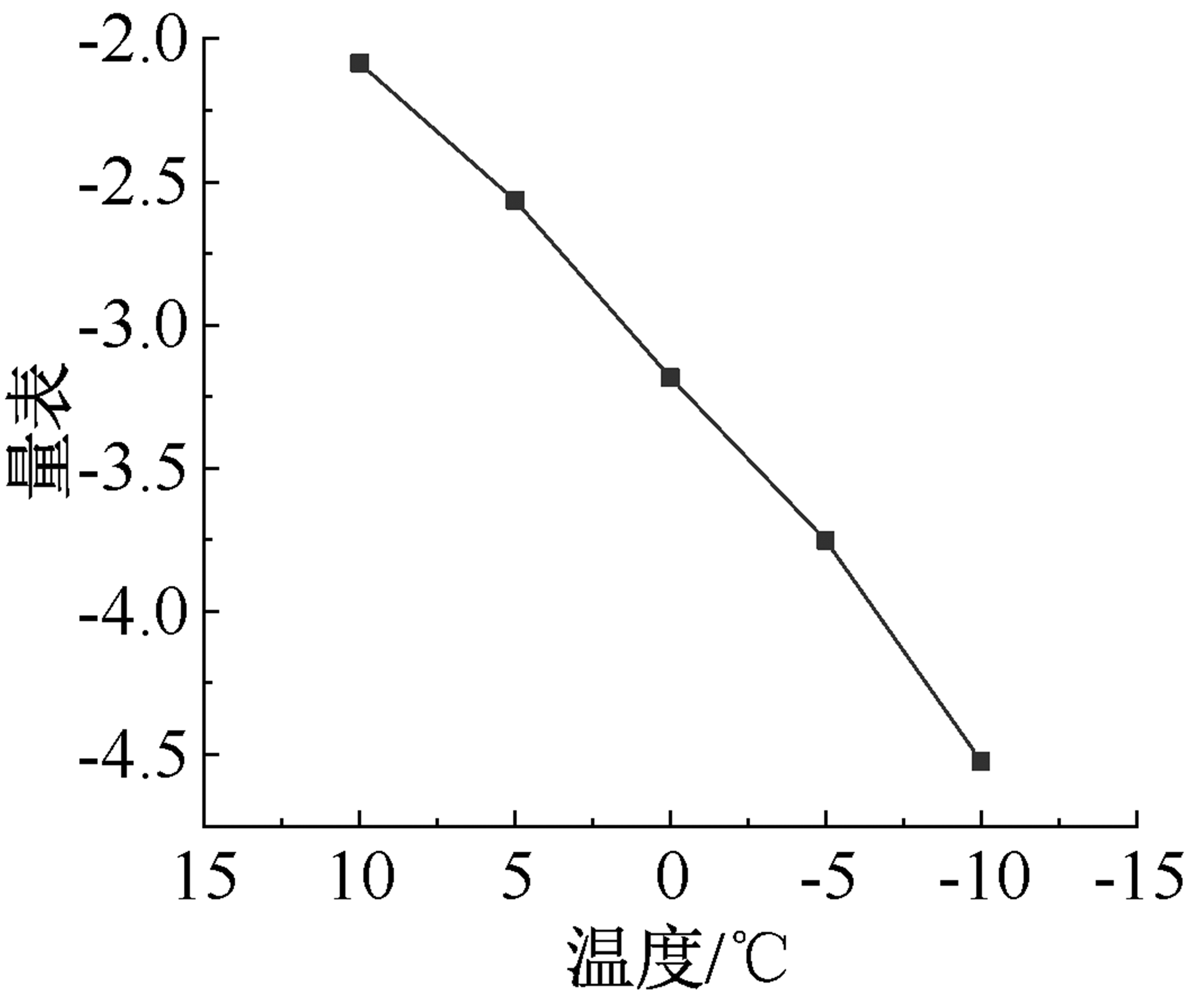

为了解冷环境下帐篷内部温度变化规律和人员服装需求热阻(IREQ)及身体区域失温风险,以国标救灾帐篷和非标防疫棉帐篷为对象,利用暖体假人开展-10~10 ℃环境下试验,探究不同类型帐篷的保温性能,并利用经验公式评价人员在帐篷内热舒适性,根据服装热阻对人与环境换热过程的影响,分析暖体假人各部位温度变化情况及加热服对身体区域的改善效果。研究结果表明:国标救灾帐篷比非标防疫棉帐篷保温性能好,且温度越低两者相差越大;人在帐篷内部的热舒适性随温度降低而降低,其中,地板温度对人体局部不满意率影响较大;当服装热阻低于需求热阻时,暖体假人左前臂和右小腿温度下降幅度最大,分别为4.7和5.3 ℃,当打开加热服加热,服装覆盖区域温度明显上升;当环境温度降到-10 ℃,即使打开45 ℃加热档位暖体假人各区域温度仍出现明显下降,其中暖体假人左前臂下降5.3 ℃,右前臂下降6.5 ℃左右。

关键词: 冷环境, 暖体假人, 帐篷内部, 热舒适性, 需求热阻, 失温风险

Abstract:

In order to understand the law of temperature change inside the tent, the personnel required clothing insulation(IREQ) and the risk of hypothermia in a cold environment, the national standard disaster relief tent and epidemic prevention tent were used to carry out experimental research in the environment from -10 to 10 ℃ using the thermal manikin to explore the thermal insulation performance of different types of tents. The empirical formula was used to evaluate the thermal comfort of personnel inside the tent. The improvement effect of the heated clothing on the body area was analyzed according to the thermal resistance of clothing on the heat exchange process between people and the environment influence, the temperature change of various parts of the thermal manikin. Research shows that: the national standard disaster relief tent has better insulation performance than the epidemic prevention tent, and the difference was greater when the temperature was lower. The thermal comfort of people inside the tent decreases with the temperature, and the floor temperature has a great impact on the local dissatisfaction rate of the human body. When the clothing thermal resistance was lower than the demand thermal resistance, the temperatures of the left forearm and right calf of the thermal manikin decrease the most, by 4.7 ℃ and 5.3 ℃, respectively. When the heating suit was turned on, the clothing temperature of the covered area rose significantly. When the ambient temperature dropped to -10 ℃, the temperature of the thermal manikin still dropped significantly in all areas, even when the 45 ℃ heating gear was turned on, with dropped by 5.3 ℃ in the left forearm and around 6.5 ℃ in the right forearm.

Key words: cold environments, thermal manikin, tents interior, thermal comfort, required thermal resistance, risk of hypothermia

兰明强, 李亚运, 王祥, 郭贤, 刘小勇. 冷环境下基于暖体假人的帐篷内部热舒适性研究[J]. 中国安全科学学报, 2023, 33(3): 220-227.

LAN Mingqiang, LI Yayun, WANG Xiang, GUO Xian, LIU Xiaoyong. Thermal comfort study on tent interior based on thermal manikin in cold environment[J]. China Safety Science Journal, 2023, 33(3): 220-227.

图/表 10

图1

表1

图2

图3

图4

表2

图5

图6

表3

图7

参考文献 24

[1]	周理洁, 蒋雨彤, 胡中取. 基于应急救灾背景下的产品性能对比及发展方向探究[J]. 中国住宅设施, 2019(12):84-86.
[2]	王涛, 龙恩深, 袁琦, 等. 从“土法改进”谈救灾帐篷居住环境的改善:以汶川8.0级地震救灾为例[J]. 灾害学, 2010, 25(1):139-143.
	WANG Tao, LONG Enshen, YUAN Qi, et al. Discussion on the improvement of living environment in relief tent in terms of "improvement by indigenous method"-taking M8.0 Wenchuan earthquake as an example[J]. Journal of Catastrophology, 2010, 25(1):139-143.
[3]	AMIR F, MOHAMMAD R S, EBRAHIM S. A 3D thermal model to analyze the temperature changes of digits during cold stress and predict the danger of frostbite in human fingers[J]. Journal of Therm Biology, 2017, 65:153-160. doi: 10.1016/j.jtherbio.2017.03.001
[4]	贺艳, 杨杰. 低温环境中手部皮肤温度的数值模拟[J]. 中国安全科学学报, 2020, 30(11):182-187. doi: 10.16265/j.cnki.issn 1003-3033.2020.11.027
	HE Yan, YANG Jie. Numerical simulation of skin temperature of hands in low-temperature environment[J]. China Safety Science Journal, 2020, 30(11):182-187. doi: 10.16265/j.cnki.issn 1003-3033.2020.11.027
[5]	任可, 吴建松, 胡祝强, 等. 低温作业环境下应急救援人员局部冷损伤预测评价[J]. 科学技术与工程, 2019, 19(22):384-388.
	REN Ke, WU Jiansong, HU Zhuqiang, et al. Prediction and evaluation of local cold injury of emergency rescuers low temperature working environment[J]. Science Technology and Engineering, 2019, 19(22):384-388.
[6]	XU Long, ZHANG Wei, WANG Wei, et al. Impact of different improvement measures on the thermal performance of ultra-thin envelopes[J]. Energy, 2020, 203(3):DOI:10.1016/j.energy.2020.117802. doi: 10.1016/j.energy.2020.117802
[7]	CRAWFORD C, MANFIELD P, MCROBIE A. Assessing the thermal performance of an emergency shelter system[J]. Energy and Buildings, 2005, 37:471-483. doi: 10.1016/j.enbuild.2004.09.001
[8]	YU Yichen, LIU Jianlin, CHAUHAN K, et al. Experimental study on convective heat transfer coefficients for the human body exposed to turbulent wind conditions[J]. Building and Environment, 2020: DOI:10.1016/j.buildenv.2019.106533. doi: 10.1016/j.buildenv.2019.106533
[9]	OLIVEIRA A, GASPAR A R, FRANCISCO S C, et al. Analysis of natural and forced convection heat losses from a thermal manikin: comparative assessment of the static and dynamic postures[J]. Journal of Wind Engineering and Industrial Aerodynamics, 2014, 132(1):66-76. doi: 10.1016/j.jweia.2014.06.019
[10]	张超, 秦挺鑫, 吴甦, 等. 基于暖体假人的热环境下人体安全评价[J]. 清华大学学报:自然科学版, 2014, 54(2):264-269.
	ZHANG Chao, QIN Tingxin, WU Su, et al. Human safety estimates in hot environments based on a thermal manikin[J]. Journal of Tsinghua University:Science and Technology, 2014, 54(2):264-269.
[11]	刘静波, 姜盈霓, 胡信布, 等. 遮阳对帐篷热环境改善的实验研究[J]. 发电与空调, 2016, 37(1):87-90,94.
	LIU Jingbo, JIANG Yingni, HU Xinbu, et al. Experiment research on shading to improve the thermal environment of tents[J]. Power Generation Technology, 2016, 37(1):87-90,94.
[12]	安瑞楠, 杨小凤, 庄春龙. 军用帐篷供暖送风方式的模拟分析[J]. 制冷与空调, 2015, 29(2):206-210,228.
	AN Ruinan, YANG Xiaofeng, ZHUANG Chunlong. Optimization and simulation of heating supply for military tents[J]. Refrigeration & Air Conditioning, 2015, 29(2):206-210,228.
[13]	白音夫, 徐龙, 廖星宇, 等. 相变材料与夜间自然通风改善帐篷室内热环境研究[J]. 制冷与空调, 2014, 28(5):556-559.
	BAI Yinfu, XU Long, LIAO Xingyu, et al. Natural temperature control materials energy saver and natural ventilation in night to improve the tent thermal environment[J]. Refrigeration & Air Conditioning, 2014, 28(5):556-559.
[14]	芦白茹, 李源, 张坤, 等. 玻璃纤维和铝合金材质的自锁式折叠网壳帐篷结构试验研究[J]. 粉煤灰综合利用, 2021, 35(4):7-12.
	LU Bairu, LI Yuan, ZHANG Kun, et al. Experimental study on self-locking folding reticulated shell tent structure made of glass fiber and aluminum alloy[J]. Fly Ash Comprehensive Utilization, 2021, 35(4):7-12.
[15]	徐畅, 申世飞, 付明, 等. 灾害环境中防护服性能测评研究进展[J]. 中国安全科学学报, 2017, 27(5):140-145. doi: 10.16265/j.cnki.issn1003-3033.2017.05.025
	XU Chang, SHEN Shifei, FU Ming, et al. Progress in research on test and evaluation of protective clothing performance in disaster environment[J]. China Safety Science Journal, 22017, 27(5):140-145.
[16]	兰明强, 王祥, 李亚运, 等. 低温复合条件下救灾帐篷环境适应性试验与评价[J]. 装备环境工程, 2022, 19(7):121-128.
	LAN Mingqiang, WANG Xiang, LI Yayun, et al. Experiment and evaluation of environmental adaptability of disaster relief tent under low temperature compound condition[J]. Equipment Environmental Engineering, 2022, 19(7): 121-128.
[17]	AINSWORTH B E, HASKELL W L, HEMMANN S D, et al. 2011 compendium of physical activities[J]. Medicine & Science in Sports & Exercise, 2011, 43(8):1575-1581.
[18]	胡斌, 陈金华, 姚润明, 等. 地板辐射供冷系统室内平均辐射温度的计算方法及壁面发射率因素分析[J]. 暖通空调, 2020, 50(5):34-41,25.
	HU Bin, CHEN Jinhua, YAO Runming, et al. Calculation methods of indoor mean radiant temperature of floor radiant cooling system and effect of surface emissivity[J]. Heating Ventilating & Air Conditioning, 2020, 50(5):34-41,25.
[19]	GB/T 18049—2017, 热环境的人类工效学通过计算PMV和PPD指数与局部热舒适准则对热舒适进行分析测定与解释[S].
	GB/T 18049-2017,Ergonomics of the thermal enviroment-analytical determinatioo andinterpretation of thermal comfort using calculation of the PMV and PPD indices and I local thermal comfort criteria[S].
[20]	GB/T 24254—2009, 纺织品和服装冷环境下需求热阻的确定[S].
	GB/T24254-2009, Textile and clothing determination and interpretation of cold stress when using required clothing insulation (IREQ) and local cooling effects[S].
[21]	顾寅, 汲欣愉, 朱超, 等. 基于IREQ模型的低温环境应急救援人员冷应激分析[J]. 中国安全生产科学技术, 2019, 15(12):11-16.
	GU Yin, JI Xinyu, ZHU Chao, et al. Analysis on cold stress of emergency rescuers in low-temperature environment based on IREQ model[J]. China Safety Science Journal, 2019, 15(12):11-16.
[22]	HOLMER I. Required clothing insulation (IREQ) as an analytical index of cold stress[J]. Ashrae Transactions. 1984, 90: 1116-1128.
[23]	吴黛唯, 李红彦, 戴艳阳, 等. 加热装置在防寒服中的位置及其热效用[J]. 纺织学报, 2020, 41(6):118-124.
	WU Daiwei, LI Hongyan, DAI Yanyang, et al. Thermal function effectiveness and location of heatingdevice in cold protective clothing[J]. Journal of Textile Research, 2020, 41(6):118-124. doi: 10.1177/004051757104100206
[24]	XU Xiaojiang, SANTEE W R, GONZALEZ R R, et al. Prediction of hand manual performance during cold exposure[J]. Sae Technical Papers, 2004: DOI:10.4271/2004-01-2348. doi: 10.4271/2004-01-2348

试验工况	试验步骤	试验参数
试验1:救灾帐篷门窗全关闭	分别将气候室温度设定为10、5、 0、-5、-10 ℃	温度:-10~10 ℃ 湿度:40%
试验2:防疫帐篷门窗全关闭	分别将气候室温度设定为10、5、 0、-5、-10 ℃

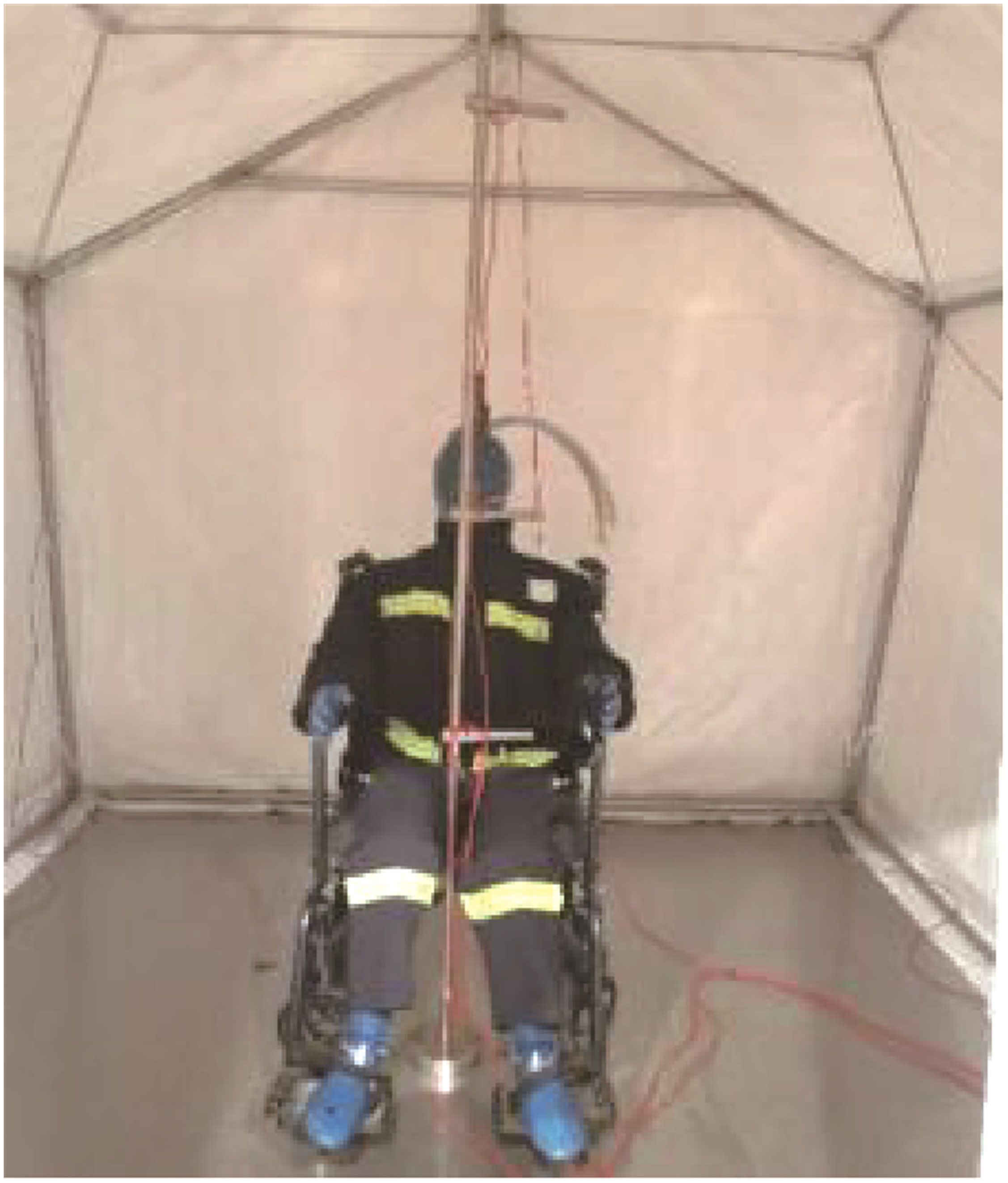

试验3:暖体假人置于帐篷中心	分别将气候室温度设定为10、5、 0、-10 ℃,暖体假人穿不同测试服装

环境温度	试验1 帐内温度	试验2 帐内温度	试验1 平均辐射温度	试验2 平均辐射温度
10	14.14	14.06	12.90	12.90
5	10.34	9.12	8.82	7.92
0	6.03	4.66	4.18	3.07
-5	1.56	0.68	-0.37	-1.12
-10	-5.76	-6.59	-5.05	-7.54

温度/℃	IREQmin/ (W^-1·m²·K)	IREQ中值/ (W^-1·m²·K)	Dlim/h
10	0.30	0.36	0.73
5	0.38	0.43	0.56
0	0.47	0.53	0.41
-5	0.56	0.62	0.33
-10	0.70	0.76	0.25
