温度效应下煤体吸附瓦斯热力学及动力学特征

doi:10.16265/j.cnki.issn1003-3033.2023.07.1934

摘要/Abstract

摘要：

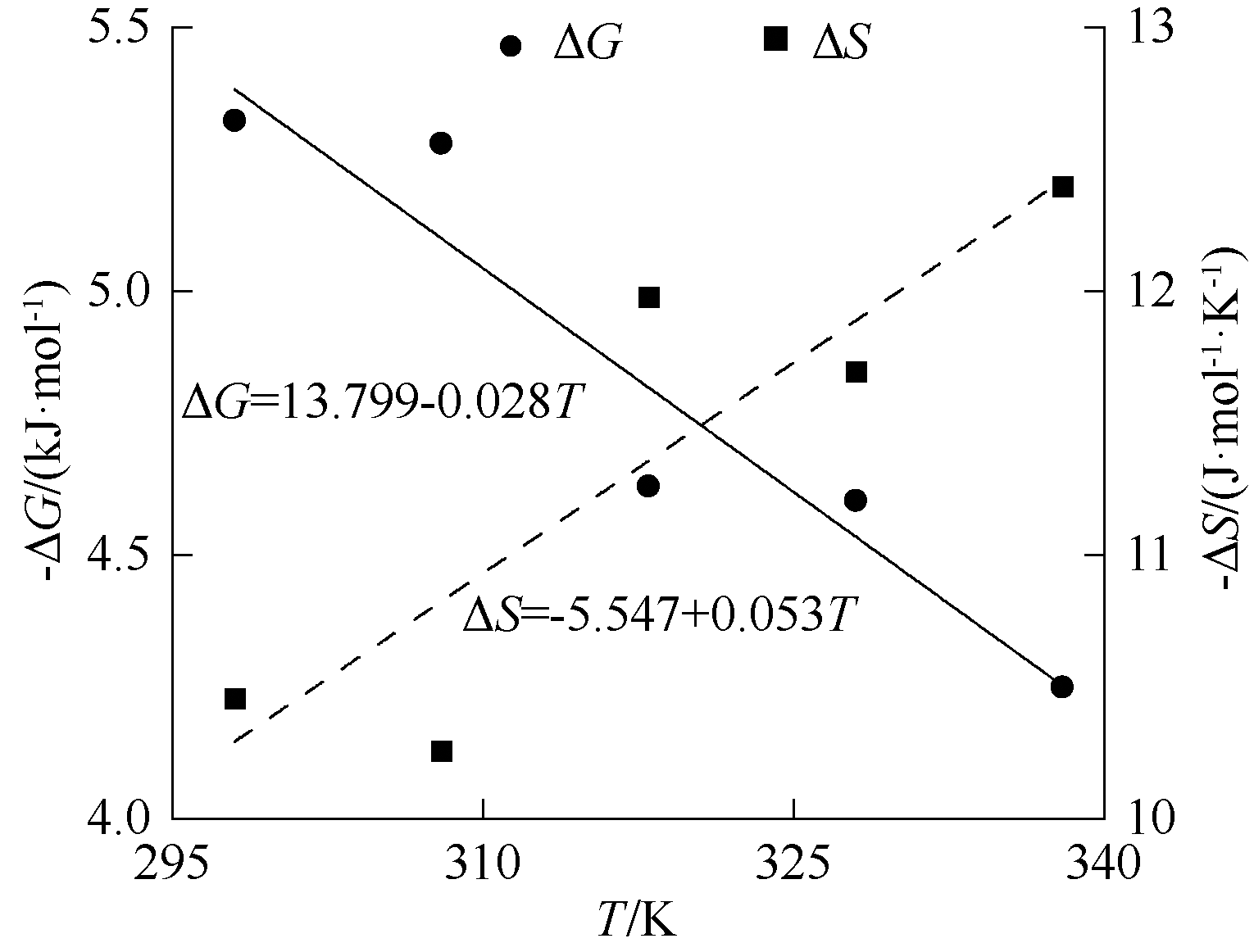

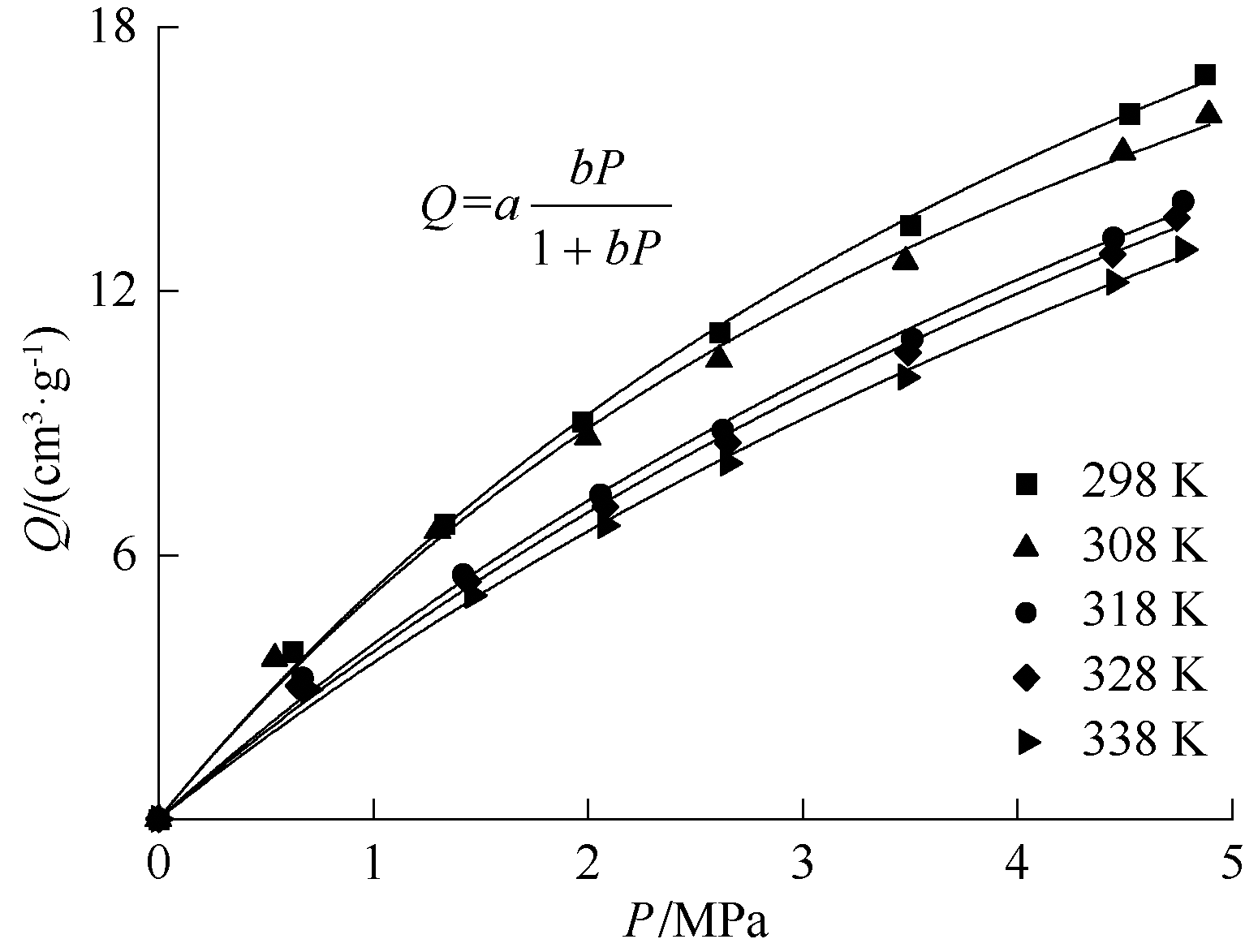

为研究煤体与瓦斯相互作用的热力学与动力学特征,利用自主研发的煤系气流固耦合试验平台,开展298、308、318、328、338 K温度点煤体等温吸附试验,分析温度效应下煤体吸附瓦斯热力学参数、吸附动力学特征。试验结果表明:随温度升高,煤体瓦斯吸附量逐渐降低,等温吸附曲线符合Langmuir型变化规律;煤体等量吸附热随吸附量的增加而增大,变化范围为-10.191~-7.127 kJ/mol; 煤体吸附瓦斯为放热物理过程,温度升高抑制煤体吸附瓦斯能力,煤体极限吸附热为 -11.369 kJ/mol; 不同温度吸附自由能和吸附熵均小于0,分别为-6.958~-2.452 kJ/mol和-14.085~-12.607 J/(mol·K); 动力学模型拟合中,吸附平衡时的瓦斯吸附量随温度升高而降低,吸附速率常数与温度呈正线性关系。煤体吸附瓦斯为动态放热过程,随温度升高,瓦斯气体分子能量逐渐大于煤体孔隙吸附势能,吸附质态瓦斯逐渐转变为游离态瓦斯,煤体吸附瓦斯能力下降。

关键词: 瓦斯吸附, 吸附热力学, 动力学特征, 温度效应, 等温吸附

Abstract:

In order to study the thermodynamic and kinetic characteristics of the interaction between coal and gas, the isothermal adsorption tests of coal at 298, 308, 318, 328 and 338 K were carried out. In this paper, the thermodynamic parameters and adsorption kinetic characteristics of coal gas adsorption under temperatures effect were analyzed by using the self-developed coal gas-solid coupling test platform. The results show that with the increase in temperature, the gas adsorption capacity of coal decreases gradually, and the isothermal adsorption curve conforms to the Langmuir type change rule. The isosteric adsorption heat of coal increases with the increase of adsorption capacity, and the variation range is -10.191 to -7.127 kJ/mol. The adsorption of coal gas is an exothermic physical process. The increase in temperature inhibits the adsorption capacity of coal gas, and the limited adsorption heat of coal is -11.369 kJ/mol. The adsorption free energy and adsorption entropy at different temperatures were less than 0, which were -6.958 to -2.452 kJ/mol and -14.085 to -12.607 J/(mol·K), respectively. In the kinetic model fitting, the gas adsorption amount at adsorption equilibrium decreases with the temperature increase, and the adsorption rate constant is positively linear with temperature. The adsorption of coal gas is a dynamic exothermic process. With the increase in temperature, the molecular energy of gas is gradually greater than the adsorption potential energy of coal pores. The adsorbed gas gradually transforms into free gas, and the adsorption capacity of coal gas decreases.

Key words: gas adsorption, temperature effect, isothermal adsorption, adsorption thermodynamics, kinetic characteristic.

仇悦, 龙航, 白杨, 林海飞, 严敏, 肖通. 温度效应下煤体吸附瓦斯热力学及动力学特征[J]. 中国安全科学学报, 2023, 33(7): 147-155.

QIU Yue, LONG Hang, BAI Yang, LIN Haifei, YAN Min, XIAO Tong. Thermodynamicand kinetic characteristics of gas adsorption by coal under temperature effect[J]. China Safety Science Journal, 2023, 33(7): 147-155.

图/表 17

表1

图1

表2

图2

表3

图3

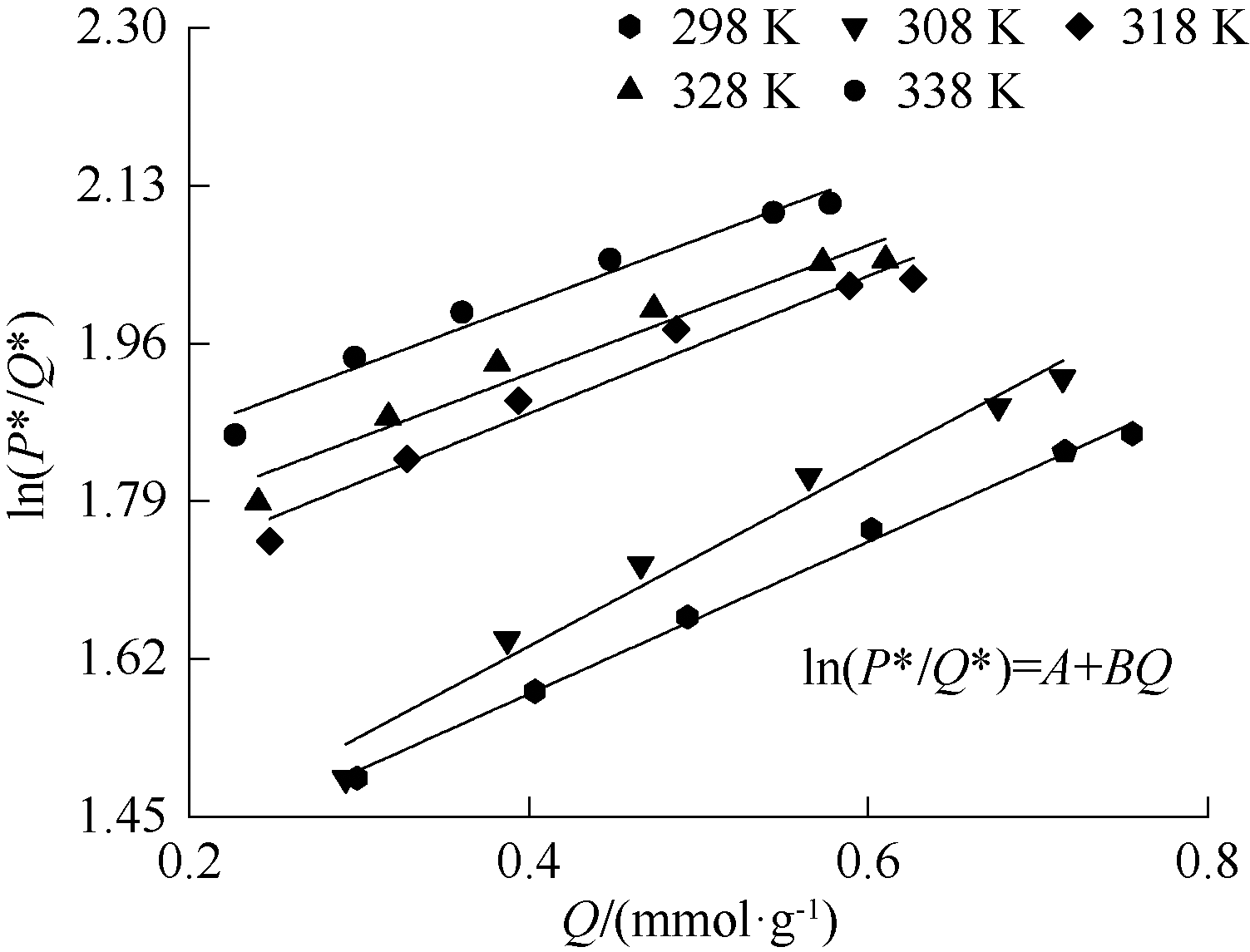

图4

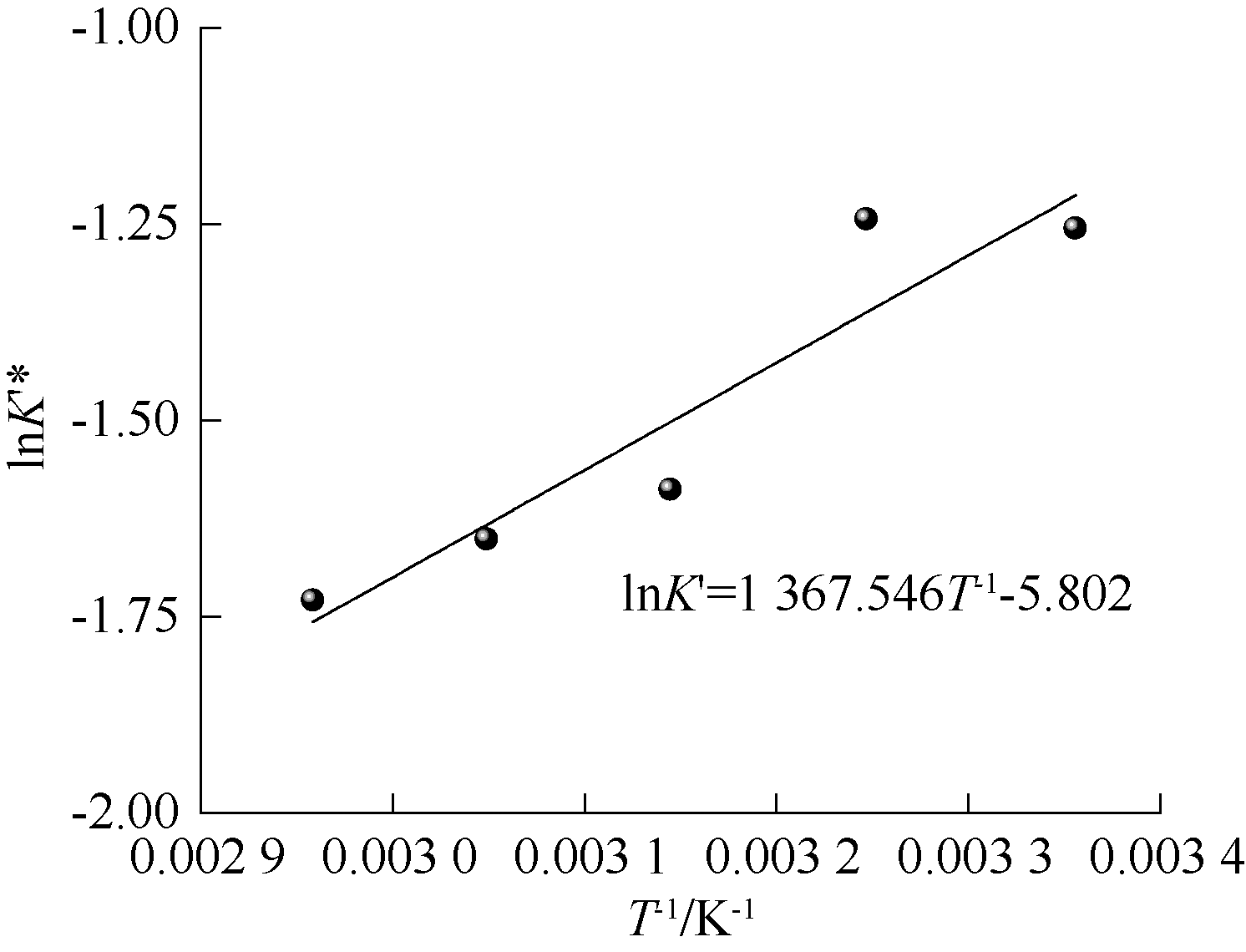

图5

图6

表4

图7

图8

表5

图9

表6

图10

表7

参考文献 30

[1]	钱鸣高, 许家林, 王家臣. 再论煤炭的科学开采[J]. 煤炭学报, 2018, 43(1): 1-13.
	QIAN Minggao, XU Jialin, WANG Jiachen. Further on the sustainable mining of coal[J]. Journal of China Coal Society, 2018, 43(1): 1-13.
[2]	张超林, 王恩元, 王奕博, 等. 近20年我国煤与瓦斯突出事故时空分布及防控建议[J]. 煤田地质与勘探, 2021, 49(4): 134-141.
	ZHANG Chaolin, WANG Enyuan, WANG Yibo, et al. Spatial-temporal distribution of outburst accidents from 2001 to 2020 in China and suggestions for prevention and control[J]. Geology & Exploration, 2021, 49(4): 134-141.
[3]	祝捷, 张敏, 传李京, 等. 煤吸附/解吸瓦斯变形特征及孔隙性影响实验研究[J]. 岩石力学与工程学报, 2016, 35(增1): 2620-2626.
	ZHU Jie, ZHANG Min, CHUAN Lijing, et al. Experimental study on coal strain induced by methane sorption/desorption and effect of pore features[J]. Chinese Journal of Rock Mechanics and Engineering, 2016, 35(S1): 2620-2626.
[4]	林海飞, 李树刚, 赵鹏翔, 等. 我国煤矿覆岩采动裂隙带卸压瓦斯抽采技术研究进展[J]. 煤炭科学技术, 2018, 46(1): 28-35.
	LIN Haifei, LI Shugang, ZHAO Pengxiang, et al. Research progress on pressure released gas drainage technology of mining cracking zone in overburden strata of coal mine in China[J]. Coal Science and Technology, 2018, 46(1): 28-35.
[5]	张明杰, 杨明鑫, 闫江伟, 等. 超临界状态下中高阶变质煤吸附甲烷特性研究[J]. 中国安全科学学报, 2021, 31(8):53-61. doi: 10.16265/j.cnki.issn1003-3033.2021.08.008
	ZHANG Mingjie, YANG Mingxin, YAN Jiangwei, et al. Study on supercritical methane adsorption characteristics of coal with medium and high rank[J]. China Safety Science Journal, 2021, 31(8): 53-61. doi: 10.16265/j.cnki.issn1003-3033.2021.08.008
[6]	DUAN Shuo, GU Min, TAO Mengeng, et al. Adsorption characteristics and thermodynamic property fields of methane and Sichuan Basin shales[J]. Adsorption, 2022, 28(1/2): 41-54. doi: 10.1007/s10450-021-00352-6
[7]	张巨峰, 施式亮, 鲁义, 等. 矿井瓦斯与煤自燃共生灾害:耦合关系、致灾机制、防控技术[J]. 中国安全科学学报, 2020, 30(10): 149-155. doi: 10.16265/j.cnki.issn 1003-3033.2020.10.021
	ZHANG Jufeng, SHI Shiliang, LU Yi, et al. Symbiotic disasters of mine gas and coal spontaneous combustion: coupling relationship, disaster mechanism, prevention and control technology[J]. China Safety Science Journal, 2020, 30(10): 149-155. doi: 10.16265/j.cnki.issn 1003-3033.2020.10.021
[8]	LI Xijian, LIN Baiquan, XU Hao. Monte Carlo simulation of methane molecule adsorption on coal with adsorption potential[J]. International Journal of Mining Science and Technology, 2014, 24(1): 17-22. doi: 10.1016/j.ijmst.2013.12.004
[9]	聂百胜, 段三明. 煤吸附瓦斯的本质[J]. 太原理工大学学报, 1998, 29(4): 88-92.
	NIE Baisheng, DUAN Sanming. The adsorption essence of gas on coal surface[J]. Journal of Taiyuan University of Technology, 1998, 29 (4): 88-92.
[10]	李树刚, 白杨, 林海飞, 等.CH₄, CO₂和N₂多组分气体在煤分子中吸附热力学特性的分子模拟[J]. 煤炭学报, 2018, 43(9): 2476-2483.
	LI Shugang, BAI Yang, LIN Haifei, et al. Molecular simulation of adsorption thermodynamics of multicomponent gas in coal[J]. Journal of China Coal Society, 2018, 43(9): 2476-2483.
[11]	林海飞, 蔚文斌, 李树刚, 等. 煤体吸附CH₄及CO₂热力学特性试验研究[J]. 中国安全科学学报, 2018, 28(6): 129-134. doi: 10.16265/j.cnki.issn1003-3033.2018.06.022
	LIN Haifei, WEI Wenbin, LI Shugang, et al. Experimental study on thermodynamics characteristics of CH₄ and CO₂ adsorption on coal[J]. China Safety Science Journal, 2018, 28(6): 129-134. doi: 10.16265/j.cnki.issn1003-3033.2018.06.022
[12]	周银波, 王思琪, 毛淑星, 等. 热效应对焦煤甲烷解吸迟滞特征的影响研究[J]. 中国安全生产科学技术, 2020, 16(11): 123-127.
	ZHOU Yinbo, WANG Siqi, MAO Shuxing, et al. Study on influence of thermal effect on methane desorption hysteresis characteristics of coking coal[J]. Journal of Safety Science and Technology, 2020, 16(11): 123-127.
[13]	TANG Xu, RIPEPI N, STADIE N P, et al. Thermodynamic analysis of high pressure methane adsorption in Longmaxi shale[J]. Fuel, 2017, 193: 411-418. doi: 10.1016/j.fuel.2016.12.047
[14]	白建平, 张典坤, 杨建强, 等. 寺河3号煤甲烷吸附解吸热力学特征[J]. 煤炭学报, 2014, 39(9): 1812-1819.
	BAI Jianping, ZHANG Diankun, YANG Jianqiang, et al. Thermodynamic characteristics of adsorption-desorption of methane in coal seam 3 at Sihe coal mine[J]. Journal of China Coal Society, 2014, 39(9): 1812-1819.
[15]	WANG Zhaofeng, TANG Xu, YUE Gaowei, et al. Physical simulation of temperature influence on methane sorption and kinetics in coal: benefits of temperature under 273. 15 K[J]. Fuel, 2015, 158(2): 207-216. doi: 10.1016/j.fuel.2015.05.011
[16]	李树刚, 白杨, 林海飞, 等. 温度对煤吸附瓦斯的动力学特性影响实验研究[J]. 西安科技大学学报, 2018, 38(2): 181-186,272.
	LI Shugang, BAI Yang, LIN Haifei, et al. Experimental study on the effect of temperature on the kinetics characteristics of gas adsorption on coal[J]. Journal of Xi'an University of Science and Technology, 2018, 38(2): 181-186,272.
[17]	ZANG Jie, WANG Kai, ZHAO Yixin. Evaluation of gas sorption induced internal swelling in coal[J]. Fuel, 2015, 143: 165-172. doi: 10.1016/j.fuel.2014.11.007
[18]	赵东, 冯增朝, 赵阳升. 基于吸附动力学理论分析水分对煤体吸附特性的影响[J]. 煤炭学报, 2014, 39(3): 518-523.
	ZHAO Dong, FENG Zengchao, ZHAO Yangsheng, et al. Effects of liquid water on coalbed methane adsorption characteristics based on the adsorption kinetic theory[J]. Journal of China Coal Society, 2014, 39(3): 518-523.
[19]	李育辉, 崔永君, 钟玲文, 等. 煤基质中甲烷扩散动力学特性研究[J]. 煤田地质与勘探, 2005, 33(6): 31-34.
	LI Yuhui, CUI Yongjun, ZHONG Lingwen, et al. Study on dynamic diffusion characteristics of methane in coal matrix[J]. Coal Geology &Exploration, 2005, 33(6): 31-34.
[20]	LANGMUIR I. The adsorption of gases on plane surfaces of glass, mica and platinum[J]. Journal of Chemical Physics, 1918, 40(12): 1361-1403.
[21]	张翔, 陶云奇. 不同温度条件下煤对瓦斯的等温吸附实验研究[J]. 煤炭工程, 2011, 43(4): 87-89.
	ZHANG Xiang, TAO Yunqi. Experiment study on gas isothermal adsorption from coal under different temperature conditions[J]. Coal Engineering, 2011, 43(4): 87-89.
[22]	刘志祥, 冯增朝. 煤体对瓦斯吸附热的理论研究[J]. 煤炭学报, 2012, 37(4): 647-653.
	LIU Zhixiang, FENG Zengchao. Theoretical study on adsorption heat of methane in coal[J]. Journal of China Coal Society, 2012, 37(4): 647-653.
[23]	RAMIREZ P A J, BULNES F. Differential heat of adsorption in the presence of an order-disorder phase transition[J]. Physica A: Statistical Mechanics and its Applications, 2000, 283(1/2): 198-203. doi: 10.1016/S0378-4371(00)00152-7
[24]	郑青榕, BIRKETT G, DO D D. 甲烷在活性炭上吸附的实验及理论分析[J]. 天然气化工(C1化学与化工), 2009, 34(1): 41-45.
	ZHENG Qingrong, BIRKETT G, DO D D. Theoretical and experimental analysis of methane adsorption on activated carbon[J]. Natural Gas Chemical Industry, 2009, 34(1): 41-45.
[25]	HELFFERICH F G. Principles of adsorption & adsorption processes, by D. M. Ruthven, John Wiley & Sons, 1984, xxiv + 433 pp[J]. AIChE Journal, 1985, 31(3): 523-524.
[26]	ONSALVO M A, SHAPIRO A A. Study of high-pressure adsorption from supercritical fluids by the potential theory[J]. Fluid Phase Equilibria, 2009, 283(1): 56-64. doi: 10.1016/j.fluid.2009.05.015
[27]	DUBININM M. The potential theory of adsorption of gases and vapors for adsorbents with energetically nonuniform surfaces[J]. Chemical Reviews, 1960, 60(2): 235-241. doi: 10.1021/cr60204a006
[28]	MATHIAS P M, O'CONNELL J P. The Gibbs-Helmholtz equation and the thermodynamic consistency of chemical absorption data[J]. Industrial & Engineering Chemistry Research, 2012, 51(13): 5090-5097. doi: 10.1021/ie202668k
[29]	LAGERGREN S. About the theory of so-called adsorption of soluble substances[J]. Kungliga Svenska Vetenskapsakademiens Handlingar, 1898, 24 (4): 1-39.
[30]	HO Y S, MCKAY G. Pseudo-second order model for sorption processes[J]. Process Biochemist, 1999, 34(5): 451-465.

吸附试验温度T/K	吸附数据的 Langmuir 拟合
吸附试验温度T/K	a	b	拟合相关系数
298	41.728	0.177	0.999
308	41.264	0.154	0.996
318	40.031	0.110	0.998
328	39.076	0.100	0.998
338	34.029	0.094	0.998

Q/ (mmol·g^-1)	等量吸附线拟合公式	ΔH/ (kJ·mol^-1)
0.200	lnP^*=2.933-857.232T^-1	-7.127
0.250	lnP^*=3.253-909.872T^-1	-7.565
0.300	lnP^*=3.572-962.513T^-1	-8.002
0.350	lnP^*=3.893-1015.154T^-1	-8.440
0.400	lnP^*=4.213-1067.794T^-1	-8.878
0.450	lnP^*=4.532-1120.435T^-1	-9.315
0.500	lnP^*=4.852-1173.075T^-1	-9.753
0.550	lnP^*=5.172-1225.716T^-1	-10.191

Q/ (mmol·g^-1)	ΔS/(J·mol^-1·K^-1)
Q/ (mmol·g^-1)	298 K	308 K	318 K	328 K	338 K
0.200	0.612	0.548	2.370	2.191	2.856
0.250	4.190	4.081	5.868	5.654	6.328
0.300	7.436	7.283	9.035	8.787	9.472
0.350	10.457	10.260	11.977	11.696	12.397
0.400	13.315	13.075	14.758	14.444	15.165
0.450	16.052	15.768	17.419	17.072	17.819
0.500	18.696	18.369	19.988	19.610	20.388
0.550	21.268	20.898	22.486	22.078	22.894

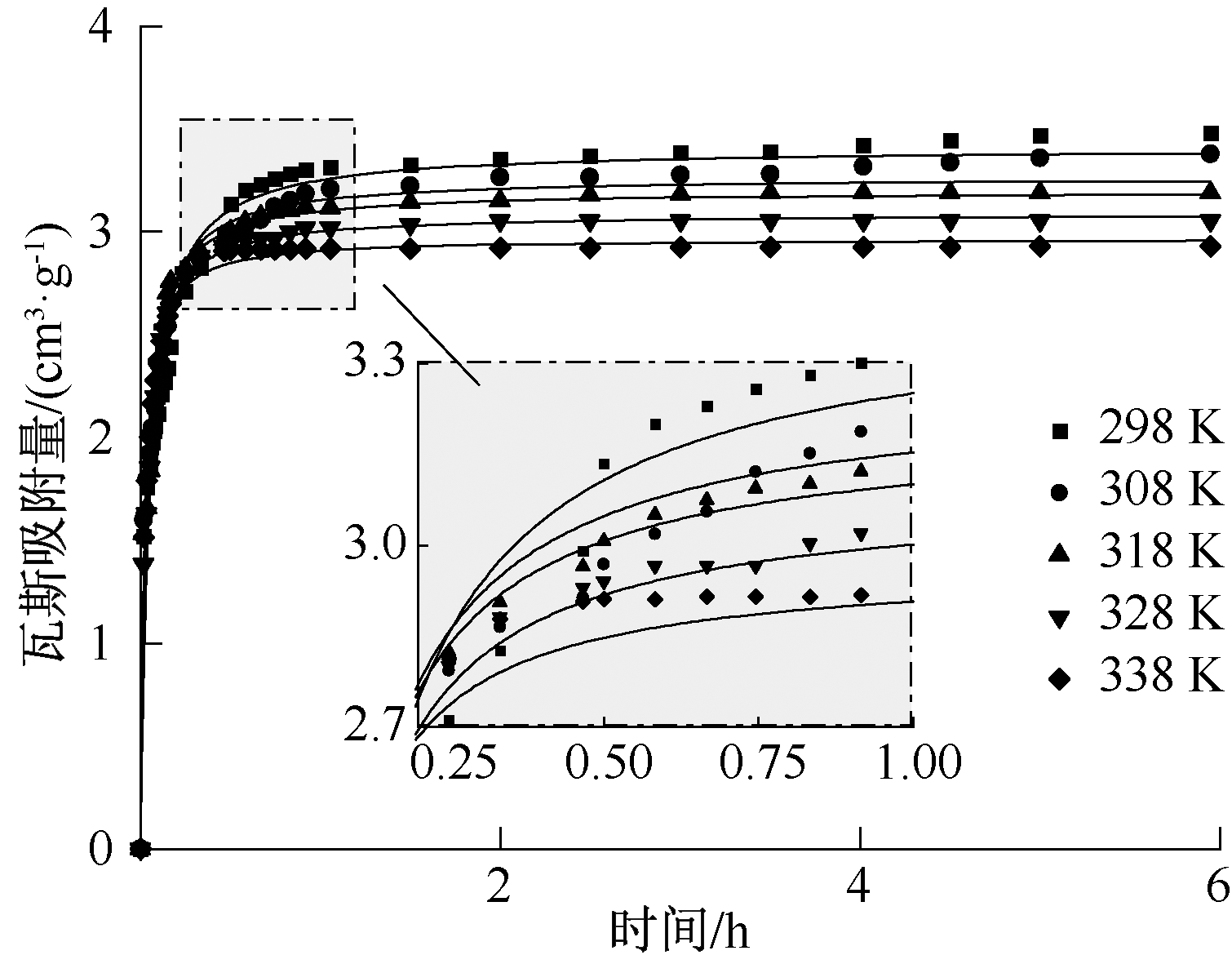

T/K	Q_e1/(cm³·g^-1)	k₁/ h^-1	拟合相关系数
298	3.245	12.016	0.862
308	3.124	15.634	0.870
318	3.072	16.844	0.923
328	2.969	18.300	0.948
338	2.865	23.833	0.938

T/K	Q_e2/(cm³·g^-1)	k₂/h^-1	拟合相关系数
298	3.408	6.063	0.952
308	3.266	8.561	0.963
318	3.199	9.728	0.980
328	3.089	11.053	0.991
338	2.968	15.885	0.990
