液氮抑制外部加热和过充锂电池模组热失控

doi:10.16265/j.cnki.issn1003-3033.2023.10.0781

摘要/Abstract

摘要：

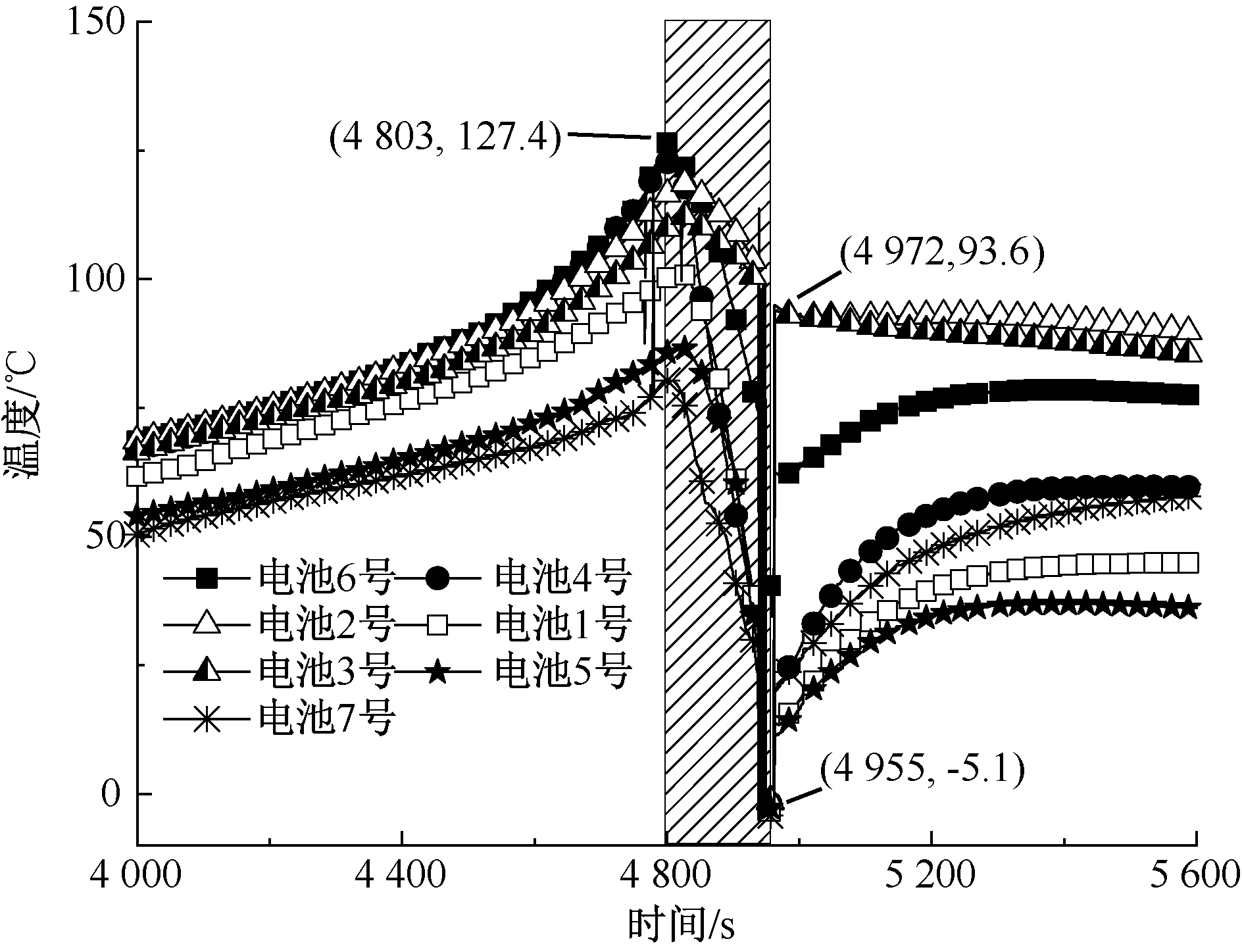

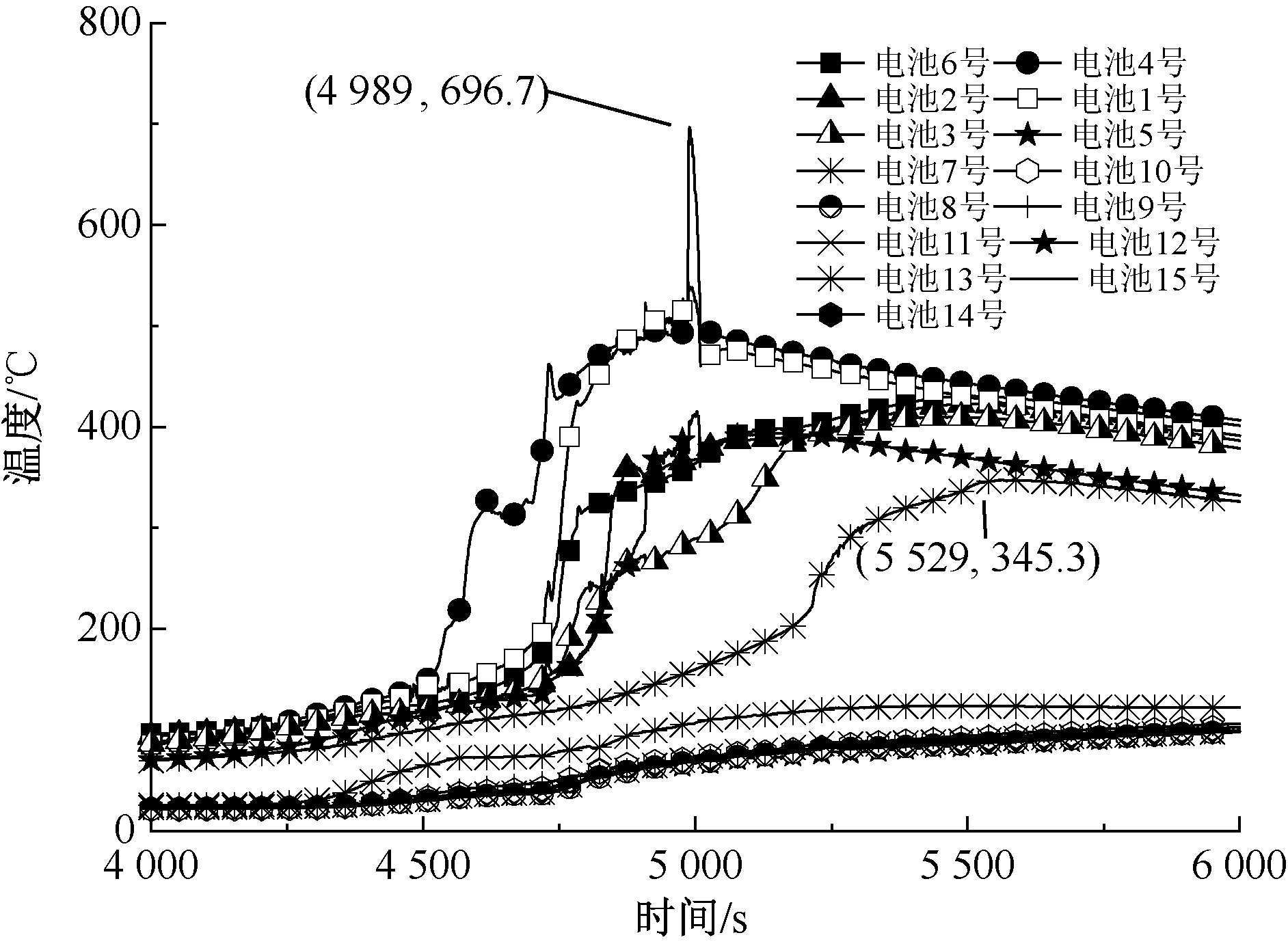

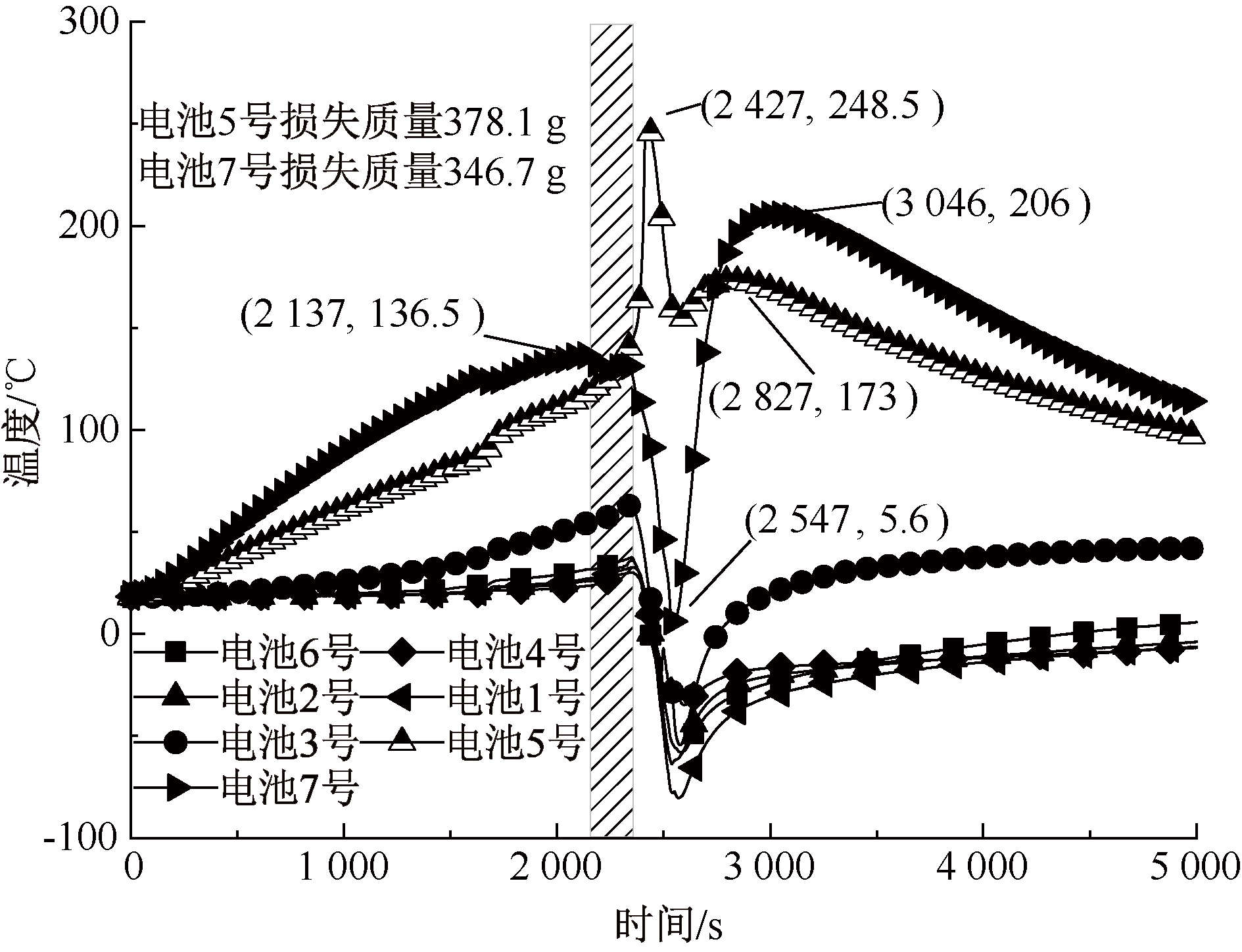

为抑制锂离子电池模组的热失控传播,构建液氮(LN)对热失控的抑制试验系统,揭示在外部加热和过充条件下,LN对锂离子电池模组热失控传播的抑制作用。结果表明:外部加热条件下,热失控自紧贴加热板的电池向两侧传播,共6块热失控电池;同条件下,注氮后热失控电池温度降低超过100 ℃,峰值温度降低70 ℃以上,LN冷却效率为42.9%,有效利用率为4.1%,热失控剧烈程度降低,传播被阻断;改变加热板位置使LN不直接接触热失控电池时,LN的冷却效率为18.3%,有效利用率仅为2.1%,远低于接触组,且热失控电池回温至207 ℃,LN不能终止电池热失控进程,LN直接接触热失控电池时达到最佳抑制效果。过充条件下,电池模组内共7块热失控电池,峰值温度均超过345 ℃;注氮组无热失控电池,电池峰值温度为127.4 ℃,LN冷却效率为41.7%,在电池模组压降时注氮可防止热失控发生。

关键词: 液氮(LN), 外部加热, 过充, 锂电池模组, 热失控传播

Abstract:

In order to inhibit the thermal runaway propagation of lithium-ion battery modules, a test system was constructed to reveal the inhibition effect of LN on thermal runaway propagation of lithium-ion battery modules under the conditions of external heating and overcharging. Results show that under external heating conditions, thermal runaway propagates from the battery immediately adjacent to the heating plate to both sides, with a total of 6 thermal runaway batteries. The temperature of the thermal runaway battery is reduced by more than 100 ℃ after LN injection under the same conditions, and the peak temperature is reduced by more than 70 ℃, with LN cooling efficiency of 42.9% and effective utilization of 4.1%, the thermal runaway is reduced to a lower degree of severity, and the propagation is blocked. When the position of the heating plate is changed so that the LN does not directly contact the thermal runaway battery, the cooling efficiency of LN is 18.3%. The effective utilization rate is only 2.1%, which is much lower than that of the contact group, while the thermal runaway battery is warmed back up to 207 ℃, LN cannot terminate the process of thermal runaway of the battery. LN achieves the optimal inhibition effect when directly contacting the thermal runaway battery. Under overcharging conditions, there are 7 thermal runaway batteries in the battery module, and the peak temperature exceeds 345 ℃. However, the LN injection group has no thermal runaway battery, the peak temperature of the battery is 127.4 ℃, and the cooling efficiency of LN is 41.7%. LN can terminate the thermal runaway process when the voltage of the battery module drops. This work is expected to provide a research reference for suppressing thermal runaway propagation in lithium-ion battery modules.

Key words: liquid nitrogen(LN), external heating, overcharge, lithium-ion battery, thermal runaway propagation

史波波, 沈王赵男, 王志, 阮辉, 刘航. 液氮抑制外部加热和过充锂电池模组热失控[J]. 中国安全科学学报, 2023, 33(10): 129-136.

SHI Bobo, SHEN Wangzhaonan, WANG Zhi, RUAN Hui, LIU Hang. Liquid nitrogen suppresses thermal runaway of lithium-ion battery modules under external heating and overcharge[J]. China Safety Science Journal, 2023, 33(10): 129-136.

图/表 16

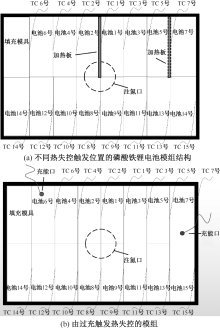

图1

图2

表1

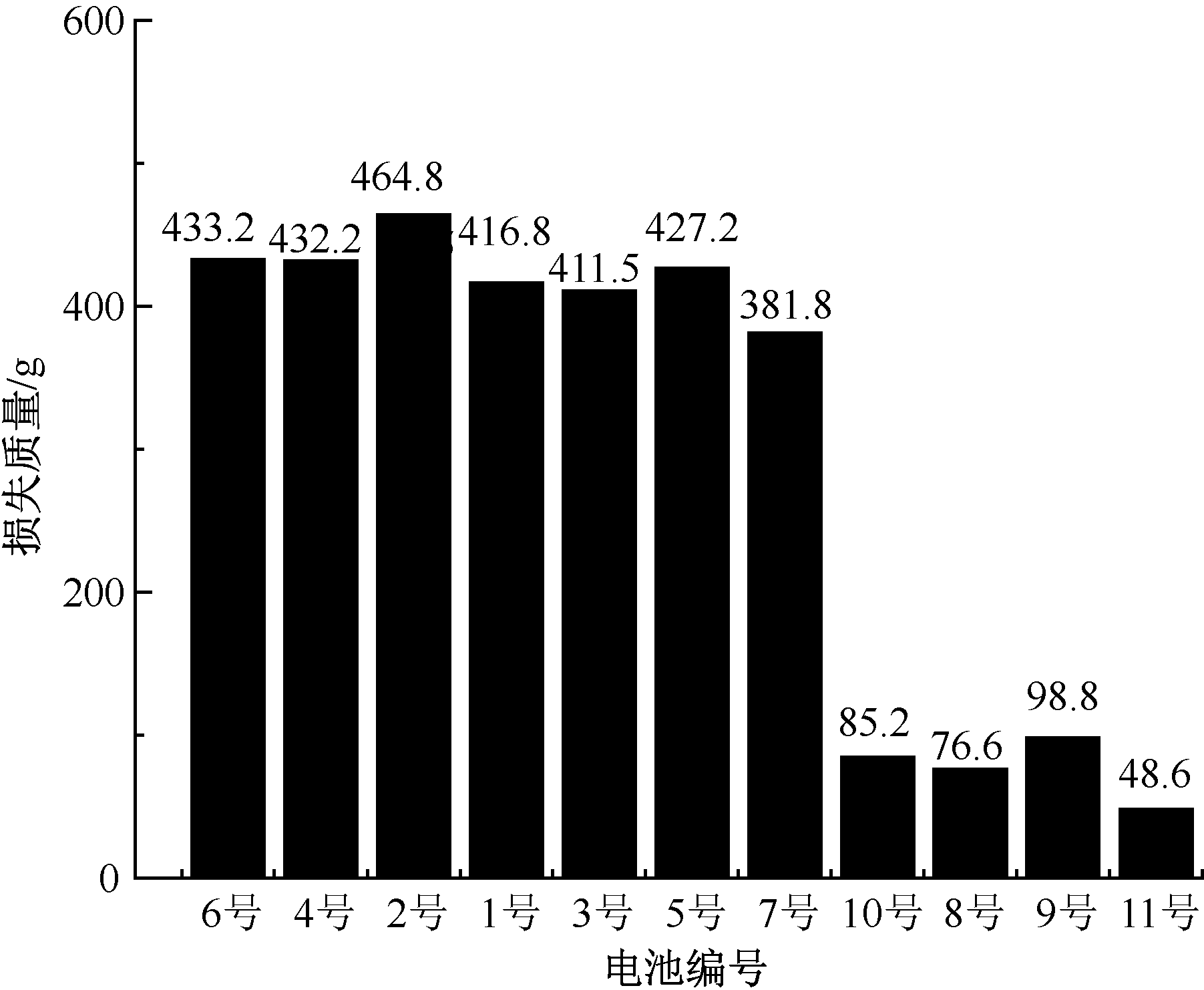

图3

图4

表2

电池模组热失控关键参数(工况1)

电池编号	θ₀ / ℃	θ_k / ℃	θ_max / ℃	Δ $t i → i + 1$ / s	v / (mm·s^-1)
2	84.9	141.4	295.6	4 361 (2→4号)	0.011
4	118.9	188.7	291.8	3 682 (4→6号)	0.013
6	135.6	183.9	269.1	—	—
1	87.5	139	280	6 798 (1→3号)	0.007
3	107.1	205	275.1	2 187 (3→5号)	0.022
5	128.7	161.6	295.6	—	—
7	127	—	—	—	—

表2

图5

表3

图6

图7

表4

图8

图9

图10

图11

表5

参考文献 20

[1]	CHAURASIYA P K, WARUDKAR V, AHMED S. Wind energy development and policy in India: a review[J]. Energy Strategy Reviews, 2019, 24: 342-357. doi: 10.1016/j.esr.2019.04.010
[2]	GUNEY M S. Solar power and application methods[J]. Renewable & Sustainable Energy Reviews, 2016, 57: 776-785.
[3]	刘兰胜. 磷酸铁锂电池应用现状及发展趋势[J]. 电池工业, 2021, 25(5): 263-265.
	LIU Lansheng. Application status and development trend of lithium iron phosphate battery[J]. Chinese Battery Industry, 2021, 25(5): 263-265.
[4]	张乃平, 马永飞, 杨孟霖, 等. 锂电池火灾灭火技术研究综述[J]. 中国安全生产科学技术, 2022, 18(7): 47-53.
	ZHANG Naiping, MA Yongfei, YANG Menglin, et al. Review on fire extinguishing technology research of lithium battery[J]. Journal of Safety Science and Technology, 2022, 18(7): 47-53.
[5]	陈现涛, 张旭, 赵一帆, 等. 不同外热功率下18650锂离子电池热失控特性[J]. 中国安全生产科学技术, 2021, 17(9): 139-144.
	CHEN Xiantao, ZHANG Xu, ZHAO Yifan, et al. Thermal runaway characteristics of 18650 lithium-ion battery under different external thermal powers[J]. Journal of Safety Science and Technology, 2021, 17(9): 139-144.
[6]	张青松, 赵子恒, 白伟. 过充条件下三元锂离子电池热安全性分析[J]. 消防科学与技术, 2020, 39(5): 713-717.
	ZHANG Qingsong, ZHAO Ziheng, BAI Wei. Thermal safety analysis on ternary lithium ion battery under overcharge conditions[J]. Fire Science and Technology, 2020, 39(5): 713-717.
[7]	李亚楠, 潘芳芳, 赵金保. 锂离子电池针刺安全性的研究进展[J]. 电池, 2022, 52(2): 228-231.
	LI Ya'nan, PAN Fangfang, ZHAO Jinbao. Research progress in nail penetration safety for Li-ion battery[J]. Battery Bimonthly, 2022, 52(2): 228-231.
[8]	张伟, 郝朝龙, 刘添添, 等. 航空压力环境对锂离子电池热解气体爆炸极限影响[J]. 中国安全生产科学技术, 2022, 18(11): 155-162.
	ZHANG Wei, HAO Chaolong, LIU Tiantian, et al. Infiuence of aviation pressure environment on explosion limit of pyrolysis gas from lithium-ion batteries[J]. Journal of Safety Science and Technology, 2022, 18(11): 155-162.
[9]	陈现涛, 赵一帆, 张旭, 等. 不同外部热源及气压对软包装锂离子电池热失控影响[J]. 消防科学与技术, 2022, 41(1): 15-20.
	CHEN Xiantao, ZHAO Yifan, ZHANG Xu, et al. Influence of different external heat power and air pressure on thermal runaway of pouch lithium-ion batteries[J]. Fire Science and Technology, 2022, 41(1): 15-20.
[10]	徐亮. 三元锂离子电池直径和荷电状态对热失控传播影响研究[J]. 消防科学与技术, 2022, 41(7): 899-904.
	XU Liang. Study on the influence of ternary lithium-ion battery diameter and state of charge on thermal runaway propagation[J]. Fire Science and Technology, 2022, 41(7): 899-904.
[11]	梅文昕, 段强领, 王青山, 等. 大型磷酸铁锂电池高温热失控模拟研究[J]. 储能科学与技术, 2021, 10(1): 202-209.
	MEI Wenxin, DUAN Qiangling, WANG Qingshan, et al. Thernal runaway simulation of large-scale lithium iron phosphate battery at elevated temperatures[J]. Energy Storage Science and Technology, 2021, 10(1): 202-209.
[12]	JIA Yikai, UDDIN M, LI Yangxing, et al. Thermal runaway propagation behavior within 18,650 lithium-ion battery packs: a modeling study[J]. Journal of Energy Storage, 2020, 31:DOI:10.1016/j.est.2020.101668.
[13]	韩路豪, 王子阳, 何骁龙, 等. 细水雾释放策略对大容量三元锂离子电池热失控火灾抑制效果的实验研究[J]. 储能科学与技术, 2023, 12(5):1664-1674.
	HAN Luhao, WANG Ziyang, HE Xiaolong, et al. The effect of water mist strategies on thermal runaway fire suppression of large-capacity NCM lithium-ion battery[J]. Energy Storage Science and Technology, 2023, 12(5):1664-1674.
[14]	黄强, 陶风波, 刘洋, 等. 气液灭火剂对磷酸铁锂电池模组灭火能效研究[J]. 中国安全科学学报, 2020, 30(3): 53-59. doi: 10.16265/j.cnki.issn1003-3033.2020.03.009
	HUANG Qiang, TAO Fengbo, LIU Yang, et al. Study on performance of gas-liquid extinguishing agent for lithium iron phosphate battery modules[J]. China Safety Science Journal, 2020, 30(3): 53-59. doi: 10.16265/j.cnki.issn1003-3033.2020.03.009
[15]	张作睿, 张国维, 朱国庆, 等. 水凝胶灭火剂对磷酸铁锂电池组灭火效能研究[J]. 中国安全科学学报, 2023, 33(1): 161-168. doi: 10.16265/j.cnki.issn1003-3033.2023.01.0083
	ZHANG Zuorui, ZHANG Guowei, ZHU Guoqing, et al. Research on fire-extinguishing performance of hydrogel fire extingguishing agent on lithium iron phosphate battery pack[J]. China Safety Science Journal, 2023, 33(1): 161-168. doi: 10.16265/j.cnki.issn1003-3033.2023.01.0083
[16]	HUANG Zonghou, LIU Pengjie, DUAN Qiangling, et al. Experimental investigation on the cooling and suppression effects of liquid nitrogen on the thermal runaway of lithium ion battery[J]. Journal of Power Sources, 2021, 495:DOI:10.1016/j.jpowsour.2021.229795.
[17]	WANG Zhirong, WANG Kuo, WANG Junling, et al. Inhibition effect of liquid nitrogen on thermal runaway propagation of lithium ion batteries in confined space[J]. Journal of Loss Prevention in the Process Industries, 2022, 79:DOI:10.1016/J.JLP.2022.104853.
[18]	CAO Yanfang, WANG Kuo, WANG Zhirong, et al. Utilization of liquid nitrogen as efficient inhibitor upon thermal runaway of 18650 lithium ion battery in open space[J]. Renewable Energy, 2023, 206: 1097-1105. doi: 10.1016/j.renene.2023.02.117
[19]	HUANG Zonghou, ZHANG Yue, SONG Laifang, et al. Preventing effect of liquid nitrogen on the thermal runaway propagation in 18650 lithium ion battery modules[J]. Process Safety and Environmental Protection, 2022, 168: 42-53. doi: 10.1016/j.psep.2022.09.044
[20]	王庭华, 翟宏举, 秦鹏, 等. 模组箱体空间内磷酸铁锂电池热失控及其传播行为研究[J]. 火灾科学, 2022, 31: 25-34.
	WANG Tinghua, ZHAI Hongju, QIN Peng, et al. Study on the thermal runaway and its propagation behaviors of lithium iron phosphate battery in module box space[J] Fire Safety Science, 2022, 31: 25-34.

工况序号	热失控触发方式	热失控触发位置	注氮量/ kg
1	加热	电池1、2号中间	0
2	加热	电池1、2号中间	13
3	加热	电池5、7号中间	13
4	过充	电池1—7号	0
5	过充	电池1—7号	13

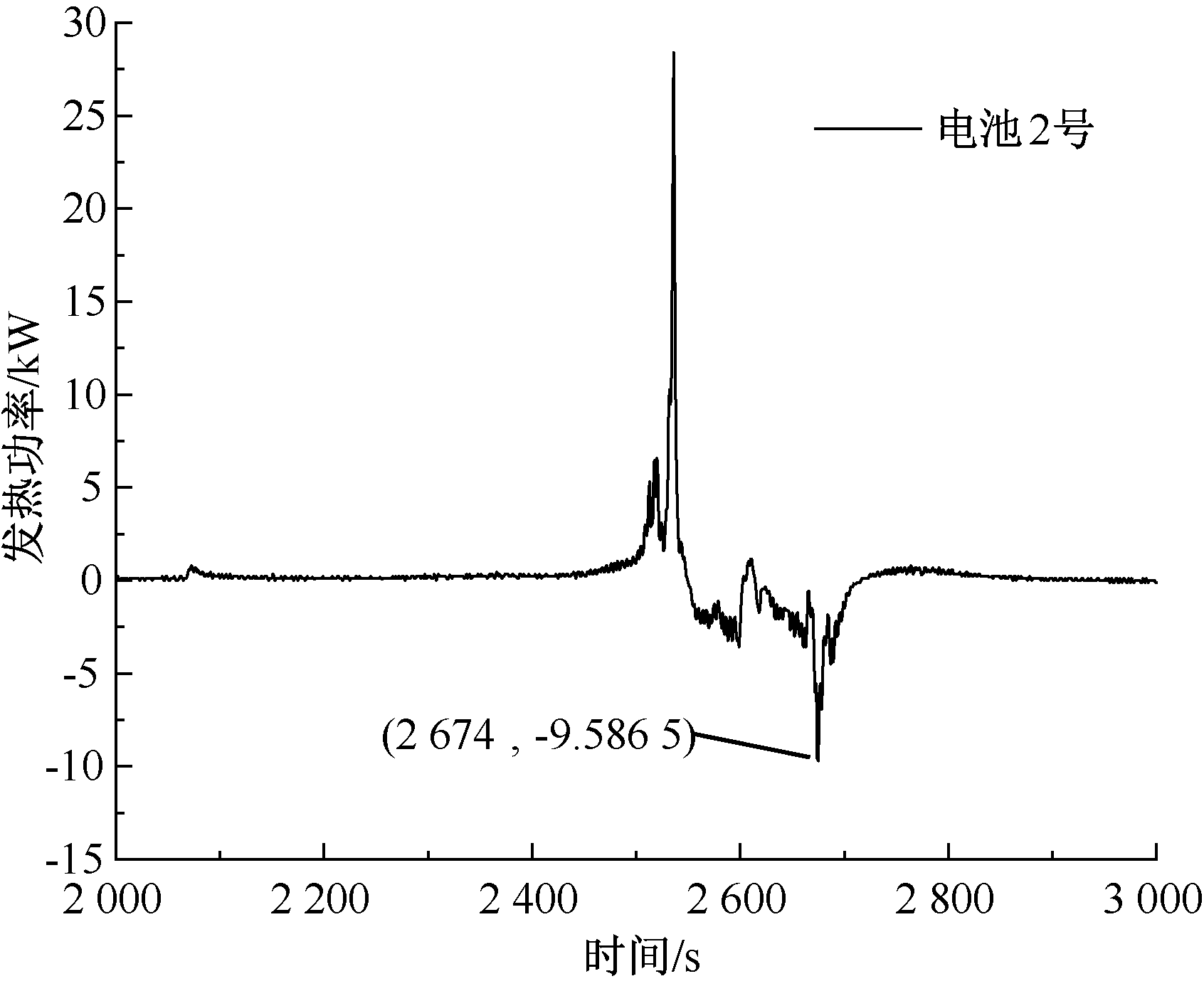

电池编号	Q_d /kJ	Q_d,h /kJ	ε_e /%	ε_u/%	状态
2	207.2	356.2	42.9	4.1	热失控
1	149.0	356.2	42.9	4.1	安全阀打开

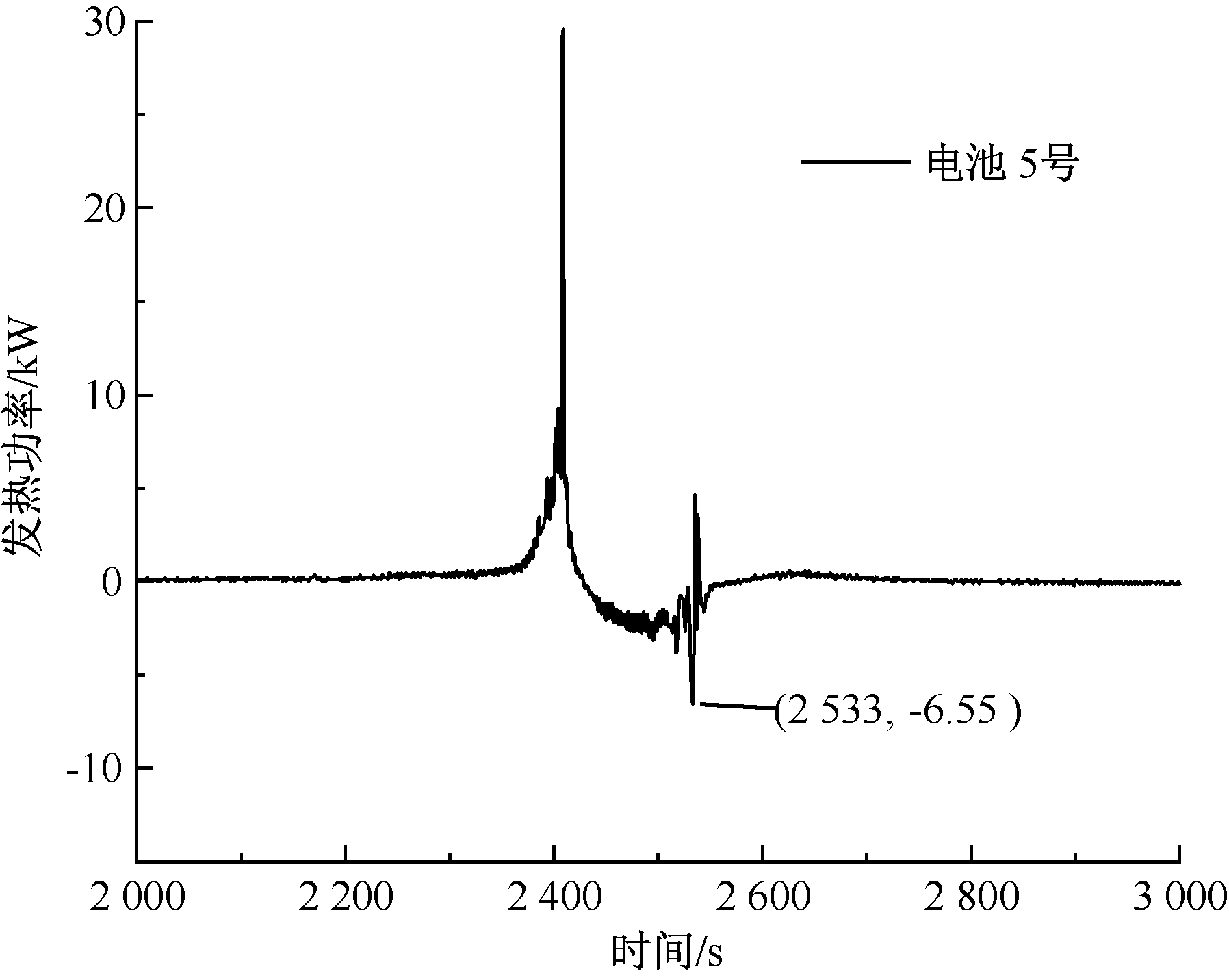

电池编号	Q_d /kJ	Q_d,h /kJ	ε_e /%	ε_u/%	状态
7	0	184.5	18.3	2.1	热失控
5	184.5	184.5	18.3	2.1	热失控

电池编号	Q_d /kJ	Q_d,h /kJ	ε_e /%	ε_u /%	状态
6	116.4	661.2	41.7	7.5	安全阀打开
4	147.0
2	53.1
1	124.0
3	45.4
5	112.0
7	63.3
