隧道内无砟轨道上拱变形特征及行车安全性研究

doi:10.16265/j.cnki.issn1003-3033.2024.01.2363

摘要/Abstract

摘要：

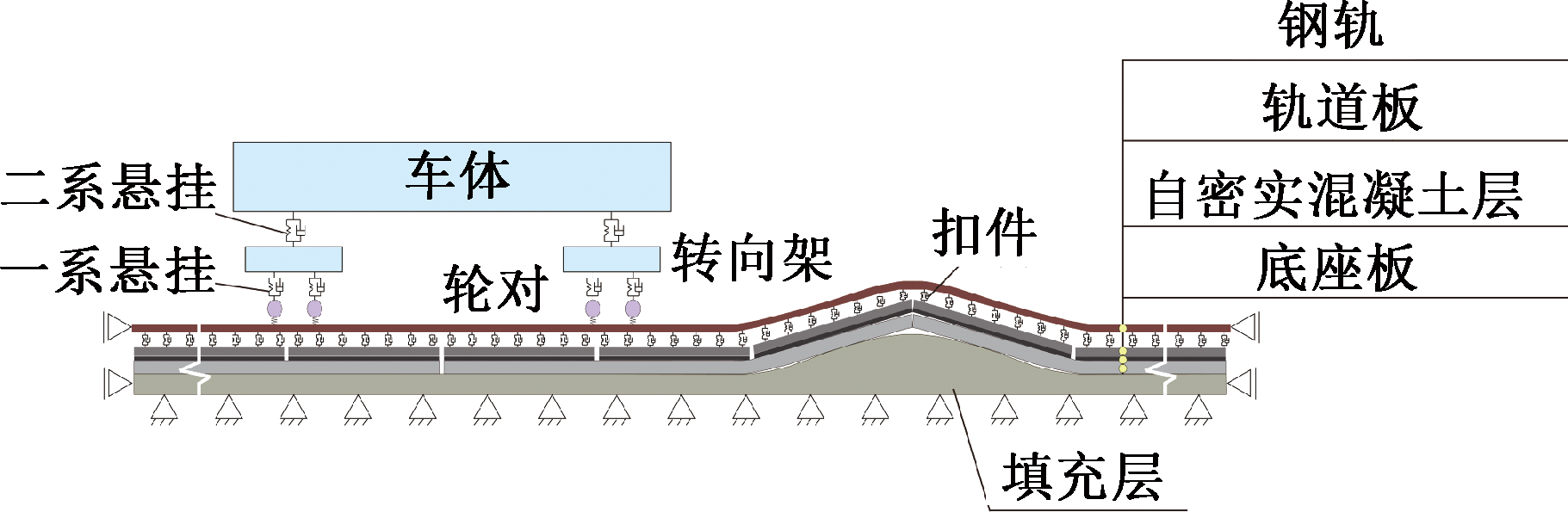

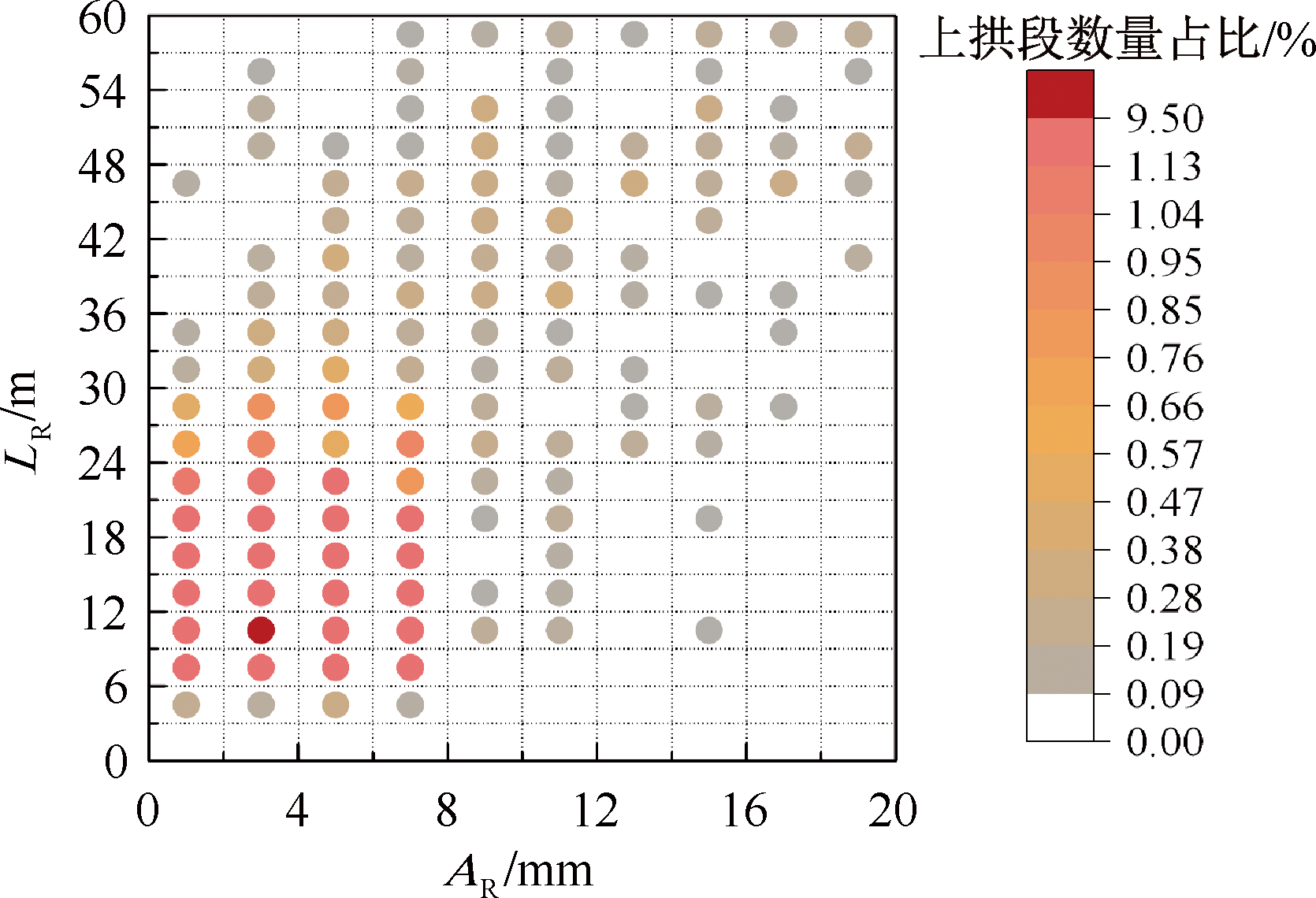

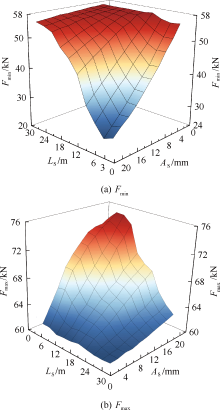

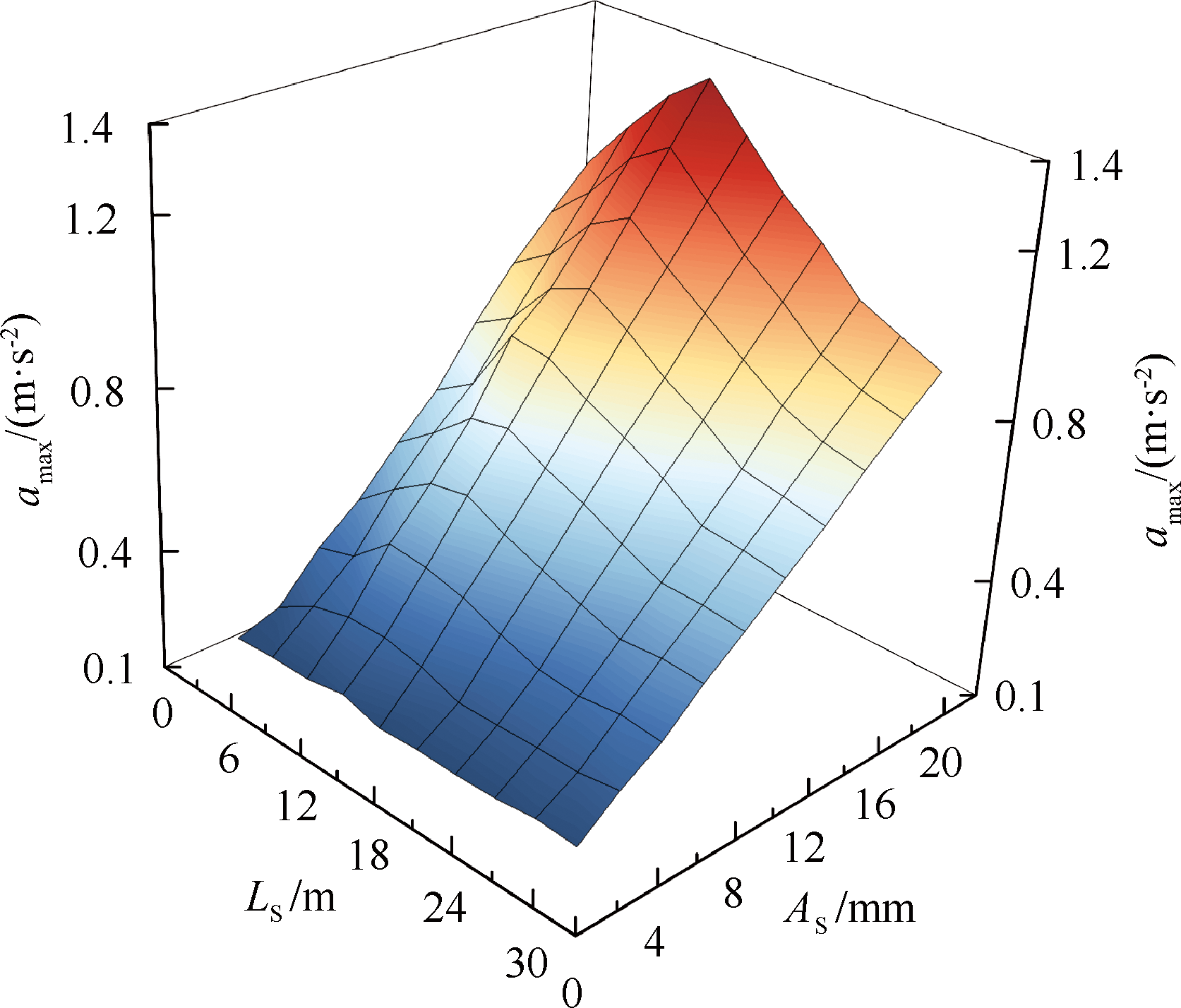

为评估高铁隧道内无砟轨道上拱变形对行车安全性的影响,基于实测数据获得无砟轨道上拱变形特征,从而建立仰拱填充层-无砟轨道-车辆系统动力学计算模型。利用计算模型获得不同无砟轨道上拱变形特征对车辆动力响应的影响,进而评估高速行车安全性。结果表明:高铁隧道内无砟轨道上拱变形的实测波长主要范围为3~30 m,幅值主要范围为0~8 mm,其中,以波长10 m、幅值2 mm的上拱变形为主。上拱波长不超过6 m时轮轨力峰值较大,上拱波长在12 m左右时车体垂向加速度峰值较大。波长6 m左右的上拱变形对高速行车安全性的影响显著,具有一定的脱轨风险,应重点关注。

关键词: 高铁隧道, 无砟轨道, 上拱变形, 行车安全性, 动力响应

Abstract:

To evaluate the influence of upper arch deformation on the safety of train operation on ballastless track inside high-speed railway tunnels, the upper arch deformation characteristics of different ballastless tracks were obtained based on measured data. Subsequently, a dynamic calculation model of the coupled system of uplift arch filler layer-ballastless track-vehicle was established. The impact of different upper arch deformation characteristics on the dynamic response of the vehicle was determined by using the calculation model, thereby assessing the safety of high-speed train operation. The results show that the measured wavelength is mainly distributed in 3 to 30 m and the amplitude is mainly distributed in 0 to 8 mm, among which the upper arch deformation is the most prominent with a wavelength of 10 m and an amplitude of 2 mm. When the upper arch wavelength is less than 6 m, the peak value of wheel-rail force is larger, and when the upper arch wavelength is about 12 m, the peak value of vertical acceleration of the vehicle is larger. The upper arch, with a wavelength of about 6 m, has a significant impact on high-speed driving safety and has a certain derailment risk, which should be paid more attention.

Key words: high-speed railway tunnel, ballastless track, upper arch deformation, security of driving, dynamic response

中图分类号:

X951交通运输安全

宋慧来, 林锦镇, 蒋典佑, 张鲁顺, 禹雷. 隧道内无砟轨道上拱变形特征及行车安全性研究[J]. 中国安全科学学报, 2024, 34(1): 187-192.

SONG Huilai, LIN Jinzhen, JIANG Dianyou, ZHANG Lushun, YU Lei. Research on deformation characteristics and driving safety of upper arch of ballastless track in tunnel[J]. China Safety Science Journal, 2024, 34(1): 187-192.

图/表 9

表1

图1

图2

表2

表3

图3

图4

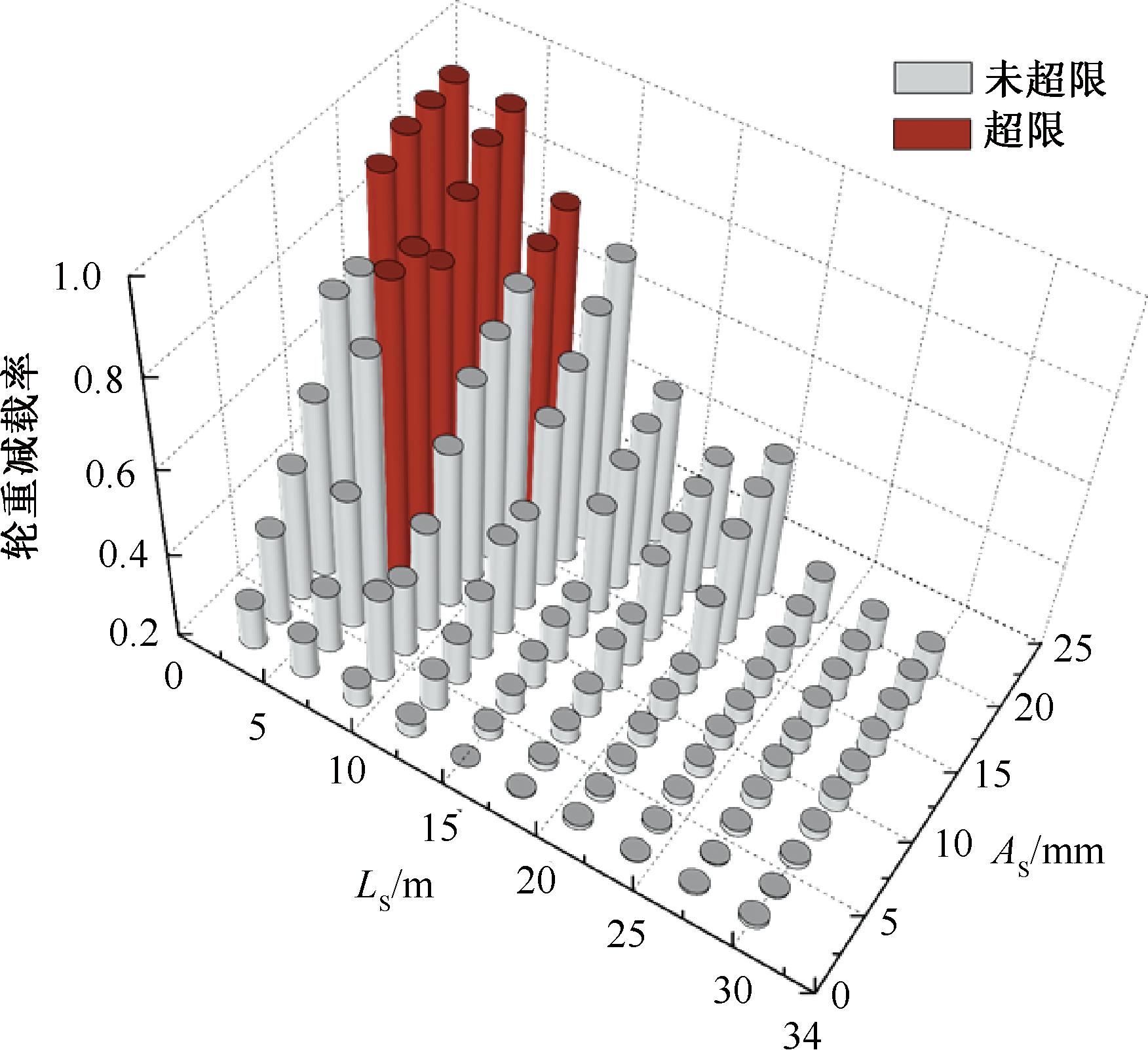

图5

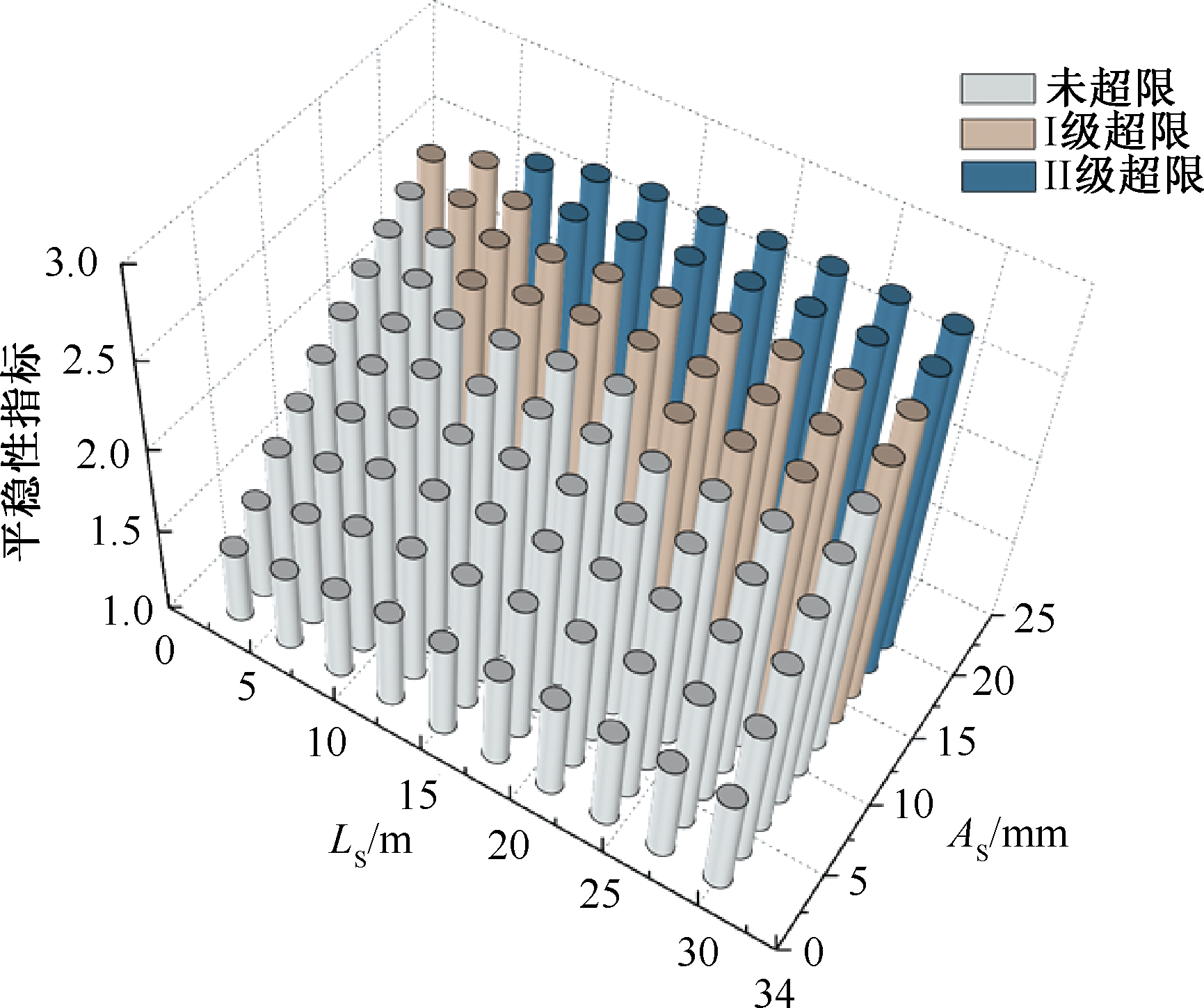

图6

参考文献 24

[1]	国家铁路局. 2021年铁道统计公报[R], 2022.
[2]	TB 10621—2014,高速铁路设计规范[S].
	TB 10621-2014, Code for design of high speed railway[S].
[3]	DU Mingqing, WANG Xuchun, ZHANG Yongjun, et al. In-situ monitoring and analysis of tunnel floor heave process[J]. Engineering Failure Analysis, 2020,109:DOI:10.1016/j.engfailanal.2019.104323.
[4]	周保安, 吴剑, 王立川, 等. 基于行车安全的ZJY高铁隧道底隆致无碴轨道变形处置实践与探讨[J]. 隧道建设:中英文, 2021, 41(3):474-482.
	ZHOU Baoan, WU Jian, WANG Lichuan, et al. Practice and discussion on treatment of ballastless track deformation of a high-speed rail-way tunnel caused by floor heave based on traffic safety[J]. Tunnel Construction, 2021, 41(3):474-482.
[5]	孔恒, 王梦恕, 张德华. 隧道底板隆起的成因、分类与控制[J]. 中国安全科学学报, 2003, 13(1):30-33.
	KONG Heng, WANG Mengshu, ZHANG Dehua. Causation and classification of tunnel floor heave and its control[J]. China Safety Science Journal, 2003, 13(1):30-33.
[6]	杜明庆, 张素磊, 张顶立, 等. 隧道仰拱底鼓机理及列车振动荷载影响研究[J]. 振动工程学报, 2020, 33(1):128-138.
	DU Mingqing, ZHANG Sulei, ZHANG Dingli, et al. Study on mechanism of tunnel invert floor heave and the effect under vibration load of train[J]. Journal of Vibration Engineering, 2020, 33(1):128-138.
[7]	ZHAO Dongping, FAN Haobo, JIA Lingli. Characteristics and mitigation measures of floor heave in operational high-speed railway tunnels[J]. KSCE Journal of Civil Engineering, 2021, 25(4):1479-1490. doi: 10.1007/s12205-021-2270-4
[8]	YU Cuiying, XIANG Jun, MAO Jianhong, et al. Influence of slab arch imperfection of double-block ballastless track system on vibration response of high-speed train[J]. Journal of the Brazilian Society of Mechanical Sciences and Engineering, 2018, 40(2):1-14. doi: 10.1007/s40430-017-0921-7
[9]	陈利, 马斌, 陈晓飞, 等. 隧道内道床板上拱损伤评级与维修效果评价[J]. 铁道建筑, 2021, 61(7):122-126.
	CHEN Li, MA Bin, CHEN Xiaofei, et al. Damage ratings and evaluation of maintenance effect on slab upwarping of tunnel[J]. Railway Engineering, 2021, 61(7):122-126.
[10]	赵国堂. 季冻区高速铁路无砟轨道平稳性控制理论与技术[M]. 上海: 上海科学技术出版社, 2021: 20-117.
[11]	ZHANG Jinfeng, ZHAO Ming, CHANG Sha. Early warning limits for uneven settlement of metro tunnels based on vehicle-track interaction simulations[J]. Journal of Civil Structural Health Monitoring, 2021, 11(4):507-520. doi: 10.1007/s13349-020-00465-6
[12]	张鲁顺, 赵国堂. 基于高速铁路路基冻胀的轮轨动力响应研究[J]. 振动与冲击, 2020, 39(1):8-14,23.
	ZHANG Lushun, ZHAO Guotang. Dynamic Response of wheel-rail based on frost heave of high-speed railway subgrade[J]. Journal of Vibration and Shock, 2020, 39(1):8-14,23.
[13]	许乾奇, 曹毅杰, 孙晓丹, 等. 基于强地震动物理模拟的车-轨-桥系统动力响应[J]. 中国安全科学学报, 2022, 32(6):207-214. doi: 10.16265/j.cnki.issn1003-3033.2022.06.1695
	XU Qianqi, CAO Yijie, SUN Xiaodan, et al. Dynamic response of vehicle-track-bridge system under excitation from physics-based ground motion simulation[J]. China Safety Science Journal, 2022, 32(6):207-214. doi: 10.16265/j.cnki.issn1003-3033.2022.06.1695
[14]	PAIXAO A, FORTUNATO E, CALCADA R. The effect of differential settlements on the dynamic response of the train-track system: a numerical study[J]. Engineering Structures, 2015, 88:216-224. doi: 10.1016/j.engstruct.2015.01.044
[15]	CAO Yanmei, QU Jiting. Influence of subgrade differential settlement on riding performance of high-speed train[C]. International Congress & Exhibition Sustainable Civil Infrastructures: Innovative Infrastructure Geotechnology, 2017:121-132.
[16]	戴世伟, 刘鑫鑫, 万飞. 软岩隧道大变形事故致灾因素耦合分析[J]. 中国安全科学学报, 2021, 31(8):119-124. doi: 10.16265/j.cnki.issn1003-3033.2021.08.017
	DAI Shiwei, LIU Xinxin, WAN Fei. Coupling analysis on disaster-inducing factors for large deformation accidents in soft rock tunnels[J]. China Safety Science Journal, 2021, 31(8):119-124. doi: 10.16265/j.cnki.issn1003-3033.2021.08.017
[17]	张向礼, 范飞, 李佳兴, 等. 高原不良地质铁路隧道水害动态控制技术[J]. 中国安全科学学报, 2020, 30(增1):84-91.
	ZHANG Xiangli, FAN Fei, LI Jiaxing, et al. Dynamic control technology of water disaster in railway tunnel with bad geology in plateau[J]. China Safety Science Journal, 2020, 30(S1):84-91. doi: 10.16265/j.cnki.issn1003-3033.2020.S1.016
[18]	郭毅. 高速铁路路基冻胀变形引起的轨道结构变形特性及其对行车的动力影响研究[D]. 成都: 西南交通大学, 2016.
	GUO Yi. Study on the effect of subgrade frost heaving on the deformation properties of track structure and its vehicle dynamic behavior in high-speed railway[D]. Chengdu: Southwest Jiaotong University, 2016.
[19]	赵国堂, 刘秀波, 高亮, 等. 哈大高速铁路路基冻胀区轨道不平顺特征分析[J]. 铁道学报, 2016, 38(7):105-109.
	ZHAO Guotang, LIU Xiubo, GAO Liang, et al. Characteristic analysis of track irregularity in subgrade frost heave area of harbin-dalian high-speed railway[J]. Journal of the China Railway Society, 2016, 38(7):105-109.
[20]	张鲁顺. 高速铁路无砟轨道列车荷载传递特征及机理研究[D]. 北京: 北京交通大学, 2021.
	ZHANG Lushun. Research on train load transfer characteristics and mechanism in ballastless track of high-speed railway[D]. Beijing: Beijing Jiaotong University, 2021.
[21]	JIANG Lizhong, YU Jian, ZHOU Wangbo, et al. Applicability analysis of high-speed railway system under the action of near-fault ground motion[J]. Soil Dynamics and Earthquake Engineering, 2020, 139:DOI:10.1016/j.soildyn.2020.106289.
[22]	赵国堂. 高速铁路无砟轨道软土地基沉降区深部转移的不平顺控制理论及应用[J]. 铁道学报, 2019, 41(2):97-104.
	ZHAO Guotang. Theory and application of irregularity control by shifting the settlement part to a deeper position for the soft soil foundation of high-speed railway ballastless track[J]. Journal of the China Railway Society, 2019, 41(2):97-104.
[23]	中国铁道科学研究院. 武广客运专线武汉综合试验段综合试验研究报告[R], 2009.
[24]	GB/T 5599—2019, 机车车辆动力学性能评定及试验鉴定规范[S].
	GB/T 5599-2019, Specification for dynamic performance assessment and testing verification of rolling stock[S].

部件	E/GPa	ρ/(kg·m^-3)	υ
钢轨	210	7 800	0.3
轨道板	36.5	2 500	0.2
自密实混凝土层	32.5	2 500	0.2
底座板	32.5	2 500	0.2
填充层	31.5	2 200	0.3

轮轨动力响应	计算结果	试验结果
脱轨系数	0.085	0.05~0.39
轮重减载率	0.405	0.08~0.45
轮轴横向力/kN	3.1	0.1~25.7
轮轨横向力/kN	7.1	5.3~20.9
轮轨垂向力/kN	114	62.3~99.9
