铺设隔热层对巷道降温效果的影响分析

doi:10.16265/j.cnki.issn1003-3033.2024.11.0315

中国安全科学学报 ›› 2024, Vol. 34 ›› Issue (11): 153-162.doi: 10.16265/j.cnki.issn1003-3033.2024.11.0315

铺设隔热层对巷道降温效果的影响分析

崔大雄¹(), 游波¹^,²^,³, 高科², 杨明⁴, 韩巧云¹, 陈元森¹

¹ 湖南科技大学资源环境与安全工程学院, 湖南湘潭 411201
² 矿山热动力灾害与防治教育部重点实验室, 辽宁葫芦岛 125105
³ 河南理工大学河南省瓦斯地质与瓦斯治理重点实验室-省部共建国家重点实验室培育基地,河南焦作 454003
⁴ 河南理工大学安全科学与工程学院, 河南焦作 454003

收稿日期:2024-06-10 修回日期:2024-08-21 出版日期:2024-11-28
作者简介:
崔大雄 (1999—),男,云南昭通人,硕士研究生,研究方向为矿井热害防治。E-mail: 2110949717@qq.com。
游波, 教授
高科, 教授
杨明, 教授
韩巧云, 副教授
基金资助:
国家自然科学基金(52174179); 辽宁工程技术大学矿山热动力灾害与防治教育部重点实验室基金(JSK202204); 河南省瓦斯地质与瓦斯治理重点实验室-省部共建国家重点实验室培育基地开放基金(WS2023B09)

Analysis of influence of laying heat insulation layer on cooling effect of roadway

CUI Daxiong¹(), YOU Bo¹^,²^,³, GAO Ke², YANG Ming⁴, HAN Qiaoyun¹, CHEN Yuansen¹

¹ School of Resource Environment and Safety Engineering, Hunan University of Science and Technology, Xiangtan Hunan 411201, China
² Key Laboratory of Mine Thermodynamic Disasters and Control of Ministry of Education (Liaoning Technical University), Huludao Liaoning 125105, China
³ State Key Laboratory Cultivation Base for Gas Geology and Gas Control, Henan Polytechnic University, Jiaozuo Henan 454003, China
⁴ School of Safety Science and Engineering, Henan Polytechnic University, Jiaozuo Henan 454003, China

Received:2024-06-10 Revised:2024-08-21 Published:2024-11-28

摘要/Abstract

摘要：

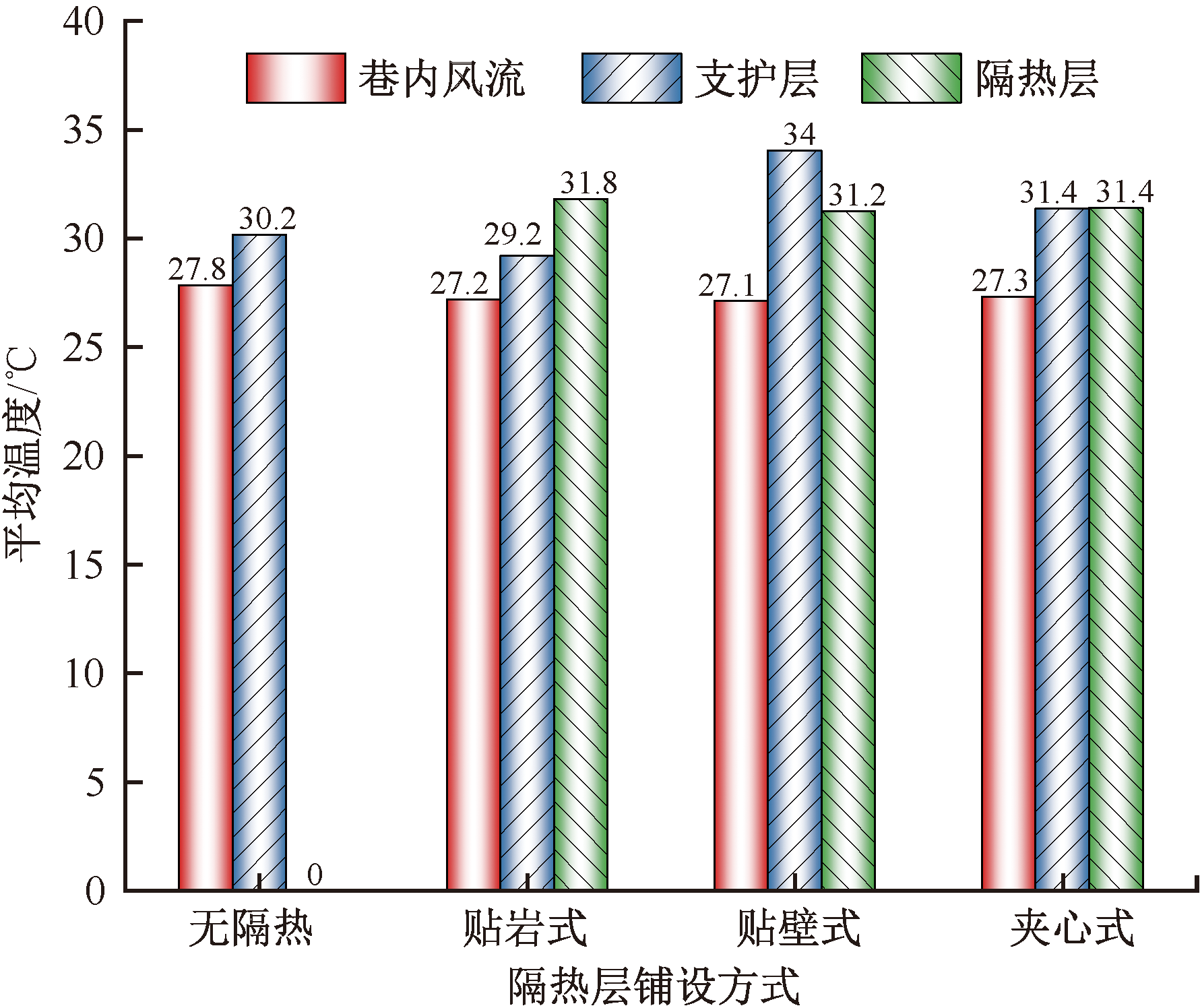

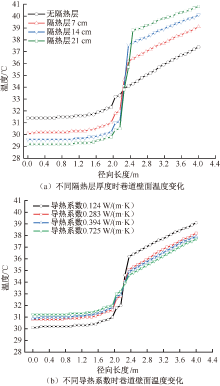

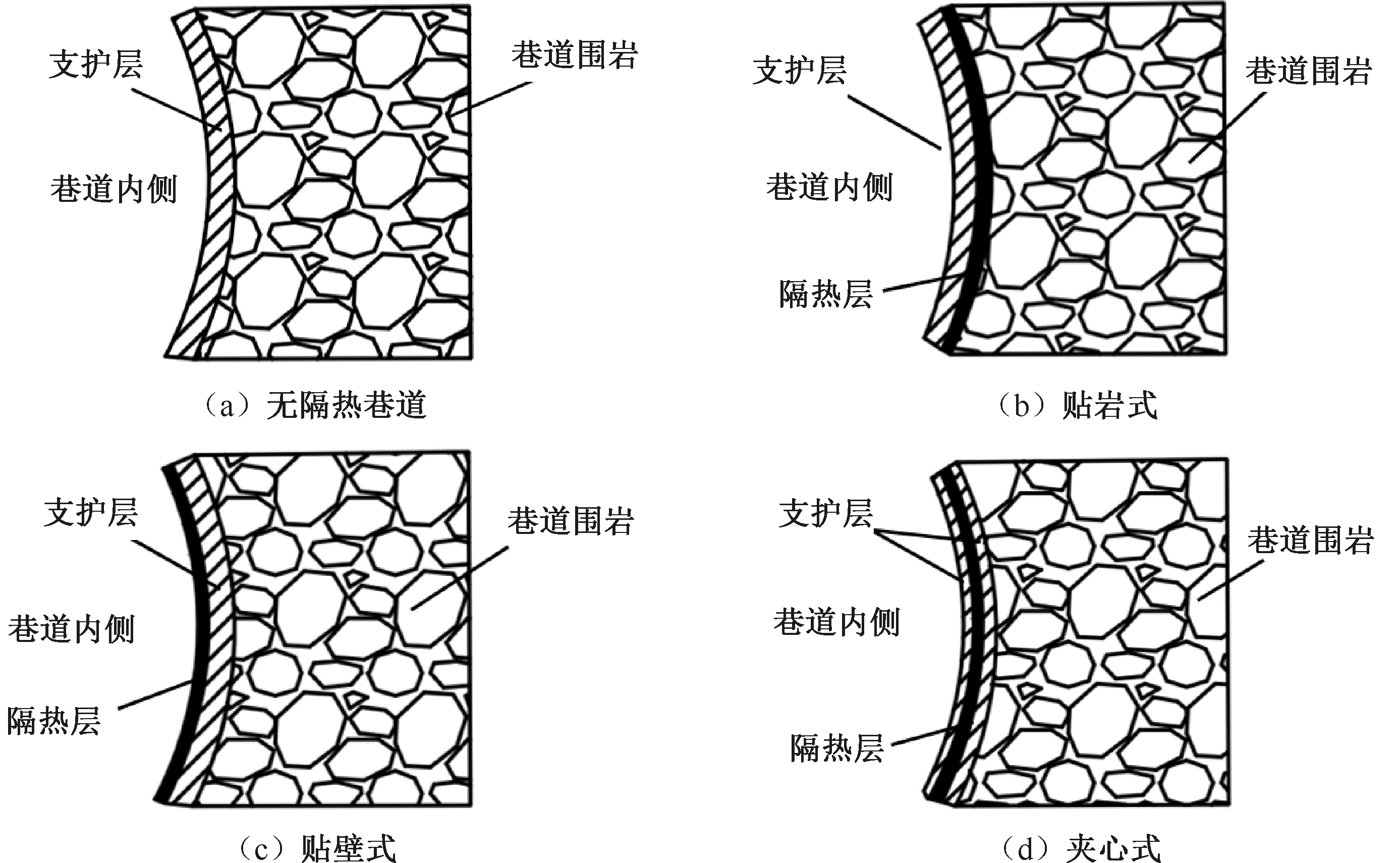

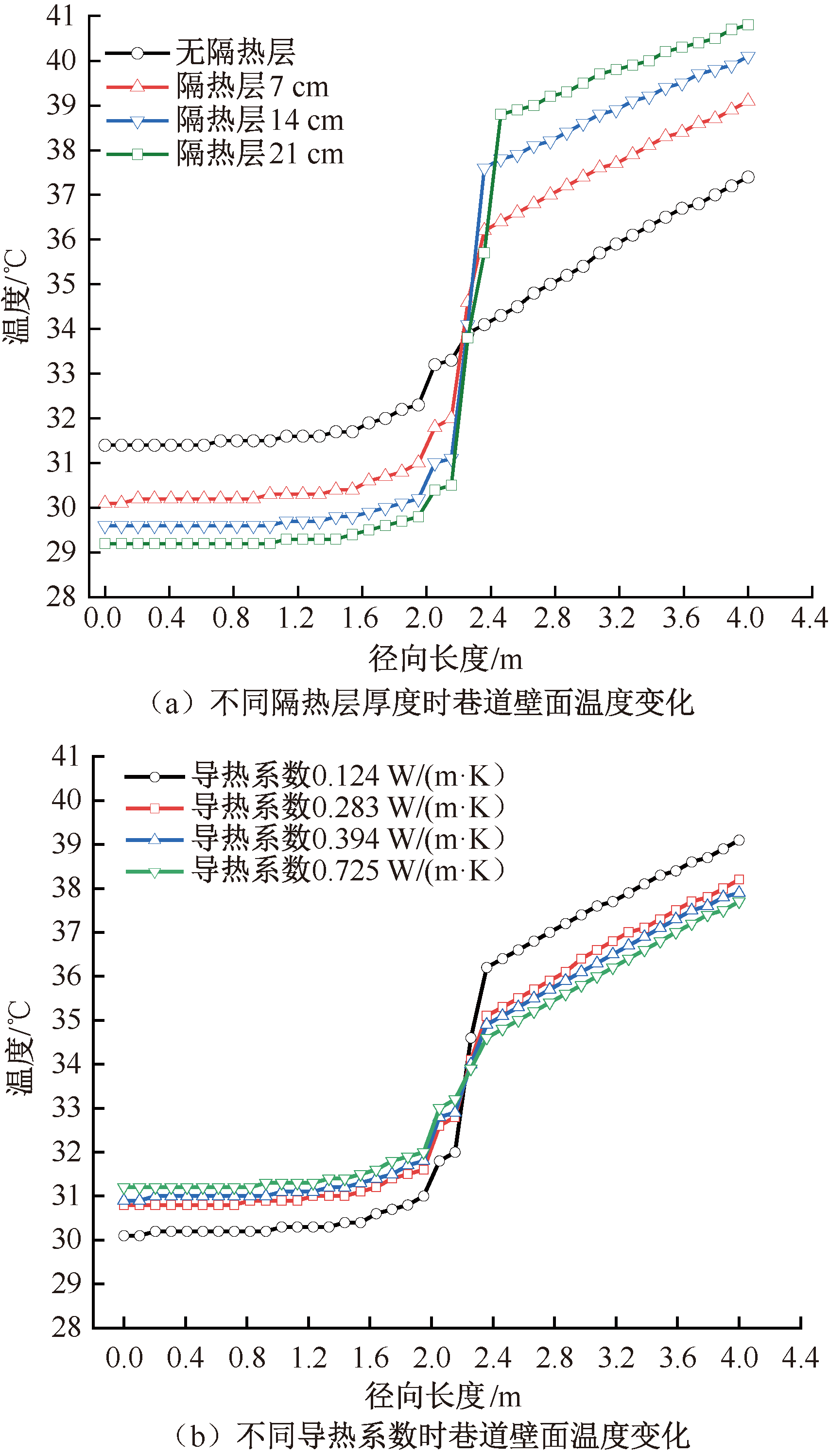

为解决煤矿深部开采带来的热害问题,基于ANSYS模拟软件,构建巷道隔热模型,分析不同隔热层基本参数和铺设方式对巷道壁面结构的影响,并进一步探究隔热巷道的降温效果。研究结果表明:铺设隔热层能减小围岩调热圈半径和延缓围岩散热,3种隔热层铺设方式对围岩温度场无明显影响;贴岩式隔热层铺设方式使支护层平均温度相较于无隔热层支护层温度明显降低,而贴壁式和夹心式则与之相反;增加隔热层厚度和降低隔热材料的导热系数可以增加隔热效果,7 cm为最佳隔热层厚度;入口风速或者风温过高都会影响隔热巷道的降温效果,隔热巷道适用于通风风速较低,入口风温较低,通风距离较长的高温巷道。

关键词: 隔热层, 隔热巷道, 降温效果, 围岩温度场, 温度梯度, 风流温度

Abstract:

In order to solve the heat damage issue brought by deep mining in coal mines, based on ANSYS simulation software, the roadway heat insulation model was constructed. The influence of basic parameters of different heat insulation layers and laying methods on the roadway wall structure was analyzed, and the cooling effect of the heat insulation roadway was further investigated. The results of the study show that the laying of the heat insulation layer could reduce the radius of the peripheral rock heat-regulating circle and slow down the heat dissipation of the peripheral rock, and the three ways of laying the heat insulation layer have little effect on the temperature field of the peripheral rock. Compared with the temperature of the non-insulated support layer, the average temperature of the support layer is reduced significantly by laying of the heat insulation layer in the rock-adhering type, whereas the opposite is true for wall-adhering type and the sandwich type. The increase in the thickness of the heat insulation layer and the decrease in the heat conduction coefficient of heat-insulating material could increase the heat-insulating effect, and 7cm is the optimal thickness of heat insulation layer. Excessive inlet wind speed or air temperature will affect the cooling effect of heat-insulated roadway. Heat-insulated roadway is suitable for high temperature roadway with low wind speed, low inlet air temperature and long ventilation distance.

Key words: insulation layer, roadway insulation, cooling effect, temperature field of surrounding rock, temperature gradient, airflow temperature

中图分类号:

X936

崔大雄, 游波, 高科, 杨明, 韩巧云, 陈元森. 铺设隔热层对巷道降温效果的影响分析[J]. 中国安全科学学报, 2024, 34(11): 153-162.

CUI Daxiong, YOU Bo, GAO Ke, YANG Ming, HAN Qiaoyun, CHEN Yuansen. Analysis of influence of laying heat insulation layer on cooling effect of roadway[J]. China Safety Science Journal, 2024, 34(11): 153-162.

图/表 14

图1

图2

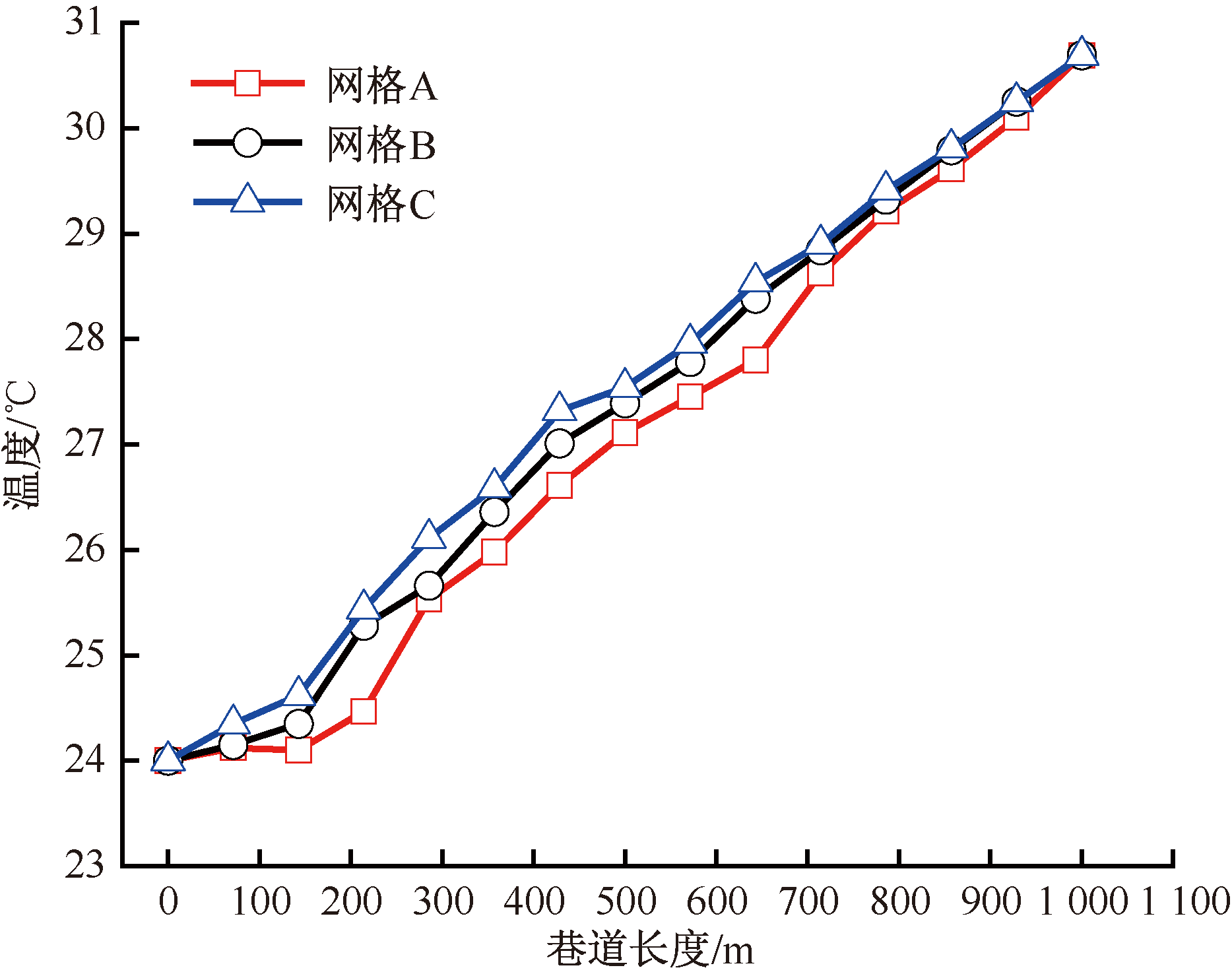

图3

表1

表2

图4

图5

图6

图7

图8

图9

表3

图10

表4

参考文献 19

[1]	罗勇东, 王海宁, 张迎宾. 矿井高温掘进巷道降温技术研究及应用[J]. 有色金属科学与工程, 2020, 11(1): 85-91.
	LUO Yongdong, WANG Haining, ZHANG Yingbin, et al. Research and application of cooling technology in roadway driving in the mine at high temperature[J]. Nonferrous Metals Science and Engineering, 2020, 11(1): 85-91.
[2]	何满潮, 郭平业. 深部岩体热力学效应及温控对策[J]. 岩石力学与工程学报, 2013, 32(12): 2 377-2 393.
	HE Manchao, GUO Pingye. Deep rock mass thermodynamic effect and temperature control measures[J]. Chinese Journal of Rock Mechanics and Engineering, 2013, 32(12): 2 377-2 393.
[3]	谢和平. “深部岩体力学与开采理论”研究构想与预期成果展望[J]. 工程科学与技术, 2017, 49(2): 1-16.
	XIE Heping. Research framework and anticipated results of deep rock mechanics and mining theory[J]. Advanced Engineering Sciences, 2017, 49(2): 1-16.
[4]	杜翠凤, 边梦龙, 何少博, 等. 基于稳态导热的矿井调热圈半径与温度的计算方法[J]. 矿业安全与环保, 2018, 45(1): 28-33.
	DU Cuifeng, BIAN Menglong, HE Shaobo, et al. Formulas of radius and temperature of heat regulating circle based on steady heat conduction[J]. Mining Safety & Environmental Protection, 2018, 45(1): 28-33.
[5]	张健, 张鹏妍, 魏建平, 等. 巷道围岩调热圈分布特性研究:以羊场湾煤矿为例[J]. 中国安全科学学报, 2023, 33(8):125-133. doi: 10.16265/j.cnki.issn1003-3033.2023.08.1857
	ZHANG Jian, ZHANG Pengyan, WEI Jianping, et al. Study on distribution character of heat regulating ring in roadway surrounding rock: taking Yangchangwan coal mine as an example[J]. China Safety Science Journal, 2023, 33(8): 125-133. doi: 10.16265/j.cnki.issn1003-3033.2023.08.1857
[6]	徐宇, 李孜军, 贾敏涛, 等. 深部矿井热害治理协同地热能开采构想及方法分析[J]. 中国有色金属学报, 2022, 32(5): 1 515-1 527.
	XU Yu, LI Zijun, JIA Mintao, et al. Conceptualization and method for synergetic mining of geothermal energy as solution to heat hazard control in deep mines[J]. The Chinese Journal of Nonferrous Metals, 2022, 32(5): 1 515-1 527.
[7]	亓玉栋, 程卫民, 于岩斌, 等. 我国煤矿高温热害防治技术现状综述与进展[J]. 煤矿安全, 2014, 45(3): 167-174.
	QI Yudong, CHENG Weimin, YU Yanbin, et al. Status summarization and progress of heat hazard control technology in coal mine of China[J]. Safety in Coal Mines, 2014, 45(3): 167-174.
[8]	游波, 毛聪, 施式亮, 等. 管路结构对矿用通风服微气候的影响研究[J]. 中国安全科学学报, 2022, 32(7): 195-204. doi: 10.16265/j.cnki.issn1003-3033.2022.07.2244
	YOU Bo, MAO Cong, SHI Shiliang, et al. Research on influence law of pipeline structure of mine ventilation clothing on interior space microclimate[J]. China Safety Science Journal, 2022, 32(7): 195-204. doi: 10.16265/j.cnki.issn1003-3033.2022.07.2244
[9]	邹声华, 李孔清, 张登春, 等. 掘进巷道隔热分流排热降温技术的理论与实践研究[J]. 安全与环境学报, 2016, 16(2): 99-102.
	ZOU Shenghua, LI Kongqing, ZHANG Dengchun, et al. On the air-partition for cooling with the heat insulated plate[J]. Journal of Safety and Environment, 2016, 16(2): 99-102.
[10]	张源. 高地温巷道围岩非稳态温度场及隔热降温机理研究[D]. 徐州: 中国矿业大学, 2013.
	ZHANG Yuan. Transient temperature field of surrounding rock of the high geothermal roadway and its heat control mechanism by heat insulation[D]. Xuzhou: China University of Mining and Technology, 2013.
[11]	陈青林, 陈庆发, 钟琼英, 等. 深井巷道风流性质与围岩调热圈参数匹配关系研究[J]. 金属矿山, 2017(4): 169-176.
	CHEN Qinglin, CHEN Qingfa, ZHONG Qiongying, et al. Matching relationship of surrounding rock heat-adjusting layer and airflow property in deep mine[J]. Metal Mine, 2017(4): 169-176.
[12]	朱国龙, 周鹏, 宫伟力, 等. 高温矿井工作面热害控制模拟研究及系统优化[J]. 中国矿业, 2016, 25(12): 159-164.
	ZHU Guolong, ZHOU Peng, GONG Weili, et al. Numerical simulation research on deep mine work face heat hazards control and cooling system optimizing[J]. China Mining Magazine, 2016, 25(12): 159-164.
[13]	张树光, 常剑, 王宏伟. 高温巷道调热圈特性及对隔热支护结构的影响[J]. 煤田地质与勘探, 2019, 47(5): 179-185.
	ZHANG Shuguang, CHANG Jian, WANG Hongwei. Characteristics of heat-adjusting ring and the influence of thermal insulation support structure in high-temperature roadway[J]. Coal Geology & Exploration, 2019, 47(5): 179-185.
[14]	何发龙, 魏亚兴, 胡汉华, 等. 巷道调热圈半径及其温度场分布的数值模拟研究[J]. 铁道科学与工程学报, 2016, 13(3): 538-543.
	HE Falong, WEI Yaxing, HU Hanhua, et al. Numerical simulation research on radius and temperature field of roadway heat adjusting layer[J]. Journal of Railway Science and Engineering, 2016, 13(3): 538-543.
[15]	吴栋. 高地温巷道喷浆隔热机理的实验研究[D]. 徐州: 中国矿业大学, 2019.
	WU Dong. Experimental study on spraying insulation mechanism of high ground temperature roadway[D]. Xuzhou: China University of Mining and Technology, 2019.
[16]	齐兵, 杨松, 曹振生, 等. 高地温隧道隔热层方案优化设计及应用:以尼格隧道为例[J]. 科学技术与工程, 2023, 23(9): 4 004-4 010.
	QI Bing, YANG Song, CAO Zhensheng, et al. Optimization design and application of high temperature tunnel thermal insulation layer scheme: taking the Nige tunnel as an example[J]. Science Technology and Engineering, 2023, 23(9): 4 004-4 010.
[17]	张晓明, 黄亮, 王永军, 等. 条带潮湿巷道模型风流温湿度数值模拟研究[J]. 中国安全科学学报, 2020, 30(1) : 21-26. doi: 10.16265/j.cnki.issn1003-3033.2020.01.004
	ZHANG Xiaoming, HUANG Liang, WANG Yongjun, et al. Numerical simulation of airflow temperature and humidity for partly wet roadway model[J]. China Safety Science Journal, 2020, 30(1): 21-26. doi: 10.16265/j.cnki.issn1003-3033.2020.01.004
[18]	游波, 崔大雄, 刘何清, 等. 不同隔热材料下的深井巷道隔热降温模拟研究[J]. 中国安全科学学报, 2024, 34(2): 153-160. doi: 10.16265/j.cnki.issn1003-3033.2024.02.0748
	YOU Bo, CUI Daxiong, LIU Heqing, et al. Simulation study on heat insulation and cooling of deep shaft tunnel with different heat insulation materials[J]. China Safety Science Journal, 2024, 34(2): 153-160. doi: 10.16265/j.cnki.issn1003-3033.2024.02.0748
[19]	宋东平, 周西华, 白刚, 等. 高温矿井主动隔热巷道围岩温度场分布规律研究[J]. 煤炭科学技术, 2017, 45(12): 107-113.
	SONG Dongping, ZHOU Xihua, BAI Gang, et al. Study on temperature field distribution law of surrounding rock in active thermal insulated roadway of high temperature mine[J]. Coal Science and Technology, 2017, 45(12): 107-113.

材料	密度/ (kg·m^-3)	导热系数/ (W·m^-1·℃^-1)	比热容/ (J·kg^-1·K^-1)	动力黏度/ (Pa·s)
巷道围岩	2 330	2.62	880	—
支护层	2 400	1.74	1 000	—
空气	1.205	0.025 9	1 005	1.81×10^-5

边界条件	参数设置
求解器	压力求解器
湍流强度	5%
求解方法	压力耦合半隐式方法
速度入口/(m·s^-1)	1
入口风温/℃	24
围岩初始温度/℃	50
壁面粗糙度常数	0.5
壁面粗糙高度/m	0.07

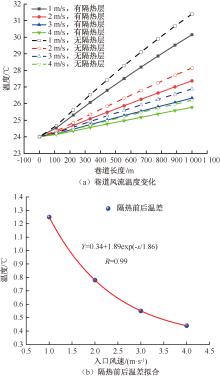

入口风速/ (m·s^-1)	巷道出口风流温度/℃		降幅/%
入口风速/ (m·s^-1)	隔热前	隔热后	降幅/%
1	31.40	30.15	3.89
2	28.15	27.37	2.77
3	26.88	26.33	2.04
4	26.21	25.77	1.67

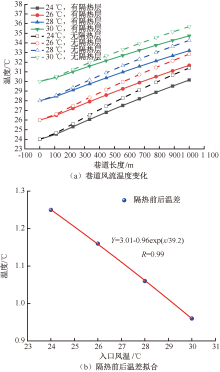

入口风温/℃	巷道出口风流温度/℃		降幅/%
入口风温/℃	隔热前	隔热后	降幅/%
24	31.40	30.15	3.89
26	32.83	31.67	3.53
28	34.26	33.20	3.09
30	35.69	34.73	2.68
