可可盖矿主斜井TBM冒顶机制与识别

doi:10.16265/j.cnki.issn1003-3033.2024.12.1018

摘要/Abstract

摘要：

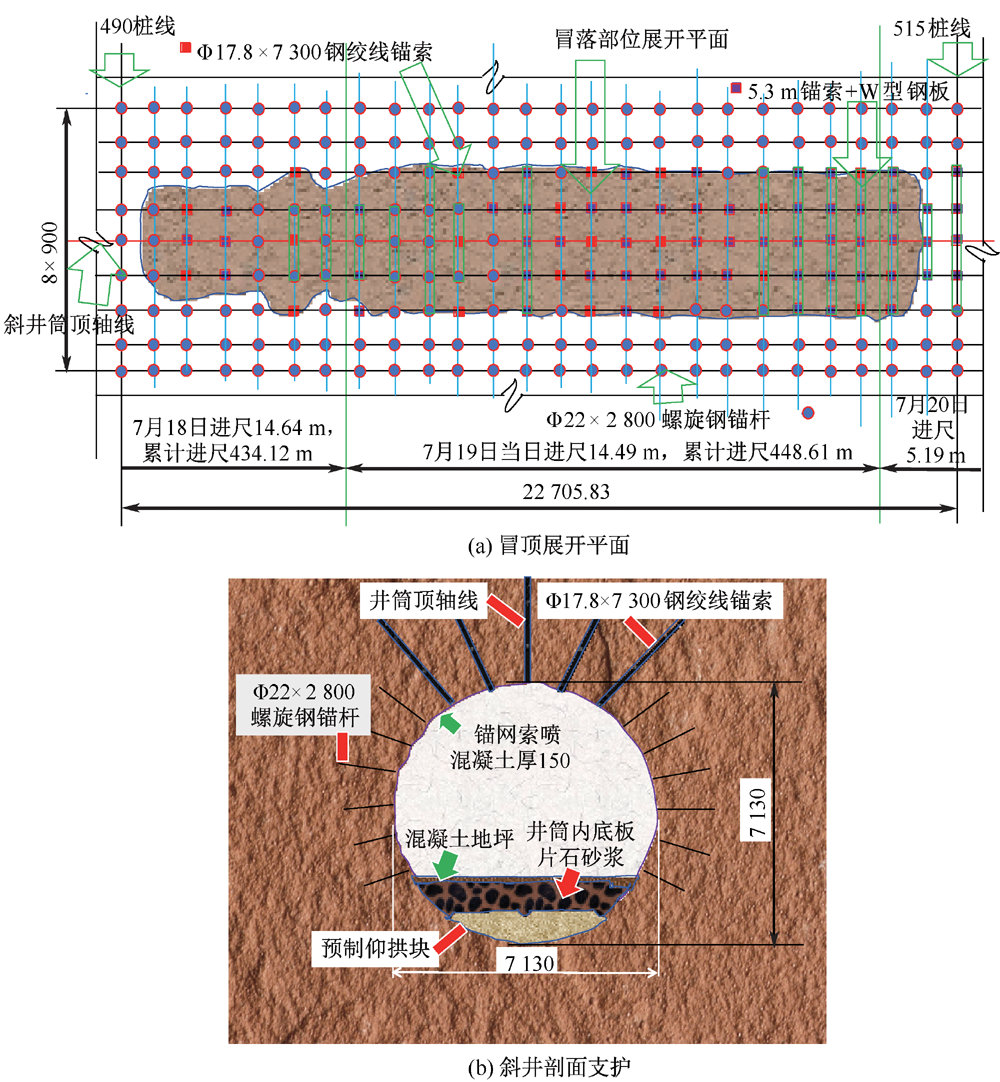

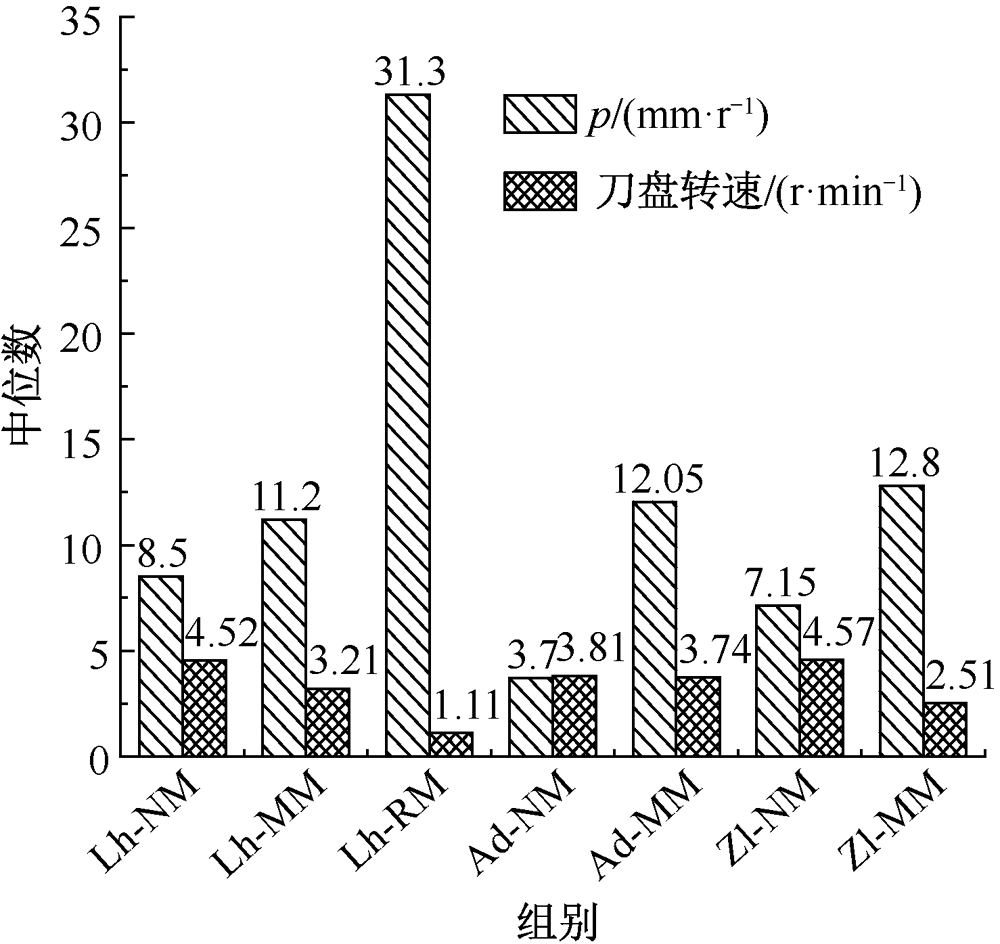

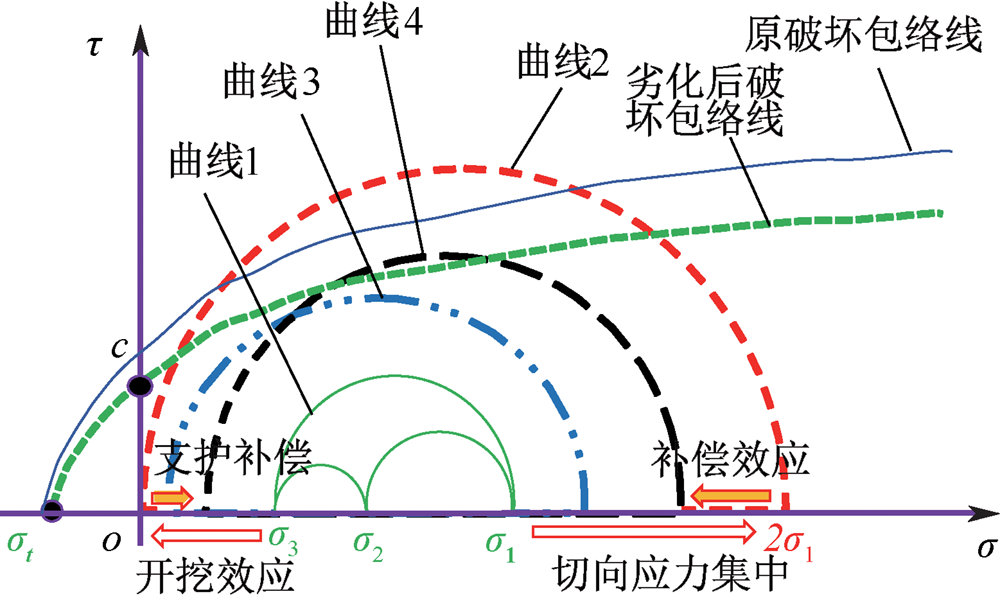

为探究敞开式隧道掘进机(TBM)在煤矿长大斜井掘进中应对冒顶问题的方法,针对富水、断层、节理、碎裂结构砂岩等不利地质条件这一难题,展开冒顶机制与模式识别研究。首先,运用修正开挖补偿理论和充分考虑中间主应力的围岩最小支护应力分析冒顶机制,并基于可可盖矿主斜井成功案例与TBM现场施工数据,深入分析冒顶特征;然后,依据采集到的现场反馈监测信息,系统研究冒顶前后掘进参数的变化情况,构建随机森林(RF)、反向传播(BP)神经网络、支持向量机库(LIBSVM)机器学习模型以有效识别冒顶。结果表明:碎裂结构层理交错的砂岩水—岩导致砂岩力学性能劣化是冒顶内因,机岩作用能量释放是外因,开挖应力补偿及适时采用钢锚(索)喷+钢拱架(钢板带)不同方案支护是控因;贯入度剧增,滚刀推力、刀盘扭矩、刀盘转速剧减是冒顶掘进参数特征;RF模型对围岩冒顶分类预测精度最好,其识别冒顶风险的准确率比BP、LIBSVM分别提高1.78%、11.84%。

关键词: 主斜井, 隧道掘进机(TBM), 冒顶机制, 中间主应力, 掘进参数, 冒顶风险

Abstract:

To explore the approach for dealing with roof fall by the open TBM in coal mine excavation, the mechanism and pattern recognition of roof fall were investigated considering the unfavorable geological conditions such as abundant water, faults, joints and sandstone with fractured structure. Firstly, the roof fall mechanism was analyzed by utilizing the modified excavation compensation theory and the minimum support stress of surrounding rock which fully considered the intermediate principal stress. Based on the successful case of the main inclined shaft of Kekegai mine and TBM site construction data, the characteristics of roof fall were deeply analyzed. Then, in accordance with the collected on-site feedback monitoring information, the variations of excavation parameters before and after the roof fall were systematically examined, and the machine learning models of random forest (RF), back propagation (BP) neural network, and Library for support vector machines (LIBSVM) were constructed to effectively identify the roof fall. The results demonstrate that the internal cause of roof fall is the deterioration of sandstone mechanical properties resulting from water-rock interlace in the cataclastic structure, the external cause is the energy release by mechanic-rock action, and the controlling cause is the excavation stress compensation and the timely application of steel anchor (cable) shotcrete + steel arch (steel plate belt). The sharp increase of penetration, and thrust of the hob, the torque of the cutter head and sharp decline of the cutter head speed are the characteristics of roof fall driving parameters. The RF model has the highest prediction accuracy for the classification of roof fall of surrounding rock, and its accuracy rate of identifying roof fall risk is 1.78% and 11.84% higher than that of BP and LIBSVM, respectively.

Key words: main inclined shaft, tunnel boring machine (TBM), roof falling mechanism, intermediate principal stress, driving parameters, risk of roof fall

中图分类号:

X936

杨青, 荣传新. 可可盖矿主斜井TBM冒顶机制与识别[J]. 中国安全科学学报, 2024, 34(12): 108-119.

YANG Qing, RONG Chuanxin. Mechanism and recognition of TBM roof fall in main inclined shaft of Kekegai mine[J]. China Safety Science Journal, 2024, 34(12): 108-119.

图/表 14

图1

图2

图3

图4

图5

图6

图7

图8

表1

图9

图10

图11

图12

图13

参考文献 20

[1]	张民庆, 辛维克, 贾大鹏, 等. 顶部导洞法TBM卡机脱困技术研究与应用[J]. 铁道工程学报, 2023, 40(1): 68-75.
	ZHANG Minqing, XIN Weike, JIA Dapeng, et al. Research and application of top pilot tunnel method rescue technology in TBM jamming[J]. Journal of Railway Engineering Society, 2023, 40(1): 68-75.
[2]	WANG Zihui, ZHANG Shuo, FAN Deyuan, et al. A case study of displacement, stress condition and failure criterion of surrounding rock in deep super-large section double chambers in the Longgu coal mine, Shandong, China[J]. Scientific Reports, 2024, 14(1): 16 850-16 862.
[3]	李安云, 康鑫, 李森, 等. 富水弱胶结砂岩破坏特性与优化措施[J]. 科学技术与工程, 2024, 24(13): 5336-5343.
	LI Anyun, KANG Xin, LI Sen, et al. Failure characteristics and optimization measures of weakly consolidated sandstone with rich water[J]. Science Technology and Engineering, 2024, 24(13): 5336-5343.
[4]	范京道, 魏东, 汪青仓, 等. 智能化建井理论技术研究与工程实践[J]. 煤炭学报, 2023, 48(1): 470-483.
	FAN Jingdao, WEI Dong, WANG Qingcang, et al. Theory and practice of intelligent coal mine shaft excavation[J]. Journal of China Coal Society, 2023, 48(1): 470-483.
[5]	丁秀丽, 张雨霆, 黄书岭, 等. 隧洞围岩大变形机制、挤压大变形预测及应用[J]. 岩石力学与工程学报, 2023, 42(3): 521-544.
	DING Xiuli, ZHANG Yuting, HUANG Shuling, et al. Large deformation mechanism of surrounding rock masses of tunnels, prediction method of squeezing large deformation and its application[J]. Chinese Journal of Rock Mechanics and Engineering, 2023, 42(3): 521-544.
[6]	李学华, 梁顺, 姚强岭, 等. 泥岩顶板巷道围岩裂隙演化规律与冒顶机理分析[J]. 煤炭学报, 2011, 36(6): 903-908.
	LI Xuehua, LIANG Shun, YAO Qiangling, et al. Analysis on fissure-evolving law and roof-falling mechanism in roadway with mudstone roof[J]. Journal of China Coal Society, 2011, 36(6): 903-908.
[7]	王新丰, 何毅, 陆明远, 等. 开挖卸荷扰动深部巷道围岩变形破坏特征研究[J]. 中国安全科学学报, 2021, 31(8): 83-90. doi: 10.16265/j.cnki.issn1003-3033.2021.08.012
	WANG Xinfeng, HE Yi, LU Mingyuan, et al. Study on deformation and failure characteristics of deep roadway surrounding rock under excavation unloading disturbance[J]. China Safety Science Journal, 2021, 31(8): 83-90. doi: 10.16265/j.cnki.issn1003-3033.2021.08.012
[8]	李安云, 张凯, 徐金峰, 等. 破碎软岩斜井TBM开挖围岩稳定性及支护优化研究:以可可盖副斜井TBM掘进工程为例[J]. 隧道建设:中英文, 2023, 43(11): 1924-1934.
	LI Anyun, ZHANG Kai, XU Jinfeng, et al. Stability of surrounding rock and support optimization of a broken soft-rock-inclined shaft bored by tunnel boring machine: a case study of Kekegai sub-inclined shaft[J]. Tunnel Construction, 2023, 43(11): 1 924-1 934.
[9]	汪青仓, 刘全辉, 宋朝阳, 等. 煤矿超长斜井敞开式全断面掘进机施工可行性分析[J]. 煤炭科学技术, 2023, 51(7): 310-320.
	WANG Qingcang, LIU Quanhui, SONG Zhaoyang, et al. Feasibility analysis of excavation with open full section boring machine for ultra-long distance slant in coal mine[J]. Coal Science and Technology, 2023, 51(7): 310-320.
[10]	高召宁, 陈登国, 孙振川, 等. 考虑损伤和扩容影响的隧洞围岩稳定性分析[J]. 中国安全科学学报, 2020, 30(7): 159-165. doi: 10.16265/j.cnki.issn1003-3033.2020.07.024
	GAO Zhaoning, CHEN Dengguo, SUN Zhenchuan, et al. Stability analysis of tunnel surrounding rock considering influence of damage and dilatancy[J]. China Safety Science Journal, 2020, 30(7): 159-165. doi: 10.16265/j.cnki.issn1003-3033.2020.07.024
[11]	纪洪广, 孙利辉, 宋朝阳, 等. 西部矿区弱胶结地层工程围岩稳定性控制研究进展[J]. 煤炭科学技术, 2023, 51(1): 117-127.
	JI Hongguang, SUN Lihui, SONG Zhaoyang, et al. Research progress on stability control of surrounding rock in weakly cemented strata engineering in western China mining area[J]. Coal Science and Technology, 2023, 51(1): 117-127.
[12]	HE Manchao, SUI Qiru, TAO Zhigang. Excavation compensation theory and supplementary technology system for large deformation disasters[J]. Deep Underground Science and Engineering, 2023, 2(2): 105-128.
[13]	俞茂宏, 武霞霞, 史俊, 等. 确定土体破坏准则的一个新方法[J]. 西安交通大学学报, 2020, 54(8): 1-10.
	YU Maohong, WU Xiaxia, SHI Jun, et al. A new strategy for determining failure criteria of soil[J]. Journal of Xi'an Jiaotong University, 2020, 54(8): 1-10.
[14]	刘阳阳, 苏永华, 罗彪, 等. 基于极限状态的隧道围岩稳定性分析原理与方法[J]. 铁道科学与工程学报, 2024, 21(10):4175-4 186.
	LIU Yangyang, SU Yonghua, LUO Biao, et al. Principle and method of stability analysis of tunnel surrounding rock based on limit state[J]. Journal of Railway Science and Engineering, 2024, 21(10):4175-4 186.
[15]	RABCEWICZ L. The new Austrian tunnelling method[M]. Berlin: Springer, 1964: 173-175.
[16]	CHEN Zuyu, ZHANG Yunpei, LI Jianbin, et al. Diagnosing tunnel collapse sections based on TBM tunneling big data and deep learning: a case study on the Yinsong project, China[J]. Tunnelling and Underground Space Technology, 2020, 108(3): 103 700-103 709.
[17]	仉文岗, 唐理斌, 陈福勇, 等. 基于4种超参数优化算法及随机森林模型预测TBM掘进速度[J]. 应用基础与工程科学学报, 2021, 29(5): 1186-1200.
	ZHANG Wen'gang, TANG Libin, CHEN Fuyong, et al. Prediction for TBM penetration rate using four hyperparameter optimization methods and random forest model[J]. Journal of Basic Science and Engineering, 2021, 29(5): 1186-1200.
[18]	ROSTAMI J. Performance prediction of hard rock tunnel boring machines (TBMs) in difficult ground[J]. Tunnelling and Underground Space Technology, 2016, 57: 173-182.
[19]	张茹, 吕游, 张泽天, 等. 深地工程多维信息感知与智能建造的发展与展望[J]. 煤炭学报, 2024, 49(3): 1259-1290.
	ZHANG Ru, LYU You, ZHANG Zetian, et al. Development and prospect of multidimensional information perception and intelligent construction in deep earth engineering[J]. Journal of China Coal Society, 2024, 49(3): 1259-1290.
[20]	黄曾华. 综采装备单机智能化向智能协同模式转型的探索研究[J]. 煤炭科学技术, 2021, 49(4): 169-175.
	HUANG Zenghua. Exploration and research on transformation from intelligent single machine equipment to intelligent synergy in coal mine[J]. Coal Science and Technology, 2021, 49(4): 169-175.

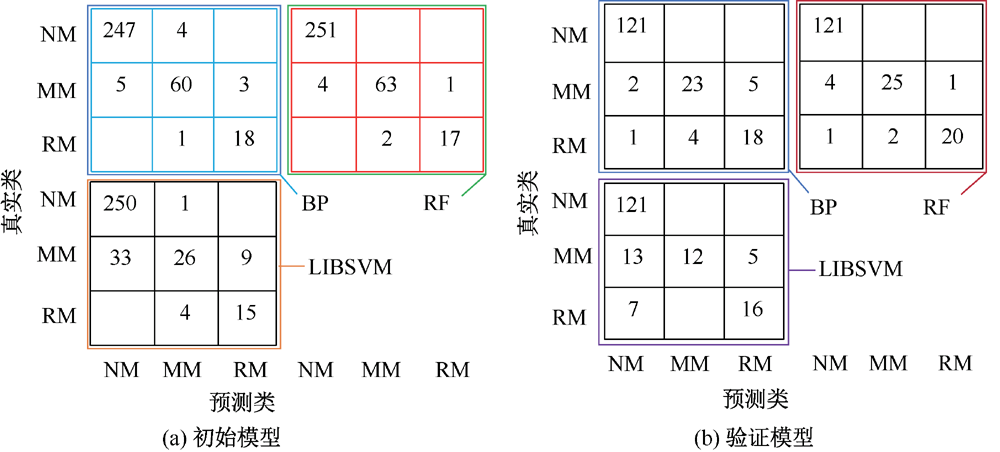

模型	类别	精确率	召回率	F₁分数	准确率
BP	NM	98.02	98.41	98.21	96.15
	MM	92.31	88.24	90.23
	RM	85.71	94.74	89.99
RF	NM	98.43	100.00	99.21	97.93
	MM	96.92	92.65	94.74
	RM	94.44	89.47	91.89
LIBSVM	NM	88.34	99.60	93.63	86.09
	MM	83.87	38.24	52.53
	RM	62.5	78.95	69.77
