行车安全的火车厢底冻粘煤清扫机构能力多因素影响分析

doi:10.16265/j.cnki.issn1003-3033.2024.S1.0040

中国安全科学学报 ›› 2024, Vol. 34 ›› Issue (S1): 95-101.doi: 10.16265/j.cnki.issn1003-3033.2024.S1.0040

行车安全的火车厢底冻粘煤清扫机构能力多因素影响分析

徐煦(), 马鹏飞, 林雪剑, 刘千山

国能宝日希勒能源有限公司露天煤矿, 内蒙古呼伦贝尔 021008

收稿日期:2024-03-14 修回日期:2024-05-17 出版日期:2024-12-02
作者简介:
徐煦 (1983—),男,辽宁绥中人, 硕士,高级工程师,主要从事煤矿智能化及煤矿机电方面的工作。E-mail:11550549@chnenergy.com.cn。

Multi-factor influence analysis on ability of cleaning mechanism for frozen and sticky coal under train car for safe operation

XU Xu(), MA Pengfei, LIN Xuejian, LIU Qianshan

Open Pit Coal Mine, Guoneng Baolixile Energy Co., Ltd., Hulun Buir Inner Mongolia 021008, China

Received:2024-03-14 Revised:2024-05-17 Published:2024-12-02

摘要/Abstract

摘要：

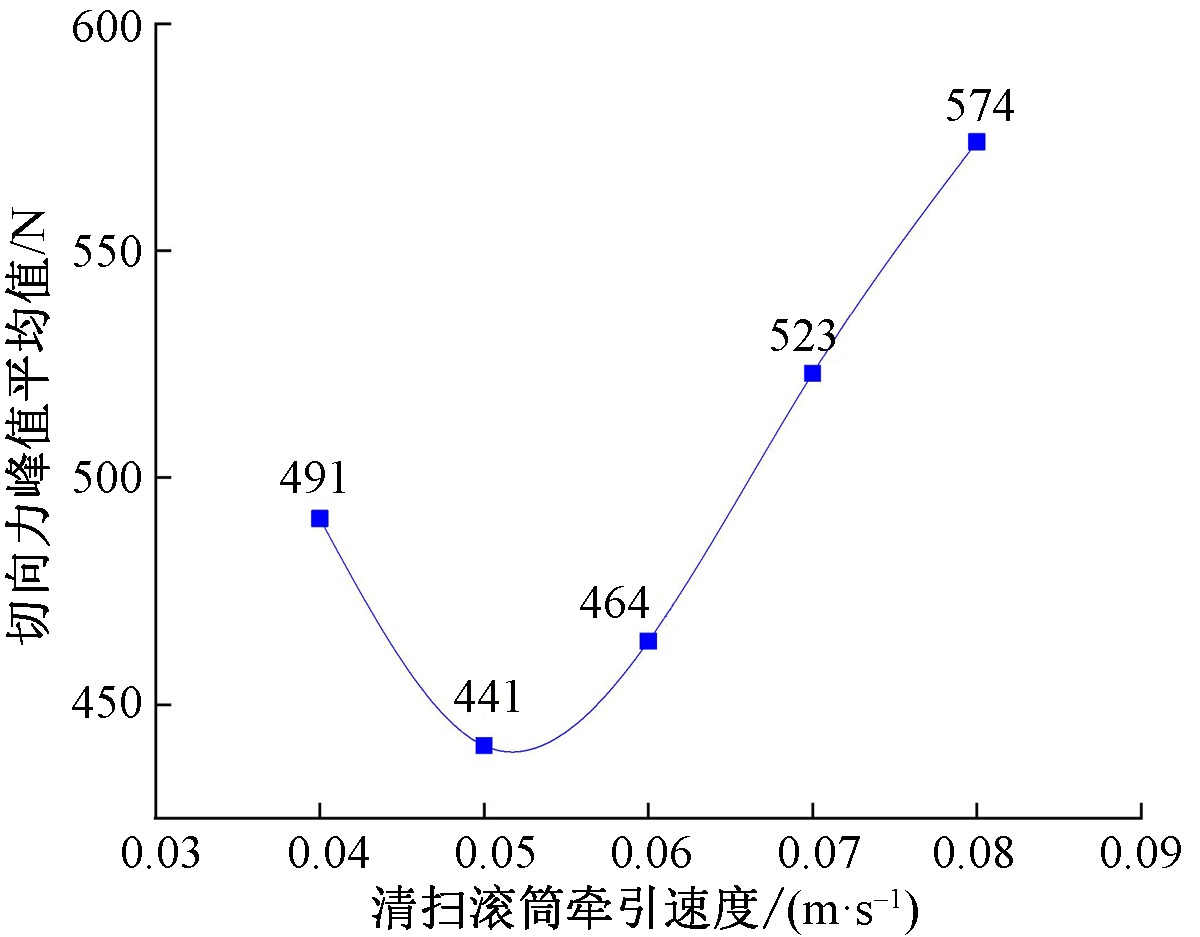

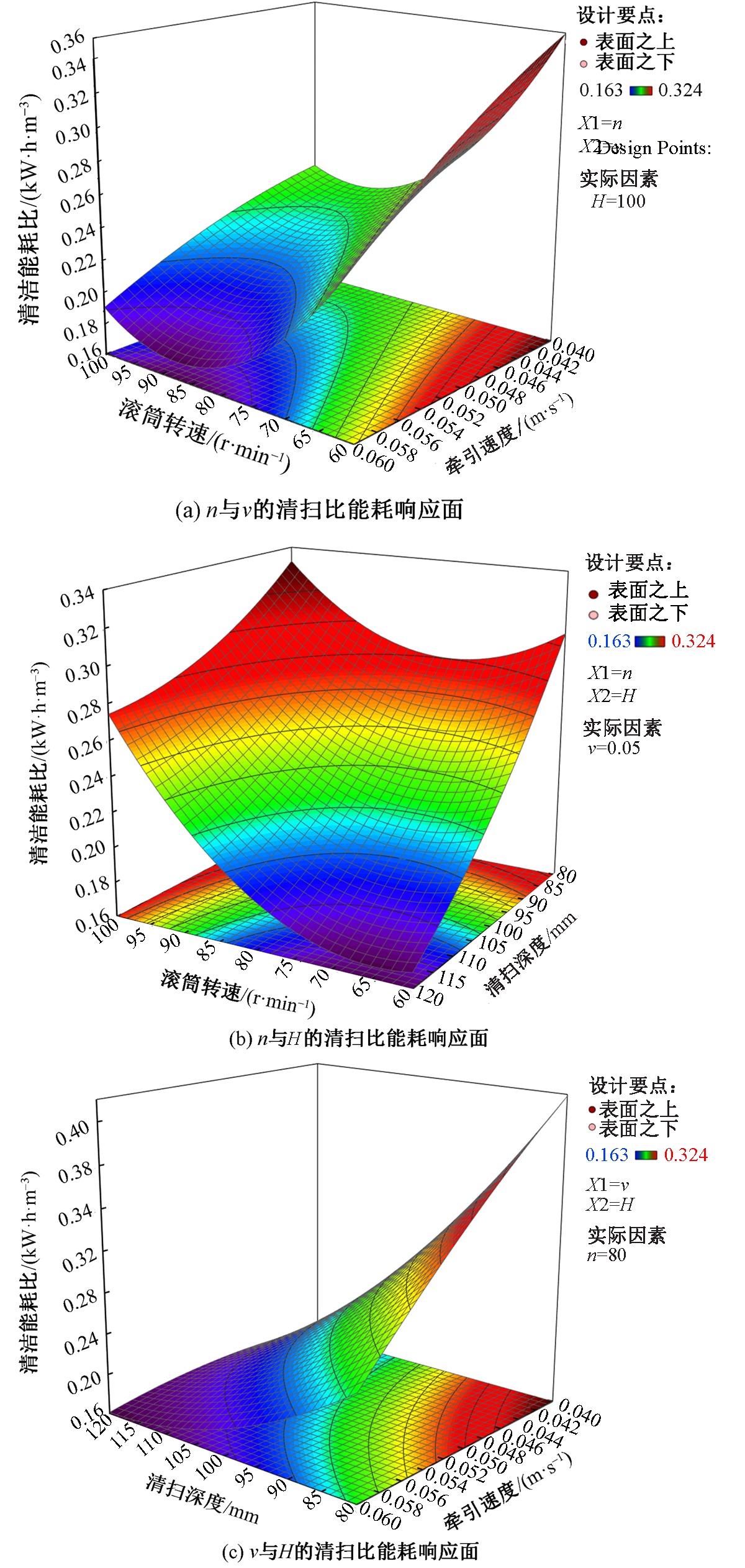

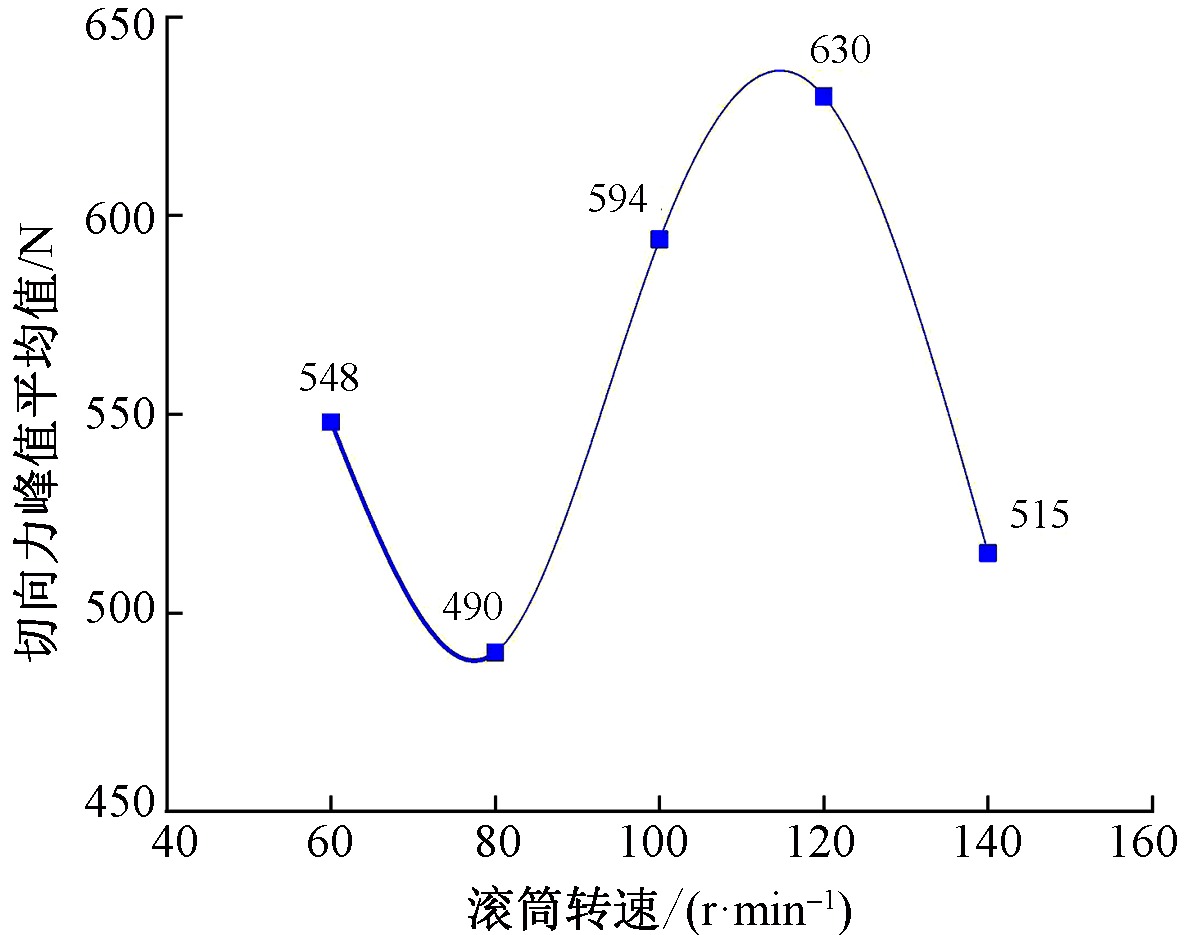

为增加运输效率,提高工作人员的安全性以及提升清理效率,提出以离散元素法建模-多体动力学仿真(EDEM-RecurDyn)方法分析清扫机构的清扫能力。首先,采用EDEM-RecurDyn分析滚刀受力变化,得出影响滚刀受力的3种因素:滚筒的旋转速度、牵引行进速度以及清扫的深度并确定其参考范围;然后,利用响应面进行三因素三水平试验,并分析滚动得出清扫能耗比,对此进行二次拟合多项式;最后,采用Matlab进行粒子群优化算法进行求解得出参数。结果表明:清扫机构在滚筒速度为78 r/min,牵引速度为0.05 m/s,清扫深度为100 mm时,清扫机构所受的阻力最小,能耗为最低值。

关键词: 冻粘煤, 清扫深度, 牵引速度, 切向力, 联合仿真

Abstract:

In order to increase transportation efficiency, improve the safety of workers, and enhance cleaning efficiency, the discrete element modeling-multi-body dynamic simulation (EDEM-RecurDyn) method was proposed to analyze the cleaning ability of the cleaning mechanism. Firstly, EDEM-RecurDyn was used to analyze the stress changes of the hob, and the three factors that affected the stress of the hob were obtained: the rotating speed of the drum, the dragging speed, and the depth of cleaning. The reference range was determined. Then, the response surface was used to carry out the three-factor three-level test, and the cleaning energy consumption ratio was obtained by analyzing rolling. The quadratic fitting polynomial was carried out. Finally, based on Matlab, a particle swarm optimization algorithm was used to solve the parameters. The results show that when the drum speed of the cleaning mechanism is 78 r/min, the traction speed is 0.05 m/s; when the cleaning depth is 100 mm, the cleaning mechanism is subjected to the least resistance and the lowest energy consumption.

Key words: frozen and sticky coal, cleaning depth, traction speed, tangential force, co-simulation

中图分类号:

X936

徐煦, 马鹏飞, 林雪剑, 刘千山. 行车安全的火车厢底冻粘煤清扫机构能力多因素影响分析[J]. 中国安全科学学报, 2024, 34(S1): 95-101.

XU Xu, MA Pengfei, LIN Xuejian, LIU Qianshan. Multi-factor influence analysis on ability of cleaning mechanism for frozen and sticky coal under train car for safe operation[J]. China Safety Science Journal, 2024, 34(S1): 95-101.

图/表 7

图1

图2

图3

图4

图5

图6

图7

参考文献 13

[1]	安达, 王春华, 姜红星. UHMWPE基体材料煤冻粘界面结构、强度及其粗糙度影响因素分析[J]. 黑龙江科学, 2020, 11(20):18-21,25.
	AN Da, WANG Chunhua, JIANG Hongxing. Coal freezing adhesive interface structure,strength and the influencing factors of roughness on UHMWPE matrix material[J]. Heilongjiang Science, 2019, 11(20):18-21,25.
[2]	陈红霞, 王超, 郭阳阳, 等. 基于ANSYS/LS-DYNA的小型螺旋式除雪机抛雪叶片的结构优化[J]. 制造业自动化, 2015, 37(4):98-101.
	CHEN Hongxia, WANG Chao, GUO Yangyang, et al. Structure optimization of snow throwing blade of small spiral snowplow based on ANSYS/LS-DYNA[J]. Manufacturing Automation, 2015, 37(4):98-101.
[3]	牛纪元. 卧式螺旋清车机的研制与应用[J]. 煤炭科学技术, 2008(2):59-61.
	NIU Jiyuan. Development and application of horizontal screw type mine car cleaner[J]. Coal Science and Technology, 2008(2):59-61.
[4]	田晋跃, 向华荣. 路面铣刨机铣削阻力及其参数影响规律分析[J]. 江苏大学学报:自然科学版, 2004(5):380-384.
	TIAN Jinyue, XIANG Huarong. Analysis on parameter influence laws and milling resistances of pavement miller[J]. Journal of Jiangsu University :Natural Science Edition, 2004(5):380-384.
[5]	王雪莹. 道路冰雪与路面粘附特性及除雪理论研究[D]. 长春: 吉林大学, 2019.
	WANG Xueying. Research on adhesion characteristics of road snow and ice and pavement and snow removal theory[D]. Changchun: Jilin University, 2019.
[6]	DONG W, DING J, ZHOU Z X. Experimental study on the ice freezing adhesive characteristics of metal surfaces[J]. Journal of Aircraft, 2014, 51(3):719-726.
[7]	郭颍奎, 孟闻远. 冰的力学性能试验研究[J]. 华北水利水电大学学报:自然科学版, 2015, 36(3):40-43.
	GUO Yingkui, MENG Wenyuan. Experimental investigations on mechanical properties of ice[J]. Journal of North China University of Water Resources and Electric Power:Natural Science Edition, 2015, 36(3):40-43.
[8]	任明龙. 冻结作用对原煤力学性能影响的试验研究[D]. 重庆: 重庆大学, 2018.
	REN Minglong. Experimental study of the effect of freezing on the mechanical properties of raw coal[D]. Chongqing: Chongqing University, 2018.
[9]	AUTUMN K, SITTI M, LIANG Y A, et al. Evidence for van der waals adhesion in gecko setae[J]. Proceedings of the National Academy of Sciences, 2002, 99(19):12252-12 256.
[10]	李康桥. 不同固相界面结冰冻粘强度特性研究[D]. 南京: 南京航空航天大学, 2020.
	LI Kangqiao. Study on the strength characteristics of frozen adhesion at different solid phase interface[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2020.
[11]	尚广瑞, 杨晓东, 金敬福, 等. 几种典型材料与冰的冻粘系数[J]. 长春理工大学学报, 2004(1):77-79.
	SHANG Guangrui, YANG Xiaodong, JIN Jingfu, et al. Research for freezing-adhesive-coefficients between some engineering materials and ice[J]. Journal of Changchun University of Science and Technology, 2004(1):77-79.
[12]	师建国, 高广财, 滕睿. 采煤机滚筒参数优化及其对摇臂安全使用性能影响[J]. 中国安全科学学报, 2018, 28(8):55-60. doi: 10.16265/j.cnki.issn1003-3033.2018.08.010
	SHI Jianguo, GAO Guangcai, TENG Rui. Multi objective optimization of shearer drum parameters and its influence on strength of rocker arm[J]. China Safety Science Journal, 2018, 28(8): 55-60. doi: 10.16265/j.cnki.issn1003-3033.2018.08.010
[13]	周子翔, 余修武, 彭威, 等. 基于铀尾矿库核素监测的WSN粒子群优化路由算法[J]. 中国安全科学学报, 2023, 33(10):207-213. doi: 10.16265/j.cnki.issn1003-3033.2023.10.1772
	ZHOU Zixiang, YU Xiuwu, PENG Wei, et al. WSN particle swarm optimization routing algorithm based on nuclide monitoring of uranium tailings pond[J]. China Safety Science Journal, 2023, 33(10):207-213. doi: 10.16265/j.cnki.issn1003-3033.2023.10.1772
