磷石膏基自产气膨胀浆体自膨胀扩散特性研究

doi:10.16265/j.cnki.issn1003-3033.2025.07.1208

中国安全科学学报 ›› 2025, Vol. 35 ›› Issue (7): 82-90.doi: 10.16265/j.cnki.issn1003-3033.2025.07.1208

磷石膏基自产气膨胀浆体自膨胀扩散特性研究

丁仰卫¹(), 杨海龙¹, 鲁义²^,^**(), 刘蔚廷², 谷旺鑫², 夏楚淇²

¹ 山东鲁泰控股集团有限公司鹿洼煤矿, 山东济宁 272350
² 湖南科技大学资源环境与安全工程学院, 湖南湘潭 411201

收稿日期:2025-03-14 修回日期:2025-05-18 出版日期:2025-07-28
通信作者:
** 鲁义(1986—),男,江西新干人,博士,教授,主要从事煤自燃与瓦斯灾害防治方面的研究。E-mail: luyijx@163.com。
作者简介:

丁仰卫 (1979—),男,山东汶上人,本科,高级工程师,主要从事矿井通风与防灭火方面的工作。E-mail: dyw791220@163.com。
基金资助:
国家自然科学基金资助(52374200); 国家自然科学基金资助(52274196); 国家自然科学基金资助(52174180); 国家重大人才工程青年项目(2022QB06801)

Study on spontaneous expansion and diffusion characteristics of phosphogypsum based self-produced gas expansion slurry

DING Yangwei¹(), YANG Hailong¹, LU Yi²^,^**(), LIU Weiting², GU Wangxin², XIA Chuqi²

¹ Luwa Coal Mine, Shandong Lutai Holding Group Co., Ltd., Jining Shandong 272350, China
² College of Resources, Environment and Safety Engineering, Hunan University of Science and Technology, Xiangtan Hunan 411201, China

Received:2025-03-14 Revised:2025-05-18 Published:2025-07-28

摘要/Abstract

摘要：

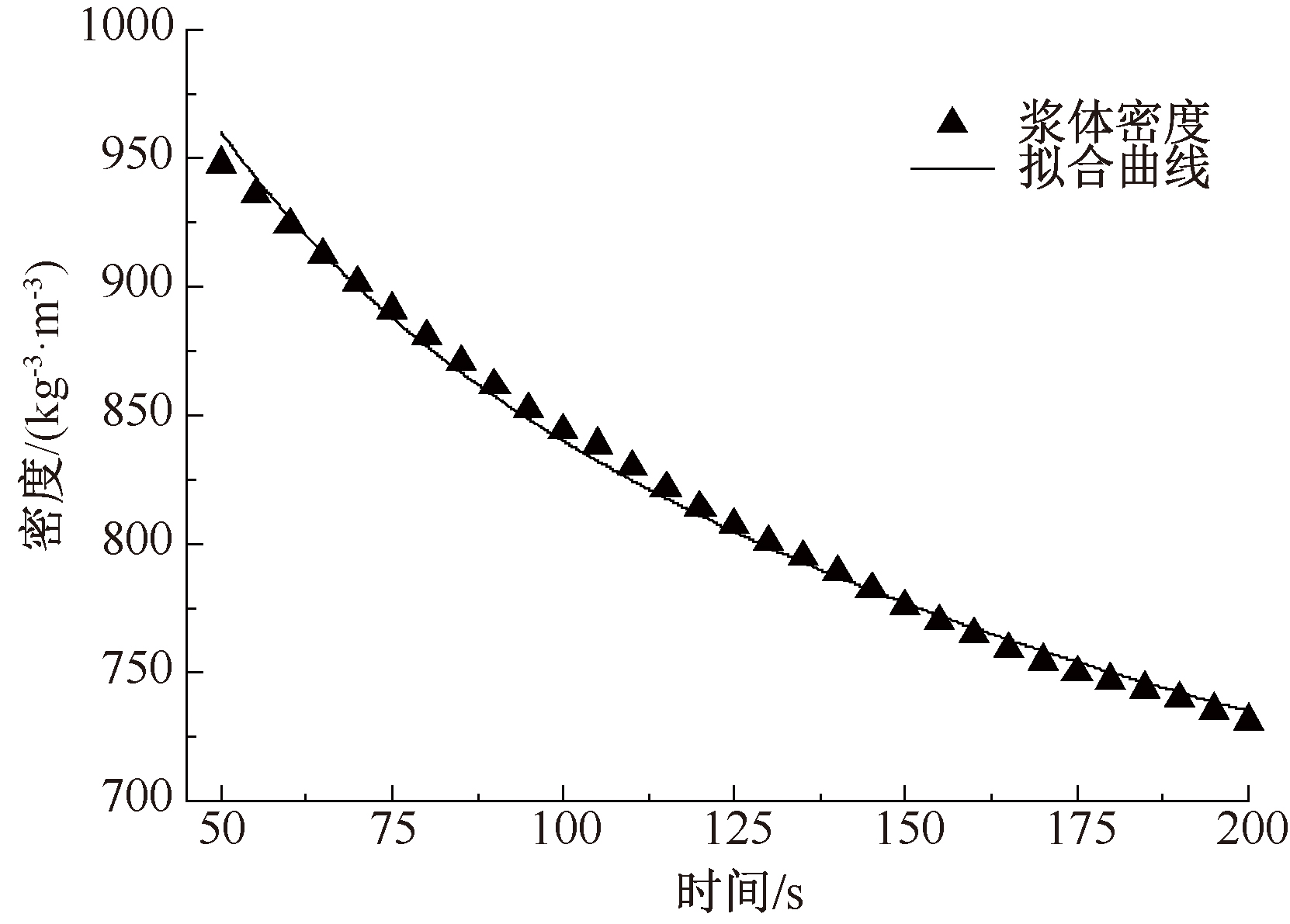

为提高磷石膏基自产气膨胀浆体的注浆效率和准确性,分析磷石膏基自产气膨胀浆体密度随时间的变化,基于流体力学理论和浆体密度时变模型,建立浆体在自产气膨胀阶段的渗流扩散压力数学模型。通过自行搭建的磷石膏基自产气膨胀浆体相似模型试验系统,研究裂隙网络中磷石膏基自产气膨胀浆体在自膨胀阶段的渗流压力变化,修正浆体渗流扩散压力数学模型,验证修正后的渗流扩散压力数学模型的合理性。研究结果表明:浆体密度随时间变化趋势符合负指数幂特征;在自膨胀过程中,浆体扩散面积越来越大,浆体扩散面积的增幅越来越小;监测点的渗流压力的理论结果与试验结果的相对误差不超过10%,证明修正后的渗流扩散压力数学模型具有合理性。

关键词: 磷石膏基自产气膨胀浆体, 自膨胀, 扩散特性, 浆体密度, 相似模型试验

Abstract:

In order to improve the grouting efficiency and accuracy of phosphogypsum based self-produced gas expansion slurry, the change in density of phosphogypsum based self-produced gas expansion slurry with time was analyzed. Based on fluid mechanics theory and the time-varying model of slurry density, a mathematical model of the seepage diffusion pressure of the slurry during the self-produced gas expansion stage was established. Through a self-built phosphogypsum based self-produced gas expansion slurry similar model experiment system, the seepage pressure variation of phosphogypsum based self-produced gas expansion slurry in the fracture network during the self expansion stage was studied, and the mathematical model of the seepage diffusion pressure of the slurry was modified to verify the rationality of the modified mathematical model of seepage diffusion pressure. The results show that the trend of slurry density over time follows a negative exponential power characteristic. During the self expansion process, the diffusion area of the slurry increases and the increase in diffusion area of the slurry becomes smaller and smaller. The relative error between the theoretical and experimental results of the seepage pressure at the monitoring point does not exceed 10%, proving the rationality of the modified mathematical model for seepage diffusion pressure.

Key words: phosphogypsum-based self-produced gas-expanded slurry, self expansion, flow characteristics, slurry density, similar model experiment

中图分类号:

丁仰卫, 杨海龙, 鲁义, 刘蔚廷, 谷旺鑫, 夏楚淇. 磷石膏基自产气膨胀浆体自膨胀扩散特性研究[J]. 中国安全科学学报, 2025, 35(7): 82-90.

DING Yangwei, YANG Hailong, LU Yi, LIU Weiting, GU Wangxin, XIA Chuqi. Study on spontaneous expansion and diffusion characteristics of phosphogypsum based self-produced gas expansion slurry[J]. China Safety Science Journal, 2025, 35(7): 82-90.

图/表 11

图1

图2

图3

图4

图5

表1

图6

表2

图7

图8

表3

参考文献 18

[1]	张嘉勇, 吕祖欣, 崔啸, 等. 正断层影响下采空区注CO₂防灭火数值模拟研究[J]. 中国安全科学学报, 2025, 35(4):9-17.
	ZHANG Jiayong, LYU Zuxin, CUI Xiao, et al. Numerical simulation of CO₂ injection for fire prevention in a goaf affected by normal fault influence[J]. China Safety Science Journal, 2025, 35(4):9-17.
[2]	安敬鱼, 牛会永, 邓军, 等. 矿井火灾原因综合分析及防治技术[J]. 矿业工程研究, 2015, 30(3):40-44.
	AN Jingyu, NIU Huiyong, DENG Jun, et al. Comprehensive causes and treatment technology of mine's fire[J]. Mineral Engineering Research, 2015, 30(3):40-44.
[3]	李方琳, 张雷林, 韦健. 防灭火凝胶泡沫的制备与阻化特性研究[J]. 矿业安全与环保, 2022, 49(3):34-38.
	LI Fanglin, ZHANG Leilin, WEI Jian. Study on preparation and characteristics of gel foam for preventing fire[J]. Mining Safety & Environmental Protection, 2022, 49(3):34-38.
[4]	秦波涛, 蒋文婕, 史全林, 等. 矿井粉煤灰基防灭火技术研究进展[J]. 煤炭科学技术, 2023, 51(1):329-342.
	QIN Botao, JIANG Wenjie, SHI Quanlin, et al. Research progress on fly ash foundation technology to prevent and control spontaneous combustion of coal in mines[J]. Coal Science and Technology, 2023, 51(1):329-342.
[5]	聂士斌, 邢时超, 韩超, 等. 防治煤矿火灾的凝胶材料制备及其性能研究[J]. 中国安全科学学报, 2020, 30(9):115-120.
	NIE Shibin, XING Shichao, HAN Chao, et al. Preparation and properties of gel materials for coal mine fire prevention[J]. China Safety Science Journal, 2020, 30(9):115-120.
[6]	马砺, 杜素, 张照允, 等. 采空区大掺量粉煤灰无机固化泡沫制备及特性研究[J]. 煤田地质与勘探, 2023, 51(2):243-251.
	MA Li, DU Su, ZHANG Zhaoyun, et al. Preparation and characteristics of inorganic curing foam with large-volume fly ash in goaf[J]. Coal Geology & Exploration, 2023, 51(2):243-251.
[7]	史全林, 杨红旗, 李洪彪. 成膜型胶体泡沫的制备及灭火降温特性研究[J]. 中国安全科学学报, 2022, 32(10):121-126.
	SHI Quanlin, YANG Hongqi, LI Hongbiao. Research on preparation of film-forming colloidal foam and its fire extinguishing and cooling characteristics[J]. China Safety Science Journal, 2022, 32(10):121-126.
[8]	吴芳华, 施式亮, 鲁义, 等. 磷石膏基自产气膨胀浆体防灭火性能研究[J]. 中国安全科学学报, 2024, 34(3):148-154.
	WU Fanghua, SHI Shiliang, LU Yi, et al. Fire prevention and extinguishing performance of phosphogypsum basedself-produced gas expansion slurry[J]. China Safety Science Journal, 2024, 34(3): 148-154.
[9]	潘恩宝. 煤矿井下防火技术方案的应用研究[J]. 能源与节能, 2021(7):177-178.
	PAN Enbao. Study on application of underground fire prevention technology scheme for coal mines[J]. Energy and Energy Conservation, 2021(7):177-178.
[10]	时国庆, 王德明, 仲晓星. 三相泡沫在综放工作面采空区渗流特性的数值模拟研究[J]. 煤炭学报, 2011, 36(8):1329-1333.
	SHI Guoqing, WANG Deming, ZHONG Xiaoxing. Mathematical simulation study on characteristics of three-phase foam seepage in goaf[J]. Journal of China Coal Society, 2011, 36(8):1329-1333.
[11]	奚志林, 王德明, 时国庆. 三相泡沫在采空区中渗流特性的数值模拟[J]. 中国矿业大学学报, 2009, 38(3):341-345.
	XI Zhilin, WANG Deming, SHI Guoqing. Numerical simulation of the seepage characteristics of three-phase foam in the gob[J]. Journal of China University of Mining & Technology, 2009, 38(3):341-345.
[12]	奚弦. 工业固废基复合浆泡材料的研制及堵漏防灭火特性研究[D]. 徐州: 中国矿业大学, 2022.
	XI Xian. Study on the preparation and fire prevention characteristics of industrial solid waste based composite slurry foam materials[D]. Xuzhou: China University of Mining and Technology, 2022.
[13]	鲁义, 王涛, 田兆君, 等. 倾斜煤岩裂隙通道中水泥基泡沫流变特性研究[J]. 硅酸盐通报, 2017, 36(9):2929-2934.
	LU Yi, WANG Tao, TIAN Zhaojun, et al. Rheological properties of cement based foam in inclined coal fracture channels[J]. Bulletin of the Chinese Ceramic Society, 2017, 36(9):2929-2934.
[14]	王涛, 鲁义, 施式亮, 等. 漏风裂隙内无机固化泡沫浆液扩散特性研究[J]. 中国安全科学学报, 2019, 29(10):24-30.
	WANG Tao, LU Yi, SHI Shiliang, et al. Research on diffusion properties of inorganic solidified foam slurry in air leakage fracture[J]. China Safety Science Journal, 2019, 29(10):24-30.
[15]	杨柳华, 李金仓, 尹升华, 等. 充填料浆中气泡作用机理及其流变特性演变规律[J]. 煤炭学报, 2024, 49(4):1894-1905.
	YANG Liuhua, LI Jincang, YIN Shenghua, et al. Mechanism of bubble action in backfill slurry and the evolution of its rheological properties[J]. Journal of China Coal Society, 2024, 49(4):1894-1905.
[16]	题正义, 秦洪岩, 乔宁, 等. 大倾角综放采空区注浆防灭火浆液扩散模拟研究[J]. 中国安全科学学报, 2016, 26(1):51-57.
	TI Zhengyi, QIN Hongyan, QIAO Ning, et al. Simulation of slurry diffusion involved in fire prevention in large dip angle fully mechanized caving gob by grouting[J]. China Safety Science Journal, 2016, 26(1):51-57.
[17]	李晓龙, 金笛, 王复明, 等. 一种理想自膨胀浆液单裂隙扩散模型[J]. 岩石力学与工程学报, 2018, 37(5):1207-1217.
	LI Xiaolong, JIN Di, WANG Fuming, et al. Diffusion model of an ideal expansible grout in single fracture[J]. Chinese Journal of Rock Mechanics and Engineering, 2018, 37(5):1207-1217.
[18]	鲁义. 防治煤炭自燃的无机固化泡沫及特性研究[D]. 徐州: 中国矿业大学, 2015.
	LU Yi. Study on the inorganic solidified foam and its characteristics for preventing and controlling spontaneous combustion of coal[D]. Xuzhou: China University of Mining and Technology, 2015.

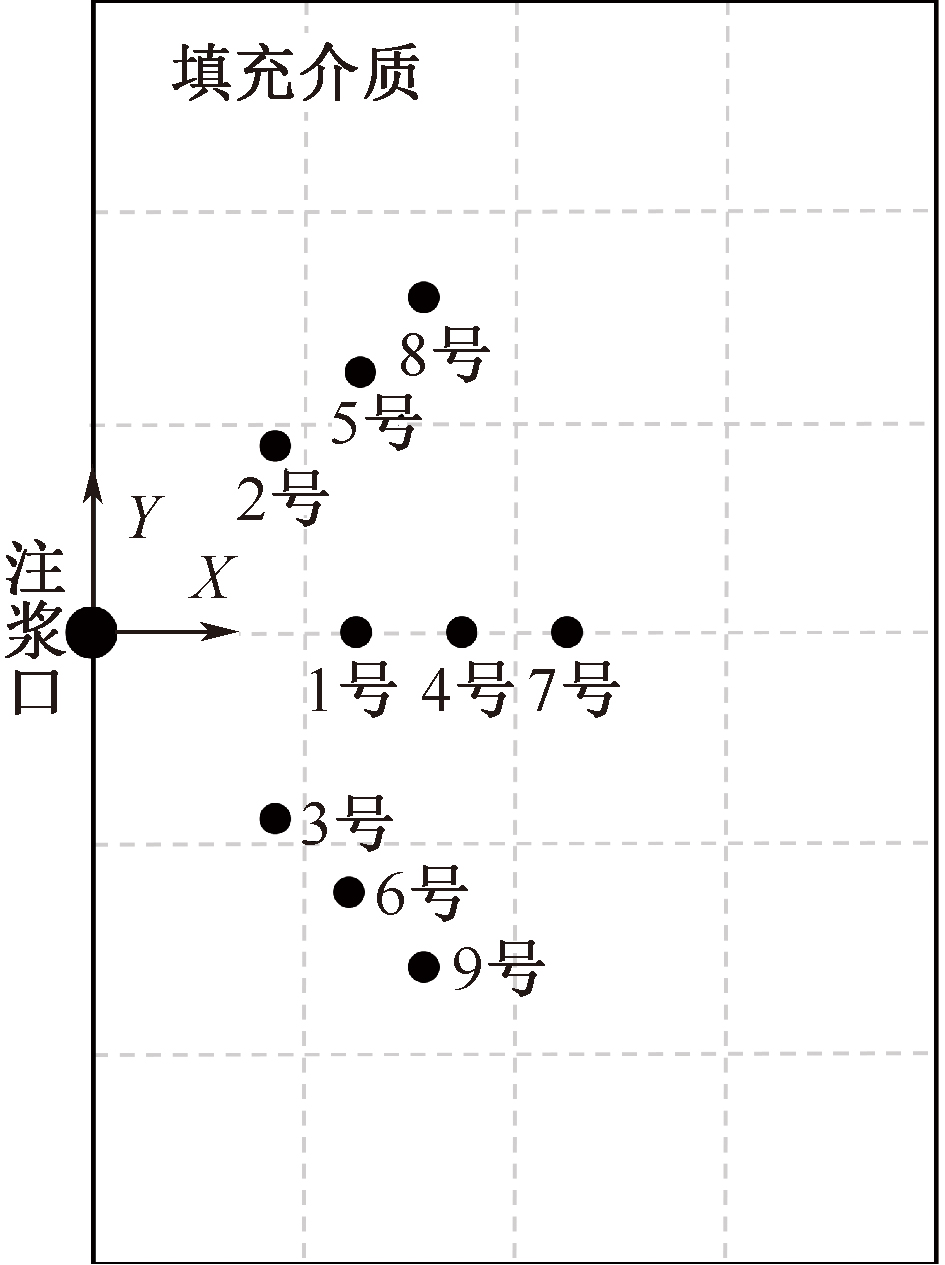

监测点序号	X/mm	Y/mm
1	250	0
2	177	177
3	177	-177
4	350	0
5	247	247
6	247	-247
7	450	0
8	318	318
9	318	-318

监测点名称	时间/s	渗流压力/kPa
1号	2	15.471
2号	2	15.983
3号	2	15.781
4号	36	0.097
5号	37	0.193
6号	38	0.202
7号	510	0.013
8号	507	0.011
9号	522	0.018

监测点	1号	3号	4号	6号	7号	9号
首次数据记录时间/s	2	2	36	38	510	522
初始半径r₀/mm	250	250	250	250	250	250
扩散距离/mm	250	250	350	350	450	450
公式预测值/kPa	14.292	14.292	0.088	0.192	0.012	0.017
试验结果/kPa	15.471	15.781	0.097	0.202	0.013	0.018
相对误差/%	7.621	9.435	9.278	4.950	7.692	5.556
