煤层开采卸压瓦斯高位抽采孔智能设计及应用

doi:10.16265/j.cnki.issn1003-3033.2026.05.0504

中国安全科学学报 ›› 2026, Vol. 36 ›› Issue (5): 215-223.doi: 10.16265/j.cnki.issn1003-3033.2026.05.0504

煤层开采卸压瓦斯高位抽采孔智能设计及应用

张艺波¹(), 赵鹏翔¹^,²^,³^,^**(), 李树刚¹^,², 林海飞¹^,², 孙红星⁴, 刘元嘉⁵

¹ 西安科技大学安全科学与工程学院, 陕西西安 710054
² 煤炭行业西部矿井瓦斯智能抽采工程研究中心, 陕西西安 710054
³ 新疆工程学院新疆煤炭资源绿色开采教育部重点实验室, 新疆乌鲁木齐 830023
⁴ 兖矿新疆矿业有限公司硫磺沟煤矿, 新疆昌吉 831100
⁵ 新疆工程学院安全科学与工程学院, 新疆乌鲁木齐 830023

收稿日期:2026-01-14 修回日期:2026-03-12 出版日期:2026-05-28
通信作者:
^** 赵鹏翔(1987—),男,甘肃兰州人,博士,教授,博士生导师,主要从事煤层开采多场耦合理与瓦斯防治技术方面的研究。E-mail:zhpxhs@sina.com。
作者简介:
张艺波 (1998—),男,陕西宝鸡人,博士研究生,主要研究方向为瓦斯智能抽采。E-mail:zhang-yibo2024@163.com。
李树刚教授。
林海飞教授。
基金资助:
国家重点研发计划资助项目(2023YFC3009001); 新疆维吾尔自治区重点研发任务专项(2025B03038-2); 新疆煤炭资源绿色开采教育部重点实验室开放课题项目(KLXGY-KA2404); 陕西省重点研发项目(2024GX-YBXM-490)

Intelligent design and application of high-level boreholes for pressure-relief gas drainage in coal seam mining

Zhang Yibo¹(), Zhao Pengxiang¹^,²^,³^,^**(), Li Shugang¹^,², Lin Haifei¹^,², Sun Hongxing⁴, Liu Yuanjia⁵

¹ Safety Science and Engineering College, Xi'an University of Science and Technology, Xi'an Shaanxi 710054, China
² Western Engineering Research Center of Mine Gas Intelligent Drainage for Coal Industry, Xi'an Shaanxi 710054, China
³ Key Laboratory of Green Mining of Coal Resources in Xinjiang Ministry of Education, Xinjiang Institute of Engineering, Urumqi Xinjiang 830023, China
⁴ Sulphur Ditch Coal Mine, Yankuang Xinjiang Mining Co., Ltd., Changji Xinjiang 831100, China
⁵ College of Safety Science and Engineering, Xinjiang Institute of Engineering, Urumqi Xinjiang 830023, China

Received:2026-01-14 Revised:2026-03-12 Published:2026-05-28

摘要/Abstract

摘要：

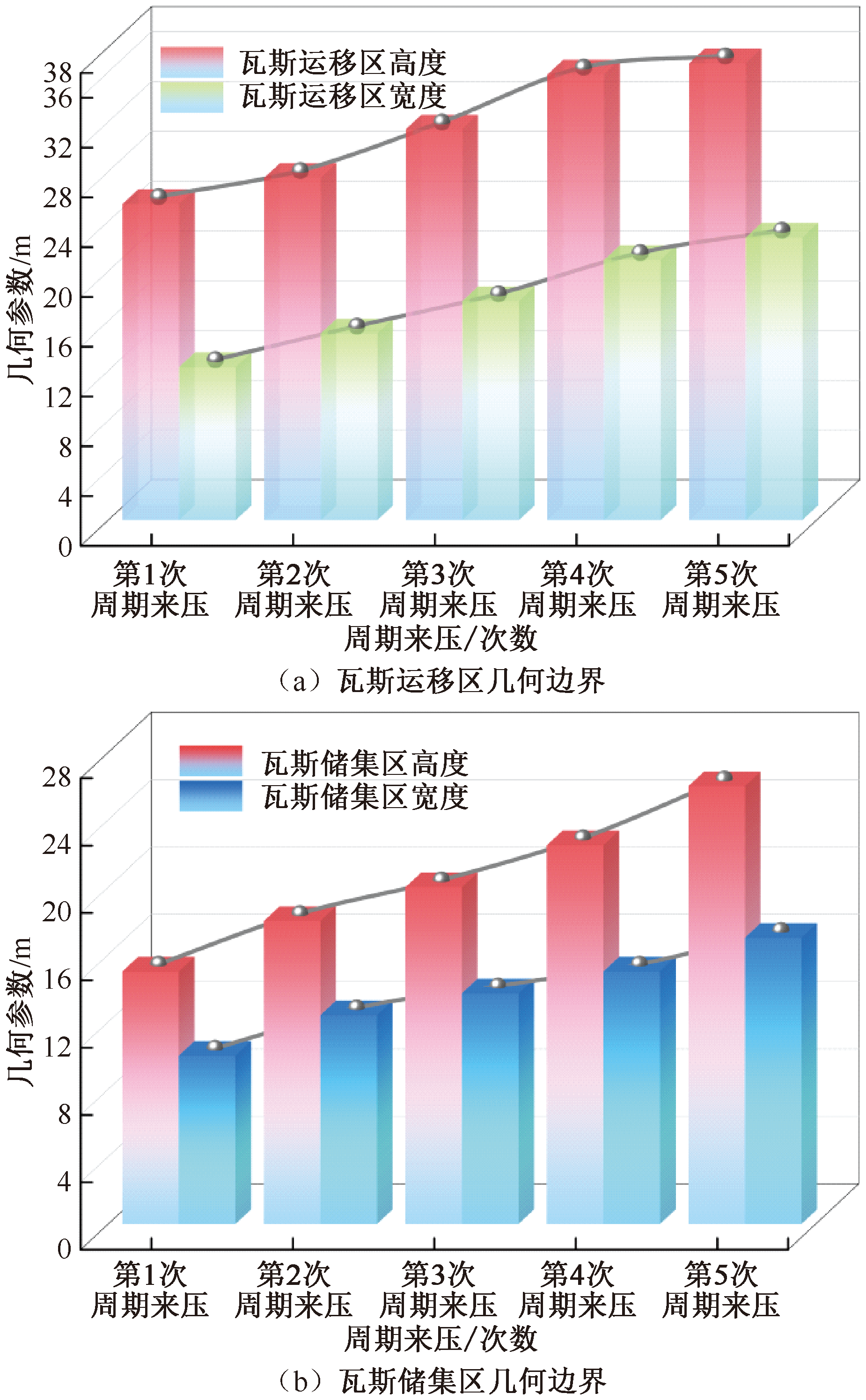

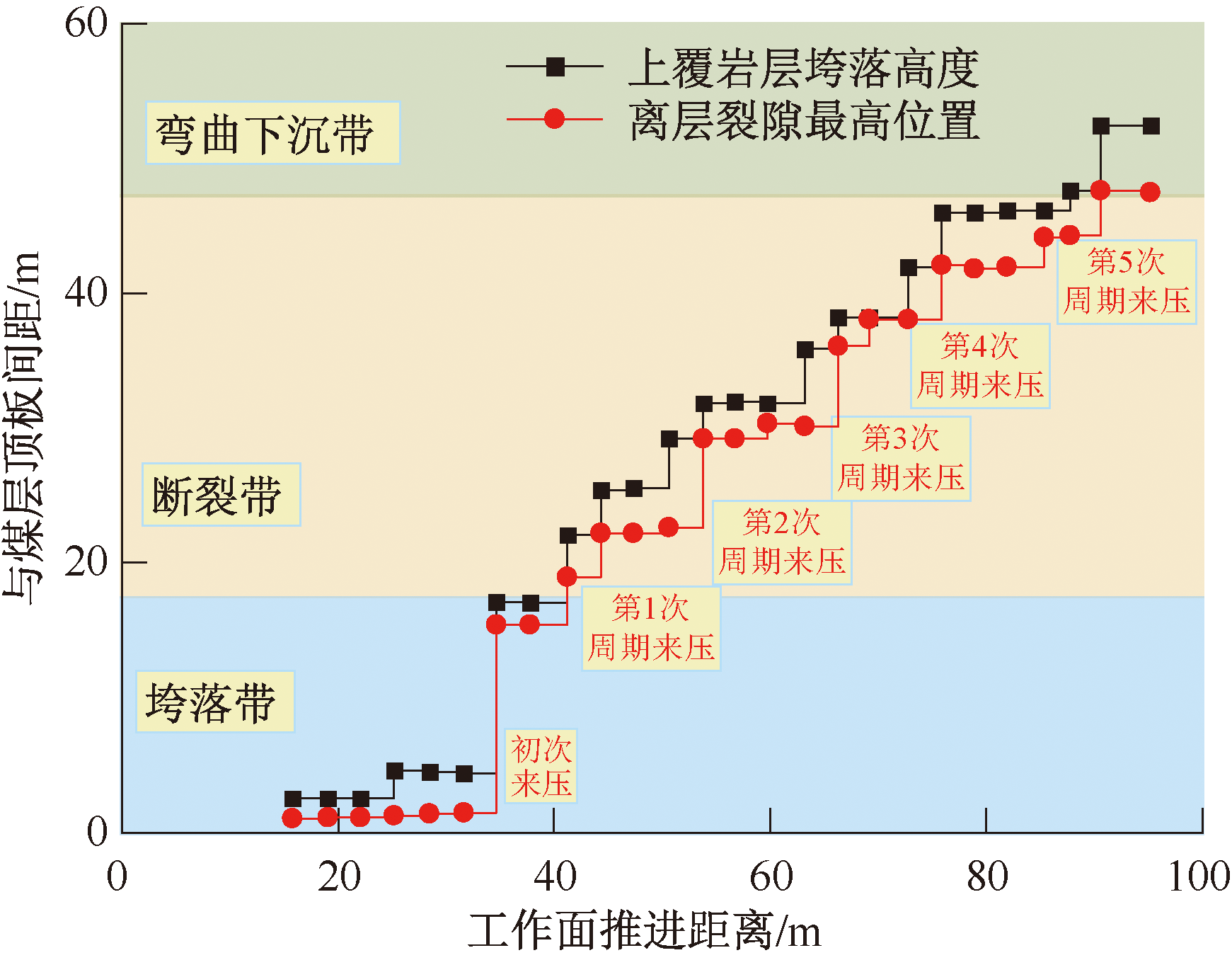

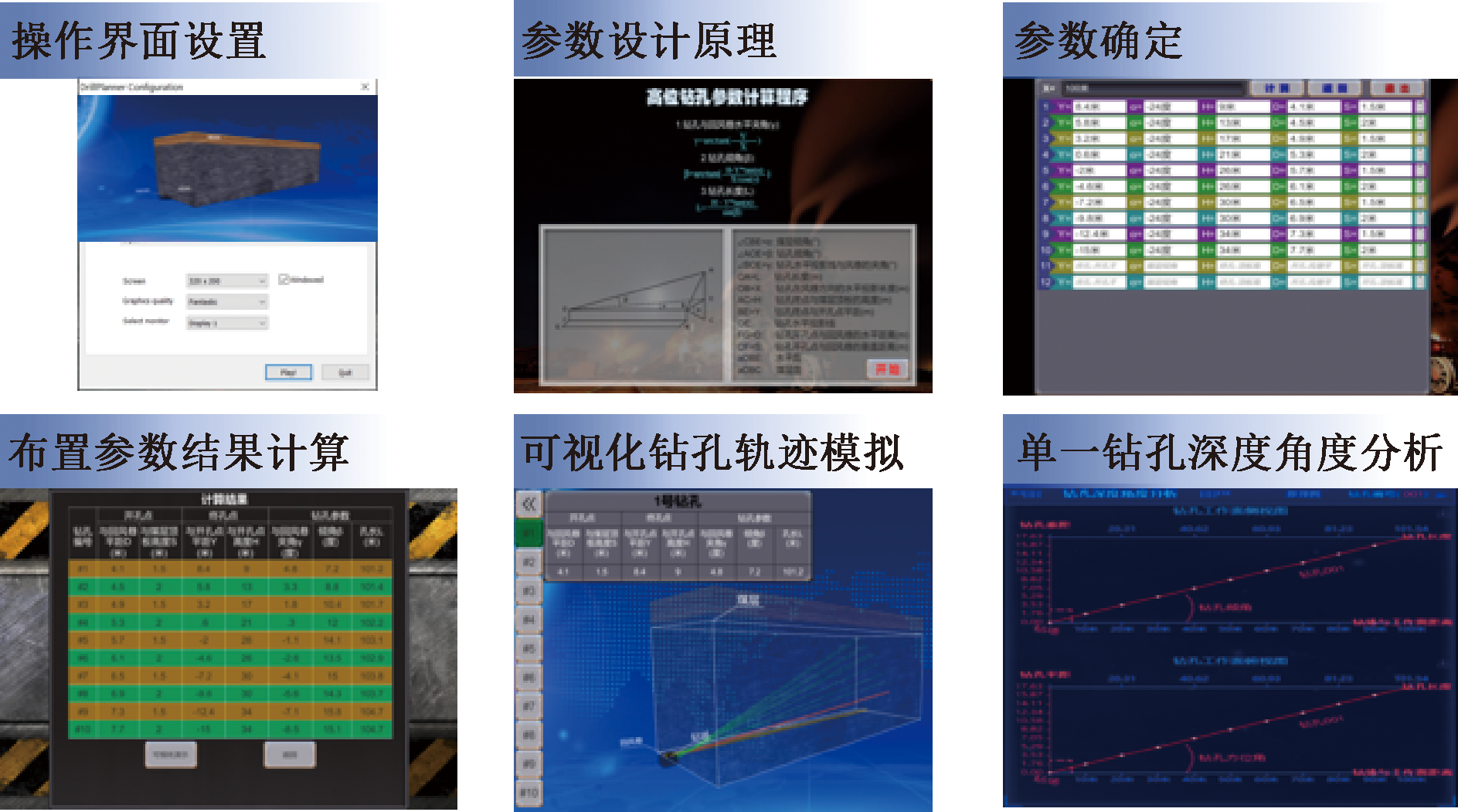

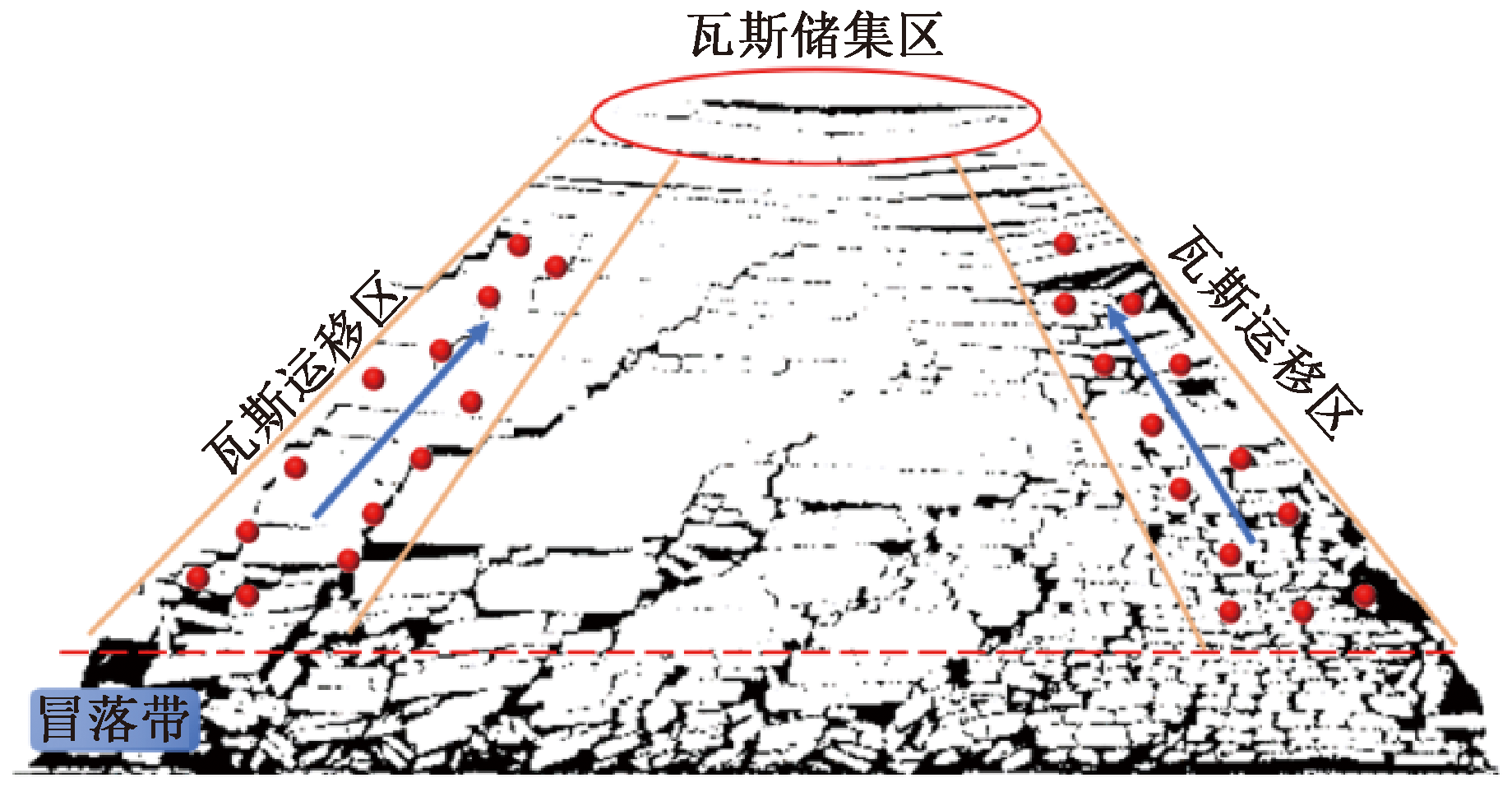

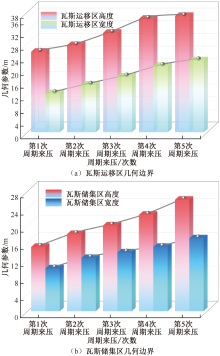

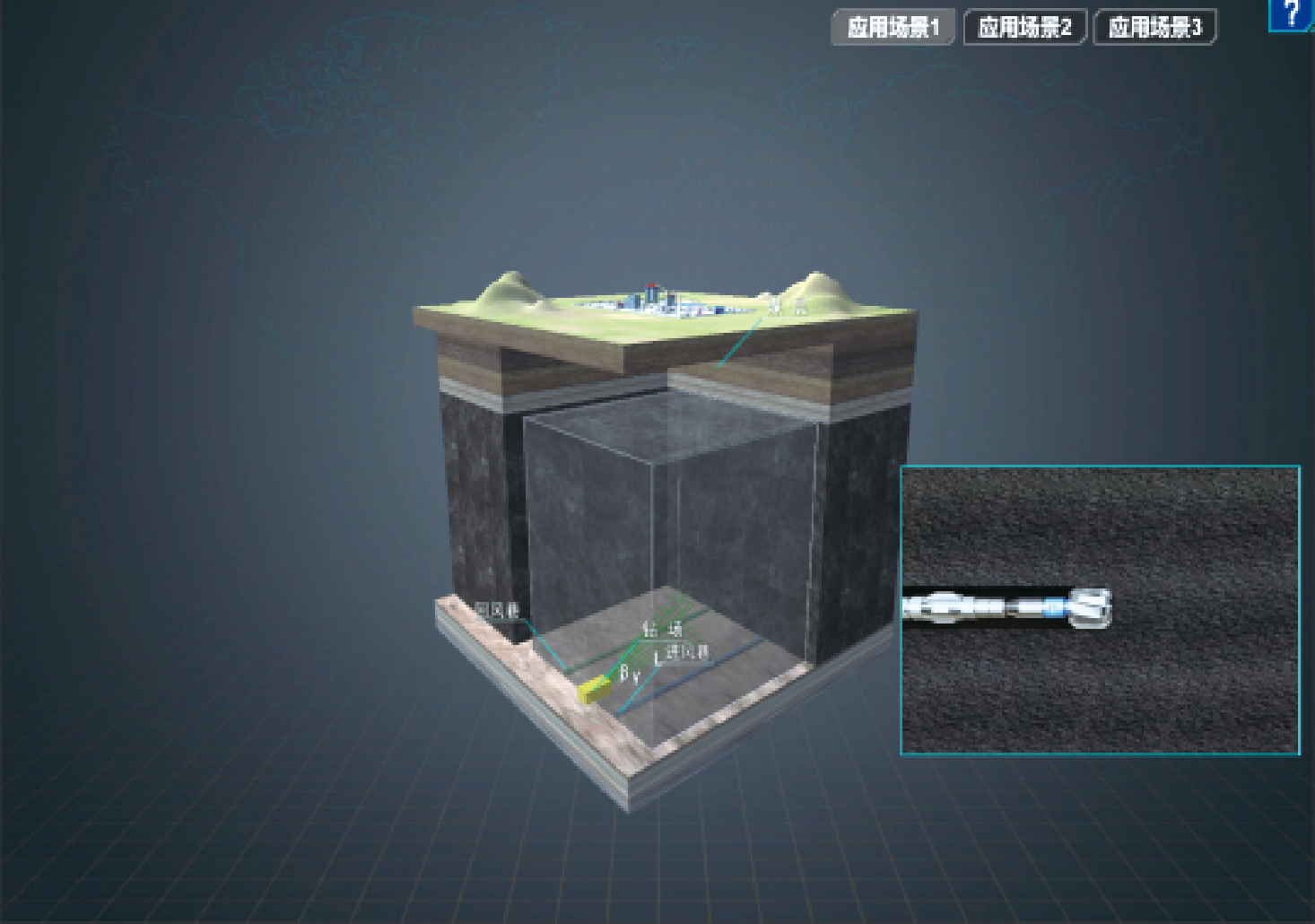

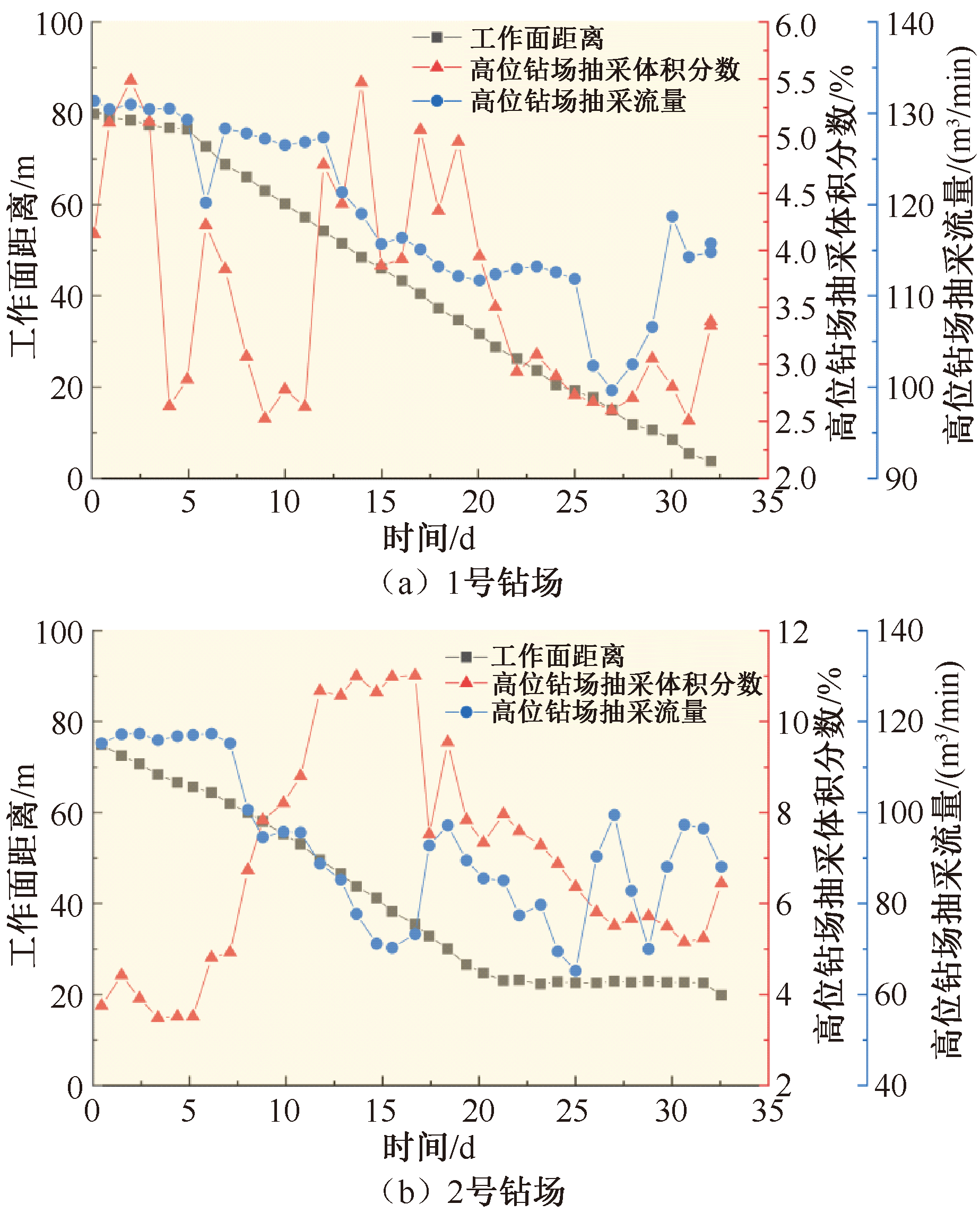

为解决人工设计高位瓦斯抽采钻孔布置参数误差大、抽采效率低的问题,以新疆某高瓦斯矿井为研究对象,提出一种基于二维物理相似模拟与智能系统的卸压瓦斯高位抽采孔设计思路。通过二维物理相似模拟试验,揭示覆岩横纵向裂隙联动演化特征,精准划分瓦斯运移区(最大高度36.7 m、最大宽度22.7 m)与储集区(最大高度26 m、最大宽度17 m)的几何边界,明确瓦斯赋存空间演化特征。基于Python语言开发高位瓦斯抽采钻孔智能系统,融合OpenGL技术构建3D地质模型,结合钻孔终点与开孔点平距、方位角及终孔高度等参数,通过自主研发的参数计算系统自动生成钻孔布置参数(方位角、倾角、长度),并利用可视化演示系统模拟钻孔轨迹。结果表明:该系统设计的钻孔终孔位置精准位于垮落带上部、断裂带中下部,2号钻场瓦斯抽采体积分数达6.52%~10.94%,较传统方法提高2.52%~5.19%。

关键词: 煤层开采, 卸压瓦斯抽采, 高位钻孔, 智能设计, 覆岩裂隙

Abstract:

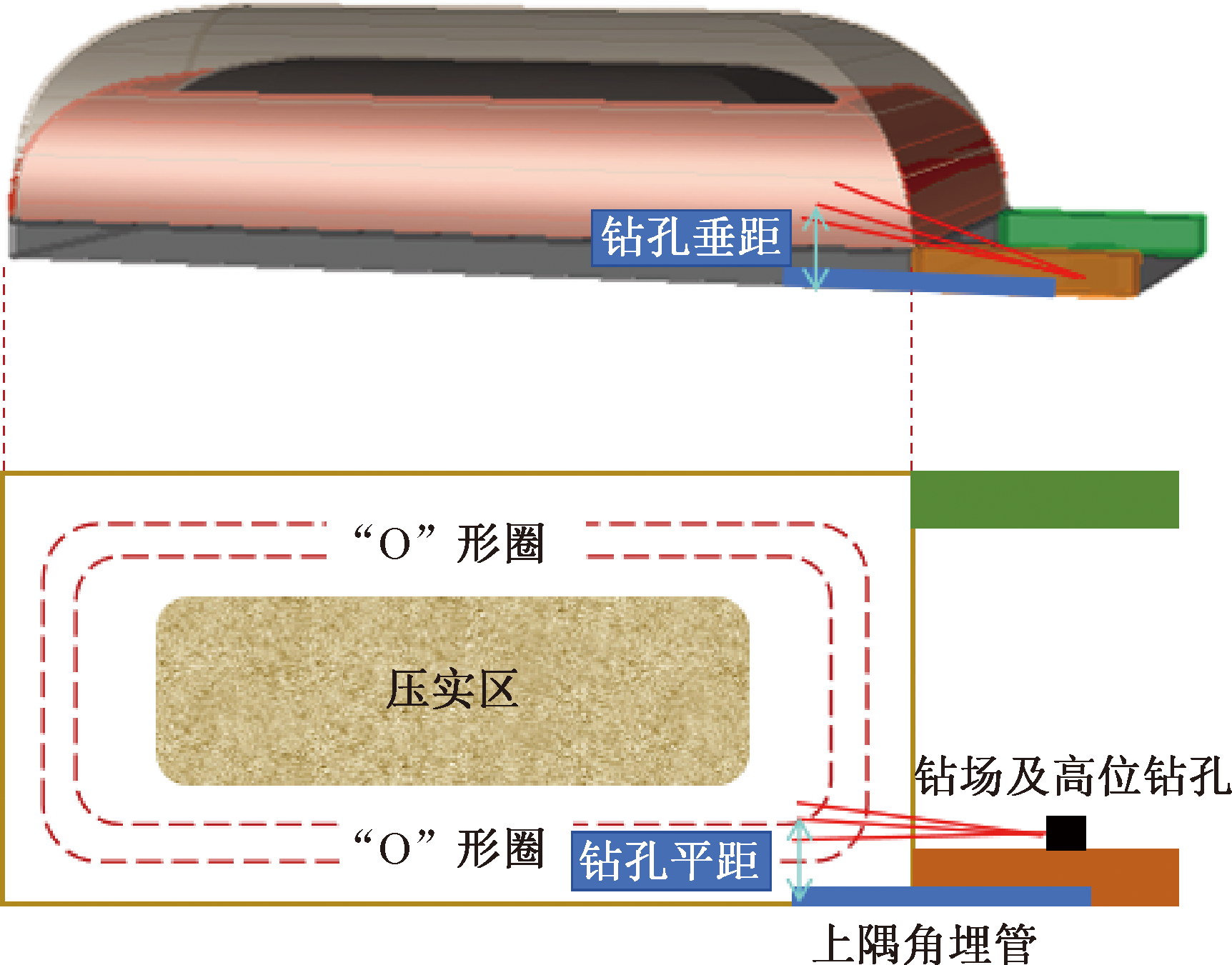

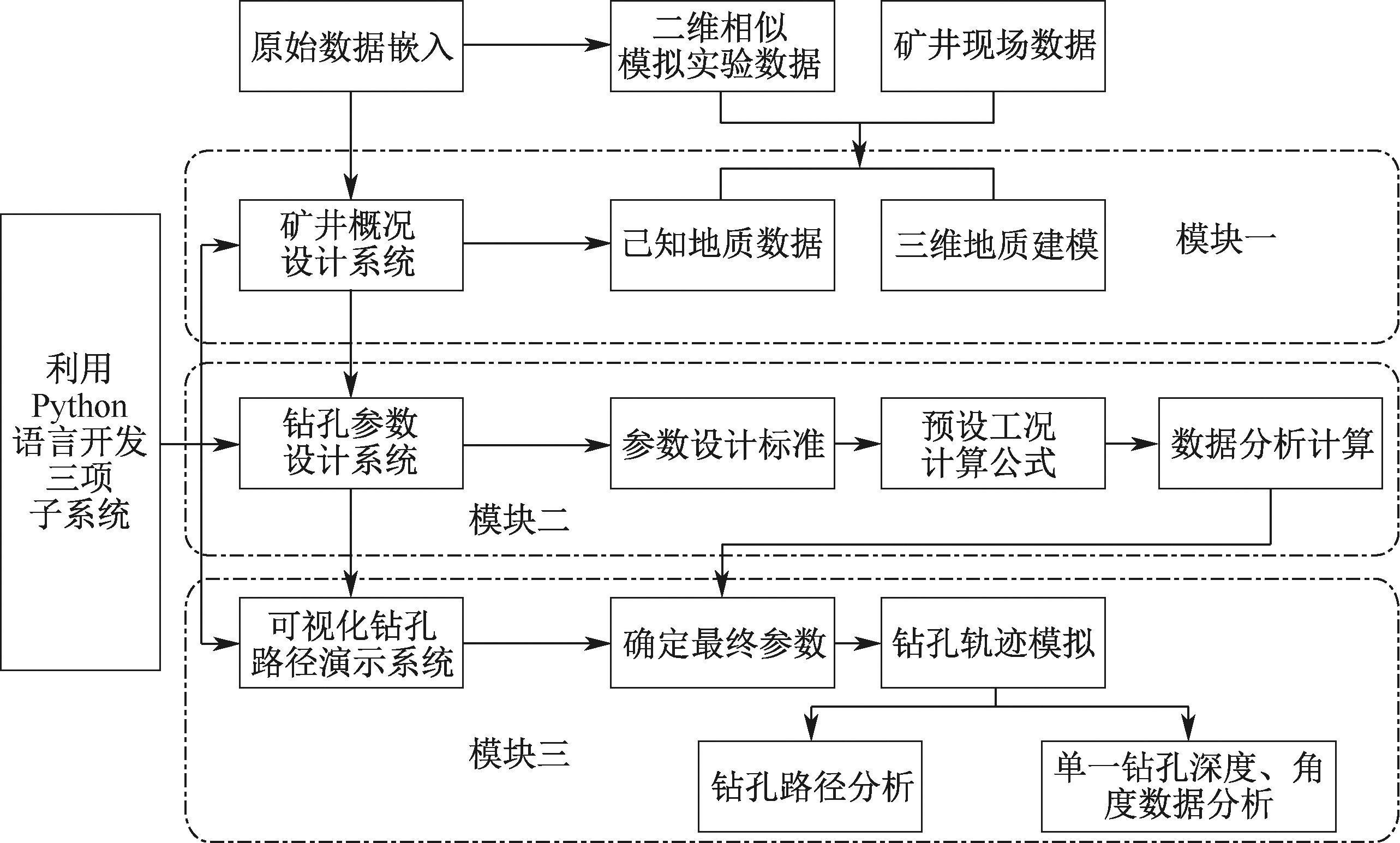

To solve the problems of large error of layout parameters and low extraction efficiency of artificially designed high-level gas extraction boreholes, a high-gas mine in Xinjiang was taken as the research object. A design method for pressure-relief gas high-level extraction boreholes based on two-dimensional physical similarity simulation and an intelligent system was proposed. Through the two-dimensional physical similarity simulation test, the evolution characteristics of the horizontal and vertical fractures of the overlying rock were revealed. Additionally, the geometric boundary between the gas migration area (maximum height 36.7 m, maximum width 22.7 m) and the reservoir area (maximum height 26 m, maximum width 17 m) was accurately divided, and the spatial evolution characteristics of gas occurrence were clarified. Based on Python language, the intelligent system of high-level gas extraction borehole was developed, and the 3D geological model is constructed by integrating OpenGL technology. Combined with the parameters such as the horizontal distance between the borehole end point and the opening point, the azimuth angle and the final hole height, the borehole layout parameters (azimuth angle, inclination angle and length) were automatically generated by the self-developed parameter calculation system. Subsequently, the borehole trajectory was simulated by the visual demonstration system. It is shown by the application that the final hole position of the borehole designed by this system is accurately located in the upper part of the caving zone and the middle and lower part of the fracture zone. The gas extraction concentration of 2 # drilling field is recorded at 6.52%—10.94%, which is found to be 2.52%-5.19% higher than that achieved by the traditional method

Key words: coal seam mining, pressure-relief gas extraction, high-level borehole, intelligent design, overburden rock fissures

中图分类号:

X936

张艺波, 赵鹏翔, 李树刚, 林海飞, 孙红星, 刘元嘉. 煤层开采卸压瓦斯高位抽采孔智能设计及应用[J]. 中国安全科学学报, 2026, 36(5): 215-223.

Zhang Yibo, Zhao Pengxiang, Li Shugang, Lin Haifei, Sun Hongxing, Liu Yuanjia. Intelligent design and application of high-level boreholes for pressure-relief gas drainage in coal seam mining[J]. China Safety Science Journal, 2026, 36(5): 215-223.

图/表 11

表1

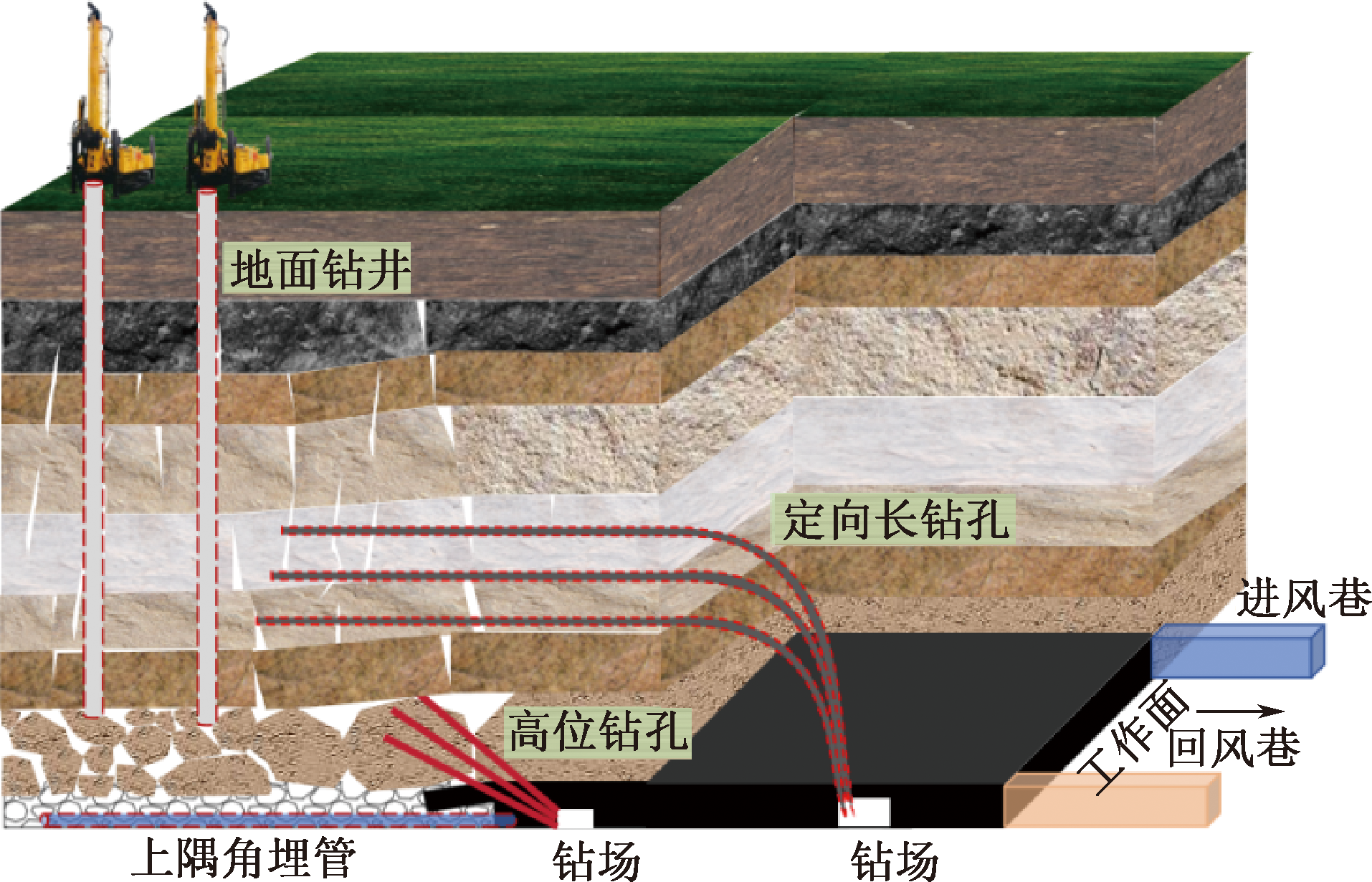

图1

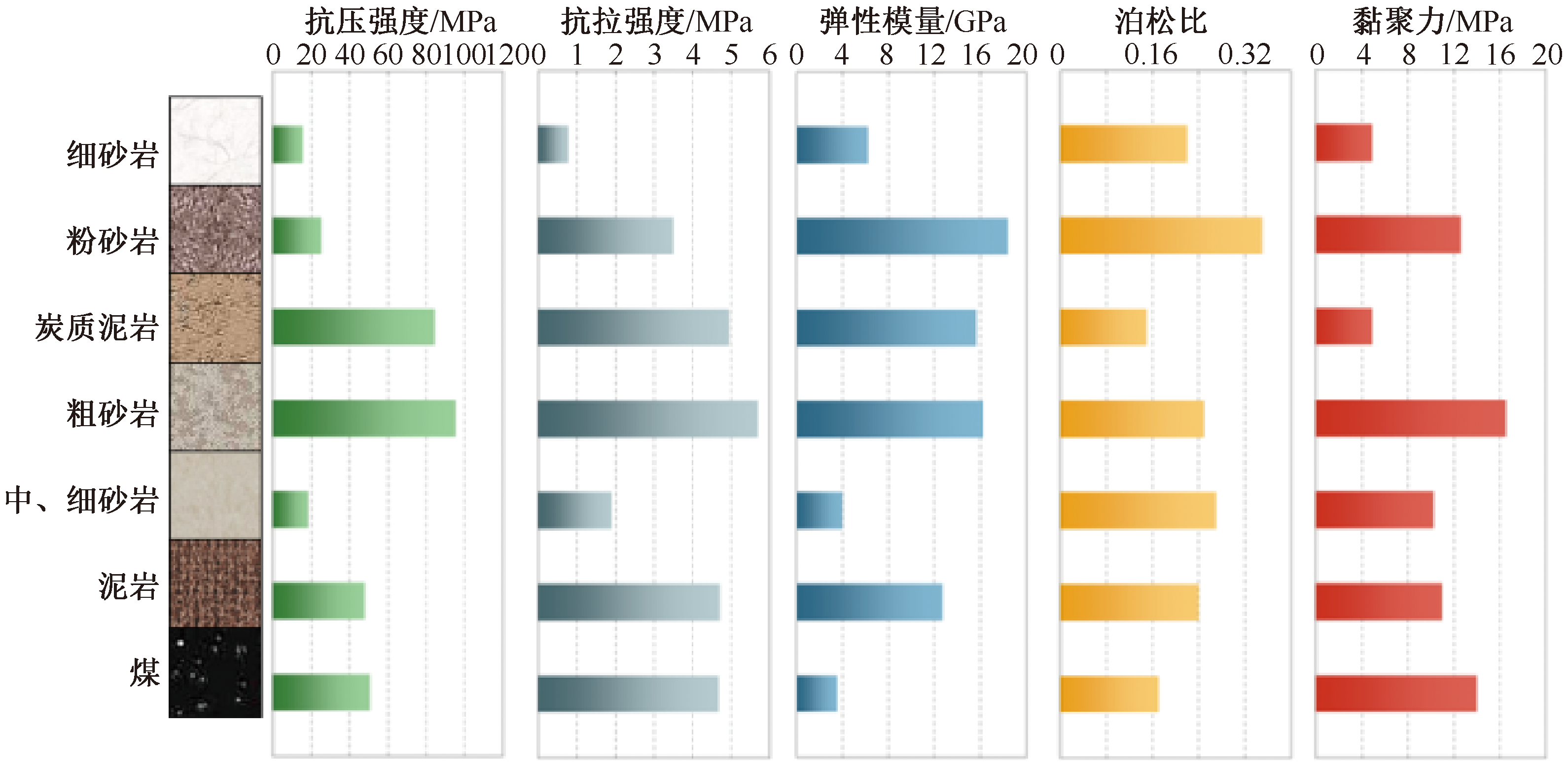

图2

图3

图4

图5

图6

图7

图8

图9

图10

参考文献 25

[1]	袁亮. 深部采动响应与灾害防控研究进展[J]. 煤炭学报, 2021, 46(3):716-725.
	Yuan Liang. Research progress on deep mining response and disaster prevention and control[J]. Journal of China Coal Society, 2021, 46(3): 716-725.
[2]	程志恒, 卢云, 苏士龙, 等. 采空区顶板高位走向长钻孔高效抽采瓦斯机理研究[J]. 煤炭科学技术, 2020, 48(2):136-142.
	Cheng Zhiheng, Lu Yun, Su Shilong, et al. Study on the mechanism of high-efficiency gas extraction from long boreholes in high-level strike of goaf roof[J]. Coal Science and Technology, 2020, 48 (2): 136-142.
[3]	毕慧杰, 邓志刚, 赵善坤, 等. 高瓦斯综采工作面定向高位钻孔瓦斯抽采技术研究[J]. 煤炭科学技术, 2019, 47(4):134-140.
	Bi Huijie, Deng Zhigang, Zhao Shankun, et al. Research on gas extraction technology of directional high-level boreholes in high-gas fully mechanized mining face[J]. Coal Science and Technology, 2019, 47 (4): 134-140.
[4]	谢和平, 任世华, 谢亚辰, 等. 碳中和目标下煤炭行业发展机遇[J]. 煤炭学报, 2021, 46(7):2197-2211.
	Xie Heping, Ren Shihua, Xie Yachen, et al. Opportunities for the development of coal industry under the goal of carbon neutrality[J]. Journal of China Coal Society, 2021, 46 (7): 2197-2211.
[5]	许家林, 钱鸣高. 地面钻井抽放上覆远距离卸压煤层气试验研究[J]. 中国矿业大学学报, 2000, 29(1):78-81.
	Xu Jialin, Qian Minggao. Experimental study on drainage of overlying long-distance pressure-relieved coalbed methane by surface drilling[J]. Journal of China University of Mining and Technology, 2000, 29(1): 78-81.
[6]	李树刚, 林海飞, 赵鹏翔, 等. 采动裂隙椭抛带动态演化及煤与甲烷共采[J]. 煤炭学报, 2014, 39(8):1455-1462.
	Li Shugang, Lin Haifei, Zhao Pengxiang, et al. Dynamic evolution of mining-induced fractured elliptical paraboloid zone and co-mining of coal and methane[J]. Journal of China Coal Society, 2014, 39 (8): 1455-1462.
[7]	林海飞, 李树刚, 赵鹏翔, 等. 我国煤矿覆岩采动裂隙带卸压瓦斯抽采技术研究进展[J]. 煤炭科学技术, 2018, 46(1):28-35.
	Lin Haifei, Li Shugang, Zhao Pengxiang, et al. Research progress of pressure relief gas extraction technology in mining fractured zone of overlying strata in China[J]. Coal Science and Technology, 2018, 46 (1):28-35.
[8]	刘建中, 赵保平, 孔祥义, 等. 高位钻孔配合埋管抽放治理采面上隅角瓦斯[J]. 煤炭科学技术, 2010, 38(2):46-49.
	Liu Jianzhong, Zhao Baoping, Kong Xiangyi, et al. High-level drilling with buried pipe drainage to control gas in the upper corner of the mining face[J]. Coal Science and Technology, 2010, 38 (2): 46-49.
[9]	郭书明, 钱志良. 高位钻孔抽采采空区瓦斯数值模拟研究[J]. 能源技术与管理, 2023, 48(5):51-52,197.
	Guo Shuming, Qian Zhiliang. Numerical simulation of gas extraction in goaf by high-level borehole[J]. Energy Technology and Management, 2023, 48 (5): 51-52,197.
[10]	杨永良, 李增华, 侯世松, 等. 高位钻孔瓦斯抽采参数优化技术[J]. 煤矿安全, 2012, 43(11):64-67.
	Yang Yongliang, Li Zenghua, Hou Shisong, et al. High-level borehole gas extraction parameter optimization technology[J]. Safety in Coal Mines, 2012, 43 (11): 64-67.
[11]	王勇, 常兴中. 高位钻孔瓦斯抽采参数优化技术[J]. 能源技术与管理, 2018, 43(1):24-25,111.
	Wang Yong, Chang Xingzhong. High-level borehole gas extraction parameter optimization technology[J]. Energy Technology and Management, 2018, 43 (1): 24-25,111.
[12]	郭达. 瓦斯抽采高位钻孔参数优化研究[J]. 煤炭工程, 2013, 45(6):60-62.
	Guo Da. Optimization of high-level borehole parameters for gas extraction[J]. Coal Engineering, 2013, 45 (6): 60-62.
[13]	贾智慧. 大直径高位钻孔代替高抽巷治理采空区瓦斯研究[J]. 自动化应用, 2023, 64(17):202-205.
	Jia Zhihui. Research on gas control in goaf by large diameter high-level borehole instead of high drainage roadway[J]. Automation Application, 2023, 64 (17): 202-205.
[14]	江泽帮, 吴珏, 杜会宇, 等. 高位定向钻孔合理层位确定及抽采效果分析[J]. 煤炭技术, 2023, 42(2):150-153.
	Jiang Zebang, Wu Jue, Du Huiyu, et al. Reasonable horizon determination and extraction effect analysis of high-level directional drilling[J]. Coal Technology, 2023, 42 (2): 150-153.
[15]	孟然, 唐洪, 韦钊, 等. 综采工作面高位钻孔瓦斯涌出规律研究[J]. 煤炭科技, 2023, 44(4):89-94,102.
	Meng Ran, Tang Hong, Wei Zhao, et al. Study on the law of gas emission from high-level boreholes in fully mechanized mining face[ J ]. Coal Science, 2023, 44 (4): 89-94,102.
[16]	肖鹏, 黄晓昇, 刘潇潇, 等. 瓦斯抽采钻孔变形塌孔规律及精准监测技术研究[J]. 煤田地质与勘探, 2024, 52(3):14-23.
	Xiao Peng, Huang Xiaosheng, Liu Xiaoxiao, et al. Study on deformation and collapse law and precise monitoring technology of gas extraction borehole[J]. Coalfield Geology and Exploration, 2024, 52 (3): 14-23.
[17]	龙杰, 左金芳, 李辉勤, 等. 智能化钻孔设计与审查系统的研究[J]. 煤炭技术, 2024, 43(6):228-232.
	Long Jie, Zuo Jinfang, Li Huiqin, et al. Research on intelligent borehole design and examination system[J]. Coal Technology, 2024, 43 (6): 228-232.
[18]	李泉新, 姚克, 方俊, 等. 煤矿井下瓦斯高效精准抽采定向钻进技术与装备[J]. 煤炭科学技术, 2023, 51(增刊1):65-72.
	Li Quanxin, Yao Ke, Fang Jun, et al. Coal mine underground gas efficient and accurate extraction directional drilling technology and equipment[J]. Coal Science and Technology, 2023, 51 (S1): 65-72.
[19]	郝天轩, 范国阳, 赵立桢. 基于AutoCAD的钻孔智能设计系统[J]. 中国安全生产科学技术, 2023, 19(4):71-77.
	Hao Tianxuan, Fan Guoyang, Zhao Lizhen. An intelligent drilling design system based on AutoCAD[J]. Journal of Safety Science and Technology, 2023, 19 (4): 71-77.
[20]	郭世斌, 胡国忠, 朱家锌, 等. 顶板瓦斯抽采巷布置位置智能预测方法[J]. 煤炭科学技术, 2024, 52 (4):203-213.
	Guo Shibin, Hu Guozhong, Zhu Jiaxin, et al. Intelligent prediction method for layout position of roof gas drainage roadway[J]. Coal Science and Technology, 2024, 52 (4): 203-213.
[21]	Zhu Hongqing, Fang Shuhao, Huo Yujia, et al. Study of the dynamie development law of overburden breakage on mining faces[J]. Scientific Reports, 2020, 10(1):1-15. doi: 10.1038/s41598-019-56847-4
[22]	Wu Quansen, Jang Lishuai, Wu Quanlin, et al. A study on the law of overlying strata migration and separation space evolution under hard and thick strata in underground coal mining by similar simulation[J]. DYNA-Ingeniería e Industria, 2018, 94(2):175-181.
[23]	赵鹏翔, 常泽晨, 李树刚, 等. 厚煤层采空区定向孔分域抽采研究及应用[J]. 中国安全科学学报, 2023, 33(1):70-79. doi: 10.16265/j.cnki.issn1003-3033.2023.01.0416
	Zhao Pengxiang, Chang Zechen, Li Shugang, et al. Research and application of directional drilling sub area extraction in thick coal seam goaf[J]. China Safety Science Journal, 2023, 32(1):70-79.
[24]	李树刚, 刘李东, 赵鹏翔, 等. 综采工作面覆岩压实区裂隙动态演化规律影响因素分析[J]. 煤炭科学技术, 2022, 50(1):95-104.
	Li Shugang, Liu Lidong, Zhao Pengxiang et al. Analysis of influencing factors on dynamic evolution law of cracks in overburden rock compaction area of fully mechanized mining face[J]. Coal Science and Technology, 2022, 50 (1): 95-104.
[25]	赵鹏翔, 卓日升, 李树刚, 等. 倾斜巨厚煤层开采卸压瓦斯运储区"类冷却塔"形成机理及分域抽采[J]. 中国矿业大学学报, 2025, 54(5):1002-1019.
	Zhao Pengxiang, Zhuo Risheng, Li Shugang, et al. Distribution characteristics of "similar cooling tower" in gas migra-tion and storage areas of inclined extremely thick coal seam and sub-domain extraction method[J]. Journal of China University of Mining and Technology, 2025, 54(5): 1002-1019.

不同分区		区域特征
不规则垮落区		该区域内瓦斯渗流通道是近似各向同性的多孔介质,岩层破坏变形程度以垮落为主,覆岩裂隙下沉量,贯通度发育显著
规则垮落区		该区域内瓦斯渗流通道主要以裂缝为主,包括沿层面的断裂缝和层间的离层裂缝,该区域内岩层破坏变形程度以垮落为主,覆岩裂隙下沉量较大,贯通度发育显著
裂隙区	破断裂隙密集区	该区域内瓦斯升浮优势通道发育完善,瓦斯升浮容易,破断裂隙较多,连通性好,透气性良好,贯通度较为显著
裂隙区	离层裂隙密集区	该区域内瓦斯升浮优势通道发育较为完善,瓦斯升浮逐渐困难,破断裂隙较少,连通性、透气性一般,覆岩裂隙下沉量较小,贯通度发育微弱
微小裂隙区		该区域内瓦斯升浮优势通道发育差,瓦斯以水平扩散运移为主,裂隙发育特征多为小型离层裂隙,覆岩裂隙下沉量最小
