隧道流淌火蔓延燃烧行为与烟气演化特性全尺寸试验

doi:10.16265/j.cnki.issn1003-3033.2026.09.0328

中国安全科学学报 ›› 2026, Vol. 36 ›› Issue (9): 185-192.doi: 10.16265/j.cnki.issn1003-3033.2026.09.0328

隧道流淌火蔓延燃烧行为与烟气演化特性全尺寸试验

马翰超¹(), 翟旭², 张一辰¹, 吕君可¹, 肖建峰³, 黄弘¹^,^**()

¹ 清华大学安全科学学院, 北京 100084
² 清华大学核能与新能源技术研究院, 北京 100084
³ 成都消防救援机动支队, 四川成都 610400

收稿日期:2026-05-09 修回日期:2026-07-12 出版日期:2026-10-20
通信作者:
^** 黄弘(1972—),男,吉林四平人,博士,教授,主要从事城市公共安全、火灾科学等方面的研究。E-mail: hhong@tsinghua.edu.cn。
作者简介:
马翰超 (1999—),男,河北保定人,博士研究生,主要研究方向为流淌火灾防控。E-mail: mhc22@mails.tsinghua.edu.cn。
翟旭助理研究员
基金资助:
国家重点研发计划项目资助(2024YFC3016600)

Full-scale experiment on burning behaviors and smoke characteristics of spill fires in road tunnels

Ma Hanchao¹(), Zhai Xu², Zhang Yichen¹, Lyu Junke¹, Xiao Jianfeng³, Huang Hong¹^,^**()

¹ School of Safety Science, Tsinghua University, Beijing 100084, China
² Institute of Nuclear and New Energy Technology, Tsinghua University, Beijing 100084, China
³ Chengdu Fire and Rescue Mobile Brigade, Chengdu Sichuan 610400, China

Received:2026-05-09 Revised:2026-07-12 Published:2026-10-20

摘要/Abstract

摘要：

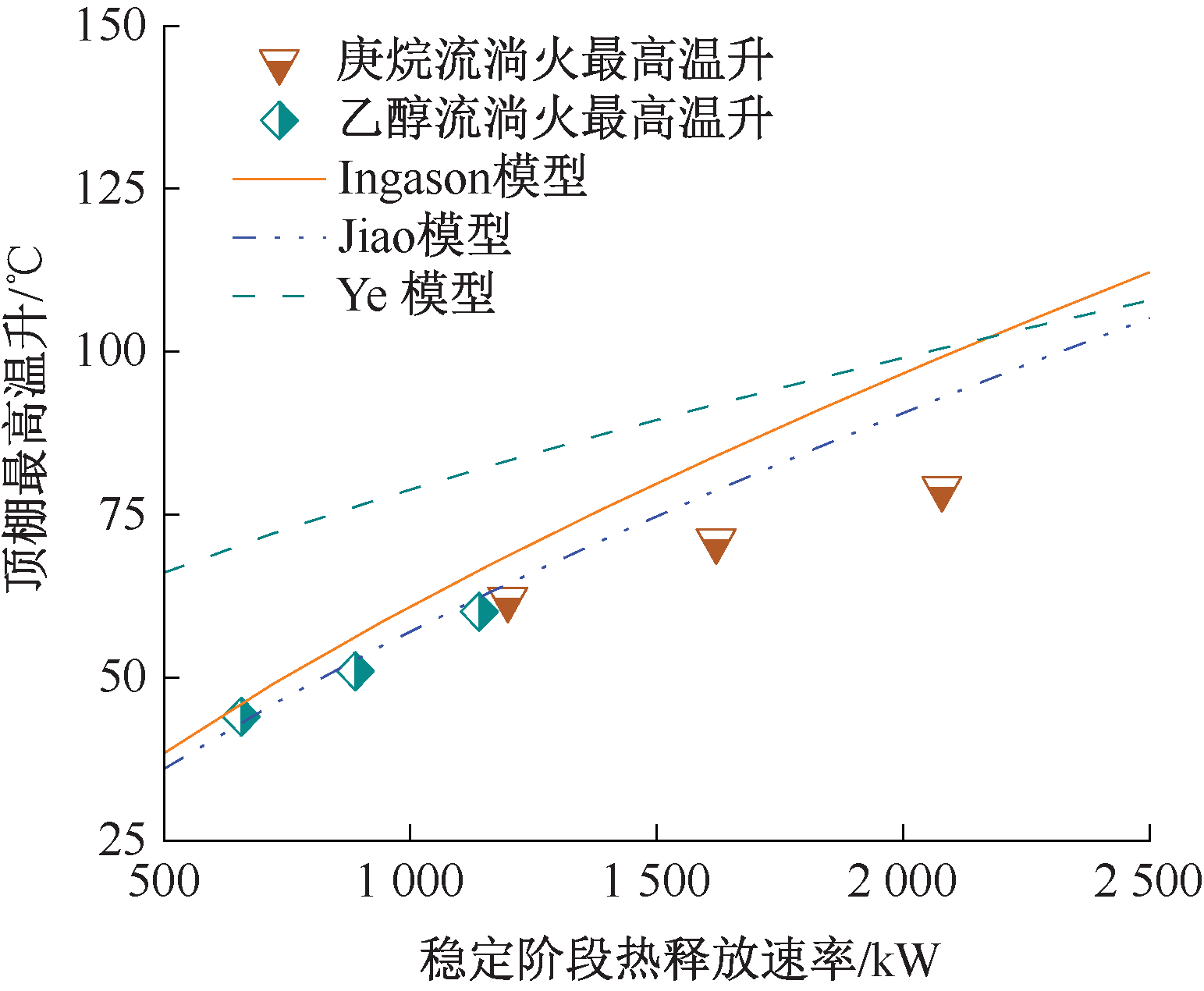

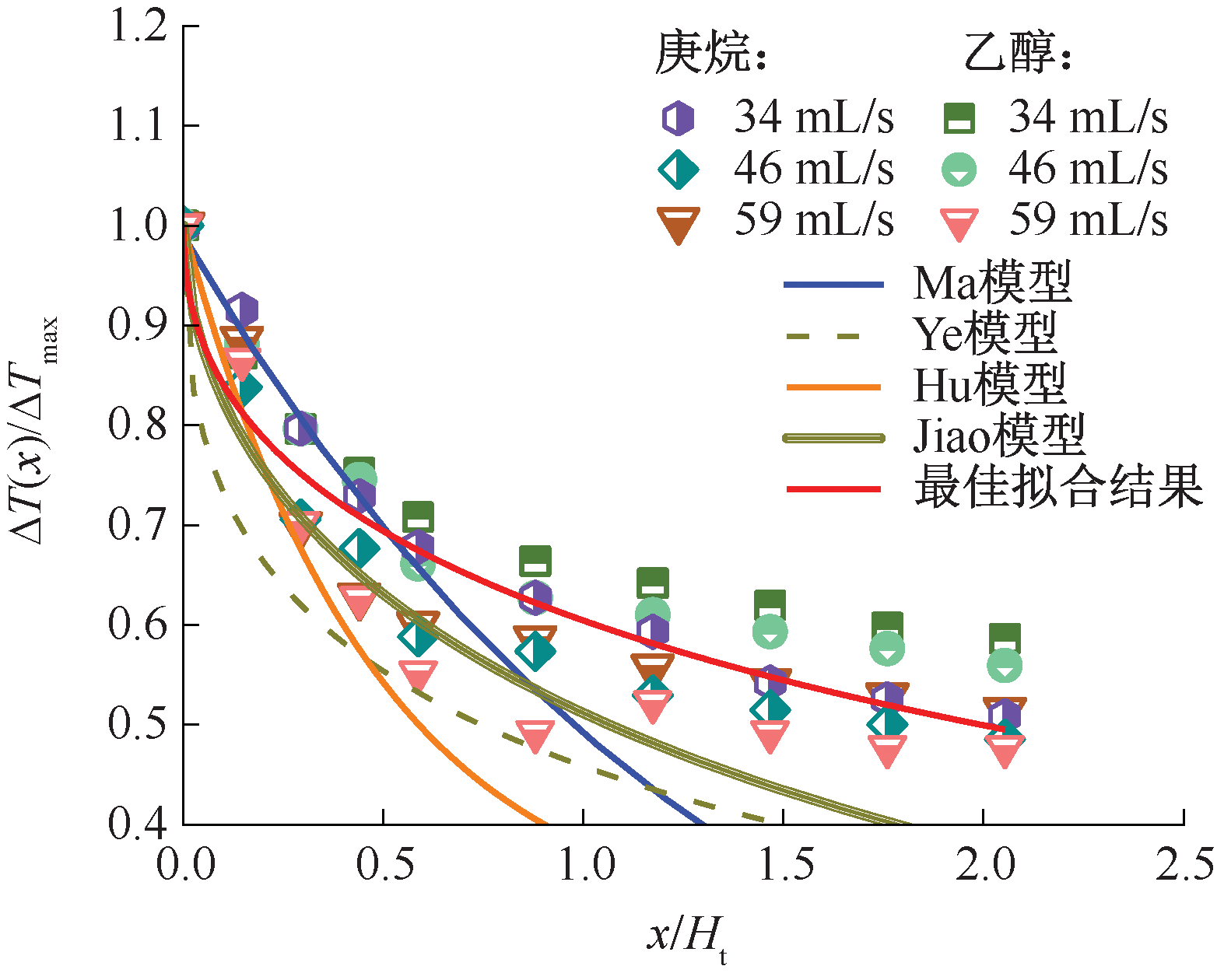

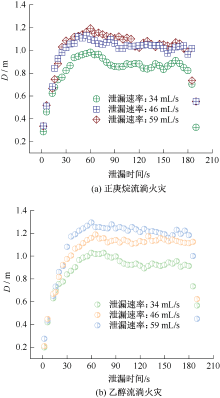

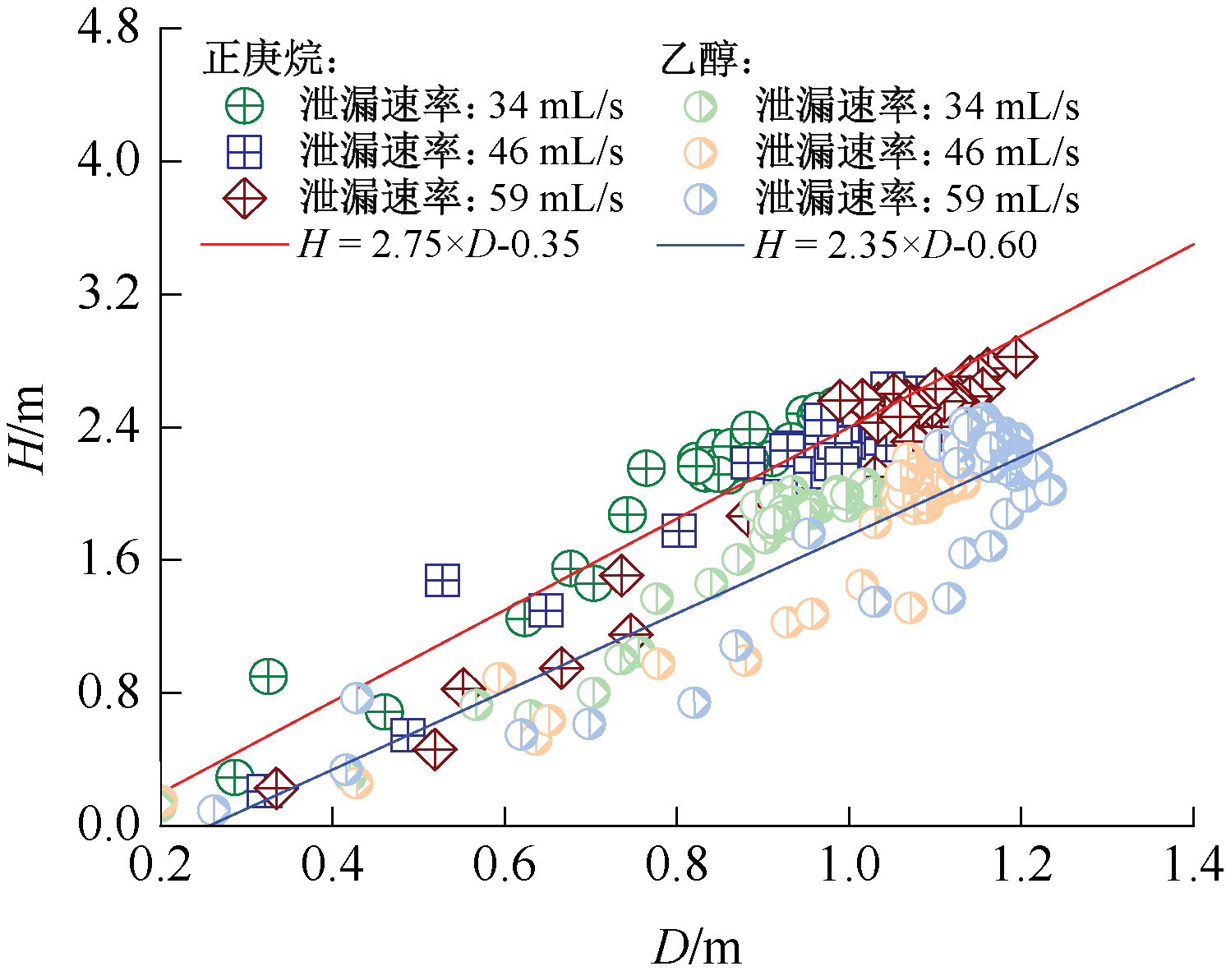

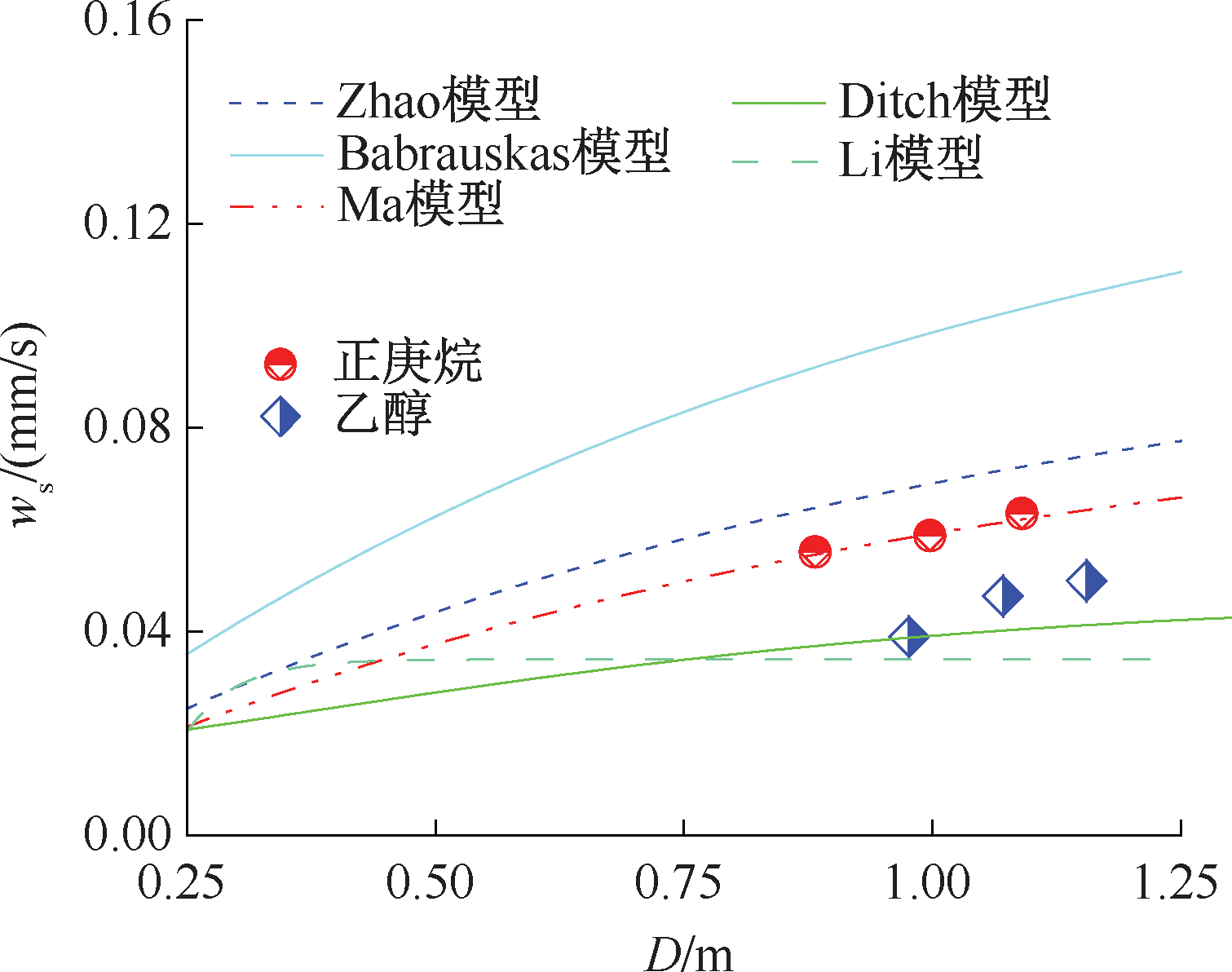

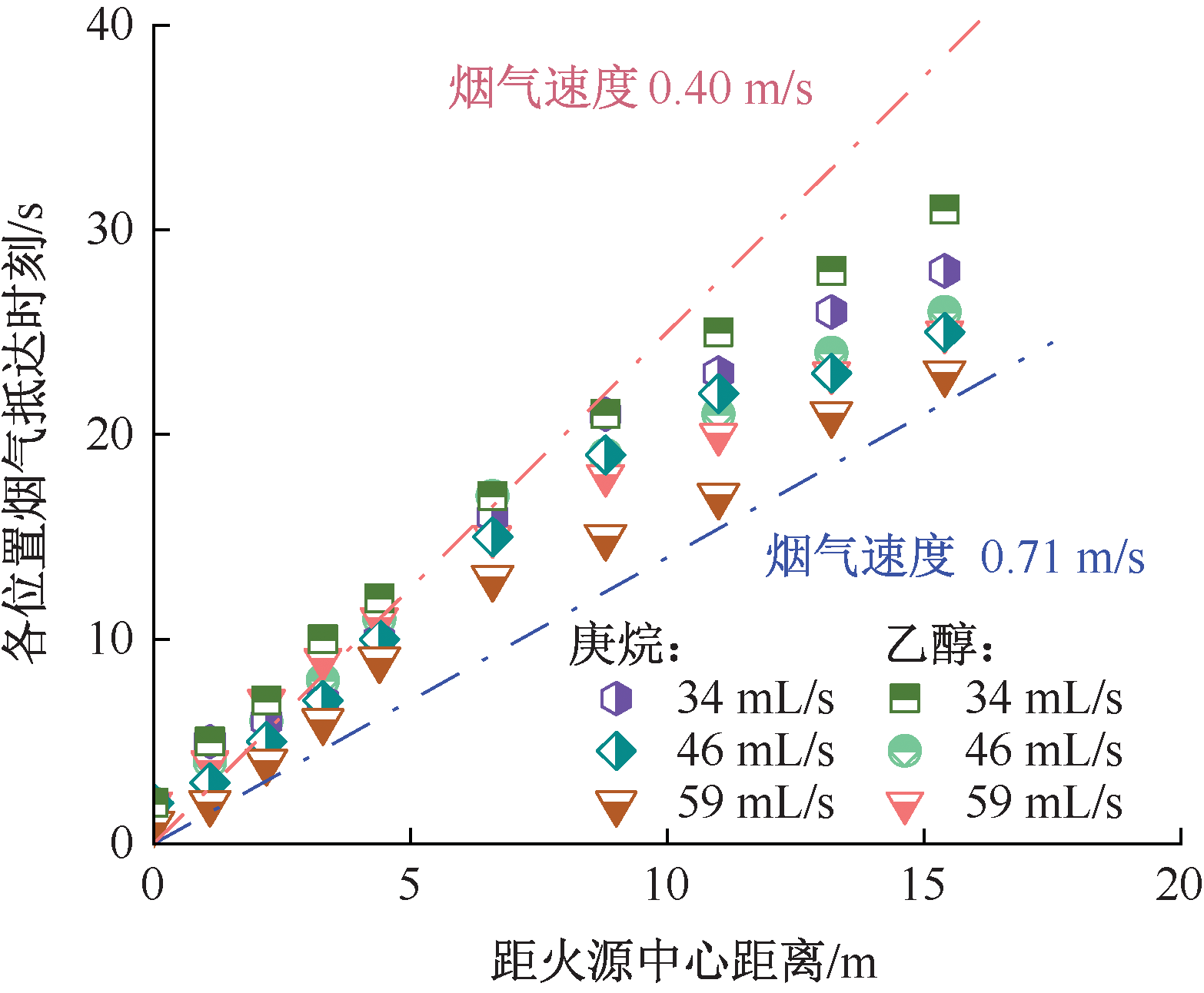

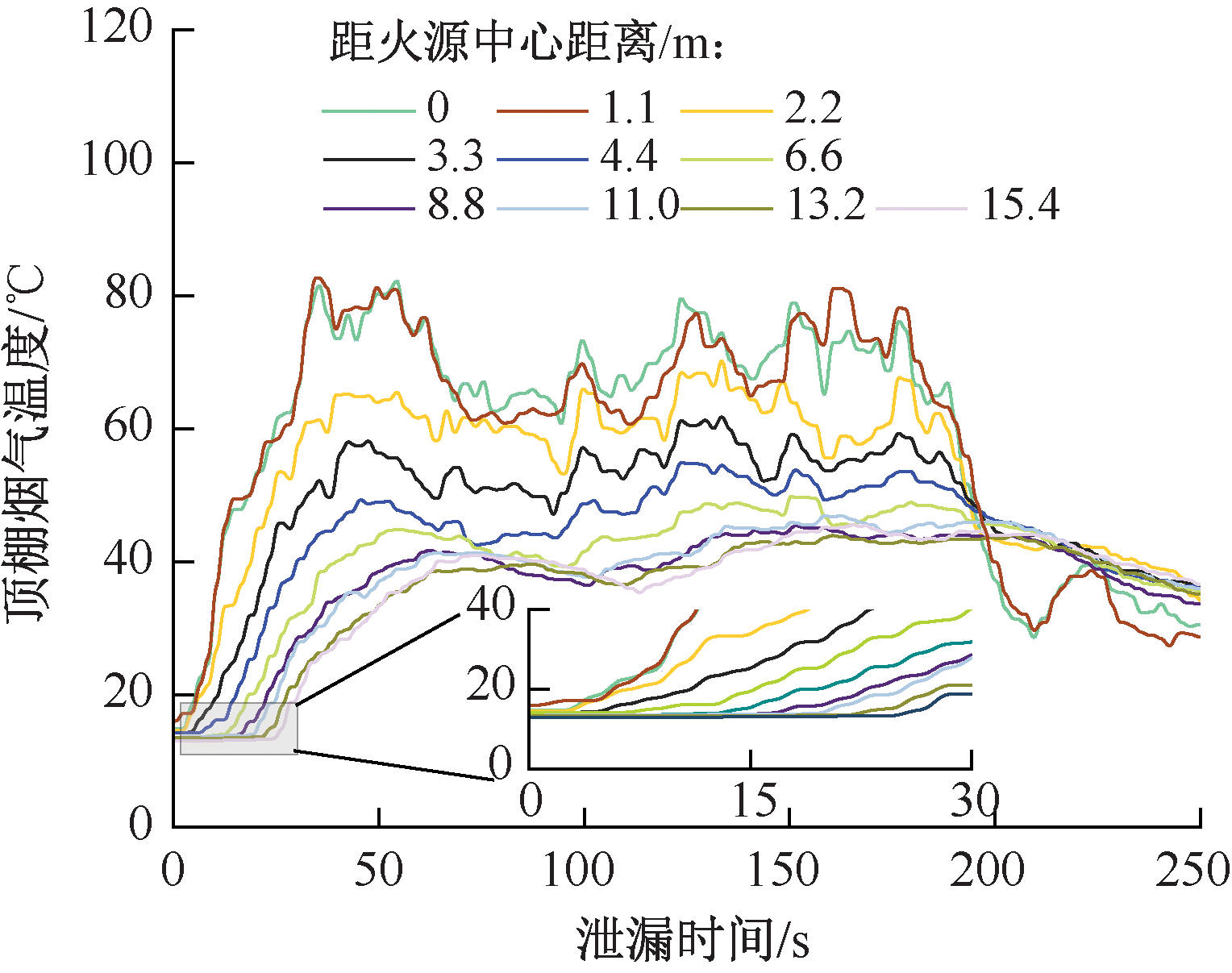

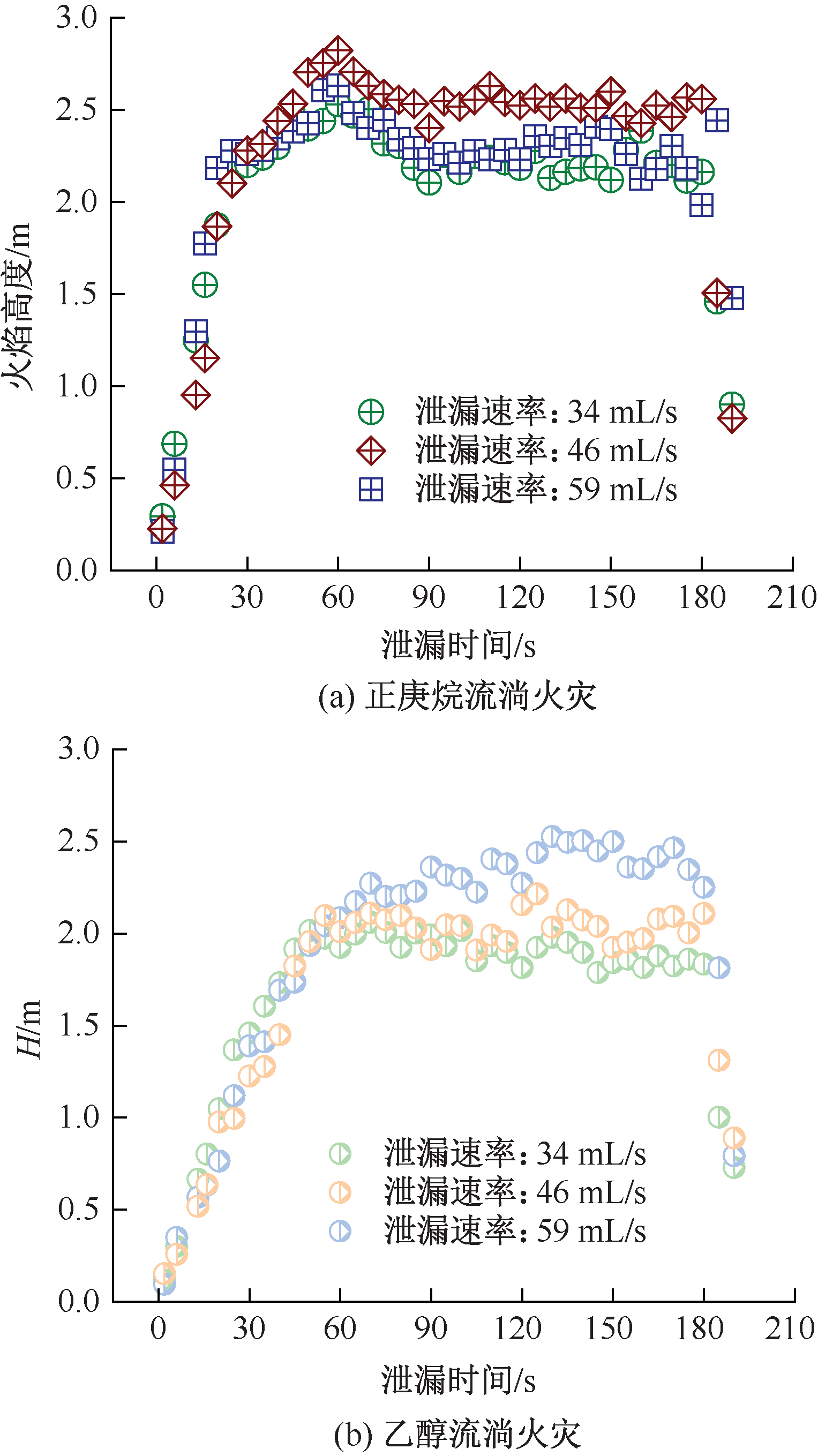

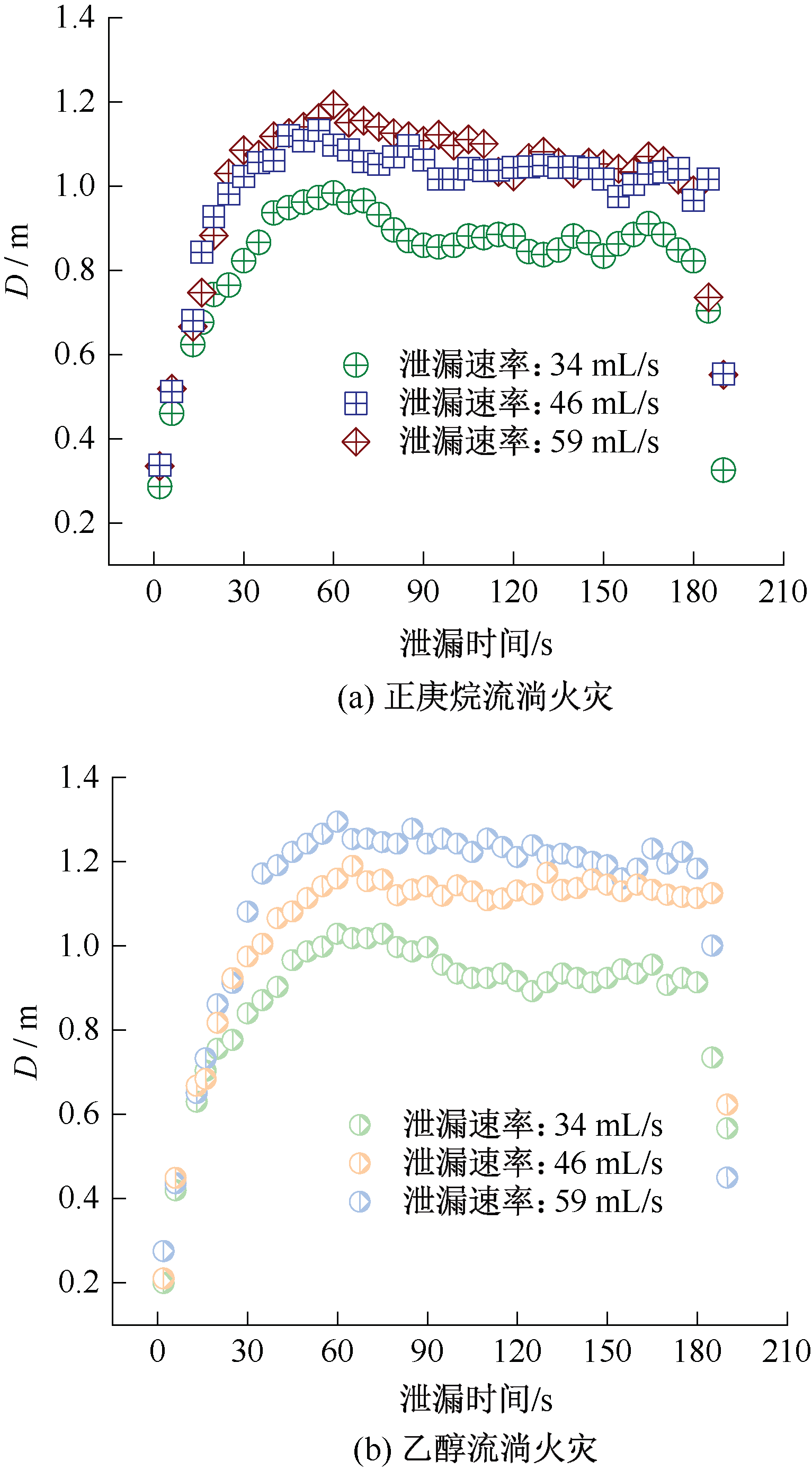

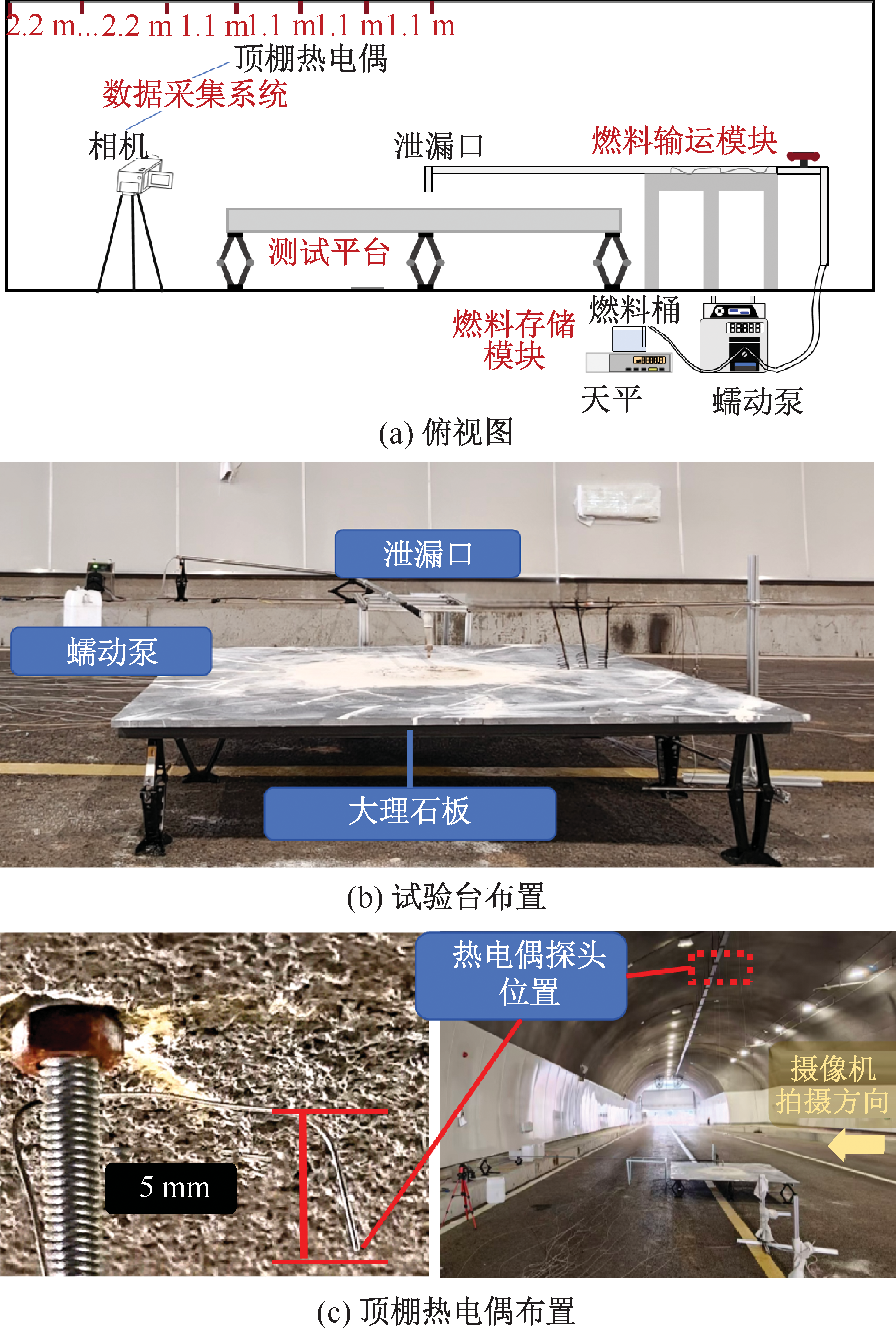

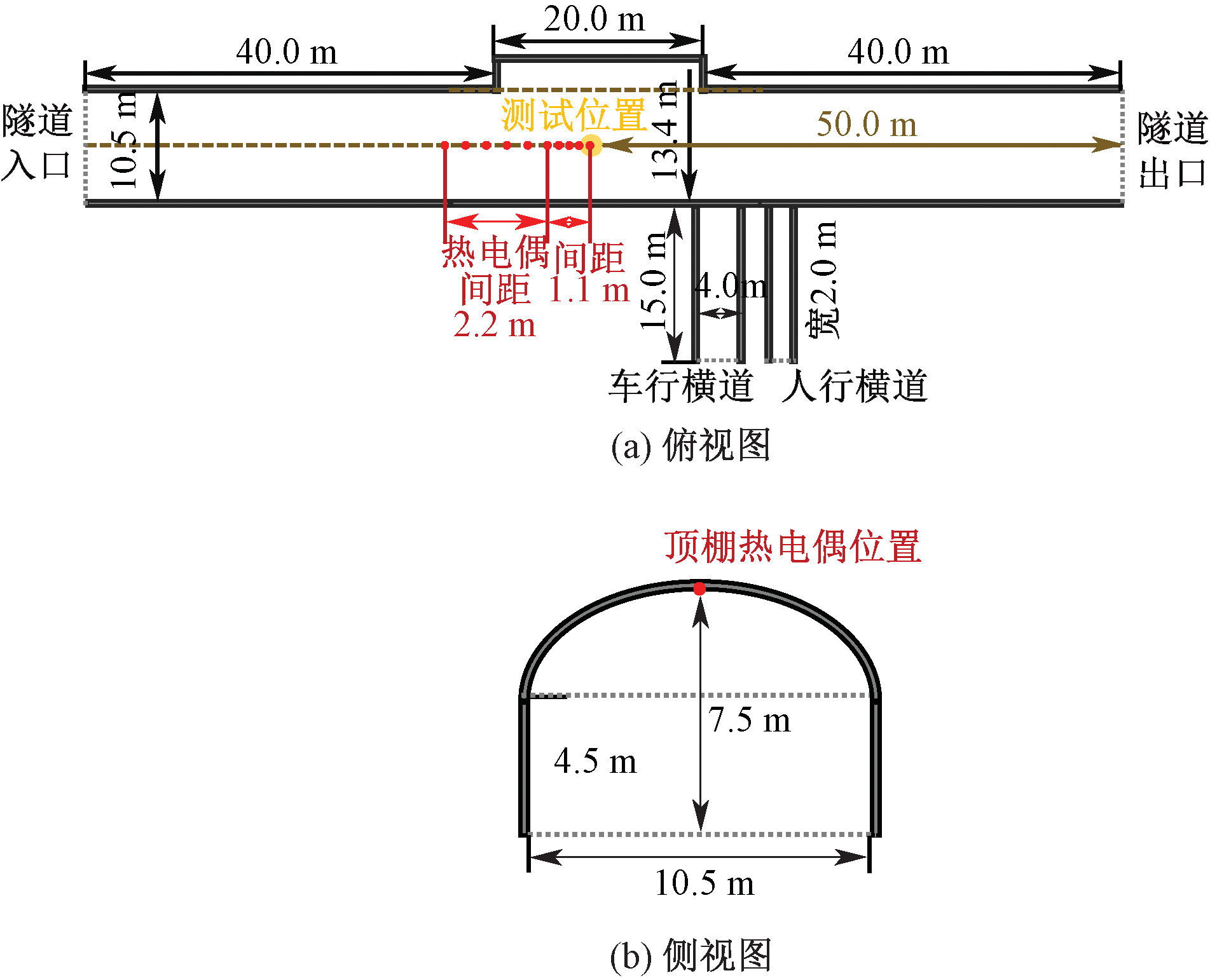

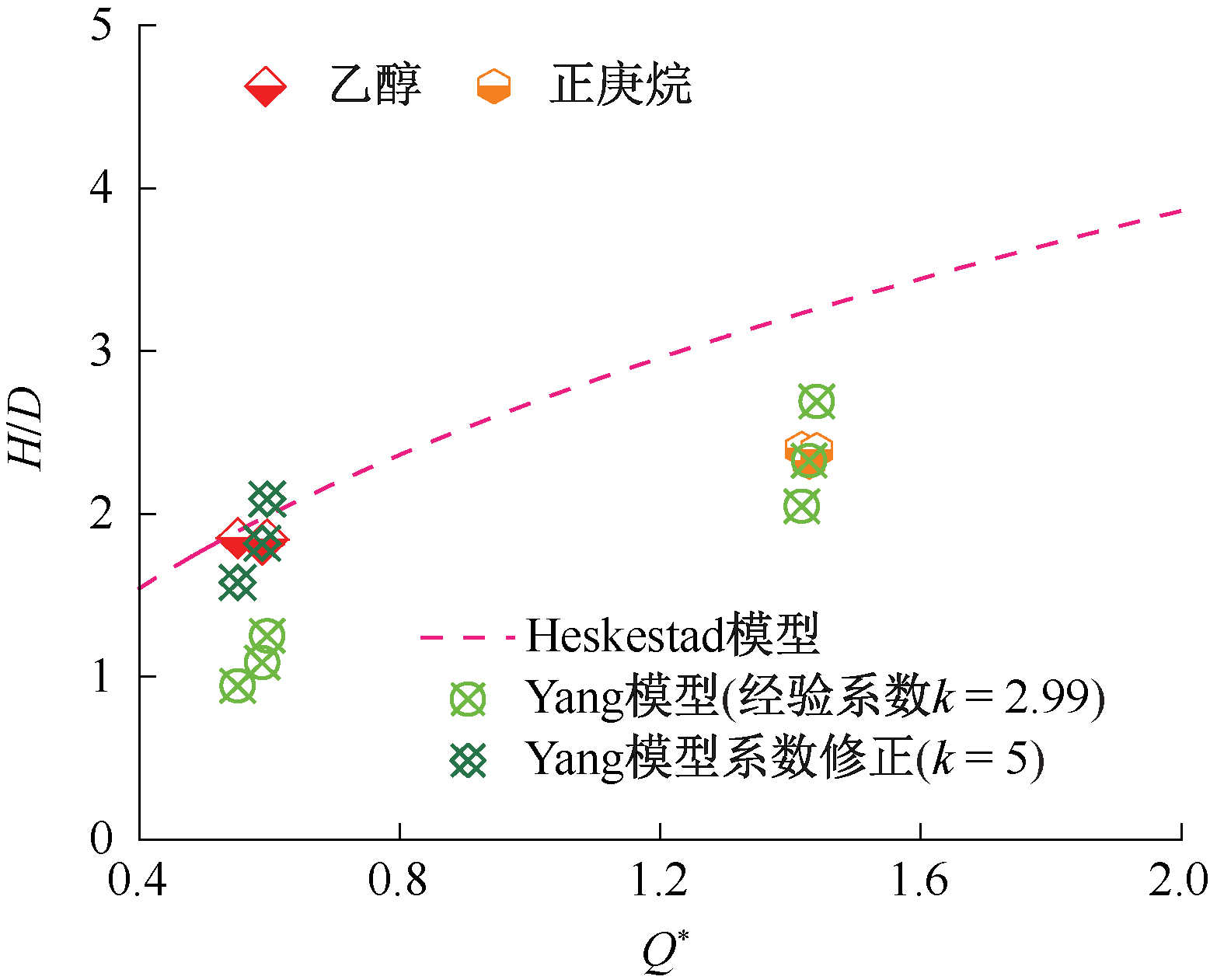

为揭示公路隧道流淌火灾的灾变机制、弥补全尺寸试验数据不足,在长100 m、宽10.5 m、高7.5 m的全尺寸公路隧道内,开展不同燃料类型(正庚烷、乙醇)和泄漏速率(34~59 mL/s)下的流淌火试验,分析燃烧直径、火焰高度、燃烧速率、顶棚烟气温度及烟气蔓延速度的演化特性。结果表明:流淌火灾燃烧直径呈典型“蔓延-回缩-准稳定燃烧”3阶段发展过程,火焰高度与燃烧直径间存在线性关系;正庚烷流淌火灾的稳定阶段燃烧速率高于乙醇,分别为0.055~0.063、0.039~0.050 mm/s;顶棚烟气温度变化趋势与燃烧直径一致;各工况下烟气蔓延速度为0.4~0.71 m/s,与泄漏速率正相关;稳定阶段顶棚最高温升与流淌火灾热释放速率呈线性相关;无量纲温升随无量纲距离的增大呈指数衰减,且衰减速度低于现有模型预测值。

关键词: 隧道流淌火, 火焰高度, 蔓延燃烧行为, 顶棚烟气温度, 烟气演化特性

Abstract:

To reveal the disaster mechanism of spill fires in road tunnels and to address the shortage of full-scale experimental data, spill fire experiments were conducted in a full-scale road tunnel (100 m long, 10.5 m wide, 7.5 m high) using two fuel types (n-heptane and ethanol) and varying discharge rates (34-59 mL/s). The evolution characteristics of burning diameter, flame height, burning rate, ceiling smoke temperature, and smoke spread velocity was analyzed. The results show that the burning diameter exhibits a typical three-stage development process: "spread-shrink-quasi-steady burning". A linear relationship is found between flame height and burning diameter. During the quasi-steady stage, the burning rate of n-heptane spill fires is higher than that of ethanol, ranging from 0.055 to 0.063 mm/s and 0.039 to 0.050 mm/s, respectively. The variation trend of ceiling smoke temperature is consistent with that of the burning diameter. The smoke spread velocity under all test conditions ranges from 0.4 to 0.71 m/s and is positively correlated with the discharge rate. During the quasi-steady stage, the maximum ceiling temperature rise exhibits a linear correlation with the heat release rate. The dimensionless temperature rise decays exponentially with increasing dimensionless distance, with a decay rate slower than that predicted by existing models.

Key words: tunnel spill fire, flame height, burning and spreading behaviors, ceiling smoke temperature, smoke evolution characteristics

中图分类号:

X932爆炸安全与防火、防爆

马翰超, 翟旭, 张一辰, 吕君可, 肖建峰, 黄弘. 隧道流淌火蔓延燃烧行为与烟气演化特性全尺寸试验[J]. 中国安全科学学报, 2026, 36(9): 185-192.

Ma Hanchao, Zhai Xu, Zhang Yichen, Lyu Junke, Xiao Jianfeng, Huang Hong. Full-scale experiment on burning behaviors and smoke characteristics of spill fires in road tunnels[J]. China Safety Science Journal, 2026, 36(9): 185-192.

图/表 14

图1

图2

表1

表2

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

参考文献 24

[1]	宋豪. 危化品道路运输泄漏事故应急处置探究[J]. 中国设备工程, 2022(13):137-139.
[2]	李佳兴, 叶成豪, 夏美清, 等. 狭长受限空间持续泄漏甲醇流淌火试验[J]. 中国安全科学学报, 2026, 36(6):143-149. doi: 10.16265/j.cnki.issn1003-3033.2026.06.1351
	Li Jiaxing, Ye Chenghao, Xia Meiqing, et al. Experimental study on continuous-leakage methanol spill fires in a narrow and confined space[J]. China Safety Science Journal, 2026, 36(6):143-149. doi: 10.16265/j.cnki.issn1003-3033.2026.06.1351
[3]	中华人民共和国应急管理部. 晋济高速公路山西晋城段岩后隧道"3·1"特别重大道路交通危化品燃爆事故调查报告[EB/OL].(2026-02-25)[2026-02-25]. https://www.mem.gov.cn:10443/gk/sgcc/tbzdsgdcbg/2014/201406/t20140610_245221.shtml.
[4]	Ingason H, Li Yingzhen. Spilled liquid fires in tunnels[J]. Fire Safety Journal, 2017, 91: 399-406. doi: 10.1016/j.firesaf.2017.03.065
[5]	Guo Qinghua, Li Yingzhen, Ingason H, et al. Study on spilled liquid from a continuous leakage in sloped tunnels[J]. Tunnelling and Underground Space Technology, 2022, 120: DOI:10.1016/j.tust.2021.104290.
[6]	Li Haihang, Liu Haiqiang, Liu Jiahao, et al. Spread and burning characteristics of continuous spill fires in a tunnel[J]. Tunnelling and Underground Space Technology, 2021, 109: DOI:10.1016/j.tust.2020.103754.
[7]	Ye Chenghao, Jiang Xue, Hu Xuejing, et al. Modeling maximum ceiling temperature and back-layering flow length of spill fires under combined longitudinal ventilation and ceiling smoke exhaust[J]. Applied Thermal Engineering, 2025, 279: DOI:10.1016/j.applthermaleng.2025.128073.
[8]	Hu Xuejing, Guo Yinliang, Ye Chenghao, et al. Experimental study on spreading combustion characteristics and smoke temperature distribution of continuous spill fires in blocked tunnels[J]. Tunnelling and Underground Space Technology, 2025, 166: DOI:10.1016/j.tust.2025.106982.
[9]	Ye Chenghao, Li Jiaxing, Xia Meiqing, et al. Investigation of the flame behavior and smoke temperature of tunnel spill fires under different top ceiling smoke extraction velocity[J]. Tunnelling and Underground Space Technology, 2025, 162: DOI:10.1016/j.tust.2025.106625.
[10]	Ma Hanchao, Zhao Jinlong, Huang Hong, et al. An experimental investigation into the fire behaviors and smoke characteristics of continuous spill fires in road tunnels[J]. Fire Safety Journal, 2023, 141: DOI:10.1016/j.firesaf.2023.104009.
[11]	Jiao Weibing, Chen Changkun, Du Wuhao, et al. Experimental study on the diffusion and burning characteristics of continuous liquid fuel spillage on sloped ground in open space[J]. Case Studies in Thermal Engineering, 2024, 63: DOI:10.1016/j.csite.2024.105068.
[12]	Jiao Weibing, Chen Changkun, Lin Zida, et al. Experimental study on the burning characteristics and smoke temperature distribution of continuous spill fires in sloped tunnels[J]. Tunnelling and Underground Space Technology, 2024, 152: DOI:10.1016/j.tust.2024.105884.
[13]	Song Jia, Chen Jie, Li Haihang, et al. Longitudinal ventilation effects on combustion behavior, heat transfer mechanism and ceiling temperature in tunnel spill fires[J]. Tunnelling and Underground Space Technology, 2026, 169: DOI:10.1016/j.tust.2025.107300.
[14]	Ye Chenghao, Li Jiale, Bao Jiaqi, et al. The dynamic combustion process and smoke transport of tunnel spill fire under longitudinal ventilation: the evolution of vortex structures[J]. Tunnelling and Underground Space Technology, 2026, 170: DOI:10.1016/j.tust.2025.107369.
[15]	JTG 70/2-2014 公路隧道设计规范第二册交通工程与附属设施[S].
	JTG D70/2-2014 Specifications for design of highway tunnels section 2 traffic engineering and affiliated facilities[S].
[16]	Heskestad G. Turbulent jet diffusion flames: consolidation of flame height data[J]. Combustion and Flame, 1999, 118(1/2): 51-60. doi: 10.1016/S0010-2180(98)00161-8
[17]	Yang Ling, Li Yuntao, Yan Cong, et al. Experimental study on the flame height of small-scale spill fire on the water surface[J]. Combustion Science and Technology, 2025: DOI:10.1080/00102202.2025.2592276.
[18]	Zhao Jinlong, Zhu Hongqing, Huang Hong, et al. Experimental study on the liquid layer spread and burning behaviors of continuous heptane spill fires[J]. Process Safety and Environmental Protection, 2019, 122: 320-327. doi: 10.1016/j.psep.2018.12.021
[19]	Babrauskas V. Estimating large pool fire burning rates[J]. Fire Technology, 1983, 19(4): 251-261. doi: 10.1007/BF02380810
[20]	Ditch B, De R J, Blanchat T, et al. Pool fires: an empirical correlation[J]. Combustion and Flame, 2013, 160(12): 2 964-2 974.
[21]	Hu Longhua, Huo Ran, Li Yingzhen, et al. Full-scale burning tests on studying smoke temperature and velocity along a corridor[J]. Tunnelling and Underground Space Technology, 2005, 20(3): 223-229. doi: 10.1016/j.tust.2004.08.007
[22]	Ingason H, Li Yingzhen, Lönnermark A. Tunnel fire dynamics[M]. New York: Springer, 2014: 225-252.
[23]	Yang Shenlin, Xu Zhiguo, Li Manhou. Influence of plugging ratio and ignition position on unsteady performance of flame spread over n-butanol in circular cross section tunnels[J]. Tunnelling and Underground Space Technology, 2025, 161: DOI:10.1016/j.tust.2025.106595.
[24]	王玉怀, 张思佳, 李东明, 等. 全尺寸巷道阻燃输送带火灾烟气温度变化特征试验研究[J]. 中国安全科学学报, 2025, 35(5):39-46. doi: 10.16265/j.cnki.issn1003-3033.2025.05.0987
	Wang Yuhuai, Zhang Sijia, Li Dongming, et al. Experimental study on smoke temperature variation characteristics of flame-retardant conveyor belt fires in full-size roadway[J]. China Safety Science Journal, 2025, 35(5): 39-46. doi: 10.16265/j.cnki.issn1003-3033.2025.05.0987

参数	不确定度来源	相对不确定度/%
H	试验测量	±11.6
D	试验测量	±7.4
稳定燃烧速率	D	±7.4
烟气温度	试验测量	±12.6

隧道流淌火蔓延燃烧行为与烟气演化特性全尺寸试验

Full-scale experiment on burning behaviors and smoke characteristics of spill fires in road tunnels

RichHTML

PDF

可视化

摘要/Abstract

引用本文

使用本文

图/表 14

参考文献 24

相关文章 5

编辑推荐

Metrics

本文评价

[1]	张茂林, 黄鑫, 赵梦珂. 弱重力运动条件下正庚烷燃烧特征[J]. 中国安全科学学报, 2026, 36(9): 202-209.
[2]	李聪, 许文博, 牛力婷, 宋畅鹏, 吴建松. 不同初始温度影响下油池火燃烧特性研究[J]. 中国安全科学学报, 2026, 36(5): 159-164.
[3]	张佳庆, 程宜风, 黄玉彪. 变压器油浸没鹅卵石层燃烧试验研究[J]. 中国安全科学学报, 2025, 35(S1): 47-51.
[4]	惠文颖, 牛健壮, 何旭, 杨寒冰. 泄漏原油水面池火燃烧特性试验研究[J]. 中国安全科学学报, 2019, 29(12): 53-58.
[5]	史光梅，李明海，张中礼，胡绍全，罗群生. 3m直径煤油池火灾火焰特性的数值研究[J]. 中国安全科学学报, 2010, 20(10): 31-.

工况	泄漏速率/(mL/s)	燃料类型	试验时长/s
1	34	正庚烷	180
2	46
3	59
4	34	乙醇
5	46
6	59
