灭火添加剂对木结构润湿性的影响研究

doi:10.16265/j.cnki.issn1003-3033.2023.05.1157

摘要/Abstract

摘要：

为寻找适用于扑灭木材火灾的水系灭火剂添加剂,通过分子模拟方法,构建水环境下的纤维素-添加剂吸附体系,以研究添加剂在纤维素表面的润湿机制。将两性离子碳氢表面活性剂BS-12、离子型碳氟表面活性剂Capstone1157、非离子碳氢表面活性剂AEO₉等 3种灭火添加剂介入纤维素润湿体系,在298和498 K的条件下,模拟纤维素-添加剂体系对水分子的吸附过程,探讨其润湿性和界面行为。模拟结果表明:尽管温度不同,当3种添加剂介入纤维素润湿体系中时,均会明显增强体系对水分子的吸附性,吸附量均随着添加剂体积分数的增加而增加,最后趋于稳定。润湿过程中,添加剂自身静电势引起的体系内静电力作用是吸附行为的主要驱动力,其吸附方向的垂直程度决定了其吸附能力的强弱。接触角测量结果与3种添加剂体系的水分子吸附量模拟结果具有高度的一致性,BS-12和Capstone1157对纤维素润湿性的提升效果优于AEO₉。

关键词: 添加剂, 木材火灾, 润湿性, 水系灭火剂, 表面活性剂, 接触角

Abstract:

In order to find water-based fire extinguishing agent additives suitable for fighting wood fires, a cellulose-additive adsorption system under water environment was constructed by molecular simulation method to study the wetting mechanism of additives on the cellulose surface. Three fire extinguishing additives, amphoteric hydrocarbon surfactant BS-12, ionic fluorocarbon surfactant Capstone1157, and nonionic hydrocarbon surfactant AEO₉, were intervened in the cellulose wetting system, and the adsorption simulation of the cellulose-additive system on water molecules was realized at 298 and 498 K to explore the wetting mechanism and interfacial behavior. The simulation results show that, despite the different temperatures, the three additives involved in the cellulose wetting system significantly enhance the adsorption of water molecules, and the adsorption amount increases with the increase in the volume fraction of additives, and finally tends to be stable. During the wetting process, the electrostatic force in the system caused by the additive's own electrostatic potential is the main driving force of the adsorption behavior, and the vertical degree of its adsorption direction determines the strength of its adsorption capacity. The contact angle measurements are in high agreement with the simulated results of water molecule adsorption for the three additive systems, and BS-12 and Capstone1157 are more effective than AEO₉ in enhancing the wettability of cellulose.

Key words: additives, timber fires, wettability, water-based extinguishing agents, surfactants, contact angle

孟筠青, 梁亦敏, 常晨曦, 吕英沛. 灭火添加剂对木结构润湿性的影响研究[J]. 中国安全科学学报, 2023, 33(5): 121-127.

MENG Junqing, LIANG Yimin, CHANG Chenxi, LYU Yingpei. Effect of fire extinguishing additives on wettability of wooden structure[J]. China Safety Science Journal, 2023, 33(5): 121-127.

图/表 7

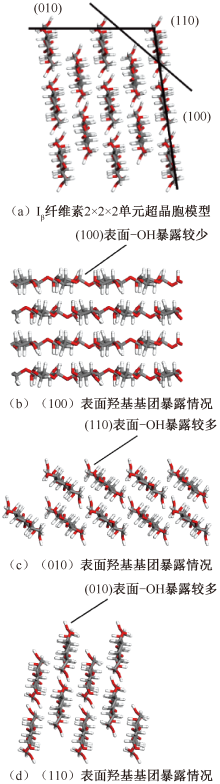

图1

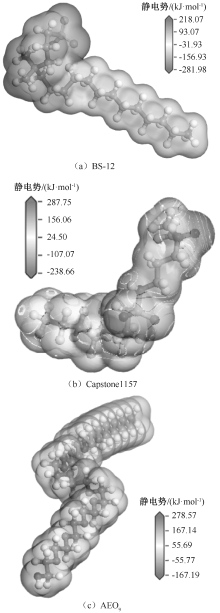

图2

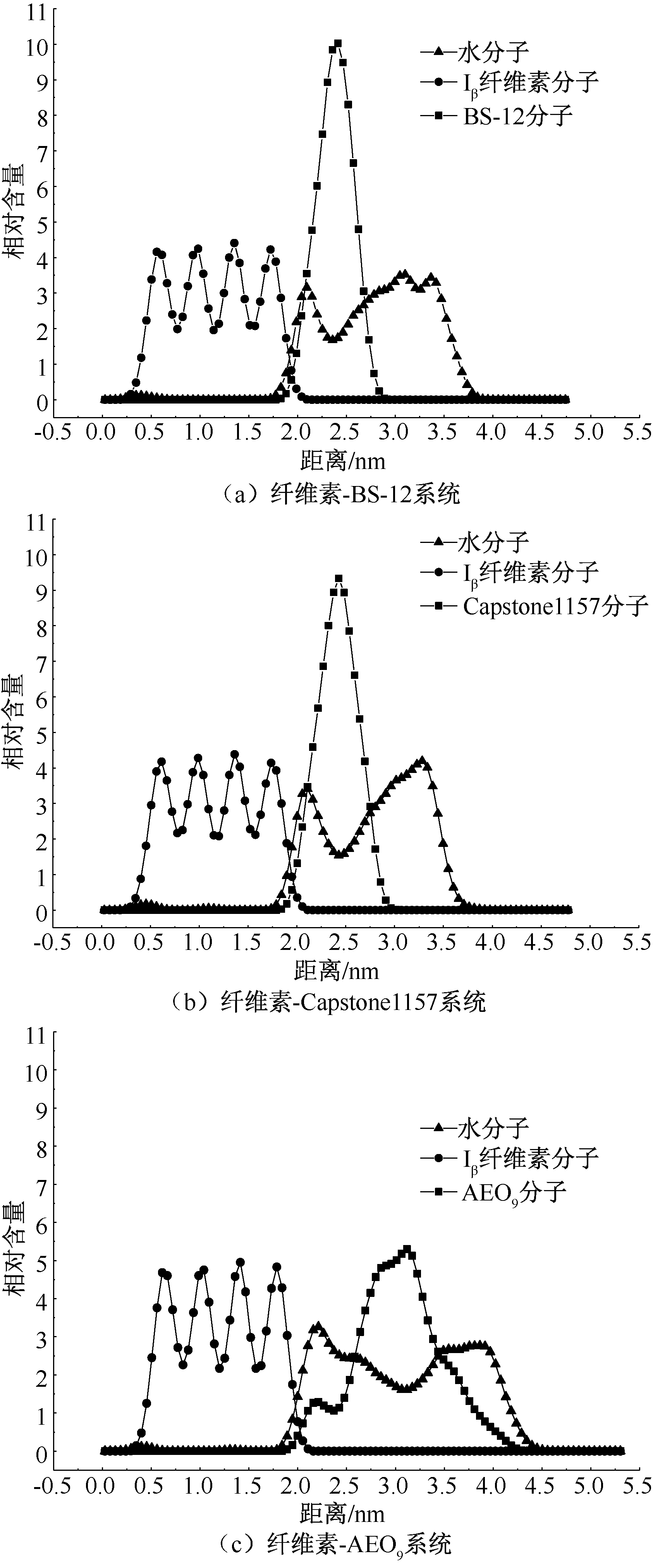

图3

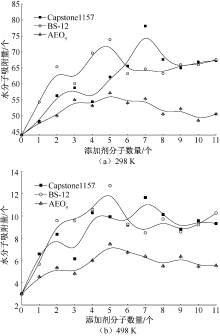

图4

图5

图6

图7

参考文献 24

[1]	GRANT G, BRENTON J, DRYSDALE D. Fire suppression by water sprays[J]. Progress in Energy and Combustion Science, 2000, 26(2):79-130. doi: 10.1016/S0360-1285(99)00012-X
[2]	AYTOUNA M, BARTOLO D, WEGDAM G, et al. Impact dynamics of surfactant laden drops: dynamic surface tension effects[J]. Experiments in Fluids, 2010, 48(1):49-57. doi: 10.1007/s00348-009-0703-9
[3]	GAMBARYAN R T, STAROV V. Recent progress in studies of complex wetting and spreading phenomena[J]. Current Opinion in Colloid & Interface Science, 2021,55:DOI:10.1016/J.COCIS.2021.101486. doi: 10.1016/J.COCIS.2021.101486
[4]	翁安琦, 袁树杰, 王晓楠, 等. 煤层注水降尘中表面活性剂复配应用研究[J]. 中国安全科学学报, 2020, 30(10):90-95. doi: 10.16265/j.cnki.issn 1003-3033.2020.10.013
	WENG Anqi, YUAN Shujie, WANG Xiaonan, et al. Study on application of surfactant compound in coal seam water injection for dust reduction[J]. China Safety Science Journal, 2020, 30(10):90-95. doi: 10.16265/j.cnki.issn 1003-3033.2020.10.013
[5]	林海飞, 刘宝莉, 严敏, 等. 非阳离子表面活性剂对煤润湿性能影响的研究[J]. 中国安全科学学报, 2018, 28(5):123-128. doi: 10.16265/j.cnki.issn1003-3033.2018.05.021
	LIN Haifei, LIU Baoli, YAN Min, et al. Research influence of non-cationic surfactant on wettability of coal[J]. China Safety Science Journal, 2018, 28(5):123-128. doi: 10.16265/j.cnki.issn1003-3033.2018.05.021
[6]	周喜阳, 王国永. 几种表面活性剂物化性能与润湿能力的相关性研究[J]. 印染助剂, 2019, 36(8):37-40.
	ZHOU Xiyang, WANG Guoyong. Relationship of physicochemical properties and wettability of several surfactants[J]. Textile Auxiliaries, 2019, 36(8):37-40.
[7]	GANESAN S, VENKATESAN J, RAJASEKARAN S. Modeling of the non-isothermal liquid droplet impact on a heated solid substrate with heterogeneous wettability[J]. International Journal of Heat and Mass Transfer, 2015, 88:55-72. doi: 10.1016/j.ijheatmasstransfer.2015.04.043
[8]	周征, 杨建华, 朱平, 等. 含添加剂细水雾灭动力锂离子电池火灾实验[J]. 消防科学与技术, 2019, 38(4):512-516.
	ZHOU Zheng, YANG Jianhua, ZHU Ping, et al. Fire extinguishing test of power lithium ion battery by water mist with additive[J]. Fire Science and Technology, 2019, 38(4):512-516.
[9]	钱诚, 贵大勇. 碳氟碳氢表面活性剂表面活性及灭火性能[J]. 安全与环境学报, 2005, 5(1):101-103.
	QIAN Cheng, GUI Dayong. Surface activity and fire extinguishing performance of fluorocarbon-hydrocarbon surfactants[J]. Journal of Safety and Environment, 2005, 5(1):101-103.
[10]	徐有明. 木材学[M]. 北京: 中国林业出版社, 2006:152-154.
[11]	KULASINSKI K, DEROME D, CARMELIET J. Impact of hydration on the micromechanical properties of the polymer composite structure of wood investigated with atomistic simulations[J]. Journal of the Mechanics and Physics of Solids, 2017, 103:221-235. doi: 10.1016/j.jmps.2017.03.016
[12]	MAURER R J, SAX A F, RIBITSCH V. Moleular simulation of surface reorganization and wetting in crystalline cellulose I and II[J]. Cellulose, 2013, 20(1): 25-42. doi: 10.1007/s10570-012-9835-9
[13]	CHEN Mingyang, ZHANG Chi, SHOMALI A, et al. Wood-moisture relationships studied with molecular simulations: methodological guideline[J]. Forests, 2019, 10(8):DOI:10.3390/f10080628.
[14]	李树刚, 郭豆豆, 白杨, 等. 不同质量分数SDBS对煤体润湿性影响的分子模拟[J]. 中国安全科学学报, 2020, 30(3):21-27. doi: 10.16265/j.cnki.issn1003-3033.2020.03.004
	LI Shugang, GUO Doudou, BAI Yang, et al. Effect of SDBS of different mass fractions on coal's wettability by molecular simulation[J] .China Safety Science Journal, 2020, 30(3):21-27. doi: 10.16265/j.cnki.issn1003-3033.2020.03.004
[15]	MAJIDI R, TAGHIYARI H R, ABDOLMALEKI D. Molecular dynamics simulation evaluating the hydrophilicity of nanowollastonite on cellulose[J]. Journal of Structural Chemistry, 2019, 60(9):1520-1527. doi: 10.1134/S0022476619090178
[16]	KARIM M, ALAIN R. Wetting the (110) and (100) surfaces of Ibeta cellulose studied by molecular dynamics[J]. Biomacromolecules, 2008, 9(4):1352-1364. doi: 10.1021/bm7013872 pmid: 18324774
[17]	LINDH E L, MALIN B W, TERENZI C, et.al. Non-exchanging hydroxyl groups on the surface of cellulose fibrils: the role of interaction with water[J]. Carbohydrate Research, 2016, 434:136-142. doi: S0008-6215(16)30368-8 pmid: 27662030
[18]	MALASPINA D C, FARAUDO J. Molecular insight into the wetting behavior and amphiphilic character of cellulose nanocrystals[J]. Advances in Colloid and Interface Science, 2019, 267:15-25. doi: S0001-8686(18)30373-7 pmid: 30884357
[19]	QUDDUS M A, ROJAS O J, PASQUINELLI M A. Molecular dynamics simulations of the adhesion of a thin annealed film of oleic acid onto crystalline cellulose[J]. Biomacromolecules, 2014, 15(4):1476-1483. doi: 10.1021/bm500088c pmid: 24650049
[20]	庄昌清, 岳红, 张慧军. 分子模拟方法及模拟软件Materials Studio在高分子材料中的应用[J]. 塑料, 2010, 39(4):81-84.
	ZHUANG Changqing, YUE Hong, ZHANG Huijun. Molecular simulation method and simulation software Materials Studio application in polymer materials[J]. Plastics, 2010, 39(4): 81-84.
[21]	YOSHIHARU N, PAUL L, HENRI C. Crystal structure and hydrogen-bonding system in cellulose Ibeta from synchrotron X-ray and neutron fiber diffraction[J]. Journal of the American Chemical Society, 2002, 124(31): 9074-9082. doi: 10.1021/ja0257319 pmid: 12149011
[22]	GOMES T C F, SKAF M S. Cellulose-builder: a toolkit for building crystalline structures of cellulose[J]. Journal of Computational Chemistry, 2012, 33(14):1338-1346. doi: 10.1002/jcc.22959 pmid: 22419406
[23]	GAŠPAROVIČ L, KOREŇOVÁ Z, JELEMENSKÝ L. Kinetic study of wood chips decomposition by TGA[J]. Chemical Papers, 2009, 64(2):174-181.
[24]	陈军, 闵凡飞, 刘令云, 等. 微细煤与高岭石颗粒间的分子动力学模拟研究[J]. 煤炭学报, 2019, 44(6):1867-1875.
	CHEN Jun, MIN Fanfei, LIU Lingyun, et al. Molecular dynamics simulation on interactions between fine particles of coal and kaolinite[J]. Journal of China Coal Society, 2019, 44 (6): 1867-1875.
