高速公路团雾区驾驶特性分析与碰撞风险评价

doi:10.16265/j.cnki.issn1003-3033.2025.05.1534

中国安全科学学报 ›› 2025, Vol. 35 ›› Issue (5): 124-134.doi: 10.16265/j.cnki.issn1003-3033.2025.05.1534

高速公路团雾区驾驶特性分析与碰撞风险评价

吴付威¹^,²(), 李育隆¹, 马勇²^,^**(), 王畅¹^,², 张智³

¹ 长安大学汽车学院,陕西西安 710018
² 长安大学汽车运输安全保障技术交通运输行业重点实验室,陕西西安,710018
³ 空军工程大学航空工程学院,陕西西安 710086

收稿日期:2025-01-09 修回日期:2025-03-10 出版日期:2025-05-28
通信作者:
^** 马勇(1980—),男,新疆玛纳斯人,博士,编审,主要从事驾驶行为特性和人-车-路系统安全研究。E-mail:mayong@chd.edu.cn。

作者简介:

吴付威 (1986—),男,山东临沂人,博士,高级工程师,主要从事人—车—路系统安全、道路交通运行风险防控理论、智能辅助驾驶等方面的研究。E-mail:wufuwei@chd.edu.cn。

吴付威, 高级工程师

马勇, 编审

王畅, 教授

张智, 讲师

基金资助:
陕西省自然科学基础研究计划项目(2023-JC-QN-0516); 中央高校基本科研业务费资助(300102224501); 中央高校基本科研业务费资助(300102224302)

Driving characteristics analysis and collision risk evaluation in expressway agglomerate fog areas

WU Fuwei¹^,²(), LI Yulong¹, MA Yong²^,^**(), WANG Chang¹^,², ZHANG Zhi³

¹ School of Automobile, Chang'an University, Xi'an Shaanxi 710018,China
² Key Laboratory of Transportation Industry of Automotive Transportation Safety Enhancement Technology (Chang'an University), Xi'an Shaanxi 710018,China
³ Aviation Engineering School, Air Force Engineering University, Xi'an Shaanxi 710018,China

Received:2025-01-09 Revised:2025-03-10 Published:2025-05-28

摘要/Abstract

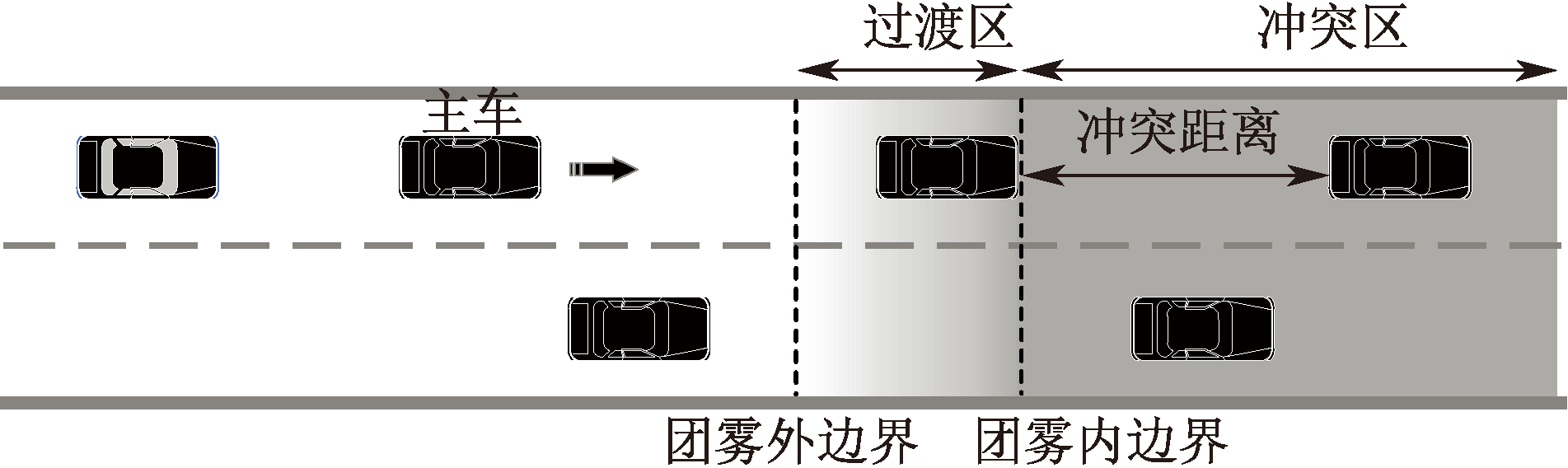

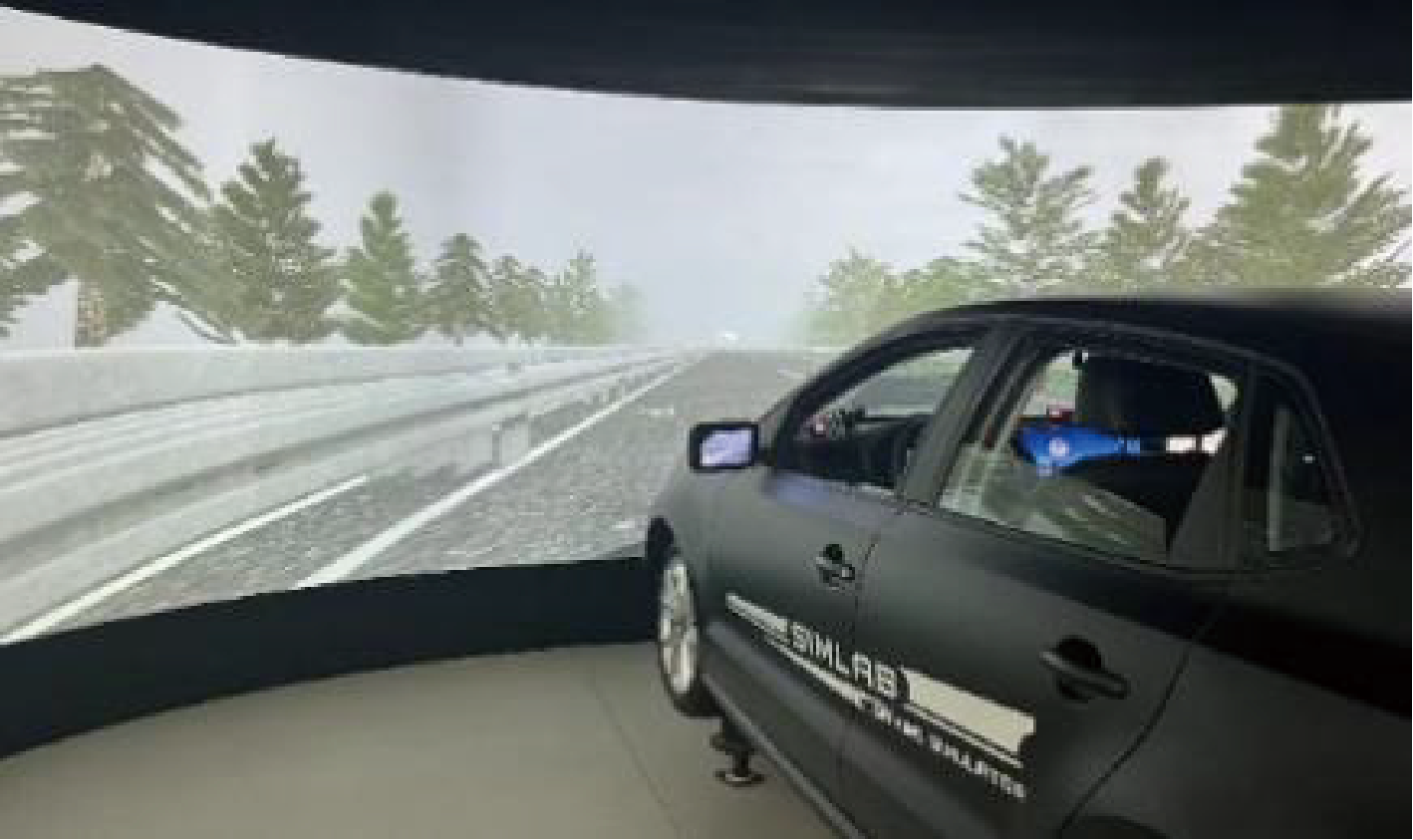

摘要： 为降低高速公路团雾环境下的交通事故风险,将高速公路团雾区划分为过渡区和冲突区,设计并开展驾驶模拟试验。首先,采用方差分析(ANOVA)、非参数检验等方法分析驾驶人在2个区域中的驾驶行为;然后,利用Pearson相关性分析探索过渡区与冲突区之间的驾驶行为指标关联特性;最后,通过二元Logistics回归模型挖掘驾驶行为对碰撞风险的影响机制。结果表明:在过渡区,驾驶经验与能见度变化率对速度标准差和内边界速度有显著影响;相比于新手驾驶人,熟练驾驶人速度标准差降低36.8%,内边界速度高13.5%;能见度变化率对速度标准差和内边界速度有统计学差异,不同能见度变化率对应的内边界速度和速度标准差不同。在冲突区,碰撞时间(TTC)与能见度呈显著正相关,避险反应时间与能见度呈显著负相关;TTC、避险反应时间及碰撞率均与冲突距离呈显著负相关;过渡区速度调整行为会显著影响冲突区的碰撞风险。

关键词: 高速公路, 团雾, 驾驶模拟, 驾驶行为, 碰撞风险

Abstract:

In order to reduce the risk of traffic accidents in expressway agglomerate fog environment, the expressway agglomerate fog zone was divided into transition zone and conflict zone, and driving simulation tests were designed and carried out. Firstly, Analysis of Variance(ANOVA)and non-parametric tests were used to analyze the driving behavior in the two zones. Then, Pearson correlation analysis was used to explore the correlation characteristics of the driving behavior indicators between transition zone and conflict zone. Finally, a binary logistic regression model was used to explore the mechanism of the influence of driving behavior on the collision risk. The study shows that: in transition zone, driving experience and visibility change rate have a significant effect on speed standard deviation and inner boundary speed. Compared with novice drivers, experienced drivers have 36.8% lower speed standard deviation and 13.5% higher inner boundary speed. Visibility change rate has a statistically significant difference on speed standard deviation and inner boundary speed. Different visibility change rates correspond to different inner boundary speed and speed standard deviation. In conflict zone, time to collision (TTC) was significantly positively correlated with visibility, and reaction time was significantly negatively correlated with visibility. TTC, reaction time and collision rate were all significantly negatively correlated with the conflict distance. The speed adjustment behavior in the transition zone significantly affects collision risk in conflict zone.

Key words: expressway, agglomerate fog, driving simulation, driving behavior, collision risk

中图分类号:

X951交通运输安全

吴付威, 李育隆, 马勇, 王畅, 张智. 高速公路团雾区驾驶特性分析与碰撞风险评价[J]. 中国安全科学学报, 2025, 35(5): 124-134.

WU Fuwei, LI Yulong, MA Yong, WANG Chang, ZHANG Zhi. Driving characteristics analysis and collision risk evaluation in expressway agglomerate fog areas[J]. China Safety Science Journal, 2025, 35(5): 124-134.

图/表 21

图1

图2

表1

图3

表2

图4

表3

表4

图5

图6

表5

表6

表7

图7

表8

图8

表9

表10

表11

表12

图9

参考文献 29

[1]	GB/T 27964—2011, 雾的预报等级[S].
	GB/T 27964-2011,Grade of fog forecast[S].
[2]	卢振礼, 杨成芳, 郑宗杰, 等. 高速公路团雾分级预警研究[J]. 气象与环境科学, 2022, 45(1): 103-111.
	LU Zhenli, YANG Chengfang, ZHENG Zongjie, et al. Study on warning level of expressway dense fog[J]. Meteorological and Environmental Sciences, 2022, 45(1): 103-111.
[3]	SONG Jianyang, TIAN Hua, YUAN Xiaoyu, et al. Study on risk prediction model of expressway agglomerate fog-related accidents[J]. Atmosphere, 2023, 14(6): DOI: 10.3390/atmos14060960.
[4]	胡立伟, 贺雨, 侯智, 等. 山区高速公路交通事故风险多维度耦合研究[J]. 中国安全科学学报, 2024, 34(5): 17-27. doi: 10.16265/j.cnki.issn1003-3033.2024.05.1497
	HU Liwei, HE Yu, HOU Zhi, et al. Multi-dimensional coupling study on traffic accident risk of highway in mountainous areas[J]. China Safety Science Journal, 2024, 34(5): 17-27. doi: 10.16265/j.cnki.issn1003-3033.2024.05.1497
[5]	GAO Jingjing, TIAN Hua, LI Aixun, et al. Analysis of agglomerate fog meteorological characteristics in Anhui province based on traffic accident data[J]. Pure and Applied Geophysics, 2023, 180(1): 313-333.
[6]	中华人民共和国公安部. 公安部交管局公布3188处高速公路团雾多发路段[EB/OL].(2018-11-15). https://www.mps.gov.cn/n2255079/n2256030/n2256031/c6304801/content.html.
[7]	CALSAVARA F, KABBACH JUNIOR F I, LAROCCA A P C. Effects of fog in a Brazilian road segment analyzed by a driving simulator for sustainable transport: drivers' visual profile[J]. Sustainability, 2021, 13(16): 9 448-9 461.
[8]	李晓雷. 山区高速公路团雾段行车风险评估与视觉诱导研究[D]. 重庆: 重庆交通大学, 2018.
	LI Xiaolei. Study on the traffic risk assessment and visual guidance to the driver in the dumpling fog sections of mountainous expressways[D]. Chongqing: Chongqing Jiaotong University, 2018.
[9]	李晓雷, 谭翔峻, 詹银霞. 团雾环境驾驶人最低注意力需求研究综述[J]. 科学技术与工程, 2024, 24(13): 5259-5270.
	LI Xiaolei, TAN Xiangjun, ZHAN Yinxia. Review of the minimum attention demand of drivers in environment of dumpling fog[J]. Science Technology and Engineering, 2024, 24(13): 5259-5270.
[10]	赵晓华, 任贵超, 陈晨, 等. 不良天气下驾驶行为研究综述[J]. 交通信息与安全, 2017, 35(5): 70-75, 98.
	ZHAO Xiaohua, REN Guichao, CHEN Chen, et al. A review on driving behavior under adverse weather conditions[J]. Journal of Transport Information and Safety, 2017, 35(5): 70-75, 98.
[11]	薛晴婉, 徐嘉伟, 闫学东, 等. 雾天驾驶人车辆操纵行为特性及其与追尾风险相关性分析[J]. 交通信息与安全, 2022, 40(1): 19-27.
	XUE Qingwan, XU Jiawei, YAN Xuedong, et al. A study on the correlation between vehicle control behaviors and rear-end collision risk under foggy conditions[J]. Journal of Transport Information and Safety, 2022, 40(1): 19-27.
[12]	WANG Fan, MA Yongfeng, XING Guanyan, et al. Driving avoidance performance on Sand-Covered roads during sand and dust storms under different visibility conditions[J]. Transportation Research Part F: Traffic Psychology and Behaviour, 2024, 105: 306-320.
[13]	王敏, 徐阳, 刘明文, 等. 山区高速公路雾区路段安全性分级研究[J]. 中国安全科学学报, 2013, 23(12): 119-125.
	WANG Min, XU Yang, LIU Mingwen. Research on safety rating of foggy section of expressway in mountainous area[J]. China Safety Science Journal, 2013, 23(12): 119-125.
[14]	龚龑, 魏晨. 雾霾能见度对车辆碰撞概率影响分析[J]. 中国安全科学学报, 2019, 29(7): 97-103.
	GONG Yan, WEI Chen. Analysis of haze visibility's influence on vehicle collision probability[J]. China Safety Science Journal, 2019, 29(7): 97-103. doi: 10.16265/j.cnki.issn1003-3033.2019.07.016
[15]	YAN Xuedong, LI Xiaomeng, LIU Yang, et al. Effects of foggy conditions on drivers' speed control behaviors at different risk levels[J]. Safety Science, 2014, 68: 275-287.
[16]	LI Xiaomeng, YAN Xuedong, WONG S C. Effects of fog, driver experience and gender on driving behavior on S-curved road segments[J]. Accident Analysis & Prevention, 2015, 77: 91-104.
[17]	卢振礼, 安源, 宗晨临, 等. 高速公路团雾视频监测预警研究[J]. 科学技术与工程, 2022, 22(34): 15 408-15 417.
	LU Zhenli, AN Yuan, ZONG Chenlin, et al. Research on video monitoring and early warning for local dense fog on the expressway[J]. Science Technology and Engineering, 2022, 22(34): 15 408-15 417.
[18]	李晓雷, 唐伯明, 曾超. 基于突变论的高速公路团雾驾驶行为瞬态分析[J]. 中国公路学报, 2018, 31(4): 78-87.
	LI Xiaolei, TANG Boming, ZENG Chao. Transient analysis of the driving behavior in the dumpling fog sections of expressway based on catastrophe theory[J]. China Journal of Highway and Transport, 2018, 31(4): 78-87.
[19]	谭翔峻. 团雾环境路段考虑最低注意力的诱导需求模型[D]. 重庆: 重庆交通大学, 2024.
	TAN Xiangjun. Inductive demand model for road sections in dumpling fog environment considering minimum attention[D]. Chongqing: Chongqing Jiaotong University, 2024.
[20]	赵小平, 马有才, 万平, 等. 情绪对新手驾驶员视觉特性的影响研究[J]. 中国安全科学学报, 2022, 32(1): 34-40. doi: 10.16265/j.cnki.issn1003-3033.2022.01.005
	ZHAO Xiaoping, MA Youcai, WAN Ping, et al. Research on influence of emotion on novice drivers' visual characteristics[J]. China Safety Science Journal, 2022, 32(1): 34-40. doi: 10.16265/j.cnki.issn1003-3033.2022.01.005
[21]	赵晓华, 陈浩林, 李振龙, 等. 不同情景下自动驾驶接管行为的影响特征[J]. 中国公路学报, 2022, 35(9): 195-214. doi: 10.19721/j.cnki.1001-7372.2022.09.015
	ZHAO Xiaohua, CHEN Haolin, LI Zhenlong, et al. Influence characteristics of automated driving takeover behavior in different scenarios[J]. China Journal of Highway and Transport, 2022, 35(9): 195-214. doi: 10.19721/j.cnki.1001-7372.2022.09.015
[22]	李赞勇, 冯焘. 基于多因素的高速公路团雾区限速设计[J]. 中外公路, 2018, 38(4): 337-342.
	LI Zanyong, FENG Tao. Design of speed limit in agglomerate fog area of highway based on multiple factors[J]. Journal of China & Foreign Highway, 2018, 38(4): 337-342.
[23]	PENG Yichua, ABDEL-ATY M, SHI Qi, et al. Assessing the impact of reduced visibility on traffic crash risk using microscopic data and surrogate safety measures[J]. Transportation Research Part C: Emerging Technologies, 2017, 74: 295-305.
[24]	SHANGGUAN Qiangqiang, FU Ting, LIU Shuo. Investigating rear-end collision avoidance behavior under varied foggy weather conditions: a study using advanced driving simulator and survival analysis[J]. Accident Analysis & Prevention, 2020, 139: DOI: 10.1016/j.aap.2020.105499.
[25]	LIN Zijian, CHEN Feng. How various urgencies and visibilities influence drivers' takeover performance in critical car-following conditions? a driving simulation study[J]. Transportation Research Part F: Traffic Psychology and Behaviour, 2024, 104: 303-317.
[26]	FU Rui, LIU Wenxiao, ZHANG Hailun, et al. Adopting an HMI for overtaking assistance - impact of distance display, advice, and guidance information on driver gaze and performance[J]. Accident Analysis & Prevention, 2023, 191: DOI: 10.1016/j.aap.2023.107204.
[27]	HOGEMA J, VAN DER HORST R. Driving behaviour under adverse visibility conditions[C]. The First World Congress on Applications of Transport Telematics and Intelligent Vehicle-Highway Systems, 1994: 1 623-1 630.
[28]	CHANG Xin, LI Haijian, QIN Lingqiao, et al. Evaluation of cooperative systems on driver behavior in heavy fog condition based on a driving simulator[J]. Accident Analysis & Prevention, 2019, 128: 197-205.
[29]	ZHANG Yuxiao, CARBALLO A, YANG Hanting, et al. Perception and sensing for autonomous vehicles under adverse weather conditions: a survey[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2023, 196: 146-177.

类别	性别		平均驾驶里程/km
类别	男性	女性	平均驾驶里程/km
熟练驾驶人	9	4	60 769
新手驾驶人	14	8	16 136

变量	自由度	H	p
性别	1	0.909	0.340
驾驶经验	1	1.095	0.047^*
性别×驾驶经验	3	0.981	0.612
能见度变化率	2	3.943	0.036^*

变量	自由度	F	p
性别	1	4.227	0.042^*
驾驶经验	1	1.017	0.315
性别×驾驶经验	3	2.261	0.415
能见度变化率	2	0.032	0.038^*

变量	自由度	F	p
性别	1	0.959	0.329
驾驶经验	1	1.744	0.009^*
性别×驾驶经验	3	1.224	0.089
能见度变化率	2	13.839	<0.001^*

变量	类别	TTC
变量	类别	平均值/s	标准差/s
性别	男	3.19	1.82
性别	女	2.84	1.72
驾驶经验	熟练	3.38	1.99
驾驶经验	新手	2.84	1.61
能见度	20	2.55	1.59
	50	2.51	1.24
	200	4.09	1.99
冲突距离	100	2.37	1.28
冲突距离	200	3.74	1.96
能见度× 冲突距离	20×100	1.71	1.09
	50×100	2.02	0.80
	200×100	3.37	1.26
	20×200	3.39	1.59
	50×200	3.00	1.42
	200×200	4.81	2.33

高速公路团雾区驾驶特性分析与碰撞风险评价

Driving characteristics analysis and collision risk evaluation in expressway agglomerate fog areas

RichHTML

PDF

可视化

摘要/Abstract

引用本文

使用本文

图/表 21

参考文献 29

相关文章 15

编辑推荐

Metrics

本文评价

变量	自由度	F	p
性别	1	1.389	0.240
驾驶经验	1	3.370	0.068
能见度	2	17.003	<0.001^*
冲突距离	1	19.019	<0.001^*
能见度×冲突距离	5	13.794	<0.001^*

变量	检验方法	p
能见度	LSD	—	20	50	200	—	—	—
		20	—	0.907	<0.001^*	—	—	—
		50	—	—	<0.001^*	—	—	—
能见度× 冲突距离	LSD	—	20×100	50×100	200×100	20×200	50×200	200×200
		20×100	—	0.462	<0.001^*	<0.001^*	0.003^*	<0.001^*
		50×100	—	—	0.002^*	0.001^*	0.022^*	<0.001^*
		200×100	—	—	—	0.956	0.388	0.001^*
		20×200	—	—	—	—	0.359	0.001^*
		50×200	—	—	—	—	—	<0.001^*

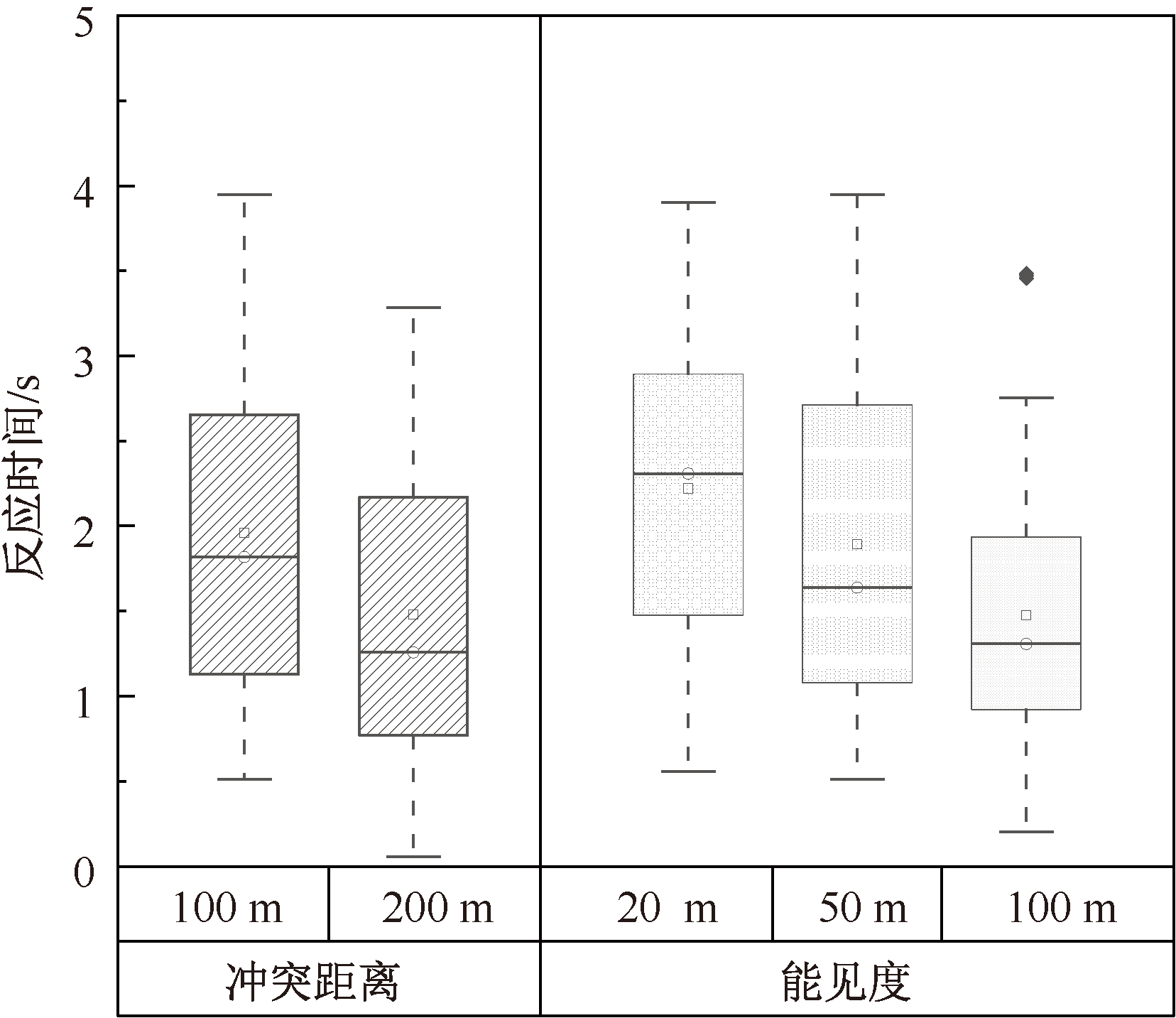

变量	分类	避险反应时间/s		F	p
变量	分类	平均值	标准差	F	p
性别	男	1.77	0.86	1.335	0.898
性别	女	1.80	0.62	1.335	0.898
驾驶经验	熟练	1.89	1.13	1.427	0.092
驾驶经验	新手	1.93	0.91	1.427	0.092
冲突距离/m	100	1.96	1.50	6.616	0.032^*
冲突距离/m	200	1.73	1.56	6.616	0.032^*
能见度/m	20	2.15	0.98	10.204	<0.001^*
	50	1.81	1.05
	100	1.64	0.64

变量	分类	碰撞率/%
能见度/m	20	85.7
	50	71.4
	100	25.7
冲突距离/m	100	57.1
冲突距离/m	200	18.1
性别	男	55.6
性别	女	48.6
驾驶经验	熟练	44.6
驾驶经验	新手	67.7

变量	卡方检验
变量	自由度	χ²	p	Ф
性别	1	3.383	0.066	3.361
驾驶经验	1	3.971	0.046^*	3.944
能见度	2	3.043	<0.001^*	2.761
冲突距离	1	12.231	0.008^*	0.825

变量	系数	TTC/s	碰撞率	反应时间/s
速度标准差	R	0.391	-0.264	0.225
速度标准差	p	<0.001^*	0.001^*	0.821
内边界速度	R	-0.460	0.324	0.761
内边界速度	p	<0.001^*	<0.001^*	<0.001^*
SDLP	R	-0.059	0.082	0.190
SDLP	p	0.475	0.316	0.488

变量		B		S.E	Wald	Sig.	exp B		exp B 95%置信区间
变量		B		S.E	Wald	Sig.	exp B		下限		上限
速度标准差		0.059		0.273	0.046	0.830	1.061		0.621		1.811
SDLP		4.377		2.542	2.966	0.085	79.629		0.546		11 606.117
TTC		-2.105		0.409	26.446	0.000	0.122		0.055		0.272
变量	B		S.E		Wald	Sig.		exp B		exp B 95%置信区间
变量	B		S.E		Wald	Sig.		exp B		下限		上限
内边界速度	0.042		0.056		0.569	0.031		1.043		0.935		1.165
反应时间	2.235		0.317		0.831	0.000		0.158		0.124		1.577
常量	-0.392		5.177		0.013	0.009		0.553		—		—
