DBN model of external corrosion accident in gas network system

doi:10.16265/j.cnki.issn1003-3033.2023.09.2314

Abstract

Abstract:

In order to understand the occurrence regularity and characteristics of external corrosion accidents in the middle and later period of pipeline operation and prevent external corrosion leakage accidents of gas pipeline network, an aggregation network of external corrosion accidents was organized and constructed by combining CN and DBN. The key factors of the accident were screened by degree analysis. On this basis, the parameter learning and Leaky Noisy-or gate correction model were combined to construct the DBN of external corrosion accidents of gas pipeline network. Finally, according to different failure scenarios, the influence characteristics of different dynamic elements on external corrosion accidents and the influence of maintenance measures on pipeline failure probability were obtained. The results show that the impacts of different disaster-causing elements on pipeline network failure are different and staged. Among them, aging, accident accumulation and chemical corrosion have significant impacts on the corrosion perforation and pipeline rupture in the middle and late service stages, while the pressure cycling dominates the pipeline rupture accident in the middle service stage. Through CN topology analysis, the importance of accident elements can be identified from the overall point of view. Through the construction analysis of DBN, the dynamic influence of accident factors on accident consequences can be obtained.

Key words: gas pipeline network, external corrosion accident, dynamic Bayesian network (DBN), complex networks (CN), pipe rupture, corrosion perforation

LI Cong, XU Zixuan, ZHUANG Yufeng, YANG Rui, XU Yabo, CHEN Chen. DBN model of external corrosion accident in gas network system[J]. China Safety Science Journal, 2023, 33(9): 227-236.

Figures/Tables 16

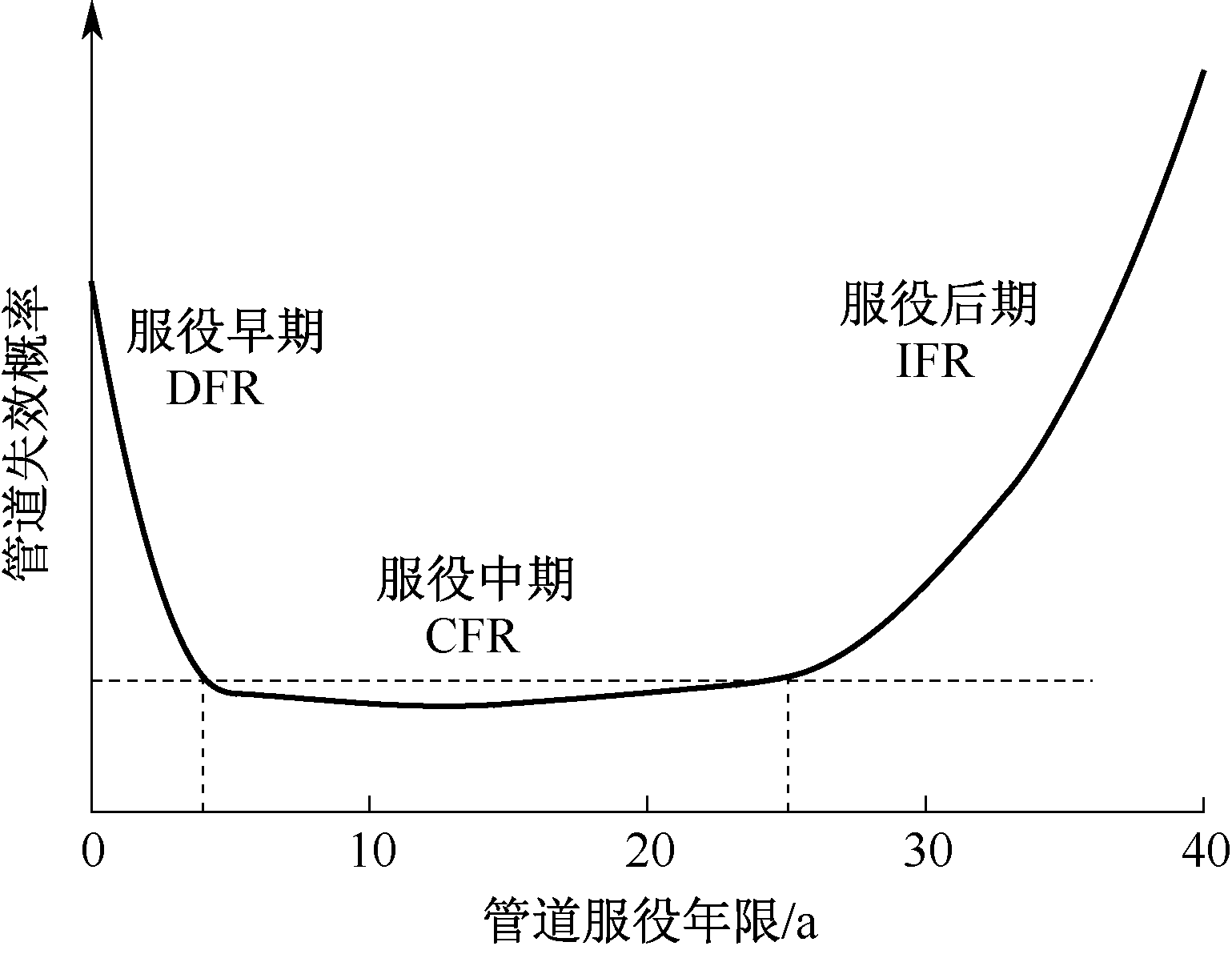

Fig.1

Tab.1

Tab.2

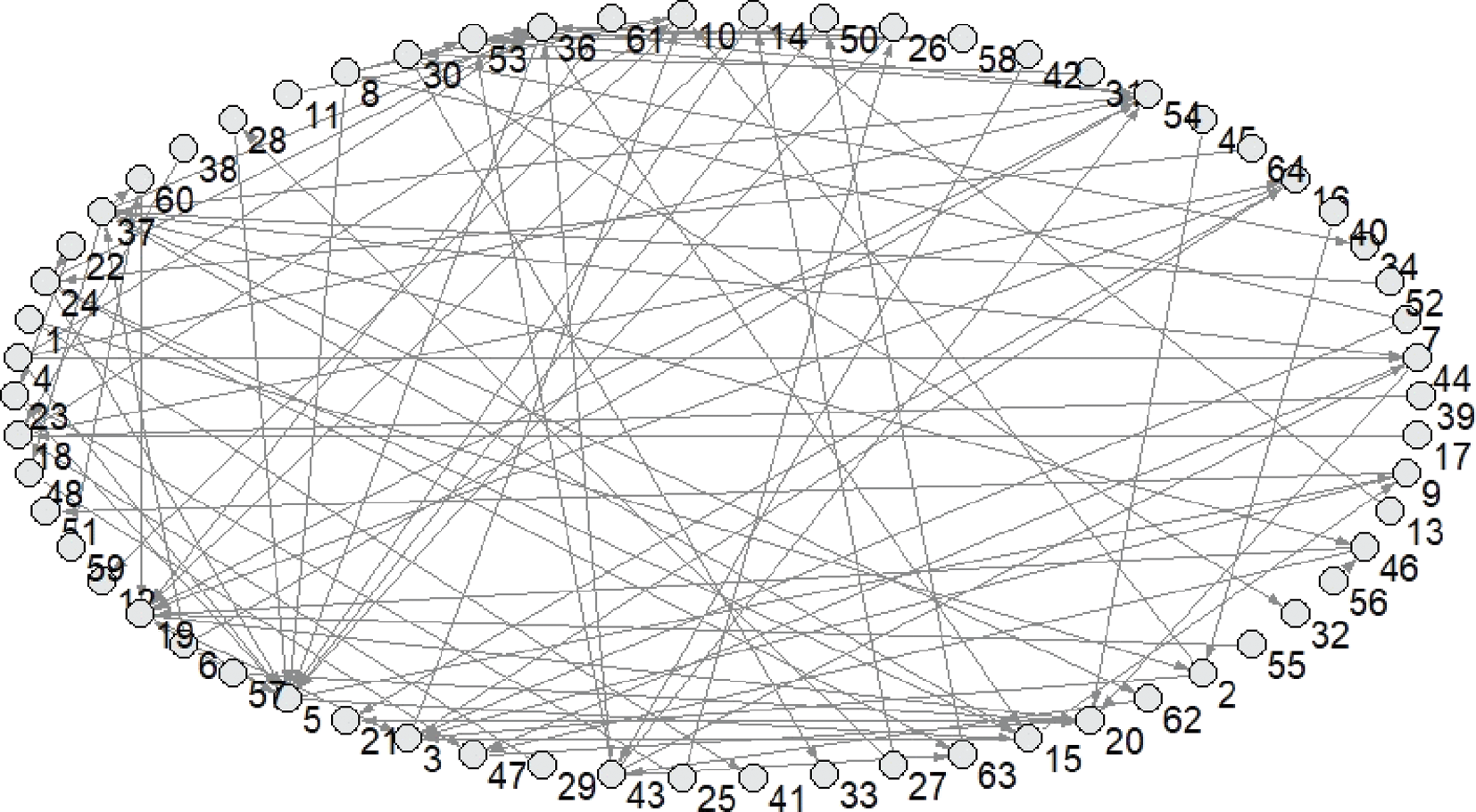

Fig.2

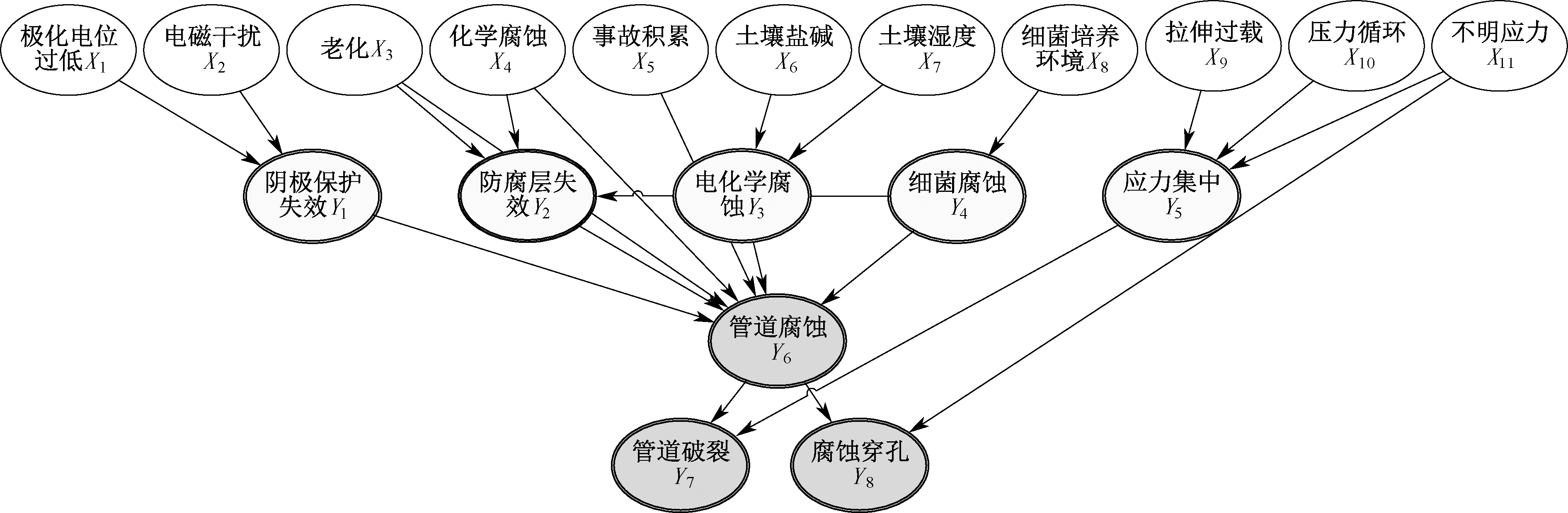

Fig.3

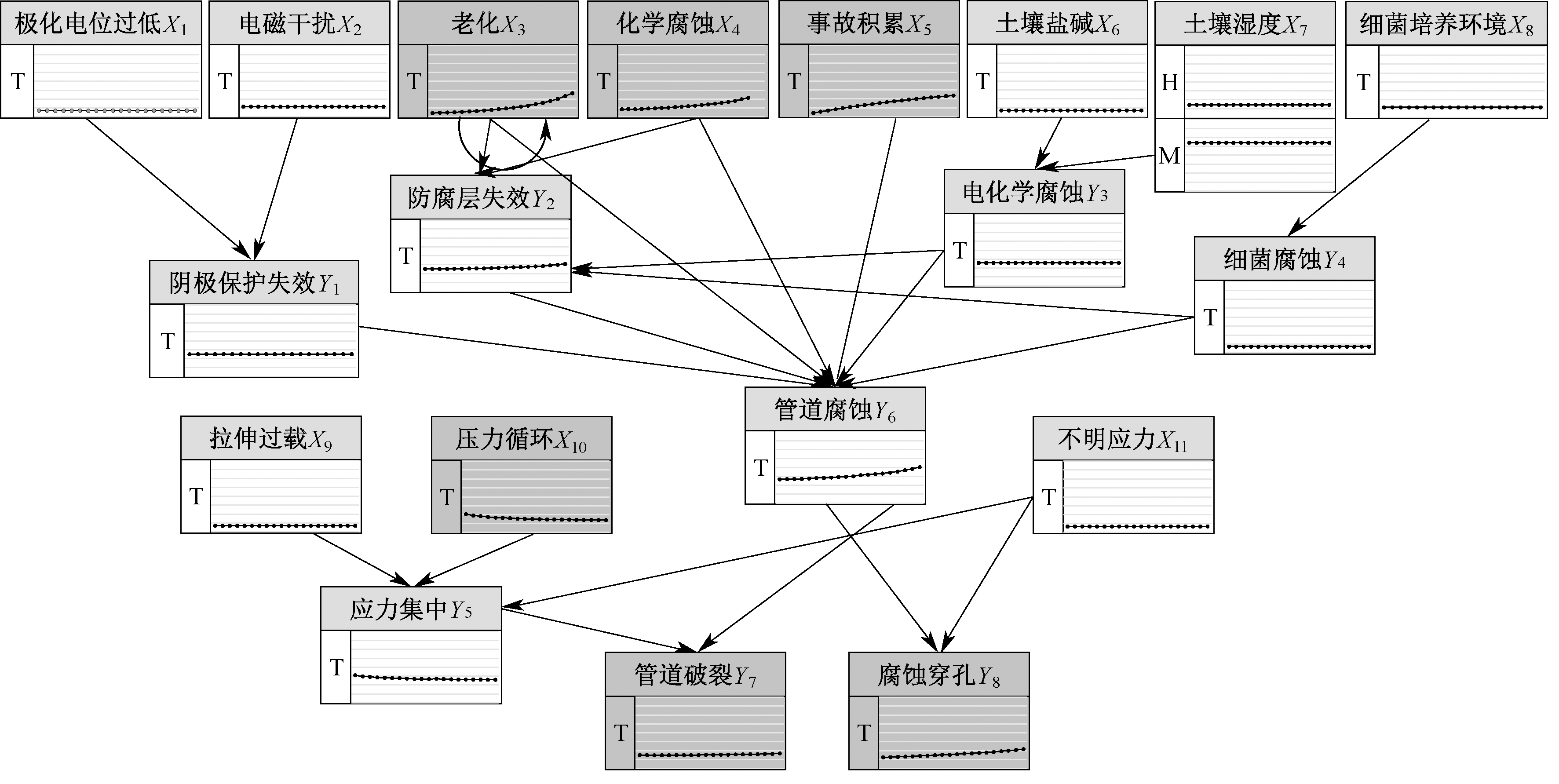

Fig.4

Tab.3

Tab.4

Tab.5

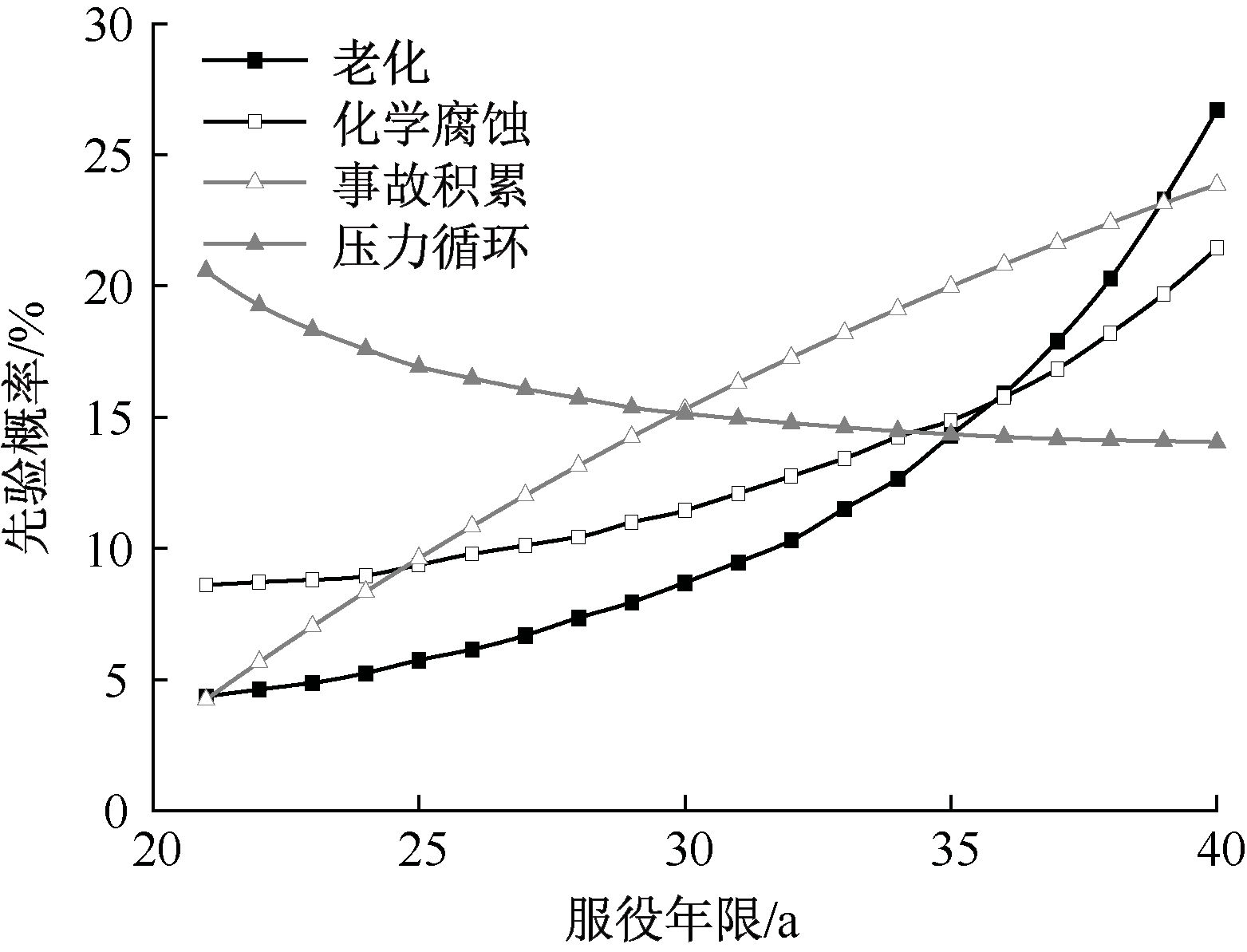

Fig.5

Tab.6

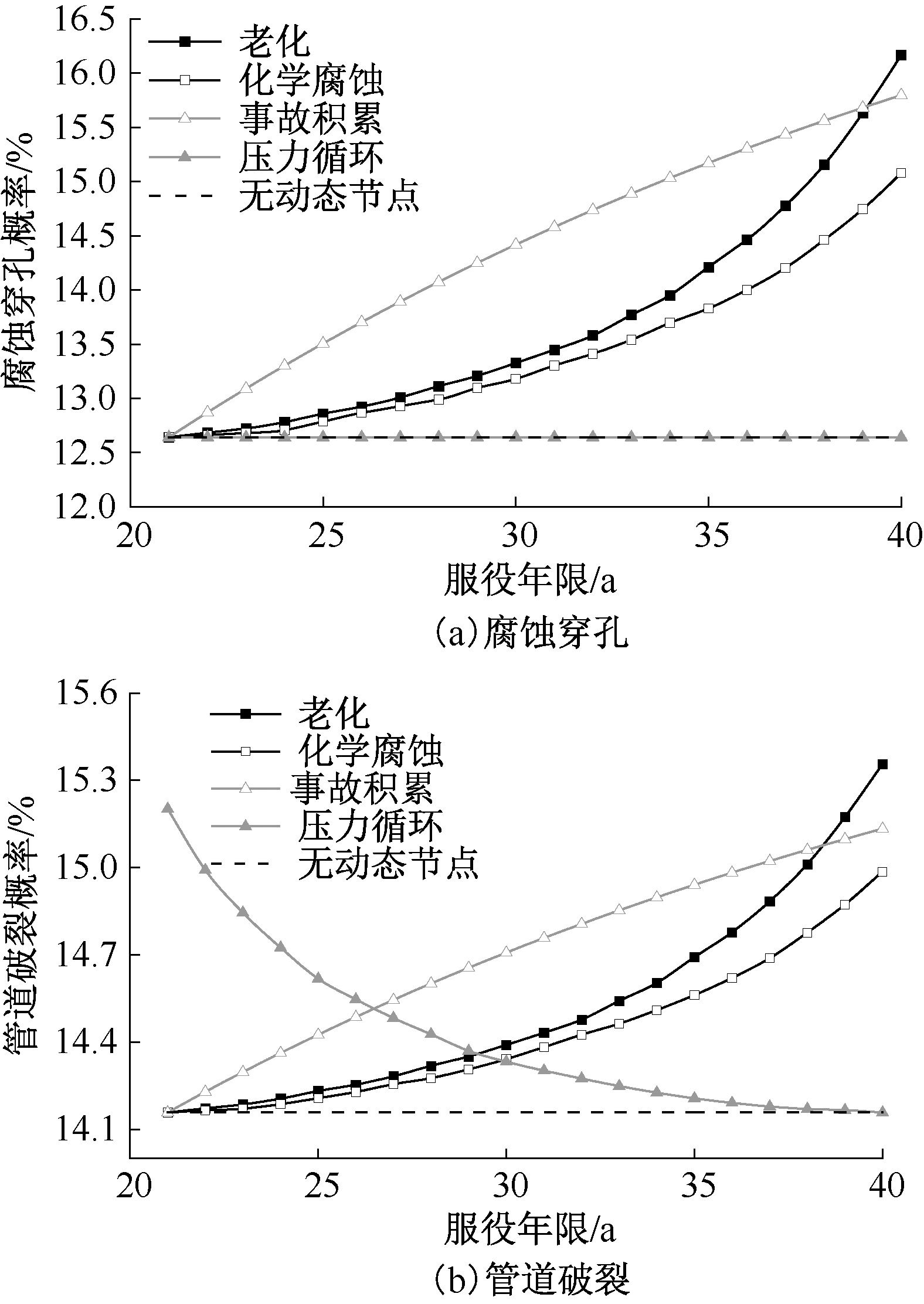

Fig.6

Fig.7

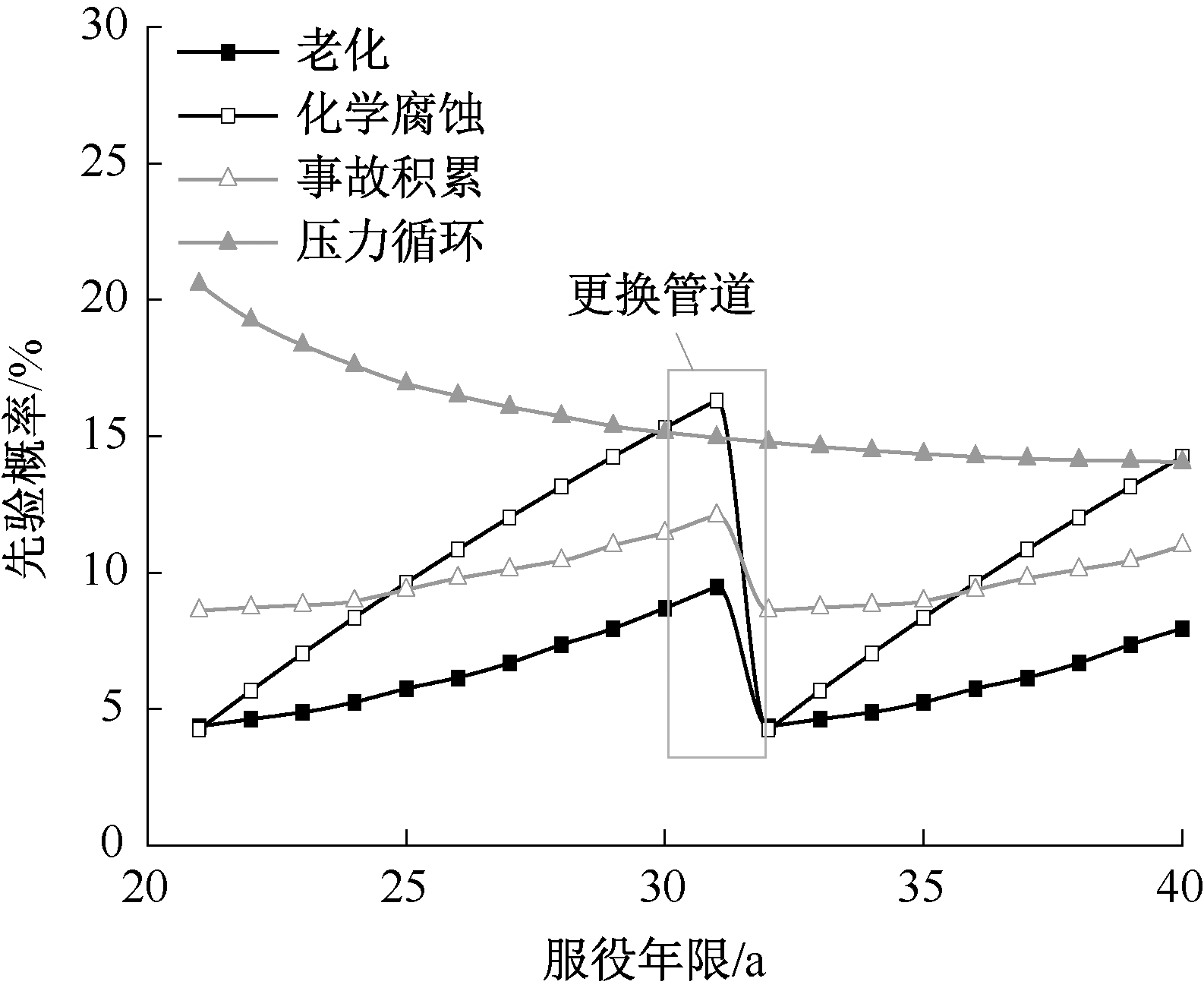

Fig.8

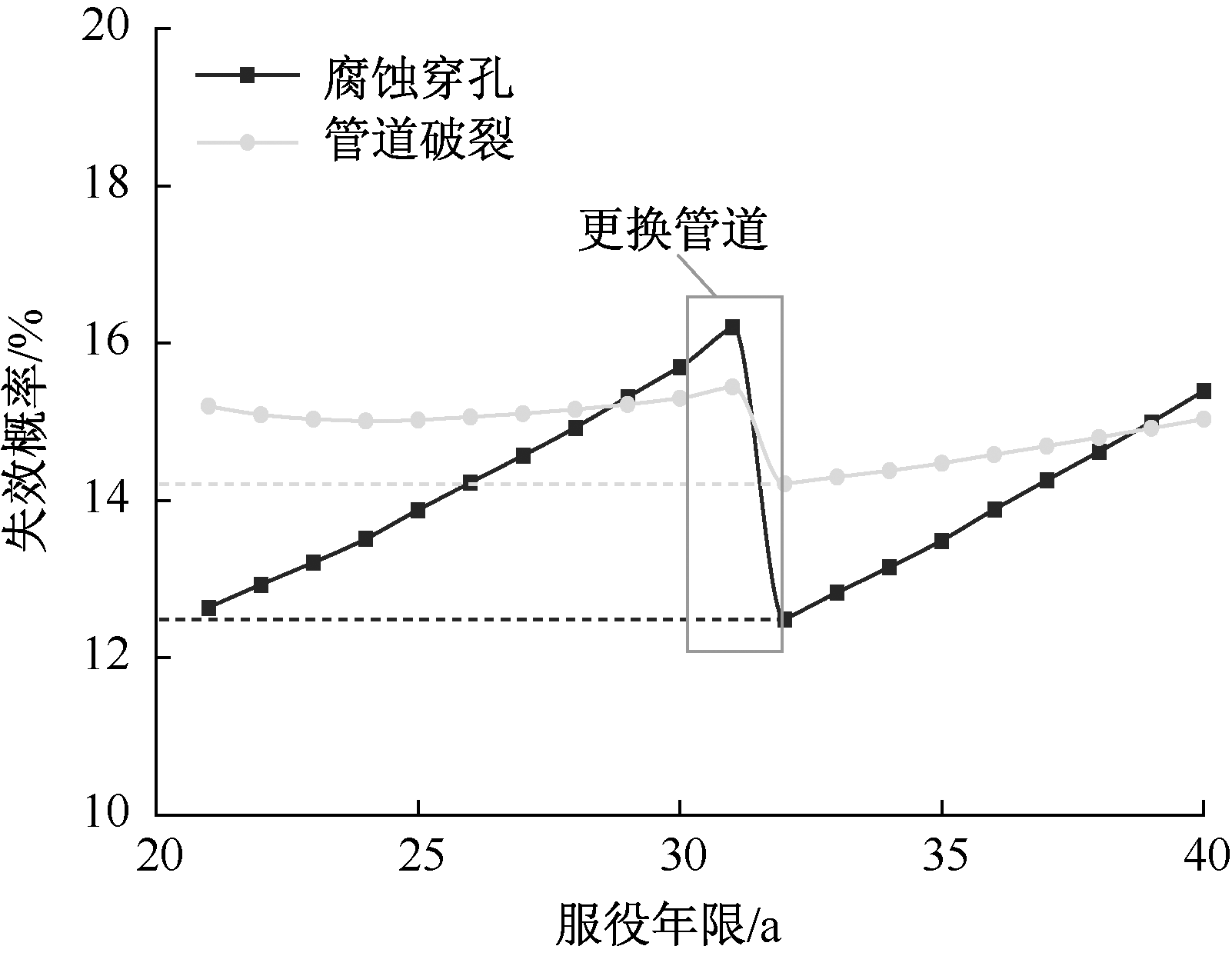

Fig.9

Fig.10

References 25

[1]	中国城市燃气协会安全管理委员会. 全国燃气事故分析报告(2021年·第二季度报告暨半年综述)[R], 2021.
[2]	李新宏, 张毅, 韩子月, 等. 天然气管道失效致因与事故链模型研究[J]. 油气田地面工程, 2021, 40(4):1-7.
	LI Xinhong, ZHANG Yi, HAN Ziyue, et al. Study on failure causes and catastrophic chain model of natural gas pipeline[J]. Oil-Gas Field Surface Engineering, 2021, 40(4):1-7.
[3]	张鹏, 杨宗强, 沈豪, 等. 灰色理论和DEMATEL在燃气管道风险评价中的运用[J/OL]. 安全与环境学报,1-9 [2023-04-22].DOI: 10.13637/j.issn.1009-6094.2022.1018.
	ZHANG Peng, YANG Zongqiang, SHEN Hao, et al. Risk evaluation of urban gas pipelines based on grey relevance theory and DEMATEL[J/OL]. Journal of Safety and Environment,1-9[2023-04-22].DOI: 10.13637/j.issn.1009-6094.2022.1018.
[4]	王新颖, 宋兴帅, 杨泰旺, 等. LS-SVM模型在燃气管道风险评估中的应用[J]. 消防科学与技术, 2017, 36(11):1598-1601.
	WANG Xinying, SONG Xingshuai, YANG Taiwang, et al. Application of LS-SVM model in the risk assessment of urban gas pipeline[J]. Fire Science and Technology, 2017, 36(11):1598-1601.
[5]	HASSAN S, WANG J, KONOVAS C, et al. An assessment of causes and failure likelihood of cross-country pipelines under uncertainty using Bayesian networks[J]. Reliability Engineering and System Safety, 2022, 218(12):1-17.
[6]	ZHANG Yan, WENG Wengang. Bayesian network model for buried gas pipeline failure analysis caused by corrosion and external interference[J]. Reliability Engineering & System Safety, 2020, 2039(1):1-11.
[7]	ZHOU Zhipeng, LIU Song, QI Haonan. Mitigating subway construction collapse risk using Bayesian network modeling[J]. Automation in Construction, 2022, 143(9):1-20.
[8]	ZHOU Jin, XU Weixiang, GUO Xin, et al. A method for modeling and analysis of directed weighted accident causation network (DWACN)[J]. Physica A: Statistical Mechanics and its Applications, 2015, 437(6):263-277. doi: 10.1016/j.physa.2015.05.112
[9]	JUDEA P. Embracing causality in default reasoning[J]. Artificial Intelligence, 1988, 35(2):259-271. doi: 10.1016/0004-3702(88)90015-X
[10]	王喆, 孔维磊, 方丹辉, 等. 基于贝叶斯网络的城镇洪涝应急情景推演研究[J]. 中国安全科学学报, 2021, 31(6):182-188. doi: 10.16265/j.cnki.issn 1003-3033.2021.06.024
	WANG Zhe, KONG Weilei, FANG Danhui, et al. On urban flood and waterlog emergency scenario deduction based on Bayesian network[J]. China Safety Science Journal, 2021, 31(6):182-188. doi: 10.16265/j.cnki.issn 1003-3033.2021.06.024
[11]	HENRION M. Some practical issues in constructing belief networks, Uncertainty in Artificial Intelligence 3[M]. North Holland: Elsevier Sciences Publisher, 1988:1-3.
[12]	李聪, 徐子烜, 王雨情, 等. 城市燃气管网泄漏事故分析知识图谱构建及应用研究[J]. 中国安全生产科学技术, 2022, 18(10):5-12.
	LI Cong, XU Zixuan, WANG Yuqing, et al. Construction and application of knowledge graph for leakage accident analysis of city gas pipeline networks[J]. Journal of Safety Science and Technology, 2022, 18(10):5-12.
[13]	沈阳市应急管理局. 于洪区洪湖街“6·24”燃气爆燃事故调查报告[R], 2021.
[14]	郭章林, 王勇华, 李富梅. 城市燃气管道检测周期研究[J]. 油气储运, 2009, 28(3):25-28.
	GUO Zhanglin, WANG Yonghua, LI Fumei. Study on inspection cycles of city gas pipelines[J]. Oil and Gas Storage and Transportation, 2009, 28(3):25-28.
[15]	十堰市应急管理局. 湖北十堰"6·13"重大燃气爆炸事故调查报告公布[R], 2021.
[16]	葛庭均. 神经科学实验与SNA相结合的创业投资者对创业者的信任认知机理和行为规律研究[D]. 哈尔滨: 哈尔滨工程大学, 2015.
	GE Tingjun. Cognitive mechanism of trust and rule of behavior on venture capitalist to entrepreneur: a neuroscience experiment and social network analysis[D]. Harbin: Harbin Engineering University, 2015.
[17]	鲁义, 伍江乐, 邵淑珍, 等. 基于贝叶斯网络的危化品道路运输事故推理模型[J]. 中国安全科学学报, 2022, 32(3):174-182. doi: 10.16265/j.cnki.issn1003-3033.2022.03.024
	LU Yi, WU Jiangle, SHAO Shuzhen, et al. Prediction model for road transport accidents of hazardous chemicals based on Bayesian network[J]. China Safety Science Journal, 2022, 32(3):174-182. doi: 10.16265/j.cnki.issn1003-3033.2022.03.024
[18]	MATEO V, FRANCESCO C, BARBARA M, et al. Thermodynamic challenges for CO₂ pipelines design: a critical review on the effects of impurities, water content, and low temperature[J]. International Journal of Greenhouse Gas Control, 2022, 114(2):1-11.
[19]	陈军, 兀亚伟, 李垣志, 等. 基于动态贝叶斯网络的燃气管网燃爆风险分析[J]. 北京理工大学学报, 2021, 41(7):696-705.
	CHEN Jun, WU Yawei, LI Yuanzhi, et al. Risk analysis of burning and explosion of gas pipeline network based on dynamic Bayesian network[J]. Transactions of Beijing Institute of Technology, 2021, 41(7):696-705.
[20]	AGNIESZKA O, MSREK J D, HANNA W. Learning Bayesian network parameters from small data sets: application of Noisy-OR gates[J]. International Journal of Approximate Reasoning, 2001, 27:165-182. doi: 10.1016/S0888-613X(01)00039-1
[21]	FALLET F G, WEBER P, SIMON C, et al. Evidential network-based extension of Leaky Noisy-OR structure for supporting risks analyses[J]. IFAC Proceedings Volumes, 2012, 45(20):672-677.
[22]	QIAO Qiao, CHENG Guangxu, WU Wei, et al. Failure analysis of corrosion at an inhomogeneous welded joint in a natural gas gathering pipeline considering the combined action of multiple factors[J]. Engineering Failure Analysis, 2016, 64(6):126-143. doi: 10.1016/j.engfailanal.2016.02.015
[23]	泸州市人民政府. 四川泸州"5.29"天然气管道爆炸事故[R], 2004.
[24]	陈伟, 杨主张, 熊威, 等. 装配式建筑工程施工安全风险传导DEMATEL-BN模型[J]. 中国安全科学学报, 2020, 30(7):1-6. doi: 10.16265/j.cnki.issn1003-3033.2020.07.001
	CHEN Wei, YANG Zhuzhang, XIONG Wei, et al. Research on DEMATEL-BN model of construction risk transmission for prefabricated building[J]. China Safety Science Journal, 2020, 30(7):1-6. doi: 10.16265/j.cnki.issn1003-3033.2020.07.001
[25]	李聪, 鲁一霏, 陈辰, 等. 城镇燃气管网事故应急救援特征分析及救援能力评估[J/OL]. 清华大学学报:自然科学版, 2023, 63(10):1 537-1 547.DOI: 10.16511/j.cnki.qhdxxb.2023.22.026.
	LI Cong, LU Yifei, CHEN Chen, et al. Analysis of emergency rescue characteristics and evaluation of rescue capability for accidents associated with urban gas pipeline networks[J/OL]. Journal of Tsinghua University:Science & Technology, 2023, 63(10):1 537-1 547.DOI: 10.16511/j.cnki.qhdxxb.2023.22.026.

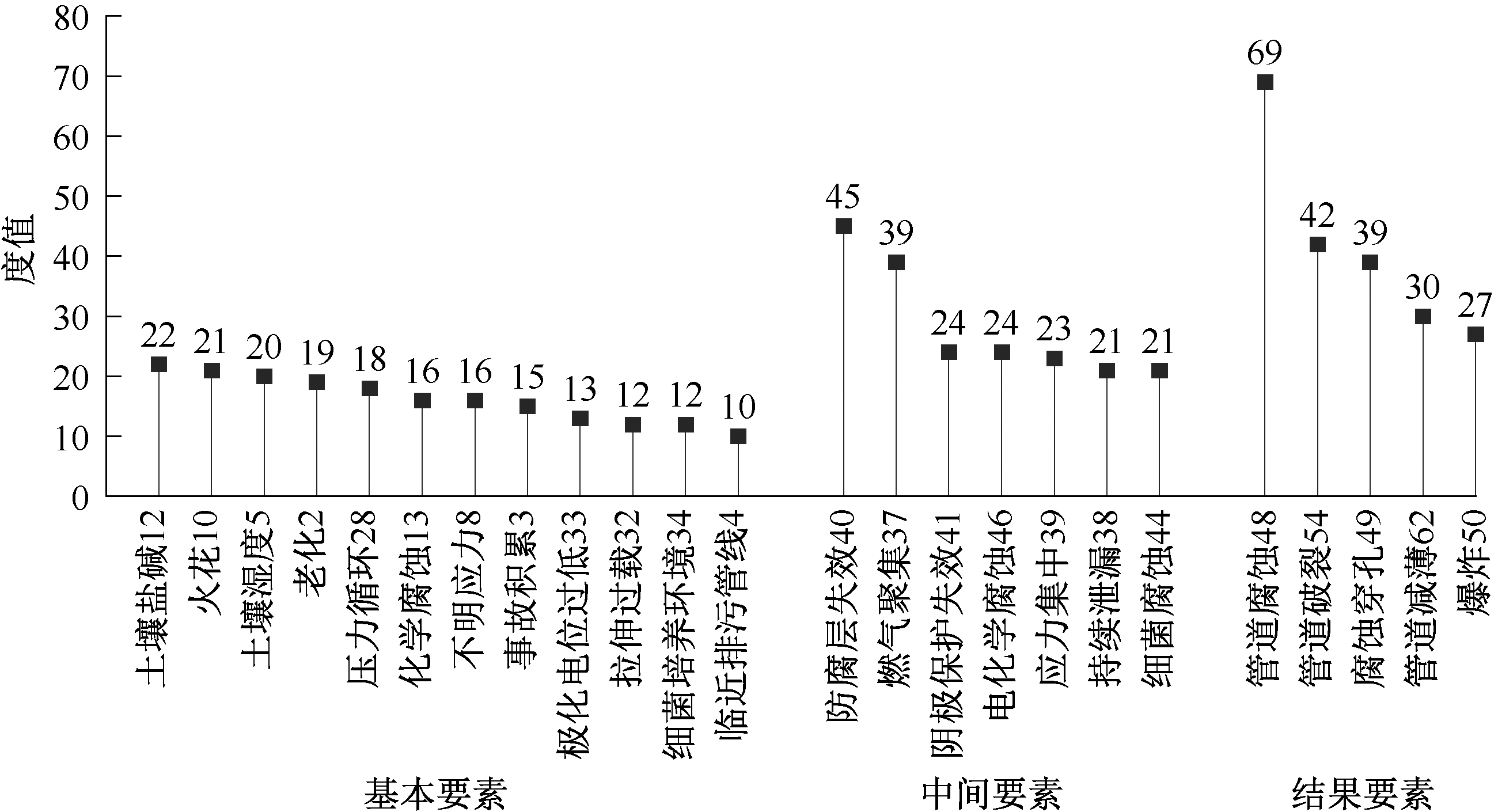

要素类型	要素名称及编号
基本要素	违章建设(1);老化(2);事故积累(3);临近排污管线(4);土壤湿度(5);不明明火(6);箱变压迫(7);不明应力(8);箱变元件放电(9);火花(10);排水暗渠交叉(11);土壤盐碱(12);化学腐蚀(13);海水倒灌(14);干湿循环(15);道路(16);震动(17);液压破碎锤修理(18);盖板暗渠(19);制造缺陷(20);临近饭店(21);临近排烟管(22);河道(23);接触铜水管(24);传感器失灵(25);周期性疲劳(26);压力监测异常(27);压力循环(28);延迟关闭(29);防腐层材料含水(30);纵向闪电焊(31);拉伸过载(32);操作压力过大(32);极化电位过低(33);细菌培养环境(34);临近集油管(35)
中间要素	相对密闭环境(36);燃气聚集(37);持续泄漏(38);应力集中(39);防腐层失效(40);阴极保护失效(41);腐蚀扩大(42);纵向焊缝失效(43);细菌腐蚀(44);冲蚀现象(45);电化学腐蚀(46);凹痕(47)
结果要素	管道腐蚀(48);腐蚀穿孔(49);爆炸(50);破坏附近店铺(51);管道点蚀(52);爆燃(53);管道破裂(54);二次燃烧(55);道路炸开(56);破坏厂区(57);破坏临时工棚(58);伤害行人(59);破坏居民楼(60);焊缝腐蚀(61);管道减薄(62)

编号	基本节点	节点状态	先验概率/%
X₁	极化电位过低	T	7.05
X₂	电磁干扰	T	11.60
X₃	老化	T	4.35
X₄	化学腐蚀	T	8.60
X₅	事故积累	T	4.23
X₆	土壤盐碱	T	7.05
X₇	土壤湿度	H	14.40
		M	53.94
		L	31.66
X₈	细菌培养环境	T	11.60
X₉	拉伸过载	T	7.05
X₁₀	压力循环	T	20.57
X₁₁	不明应力	T	0.68

土壤湿度	X₇=H		X₇=M		X₇=L
土壤盐碱	X₆=T	X₆=P	X₆=T	X₆=P	X₆=T	X₆=P
P(Y₃=T)/%	81	32	79	21	73	5

土壤湿度	X₇=H		X₇=M		X₇=L
土壤盐碱	X₆=T	X₆=P	X₆=T	X₆=P	X₆=T	X₆=P
P(Y₃=T)/%	82	35	79	25	73	5
P(Y₃=P)/%	18	65	21	75	27	95

序号	基本节点	节点状态	后验概率/%
1	土壤湿度X₇	H	28
2	事故积累X₅	T	20
3	化学腐蚀X₄	T	14
5	电磁干扰X₂	T	13
