Experimental study on pressure distribution in full-scale compressed air foam transport pipeline

doi:10.16265/j.cnki.issn1003-3033.2024.10.0060

Abstract

Abstract:

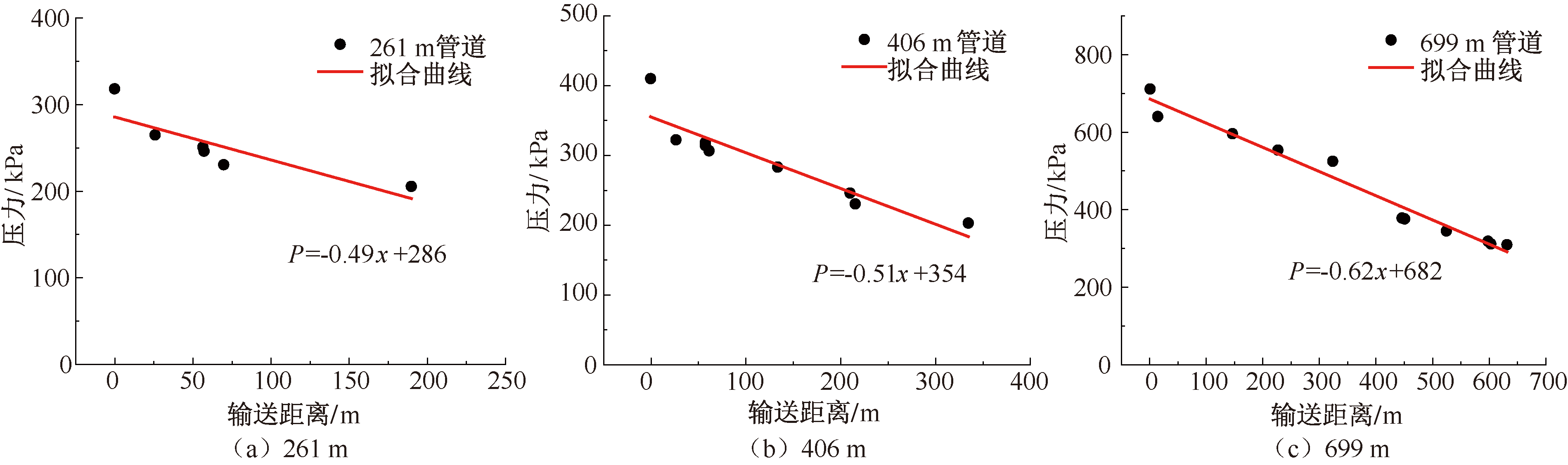

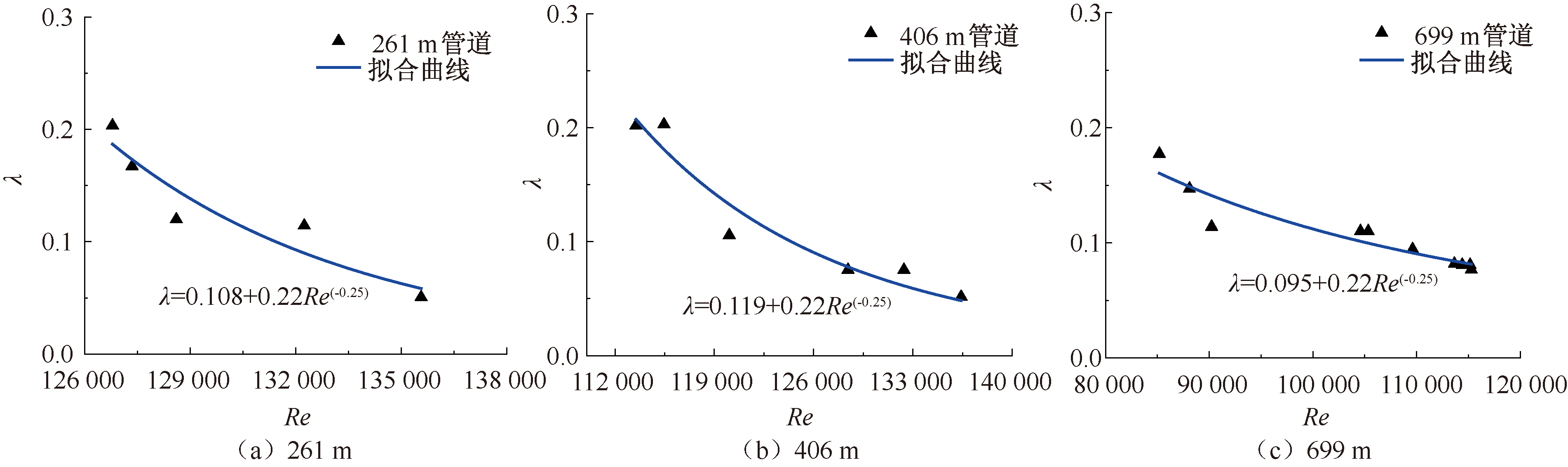

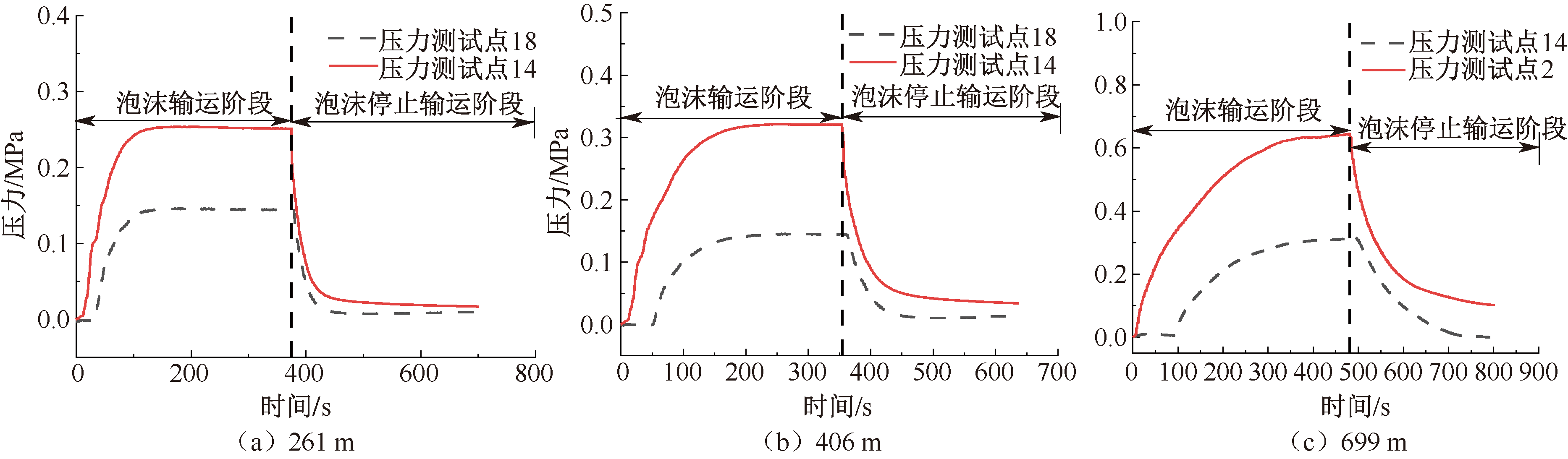

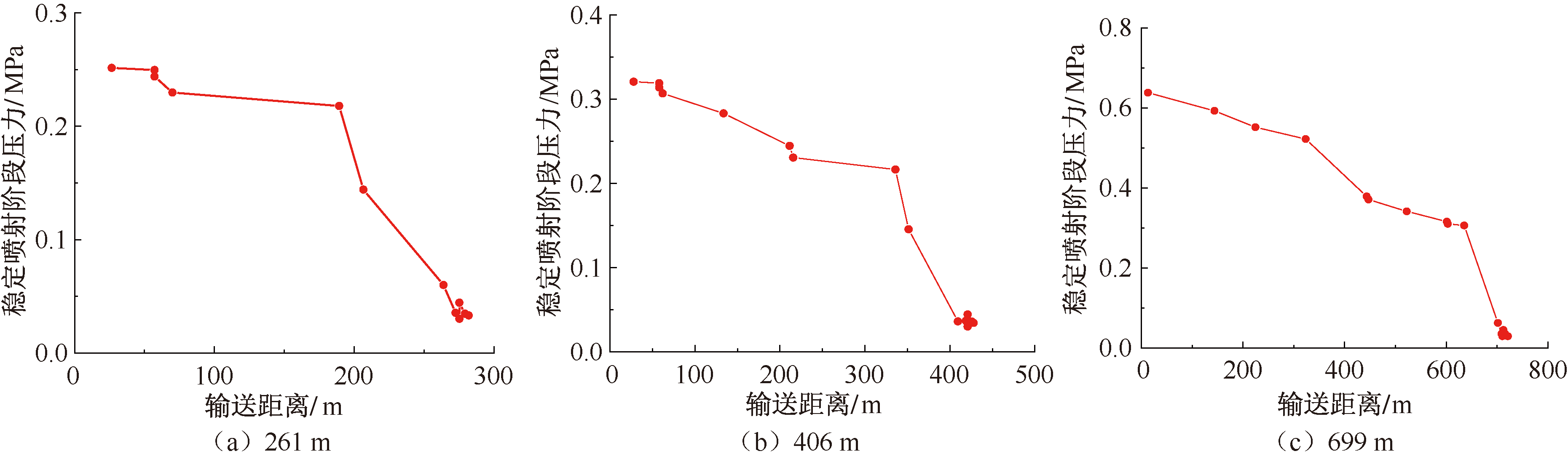

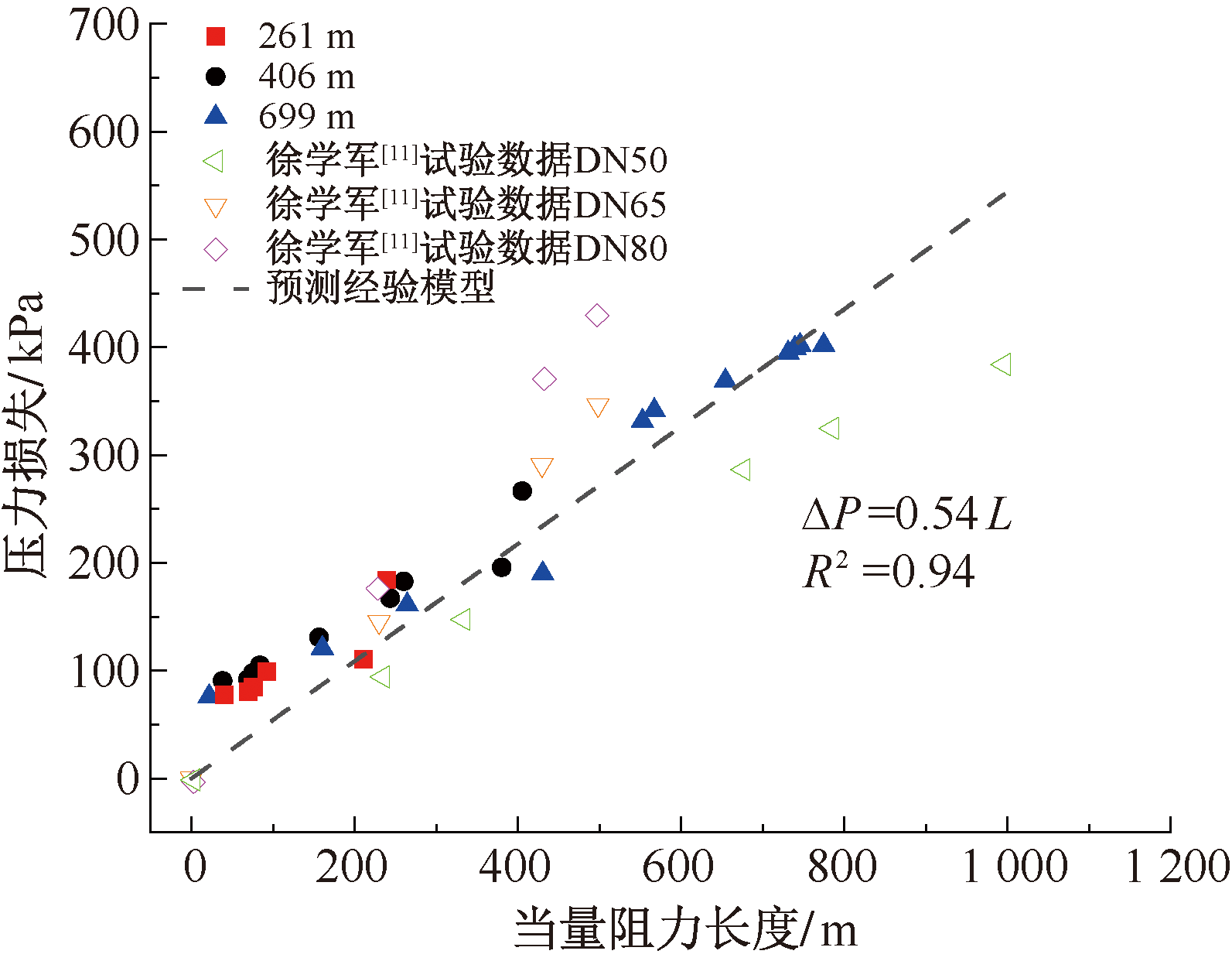

To effectively enhance the transportation capacity of compressed air foam and better address the fire hazards in converter stations, experimental research was conducted on pressure distribution using full-scale compressed air foam transport pipelines of 699, 406 and 261 m as examples. Furthermore, the equivalent resistance length method was proposed to consider static pressure loss and local pressure loss, and a comprehensive equivalent resistance coefficient was introduced. An empirical pressure loss relationship suitable for engineering applications was developed. The results indicate that during the compressed air foam transport phase, the pipeline inlet and outlet pressures rapidly increase with time before stabilizing. The time required to reach a steady state is proportional to the length and complexity of the pipeline. After foam transport ceases, the pressure within the pipeline drops sharply. The complexity of the pipeline configuration leads to a nonlinear decrease in local pressure with increasing transport distance. Finally, an empirical relationship between the pressure loss and the equivalent resistance length has been obtained, which can be used to predict pressure drop variations for pipe diameters ranging from DN50 to DN200 and pipeline lengths up to 1 000 m.

Key words: compressed air foam, transport pipeline, pressure loss, full-scale, resistance coefficient

CLC Number:

TAN Tiantian, ZHANG Jiaqing, SHI Yangjin, LI Bo. Experimental study on pressure distribution in full-scale compressed air foam transport pipeline[J]. China Safety Science Journal, 2024, 34(10): 152-157.

Figures/Tables 7

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

References 12

[1]	张佳庆, 尚峰举, 何旭, 等. 变压器油沸溢池火温度特征及传热模型试验研究[J]. 中国安全科学学报, 2021, 31(11):106-113. doi: 10.16265/j.cnki.issn 1003-3033.2021.11.015
	ZHANG Jiaqing, SHANG Fengju, HE Xu, et al. Study on temperature characteristics and heat transfer model of boilover in transformer oil pool fires[J]. China Safety Science Journal, 2021, 31(11):106-113. doi: 10.16265/j.cnki.issn 1003-3033.2021.11.015
[2]	康宁, 覃义仁, 张佳庆, 等. 可脱落降噪板对换流变火灾温度场的影响研究[J]. 中国安全科学学报, 2023, 33(2):152-158. doi: 10.16265/j.cnki.issn1003-3033.2023.02.0048
	KANG Ning, QIN Yiren, ZHANG Jiaqing, et al. Effect of detachable noise reduction board on fire temperature field in converter substation[J]. China Safety Science Journal, 2023, 33(2):152-158. doi: 10.16265/j.cnki.issn1003-3033.2023.02.0048
[3]	SU Lin, WANG Lijing, WANG Zhihui, et al. Investigation on compressed air foams fire-extinguishing model for oil pan fire[J]. Procedia Engineering, 2012,45:663-668.
[4]	DESHPANDE N, BARIGOU M. The flow of gas-liquid foams in vertical pipes[J]. Chemical Engineering Science, 2000, 55: 4297-4309.
[5]	CHEN Yang, CHEN T, HU C, et al. The research of press drop of compressed air foam flow through the bend[C]. IOP Conference Series: Earth and Environmental Science, 2017: DOI:10.1088/1755-1315/81/1/012118.
[6]	林全生, 张猛, 宋波, 等. 压缩空气A类泡沫在水平管道内流动研究[J]. 消防科学与技术, 2017, 36(9):1265-1268.
	LIN Quansheng, ZHANG Meng, SONG Bo, et al. Research on compressed air foam of class a flow in horizontal pipe by fluent[J]. Fire Science and Technology, 2017, 36(9):1265-1268.
[7]	OKUNROUNMU O, LHOTSKY P, HADJISOPHOCLEOUS G. Discharge characteristics of a portable compressed air foam system[C]. Conference Series, 2018: DOI:10.1088/1742-6596/1107/6/062007.
[8]	王勇凯, 高红, 宋波, 等. 压缩空气A类泡沫水平管路压降实验及数值模拟[J]. 化工学报, 2018, 69(10):4184-4193. doi: 10.11949/j.issn.0438-1157.20180226
	WANG Yongkai, GAO Hong, SONG Bo, et al. Experimental study and numerical simulation of laminar flow of compressed air class a foam in horizontal pipe[J]. CIESC Journal, 2018, 69(10):4184-4193.
[9]	陈胤昌, 陈方, 何坤, 等. 压缩空气泡沫垂直管网输运压力衰减特性数值模拟研究[J]. 中国安全生产科学技术, 2023, 19(5):151-156.
	CHEN Yinchang, CHEN Fang, HE Kun, et al. Numerical simulation on pressure attenuation characteristics of compressed air foam in vertical pipe network[J]. Journal of Safety Science and Technology, 2023, 19(5):151-156.
[10]	谭甜甜, 张佳庆, 石杨锦, 等. 压缩空气泡沫灭火系统长距离输运及喷淋特性试验研究[J/OL]. 安全与环境工程:1-9[2024-06-19]. https://doi.org/10.13578/j.cnki.issn.1671-1556.20231216.
	TAN Tiantian, ZHANG Jiaqing, SHI Yangjin, et al. Experimental study on long-distance transport and spray characteristics of compressed air foam fire extinguishing systems[J/OL]. Safety and Environmental Engineering:1-9[2024-06-19]. https://doi.org/10.13578/j.cnki.issn.1671-1556.20231216.
[11]	徐学军. 压缩空气泡沫管网输运特性及其在超高层建筑中应用研究[D]. 合肥: 中国科学技术大学, 2020.
	XU Xuejun. Study on transport characteristics of compressed air foam in pipe and its application in super high-rise building[D]. Hefei: University of Science and Technology of China, 2020.
[12]	张猛. 消防泡沫流变特性及流体力学计算方法研究[D]. 天津: 天津大学, 2018.
	ZHANG Meng. Research on the rheological properties and the hydrodynamic calculating method of fire-fighting foams[D]. Tianjin: Tianjin University, 2018.
