Transportation sloshing behavior and anti-sloshing structure design of vehicle-mounted liquid hydrogen storage tank

doi:10.16265/j.cnki.issn1003-3033.2024.11.0567

Abstract

Abstract:

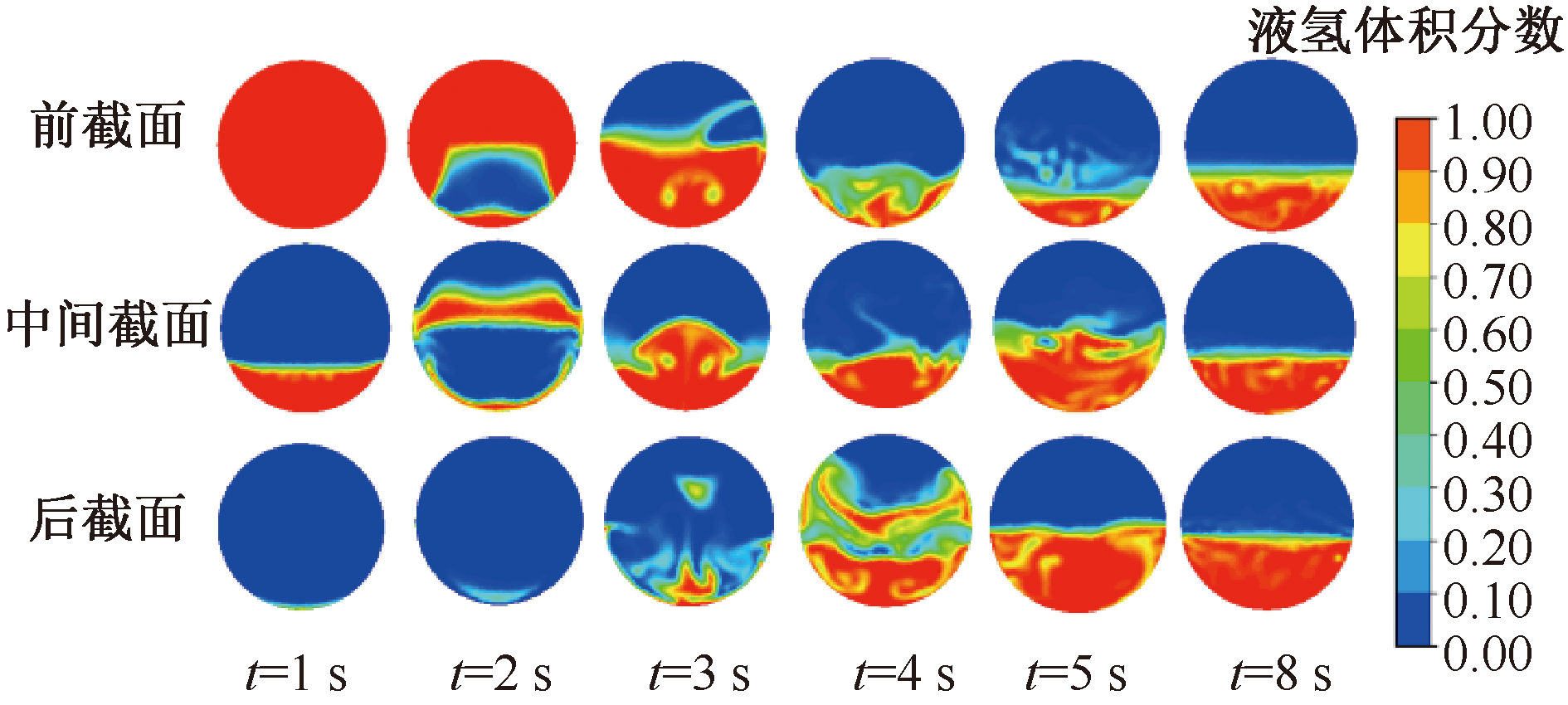

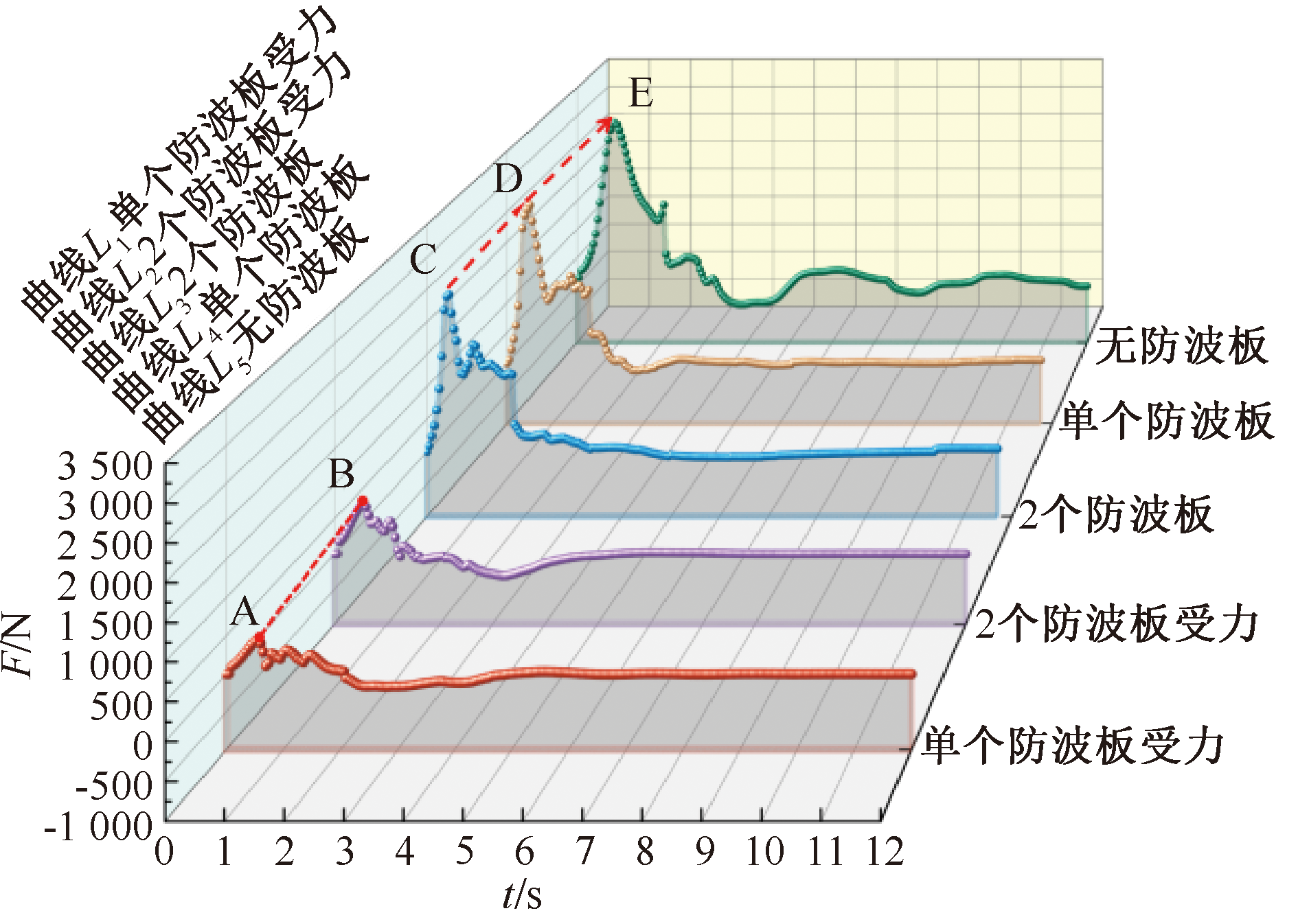

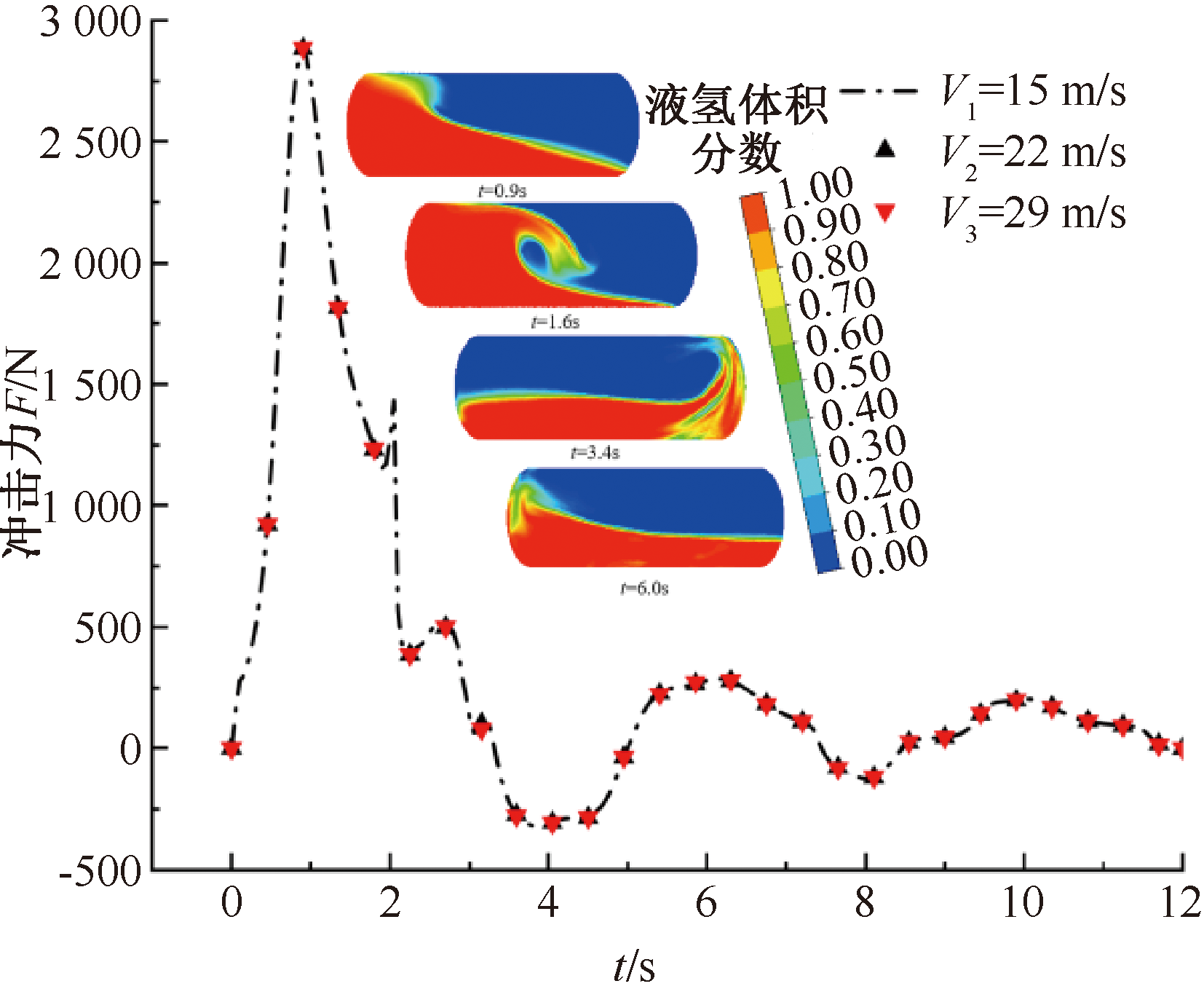

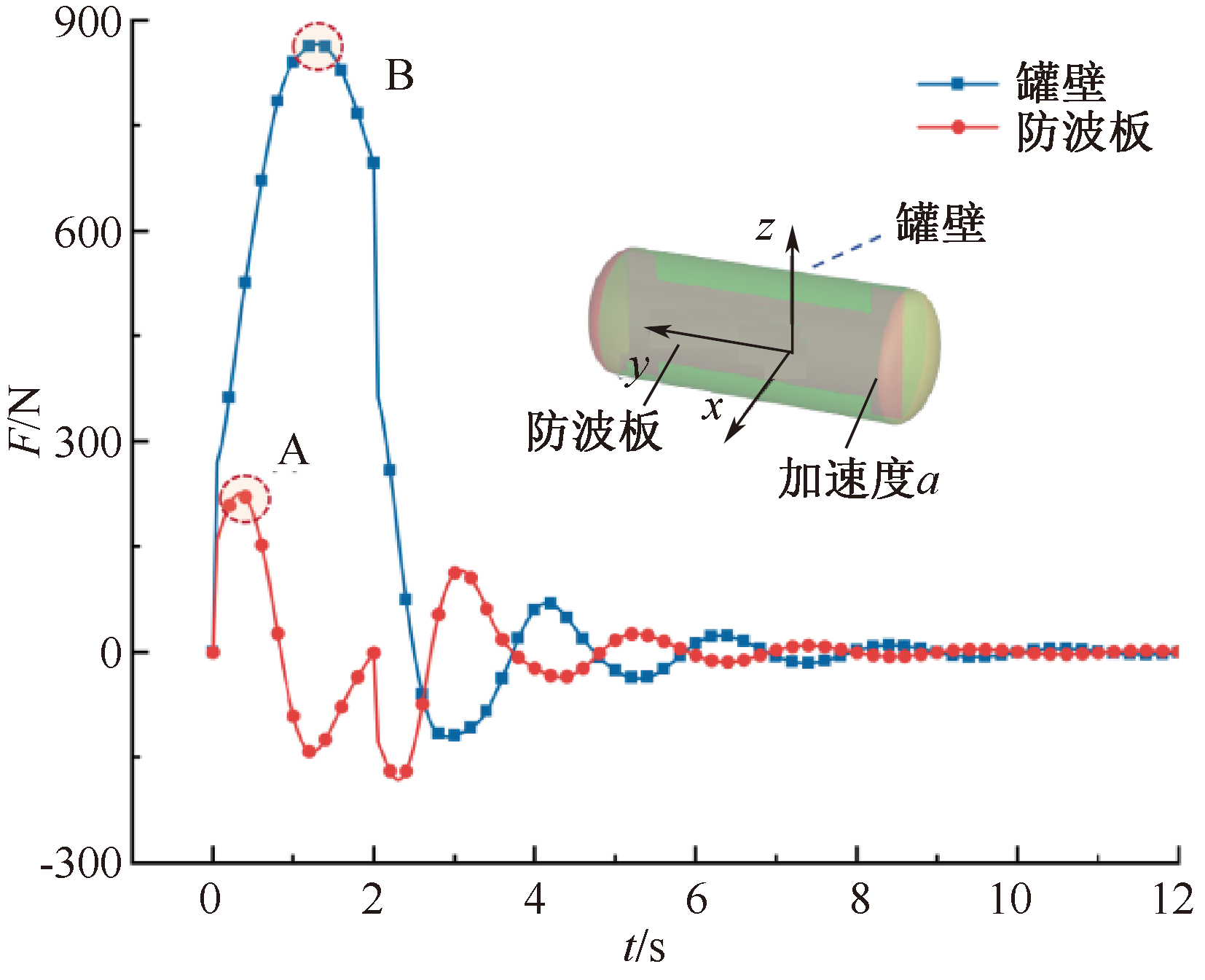

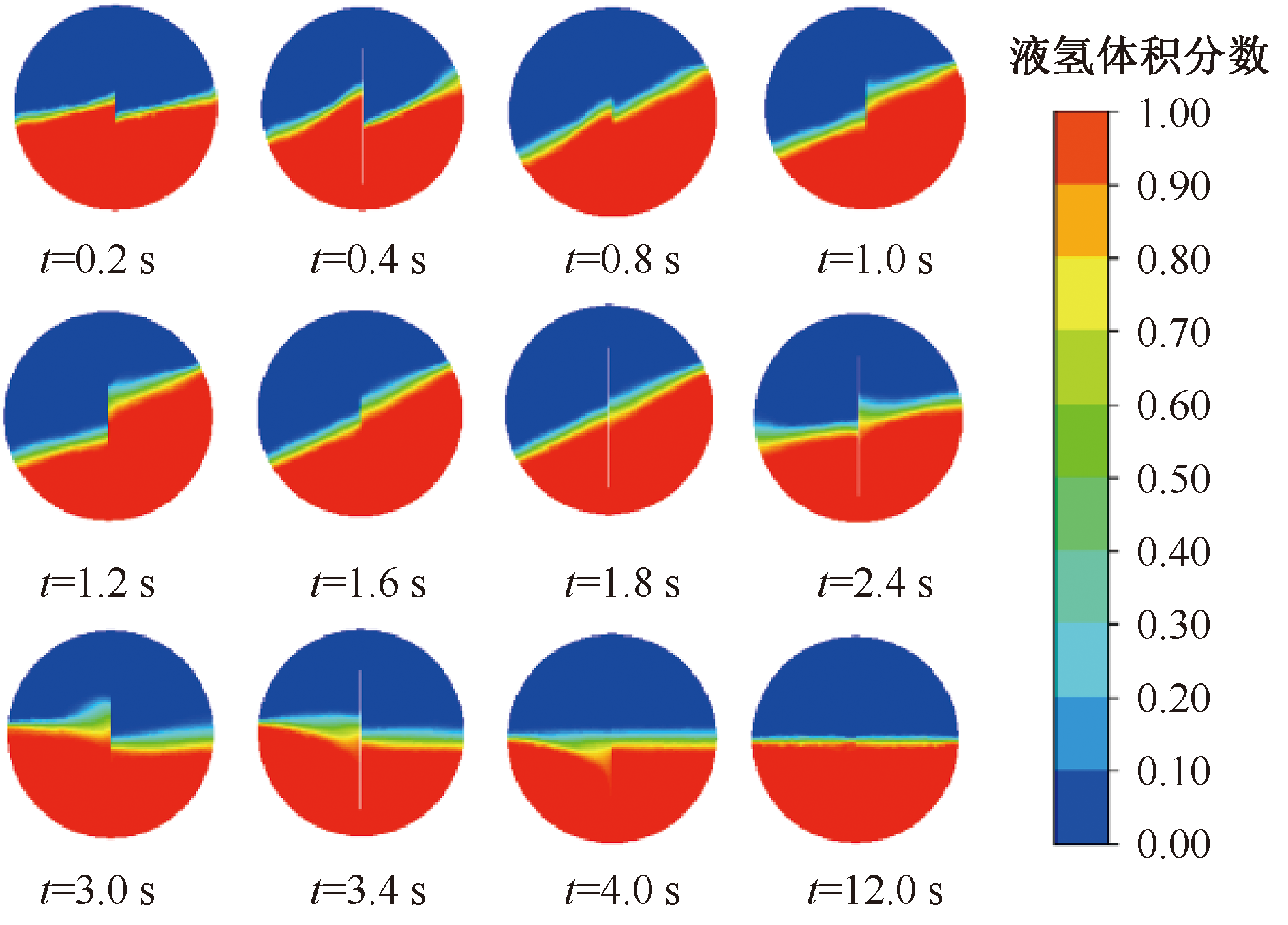

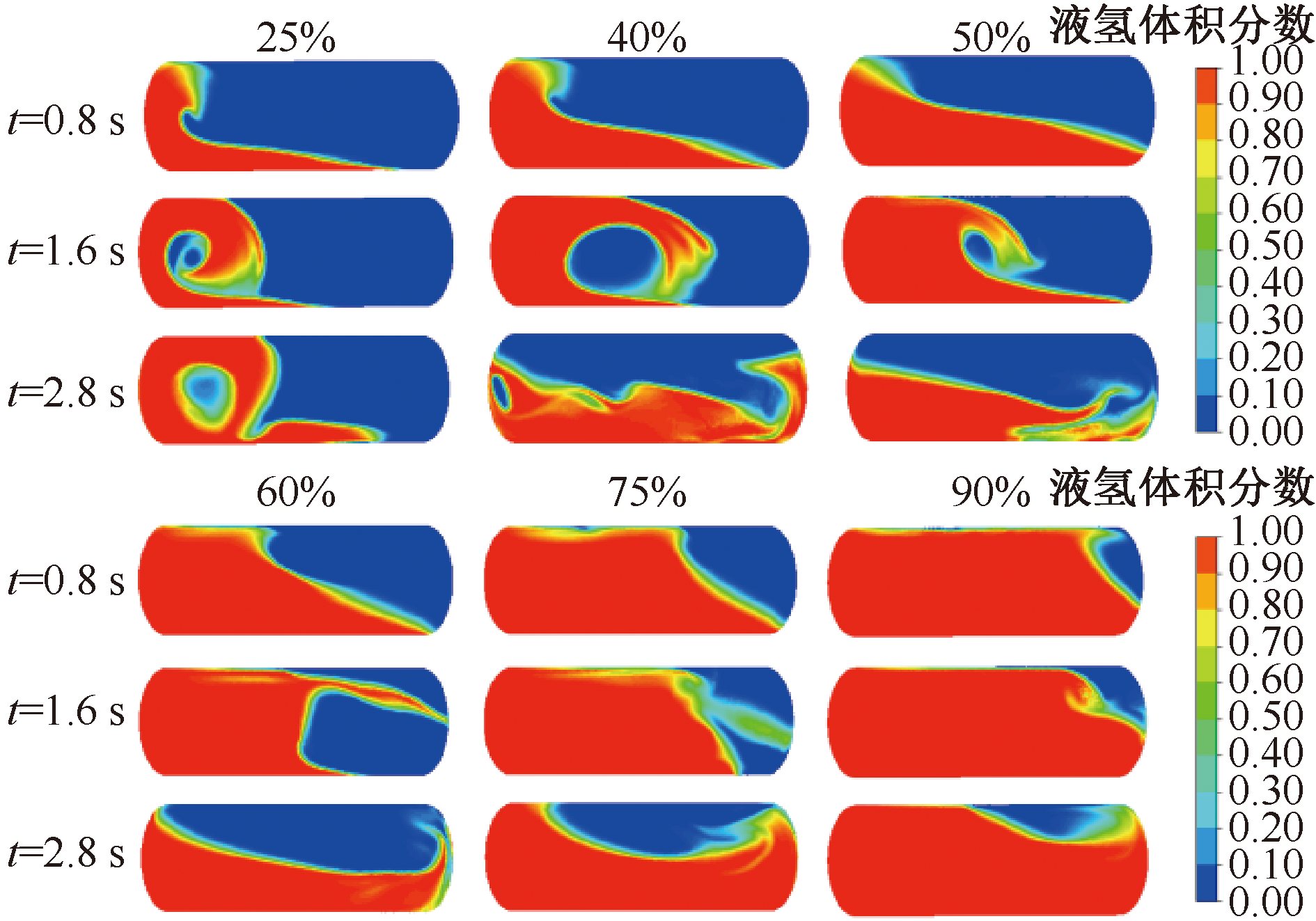

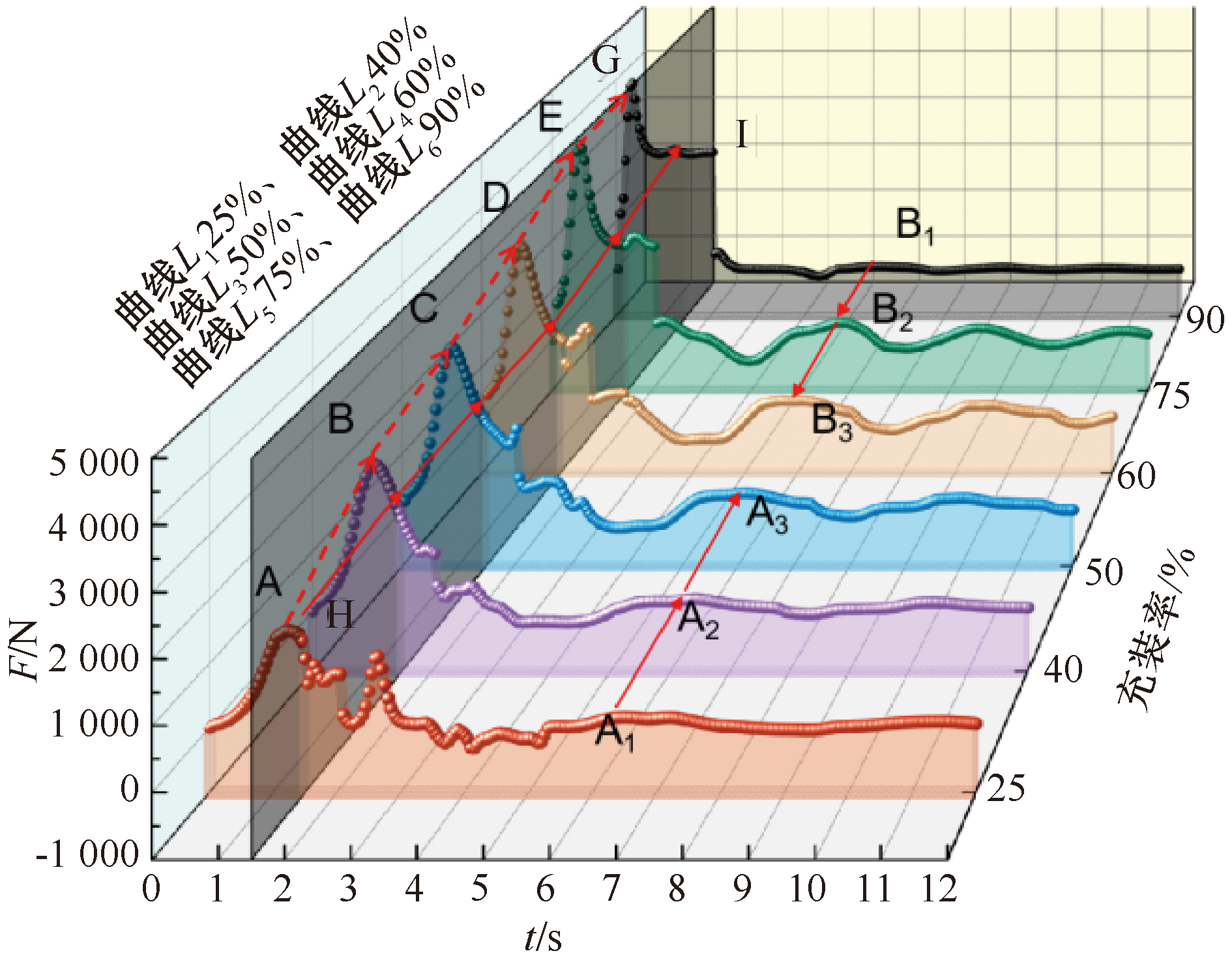

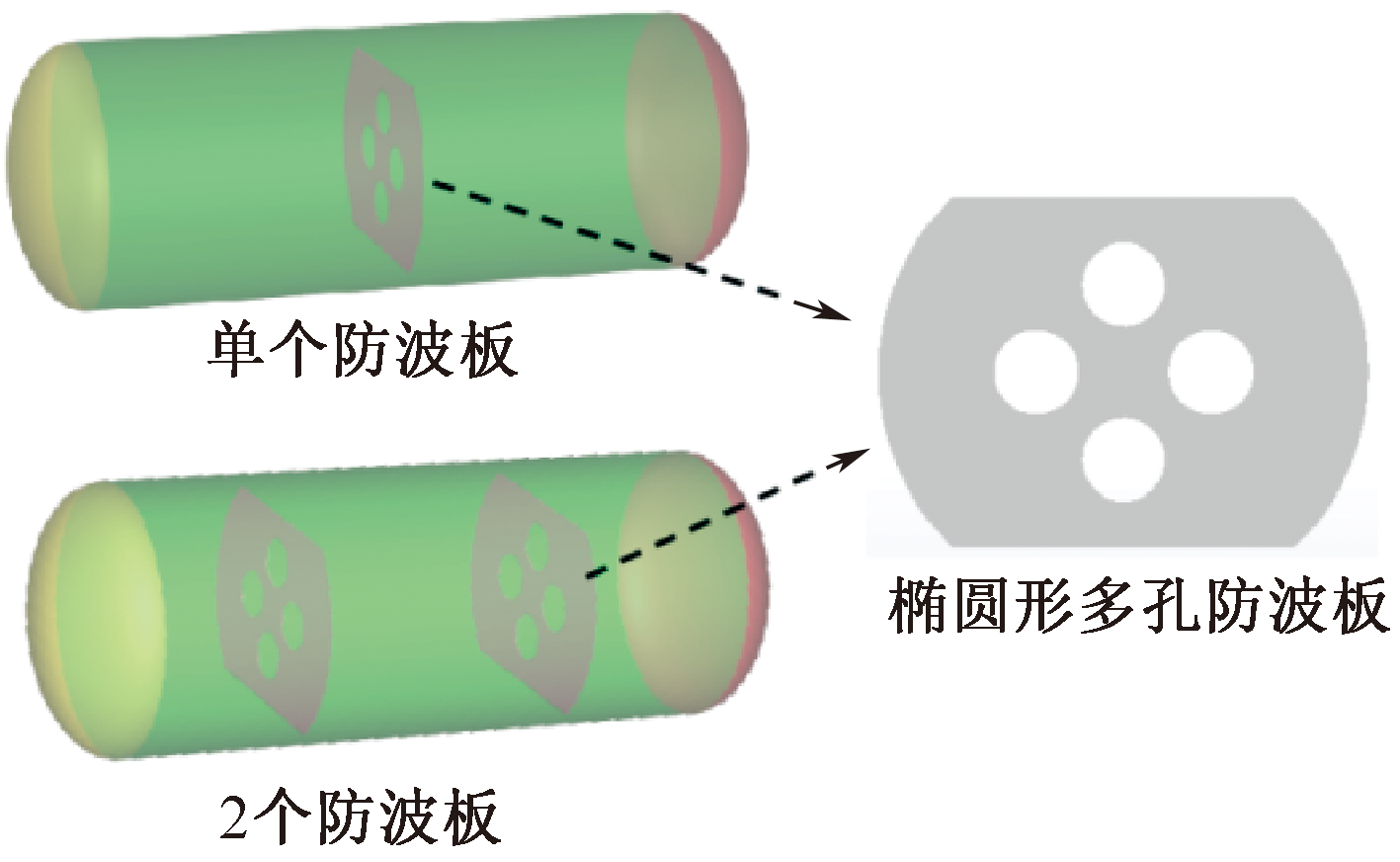

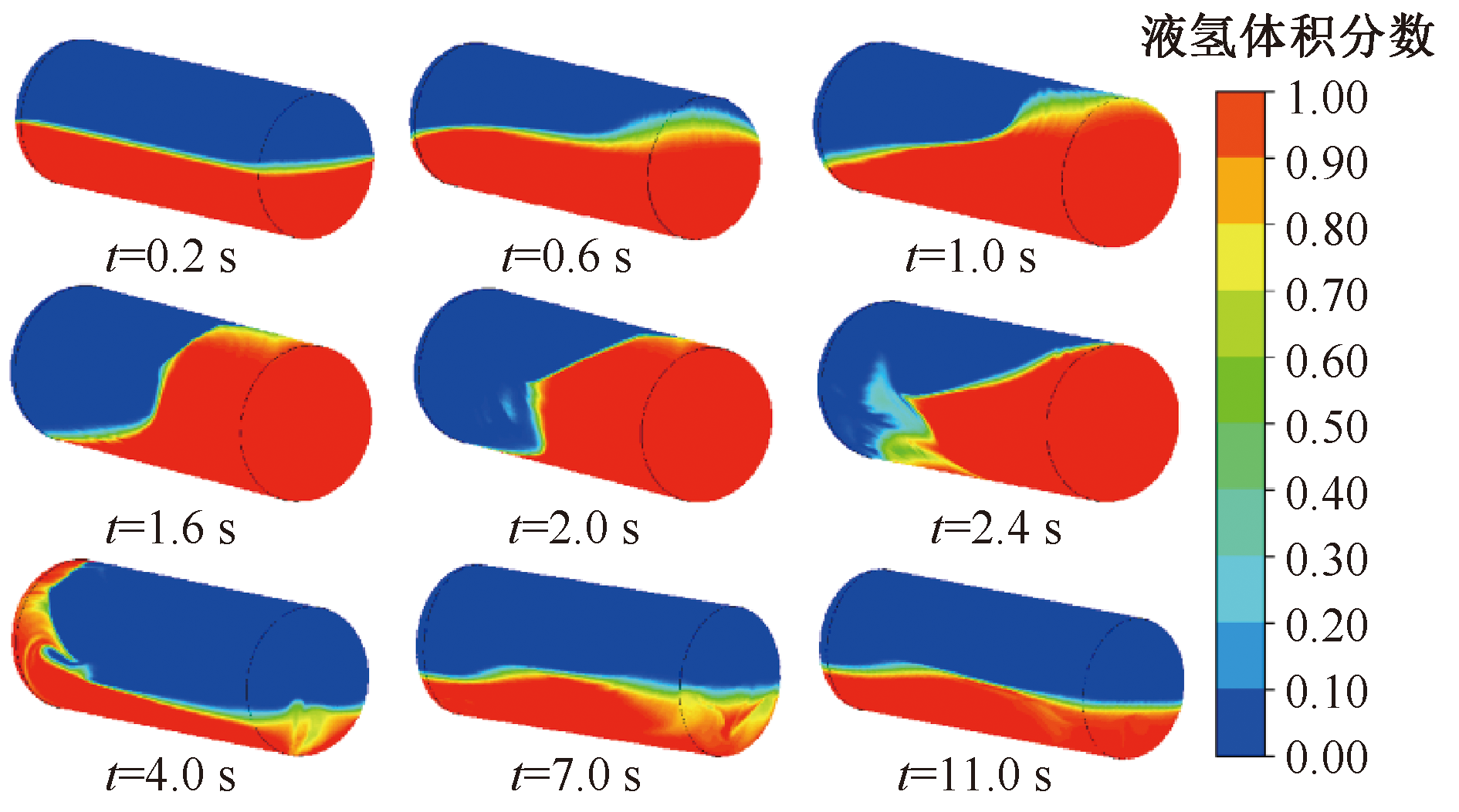

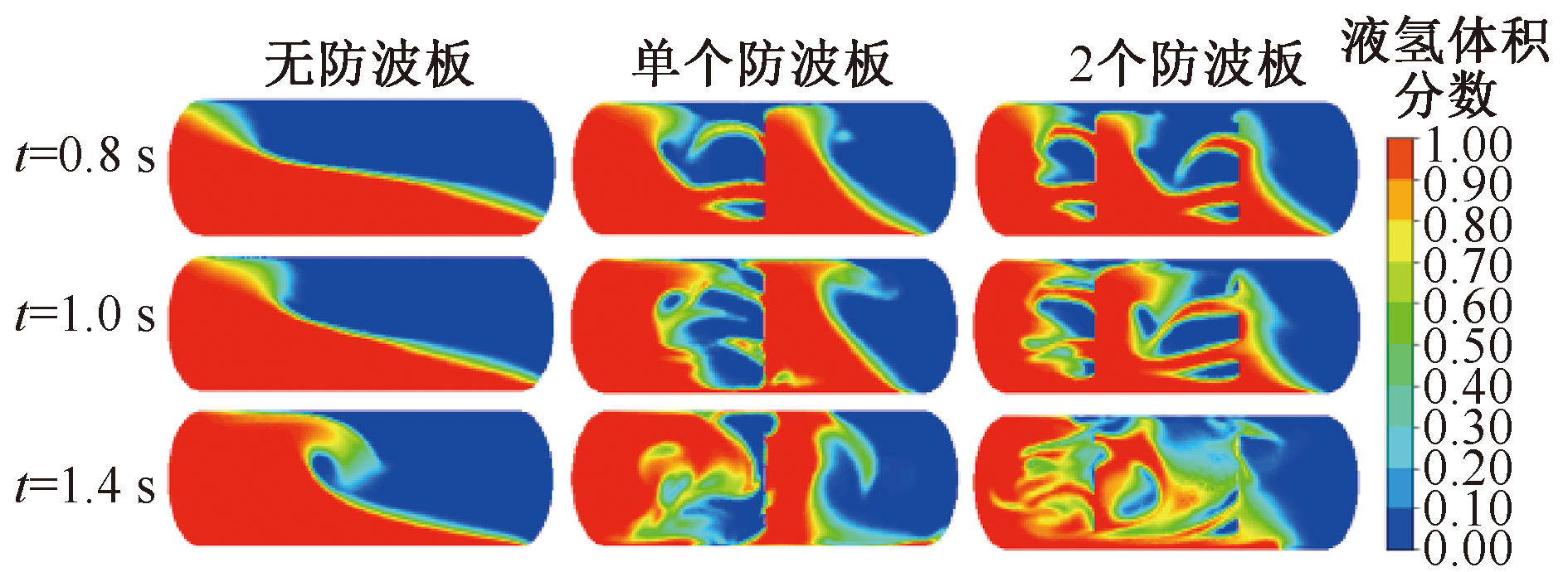

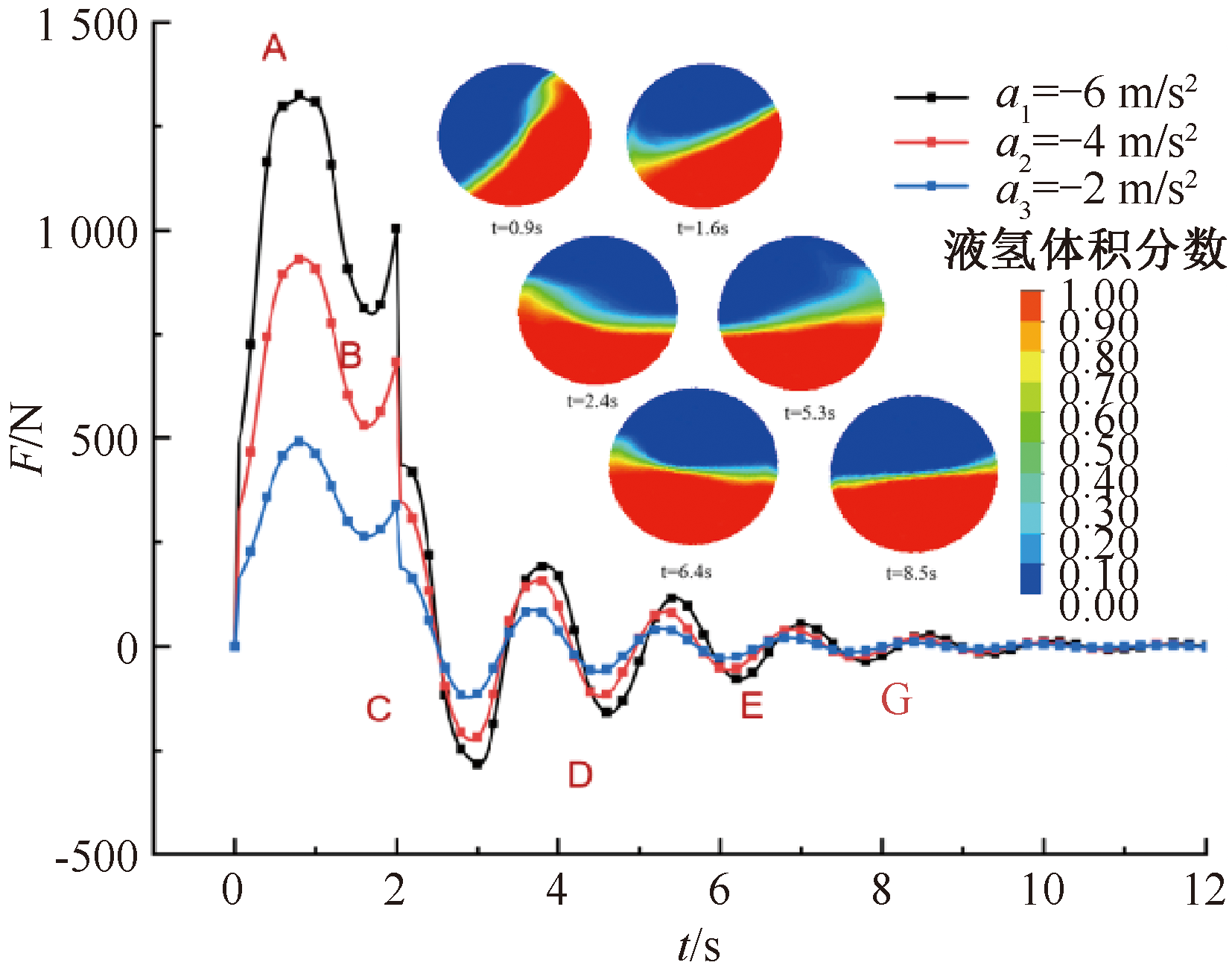

In order to reveal the sloshing behavior of vehicle-mounted liquid hydrogen storage tanks and improve their transportation stability, a numerical simulation model of vehicle-mounted liquid hydrogen storage tank sloshing was established. The impact of liquid hydrogen fluid sloshing on the storage tank during braking and turning was studied. The effects of driving speed, longitudinal and lateral acceleration and filling rate on the sloshing behavior of liquid hydrogen in the storage tank were discussed, and a wave-proof plate was designed to suppress the sloshing of liquid hydrogen. The results show that the stable driving speed of the vehicle has little effect on the liquid hydrogen sloshing in the tank. The more urgent the vehicle brakes or turns, the more severe the liquid hydrogen sloshing in the tank, the more serious the impact on the tank, and the longer the time required for the liquid hydrogen to reach a stable state. The closer the filling rate is to 50%, the more severe the sloshing is. As the filling rate increases to 90%, the impact of liquid hydrogen on the storage tank is more significant. However, the higher filling rate reduces the liquid hydrogen movement space and makes the sloshing amplitude more gentle. The anti-wave plate in the tank can effectively separate the liquid hydrogen sloshing space, so that the maximum longitudinal impact force of the tank is reduced by 9.6% and 17.5%, and the maximum lateral impact force is reduced by 34.6%, which significantly reduces the impact on the tank and shortens the liquid hydrogen recovery time.

Key words: vehicle liquid hydrogen storage tank, sloshing, impact force, filling ratio, swash plate

CLC Number:

X944

ZHANG Jie, LUO Xuepeng, ZENG Yun. Transportation sloshing behavior and anti-sloshing structure design of vehicle-mounted liquid hydrogen storage tank[J]. China Safety Science Journal, 2024, 34(11): 81-88.

Figures/Tables 15

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

Fig.11

Fig.12

Fig.13

Fig.14

Fig.15

References 17

[1]	闫利勇, 陈永光. 危险化学品公路运输事故新特点及对策研究[J]. 中国安全生产科学技术, 2010, 6(4):65-70.
	YAN Liyong, CHEN Yongguang. Study on new characteristics and the countermeasures of road transportation accident of hazardous chemicals[J]. Journal of Safety Science and Technology, 2010, 6(4):65-70.
[2]	平凯, 王琼瑶, 祁文超, 等. 带刚性防波板罐体内液体晃动的响应分析[J]. 爆炸与冲击, 2024, 44(6): 161-173.
	PING Kai, WANG Qiongyao, QI Wenchao, et al. Response analysis of liquid sloshing in a tank with a rigid baffle[J]. Explosion and Shock Waves, 2024, 44(6): 161-173.
[3]	王琼瑶, 蒋开洪, SUBHASH Rakheja, 等. 部分充液罐车内液体晃动的瞬态响应分析[J]. 振动与冲击, 2018, 37(17): 1-8.
	WANG Qiongyao, JIANG Kaihong, SUBHASH R, et al. Transient response analysis of liquid slosh in a liquid-partially filled tank truck[J]. Journal of Vibration and Shock, 2018, 37(17): 1-8.
[4]	杨雨杭. 液体运输罐车制动激励下的液体晃动冲击与防晃研究[D]. 秦皇岛: 燕山大学, 2023.
	YANG Yuhang. Study on liquid sloshing impact and anti-sloshing under braking excitation of liquid transport tank truck[D]. Qinhuangdao: Yanshan University, 2023.
[5]	陈志伟. 移动式压力容器介质冲击数值模拟及防波装置研究[D]. 杭州: 浙江大学, 2006.
	CHEN Zhiwei. Numerical simulation of liquid sloshing in transportable pressure vessel and research on the baffles[D]. Hangzhou: Zhejiang University, 2006.
[6]	刘雪梅. 液体冲击的数值模拟及不同惯性力加载方式对罐式集装箱强度的影响研究[D]. 北京: 北京化工大学, 2009.
	LIU Xuemei. Numerical simulation of liquid impact and study of the influence of inertial force loading methods on the strength of tank container[D]. Beijing: Beijing University of Chemical Technology, 2009.
[7]	刘奎, 康宁. 罐车制动时液体冲击的仿真分析[J]. 北京航空航天大学学报, 2009, 35(7): 799-803.
	LIU Kui, KANG Ning. Simulation of liquid slosh in braking process of tank truck[J]. Journal of Beijing University of Aeronautics and Astronautics, 2009, 35(7): 799-803.
[8]	刘奎, 康宁. 罐车转向时液体冲击的仿真分析[J]. 北京航空航天大学学报, 2009, 35(11):1 403-1 407.
	LIU Kui, KANG Ning. Simulation of liquid slosh in turning process of tank truck[J]. Journal of Beijing University of Aeronautics and Astronautics, 2009, 35(11): 1 403-1 407.
[9]	万里平, 钱才富. 液化气体罐车防波板的设计[J]. 化工机械, 2012, 39(1): 48-51.
	WAN Liping, QIAN Caifu. Design of swash plate for liquefied-gas tank[J]. Chemical Engineering & Machinery, 2012, 39(1):48-51.
[10]	高炳军, 尚成文. 防波板位置对罐车制动时防波效果的影响[J]. 河北工业大学学报, 2012, 41(3): 46-49.
	GAO Bingjun, SHANG Chengwen. Impact of different location of baffles on baffling effect during the tank braking[J]. Journal of Hebei University of Technology, 2012, 41(3): 46-49.
[11]	王鹤鹏. 液罐车防波板设置对液体冲击的影响研究[D]. 长春: 吉林大学, 2014.
	WANG Hepeng. Study on the influence of liquid sloshing caused by baffle setting in tank[D]. Changchun: Jilin university, 2014.
[12]	D'ALESSANDRO V, SAHHIONI E, CHELI F, et al. Simulation of sloshing in tank trucks[J]. International Journal of Heavy Vehicle Systems, 2013, 20(1): 1-18.
[13]	YU Di, CHU Jiangwei. Computational simulation of nonlinear liquid sloshing in a tank truck[J]. Advances in Mechanical Engineering, 2018, 10(7):1-11.
[14]	PANIGRAHY P K, SAHA U K, MAITY D. Experimental studies on sloshing behavior due to horizontal movement of liquids in baffled tanks[J]. Ocean Engineering, 2009, 36: 213-222.
[15]	AMIR K, SUBHASH R, MARC J R. Effects of tank cross-section on dynamic fluid slosh loads and roll stability of a partly-filled tank truck[J]. European Journal of Mechanics-B: Fluids, 2014, 46: 46-58.
[16]	AMIR K, SUBHASH R, MARC J R. Three-dimensional dynamic liquid slosh in partially-filled horizontal tanks subject to simultaneous longitudinal and lateral excitations[J]. European Journal of Mechanics-B Fluids, 2015, 53: 251-263.
[17]	AMIR K, SUBHASH R, MARC J R. Coupled multimodal fluid-vehicle model for analysis of anti-slosh effectiveness of longitudinal baffles in a partially-filled tank vehicle[J]. Journal of Fluids and Structures, 2017, 70: 519-536.
