Study on mechanism of increased fire spread rate of suspended cables

doi:10.16265/j.cnki.issn1003-3033.2025.11.0453

Abstract

Abstract:

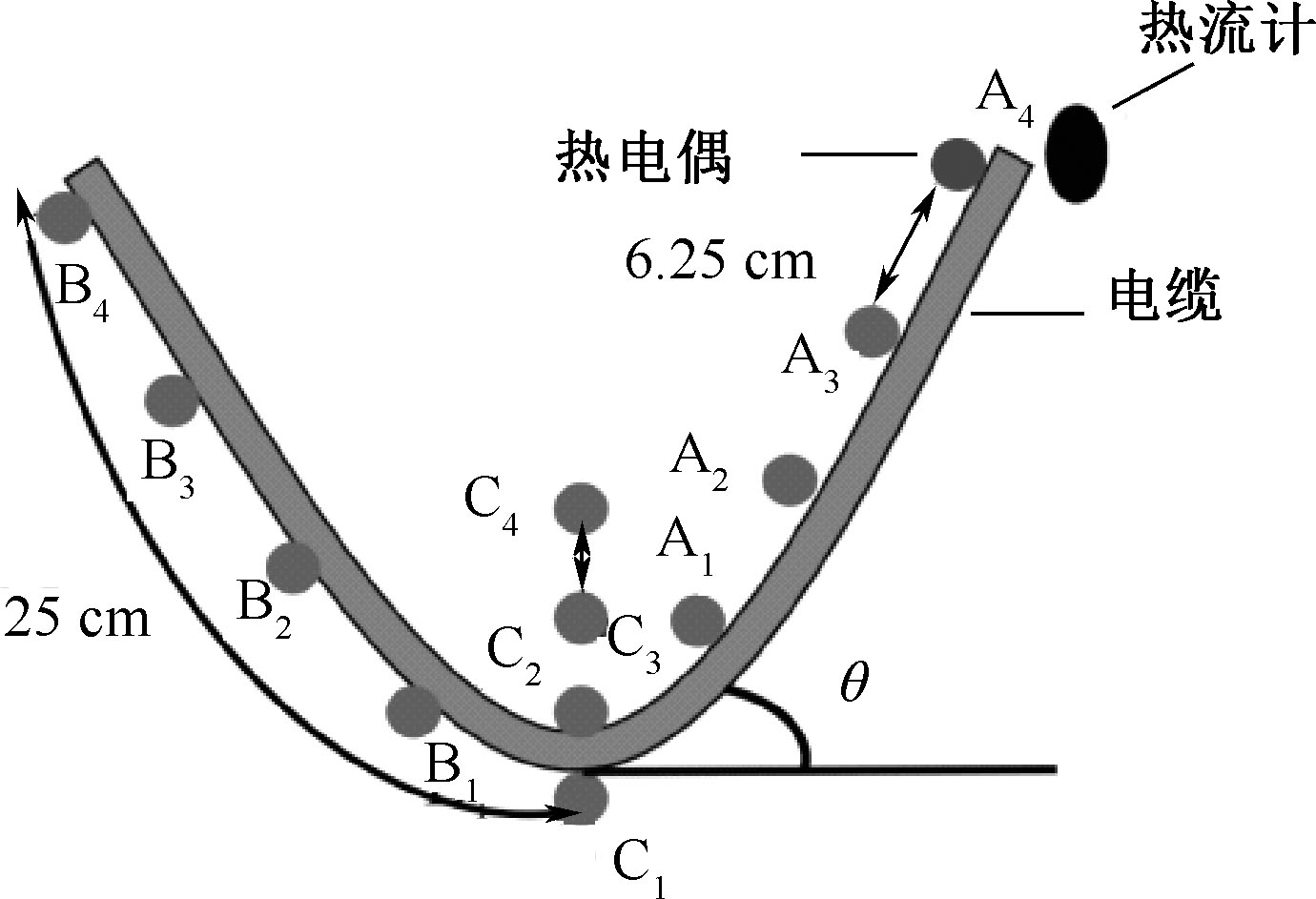

In order to clarify the influence of droop angle on suspended cable fire spread characteristics, a cable combustion test platform was constructed. The cable combustion tests with different droop angles (θ) and different cross-sectional areas (S) were carried out. The results show that the flame presents an axisymmetric conical state when the cable is arranged horizontally. When the droop angle is greater than 0°, as the combustion progresses, the flame shape transits from a multi-branched cone to an extended state along the cable direction. The flame spread behavior of cable can be divided into three stages: the advance of the pyrolysis front in stage I increases FSR, the interaction between thermal convection and thermal radiation in stage II leads to a rapid increase of FSR. Stage III thermal radiation dominates the continuous increase of FSR. The radiation heat flux generated by combustion plays a leading role in the increase of FSR. The rapid increase of radiation heat flux and the appearance of peak value are consistent with the three stages of fire spread, which can be used as a sign of the increase stage. The increase of θ and the decrease of S will promote the increase of FSR. According to the Stephen-Boltzmann law, the relationship between θ and S for the increase of FSR is proposed, and the theoretical index of the relationship is in good agreement with the experimental index.

Key words: suspended cable, flame spread rate (FSR), droop angle, cross-sectional area, heat flux

CLC Number:

X932爆炸安全与防火、防爆

PENG Wei, WANG Yiting, ZHANG Shaojie, REN Junsheng, ZHOU Yue, GU Heng. Study on mechanism of increased fire spread rate of suspended cables[J]. China Safety Science Journal, 2025, 35(11): 157-163.

Figures/Tables 9

Fig.1

Fig.2

Table 1

Fig.3

Fig.4

Fig.5

Fig.6

Table 2

Fig.7

References 18

[1]	SHI Yunliang, YANG Yongxin, ZHU Jinbo, et al. Effect and mechanism of stiffness distribution and sag-span ratio of main cables on structural dynamic characteristics and flutter performance of multi-cable suspension bridges[J]. Journal of Wind Engineering & Industrial Aerodynamics, 2024, 254: DOI: 10.1016/j.jweia.2024.105919.
[2]	钟委, 郭超杰, 马文辉, 等. 管廊内电缆内热源燃烧过程数值模拟研究[J]. 中国安全科学学报, 2023, 33(10):86-93. doi: 10.16265/j.cnki.issn1003-3033.2023.10.1317
	ZHONG Wei, GUO Chaojie, MA Wenhui, et al. Numerical simulation research on combustion process of heat sources inside cables in pipe gallery[J]. Chinese Journal of Safety Science, 2023, 33(10): 86-93.
[3]	王小山. 狭长受限空间电缆火蔓延行为及温度分布规律研究[D]. 徐州: 中国矿业大学, 2023.
	WANG Xiaoshan. Study of cable fire spread behavior and temperature distribution patterns in confined spaces[D]. Xuzhou: China University of Mining and Technology, 2023.
[4]	TANG Kaixuan, WANG Shuai, FU Ming, et al. Comprehensive assessment of the thermal aging effects on fire risks of PVC cable[J]. Journal of Thermal Analysis and Calorimetry, 2024, 149(9): 3785-3793. doi: 10.1007/s10973-024-12959-2
[5]	XU Tong, CHEN Changkun, DU Wuhao, et al. Experimental study on fire spread behavior of single 110 kV cable under different layout conditions[J]. Fire Safety Journal, 2023: 141: DOI: 10.1016/j.firesaf.2023.103957.
[6]	HU Longhua, ZHANG Yangshu, YOSHIOKA K, et al. Flame spread over electric wire with high thermal conductivity metal core at different inclinations[J]. Proceedings of the Combustion Institute, 2015, 35(3): 2607-2614. doi: 10.1016/j.proci.2014.05.059
[7]	CHEN Changkun, DU Wuhao, XU Tong. Experimental study on combustion behavior of U-shaped cables with different bending forms and angles[J]. Fire, 2023, 6(9): DOI: 10.3390/fire6090348.
[8]	WANG Zhi, WANG Jian. A comprehensive study on the flame propagation of the horizontal laboratory wires and flame-retardant cables at different thermal circumstances[J]. Process Safety and Environmental Protection, 2020, 139: 325-333. doi: 10.1016/j.psep.2020.04.030
[9]	王涛, 宋晓枫, 徐文淑, 等. 内热源影响下高压电力电缆着火机制[J]. 中国安全科学学报, 2024, 34(1): 200-205. doi: 10.16265/j.cnki.issn1003-3033.2024.01.1133
	WANG Tao, SONG Xiaofeng, XU Wenshu, et al. Ignition mechanism of high-voltage power cables under influence of internal heat source[J]. China Safety Science Journal, 2024, 34(1): 200-205. doi: 10.16265/j.cnki.issn1003-3033.2024.01.1133
[10]	陈长坤, 杜武豪, 徐童, 等. 下折弯电缆燃烧火蔓延行为试验研究[J]. 清华大学学报:自然科学版, 2025, 65(4): 805-812.
	CHEN Changkun, DU Wuhao, XU Tong, et al. Experimental study on the fire spread behavior of downward-bending cables[J]. Journal of Tsinghua University:science and Technology, 2025, 65(4): 805-812.
[11]	任俊生. 含烃/氟类表面活性剂水雾抑灭液体池火效果实验研究[D]. 淮南: 安徽理工大学, 2024.
	REN Junsheng. Experimental study on the effect of water mist containing hydrocarbon/fluorinated surfactants in suppressing liquid pool fires[D]. Huainan: AnHui University of Science and Technology, 2024.
[12]	JIA Boyan, XIA Yanwei, NING Zhaoyu, et al. Research on the fire extinguishing efficiency of low-pressure water mist in urban underground utility tunnel cable fires[J]. Fire, 2023, 6(11): DOI: 10.3390/fire6110433.
[13]	邢朝亮, 黄咸家, 何乐, 等. 火焰撞击障碍物形成的溢流火焰融合行为研究[J]. 中国安全科学学报, 2021, 31(4): 171-176. doi: 10.16265/j.cnki.issn1003-3033.2021.04.023
	XING Chaoliang, HUANG Xianjia, HE Le, et al. Experimental study on flame merging behavior of spilled flame generated by flame impinging on obstruction[J]. China Safety Science Journal, 2021, 31(4): 171-176. doi: 10.16265/j.cnki.issn1003-3033.2021.04.023
[14]	LIU Xin, ZHU Guoqing, PAN Rongliang, et al. Experimental study on wall fire behavior produced by n-heptane pools with different aspect ratios and orientations in arched tunnel[J]. Case Studies in Thermal Engineering, 2021, 28: DOI: 10.1016/j.csite.2021.101438.
[15]	孟亦飞, 赵东风, 廖启霞. 任意角度喷射火视角因子的计算[J]. 石油化工高等学校学报, 2010, 23(4):85-88.
	MENG Yifei, ZHAO Dongfeng, LIAO Qixia. View factor computation for jet fire of any direction[J]. Journal of Petrochemical Universities, 2010, 23(4): 85-88.
[16]	WANG Qiang, LU Aquan, LIANG Xuan, et al. Thermal radiation distribution of low-momentum jet diffusion flame under the effect of cross airflow[J]. Fire Safety Journal, 2023, 135: DOI: 10.1016/j.firesaf.2022.103728.
[17]	EMORI I, IGUCHI Y, SAITO K, et al. Simplified scale modeling of turbulent flame spread with implication to wildland fires[C]. Proceedings in 2nd International Symposium on Fire Safety Science Hemisphere Publishing Corporation, 1989: 263-273.
[18]	FISENKO I A, IVASHOV N S. Determination of the true temperature of molybdenum and luminous flames from generalized Wien's displacement and Stefan-Boltzmann's laws: thermodynamics of thermal radiation[J]. International Journal of Thermophysics, 2009, 30(5): 1524-1535. doi: 10.1007/s10765-009-0653-8

工况名称	S/mm²	θ/(°)
a₁―a₅	2.5, 4.0, 6.0, 10.0, 16.0	0
b₁―b₅		15
c₁―c₅		22.5
d₁―d₅		30
e₁―e₅		37.5
f₁―f₅		45
g₁―g₅		60
