Study on coal bed gas displacement by flue gas in coal-fired power plants under different gas injection factors

doi:10.16265/j.cnki.issn1003-3033.2025.11.2963

Abstract

Abstract:

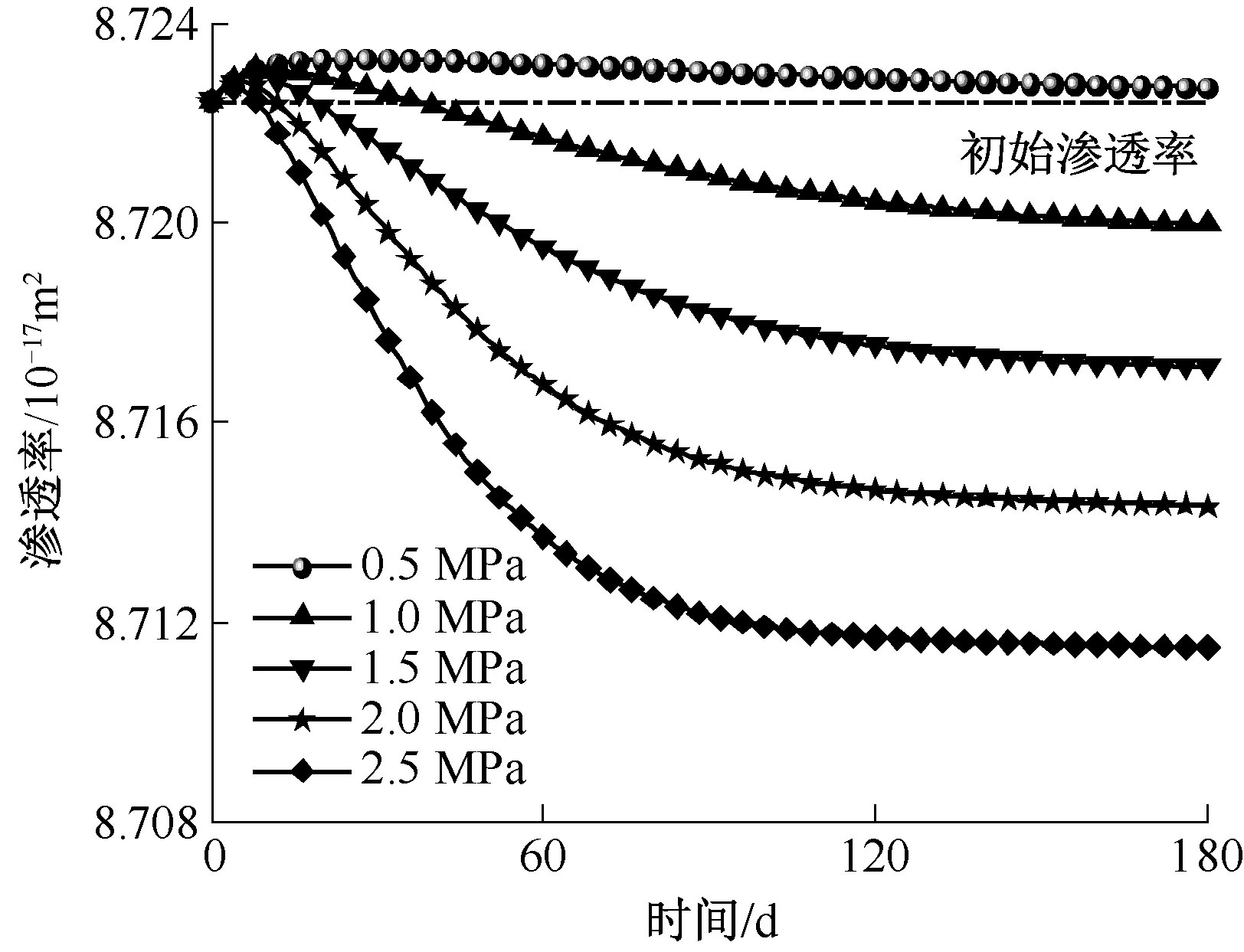

In order to improve the efficiency of gas extraction, numerical simulation methods were employed to analyze the characteristics of changes in gas volume fraction, gas breakthrough time, coal permeability, CH₄ extraction rate, and extraction quantity under different gas injection pressures. The results show that after flue gas injection, the volume fraction of CH₄ shows a downward trend, while the volume fractions of CO₂, N₂ and O₂ show an upward trend. The increase in injection pressure will shorten the breakthrough time of each gas in the flue gas, reduce the permeability of the coal seam and increase the gas extraction volume. At 180 days of extraction, the gas injection pressure increased from 0.5 MPa to 2.5 MPa, the coal seam permeability decreased from 8.722 7×10^-17 m² to 8.711 5×10^-17 m², and the extraction volume increased from 449.01 m³ to 715.30 m³. The gas drainage rate shows the variation characteristics of rising - falling - rising - falling. From the perspective of the influence of gas injection pressure on drainage, the gas injection pressure has a relatively small impact on the drainage in the first two stages.

Key words: injection pressure, power plant flue gas, CH₄ extraction, coalbed methane, gas pressure, gas drainage volume

CLC Number:

X936

BAI Gang, WANG Xuepeng, SU Jun, LIU Zhengdong, LI Jinyu, FAN Chaojun. Study on coal bed gas displacement by flue gas in coal-fired power plants under different gas injection factors[J]. China Safety Science Journal, 2025, 35(11): 65-71.

Figures/Tables 13

Fig.1

Fig.2

Fig.3

Fig.4

Table 1

Table 2

Fig.5

Table 3

Table 4

Fig.6

Fig.7

Table 5

Fig.8

References 19

[1]	LI Guibo, FENG Zengchao, WANG Yanqi, et al. Research on different gas extraction methods of high gas and low permeability coal seam[J]. Chinese Journal of Underground Space and Engineering, 2015, 11(5):1362-1366.
[2]	姜延航, 白刚, 周西华, 等. 煤层注CO₂驱替 CH₄ 影响因素试验研究[J]. 中国安全科学学报, 2022, 32(4):113-121. doi: 10.16265/j.cnki.issn1003-3033.2022.04.017
	JIANG Yanhang, BAI Gang, ZHOU Xihua, et al. Experimental study on influence factors of CH₄ displacement by CO₂[J]. China Safety Science Journal, 2022, 32(4): 113-121. doi: 10.16265/j.cnki.issn1003-3033.2022.04.017
[3]	袁亮, 薛俊华, 张农, 等. 煤层气抽采和煤与瓦斯共采关键技术现状与展望[J]. 煤炭科学技术, 2013, 41(9):6-11,17.
	YUAN Liang, XUE Junhua, ZHANG Nong, et al. Current situation and prospect of key technologies for coalbed methane extraction and coal and gas co-production[J]. Coal Science and Technology, 2013, 41(9):6-11,17.
[4]	国家统计局. 中华人民共和国2020年国民经济和社会发展统计公报[N]. 人民日报, 2021-03-01(010).
[5]	黄戈. 电厂烟气注入采空区对遗煤自燃影响的数值模拟研究[D]. 葫芦岛: 辽宁工程技术大学, 2016.
	HUANG Ge. Numerical simulation of effect of flue gas injection into gob of power plant on spontaneous combustion of abandoned coal[D]. Huludao: Liaoning Technical University, 2016.
[6]	JIANG Kai, ASHWORTH P. The development of carbon capture utilization and storage (CCUS) research in China: a bibliometric perspective[J]. Renewable and Sustainable Energy Reviews, 2021, 138: DOI:10.1016/j.rser.2020.110521.
[7]	FU Lipei, REN Zhangkun, SI Wenzhe, et al. Research progress on CO₂ capture and utilization technology[J]. Journal of CO₂ Utilization, 2022,66: DOI:10.1016/J.ENERGY.2023.126664.
[8]	YU Wu, LIU Jishan, CHEN Zhongwei, et al. A dual poroelastic model for CO₂-enhanced coal bed methane recovery[J]. International Journal of Coal Geology, 2011, 86(2/3):177-189. doi: 10.1016/j.coal.2011.01.004
[9]	DUTKA B, KUDASIK M, POKRYSZKA Z, et al. Balance of CO₂/CH₄ exchange sorption in acoal briquette[J]. Fuel Processing Technology, 2013, 106: 95-101. doi: 10.1016/j.fuproc.2012.06.029
[10]	FANG Huihuang, SANG Shuxun, LIU Shiqi. Establishment of dynamic permeability model of coal reservoir and its numerical simulation during the CO₂-ECBM process[J]. Journal of Petroleum Science and Engineering, 2019, 179: 885-898. doi: 10.1016/j.petrol.2019.04.095
[11]	FAN Yongpeng, DENG Cunbao, ZHANG Xun, et al. Numerical study of CO₂-enhanced coalbed methane recovery[J]. International Journal of Greenhouse Gas Control, 2018, 76: 12-23. doi: 10.1016/j.ijggc.2018.06.016
[12]	FAGHIHI S, MOGHADASI J, JAMIALAHMADI M. Continuous CO₂ injection for simultaneous geological storage and enhanced oil recovery: experimental investigation on the effects of permeability heterogeneity[J]. Greenhouse Gases: Science and Technology, 2025, 15(4):458-471. doi: 10.1002/ghg3.v15.4
[13]	JESSEN K, TANG G Q, KOVSCEK A R. Laboratory and simulation investigation of enhanced coalbed methane recovery by gas injection[J]. Transport in Porous Media, 2008, 73(2):141-159. doi: 10.1007/s11242-007-9165-9
[14]	AKASH T, SUBASIS H, INAN A C. Enhancing coal bed methane recovery: using injection of nitrogen and carbon dioxide mixture[J]. Petroleum Science and Technology, 2021, 39(2):49-62. doi: 10.1080/10916466.2020.1831533
[15]	FAN Nan, WANG Jiren, DENG Cunbao, et al. Numerical study on enhancing coalbed methane recovery by injecting N₂/CO₂ mixtures and its geological significance[J]. Energy Science & Engineering, 2020, 8(4):1104-1119. doi: 10.1002/ese3.v8.4
[16]	ZHOU Lijun, ZHOU Xihua, FAN Chaojun, et al. Modelling of flue gas injection promoted coal seam gas extraction incorporating heat-fluid-solid interactions[J]. Energy, 2023, 268: DOI:10.1016/J.ENERGY.2023.126664.
[17]	季鹏飞, 林海飞, 孔祥国, 等. 注氮促排煤体瓦斯数值模拟研究[J]. 中国安全科学学报, 2021, 31(11):127-134. doi: 10.16265/j.cnki.issn 1003-3033.2021.11.018
	JI Pengfei, LIN Haifei, KONG Xiangguo, et al. Numerical simulation research on coal gas drainage by nitrogen injection[J]. China Safety Science Journal, 2021, 31(11): 127-134. doi: 10.16265/j.cnki.issn 1003-3033.2021.11.018
[18]	FAN Chaojun, ELSWORTH D, LI Sheng, et al. Thermo-hydro-mechanical-chemical couplings controlling CH₄ production and CO₂ sequestration in enhanced coalbed methane recovery[J]. Energy, 2019, 173: 1054-1077. doi: 10.1016/j.energy.2019.02.126
[19]	BAI Gang, WANG Xuepeng, WANG Jue, et al. Heat-fluid-solid-coupled model for flue gas displacement of CH₄ in coal seams and its applications[J]. ACS Omega, 2025, 10(2):2338-2353. doi: 10.1021/acsomega.4c10428 pmid: 39866620

条件	固体变形	流体边界	温度边界
边界EF	15 MPa	零通量	零通量
边界EG	辊支撑	零通量	零通量
边界FH	辊支撑	零通量	零通量
边界GH	固定约束	零通量	零通量
抽采孔	自由边界	86kPa	自由边界
注气孔	自由边界	狄式条件	狄式条件

组	注气压力/MPa	注气温度/K
1	0.5	300
2	1.0	300
3	1.5	300
4	2.0	300
5	2.5	300

压力/ MPa	抽采总量/ m³(60 d)	抽采总量/ m³(120 d)	抽采总量/ m³(180 d)
0.5	123.37	300.55	449.01
1.0	134.08	336.93	509.98
1.5	155.97	390.28	586.47
2.0	168	429.11	650.46
2.5	177.67	464.76	715.30
