岩爆倾向性的改进有限云评价模型与工程应用

doi:10.16265/j.cnki.issn1003-3033.2022.02.013

摘要/Abstract

摘要：

为解决深部开采顶板岩爆评价问题,以挑水河磷矿为例,提出由3个岩爆倾向性评价指标e₀/e_c、e₁/e_c、e_c/e_t组成的综合性评价指标体系,采用消除云雾化的综合权重法,建立顶板多指标岩爆倾向性的改进有限云评价模型;通过FLAC^3D模拟计算采场的应力值,获得e₀/e_c、e₁/e_c、e_c/e_t的参数值;开展挑水河磷矿顶板岩爆倾向性评价,根据最大隶属度原则判定挑水河磷矿顶板的岩爆倾向性。结果表明:挑水河磷矿深部采场顶板为弱岩爆倾向性,与实际情况相符;对比其他方法结果,证明模型具备准确性;提出岩爆危险区域进行标示、支护和监测的控制措施。

关键词: 岩爆倾向性, 改进有限云评价模型, 综合权重, 权重云, 采动应力

Abstract:

In order to evaluate rockburst in deep mining, with Tiaoshui river Phosphorite Mine being taken as an example, a comprehensive evaluation system of 3 rockburst proneness indexes e₀/e_c、e₁/e_c、e_c/e_t were put forward, and comprehensive weight method which was able to eliminate cloud atomization was adopted to develop an improved finite cloud evaluation model for roof multi-index rockburst proneness. Then, stress value of the stope was calculated by FLAC^3D, and parameter values of e₀/e_c、e₁/e_c、e_c/e_t were obtained. Finally, evaluation experiment on Tiaoshui river Phosphate Mine was carried out, and rockburst proneness of its top slab was determined according to the principle of maximum membership. The results show that the roof of its deep stope has a weak rockburst proneness, which is consistent with actual situation. Compared with the results of other methods, this model features good accuracy. Moreover, control measures, like identification, supporting and monitoring of rockburst hazard areas, are proposed.

Key words: rockburst proneness, evaluation model of improved finite cloud, comprehensive weight, weight cloud, mining-induced stress

胡建华, 黄鹏莅, 周坦, 温观平, 杨东杰. 岩爆倾向性的改进有限云评价模型与工程应用[J]. 中国安全科学学报, 2022, 32(2): 90-98.

HU Jianhua, HUANG Pengli, ZHOU Tan, WEN Guanping, YANG Dongjie. Evaluation and engineering application of an improved finite cloud model for rockburst proneness[J]. China Safety Science Journal, 2022, 32(2): 90-98.

图/表 16

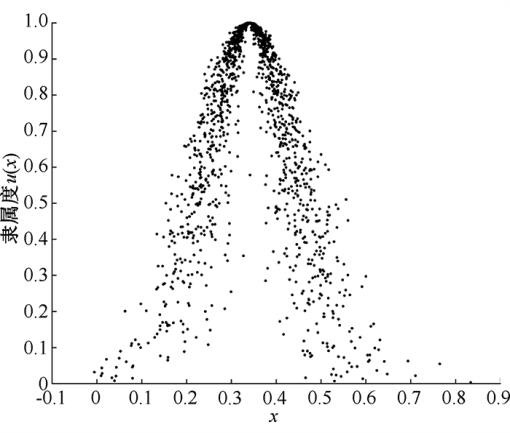

图1

表1

图2

图3

表2

表3

各岩层岩体力学参数

地层	天然密度/ (10³kg·m^-3)	体积模量/ MPa	剪切模量/ MPa	内摩擦角/ (°)	黏聚力/ MPa	抗拉强度/ MPa	抗压强度/ MPa
上盘围岩Z₂ $d 2 1$	2.845	45 319.4	11 289	50.58	4.808 1	5.494	178.83
磷矿层Ph₂	3.021	14 218.9	8 573.8	60.759	1.052 4	2.01	85.40
下盘围岩Z₂ $d 1 3$	2.846	25 786	16 599.1	53.595	1.731 9	3.642 8	205.70

表3

图4

表4

表5

表6

表7

图5

表8

图6

图7

表9

参考文献 21

[1]	唐礼忠, 王文星. 一种新的岩爆倾向性指标[J]. 岩石力学与工程学报, 2002, 21(6):874-878.
	TANG Lizhong, WANG Wenxing. New rock burst proneness index[J]. Chinese Journal of Rock Mechanics and Engineering, 2002, 21(6):874-878.
[2]	胡建华, 尚俊龙, 周科平. 岩爆烈度预测的改进物元可拓模型与实例分析[J]. 中国有色金属学报, 2013, 23(2):495-502.
	HU Jianhua, SHANG Junlong, ZHOU Keping. Improved matter-element extension model and its application to prediction of rockburst intensity[J]. The Chinese Journal of Nonferrous Metals, 2013, 23(2):495-502.
[3]	王迎超, 靖洪文, 张强, 等. 基于正态云模型的深埋地下工程岩爆烈度分级预测研究[J]. 岩土力学, 2015, 36(4):1189-1194.
	WANG Yingchao, JING Hongwen, ZHANG Qiang, et al. A normal cloud model-based study of grading prediction of rockburst intensity in deep underground engineering[J]. Rock and Soil Mechanics, 2015, 36(4):1189-1194.
[4]	周科平, 林允, 胡建华, 等. 基于熵权-正态云模型的岩爆烈度分级预测研究[J]. 岩土力学, 2016, 37(增1):596-602.
	ZHOU Keping, LIN Yun, HU Jianhua, et al. Grading prediction of rockburst intensity based on entropy and normal cloud model[J]. Rock and Soil Mechanics, 2016, 37(S1):596-602.
[5]	周东良, 邓红卫, 秦秀合, 等. 基于组合赋权和有限区间云模型的岩爆预测二维评判[J]. 矿业研究与开发, 2019, 39(12):87-93.
	ZHOU Dongliang, DENG Hongwei, QIN Xiuhe, et al. Two dimensional evaluation of rockburst prediction based on combinational weighting and finite interval cloud mode[J]. Mining Research and Development, 2019, 39(12):87-93.
[6]	李绍红, 王少阳, 朱建东, 等. 基于权重融合和云模型的岩爆倾向性预测研究[J]. 岩土工程学报, 2018, 40(6):1075-1083.
	LI Shaohong, WANG Shaoyang, ZHU Jiandong, et al. Prediction of rock burst tendency based on weighted fusion and improved cloud model[J]. Chinese Journal of Geotechnical Engineering, 2018, 40(6):1075-1083.
[7]	胡甚平, 许玲, 席永涛, 等. 基于云模型的航运公司安全管理分级评价方法[J]. 中国安全科学学报, 2013, 23(10):139-144.
	HU Shenping, XU Ling, XI Yongtao, et al. Cloud model based ranking evaluation of safety management for shipping company[J]. China Safety Science Journal, 2013, 23(10):139-144.
[8]	周坦, 胡建华, 匡也. 基于模糊RES-多维云模型的岩体质量评判方法与应用[J]. 中国有色金属学报, 2019, 29(8):1771-1780.
	ZHOU Tan, HU Jianhua, KUANG Ye. Rock mass quality evaluation method and application based on fuzzy RES-multidimensional cloud model[J]. The Chinese Journal of Nonferrous Metals, 2019, 29(8):1771-1780.
[9]	黄仁东, 刘赞赞, 闫泽正. 基于有限云模型的深基坑安全性研究[J]. 黄金科学技术, 2019, 27(1):72-79.
	HUANG Rendong, LIU Zanzan, YAN Zezheng. Research on the safety of deep foundation pit based on finite cloud model[J]. Gold Science and Technology, 2019, 27(1):72-79.
[10]	王元汉, 李卧东, 李启光, 等. 岩爆预测的模糊数学综合评判方法[J]. 岩石力学与工程学报, 1998, 17(5):15-23.
	WANG Yuanhan, LI Wodong, LI Qiguang, et al. Method of fuzzy comprehensive evaluations for rockburst prediction[J]Chinese Journal of Rock Mechanics and Engineering, 1998, 17(5):15-23.
[11]	白明洲, 王连俊, 许兆义. 岩爆危险性预测的神经网络模型及应用研究[J]. 中国安全科学学报, 2002, 12(4):68-72.
	BAI Mingzhou, WANG Lianjun, XU Zhaoyi. Study on a neutral network model and its application in predicting the risk of rock blast[J]. China Safety Science Journal, 2002, 12(4):68-72.
[12]	胡建华, 习智琴, 周科平. 深部采空区尺寸效应的危险度正态云辨识模型[J]. 中国安全科学学报, 2016, 26(10):70-75.
	HU Jianhua, XI Zhiqin, ZHOU Keping. Normal cloud model for identifying hazard degree of deep goaf size effect[J]. China Safety Science Journal, 2016, 26(10):70-75.
[13]	刘禹, 李德毅. 正态云模型雾化性质统计分析[J]. 北京航空航天大学学报, 2010, 36(11):1320-1324.
	LIU Yu, LI Deyi. Statistics on atomized feature of normal cloud model[J]. Journal of Beijing University of Aeronautics and Astronautics, 2010, 36(11):1320-1324.
[14]	吴忠广. 深埋隧道硬岩灾变风险评估方法研究[D]. 北京: 北京科技大学, 2021.
	WU Zhongguang. Research on risk assessment method for hard rock catastrophe in deep tunnels[D]. Beijing: University of science and technology Beijing, 2021.
[15]	陶振宇. 若干电站地下工程建设中的岩爆问题[J]. 水力发电, 1988, 24(7):40-45.
	TAO Zhenyu. Rock burst in some underground engineering constructions of power stations[J]. Water Power, 1988, 24(7):40-45.
[16]	石长岩. 红透山铜矿深部开采岩爆倾向性及监测控制研究[D]. 沈阳: 东北大学, 2009.
	SHI Changyan. Study on rockburst tendentiousness and monitoring control in Hongtoushan copper mine[D]. Shenyang: Northeastern University, 2009.
[17]	陈萍萍. 爆破卸压对深部高应力区矿山巷道稳定性的影响分析[D]. 武汉: 武汉理工大学, 2018.
	CHEN Pingping. Impact analysis of pressure-relief blasting on roadway stability in deep mining area with high stress[D]. Wuhan: Wuhan University of Technology, 2018.
[18]	林业, 杜绍伦, 马春德, 等. 马路坪矿深部开采岩爆倾向性模糊综合评判[J]. 金属矿山, 2010, 39(4):10-14.
	LIN Ye, DU Shaolun, MA Chunde, et al. Fuzzy comprehensive evaluation on rock-burst tendency of deep mining in maluping mine[J]. Metal Mine, 2010, 39(4):10-14.
[19]	中国地质大学(武汉),湖北三宁矿业有限公司. 挑水河磷矿区岩石物理力学性质测试报告[R], 2017.
[20]	中南大学,湖北三宁矿业有限公司. 三宁矿业挑水河磷矿智能采矿关键技术及应用研究[R], 2017.
[21]	刘树新, 鲁思佐, 陈阳. 基于多重判据的某深部矿区岩爆倾向性研究[J]. 矿业研究与开发, 2017, 37(2):9-12.
	LIU Shuxin, LU Sizuo, CHEN Yang. Study on rockburst proneness of a deep mine based on multiple criterion[J]. Mining Research and Development, 2017, 37(2):9-12.

指标	岩爆倾向性
指标	无岩爆	弱岩爆	中岩爆	强岩爆
e₀/e_c	<0.3	[0.3,0.5)	[0.5,0.7)	≥0.7
e_c/e_t	>40	[26.7,40)	[14.5,26.7)	<14.5
e₁/e_c	<0.2	[0.2,0.27)	[0.27,0.4)	≥0.4

案例	岩爆倾向性评价指标			实际岩爆等级	本文预测结果
案例	e₀/e_c	e_c/e_t	e₁/e_c	实际岩爆等级	本文预测结果
1	0.27	0.43	0.10	Ⅲ	Ⅲ
2	0.14	0.15	0.66	Ⅳ	Ⅳ
3	0.54	0.12	0.22	Ⅳ	Ⅳ
4	0.13	0.13	0.11	Ⅰ	Ⅰ
5	0.2	0.13	0.14	Ⅰ	Ⅰ
6	0.21	0.22	0.13	Ⅱ	Ⅱ
7	1.00	0.22	0.30	Ⅳ	Ⅳ

岩爆等级	岩爆倾向性评价指标
岩爆等级	e₀/e_c	e_c/e_t	e₁/e_c
Ⅰ	0.00~0.30	0.80~1.00	0.00~0.20
Ⅱ	0.30~0.50	0.53~0.80	0.20~0.27
Ⅲ	0.50~0.70	0.29~0.53	0.27~0.40
Ⅳ	0.70~1.00	0.00~0.29	0.40~1.00

岩爆等级	岩爆倾向性评价指标
岩爆等级	e₀/e_c	e_c/e_t	e₁/e_c
Ⅰ	E_x=0.15 E_n=0.05	E_x=0.90 E_n=0.03	E_x=0.10 E_n=0.03
Ⅱ	E_x=0.40 E_n=0.03	E_x=0.67 E_n=0.05	E_x=0.24 E_n=0.01
Ⅲ	E_x=0.60 E_n=0.03	E_x=0.41 E_n=0.04	E_x=0.34 E_n=0.02
Ⅳ	E_x=0.85 E_n=0.05	E_x=0.15 E_n=0.05	E_x=0.70 E_n=0.10

权重	指标
权重	e₀/e_c	e_c/e_t	e₁/e_c
w₁	0.400	0.300	0.300
w₂	0.365	0.313	0.322
权重	指标
权重	e₀/e_c	e_c/e_t	e₁/e_c
w₃	0.361	0.325	0.314
w₄	0.427	0.302	0.271
w₅	0.428	0.229	0.343
w₆	0.250	0.250	0.500
w₇	0.235	0.295	0.470
