多级精细模型下的电机匝间短路故障诊断

doi:10.16265/j.cnki.issn1003-3033.2022.06.2597

中国安全科学学报 ›› 2022, Vol. 32 ›› Issue (6): 95-102.doi: 10.16265/j.cnki.issn1003-3033.2022.06.2597

多级精细模型下的电机匝间短路故障诊断

余伟¹(), 王志鹏¹, 刘硕², 何刚³

1 佛山科学技术学院机电工程与自动化学院,广东佛山528231
2 韩国京畿大学电子信息学院, 韩国京畿道水原 449-701
3 华南理工大学广州现代产业技术研究院,广东广州 511455

收稿日期:2022-01-11 修回日期:2022-04-12 出版日期:2022-06-28 发布日期:2022-12-28
作者简介:
余伟 (1983—),男,江西樟树人,博士,副教授,主要从事系统建模、超精密运动控制、复杂系统故障诊断方面的研究。E-mail: yuwei83@fosu.edu.cn
何刚,工程师
基金资助:
国家自然科学基金资助(61803086); 国家自然科学基金资助(61733015)

Inter-turn short circuit fault diagnosis for motors based on multi-level fine model

YU Wei¹(), WANG Zhipeng¹, LIU Shuo², HE Gang³

1 School of Mechatronics Engineering and Automation, Foshan University, Foshan Guangdong 528231, China
2 School of Electronic Information, Kyonggi University, Suwon Gyeonggi Province 449-701, Korea
3 Guangzhou Institute of Modern Industrial Technology, South China University of Technology, Guangzhou Guangdong 511455, China

Received:2022-01-11 Revised:2022-04-12 Online:2022-06-28 Published:2022-12-28

摘要/Abstract

摘要：

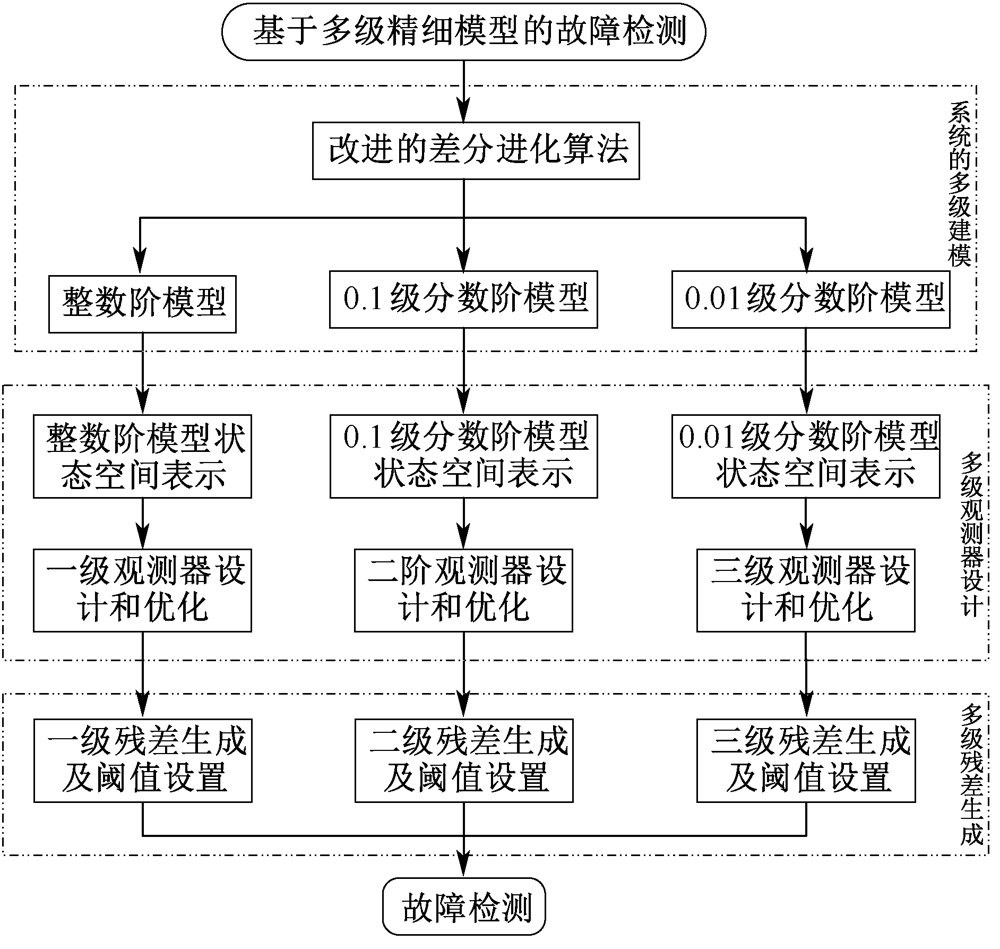

为有效诊断地铁轨道交通电机运行过程中的匝间短路故障,提出基于分数阶微积分表示的永磁同步电机系统多级精细模型(整数阶、0.1级分数阶、0.01级分数阶)的故障诊断方法;在此基础之上,设计相应级别的多级观测器,生成相应的多级残差表示,设立相应的多级阈值;根据残差和阈值实现多级故障诊断,并进行仿真验证。结果表明:整数阶模型仅能检测出20%匝间短路故障,0.1级分数阶模型可以检测出10%的小范围匝间短路故障,而0.01分数阶模型可以检测出5%的微小匝间短路故障,即所提出的方法能诊断电机的微小匝间短路故障,且实现故障的分级。

关键词: 多级精细模型, 匝间短路故障, 故障诊断, 永磁同步电机, 地铁轨道交通

Abstract:

In order to effectively diagnose turn-to-turn short circuit faults during operation of metro rail transit motors, a diagnosis method was proposed, which established a multi-level fine model of permanent magnet synchronous motor system based on fractional order calculus representation (integer order, 0.1 level fractional order, 0.01 level fractional order). Then, corresponding multi-level observer was designed, residual representation was generated, and threshold was set. Finally, multi-level fault diagnosis was achieved according to residual and threshold before simulation was conducted for verification. The results show that integer-order model can detect 20% inter-turn short-circuit faults, while 0.1-level fractional-order model detects 10% and the 0.01-level one detects 5% of tiny faults, which indicates that the proposed method can diagnose tiny inter-turn short-circuit faults and achieve fault classification.

Key words: multi-level fine model, turn-to-turn short circuit fault, fault diagnosis, permanent magnet synchronous motor, metro rail transportation

余伟, 王志鹏, 刘硕, 何刚. 多级精细模型下的电机匝间短路故障诊断[J]. 中国安全科学学报, 2022, 32(6): 95-102.

YU Wei, WANG Zhipeng, LIU Shuo, HE Gang. Inter-turn short circuit fault diagnosis for motors based on multi-level fine model[J]. China Safety Science Journal, 2022, 32(6): 95-102.

图/表 9

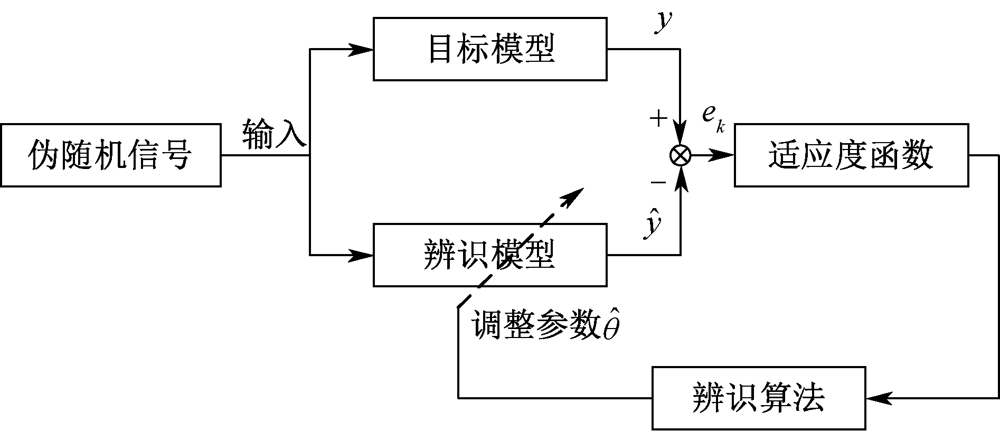

图1

图2

图3

图4

图5

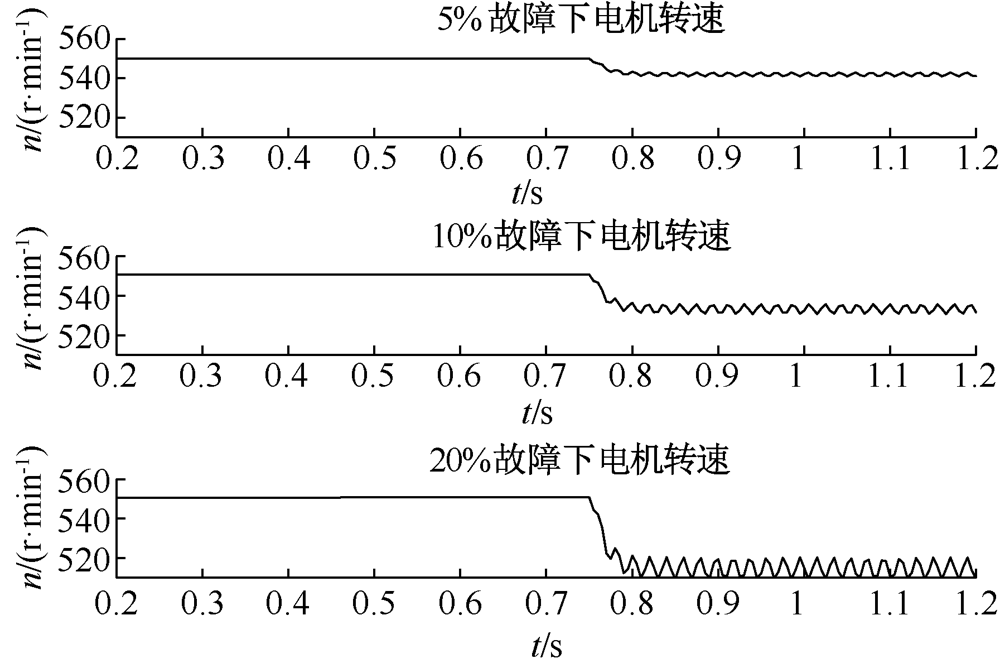

图6

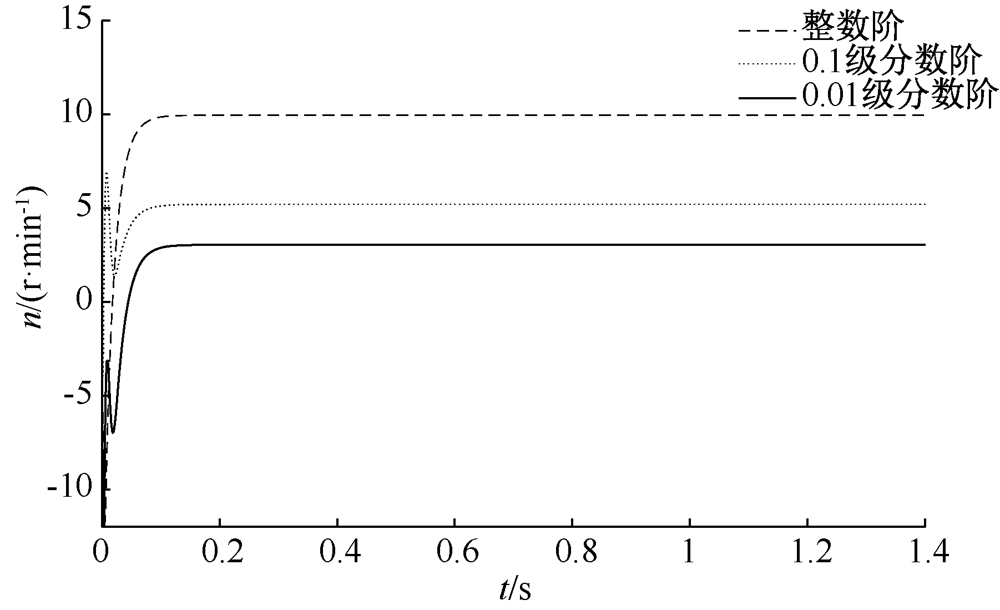

图7

图8

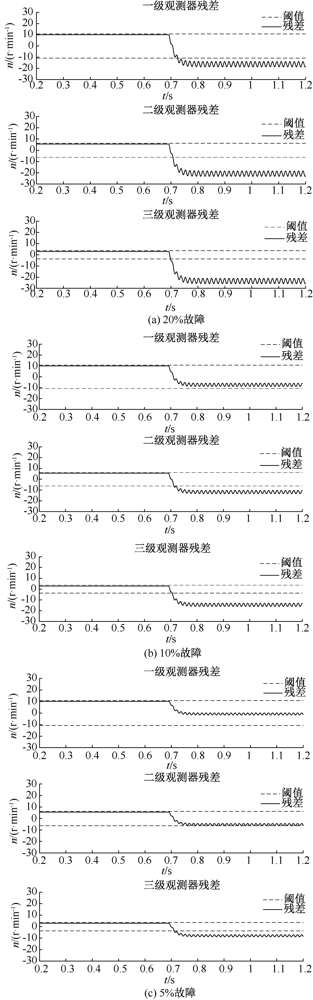

表1

故障诊断结果

故障大小	20% 匝间短路	10%匝间短路	5%匝间短路
一级残差	$\| e 1 \| > J p 1$	$\| e 1 \| ≤ J p 1$	$\| e 1 \| ≤ J p 1$
二级残差	$\| e 2 \| > J p 2$	$\| e 2 \| > J p 2$	$\| e 2 \| ≤ J p 2$
三级残差	$\| e 3 \| > J p 3$	$\| e 3 \| > J p 3$	$\| e 3 \| > J p 3$
诊断结果	大故障	小故障	微小故障

表1

参考文献 15

[1]	刘计龙, 肖飞, 沈洋, 等. 永磁同步电机无位置传感器控制技术研究综述[J]. 电工技术学报, 2017, 32(16): 76-88.
	LIU Jilong, XIAO Fei, SHEN Yang, et al. Position-sensorless control technology of permanent-magnet synchronous motor-a review[J]. Transactions of China Electrotechnical Society, 2017, 32(16): 76-88.
[2]	古莹奎, 刘平, 林忠海, 等. 基于Kurtogram与DSCN的滚动轴承故障诊断方法[J]. 中国安全科学学报, 2021, 31(6): 99-105. doi: 10.16265/j.cnki.issn 1003-3033.2021.06.013
	GU Yingkui, LIU Ping, LIN Zhonghai, et al. Fault diagnosis method of rolling bearing based on Kurtogram and DSCN[J]. China Safety Science Journal, 2021, 31(6): 99-105. doi: 10.16265/j.cnki.issn 1003-3033.2021.06.013
[3]	白润才, 柴森霖, 刘光伟, 等. 基于Mallat算法与ARMA模型的露天矿卡车故障率预测[J]. 中国安全科学学报, 2018, 28(10): 31-37. doi: 10.16265/j.cnki.issn1003-3033.2018.10.006
	BAI Runcai, CHAI Senlin, LIU Guangwei, et al. Method for predicting truck's failure rate in open-pit mine based on Mallat algorithm and ARMA model[J]. China Safety Science Journal, 2018, 28(10): 31-37. doi: 10.16265/j.cnki.issn1003-3033.2018.10.006
[4]	文成林, 吕菲亚, 包哲静, 等. 基于数据驱动的微小故障诊断方法综述[J]. 自动化学报, 2016, 42(9): 1285-1299.
	WEN Chenglin, LYU Feiya, BAO Zhejing, et al. A review of data driven-based incipient fault diagnosis[J]. Acta Automatica Sinica, 2016, 42(9): 1285-1299.
[5]	CHENG Ming, HANG Jun, ZHANG Jianzhong. Overview of fault diagnosis theory and method for permanent magnet machine[J]. Chinese Journal of Electrical Engineering, 2015, 1(1):DOI: 10.23919/cjee.2015.7933135. doi: 10.23919/cjee.2015.7933135
[6]	YUAN Qi, BOSTANCI E, GURUSANMY V, et al. A comprehensive analysis of short-circuit current behavior in PMSM interturn short-circuit faults[J]. IEEE Transactions on Power Electronics, 2018, 33(12): 10 784-10 793.
[7]	ZHANG Chengning, WANG Fang, WANG Zhifu, et al. Analysis of stator winding inter-turn short circuit fault of PMSM for electric vehicle based on finite element simulation[C]. Transportation Electrification Asia-pacific. IEEE, 2014:1-6.
[8]	LEBOEUF N, BOILEAU T, NAHID-MOBARKEH B, et al. Real-time detection of interturn faults in PM drives using back-EMF estimation and residual analysis[J]. IEEE Transactions on Industry Applications, 2011, 47(6):2402-2412. doi: 10.1109/TIA.2011.2168929
[9]	AUBERT B, REGNIER J, CAUX S, et al. Kalman-filter-based indicator for online interturn short circuits detection in permanent-magnet synchronous generators[J]. IEEE Transactions on Industrial Electronics, 2015, 62(3): 1921-1930. doi: 10.1109/TIE.2014.2348934
[10]	陈伯时. 电力拖动自动控制系统:运动控制系统[M]. 北京: 机械工业出版社, 2003: 4-30.
	11 YU Wei, LUO Ying, CHEN Yangquan, et al. Frequency domain modeling and control of fractional order system for permanent magnet synchronous motor velocity servo system[J]. IET Control Theory and Applications, 2016, 10 (2):136-143. doi: 10.1049/iet-cta.2014.1296
[12]	YU Wei, LIANG Henghui, DONG Xunde, et al. Modeling and identification of permanent magnet synchronous motor via deterministic learning[J]. IEEE Access, 2020, 8: 168 516-168 525.
[13]	余伟, 梁恒辉, 罗映. 一种改进差分进化算法的分数阶系统辨识研究[J]. 系统仿真学报, 2021, 33(5): 1157-1166. doi: 10.16182/j.issn1004731x.joss.20-0853
	YU Wei, LIANG Henghui, LUO Ying. An Improved differential evolution algorithm for fractional order system identification[J]. Journal of System Simulation, 2021, 33(5): 1157-1166. doi: 10.16182/j.issn1004731x.joss.20-0853
[14]	赵慧敏, 李文, 邓武. 一类分数阶滤波器逼近阶次的选择[J]. 电机与控制学报, 2010, 14(1): 90-94, 101.
	ZHAO Huimin, LI Wen, DENG Wu. Approximation degree selection for one kind of fractional-order filter[J]. Electric Machines and Control, 2010, 14(1): 90-94, 101.
[15]	MOON S, JEONG H, LEE H, et al. Interturn short fault diagnosis in a PMSM by voltage and current residual analysis with the faulty winding model[J]. IEEE Transactions on Energy Conversion, 2018, 33(1): 190-198. doi: 10.1109/TEC.2017.2726142
