基于LabVIEW的矿井提升机液压制动在线监测

刘鑫1(), 王亚军2, 姚美常3, 苏磊4, 王鹏1

  1. 1 国家能源集团 神东煤炭集团高端设备研发中心, 陕西 榆林 719300
    2 国家能源集团神东煤炭集团技术研究院, 陕西 榆林 719300
    3 南京方一测控科技有限公司, 江苏 南京 210009
    4 国家能源集团 神东煤炭集团柳塔煤矿, 内蒙古 鄂尔多斯 017000
  • 收稿日期:2023-02-06 修回日期:2023-05-24 出版日期:2023-06-30
  • 作者简介:

    刘鑫 (1986—),男,山西阳泉人,本科,工程师,主要从事矿井设备在线监测等方面的工作。E-mail:

    王亚军 工程师

    姚美常 工程师

    苏磊 工程师

    王鹏 工程师

Online monitoring of hydraulic brake of mine hoist based on LabVIEW

LIU Xin1(), WANG Yajun2, YAO Meichang3, SU Lei4, WANG Peng1

  1. 1 High-End Equipment R&D Center of Shendong Coal Group, National Energy Group, Yulin Shaanxi 719300, China
    2 Technology Research Institute of Shendong Coal Group, National Energy Group, Yulin Shaanxi 719300, China
    3 Nanjing Fangyi Measurement and Control Technology Co., Ltd., Nanjing Jiangsu 210009, China
    4 Liuta Coal Mine of Shendong Coal Group, National Energy Group, Ordos Inner Mongolia 017000, China
  • Received:2023-02-06 Revised:2023-05-24 Published:2023-06-30

摘要:

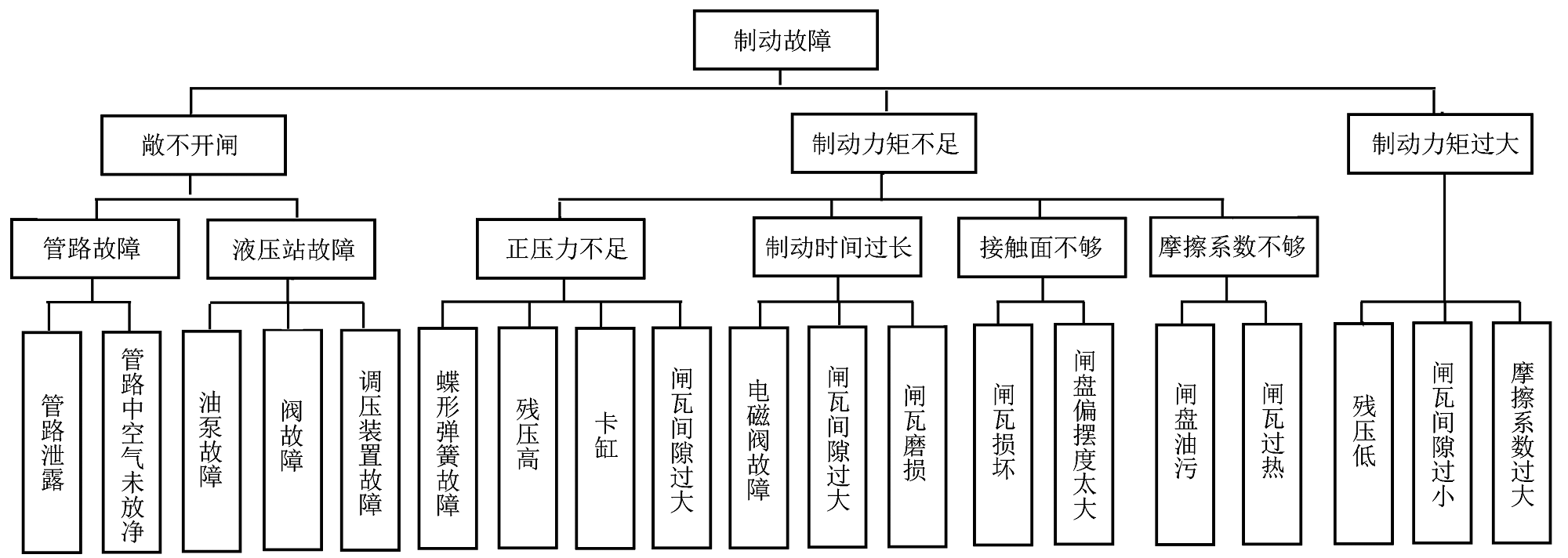

为保障矿井提升机液压制动系统在运行过程中的可靠性和安全性,设计一种基于LabVIEW的提升机液压制动系统在线监测装置,将LabVIEW和可编辑逻辑控制器(PLC)相结合,充分利用LabVIEW强大的数据处理能力,通过检测液压制动系统的状态参数,分析评价设备工况;并利用新型碟簧座传感器,建立制动正压力和应变的数学模型,通过分析液压站和制动器的故障参数,采用故障诊断专家系统诊断液压制动故障,实现对提升机液压制动系统的安全预警。结果表明:该矿井提升机液压制动系统在线监测装置通过8个功能模块的实时监控,利用液压系统故障树能够系统实时诊断故障,对于保证矿井提升机的安全和可靠性、延长使用寿命、提高矿山生产效率和降低维修成本具有重要的意义。

关键词: LabVIEW, 矿井提升机, 液压制动系统, 在线监测, 故障诊断

Abstract:

In order to ensure the reliability and safety of the hydraulic brake system of the mine hoist during operation, an online monitoring device for the hydraulic brake system of the mine hoist based on LabVIEW was designed. LabVIEW and programmable logic controller (PLC) were combined, and the powerful data processing capability of LabVIEW was fully utilized to detect the state parameters of the hydraulic brake system and then analyze and evaluate the device's working condition. A new type of disc spring seat sensor was used to establish the mathematical model of brake positive pressure and strain. By analyzing the fault parameters of the hydraulic station and brake, the fault diagnosis expert system was adopted to diagnose the fault of the hydraulic brake and realize the safety early warning of the hydraulic brake system of the mine hoist. The results show that the online monitoring device of the hydraulic brake system of the mine hoist monitors eight functional modules in real time and uses a hydraulic system fault tree to make real-time fault diagnosis of the system, which is of great significance to ensure the safety and reliability of the mine hoist, extend the service life, improve the mine production efficiency, and reduce maintenance cost.

Key words: LabVIEW, mine hoist, hydraulic brake system, online monitoring, fault diagnosis
