基于改进灰色预测的瓦斯突出敏感指标分析

doi:10.16265/j.cnki.issn1003-3033.2022.11.0326

摘要/Abstract

摘要：

为理清煤与瓦斯突出敏感指标间的相互关系,首先采用灰色关联分析模型,结合钻孔瓦斯初速度法和钻屑指标法,选取钻孔瓦斯涌出初速度q_m为参考序列,钻屑瓦斯解析指标Δh₂、K₁与钻屑量S为比较序列,分析煤与瓦斯突出敏感指标关联性,判定影响煤与瓦斯突出事故的关键因素;其次引入缓冲弱化算子和自动寻优定权法,用以改进经典GM (1,1)模型,然后建模,并量化分析q_m、 Δh₂、 K₁、 S等4个敏感指标的相互关系;最后以山西某矿井工作面实测瓦斯数据为例,计算各敏感指标参数。结果表明:该矿井瓦斯突出敏感指标对突出危险影响的排序为Δh₂> S >K₁;且Δh₂、K₁、S与q_m间存在交叉关系;改进后的灰色预测模型小误差概率值从0.69增加至0.87,后验差比值从0.500 0降低至0.431 7,预测等级由及格提升至良好级别。

关键词: 瓦斯突出, 敏感指标, 灰色预测, 灰色关联分析, 钻屑瓦斯解析指标

Abstract:

In order to clarify the relationship between the sensitive indexes of coal and gas outburst, firstly, the grey relational model was adopted, combined with the initial velocity method of drilling gas and the drilling cutting index method, the initial gas emission velocity q_m of drilling gas was selected as the reference sequence, and the analysis index of drilling cuttings gas Δh₂, K₁ and the amount of drilling cuttings S were selected as the comparison sequences to carry out the correlation analysis of the sensitive indexes of coal and gas outburst and determine the key factors affecting the coal and gas outburst accidents. Then the classical Gray Prediction model (GM (1,1)) was improved by introducing buffer weakening operators and automatic optimization and weighting method. The model was built, and the correlations among the q_m, Δh₂, K₁ and S were quantitatively analyzed. Finally, each index parameter was calculated using the measured gas data from a coal mining face in Shanxi, China. Results show that in the mentioned coalmine, the order of influence of coal and gas outburst sensitive indexes on outburst risk is followed as Δh₂ > S > K₁. And there is a crossing relation between Δh₂ K₁, S and q_m. The small error probability value of the improved grey prediction model increased from 0.69 to 0.87, the ratio of the posterior error decreased from 0.500 0 to 0.431 7, and the prediction grade was improved from pass to good.

Key words: coal and gas outburst, sensitive indicators, gray prediction, gray correlation analysis, analysis index of drilling cuttings gas

鲁锦涛, 贾小榕, 郭昕曜. 基于改进灰色预测的瓦斯突出敏感指标分析[J]. 中国安全科学学报, 2022, 32(11): 74-81.

LU Jintao, JIA Xiaorong, GUO Xinyao. Analysis on sensitive indicators of gas outburst based on improved gray prediction method[J]. China Safety Science Journal, 2022, 32(11): 74-81.

图/表 7

表1

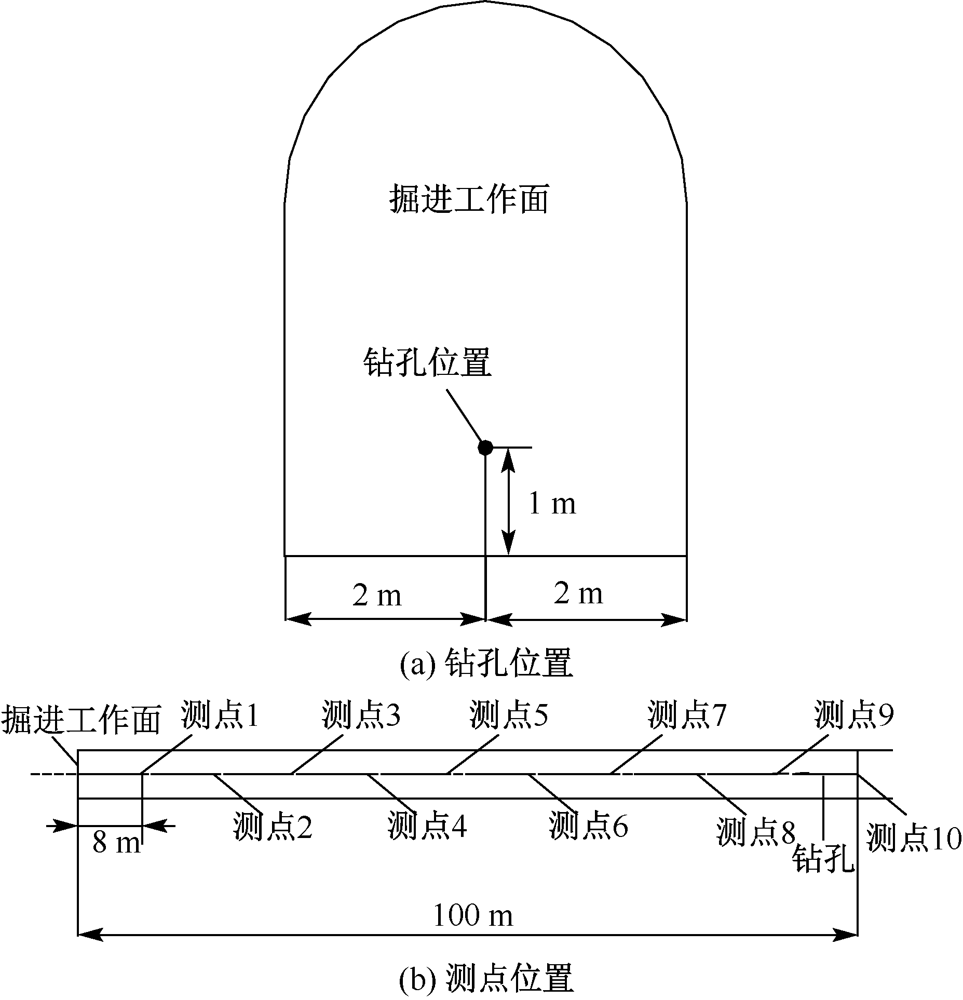

图1

表2

表3

归一化处理结果

序号	q_m/ (mL·s^-1)	K₁/(mL· g^-1·min^-1/2)	$Δ h 2$ / Pa	S/ (kg·m^-1)
1	0.368	1.000	1.000	0.000
2	1.000	0.538	0.750	0.964
3	0.000	0.692	0.000	0.571
4	1.000	0.846	1.000	1.000
5	0.526	0.308	0.500	0.464
6	0.053	0.615	0.250	0.107
7	0.579	0.000	1.000	0.250
8	0.000	0.077	0.000	0.071
9	0.474	0.769	0.750	0.179
10	0.053	0.692	0.500	0.357

表3

表4

参考序列qm的差序列

序号	$K 1 - q m$	$Δ h 2 - q m$	$S - q m$
1	0.632	0.632	0.368
2	0.170	0.382	0.596
3	0.324	0.368	0.203
4	0.478	0.632	0.632
5	0.061	0.132	0.096
6	0.247	0.118	0.261
7	0.368	0.632	0.118
8	0.291	0.368	0.297
9	0.401	0.382	0.190
10	0.324	0.132	0.011

表4

表5

煤与瓦斯突出各项指标灰色关联度

序号	$q m$	$γ 1$	$γ 2$	$γ 3$
1	1.00	0.60	0.70	0.64

表5

表6

参考文献 22

[1]	李琰庆, 杨科, 秦汝祥, 等. 煤与瓦斯突出煤层群安全高效开采技术体系与展望[J]. 煤炭科学技术, 2020, 48(3):167-173.
	LI Yanqing, YANG Ke, QIN Ruxiang, et al. Technical system and prospect of safe and efficient mining of coal and gas outburst coal seams[J]. Coal Science and Technology, 2020, 48(3):167-173.
[2]	高魁, 乔国栋, 刘泽功, 等. 煤与瓦斯突出机理分类研究构想及其应用探讨[J]. 采矿与安全工程学报, 2019, 36(5):1043-1051.
	GAO Kui, QIAO Guodong, LIU Zegong, et al. On classification conception of coal and gas outburst mechanism and its application[J]. Journal of Mining & Safety Engineering, 2019, 36(5):1043-1051.
[3]	王伟, 李昱, 李贤功. 2010—2018年煤矿瓦斯事故时空耦合关联分析[J]. 煤矿安全, 2020, 51(5):177-182.
	WANG Wei, LI Yu, LI Xiangong. Spatial-temporal coupling association analysis of coal mine gas accidents from 2010 to 2018[J]. Safety in Coal Mines, 2020, 51(5):177-182.
[4]	陈刘瑜, 李希建, 沈仲辉, 等. 贵州北部突出煤的孔隙结构及分形特征研究[J]. 中国安全科学学报, 2020, 30(2):66-72. doi: 10.16265/j.cnki.issn1003-3033.2020.02.011
	CHEN Liuyu, LI Xijian, SHEN Zhonghui, et al. Pore structure and fractal characteristics of outburst coal in northern Guizhou[J]. China Safety Science Journal, 2020, 30(2):66-72. doi: 10.16265/j.cnki.issn1003-3033.2020.02.011
[5]	韩建设, 刘军, 黄元乐, 等. 单项指标法鉴定煤与瓦斯突出性的成功应用[J]. 煤炭科技, 2017, 38(1):64-67.
	HAN Jianshe, LIU Jun, HUANG Yuanle, et al. Successful application of single index method in identification of coal and gas outburst[J]. Coal Science & Technology Magazine, 2017, 38(1):64-67.
[6]	陈亮, 王恩元. 含瓦斯煤受载破坏瓦斯涌出的前兆特征研究[J]. 中国安全科学学报, 2020, 30(12):79-84. doi: 10.16265/j.cnki.issn 1003-3033.2020.12.011
	CHEN Liang, WANG Enyuan. Study on precursory characteristics of gas emission from damaged coal containing gas[J]. China Safety Science Journal, 2020, 30(12):79-84. doi: 10.16265/j.cnki.issn 1003-3033.2020.12.011
[7]	范喜生, 张浪, 汪东, 等. 石门揭煤工作面煤与瓦斯突出预测的理论分析[J]. 安全与环境学报, 2017, 17(4):1281-1284.
	FAN Xisheng, ZHANG Lang, WANG Dong, et al. Theoretical prediction of the coal and gas outbursts at Shimen open-pit mining faces[J]. Journal of Safety and Environment, 2017, 17(4):1281-1284.
[8]	覃道雄. 极复杂条件下煤与瓦斯突出规律及综合治理技术[D]. 北京: 中国矿业大学(北京), 2013.
	TAN Daoxiong. The disciplines of coal and gas outburst and the technology of comprehensive management in the conditions of extremely complex geological[D]. Beijing: China University of Mining and Technology-Beijing, 2013.
[9]	邹永洺, 张占存. 新型钻孔瓦斯涌出初速度测定钻杆研究[J]. 煤矿安全, 2016, 47(3):20-23.
	ZOU Yongming, ZHANG Zhancun. Study on new type measurement of drill pipe for drilling gas emission initial speed[J]. Safety in Coal Mines, 2016, 47(3):20-23.
[10]	LIU Ting, LIN Baiquan, FU Xuehai, et al. Mechanical criterion for coal and gas outburst:a perspective from multiphysics coupling[J]. International Journal of Coal Science & Technology, 2021, 8:1423-1435.
[11]	齐黎明, 卢云婷, 关联合, 等. 煤与瓦斯突出预测敏感指标确定方法探索及应用[J]. 矿业安全与环保, 2021, 48(3):85-89.
	QI Liming, LU Yunting, GUAN Lianhe, et al. Exploration and application of determination method of sensitive index for prediction of coal and gas outburst[J]. Mining Safety & Environmental Protection, 2021, 48(3):85-89.
[12]	蒋承林, 俞启香, 张超杰. 煤巷突出预测敏感指标及临界值的实验室测定方法及应用[J]. 煤矿安全, 2021, 52(10):24-29.
	JIANG Chenglin, YU Qixiang, ZHANG Chaojie. Laboratory determination method and application of sensitive index and critical value for coal roadway outburst prediction[J]. Safety in Coal Mines, 2021, 52(10):24-29.
[13]	邢长勇, 杨瀚, 黄光平, 等. 叙永一矿煤层突出预测敏感指标及其临界值确定[J]. 煤炭技术, 2020, 39(11):83-86.
	XING Changyong, YANG Han, HUANG Guangping, et al. Determination for sensitivity index and critical value of coal and gas outburst in Xuyong first coal mine[J]. Coal Technology, 2020, 39(11):83-86.
[14]	阎馨, 朱永浩, 屠乃威, 等. 基于PCA与权重贝叶斯的工作面煤与瓦斯突出预测[J]. 计算机工程, 2021, 47(8):315-320.
	YAN Xin, ZHU Yonghao, TU Naiwei, et al. Prediction of coal and gas outburst in mine working face based on PCA and weighted Bayesian[J] .Computer Engineering, 2021, 47(8):315-320.
[15]	郭昕曜. 高突矿井瓦斯风险评估方法与管控技术研究[D]. 武汉: 武汉理工大学, 2019.
	GUO Xinyao. Study on gas disaster risk assessment method and control technology of the high gas outburst mine[D]. Wuhan: Wuhan University of Technology, 2019.
[16]	高建良, 尚宾, 张学博. 导气管阻力特性对钻孔瓦斯涌出初速度的影响[J]. 煤炭学报, 2011, 36(11):1869-1873.
	GAO Jianliang, SHANG Bin, ZHANG Xuebo. The influence of airway resistance on the initial velocity of gas emission from borehole[J]. Journal of China Coal Society, 2011, 36(11):1869-1873.
[17]	张慧杰. 时间因素对钻屑瓦斯解吸指标K₁值测定的影响分析[J]. 中国安全生产科学技术, 2020, 16(5):51-56.
	ZHANG Huijie. Analysis on influence of time factor on measurement of gas desorption index (K₁) of drill cuttings[J]. Journal of Safety Science and Technology, 2020, 16(5):51-56.
[18]	刘思峰, 邓聚龙. GM(1,1)模型的适用范围[J]. 系统工程理论与实践, 2000, 20(5):121-124. doi: 10.12011/1000-6788(2000)5-121
	LIU Sifeng, DENG Julong. The range suitable for GM(1,1)[J]. System Engineering-Theory and Practice, 2000, 20(5):121-124.
[19]	杨国华, 颜艳, 杨慧中. GM(1,1)灰色预测模型的改进与应用[J]. 南京理工大学学报, 2020, 44(5):575-582.
	YANG Guohua, YAN Yan, YANG Huizhong. Application of improved GM(1, 1) grey prediction model[J]. Journal of Nanjing University of Science and Technology, 2020, 44(5):575-582.
[20]	王海洋, 赵树磊, 陈祥, 等. 我国隧道瓦斯事故统计及影响因素分析[J]. 中国安全科学学报, 2021, 31(4):34-40. doi: 10.16265/j.cnki.issn1003-3033.2021.04.005
	WANG Haiyang, ZHAO Shulei, CHEN Xiang, et al. Statistics and influencing factors analysis of tunnel gas accidents in China[J]. China Safety Science Journal, 2021, 31(4):34-40. doi: 10.16265/j.cnki.issn1003-3033.2021.04.005
[21]	赖祥威, 夏云霓, 郑万波, 等. 基于集成学习的改进灰色瓦斯浓度序列预测[J]. 中国安全生产科学技术, 2021, 17(7):16-21.
	LAI Xiangwei, XIA Yunni, ZHENG Wanbo, et al. Improved grey prediction of gas concentration sequence based on integrated learning[J]. Journal of Safety Science and Technology, 2021, 17(7):16-21.
[22]	桑树勋, 周效志, 刘世奇, 等. 应力释放构造煤煤层气开发理论与关键技术研究进展[J]. 煤炭学报, 2020, 45(7):2531-2543.
	SANG Shuxun, ZHOU Xiaozhi, LIU Shiqi, et al. Research advances in theory and technology of the stress release applied extraction of coalbed methane from tectonically deformed coals[J]. Journal of China Coal Society, 2020, 45(7):2531-2543.

预测精度等级	p	q
优	>0.95	<0.35
较好	>0.80	<0.50
及格	>0.70	<0.65
不及格	≤0.70	≥0.65

序号	q_m/ (mL·s^-1)	K₁/ (mL·g^-1·min^-1/2))	Δh₂/ Pa	S/ (kg·m^-1)
1	6.00	0.26	80	3.0
2	7.20	0.20	70	5.7
3	5.30	0.22	40	4.6
4	7.20	0.24	80	5.8
5	6.30	0.17	60	4.3
6	5.40	0.21	50	3.3
7	6.40	0.13	80	3.7
8	5.30	0.14	40	3.2
9	6.20	0.23	70	3.5
10	5.40	0.22	60	4.0

类型	1	2	3	4	5	6	7	8	9	10
原始数据	6.00	7.20	5.30	7.20	6.30	5.40	6.40	5.30	6.20	5.40
原始数据优化	6.00	6.92	5.34	7.28	6.00	5.12	6.32	4.91	6.00	5.65
预测数据	5.90	6.94	5.46	7.32	5.94	5.16	6.28	4.77	5.91	5.82
