灭火防护服贝叶斯建模与热防护性能影响分析

doi:10.16265/j.cnki.issn1003-3033.2023.06.1741

摘要/Abstract

摘要：

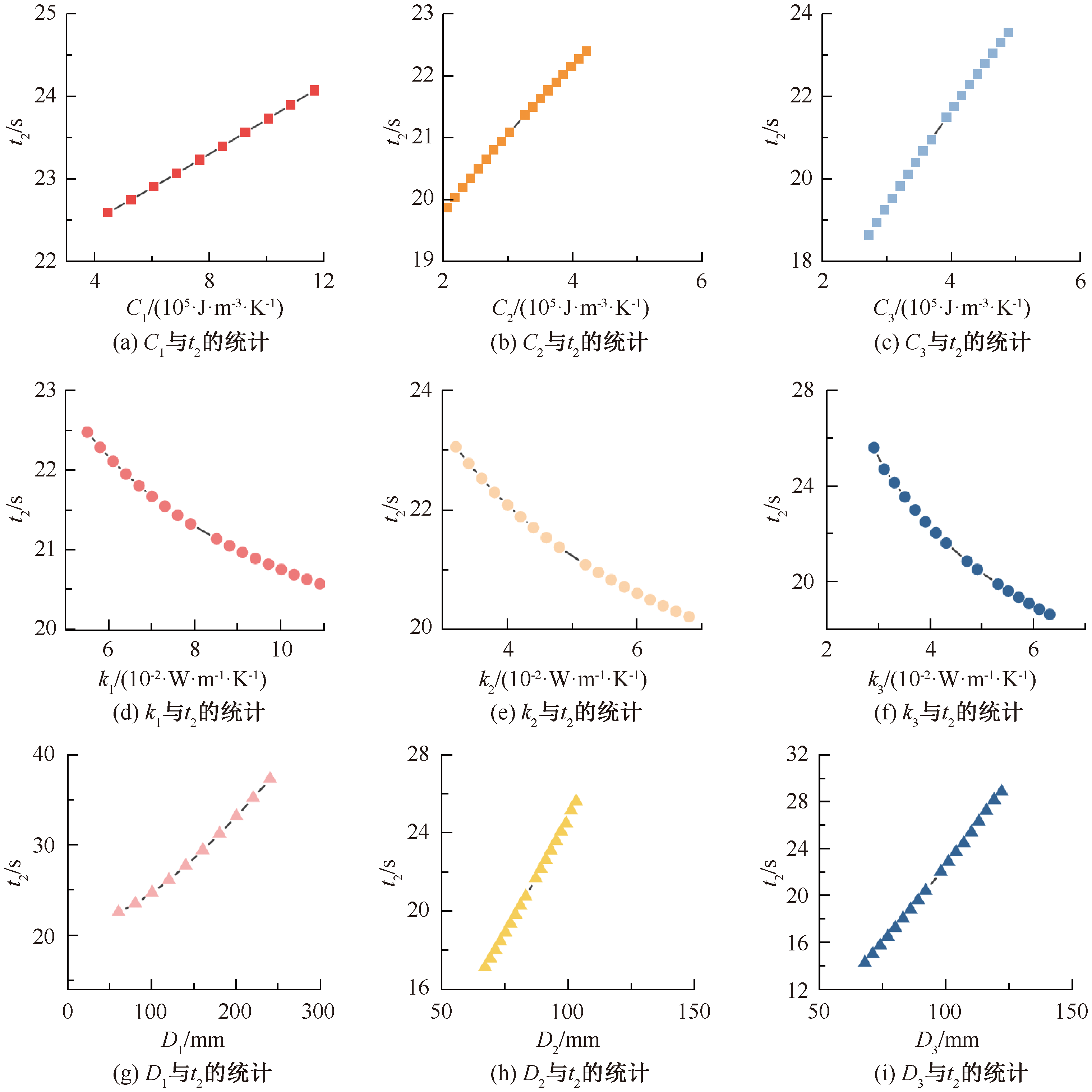

为揭示灭火防护服传热参数对热防护性能的作用机制,结合贝叶斯推断,构造灭火防护服传热参数与热防护性能指标的概率回归关系。基于表征灭火防护服“环境-服装-空气层-皮肤”传热过程的时变微分方程组,提取影响热防护性能的传热参数;利用贝叶斯推断方法,构造织物传热参数与热防护性能指标的概率回归模型,分析传热参数对热防护性能影响的权重大小以及概率分布信息,并进一步借助交叉检验验证所提贝叶斯模型的有效性。结果表明:显热容、织物厚度与烧伤时间近似呈正相关关系,热传导率与烧伤时间近似呈负相关关系;此外,织物厚度对热防护性能的影响显著大于显热容以及热传导率。该模型能反映不同织物参数对皮肤烧伤指标的影响程度,实现织物参数对热防护性能影响的有效量化评价。

关键词: 灭火防护服, 贝叶斯推断, 热防护性能, 传热模型, 烧伤时间

Abstract:

To depict the influence mechanism of heat transfer parameters on the thermal protection performance, the probabilistic regression relation between multi-heat transfer parameters and thermal protection performance index of fire-fighting protective clothing was constructed using Bayesian inference. Combined with the time-varying differential equation concerning the heat transfer process of "environment-clothing-air layer-skin", several characteristic heat transfer parameters affecting the thermal protection performance were extracted. On this basis, a Bayesian inference-based probabilistic regression model was constructed, and the weight and probability distribution information of the influence of heat transfer parameters on thermal protection performance were analyzed. Furthermore, the feasibility of the constructed model was demonstrated within a cross-validation analysis. The results suggest that there is a positive correlation between the apparent heat capacity, the fabric thickness and the burn time, while there is a negative correlation between thermal conductivity and burn time. The influence of the fabric thickness on the thermal protection performance is greater than sensible heat capacity and thermal conductivity. In addition, the impact of different fabric parameter setting on skin burn index via this proposed model can be approximately quantified.

Key words: fire protective clothing, Bayesian inference, thermal protection performance, heat transfer model, burn time

刘纪坤, 马传丽, 杨杰. 灭火防护服贝叶斯建模与热防护性能影响分析[J]. 中国安全科学学报, 2023, 33(6): 214-222.

LIU Jikun, MA Chuanli, YANG Jie. Bayesian-inference-based fire protective clothing model and thermal protective performance impact analysis[J]. China Safety Science Journal, 2023, 33(6): 214-222.

图/表 9

图1

图2

表1

图3

图4

表2

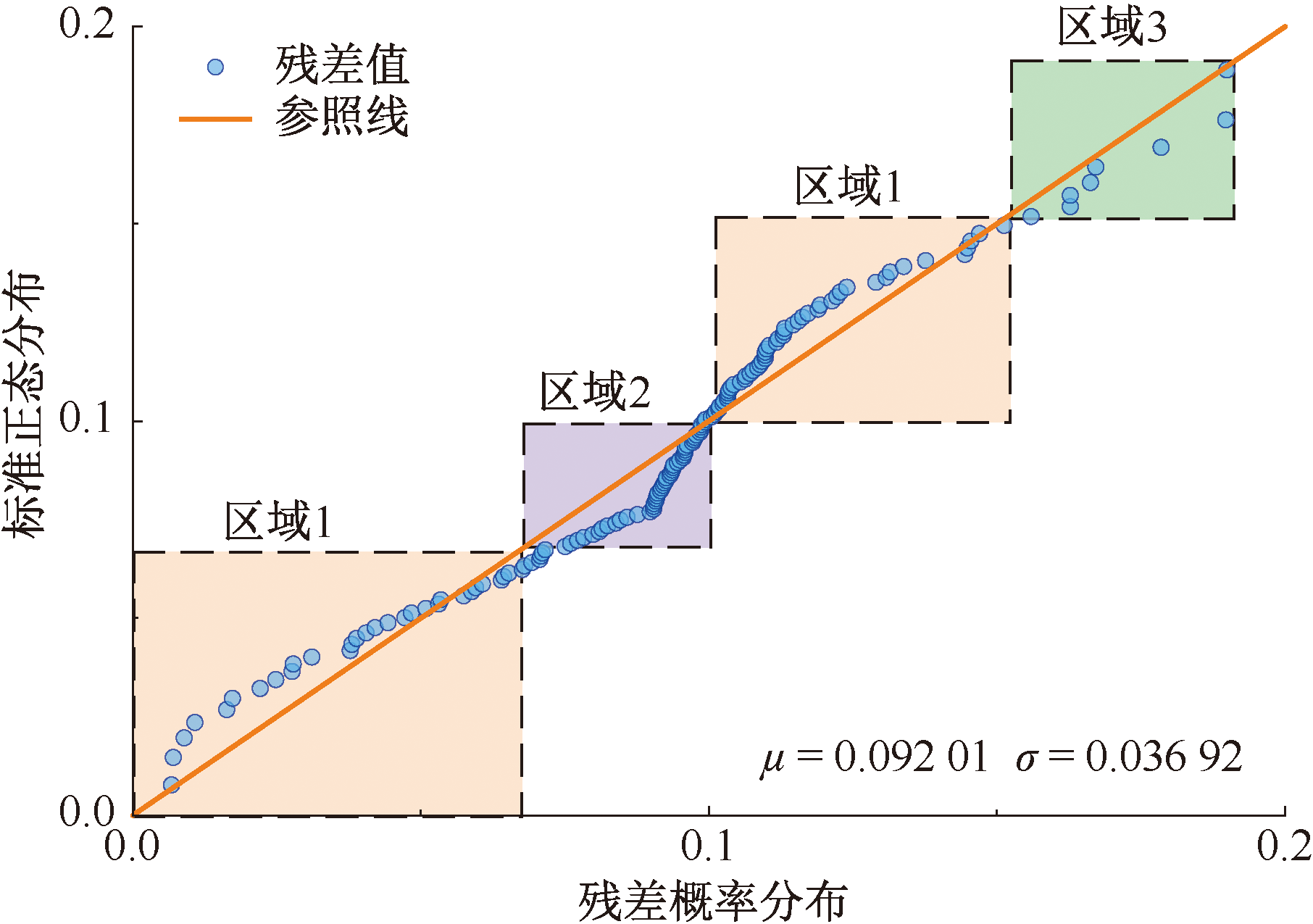

图5

表3

图6

参考文献 24

[1]	杨杰. 基于人体-服装-环境的高温人体热反应模拟与实验研究[D]. 北京: 清华大学, 2016.
	YANG Jie. Numerical and experimental study on physiological responses in hot environments based on human-clothing-environment system[D]. Beijing: Tsinghua University, 2016.
[2]	苏云, 杨杰, 李睿, 等. 热辐射暴露下消防员的生理反应及皮肤烧伤预测[J]. 纺织学报, 2019, 40(2):147-152.
	SU Yun, YANG Jie, LI Rui, et al. Predictions of physiological reaction and skin burn of firefighter exposing to thermal radiation[J]. Journal of Textile Research, 2019, 40(2):147-152. doi: 10.1177/004051757004000208
[3]	刘纪坤, 黄一鸣, 张逸文, 等. 防护服对消防员工效性能影响的定量研究[J]. 中国安全生产科学技术, 2022, 18(5):109-114.
	LIU Jikun, HUANG Yiming, ZHANG Yiwen, et al. Quantitative research on influence of personal protective clothing on ergonomic performance of firefighters[J]. Journal of Safety Science and Technology, 2022, 18(5):109-114.
[4]	翟胜男, 王鸿博, 柯莹. 火灾环境中消防服防护性能测评研究进展[J]. 丝绸, 2020, 57(11):46-50.
	ZHAI Shengnan, WANG Hongbo, KE Ying. Research progress of evaluation of protection performance of fire-fighting clothing in fire environment[J]. Journal of Silk, 2020, 57(11):46-50.
[5]	鲁义, 刘艺伦, 施式亮, 等. 用于消防服的无机相变材料改进试验研究[J]. 中国安全科学学报, 2020, 30(8):171-176. doi: 10.16265/j.cnki.issn1003-3033.2020.08.025
	LU Yi, LIU Yilun, SHI Shiliang, et al. Improvement experiments on inorganic phase change material for fire-fighting clothing[J]. China Safety Science Journal, 2020, 30(8):171-176. doi: 10.16265/j.cnki.issn1003-3033.2020.08.025
[6]	朱雯, 苏云, 陈若颖, 等. 相变微胶囊涂层织物在灭火防护服中的应用[J]. 中国安全科学学报, 2020, 30(12):180-185. doi: 10.16265/j.cnki.issn 1003-3033.2020.12.025
	ZHU Wen, SU Yun, CHEN Ruoying, et al. Application of fabric coated with phase change microcapsulein thermal protective clothing[J]. China Safety Science Journal, 2020, 30(12):180-185. doi: 10.16265/j.cnki.issn 1003-3033.2020.12.025
[7]	MQAQNDAL S, ANNAHEIM S, CAPT A, et al. A categorization tool for fabric systems used in firefighters' clothing based on their thermal protective and thermo-physiological comfort performances[J]. Textile Research Journal, 2018, 89(16):3244-3259. doi: 10.1177/0040517518809055
[8]	徐畅, 申世飞, 付明, 等. 灾害环境中防护服性能测评研究进展[J]. 中国安全科学学报, 2017, 27(5):140-145. doi: 10.16265/j.cnki.issn1003-3033.2017.05.025
	XU Chang, SHEN Shifei, FU Ming, et al. Progress in research on test and evaluation of protective clothing performance in disaster environment[J]. China Safety Science Journal, 2017, 27(5):140-145. doi: 10.16265/j.cnki.issn1003-3033.2017.05.025
[9]	TORVI D A, DALE J D. Heat transfer in thin fibrous materials under high heat flux[J]. Fire Technology, 1999, 35(3): 210-231. doi: 10.1023/A:1015484426361
[10]	MANDAL S, GUO Wensong. An empirical analysis of thermal protective performance of fabrics used in protective clothing[J]. The Annals of Occupational Hygiene, 2014, 58(8):1065-1077.
[11]	MANDAL S, MAZUMDER N, AGNEW R, et al. Characterization and modeling of thermal protective and thermo-physiological comfort performance of polymeric textile materials:a review[J]. Materials, 2021, 14(9):DOI:10.3390/ma14092397. doi: 10.3390/ma14092397.
[12]	HE Jiazhen, CHEN Yan, WANG Lichuan, et al. Quantitative assessment of the thermal stored energy in protective clothing under low-level radiant heat exposure[J]. Textile Research Journal, 2018, 88(24):2867-2879. doi: 10.1177/0040517517732084
[13]	彭鹏. 一类反常热传递模型及参数决定反问题[D]. 杭州: 浙江理工大学, 2020.
	PENG Peng. A class of abnormal heat transfer models and related inverse problems of parameters determination[D]. Hangzhou: Zhejiang Sci-Tech University, 2020.
[14]	DABROWSKA A K. Artificial neural networks for prediction of local thermal insulation of clothing protecting against cold[J]. International Journal of Clothing Science and Technology, 2018, 30(1):82-100. doi: 10.1108/IJCST-08-2016-0098
[15]	王丽燕, 李庆杰, 李雁宙, 等. 基于蒙特卡罗算法的高温作业防护服优化设计[J]. 大连理工大学学报, 2020, 60(2):216-220.
	WANG Liyan, LI Qingjie, LI Yanzhou, et al. Optimal design of protective clothing for high-temperature operation based on Monte Carlo algorithm[J]. Journal of Dalian University of Technology, 2020, 60(2):216-220.
[16]	张姗姗, 陈鹏, 陶雪莲, 等. 基于量子遗传算法对高温防护服最优厚度的研究[J]. 黑龙江大学自然科学学报, 2020, 37(1):45-51.
	ZHANG Shanshan, CHEN Peng, TAO Xuelian, et al. Research on optimal thickness of elevated temperature workwear based on quantum genetic algorithm[J]. Journal of Natural Sciences of Heilongjiang University, 2020, 37(1): 45-51.
[17]	董亚玲, 雷亿辉, 刘倩岚. 遍历算法在热防护服设计中的应用[J]. 科技视界, 2022(18):18-20.
	DONG Yaling, LEI Yihui, LIU Qianlan. Application of traversal algorithm in thermal protective clothing design[J]. Science & Technology Horizons, 2022(18):18-20.
[18]	谷韬, 徐定华. 带随机Robin边界数据的三层热传递模型及参数识别反问题[J]. 浙江理工大学学报:自然科学版, 2021, 45(2):266-272.
	GU Tao, XU Dinghua. Three-layer heat transfer model with random Robin boundary data and the inverse problem of parameter identification[J]. Journal of Zhejiang Sci-Tech University: Natural Science Edition, 2021, 45(2):266-272.
[19]	WIEMANN P F V, KLEIN N, KNEIB T. Correcting for sample selection bias in Bayesian distributional regression models[J]. Computational Statistics & Data Analysis, 2022, 168: DOI:10.1016/J.CSDA.2021.107382. doi: 10.1016/J.CSDA.2021.107382
[20]	WANG Ning, MAREK R, YAO Wen, et al. Fuzzy linear regression based on approximate Bayesian computation[J]. Applied Soft Computing, 2020, 97: DOI:10.1016/j.asoc.2020.106763. doi: 10.1016/j.asoc.2020.106763
[21]	吴迪. 基于线性回归模型的贝叶斯方法的应用[D]. 长春: 长春理工大学, 2020.
	WU Di. Application of Bayesian method based on linear regression model[D]. Changchun: Changchun University of Science and Technology, 2020.
[22]	TORVI D A, ENG P, THRELFALL T G. Heat transfer model of flame-resistant fabrics during cooling after exposure to fire[J]. Fire Technology, 2005, 42(1):27-48. doi: 10.1007/s10694-005-3733-8
[23]	BU Chao, ZHANG Zengping. Research on curve fitting and overfitting based on Bayesian method[C]. 2021 6^th International Symposium on Computer and Information Processing Technology (ISCIPT), 2021:141-144.
[24]	HASHIMOTO S, SUGASAWA S. Robust Bayesian regression with synthetic posterior distributions[J]. Entropy, 2020, 22(6):DOI:10.3390/e22060661. doi: 10.3390/e22060661

参数	外层 (聚苯并咪唑和对位芳纶纤维混纺)	防水透气层 (透气聚四氟乙烯薄膜)	隔热层 (芳纶1313)
C_i/(J·m^-3·K^-1)	337 000~1 164 800	205 000~421 000	272 000~488 000
k_i/(W·m^-1·K^-1)	0.055~0.109	0.032~0.068	0.027~0.063
D_i/mm	42~78	67~103	68~122

指标	数值
R	0.999 9
r	0.999 9
MSE	1.994 7×10^-5

参数	D_i l/mm	C_i/ (J·m^-3·K^-1)	k_i/ (W·m^-1·K^-1)
外壳	0.60	444 770	0.08
防水层	0.85	312 500	0.05
隔热层	0.95	379 720	0.05
