多层网络视角下地铁网络脆弱性分析

doi:10.16265/j.cnki.issn1003-3033.2023.08.0098

摘要/Abstract

摘要：

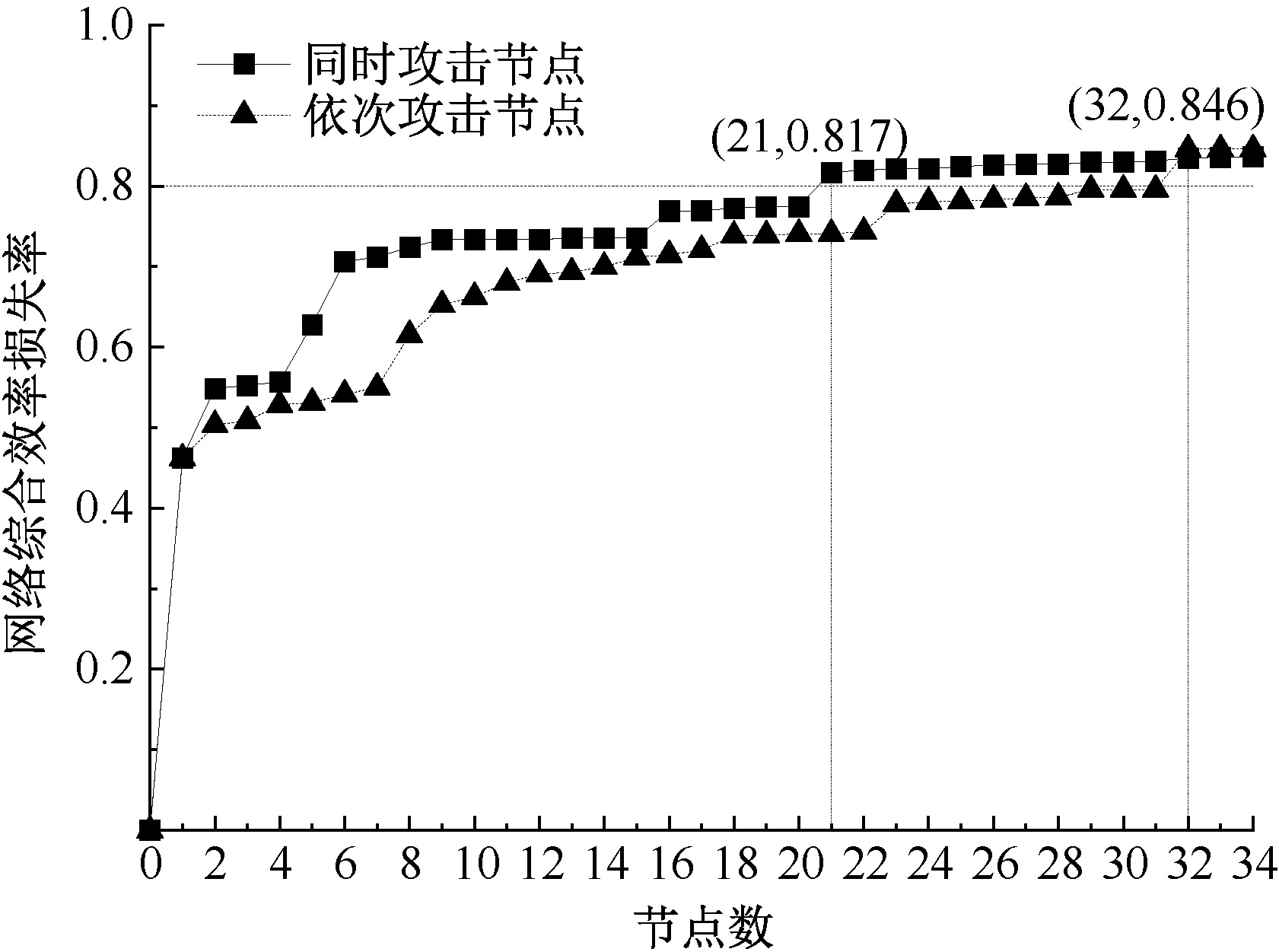

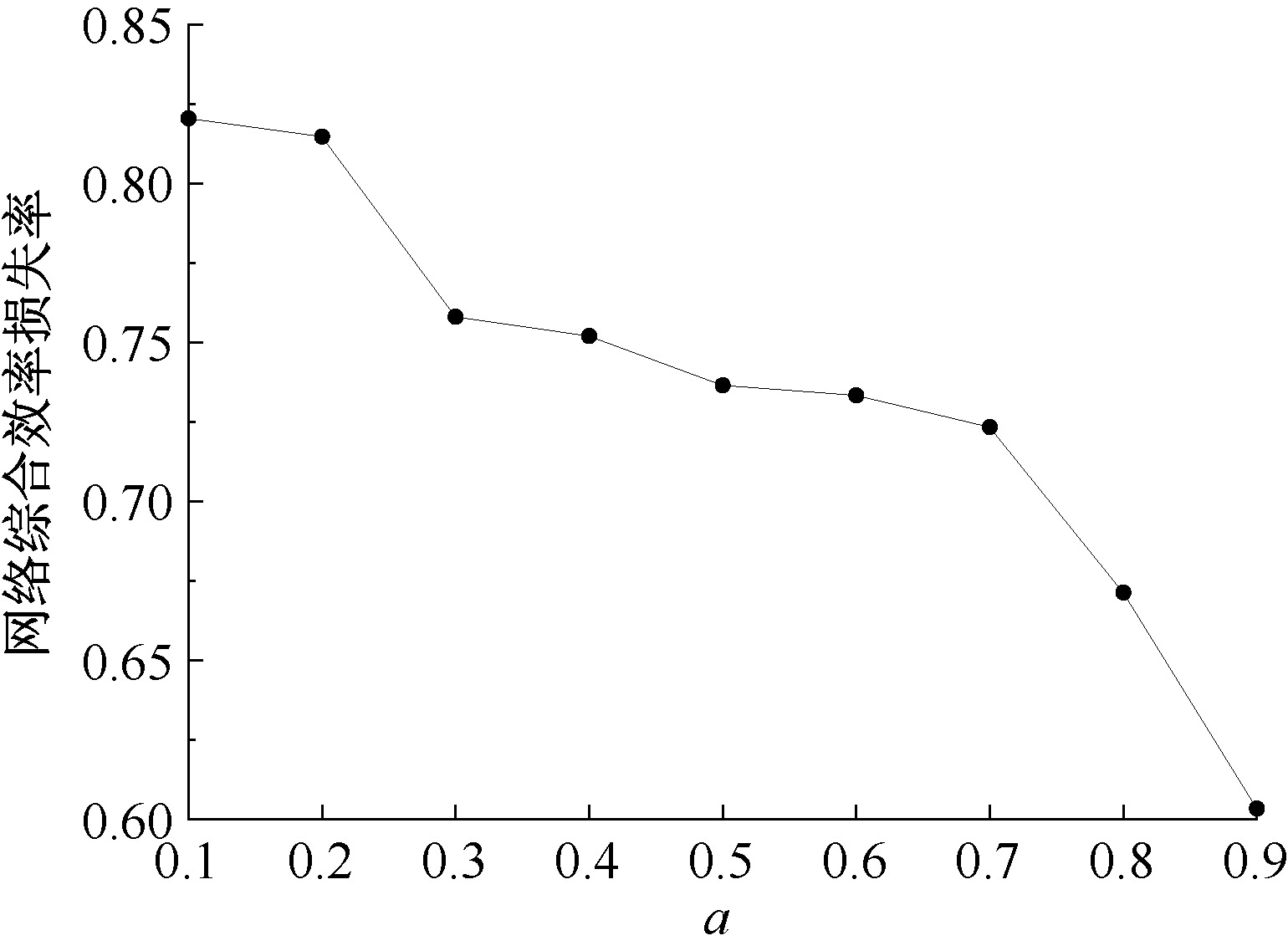

为评估车站失效对地铁网络结构和服务质量的影响以及探究多层地铁网络面对不同攻击策略下的脆弱性,考虑地铁网络中不同线路的特征差异、不同线路和换乘通道之间的异质性,选择列车区间运行时间、列车到站停车时间、乘客换乘步行时间和乘客候车等待时间作为时间边权的计算依据,从多层网络视角构建多层有向时间加权的地铁网络模型;提出层间车站和层内车站的2次负载分配机制和兼顾网络结构和功能的脆弱性综合评估指标;根据车站重要度,分别采用依次攻击单个车站和同时攻击多个车站的攻击策略来分析多层地铁网络的脆弱性,并以2021年西安市地铁网络为例进行实例分析。研究结果表明:与单层地铁网络模型相比,考虑换乘车站之间的换乘通道、不同换乘车站异质性的多层有向时间加权地铁网络模型更符合实际;在依次攻击单个车站的策略中,车站的容量调节参数a和b的最优值分别为0.3和0.8;与依次攻击单个车站的策略相比,同时攻击多个车站导致网络的脆弱性更差。

关键词: 多层地铁网络, 网络脆弱性, 负载分配, 级联失效, 网络综合效率损失率, 攻击策略

Abstract:

In order to assess the impact of station failure on metro network structure and service quality and to study the vulnerability of multi-layer network under different attack strategies, considering the characteristics of different lines and heterogeneity among different lines and transfer channels, a multi-layer directed time-weighted metro network model was constructed from the perspective of multi-layer network. The time-weighted edge was calculated by the train interval running time, train stopping time at stations, passenger transfer walking time and passenger waiting time for trains. A double load distribution mechanism of inter-layer and intra-layer stations was proposed, and a comprehensive vulnerability assessment index was proposed. Based on station importance, sequential and simultaneous attack strategies were used to assess the vulnerability of metro network after station failure. Finally, the Xi'an metro network in 2021 was taken as an example to verify the validity. The results show that the multi-layer metro network model is more practical than the single-layer metro network. In the sequential attack strategy, the optimal values of station capacity adjusted parameters a and b are 0.3 and 0.8, respectively. Compared with the strategy of attacking a single station sequentially, simultaneously attacking strategy leads to worse network vulnerabilities.

Key words: multi-layer metro network, network vulnerability, load distribution, cascading failure, loss rate of network comprehensive efficiency, attack strategies

马壮林, 邵逸恒, 舒兰, 阴一凡, 李浩强. 多层网络视角下地铁网络脆弱性分析[J]. 中国安全科学学报, 2023, 33(8): 164-172.

MA Zhuanglin, SHAO Yiheng, SHU Lan, YIN Yifan, LI Haoqiang. Vulnerability analysis of metro network from perspective of multi-layer network[J]. China Safety Science Journal, 2023, 33(8): 164-172.

图/表 9

图1

表1

表2

表3

表4

图2

图3

图4

图5

参考文献 25

[1]	侯秀芳, 冯晨, 左超, 等. 2022年中国内地城市轨道交通线路概况[J]. 都市快轨交通, 2023, 36(1): 9-13.
	HOU Xiufang, FENG Chen, ZUO Chao, et al. Statistical analysis of urban rail transit in Chinese mainland in 2022[J]. Urban Rapid Rail Transit, 2023, 36(1): 9-13.
[2]	ZHANG Shuyang, LO H K, NG K F, et al. Metro system disruption management and substitute bus service: a systematic review and future directions[J]. Transport Reviews, 2021, 41(2): 230-251. doi: 10.1080/01441647.2020.1834468
[3]	邓旭东, 王雪, 徐文平, 等. 城市地铁网络脆弱性对比分析[J]. 中国安全科学学报, 2017, 27(3): 152-156. doi: 10.16265/j.cnki.issn1003-3033.2017.03.027
	WANG Xudong, WANG Xue, XU Wenping, et al. Comparative analysis of vulnerability of urban metro network[J]. China Safety Science Journal, 2017, 27(3): 152-156. doi: 10.16265/j.cnki.issn1003-3033.2017.03.027
[4]	SUN Lishan, HUANG Yuchen, CHEN Yanyan, et al. Vulnerability assessment of urban rail transit based on multi-static weighted method in Beijing, China[J]. Transportation Research Part A: Policy and Practice, 2018, 108: 12-24. doi: 10.1016/j.tra.2017.12.008
[5]	ZHANG Jianhua, WANG Ziqi, WANG Shuliang, et al. Vulnerability assessments of urban rail transit networks based on redundant recovery[J]. Sustainability, 2020, 12(14):DOI: 10.3390/su12145756.
[6]	邓勇亮, 李启明, 陆莹, 等. 城市地铁网络系统的物理脆弱性研究[J]. 中国安全科学学报, 2013, 23(10): 76-81.
	DENG Yongliang, LI Qiming, LU Ying, et al. Analysis of urban metro network system physical vulnerability[J]. China Safety Science Journal, 2013, 23(10): 76-81.
[7]	路庆昌, 崔欣, 徐标, 等. 公交接驳场景下轨道交通网络脆弱性研究[J]. 中国安全科学学报, 2021, 31(8): 141-146. doi: 10.16265/j.cnki.issn1003-3033.2021.08.020
	LU Qingchang, CUI Xin, XU Biao, et al. Vulnerability research of rail transit network under bus connection scenarios[J]. China Safety Science Journal, 2021, 31(8): 141-146. doi: 10.16265/j.cnki.issn1003-3033.2021.08.020
[8]	CHEN Hongyu, ZHANG Limao, LIU Qiong, et al. Simulation-based vulnerability assessment in transit systems with cascade failures[J]. Journal of Cleaner Production, 2021, 295:DOI:10.1016/j.jclepro.2021.126441.
[9]	万丹, 郭倩, 邓良凯, 等. 城市轨道交通网络脆弱性对比研究[J]. 城市轨道交通研究, 2021, 24(1): 60-64.
	WAN Dan, GUO Qian, DENG Liangkai, et al. Comparative study on vulnerability of urban rail transit network[J]. Urban Mass Transit, 2021, 24(1): 60-64.
[10]	STARITA S, AMIDEO A E, SCAPARRA M P. Assessing urban rail transit systems vulnerability: metrics vs. interdiction models[C]. International Conference on Critical Information Infrastructures Security, 2017: 144-155.
[11]	齐小刚, 张碧雯, 刘立芳, 等. 复杂信息网络的弹性评估和优化方法研究[J]. 计算机科学与探索, 2018, 12(8): 1252-1262. doi: 10.3778/j.issn.1673-9418.1706058
	QI Xiaogang, ZHANG Biwen, LIU Lifang, et al. Evaluation and optimization of complex network resilience against attacks[J]. Journal of Frontiers of Computer Science and Technology, 2018, 12(8): 1252-1262.
[12]	王萌, 张建华, 邹培栋, 等. 南京城市轨道交通网络脆弱性分析[J]. 中国科技论文, 2017, 12(19): 2172-2175.
	WANG Meng, ZHANG Jianhua, ZOU Peidong, et al. Vulnerability analysis of Nanjing urban rail transit network[J]. China Sciencepaper, 2017, 12(19): 2172-2175.
[13]	SHI Jiangang, WEN Shiping, ZHAO Xianbo, et al. Sustainable development of urban rail transit networks: a vulnerability perspective[J]. Sustainability, 2019, 11(5): DOI:10.3390/su11051335.
[14]	薛锋, 何传磊, 黄倩. 成都地铁网络的关键节点识别方法及性能分析[J]. 中国安全科学学报, 2019, 29(1):93-99. doi: 10.16265/j.cnki.issn1003-3033.2019.01.016
	XUE Feng, HE Chuanlei, HUANG Qian. Identification of key nodes in Chengdu metro network and analysis of network performance[J]. China Safety Science Journal, 2019, 29(1):93-99. doi: 10.16265/j.cnki.issn1003-3033.2019.01.016
[15]	HONG Chen, ZHANG Jun, DU Wenbo, et al. Cascading failures with local load redistribution in interdependent Watts-Strogatz networks[J]. International Journal of Modern Physics C, 2016, 27(11): DOI: 10.1142/S012918311650131X.
[16]	李从东, 李文博, 曹策俊, 等. 面向级联故障的相依网络鲁棒性分析[J]. 系统仿真学报, 2019, 31(3): 538-548. doi: 10.16182/j.issn1004731x.joss.17-0217
	LI Congdong, LI Wenbo, CAO Cejun, et al. Robustness analysis of interdependent networks for cascading failure[J]. Journal of System Simulation, 2019, 31(3): 538-548. doi: 10.16182/j.issn1004731x.joss.17-0217
[17]	PENG Xingzhao, YAO Hong, DU Jun, et al. Invulnerability of scale-free network against critical node failures based on a renewed cascading failure model[J]. Physica A: Statistical Mechanics and its Applications, 2015, 421: 69-77. doi: 10.1016/j.physa.2014.11.024
[18]	黄婷婷, 朱海燕, 杨聚芬. 基于前景理论的轨道交通乘客路径选择模型[J]. 都市快轨交通, 2019, 32(2): 59-63.
	HUANG Tingting, ZHU Haiyan, YANG Jufen. The route choice model of urban rail traveler based on prospect theory[J]. Urban Rapid Rail Transit, 2019, 32(2): 59-63.
[19]	蔡鉴明, 邓薇. 长沙地铁网络复杂特性与级联失效鲁棒性分析[J]. 铁道科学与工程学报, 2019, 16(6): 1587-1596.
	CAI Jianming, DENG Wei. Complex characteristics of Changsha metro network and robustness analysis of cascading failures[J]. Journal of Railway Science and Engineering, 2019, 16(6): 1587-1596.
[20]	张慧慧, 陈峰, 吴奇兵. 北京地铁进出站设施通行瓶颈问题定量分析[J]. 都市快轨交通, 2009, 22(3): 20-23.
	ZHANG Huihui, CHEN Feng, WU Qibing. Quantitative analysis on the bottleneck of Beijing Subway access facilities[J]. Urban Rapid Rail Transit, 2009, 22(3): 20-23.
[21]	杨景峰, 朱大鹏, 赵瑞琳. 城轨网络站点重要度评估与级联失效抗毁性分析[J]. 中国安全科学学报, 2022, 32(8): 161-167. doi: 10.16265/j.cnki.issn1003-3033.2022.08.1148
	YANG Jingfeng, ZHU Dapeng, ZHAO Ruilin. Evaluation of station importance and cascading failure resistance analysis of urban rail transit network[J]. China Safety Science Journal, 2022, 32(8): 161-167. doi: 10.16265/j.cnki.issn1003-3033.2022.08.1148
[22]	SUN Daniel Jian. GUAN Shituo. Measuring vulnerability of urban metro network from line operation perspective[J]. Transportation Research Part A: Policy and Practice, 2016, 94: 348-359. doi: 10.1016/j.tra.2016.09.024
[23]	魏润斌, 贾顺平, 毛保华, 等. 考虑满载率均衡的城市轨道交通直通运营开行方案优化[J]. 哈尔滨工业大学学报, 2023, 55(3): 68-77.
	WEI Runbin, JIA Shunping, MAO Baohua, et al. Train planning optimization for through operation of urban rail transit considering load balance[J]. Journal of Harbin Institute of Technology, 2023, 55(3): 68-77.
[24]	VARGA B, TETTAMANTI T, KULCSÁR B. Optimally combined headway and timetable reliable public transport system[J]. Transportation Research Part C: Emerging Technologies, 2018, 92: 1-26. doi: 10.1016/j.trc.2018.04.016
[25]	MA Fei, SHI Wenjing, YUEN K F, et al. Exploring the robustness of public transportation for sustainable cities: a double-layered network perspective[J]. Journal of Cleaner Production, 2020, 265: DOI:10.1016/j.jclepro.2020.121747.

拓扑性基本指标	单层地铁网络		多层地铁网络
拓扑性基本指标	拓扑网络	加权网络	拓扑网络	加权网络
网络节点数	159	159	174	174
网络边数	166	166	182	182
网络直径	48	121	51	129.50
平均路径长度	15.79	39.16	16.83	43.55
聚类系数	0	0	0.004 8	0.022 2

序号	车站名称	所属线路	初始负载	容量
1	半坡站	1号线	3 116	4 833
2	通化门站	1号线	1 882	2 944
3	北大街站	2号线	2 888	3 454
4	永宁门站	2号线	3 904	5 807
5	咸宁门	3号线	1 670	3 925
6	含元殿站	4号线	1 673	2 443
7	西北工业大学站	5号线	1 534	2 050
8	丈八四路站	6号线	1 061	1 262
9	西花园站	9号线	561	937
10	港务大道站	14号线	664	937

序号	车站名称	所属线路	客流量	度中心性	介数中心性	紧密度中心性	重要度结果
1	北大街站	2号线	5 776.5	0.017 3	0.449 7	0.034 8	1.57
2	五路口站	1号线	4 432.5	0.017 3	0.524 3	0.034 4	1.39
3	北大街站	1号线	5 886.5	0.017 3	0.395 9	0.033 2	1.34
4	五路口站	4号线	4 432.5	0.017 3	0.466 5	0.035 1	1.26
5	小寨站	3号线	6 908	0.017 3	0.320 5	0.032 8	1.26
6	通化门站	1号线	3 764.5	0.017 3	0.519 0	0.032 0	1.08
7	南稍门站	2号线	3 249	0.017 3	0.516 3	0.033 4	0.97
8	小寨站	2号线	6 908	0.017 3	0.220 6	0.033 2	0.88
9	通化门站	3号线	3 764.5	0.017 3	0.409 7	0.031 5	0.84
10	钟楼站	2号线	5 690	0.011 6	0.305 6	0.034 5	0.69

权重	德尔菲法	熵权法	乘法合成归一化法
连通OD损失率	0.56	0.48	0.54
乘客出行效率损失率	0.44	0.52	0.46
