露天矿端帮开采支撑煤柱失稳判据研究

doi:10.16265/j.cnki.issn1003-3033.2023.09.0454

中国安全科学学报 ›› 2023, Vol. 33 ›› Issue (9): 122-128.doi: 10.16265/j.cnki.issn1003-3033.2023.09.0454

露天矿端帮开采支撑煤柱失稳判据研究

李广贺¹^,²(), 呼子桓¹, 王东¹, 王来贵², 周志伟³, 丁春健³

¹ 辽宁工程技术大学矿业学院,辽宁阜新 123000
² 辽宁工程技术大学力学与工程学院,辽宁阜新 123000
³ 国能宝日希勒能源有限公司,内蒙古呼伦贝尔 021008

收稿日期:2023-04-30 修回日期:2023-06-28 出版日期:2023-09-28
作者简介:
李广贺 (1992—),男,蒙古族,内蒙古通辽人,博士,副教授,主要从事露天开采及边坡工程方面的研究。E-mail:liguanghe@lntu.edu.cn。
王东教授
王来贵教授
基金资助:
国家自然科学基金资助(52204135); 国家自然科学基金资助(52204136); 辽宁省国际科技合作计划(2022JH2/10700004); 辽宁省高等学校基本科研项目(LJKQZ2021155); 辽宁工程技术大学学科创新团队资助项目(LNTU20TD-01)

Study on instability criterion of rib pillars in open-pit during highwall mining

LI Guanghe¹^,²(), HU Zihuan¹, WANG Dong¹, WANG Laigui², ZHOU Zhiwei³, DING Chunjian³

¹ College of Mining, Liaoning Technical University, Fuxin Liaoning 123000, China
² School of Mechanics and Engineering, Liaoning Technical University, Fuxin Liaoning 123000, China
³ Guoneng Baori Hiller Energy Co., Ltd., Hulunbuir Inner Mongolia 021008, China

Received:2023-04-30 Revised:2023-06-28 Published:2023-09-28

摘要/Abstract

摘要：

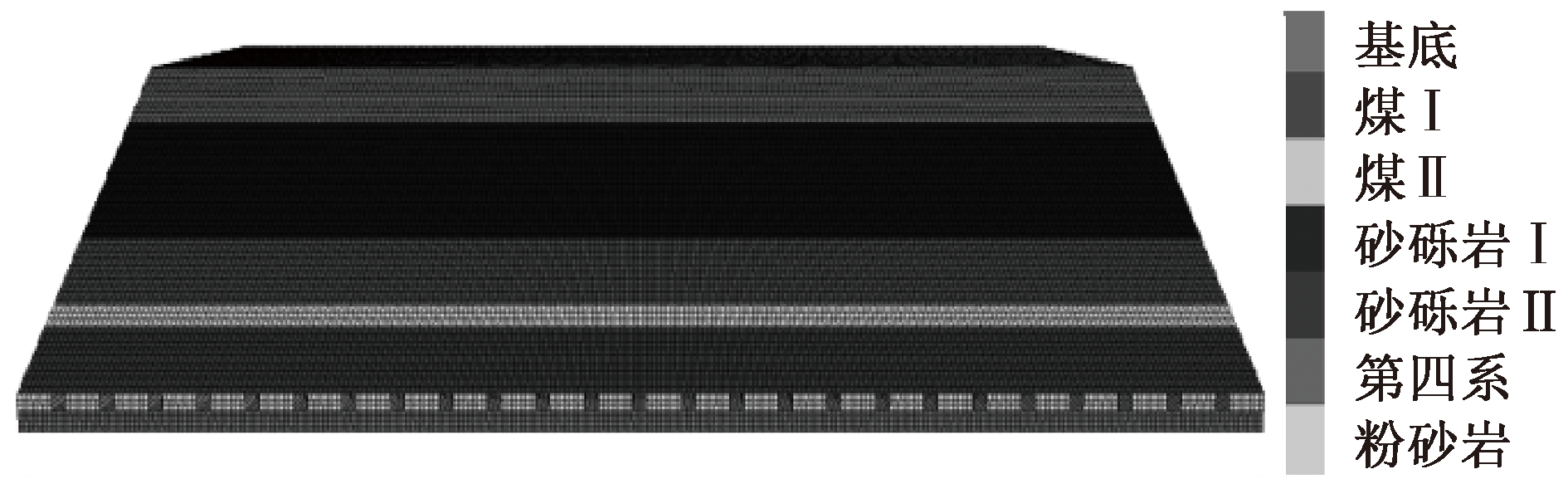

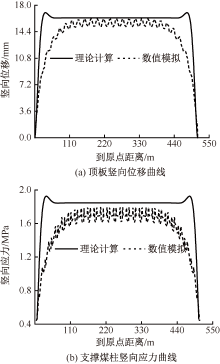

为探究露天矿端帮开采支撑煤柱失稳判据与支撑煤柱合理留设,实现露天矿端帮边坡与支撑煤柱最优形态参数设计,应用Winkler弹性地基理论,构建露天矿端帮开采下顶板-支撑煤柱力学承载模型,推导出顶板竖向位移及支撑煤柱竖向应力理论公式,并采用数值模拟方法验证理论计算结果,根据支撑煤柱安全系数要求,结合Wilson煤柱极限强度理论,建立露天矿端帮开采支撑煤柱失稳判据,从理论上揭示出露天矿端帮边坡与支撑煤柱形态参数对支撑煤柱安全系数的影响特征。研究结果表明:支撑煤柱安全系数与采深、边坡角及边坡高度呈负相关指数函数;与留设支撑煤柱总宽度呈正相关线性函数,顶板竖向位移及支撑煤柱竖向应力的理论计算曲线呈马鞍形分布,理论计算与数值模拟结果基本一致,证明理论计算具备一定的合理性与准确性。

关键词: 露天矿, 端帮开采, 支撑煤柱, 失稳判据, 弹性地基

Abstract:

To investigate the instability criteria of the rib pillar, determine the reasonable setting of the rib pillar during highwall mining in an open-pit coal mine and realize the optimal design of parameters for both the open-pit highwall and the rib pillar, a mechanical model of roof-rib pillar was constructed using Winkler elastic foundation theory. Theoretical formulas of vertical displacement of the roof and the vertical stress of the rib pillar during highwall mining were derived and validated through numerical simulation. Considering safety requirements for rid pillars, combined with Wilson's ultimate strength theory of the coal pillar, the instability criteria of rid pillars in open-pit mining was established. The study explored the impact of slope and pillar shape parameters on the safety of the rib pillar theoretically. The results show that the safety factor of the rib pillar exhibits a negative exponential correlation with mining depth, end-slope angle and end-slope height. Conversely, it shows a linear positive correlation with the total width of the coal pillar, and the theoretical curves of the vertical displacement of the roof and the vertical stress of the rib pillar exhibit a saddle-shaped distribution. Theoretical calculations are in good agreement with numerical simulation results, thereby verifying the rationality and accuracy of the theoretical calculations.

Key words: open-pit mine, highwall mining, rid pillar, instability criterion, elastic foundation

李广贺, 呼子桓, 王东, 王来贵, 周志伟, 丁春健. 露天矿端帮开采支撑煤柱失稳判据研究[J]. 中国安全科学学报, 2023, 33(9): 122-128.

LI Guanghe, HU Zihuan, WANG Dong, WANG Laigui, ZHOU Zhiwei, DING Chunjian. Study on instability criterion of rib pillars in open-pit during highwall mining[J]. China Safety Science Journal, 2023, 33(9): 122-128.

图/表 10

图1

图2

图3

表1

图4

图5

图6

图7

表2

表3

参考文献 15

[1]	才庆祥, 周伟, 舒继森, 等. 大型近水平露天煤矿端帮边坡时效性分析及应用[J]. 中国矿业大学学报, 2008, 37(6):740-744.
	CAI Qingxiang, ZHOU Wei, SHU Jisen, et al. Time-effect analysis and application of the end slope of a large near-level open-pit coal mine[J]. Journal of China University of Mining and Technology, 2008, 37(6):740-744.
[2]	王文才, 李俊鹏, 王创业, 等. 不同开采工况诱发边坡变形与时效稳定性分析[J]. 中国安全科学学报, 2022, 32(增1):72-78.
	WANG Wencai, LI Junpeng, WANG Chuangye, et al. Analysis on slope deformation and aging stability induced by different mining conditions[J]. China Safety Science Journal, 2022, 32(S1):72-78. doi: 10.16265/j.cnki.issn1003-3033.2022.S1.0003
[3]	郝建平, 张正林, 刘建国, 等. 露天矿端帮开采滞留煤炭远程控制技术[J]. 煤炭科学技术, 2016, 44(11):42-46.
	HAO Jianping, ZHANG Zhenglin, LIU Jianguo, et al. Remote control technology of high wall mining retained coal resources in surface mine[J]. Coal Science and Technology, 2016, 44(11):42-46.
[4]	黄天爽, 赵铭芳, 轩峰, 等. 端帮开采技术在露天煤矿的应用[J]. 露天采矿技术, 2020, 35(5):69-71.
	HUANG Tianshuang, ZHAO Mingfang, XUAN Feng, et al. Application of end slope mining technology in open-pit mine[J]. Opencast Mining Technology, 2020, 35(5):69-71.
[5]	李正胜, 李宏杰. 房柱式采空区影响下露天端帮煤开采安全控制技术[J]. 煤炭科学技术, 2020, 48(8):76-81.
	LI Zhengsheng, LI Hongjie. Safety control technology of open-pit end wall coal mining under influence of room pillar gob[J]. Coal Science and Technology, 2020, 48(8):76-81.
[6]	贺广零, 黎都春, 翟志文, 等. 采空区煤柱-顶板系统失稳的力学分析[J]. 煤炭学报, 2007, 32(9):897-901.
	HE Guangling, LI Duchun, ZHAI Zhiwen, et al. Analysis of instability of coal pillar and stiff roof system[J]. Journal of China Coal Society, 2007, 32(9):897-901.
[7]	陈彦龙, 吴豪帅. 露天矿端帮开采下的支撑煤柱突变失稳机理研究[J]. 中国矿业大学学报, 2016, 45(5):859-865.
	CHEN Yanlong, WU Haoshuai. Catastrophe instability mechanism of rib pillar in open-pit highwall mining[J]. Journal of China University of Mining & Technology, 2016, 45(5):859-865.
[8]	安百富, 张吉雄, 李猛, 等. 充填回收房式煤柱采场煤柱稳定性分析[J]. 采矿与安全工程学报, 2016, 33(2):238-243.
	AN Baifu, ZHANG Jixiong, LI Meng, et al. Stability of pillars in backfilling mining working face to recover room mining standing pillars[J]. Journal of Mining & Safety Engineering, 2016, 33(2):238-243.
[9]	姜聚宇, 杨慧雯, 王东, 等. 端帮开采支撑煤柱失稳演化机制试验研究[J]. 中国安全科学学报, 2021, 31(10):89-96.
	JIANG Juyu, YANG Huiwen, WANG Dong, et al. Experimental study on instability evolution mechanism of rib pillars during highwall mining[J]. China Safety Science Journal, 2021, 31(10):89-96. doi: 10.16265/j.cnki.issn1003-3033.2021.10.013
[10]	王旭春, 黄福昌, 张怀新, 等. AH威尔逊煤柱设计公式探讨及改进[J]. 煤炭学报, 2002, 27(6):604-608.
	WANG Xuchun, HUANG Fuchang, ZHANG Huaixin, et al. Discussion and improvement for A.H. Wilson's coal pillar design[J]. Journal of China Coal Society, 2002, 27(6):604-608.
[11]	王瑞, 闫帅, 柏建彪, 等. 端帮开采下煤柱破坏宽度计算及失稳机制研究[J]. 岩土力学, 2019, 40(8):3167-3180.
	WANG Rui, YAN Shuai, BAI Jianbiao, et al. Theoretical analysis of the destabilization mechanism and the damaged width of rib pillar in open-pit highwall mining[J]. Rock and Soil Mechanics, 2019, 40(8):3167-3180.
[12]	刘文岗, 王雷石, 富强. SHM端帮开采技术及其应用的关键问题[J]. 煤炭工程, 2012, 44(6):1-4.
	LIU Wen'gang, WANG Leishi, FU Qiang. SHM highwall mining technology and key issues of application[J]. Coal Engineering, 2012, 44(6):1-4.
[13]	丁鑫品. 露天矿端帮采场边坡变形失稳特征与支撑煤柱稳定性判别方法[J]. 煤矿安全, 2022, 53(3):229-235.
	DING Xinpin. Deformation and instability characteristics of slope and stability discrimination method of sup-porting coal pillars for end-slope mining field in open-pit mine[J]. Safety in Coal Mines, 2022, 53(3):229-235.
[14]	安泰龙, 王栋. 东胜神东矿区露天矿端帮压煤充填回收煤柱稳定性分析[J]. 煤炭技术, 2021, 40(9):42-46.
	AN Tailong, WANG Dong. Analysis on stability of coal pillar during extracting under-slope coal in open-pit mine in Dongsheng Shendong mining area[J]. Coal Technology, 2021, 40(9):42-46.
[15]	冯强, 刘炜炜, 伏圣岗, 等. 基于弹性地基梁采场坚硬顶板变形与内力的解析计算[J]. 采矿与安全工程学报, 2017, 34(2):342-347.
	FENG Qiang, LIU Weiwei, FU Shenggang, et al. Analytical solution for deformation and internal force of hard roof in stope based on elastic foundation beam[J]. Journal of Mining & Safety Engineering, 2017, 34(2):342-347.

岩性	厚度/m	密度/(kg·m^-3)	弹性模量/GPa	泊松比	内摩擦角/(°)	黏聚力/kPa	抗拉强度/MPa
第四系	23	1 920	0.05	0.42	15	17	0.87
砂砾岩Ⅰ	40	1 831	1.3	0.4	33.5	25.6	0.51
煤Ⅰ	19	1 178	0.96	0.34	34	56	0.68
粉砂岩	7	1 941	0.8	0.39	35	65.4	1.31
砂砾岩Ⅱ	17	1 831	1.3	0.4	33.5	25.6	0.51
煤Ⅱ	6	1 178	0.96	0.34	34	56	0.68

采深d/m	煤柱总宽度N/m	边坡角θ/(°)	边坡高度H/m	与安全系数F的关系式
d	280	28	100	F=1.344×0.992d+1.207
300	N	28	100	F=0.011N-1.688
300	280	θ	100	F=0.701exp(-θ/275.984)+2.212
300	280	28	H	F=2.068 9exp(-H/54.339)+1.056

煤柱数量n/个	煤柱宽度a/m	采深d/m	回采率k/%	预计回采煤量Q/t
38	7.684	300	43.19	399 593.9
39	7.333	300	44.36	410 418.7
40	7.000	300	45.53	496 173.6
41	6.683	282.361	43.95	406 625.4
42	6.381	234.357	37.39	345 932.3
